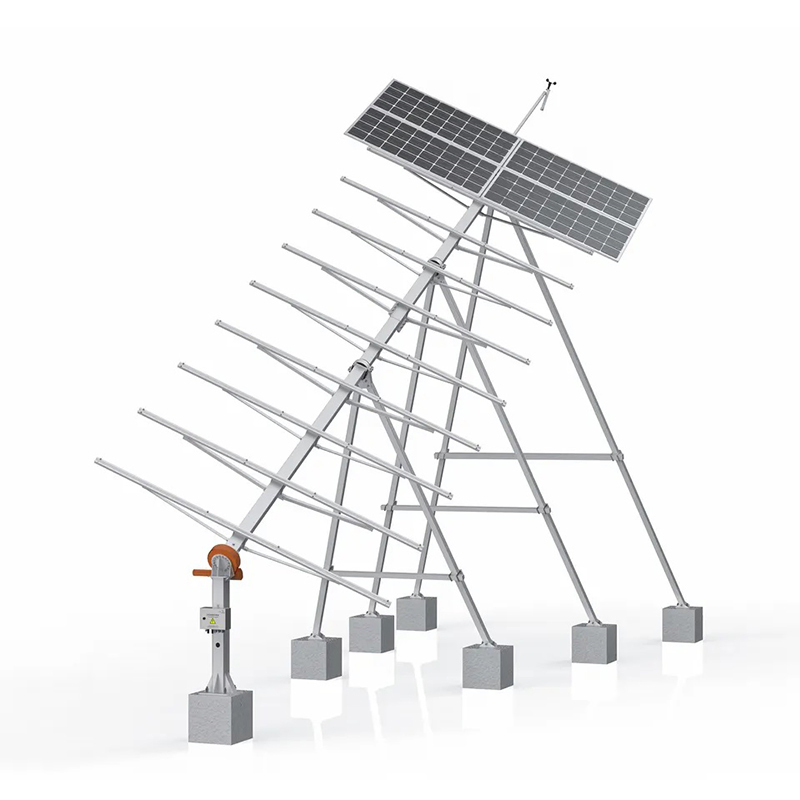

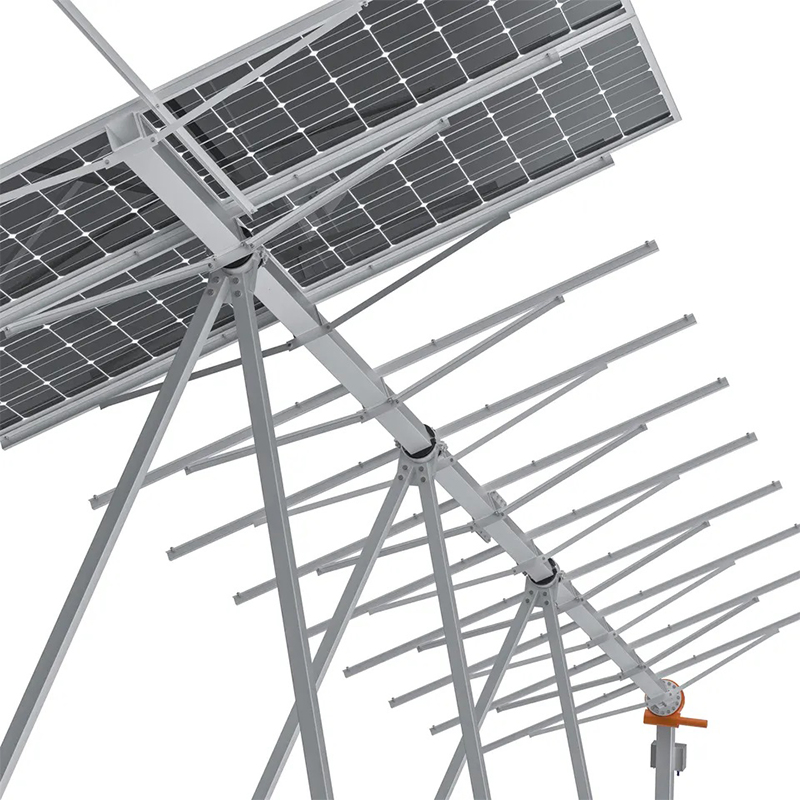

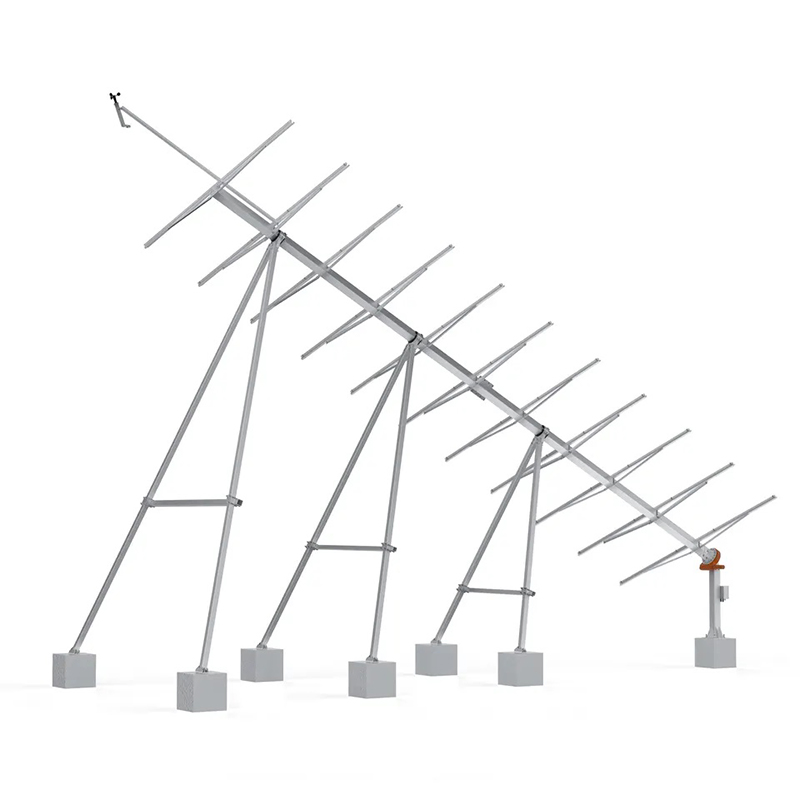

Tilt Solar Panel Tracker Single Axis Solar Tracking Bracket System
Tilt Solar Panel Tracker Single Axis Solar Tracking Bracket System
Tilt Solar Panel Tracker Single Axis Solar Tracking Bracket System
Tilt Solar Panel Tracker Single Axis Solar Tracking Bracket System
Tilt Solar Panel Tracker Single Axis Solar Tracking Bracket System
1 / 5
Tilt Solar Panel Tracker Single Axis Solar Tracking Bracket System
Tilt Solar Panel Tracker Single Axis Solar Tracking Bracket System
Tilt Solar Panel Tracker Single Axis Solar Tracking Bracket System
Tilt Solar Panel Tracker Single Axis Solar Tracking Bracket System
Tilt Solar Panel Tracker Single Axis Solar Tracking Bracket System

Tilt Solar Panel Tracker Single Axis Solar Tracking Bracket System

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

📊 Basic Information
Model NO.
SAST
Certification
ISO, TUV, CE
Application
Industrial
Material
Stainless Steel
Type
Tracking Bracket
Product Name
Single Axis Solar Tracker
Module Size
1650*992*40mm
Weight
1300~3000kg
Scope of Rack
80~200m2
Power Supply
110V / 220V
Driving Power
90~180W
Protection Level
IP65
Origin
China
Production Capacity
100000 Watts Per Month
📦 Packaging & Delivery
Package Size
170.00cm * 105.00cm * 10.00cm
Gross Weight
3000.000kg
⚙️ Technical Specification
Tracker Structure Tracking Controller
ModelSAST Controller TypeMCU (32bit)
Solar Panel Type1650*992*35mm (78 Cells) Control AlgorithmAstronomical Algorithm + Position Sensor Closed Loop Control
Number of Panels40~108 PCS CommunicationRS485 / Bluetooth / WIFI / 4G
Grid Area≈80~200 m2 Wind ProtectionAvailable
Bracket MaterialHot-Dip Galvanized Steel Q235B / Q355B Tracking Accuracy≤±2°
Safe Wind Speed17 m/s Survival Wind Speed27~37m/s (Customizable <60m/s)
Azimuth Range (X)-45°~+45° Azimuth Range (Y)-60°~60°
🖼️ Product Description

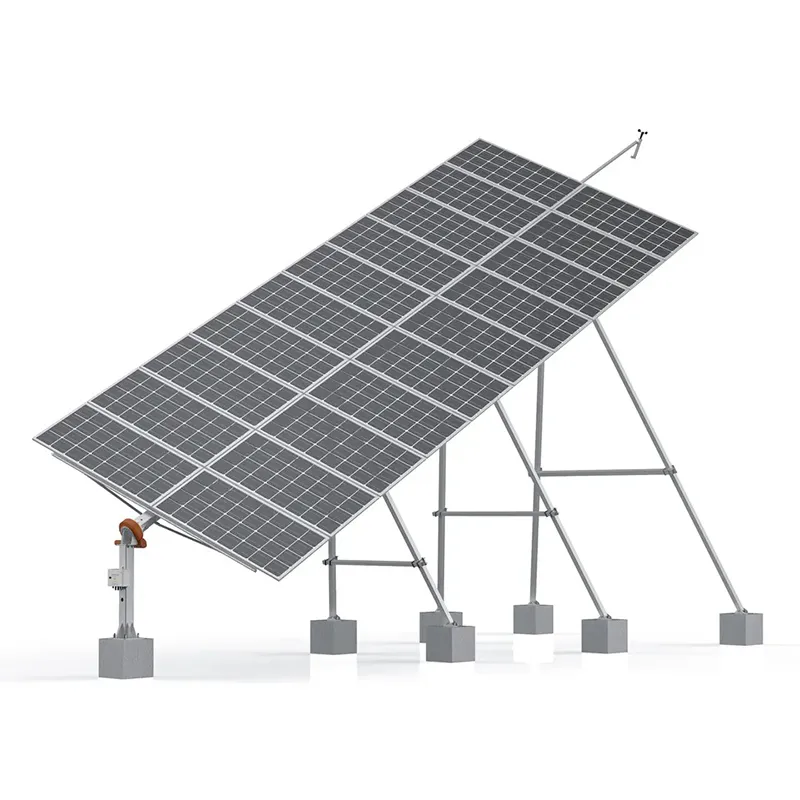

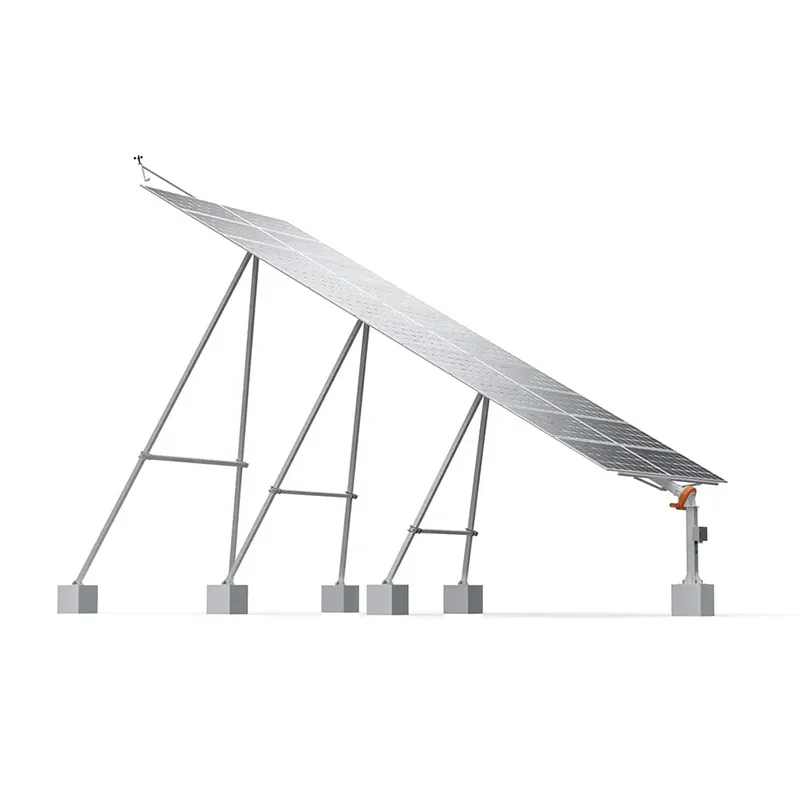

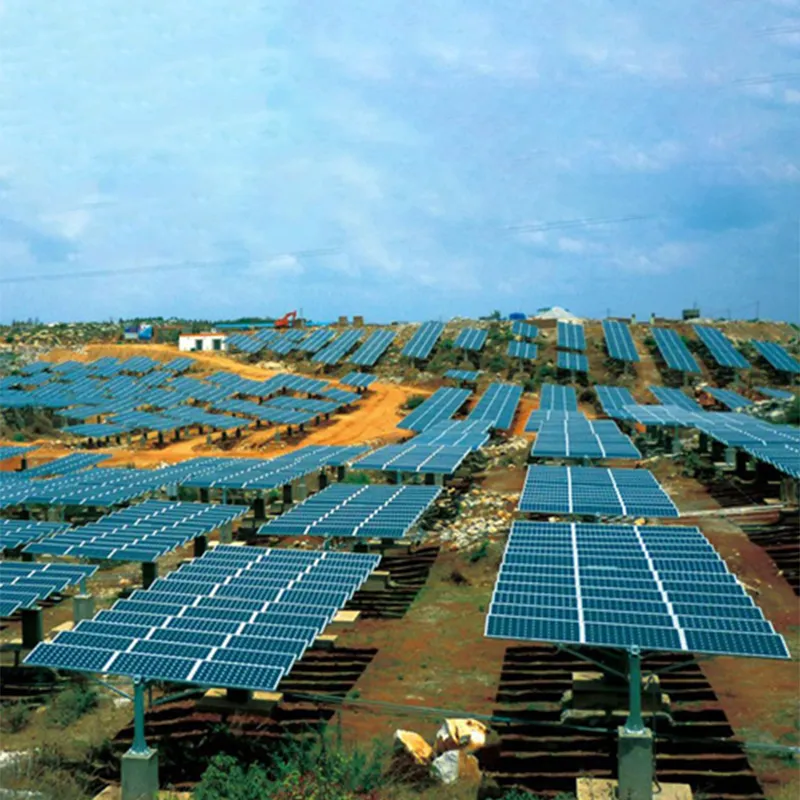

Tracker Details
Tracker Details
Tracker Details
Tracker Details

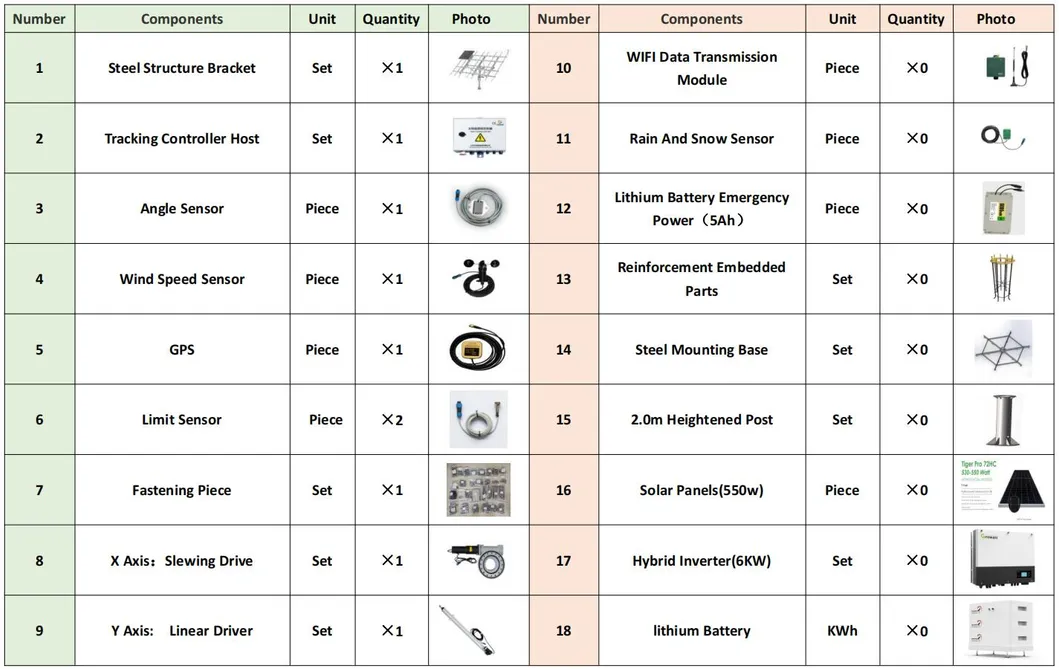

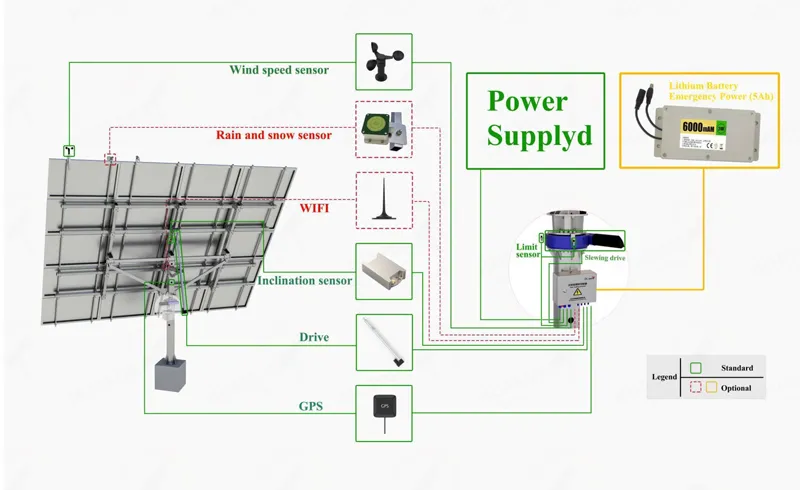

System Specs
System Specs
🌍 Application Areas & Projects
Application

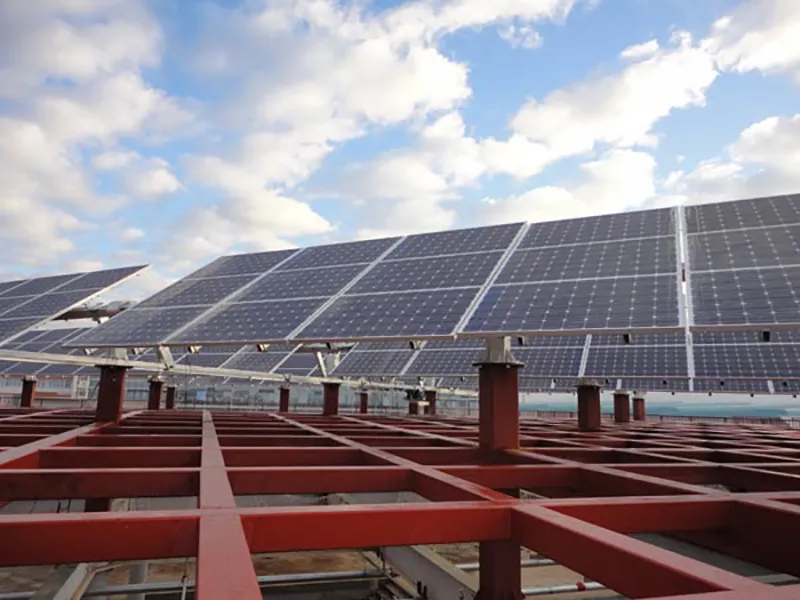

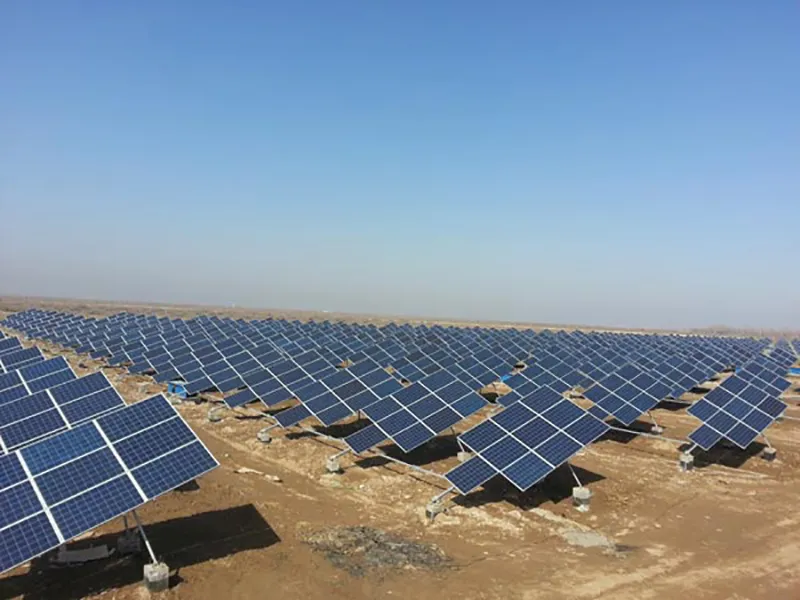

Project Case
Project Case
Project Case

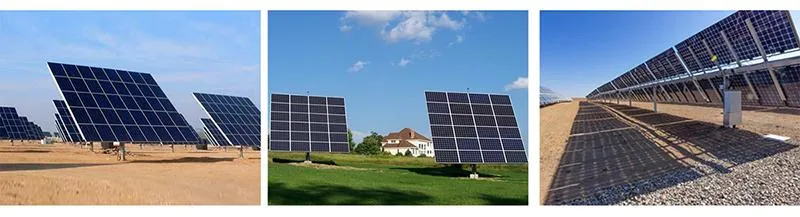

Comparison
📜 Certifications
Certifications
❓ Frequently Asked Questions
What is the tracking accuracy of the Single Axis Solar Tracker?
The system utilizes a 32-bit MCU controller with an astronomical algorithm and position sensor closed-loop control, achieving a tracking accuracy of ≤±2°.
How does the system handle high wind speeds?
The bracket is designed with a safe working wind speed of 17 m/s and a survival wind speed of 27~37 m/s. Wind speed protection can be customized to withstand up to 60 m/s.
What materials are used in the bracket construction?
The main structure is made of hot-dip galvanized steel (Q235B / Q355B) with a galvanizing thickness of >85um. Fasteners are made of A2-70 304 stainless steel for superior corrosion resistance.
What is the protection level of the electronics?
The system features an IP65 protection level, making it suitable for industrial outdoor environments and resistant to dust and water ingress.
Does the tracker support remote monitoring?
Yes, the system supports RS485 protocol and Bluetooth for local networking, with optional WIFI and 4G modules available for remote network communication.
What are the power requirements and consumption?
The system operates on AC 100V~240V or DC24V. It has a driving power of 90~180W and a very low daily power consumption of less than 0.25~1kWh.
