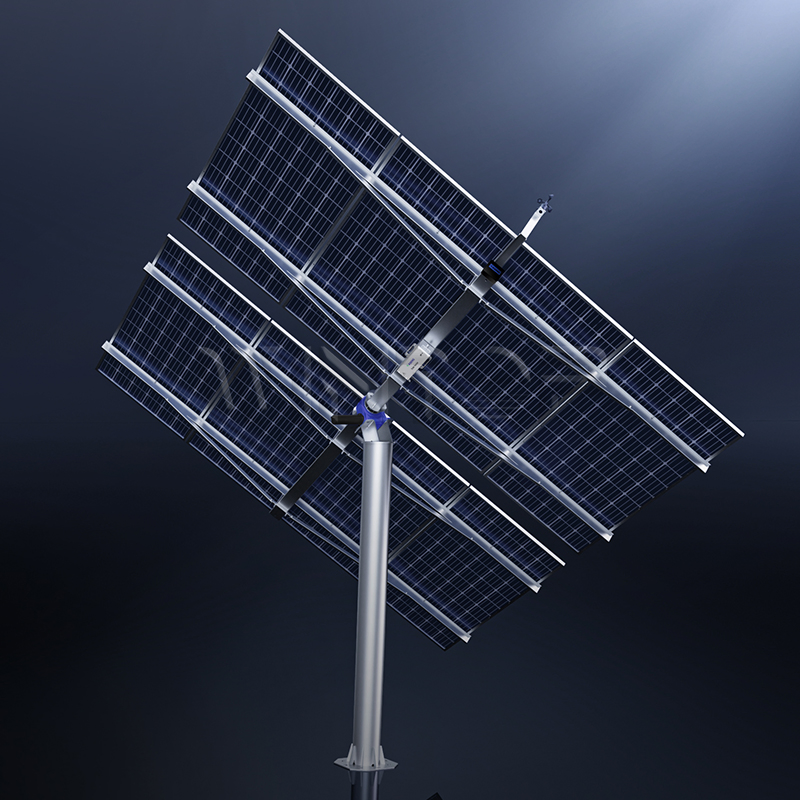

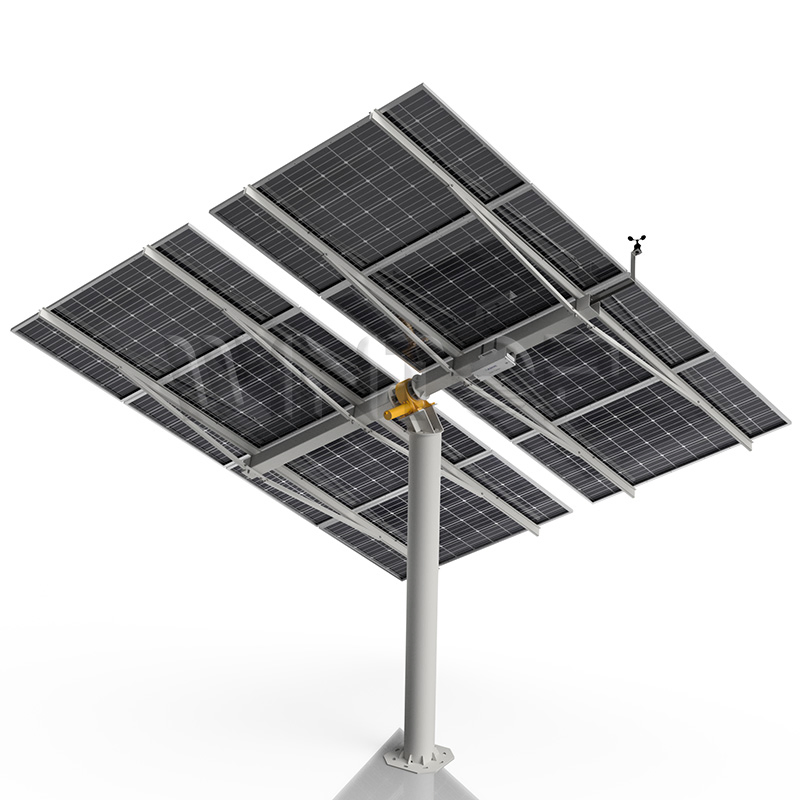

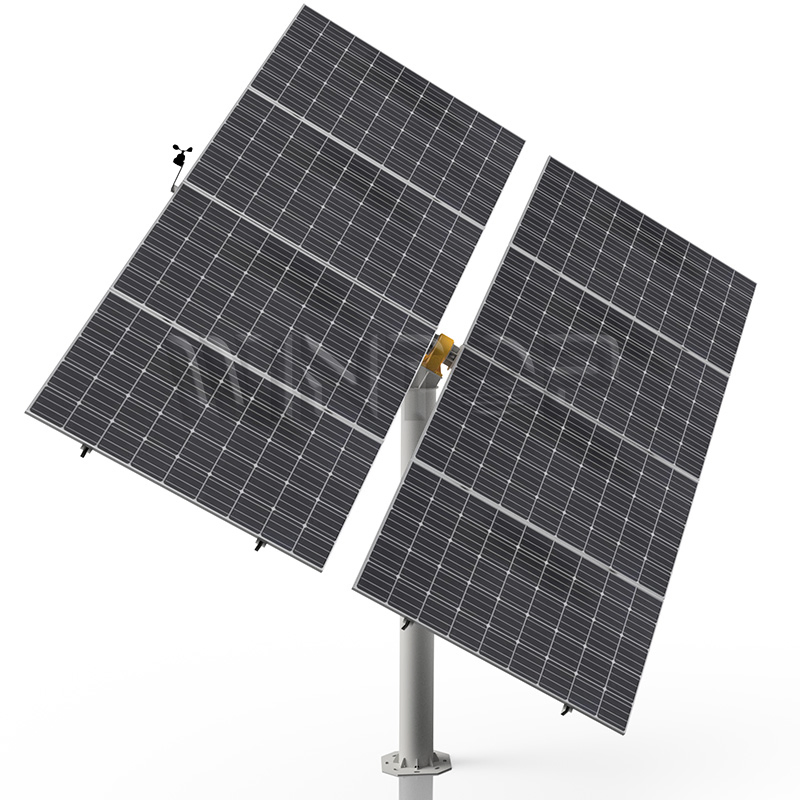

Horizontal Single Axis Tracker for Solar Panel
The single post solar tracking system is fully compatible with 210 silicon wafer modules. This single post solar tracker is a double-row small solar tracker supported by only one column. It features a built-in inclination sensor and intelligent wind speed protection. It allows for flexible selection between AC power supply or self-power supply based on site requirements.
| PV-Modules & Structure Details | |
|---|---|
| PV-Modules supported | Fully fit for 210 module |
| System type | Single post tracking system |
| Maximum capacity per set | 4.8kWp (Estimated with 600W modules) |
| Tracking Range | ±45° (E-W) |
| Tracking accuracy | ±0.5° |
| Tracking type | Single axis tracking with tilt angle |
| Tilt angle | 25°- 40° (S-N) (Project dependent) |
| Structural Materials | HDG Steel, Al-Mg-Zn Coating Steel |
| Solar tracking method | Astronomical algorithm + closed-loop control (AI) |

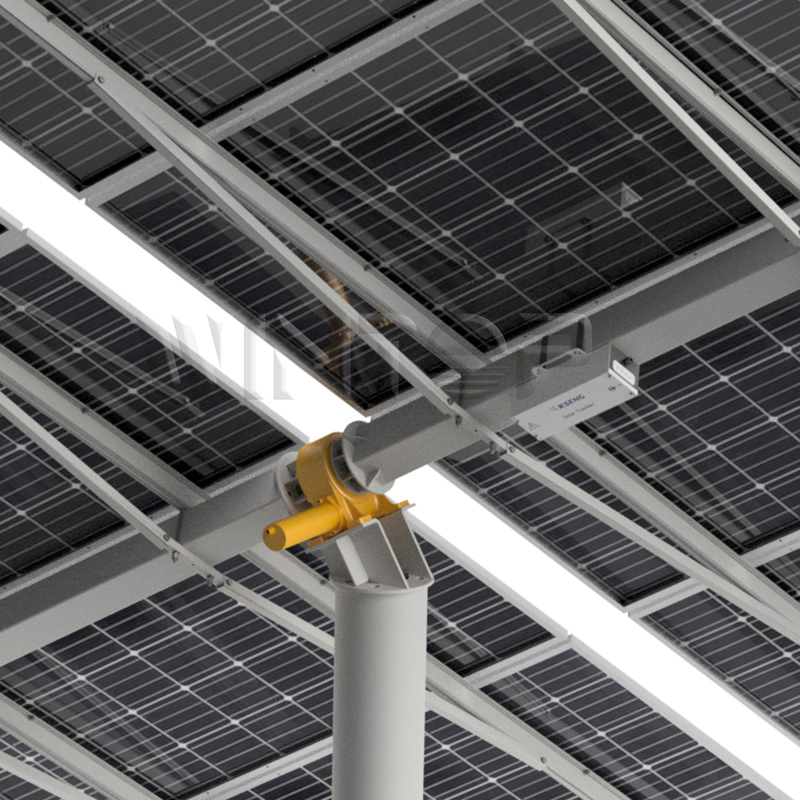

| Drive method | Slew Drive |
| Power supply | AC-powered or self-powered |
| Wind protection | ≥18m/s |
| Operating temperature | -30°C ~ +60°C |

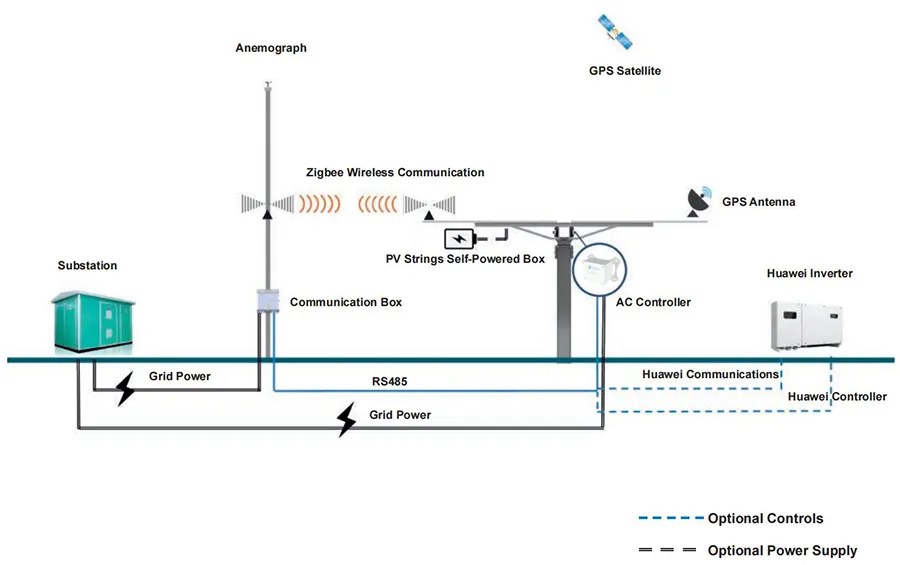

Electrical Principle
