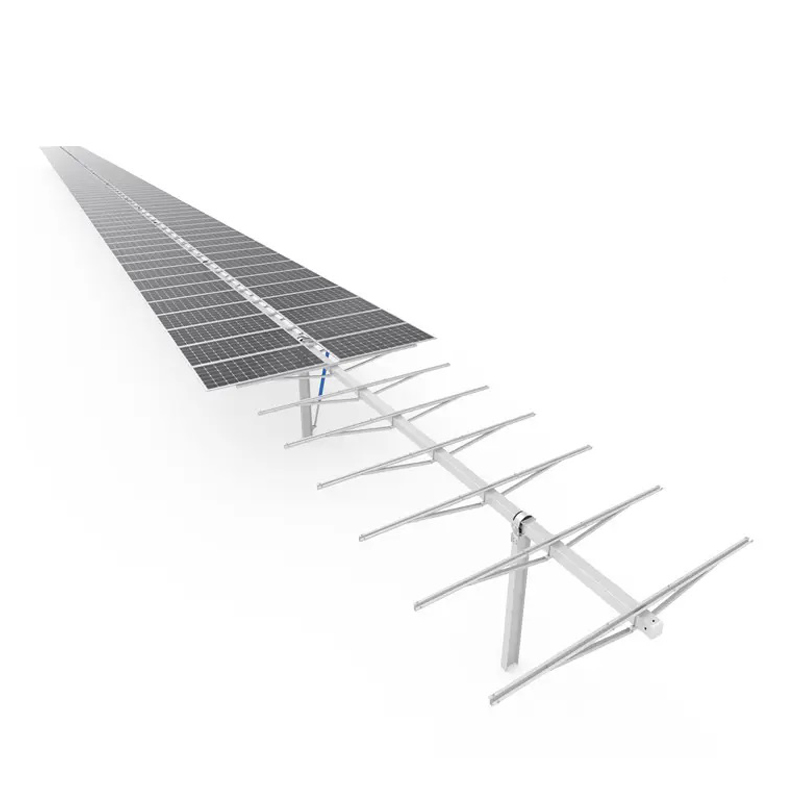

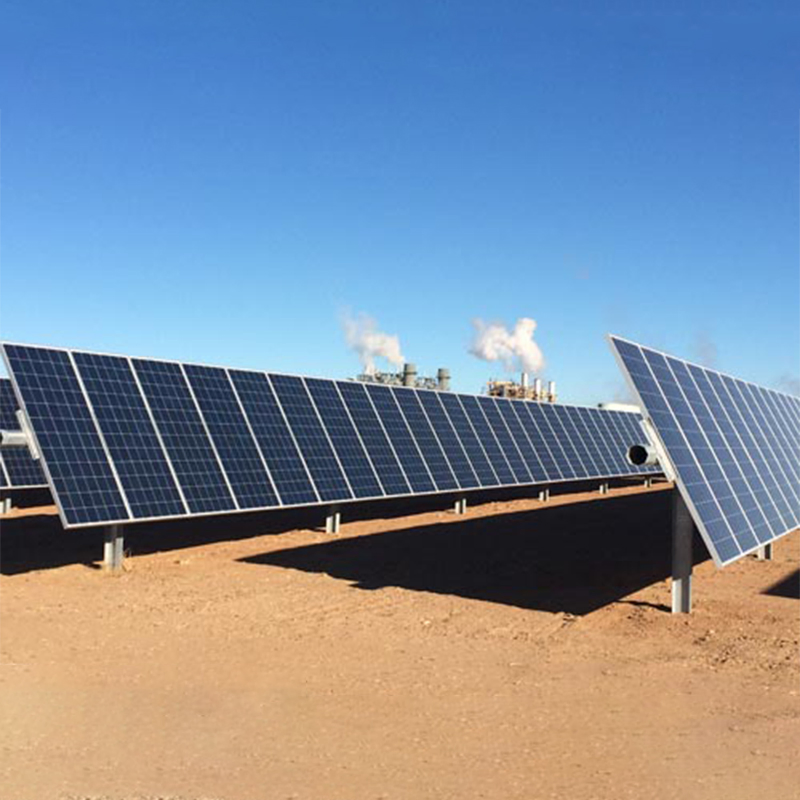

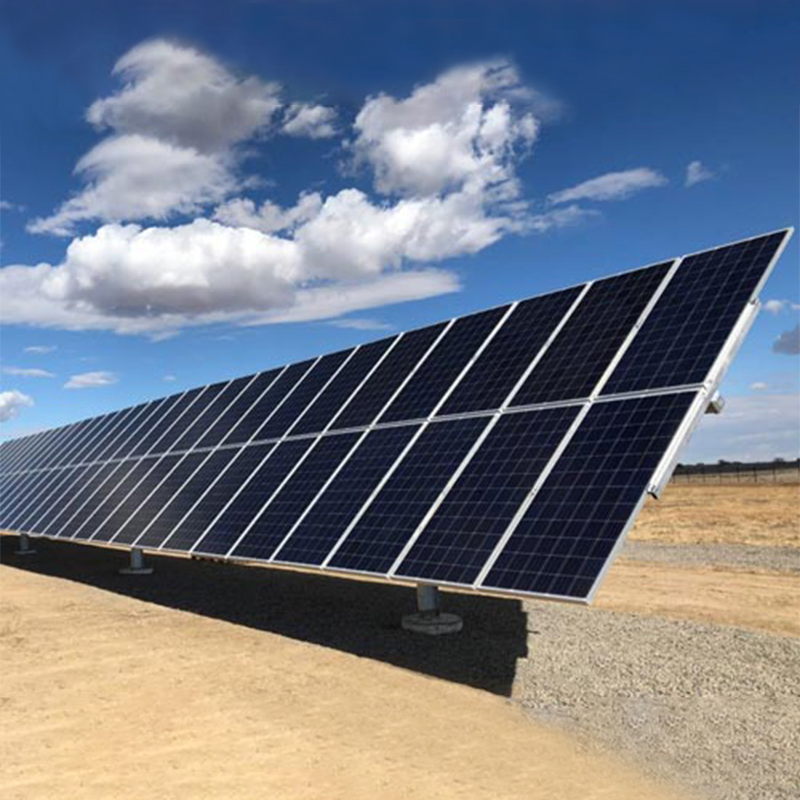

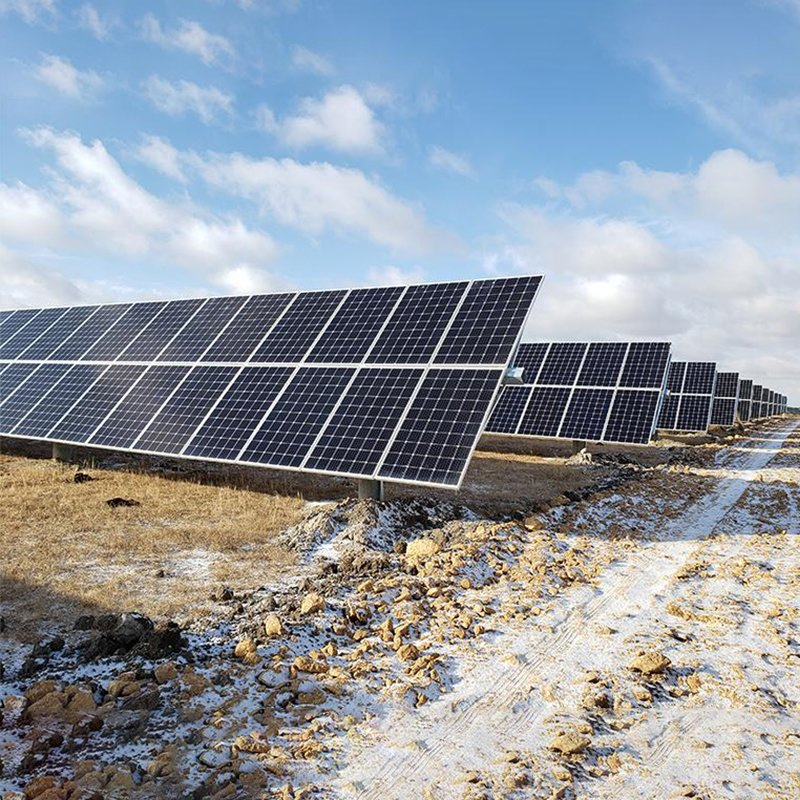

Solar Panel Mounting Bracket Follow Sun Solar Tracking System Single Axis Solar Tracker
Solar Panel Mounting Bracket Follow Sun Solar Tracking System Single Axis Solar Tracker
Solar Panel Mounting Bracket Follow Sun Solar Tracking System Single Axis Solar Tracker
Solar Panel Mounting Bracket Follow Sun Solar Tracking System Single Axis Solar Tracker
Solar Panel Mounting Bracket Follow Sun Solar Tracking System Single Axis Solar Tracker
1 / 5
Solar Panel Mounting Bracket Follow Sun Solar Tracking System Single Axis Solar Tracker
Solar Panel Mounting Bracket Follow Sun Solar Tracking System Single Axis Solar Tracker
Solar Panel Mounting Bracket Follow Sun Solar Tracking System Single Axis Solar Tracker
Solar Panel Mounting Bracket Follow Sun Solar Tracking System Single Axis Solar Tracker
Solar Panel Mounting Bracket Follow Sun Solar Tracking System Single Axis Solar Tracker

Solar Panel Mounting Bracket Follow Sun Solar Tracking System Single Axis Solar Tracker

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

Basic Info.

Model NO.
SAST
Certification
ISO, TUV, CE
Application
Industrial
Material
Stainless Steel
Type
Tracking Bracket
Product Name
Single Axis Solar Tracker
Module Size
1650*992*40mm
Weight
1300kg
Scope of Rack
100~200m2
Power Supply
110V / 220V
Protection Level
IP65
Origin
China

Technical Specifications

Tracker Structure Tracking Controller
ModelSAST Controller TypeMCU (32bit)
Solar Panel Type1650*992*35mm (78 Cells) Control AlgorithmAstronomical Algorithm / Closed Loop
Ground Clearance400 mm ProtocolRS485
Safe Working Wind Speed17 m/s Wind ProtectionAvailable
Survival Wind Speed37m/s (Customizable < 60m/s) Night Return ModeAvailable
Bracket MaterialHot-Dip Galvanized Steel Tracking Accuracy≤±2°
Azimuth Range (X Axis)-45°~+45° System VoltageDC24
Azimuth Range (Y Axis)-60°~60° Working Temp.-30ºC to +70ºC (Customizable)

Product Description

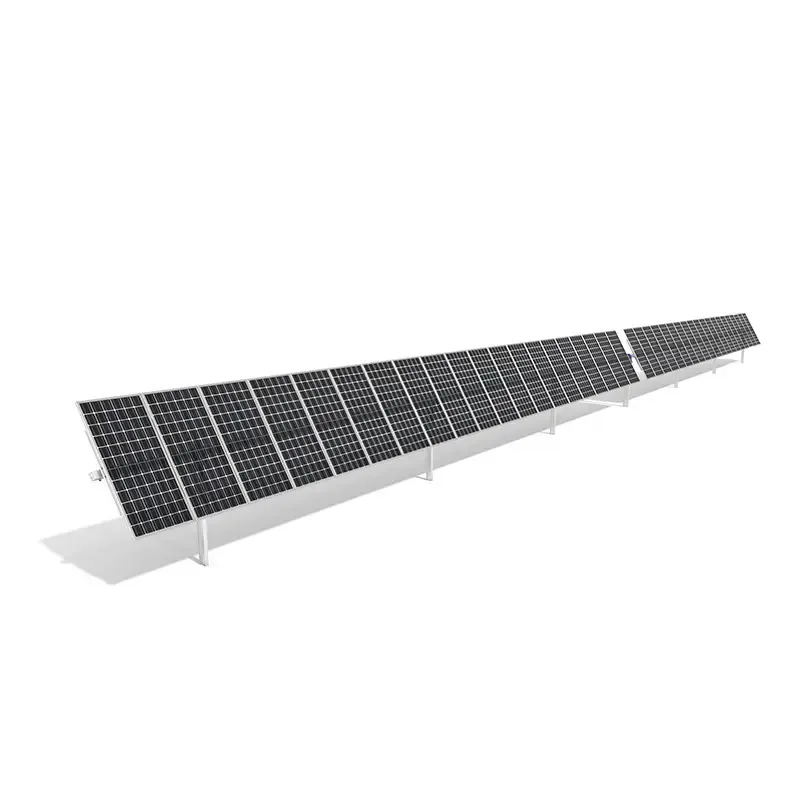

Single Axis Solar Tracker 1

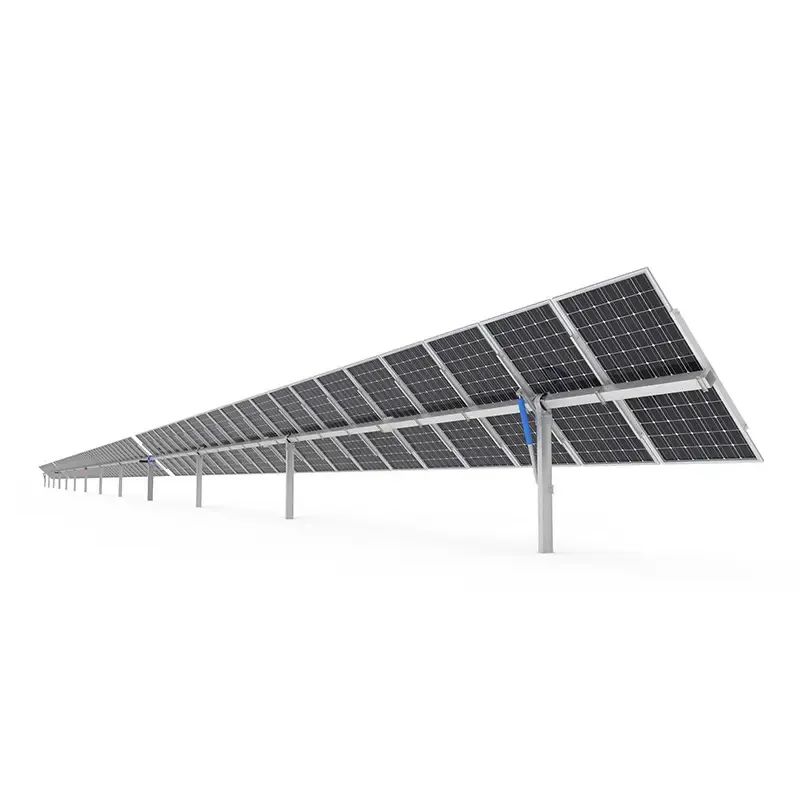

Single Axis Solar Tracker 2
Single Axis Solar Tracker 3
Single Axis Solar Tracker 4

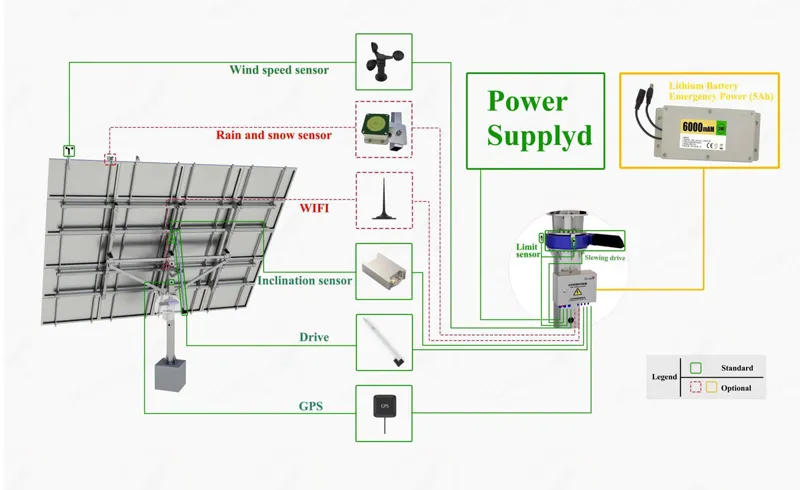

Single Axis Solar Tracker 5

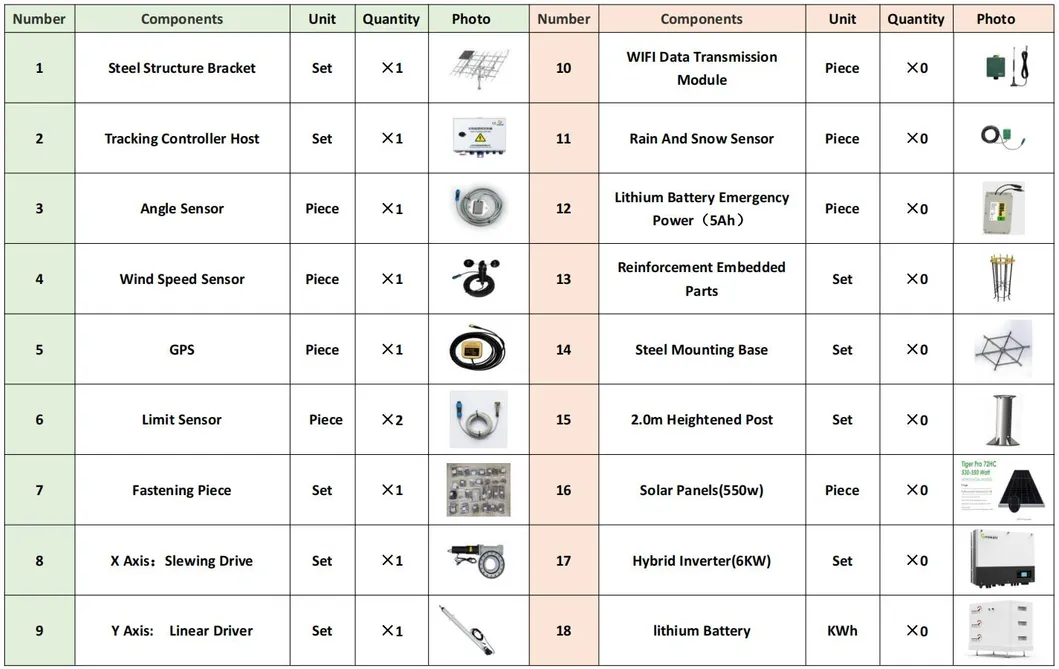

Single Axis Solar Tracker 6

Application & Project Cases

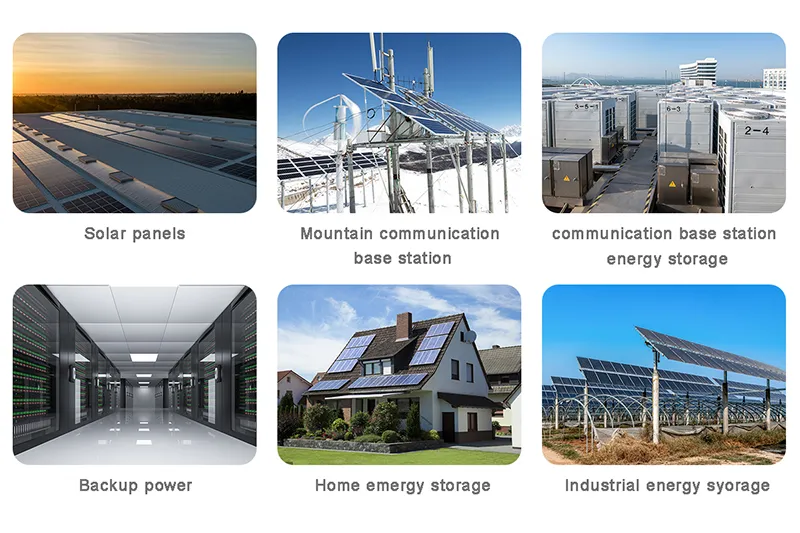

Application Areas

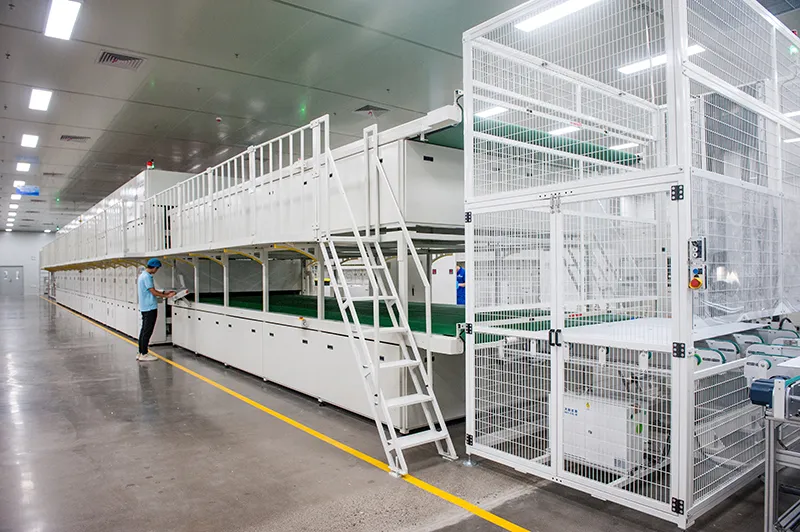

Production Facility 1

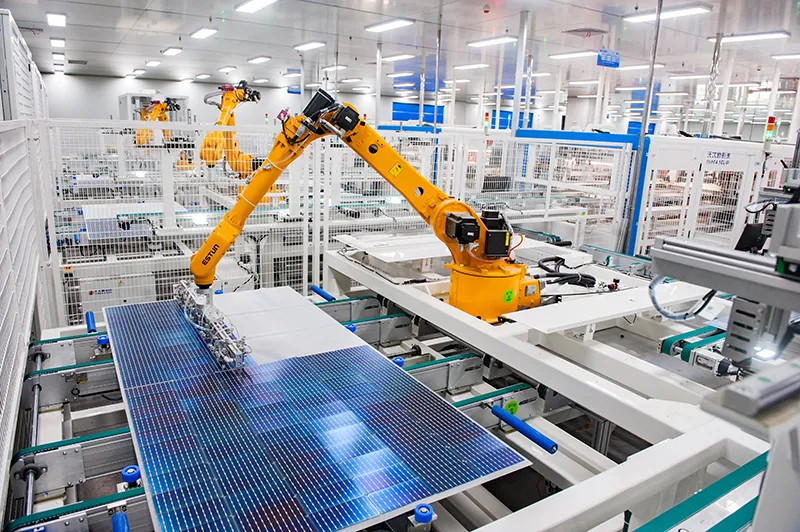

Production Facility 2

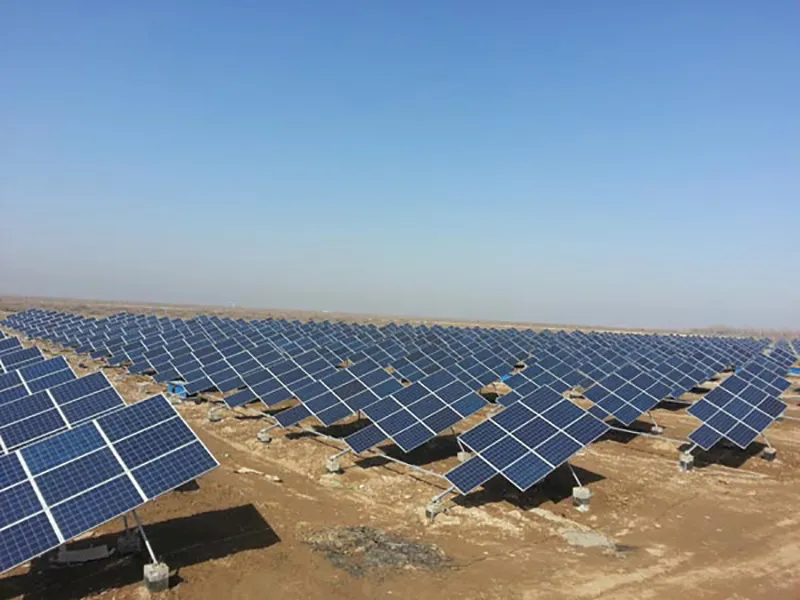

Project Case 1

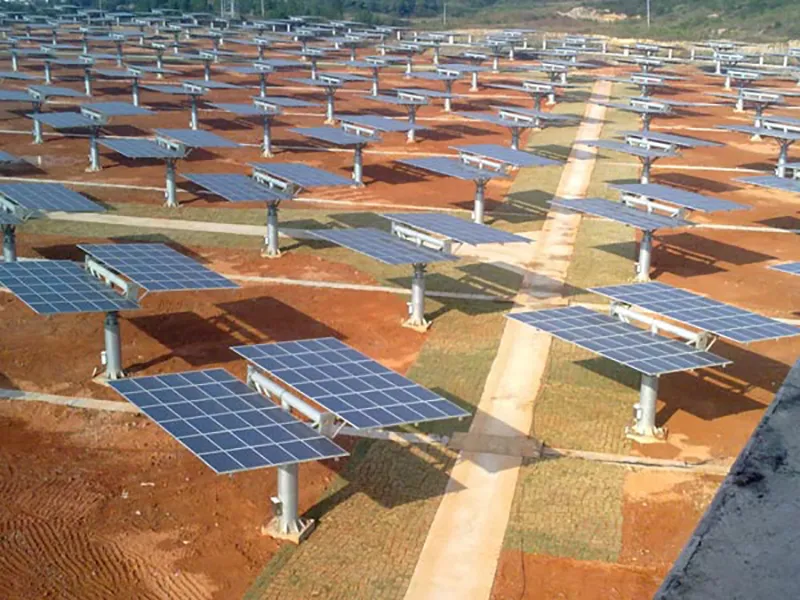

Project Case 2

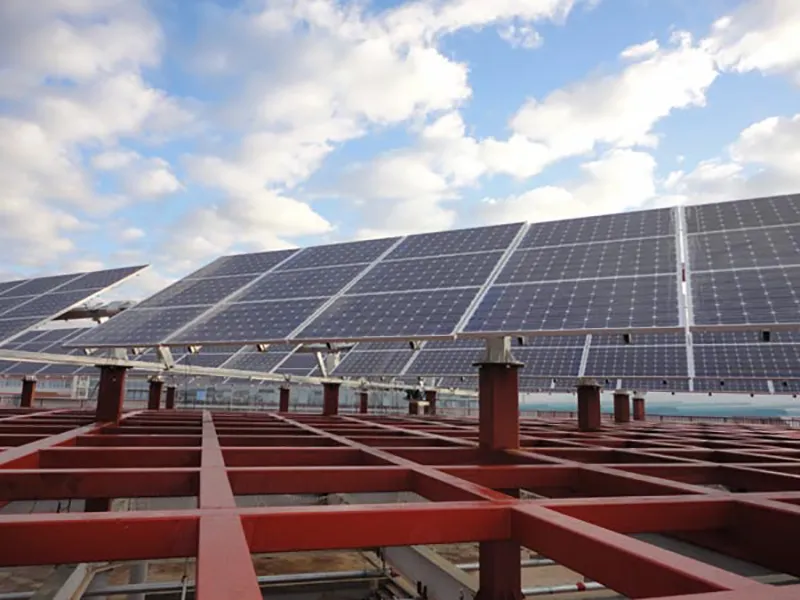

Project Case 3

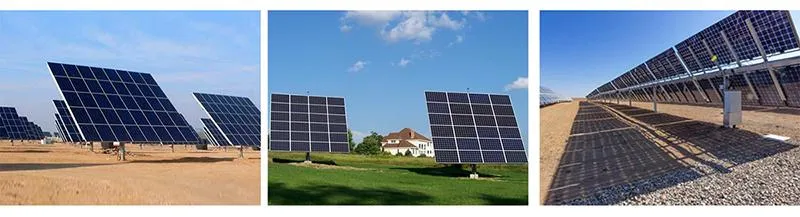

Panoramic Project View

Certifications

Product Certifications

Frequently Asked Questions

What is a Single Axis Solar Tracker?
It is a device that orients solar panels toward the sun along one axis to maximize energy capture throughout the day, increasing efficiency compared to fixed mounts.
What is the tracking accuracy of this system?
The system features a tracking accuracy of ≤±2°, utilizing an astronomical algorithm and position sensor closed-loop control.
How does the system handle high wind speeds?
The system is designed with a safe working wind speed of 17 m/s and a survival wind speed of 37 m/s, which can be customized up to 60 m/s.
What materials are used for the structure?
The bracket is made of Hot-Dip Galvanized Steel (Q235B / Q355B) with a galvanizing thickness of >85um for superior corrosion resistance.
Can the system operate in extreme temperatures?
Yes, the normal working temperature ranges from -30ºC to +70ºC, and it can be customized to withstand -50ºC to +85ºC.
What are the power requirements?
The system supports AC 100V~240V power supply with a low daily power consumption of less than 0.25~1kwh.
