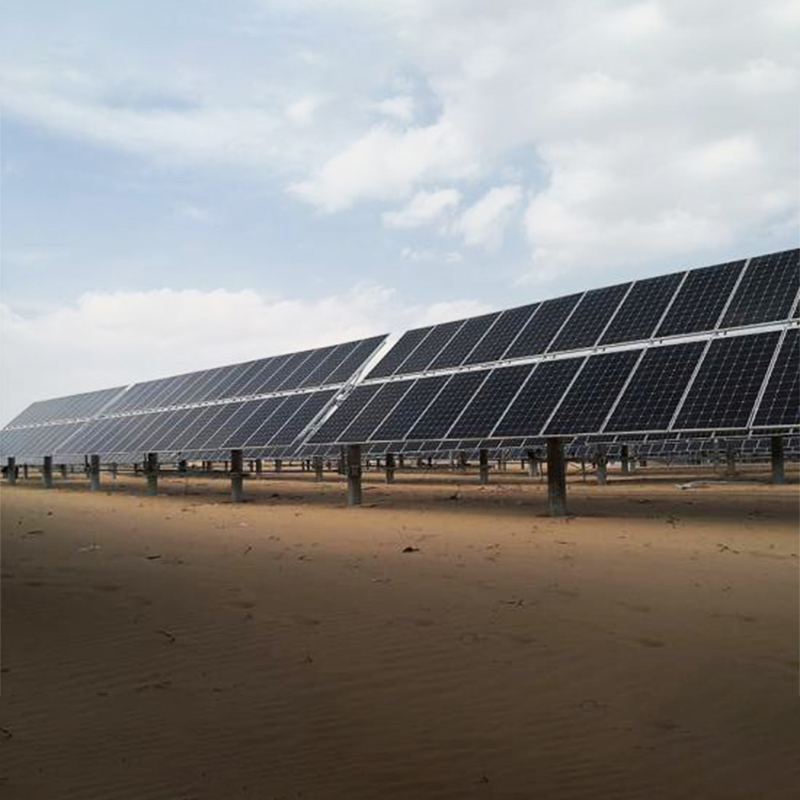

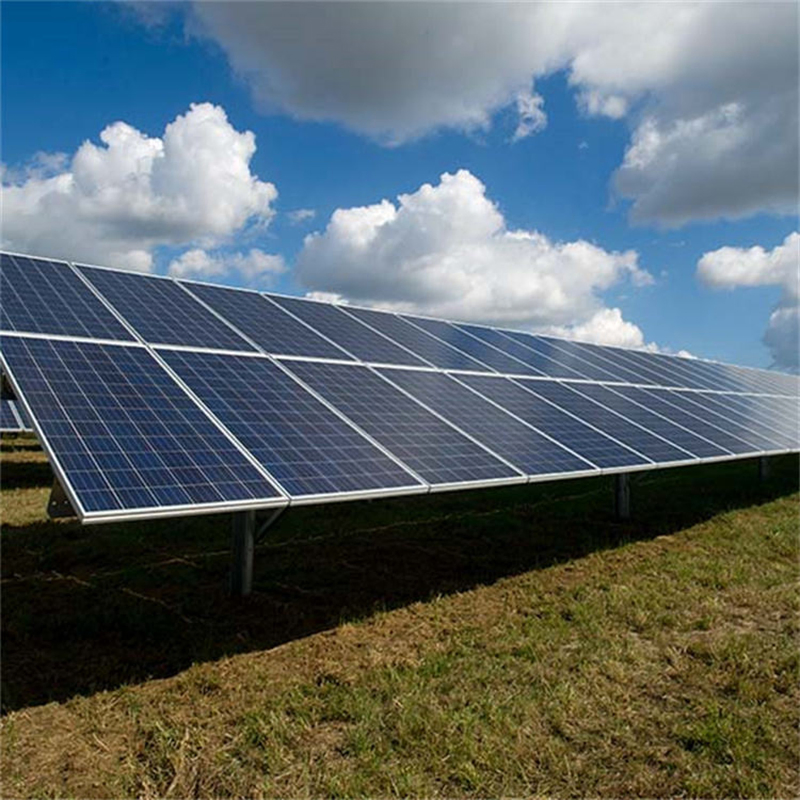

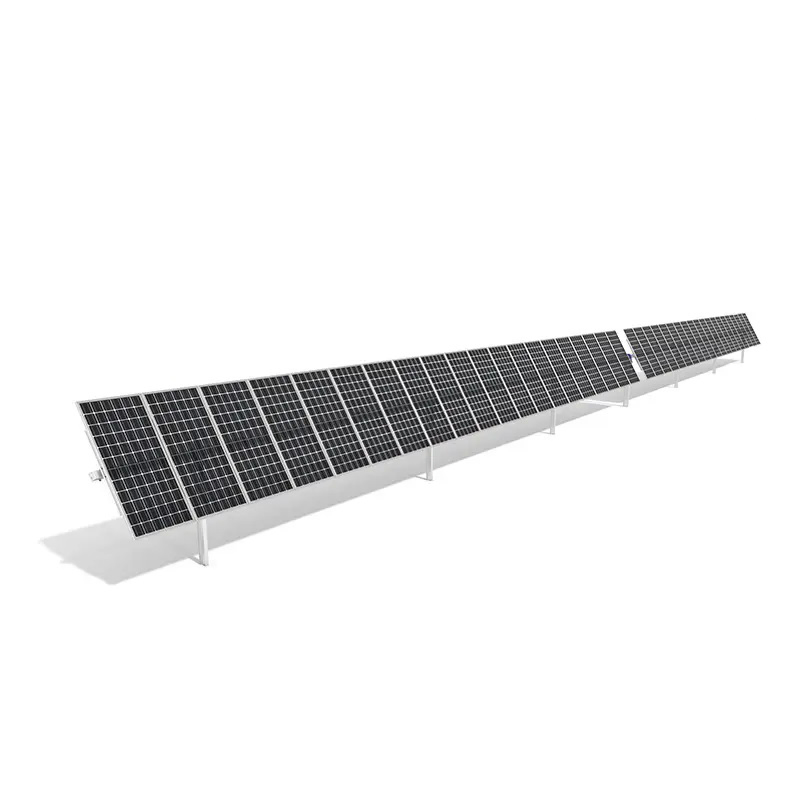

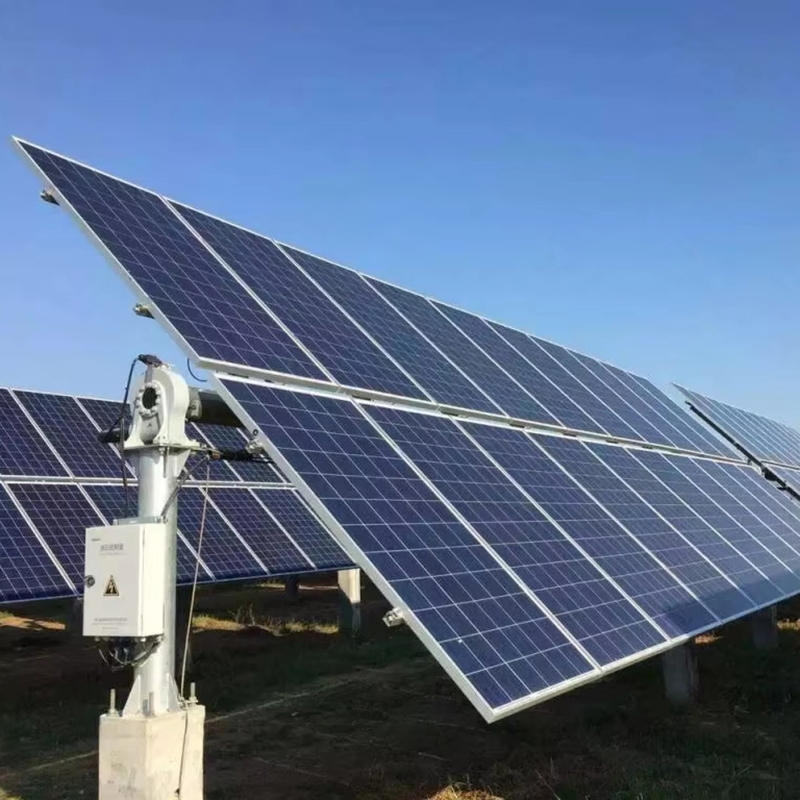

Slewing Drive Ground Mounting 0.5kw~100kw Single Axis Solar Tracker Bracket System
📋 Overview
| Model NO. |
SAST |
Certification |
ISO, TUV, CE |
| Application |
Industrial |
Material |
Stainless Steel |
| Type |
Tracking Bracket |
Product Name |
Single Axis Solar Tracker |
| Module Size |
1650*992*40mm |
Weight |
1300kg |
| Scope of Rack |
100~200m2 |
Power Supply |
110V / 220V |
| Driving Power |
90~180W |
Daily Power Consumption |
<0.25~1kwh |
| Protection Level |
IP65 |
Communication Protocol |
RS485 |
| Production Capacity |
100000 Watts Per Month |
Origin |
China |
⚙ Product Parameters
| Tracker Structure |
Tracking Controller |
| Model |
SAST |
Controller Type |
MCU (32bit) |
| Solar Panel Type |
1650*992*35mm (78 Cells) |
Control Algorithm |
Astronomical Algorithm + Closed Loop |
| Panel Arrangement |
Vertical |
Wind Protection |
Yes |
| System Weight |
≈ 1300 kg/Set |
Protection Level |
IP65 |
| Safe Wind Speed |
17 m/s |
Survival Wind Speed |
37m/s (Customizable <60m/s) |
| Bracket Material |
Hot-Dip Galvanized Steel |
Tracking Accuracy |
≤±2° |
| Main Material |
Q235B / Q355B |
System Voltage |
DC24 |
| Tracking Range (X) |
-45°~+45° |
Tracking Range (Y) |
-60°~60° (Customizable) |

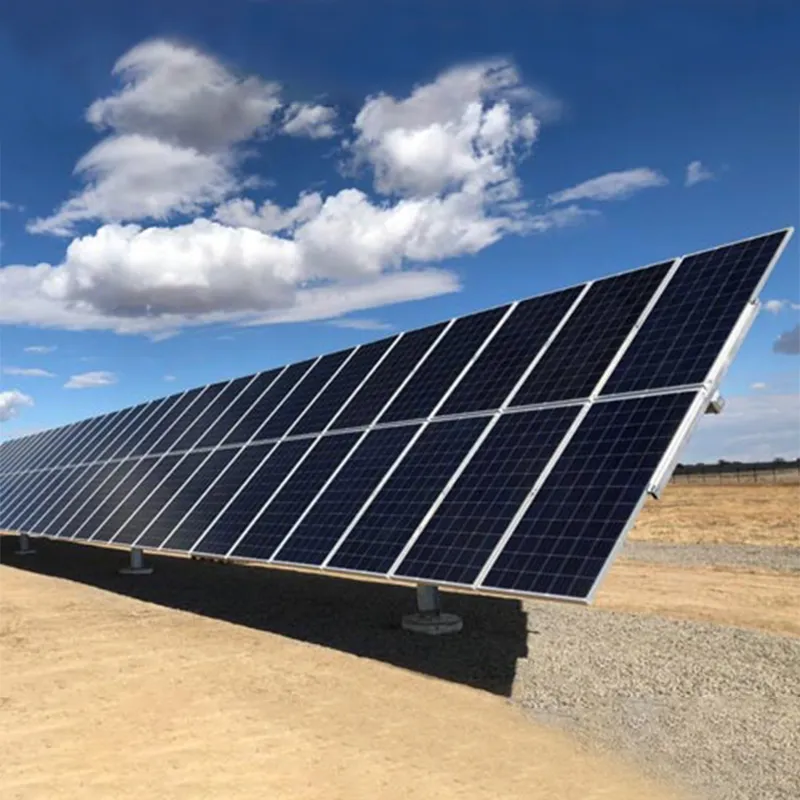

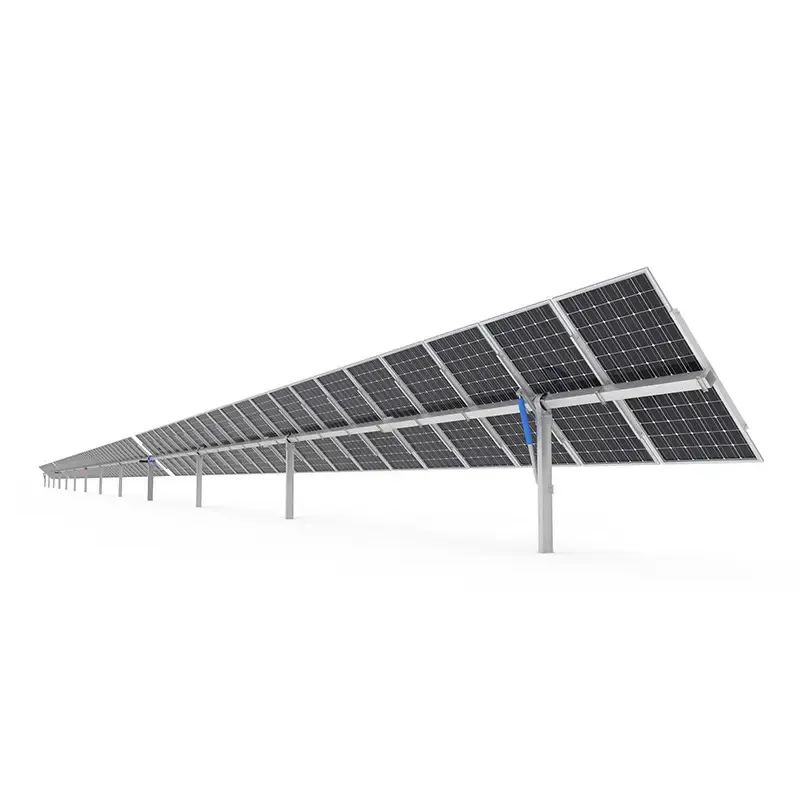

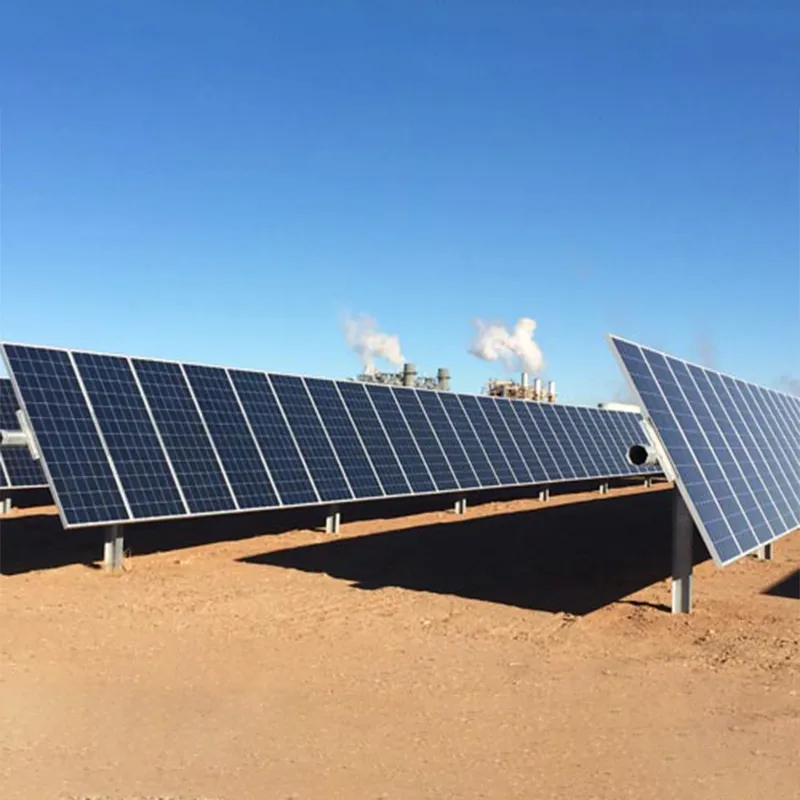

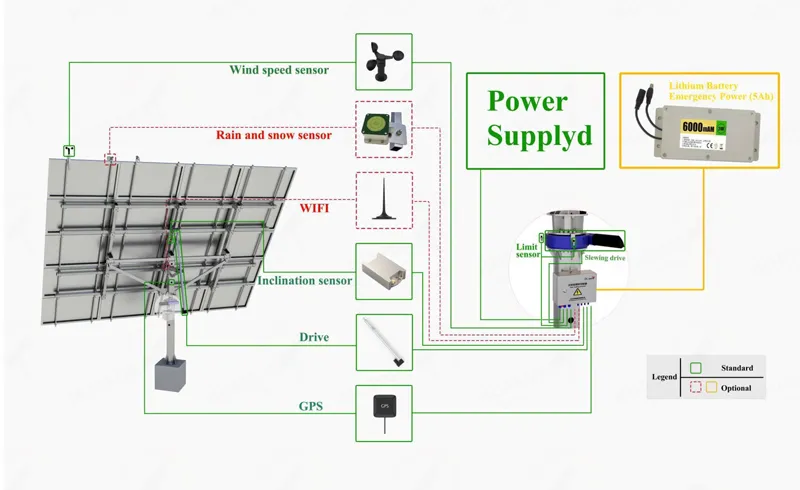

📷 Detailed Photos
🌐 Application Areas

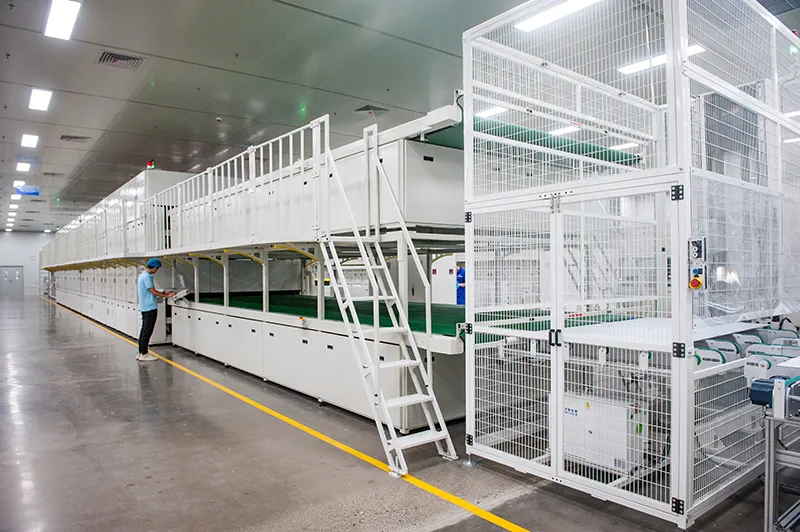

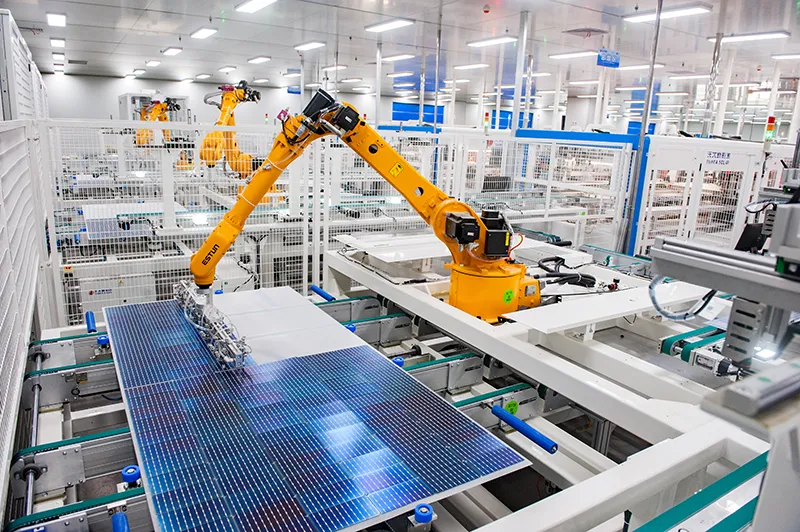

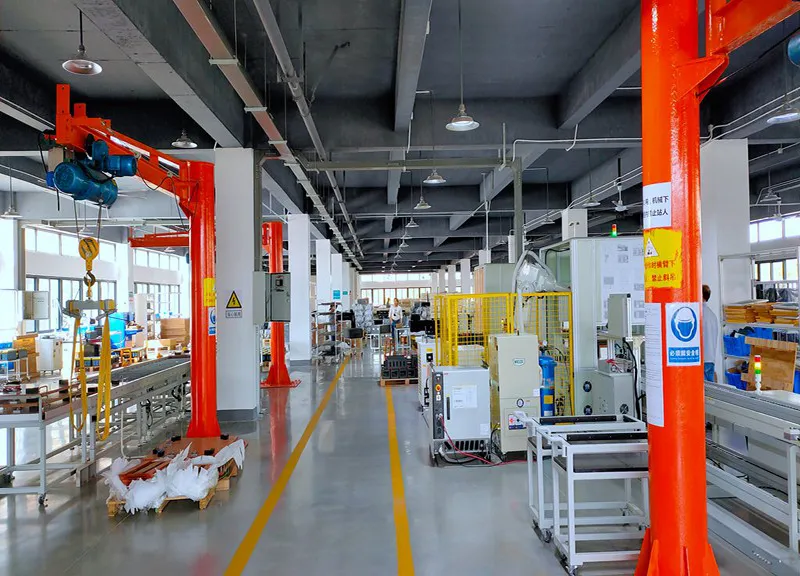

🏭 Company & Production

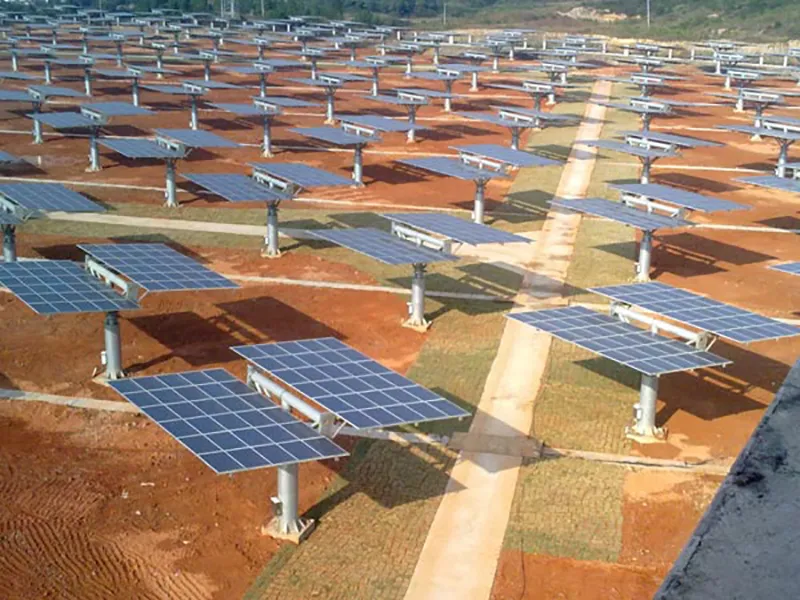

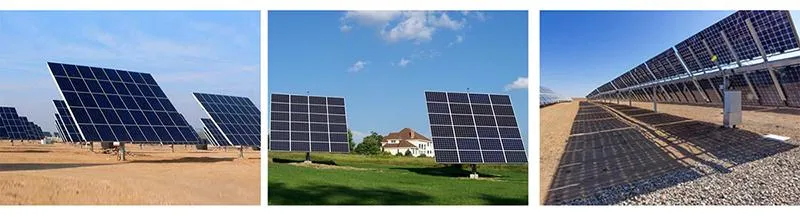

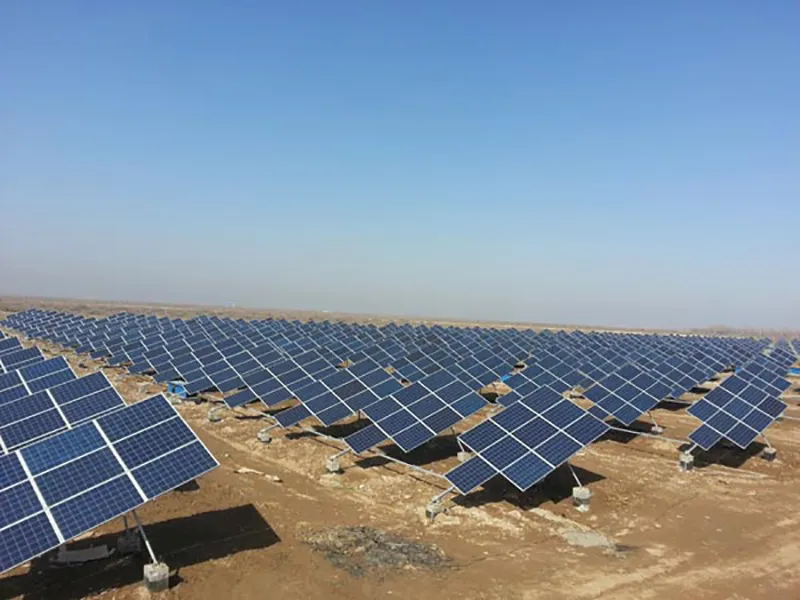

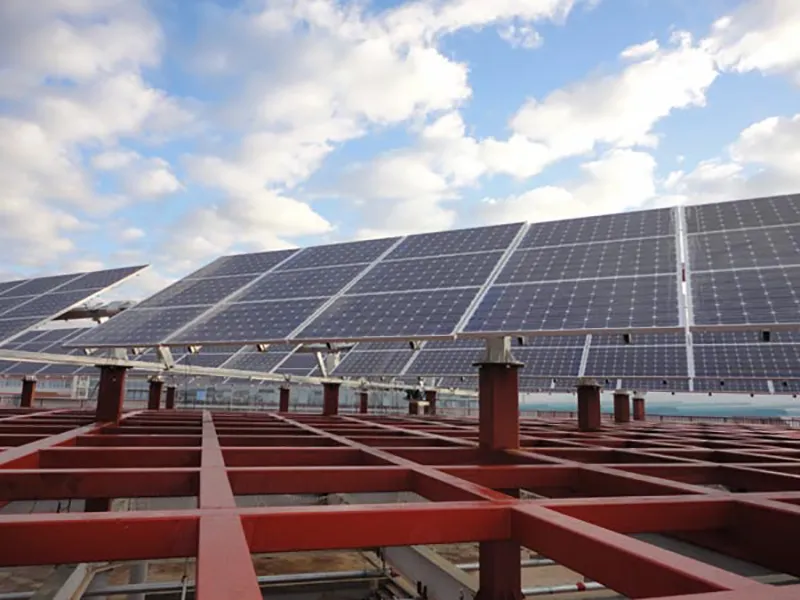

💼 Project Cases
📜 Certifications
❓ Frequently Asked Questions
1. What is the tracking accuracy of this single-axis solar tracker?
The system features high precision tracking with an accuracy of ≤±2° using a 32-bit MCU controller and astronomical algorithms.
2. How does the system handle high wind speeds?
The bracket has a safe working wind speed of 17 m/s and a survival wind speed of 37 m/s, which can be customized up to 60 m/s for extreme conditions.
3. What are the main materials used for the structure?
The structure is built using Hot-Dip Galvanized Steel (Q235B / Q355B) and Stainless Steel (A2-70/304) for fasteners, ensuring a mechanical life of over 25 years.
4. Does the tracker support smart protection modes?
Yes, it includes automatic wind protection, night return mode, and optional features like heavy rain self-cleaning and snow removal modes.
5. What is the protection level of the electrical components?
The tracking controller and drive devices are rated at IP65 protection level, making them suitable for harsh industrial and outdoor environments.
6. What communication protocols are used for monitoring?
The system supports RS485 protocol for wired communication, with options for Bluetooth (local), and WIFI or 4G for remote networking.
