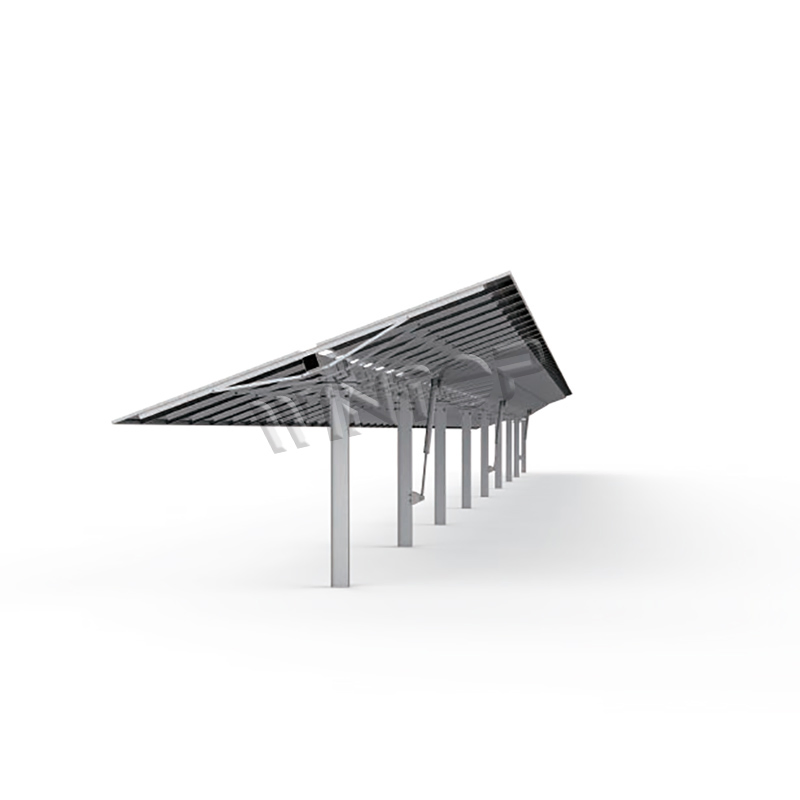

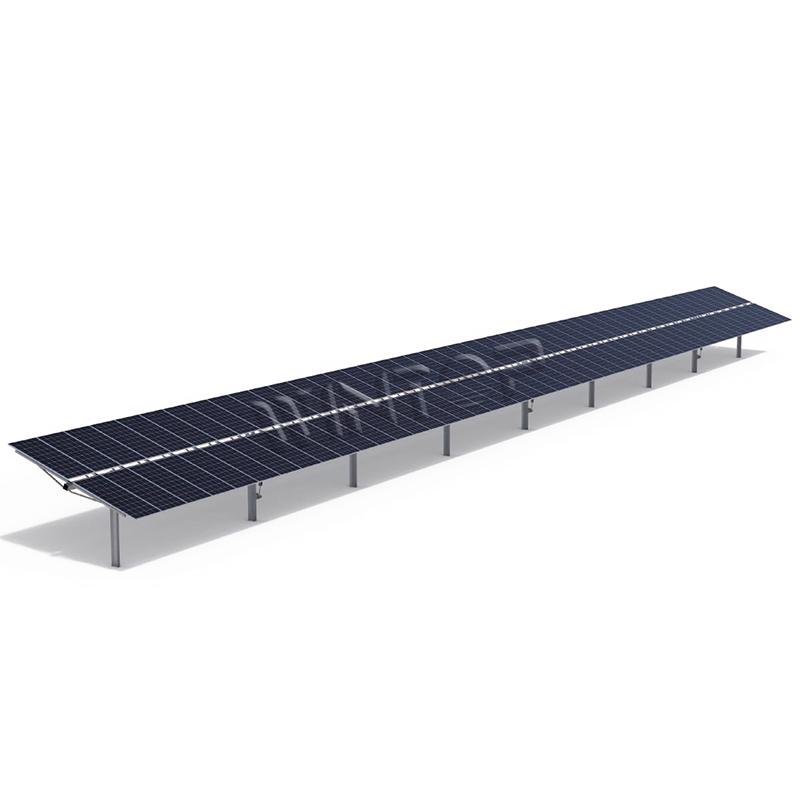

Single Axis Solar Tracker Controller with Double Drive
Single Axis Solar Tracker Controller with Double Drive
Single Axis Solar Tracker Controller with Double Drive
Single Axis Solar Tracker Controller with Double Drive
Single Axis Solar Tracker Controller with Double Drive
1 / 5
Single Axis Solar Tracker Controller with Double Drive
Single Axis Solar Tracker Controller with Double Drive
Single Axis Solar Tracker Controller with Double Drive
Single Axis Solar Tracker Controller with Double Drive
Single Axis Solar Tracker Controller with Double Drive

Single Axis Solar Tracker Controller with Double Drive

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Overview & Basic Info

Model NO.
WTT-2PM
Condition
New
Certification
ISO, CE
Application
Commercial
Install Site
Open Terrain
Module Orientation
Horizontal
Motor Type
24V DC Motor
Tracking Range
±60°
P

Product Description

The solar tracking system is a solution that optimizes the use of sunlight during the process of solar thermal and photovoltaic power generation to improve the efficiency of photoelectric conversion. This multi-drive double portrait horizontal single-axis solar tracker adopts a multi-actuator drive mode. It is quick and easy to install and operate, offering a stable and reliable system suitable for a variety of large-scale solar power stations.

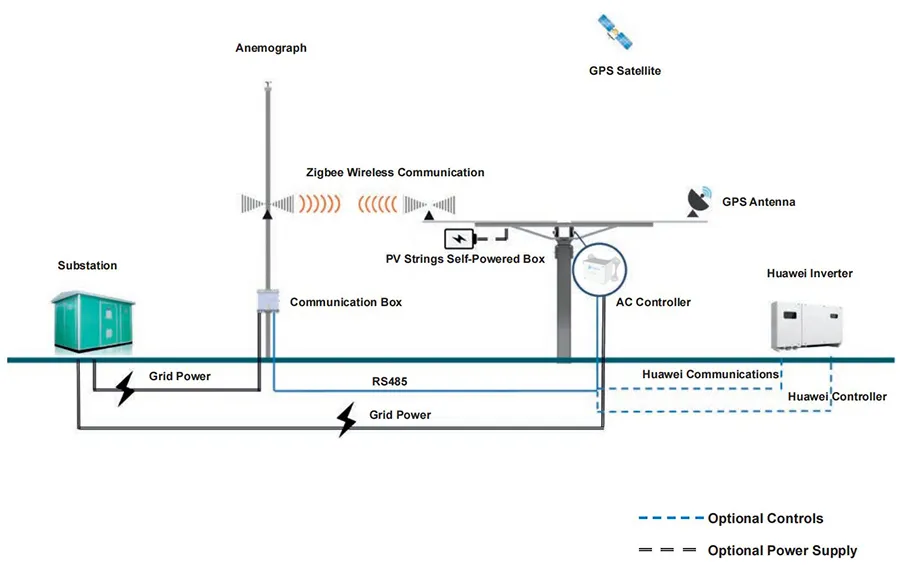

Electrical Principle
T

Technical Parameters

PV-Modules & Structure
PV-Modules SupportedFully fit for 210 module
System TypeOne portrait horizontal single-axis tracker
Maximum Capacity per Row72kWp (Estimated with 600W PV-Modules)
Tracking Accuracy±1°
Structural MaterialsHDG Steel, Al-Mg-Zn Coating Steel
Electrical & Protection
Solar Tracking MethodAstronomical algorithm + closed-loop control (AI)
Drive MethodSlew Drive
Wind Protection≥18m/s
Operating Temperature-30°C ~ +60°C
Slope ToleranceNorth-south 10%~20%, East-west no limits
F

Features & Benefits

  • Fully fit for 210 module
  • Intelligent AI algorithm for power generation
  • Adaption to various terrains (up to 20% slope)
  • Easy installation and low maintenance
  • Power generation increase of 15-30%
  • Stable and reliable multi-drive operation

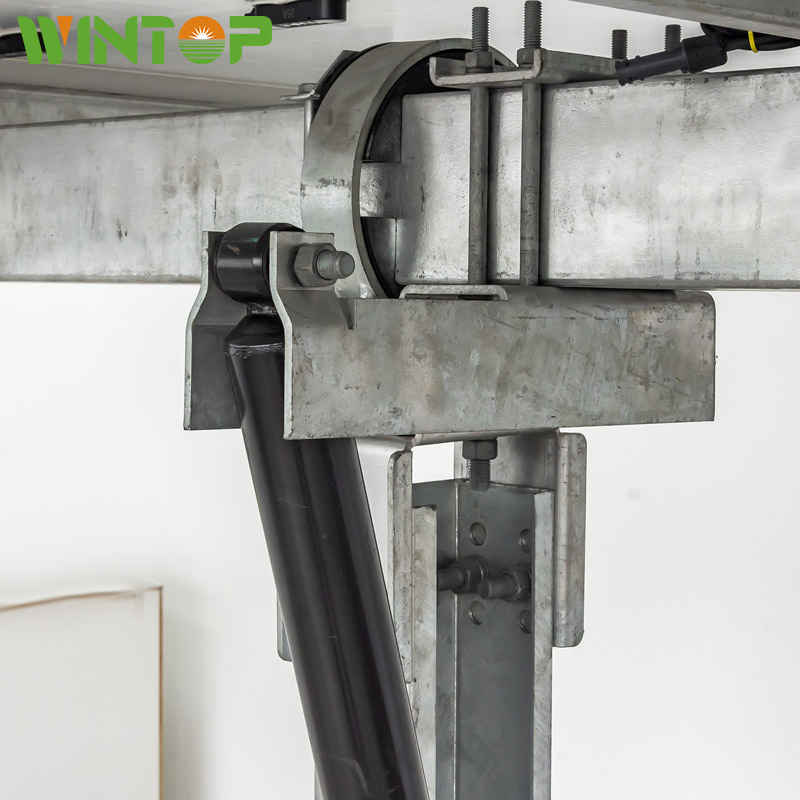

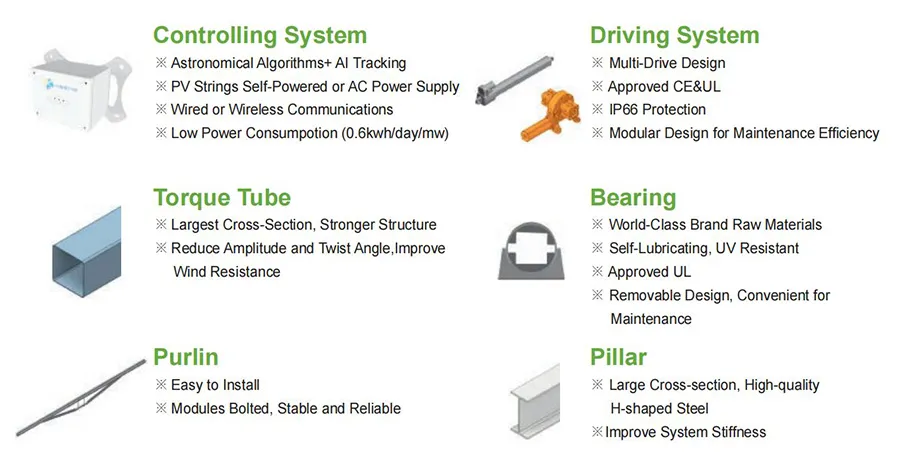

Structure components

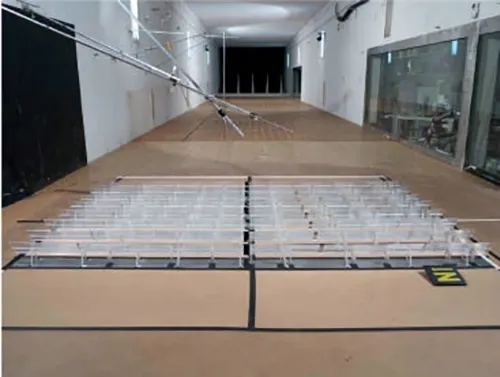

Wind Tunnel Test
A

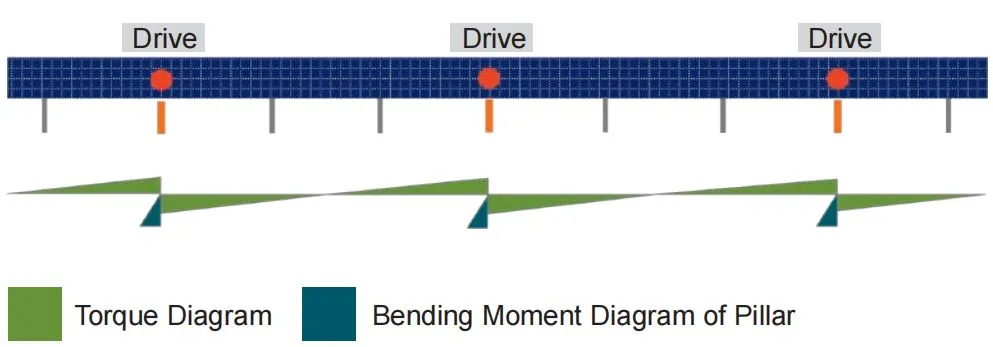

Multi-drive System Advantages

Established a partnership with CPP for wind engineering analysis. By studying resonance, flutter, and torsional divergence, the system is optimized for extreme aerodynamics.

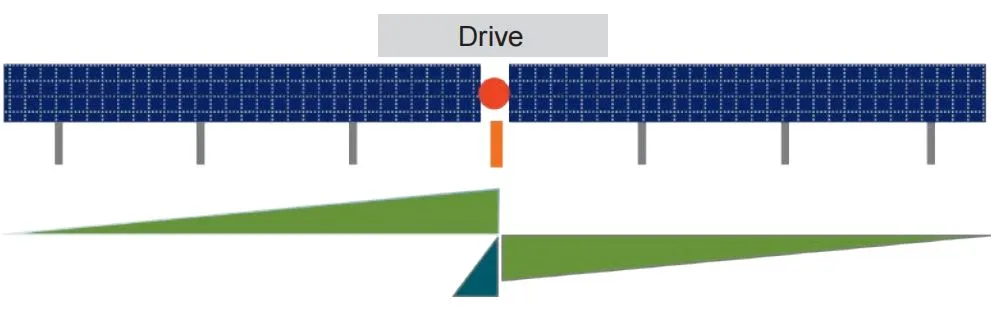

Traditional System
Multi-drive System

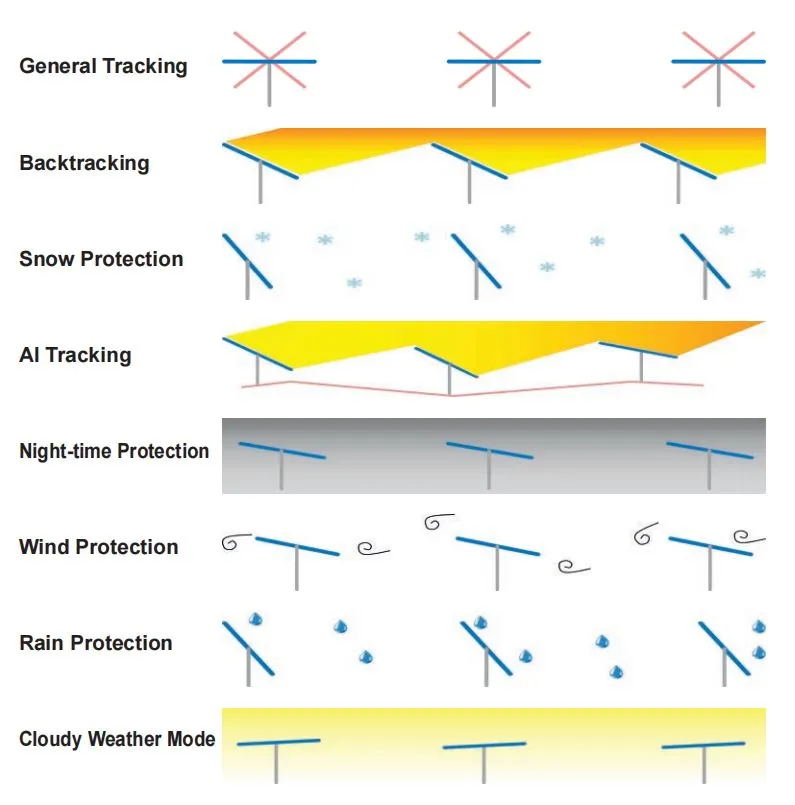

Operating Mode

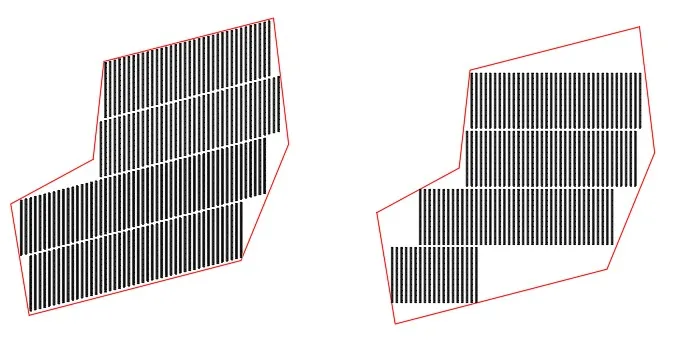

Terrain Adaption
S

Site Application & Foundation

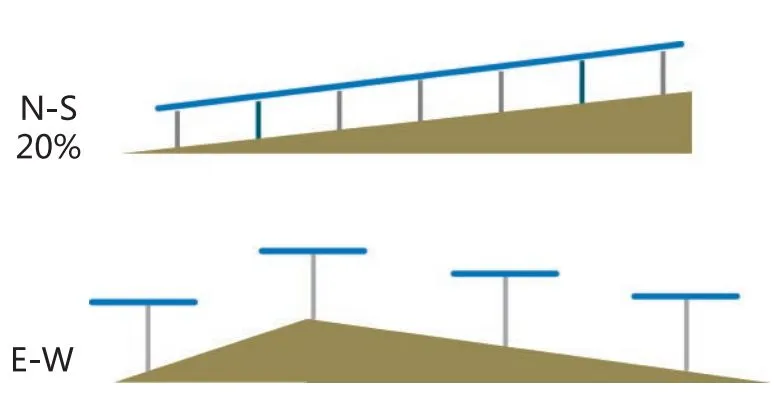

Layout

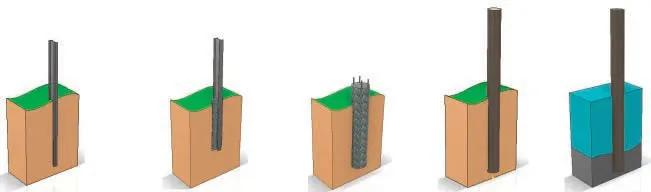

Foundation Options

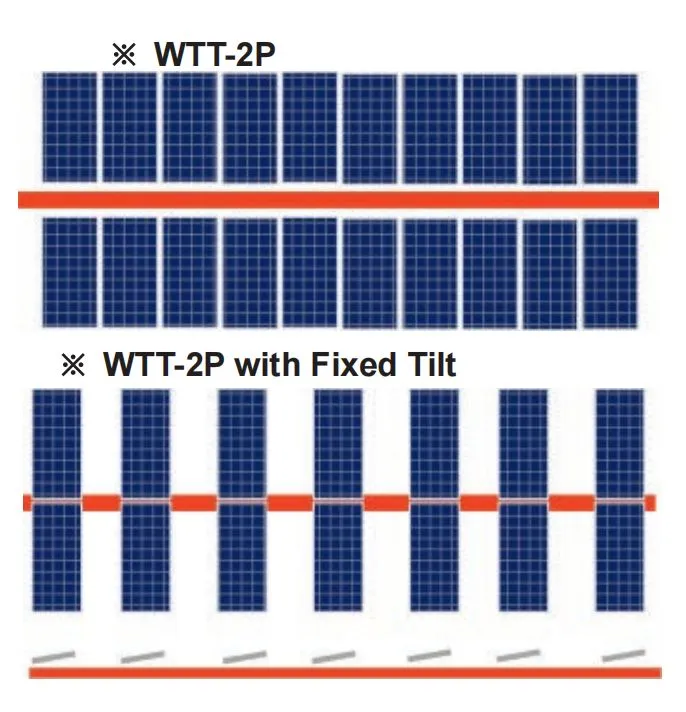

Array Proposals

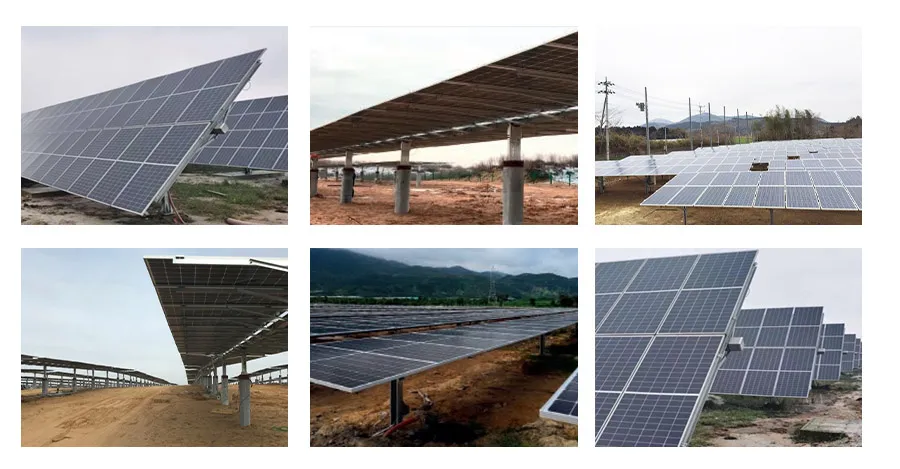

Project Case
?

Frequently Asked Questions

What is the estimated power generation increase?
The system typically increases power generation by 15% to 30% compared to fixed mounting systems, depending on the location and environmental conditions.
Are 210mm solar modules compatible?
Yes, the structure is specifically designed to be fully compatible with 210mm large-format solar modules.
How does the system handle high wind speeds?
The tracker includes a wind protection mode (triggered at speeds ≥18m/s) and has undergone extensive CPP wind tunnel testing to ensure structural stability.
What kind of terrain can this tracker be installed on?
It is highly adaptable, allowing for a north-south slope of 10% to 20%, while there are no limits for east-west slopes.
What materials are used for the structure?
The main components are constructed from High-Dip Galvanized (HDG) Steel and Al-Mg-Zn Coating Steel for superior corrosion resistance.
What is the minimum order quantity (MOQ)?
The minimum order quantity is 1 set. Samples are available upon request for testing and evaluation.
