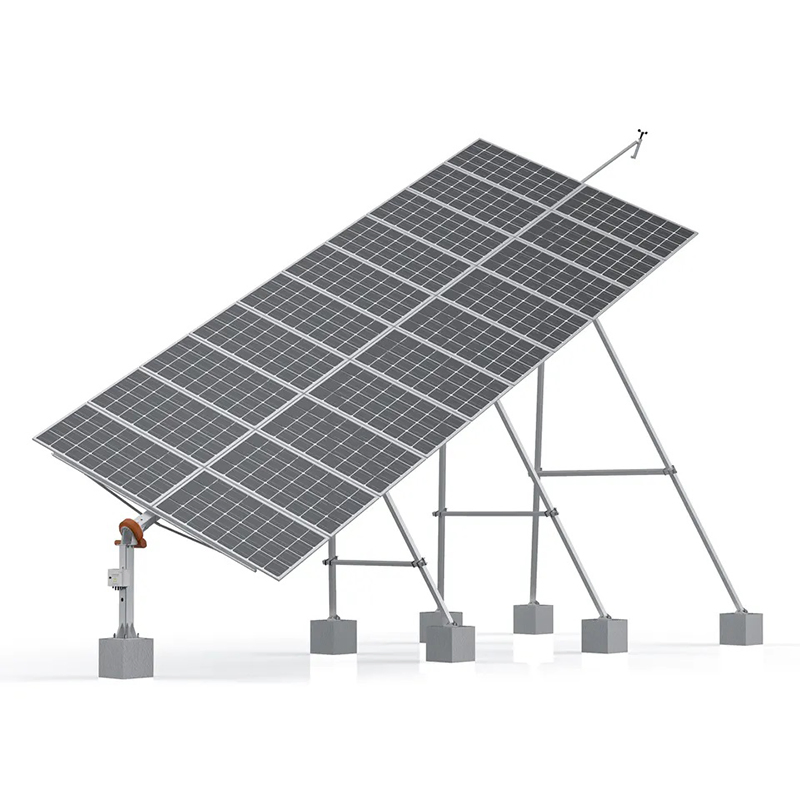

Slew Drive Solar Tracking Controller Single Axis Tilt Solar Tracker Bracket
Slew Drive Solar Tracking Controller Single Axis Tilt Solar Tracker Bracket
Slew Drive Solar Tracking Controller Single Axis Tilt Solar Tracker Bracket
Slew Drive Solar Tracking Controller Single Axis Tilt Solar Tracker Bracket
Slew Drive Solar Tracking Controller Single Axis Tilt Solar Tracker Bracket
1 / 5
Slew Drive Solar Tracking Controller Single Axis Tilt Solar Tracker Bracket
Slew Drive Solar Tracking Controller Single Axis Tilt Solar Tracker Bracket
Slew Drive Solar Tracking Controller Single Axis Tilt Solar Tracker Bracket
Slew Drive Solar Tracking Controller Single Axis Tilt Solar Tracker Bracket
Slew Drive Solar Tracking Controller Single Axis Tilt Solar Tracker Bracket

Slew Drive Solar Tracking Controller Single Axis Tilt Solar Tracker Bracket

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

i

Overview & Basic Info

Model NO.
SAST
Certification
ISO, TUV, CE
Application
Industrial
Material
Stainless Steel
Type
Tracking Bracket
Product Name
Single Axis Solar Tracker
Module Size
1650*992*40mm
Weight
1300~3000kg
Scope of Rack
80~200m2
Power Supply
110V / 220V
Protection Level
IP65
Communication
RS485
Production Capacity
100000 Watts Per Month
📦

Packaging & Delivery

Package Size
170.00cm * 105.00cm * 10.00cm
Gross Weight
3000.000kg
Transport Package
Standard Carton
⚙

Technical Parameters

Tracker Structure Tracking Controller
Solar Panel Type 1650*992*35mm (78 Cells) Controller Type MCU (32bit)
Panel Arrangement Vertical Arrangement Algorithm Astronomical + Position Sensor
Ground Clearance 400 mm Wind Protection Included
System Weight ≈ 1300 kg/Set Tracking Accuracy ≤±2°
Safe Wind Speed 17 m/s Network Bluetooth / WIFI / 4G
Survival Wind 37m/s (Customizable < 60m/s) Positioning GPS
Bracket Material Hot-Dip Galvanized Steel Q235B/Q355B Working Temp -30ºC to +70ºC (Customizable)
Design Life > 25 Years Drive Device Slewing Drive + Linear Drive
▼

Product Gallery

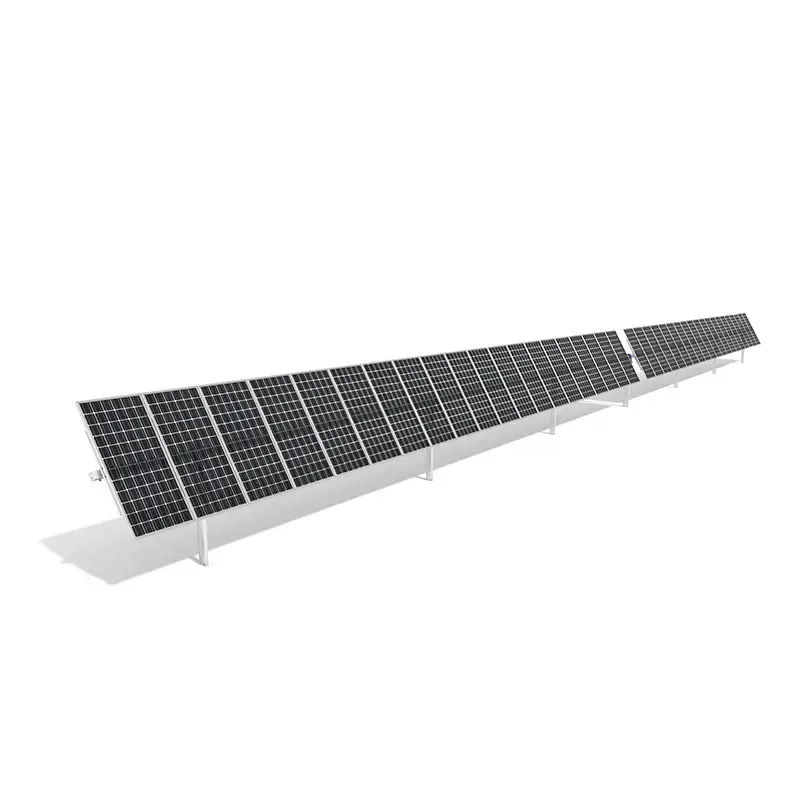

Solar Tracker Detail 1

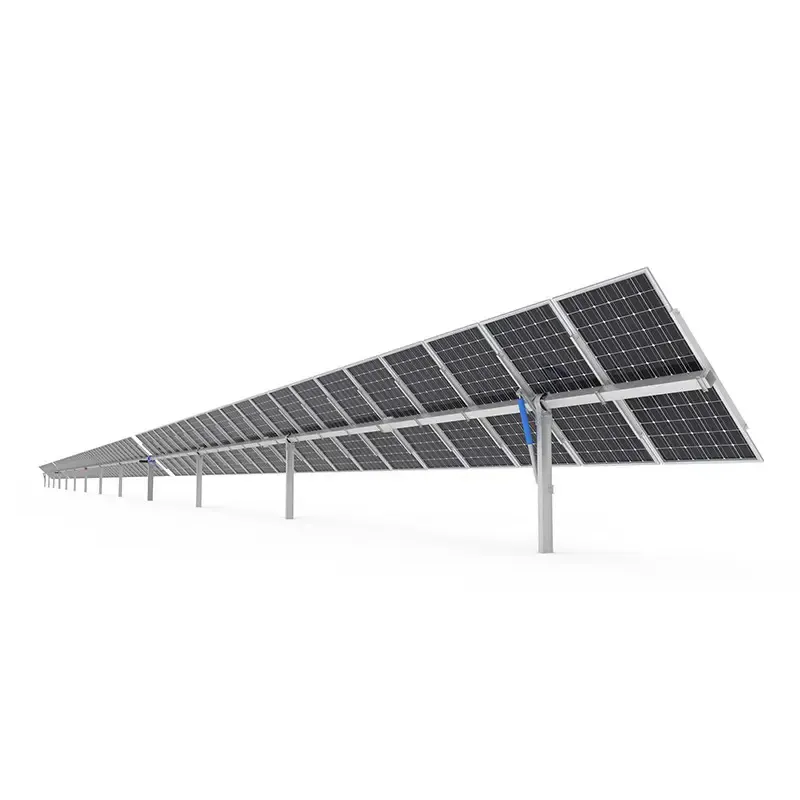

Solar Tracker Detail 2

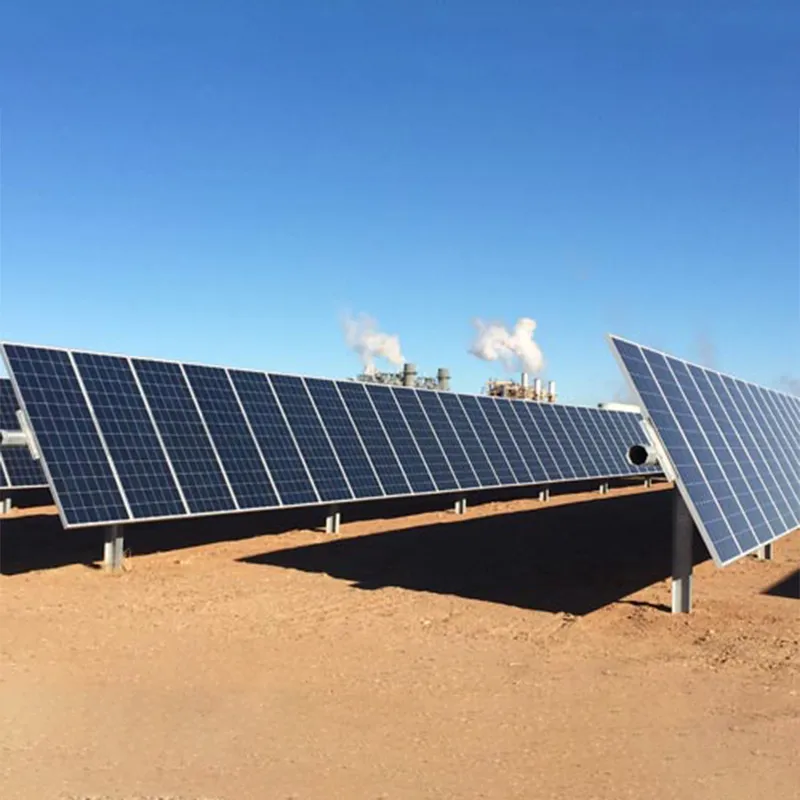

Solar Tracker Detail 3

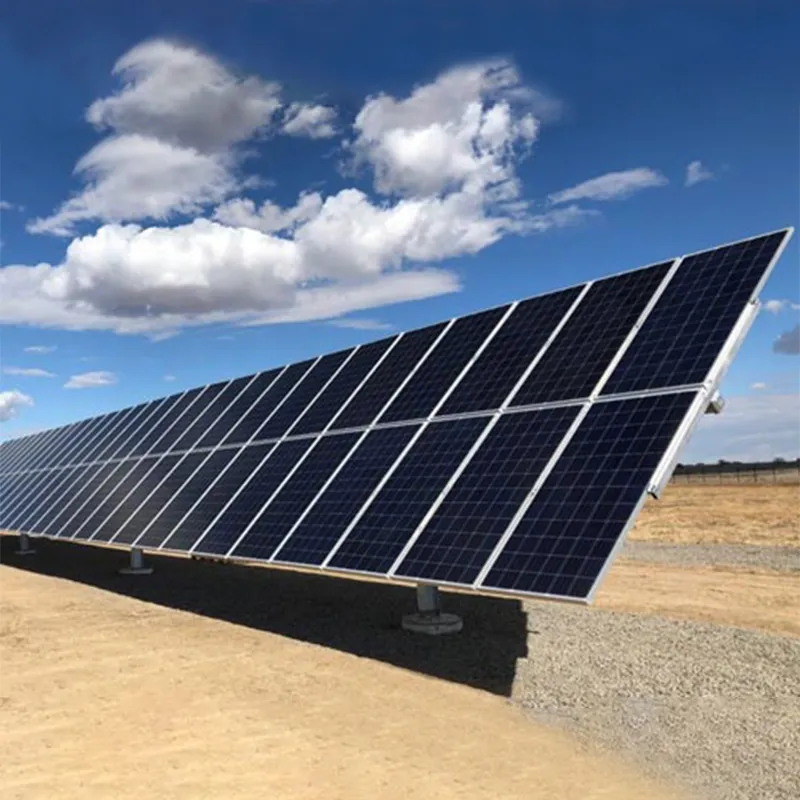

Solar Tracker Detail 4

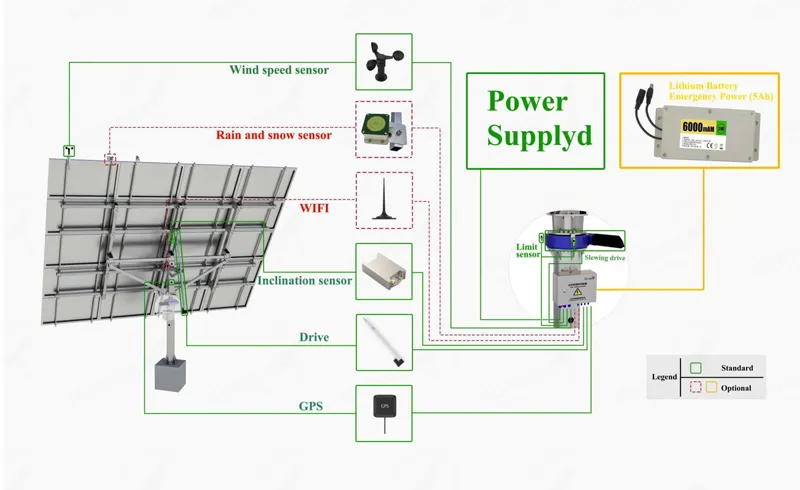

Solar Tracker System
◈

Application Areas

Application Area
🏢

Production Facility

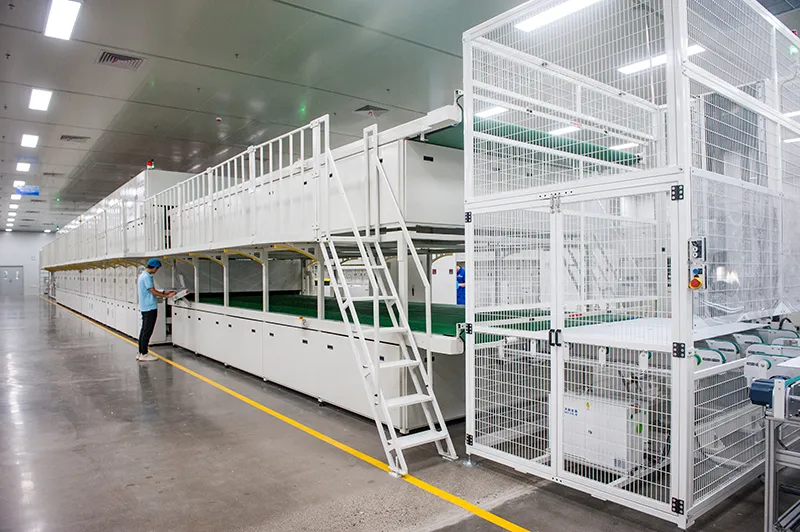

Factory 1

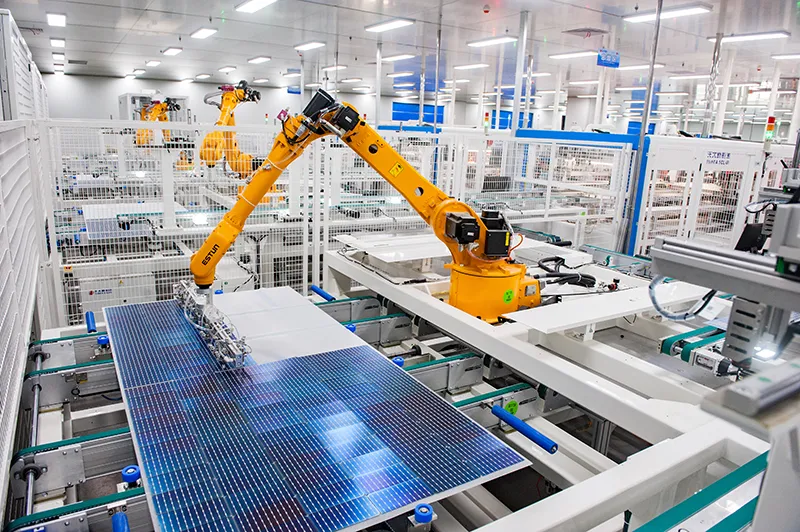

Factory 2

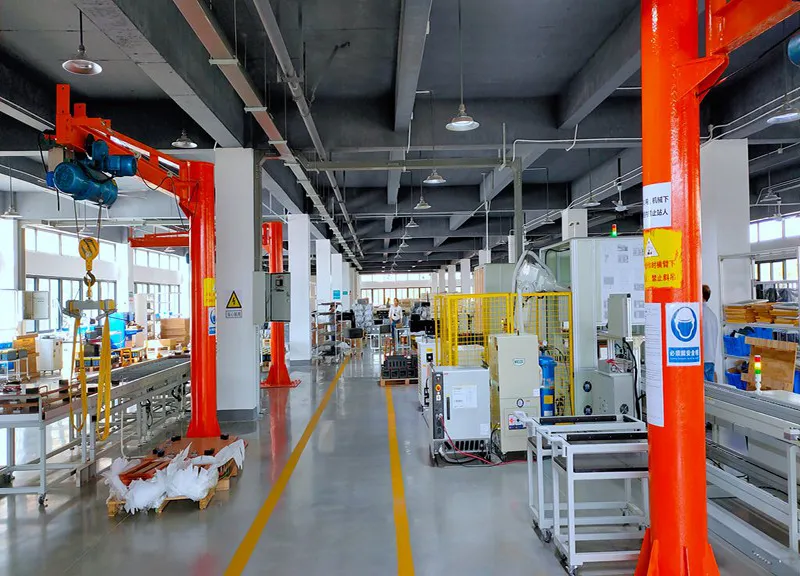

Factory 3

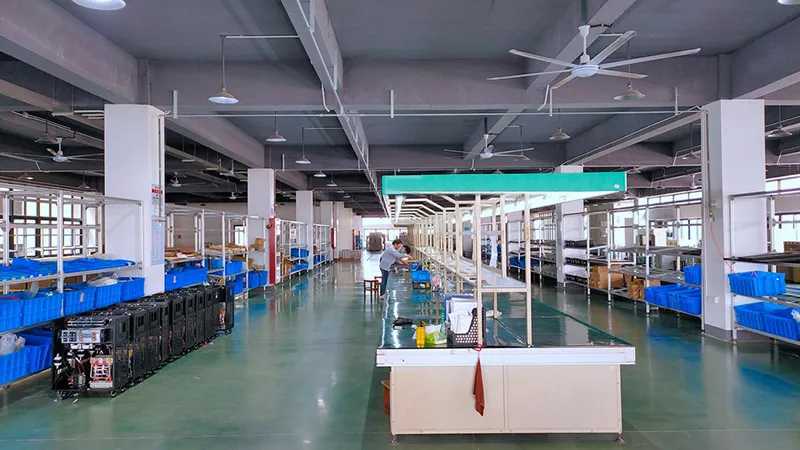

Production Line
✔

Project Cases

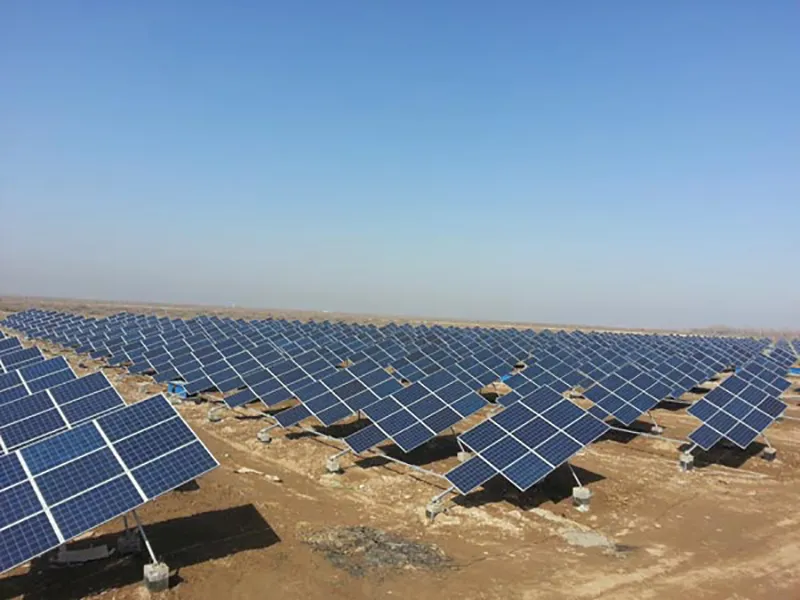

Case 1

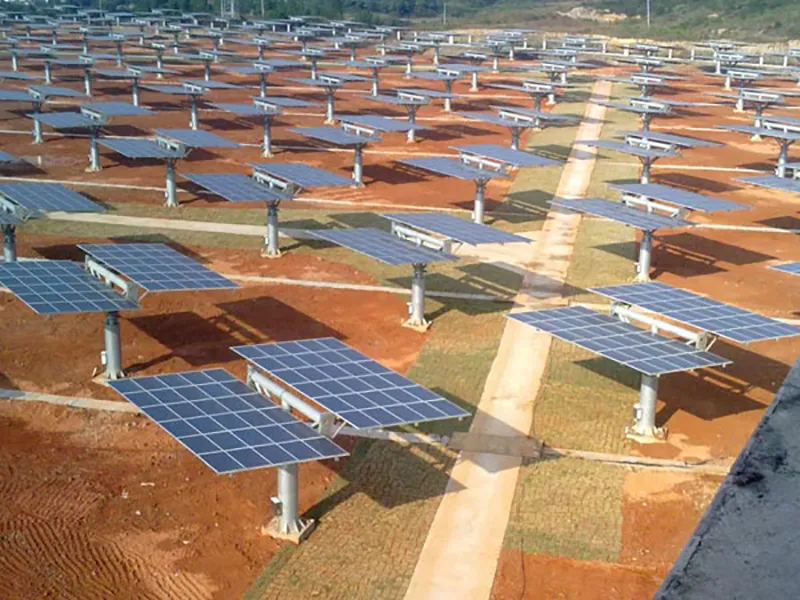

Case 2

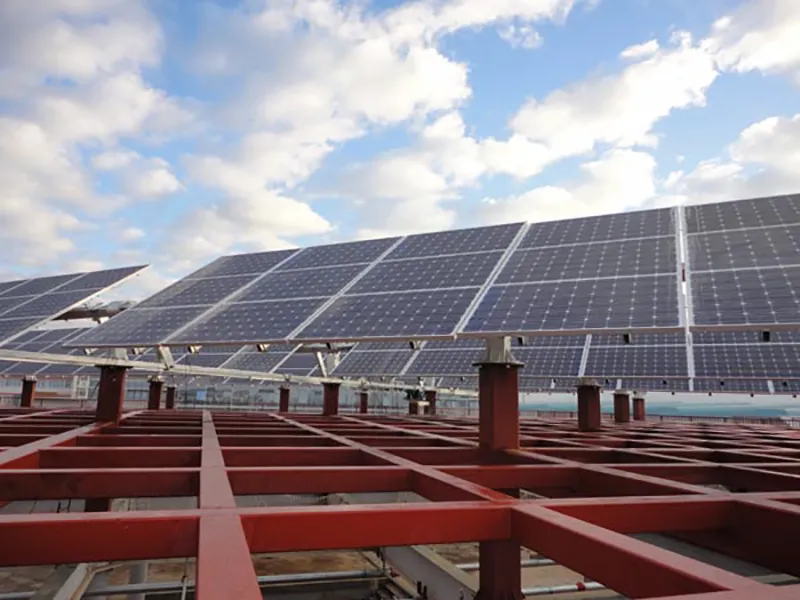

Case 3

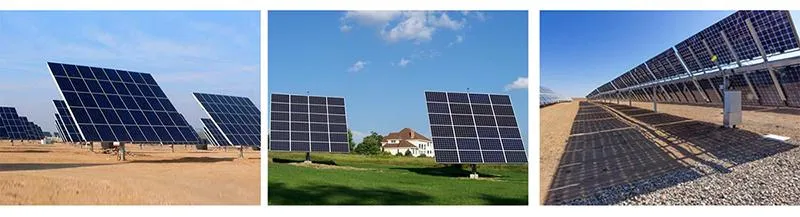

Case Panoramic
★

Certifications

Certificates
?

Frequently Asked Questions

1. What is the tracking accuracy of the Single Axis Solar Tracker?
The system utilizes a high-precision 32-bit MCU controller and closed-loop position sensor control, achieving a tracking accuracy of ≤±2°.
2. What kind of weather protection features does the system include?
The tracker includes automatic wind protection (safe up to 17m/s and survival up to 37m/s), optional snow removal modes, and heavy rain self-cleaning functionality.
3. What are the primary materials used in the bracket construction?
The bracket is primarily constructed from high-quality Q235B/Q355B Hot-Dip Galvanized Steel with a galvanizing thickness of >85um. Fasteners are made from A2-70 304 Stainless Steel for maximum corrosion resistance.
4. What is the expected lifespan of the tracker system?
The mechanical design life of the system is rated for more than 25 years, ensuring long-term durability for industrial solar applications.
5. What communication protocols and networking types are supported?
Standard communication is via RS485. Local networking is available through Bluetooth, and remote networking options include WIFI and 4G for convenient monitoring.
6. Can the tracking angles be customized for specific project sites?
Yes, while the standard azimuth tracking range is -45° to +45° (X-axis) and -60° to +60° (Y-axis), these angles can be customized to meet specific site requirements.
