01
High gradient adaptability: Max. gradient difference adaptability in N-S direction up to 15%.
02
Universal compatibility: Excellent compatibility with all mainstream solar modules, including framed, frameless, and bi-facial modules.
03
Cost-efficient design: Independent 2V module design significantly reduces the quantity of piles and construction costs.
04
Easy Maintenance: Free obstacles among trackers in N-S direction ensure easy maintenance and cleaning access.
05
Smart Monitoring: Configured with a single set of controller for point-to-point real-time monitoring, enabling quick fault detection and reducing output loss.
What is the maximum wind speed this solar tracker can withstand?
The SF-HS-01 model is designed to withstand a maximum wind speed of up to 18m/s, ensuring stability in various environmental conditions.
Does the system support bi-facial solar modules?
Yes, the system offers excellent compatibility with all mainstream modules, including framed, frameless, and bi-facial solar modules.

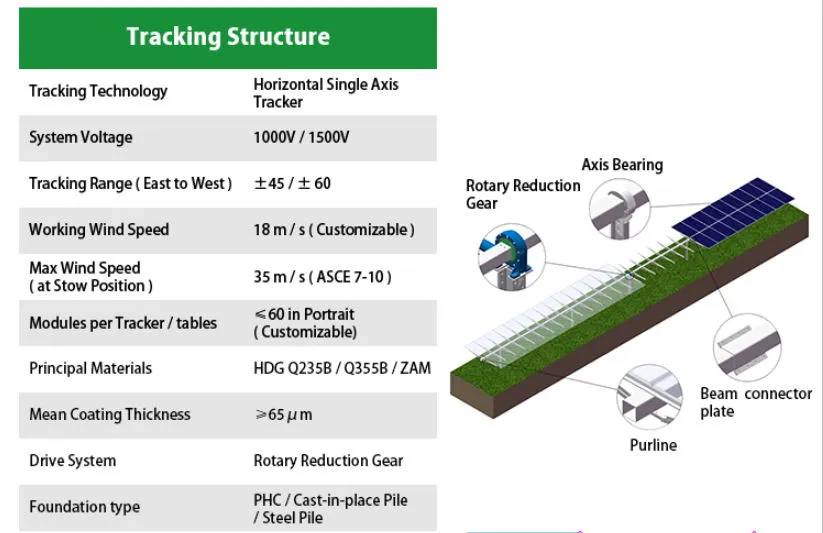

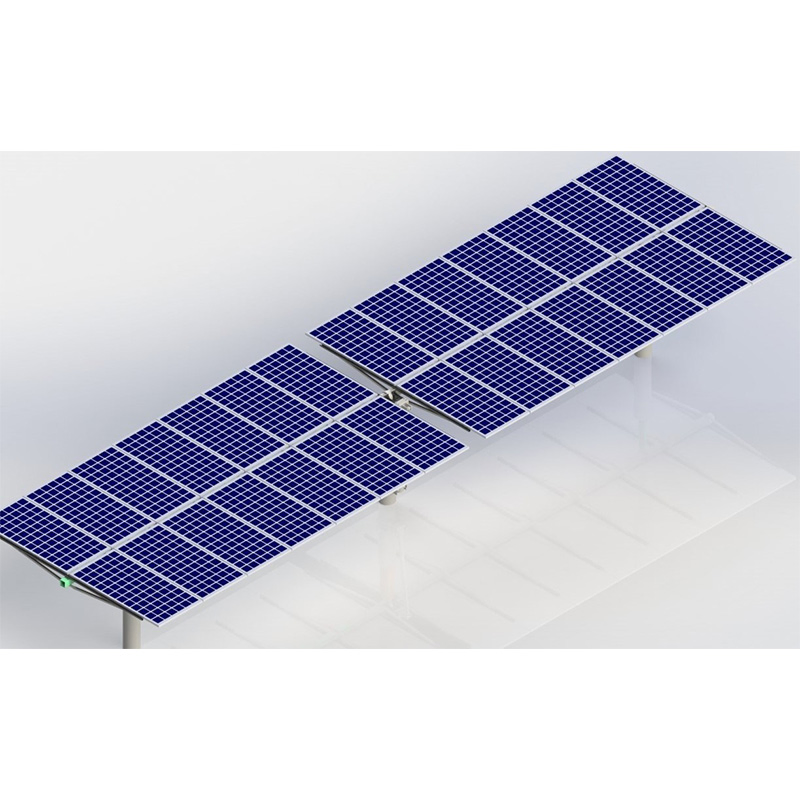

What is the tracking range of this horizontal single-axis tracker?

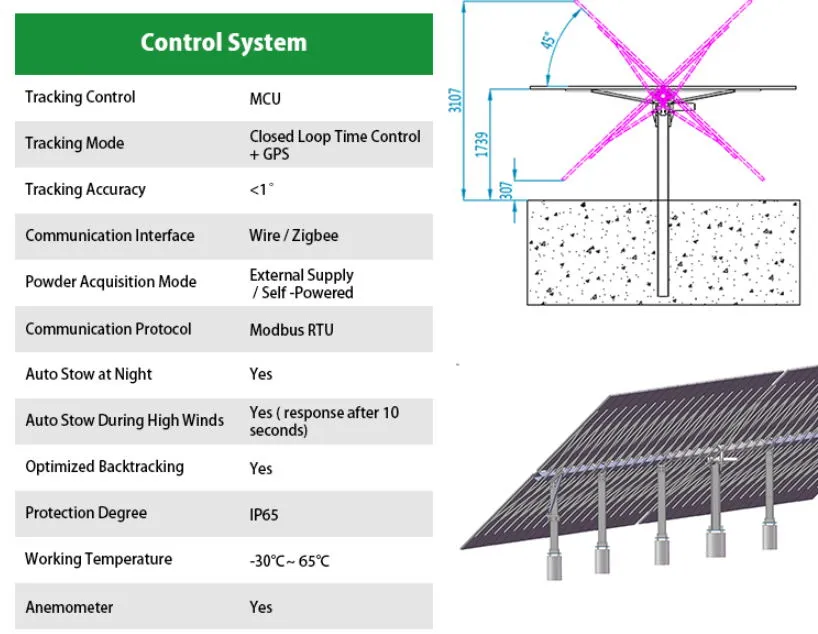

The tracker features a tracking angle of plus or minus 45 degrees, optimized via an MCU control system.
How does the independent 2V design help in cost reduction?
The independent 2V module design reduces the required quantity of piles, which significantly lowers both material and construction costs.
What kind of foundation is required for installation?
The system is versatile and supports multiple foundation types including PHC, Concrete, and Steel Piles.

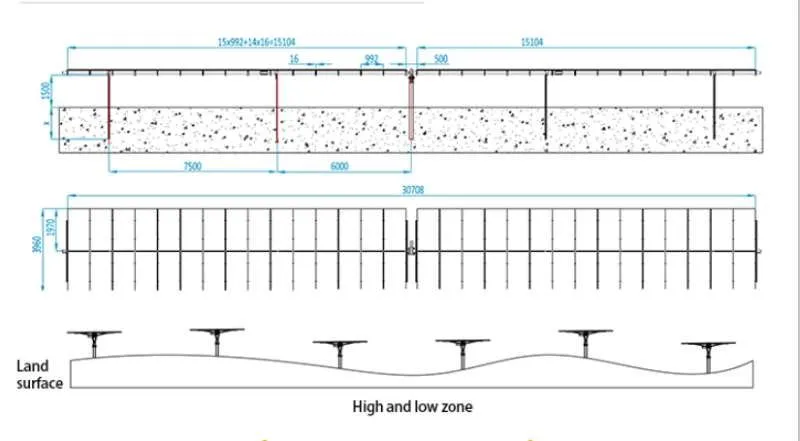

Can this tracker be installed on uneven terrain?
Yes, it features a maximum gradient difference adaptability in the North-South direction of up to 15%, making it suitable for sloped landscapes.
