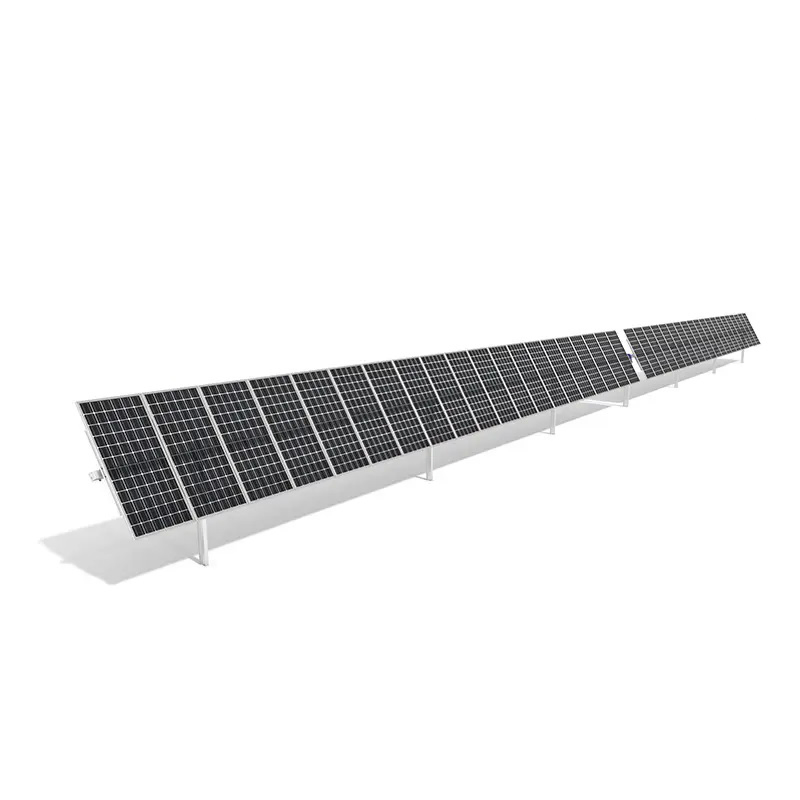

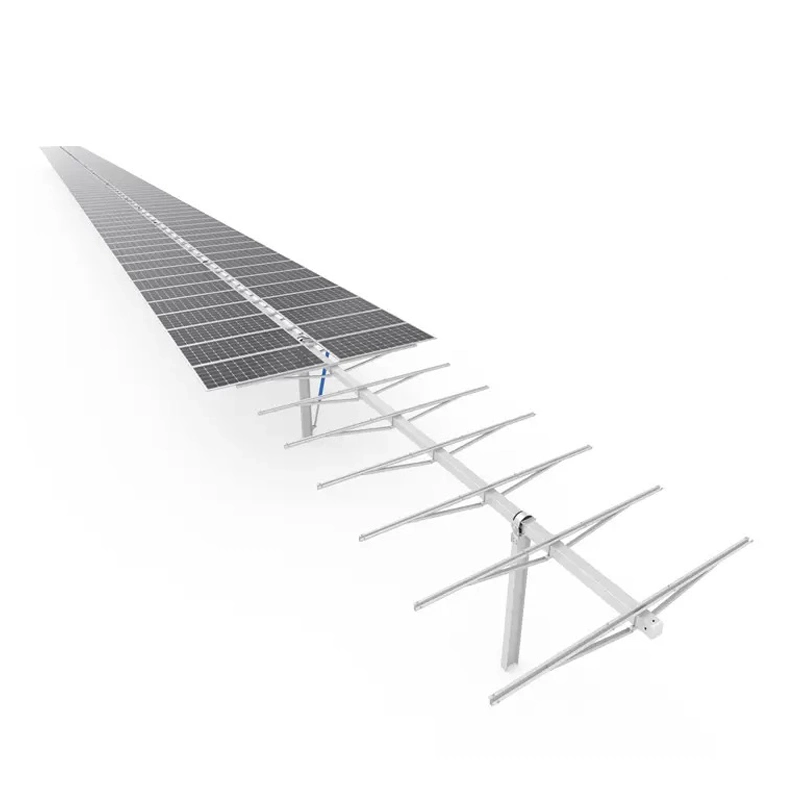

on Grid Solar Panel Trackeing System Single Axis Solar Tracker
on Grid Solar Panel Trackeing System Single Axis Solar Tracker
on Grid Solar Panel Trackeing System Single Axis Solar Tracker
on Grid Solar Panel Trackeing System Single Axis Solar Tracker
on Grid Solar Panel Trackeing System Single Axis Solar Tracker
1 / 5
on Grid Solar Panel Trackeing System Single Axis Solar Tracker
on Grid Solar Panel Trackeing System Single Axis Solar Tracker
on Grid Solar Panel Trackeing System Single Axis Solar Tracker
on Grid Solar Panel Trackeing System Single Axis Solar Tracker
on Grid Solar Panel Trackeing System Single Axis Solar Tracker

on Grid Solar Panel Trackeing System Single Axis Solar Tracker

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

i

Basic Info.

Model NO.
SAST
Certification
ISO, TUV, CE
Application
Industrial
Material
Stainless Steel
Type
Tracking Bracket
Product Name
Single Axis Solar Tracker
Module Size
1650*992*40mm
Weight
1300kg
Scope of Rack
100~200m2
Power Supply
110V / 220V
Driving Power
90~180W
Protection Level
IP65
Communication
RS485
Origin
China
📦

Packaging & Delivery

Package Size
170.00cm * 105.00cm * 10.00cm
Gross Weight
1300.000kg
⚙

Technical Specification

Tracker Structure Tracking Controller
Solar Panel Type 1650*992*35mm (78 Cells) Controller Type MCU (32bit)
Number Of Panels 60 PCS Control Algorithm Astronomical + Position Sensor Closed Loop
Ground Clearance 400 mm Wind Protection Integrated System
Safe Wind Speed 17 m/s Survival Wind Speed 37m/s (Customizable <60m/s)
Bracket Material Hot-Dip Galvanized Steel (Q235B / Q355B) Positioning GPS Automatic Positioning
Fastener Material A2-70 / 304 Stainless Steel Tracking Accuracy ≤±2°
Working Temp. -30ºC to +70ºC (Custom -50ºC to +85ºC) Communication Local Bluetooth / RS485 (Optional WiFi/4G)
X Axis Range -45° ~ +45° Y Axis Range -60° ~ +60°
📸

Product Gallery

Solar Tracker Detail 1

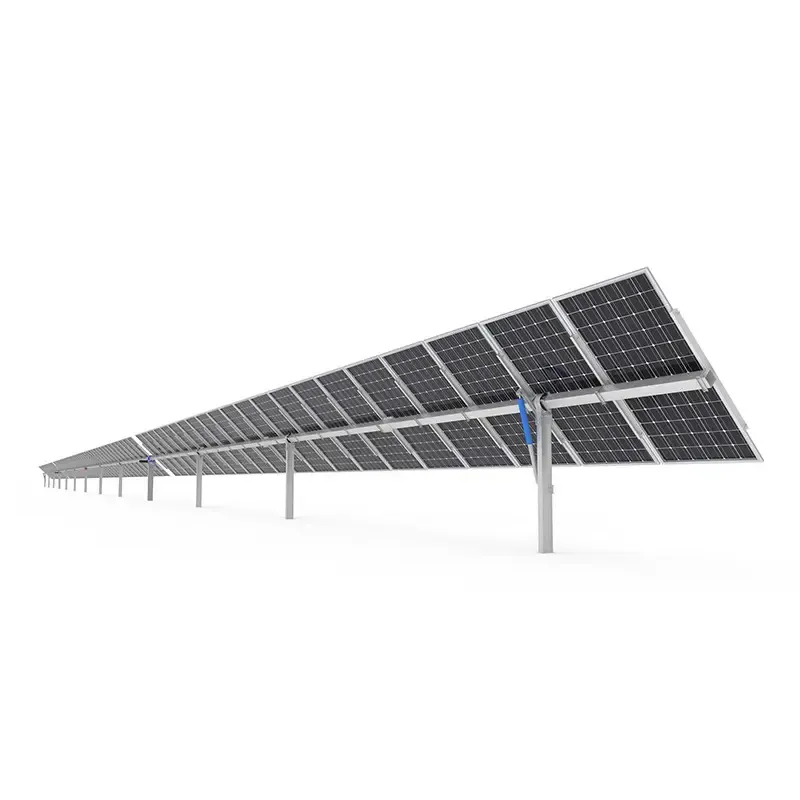

Solar Tracker Detail 2

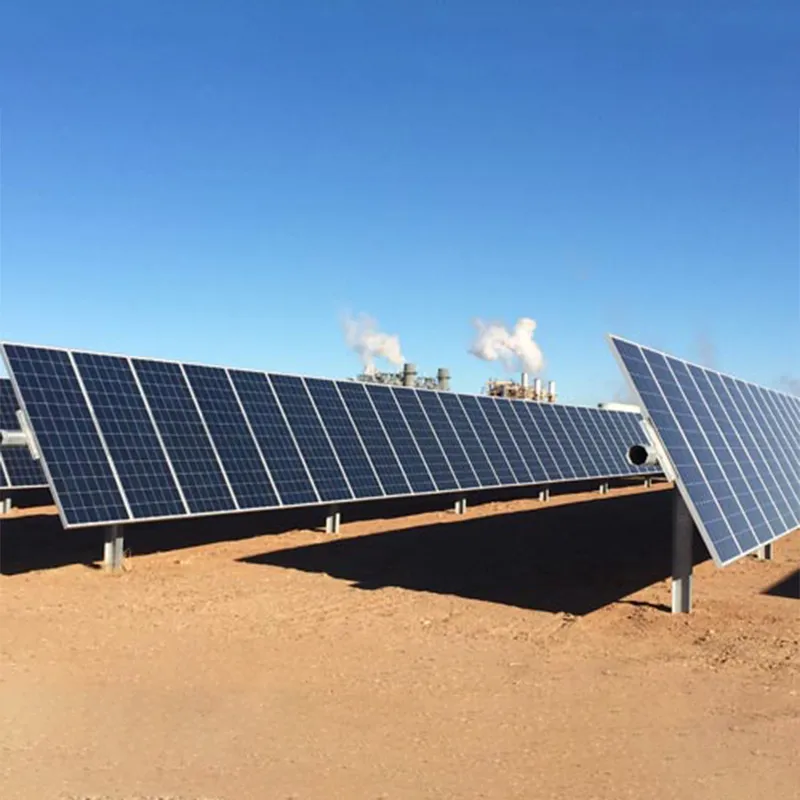

Solar Tracker Detail 3
Solar Tracker Detail 4

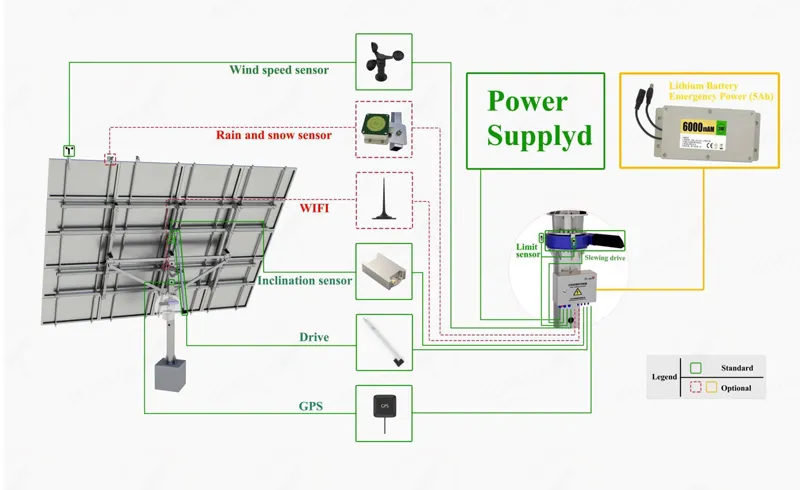

Solar Tracker System

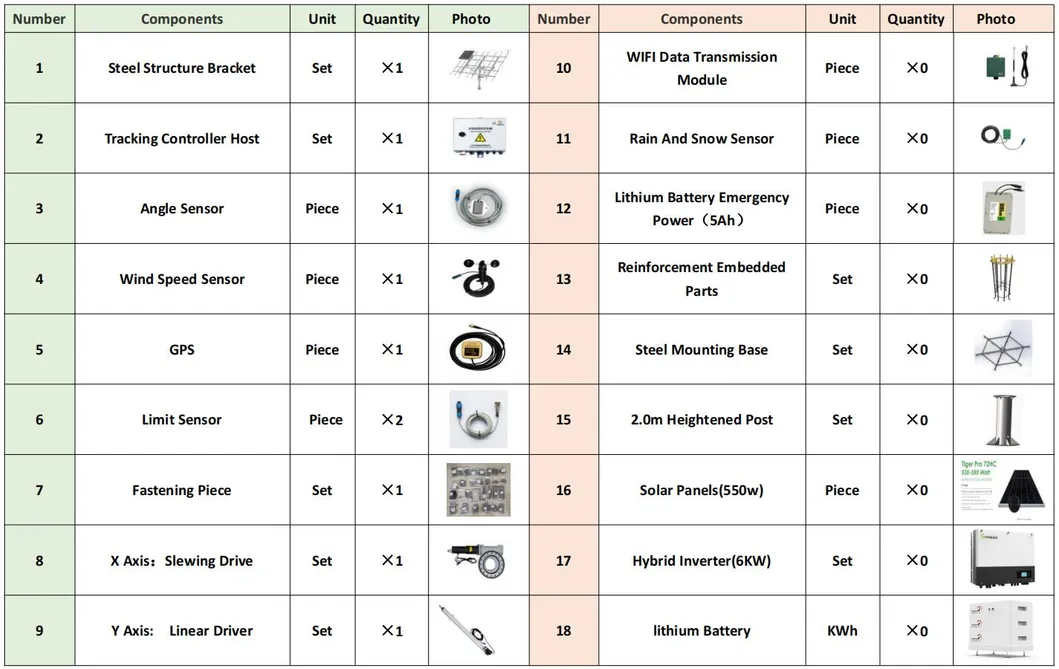

Solar Tracker Structure
🌍

Applications & Projects

Application Area

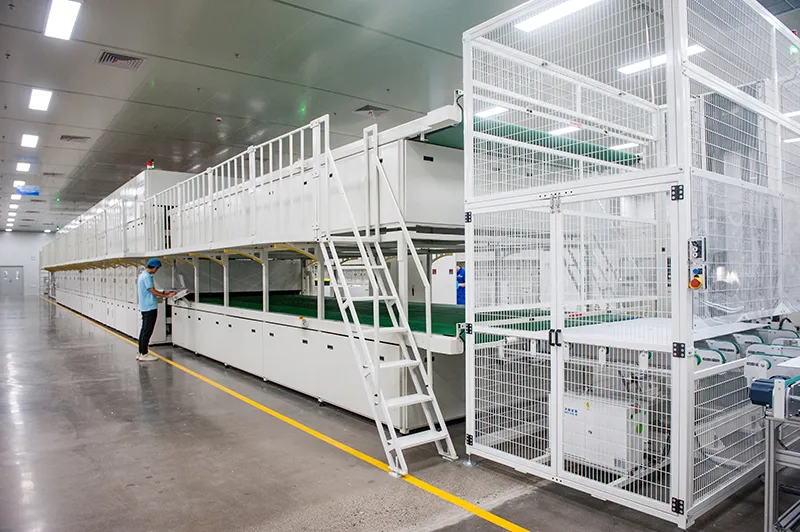

Project Overview 1

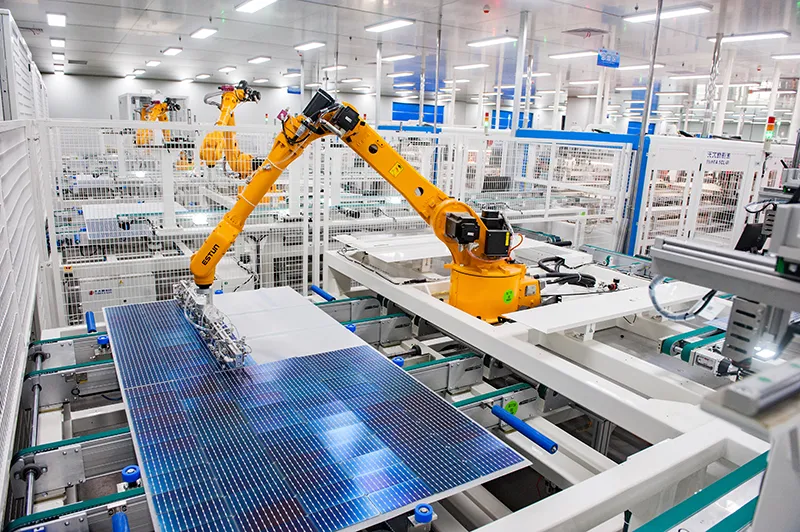

Project Overview 2

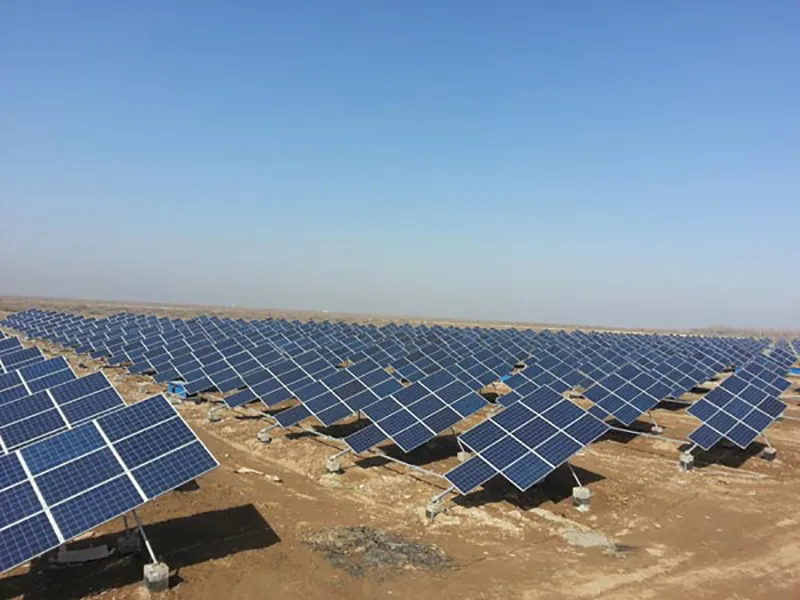

Project Case 1

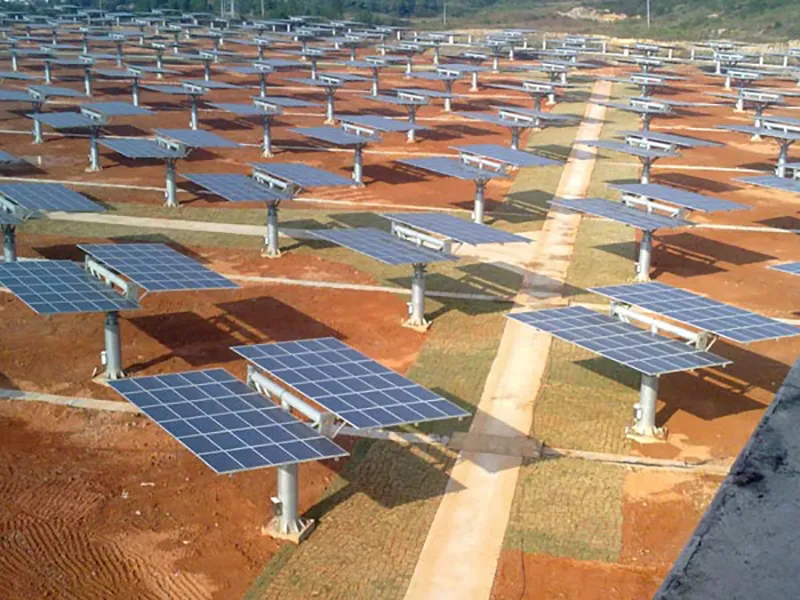

Project Case 2

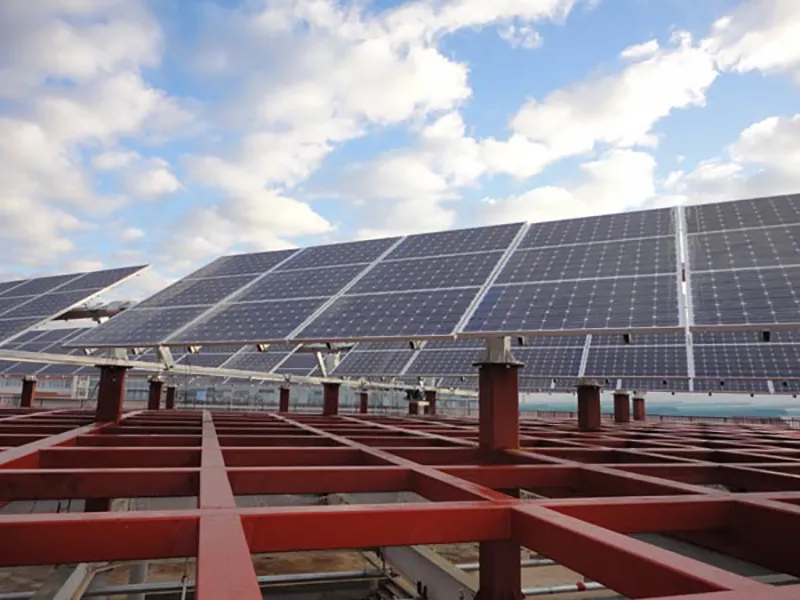

Project Case 3

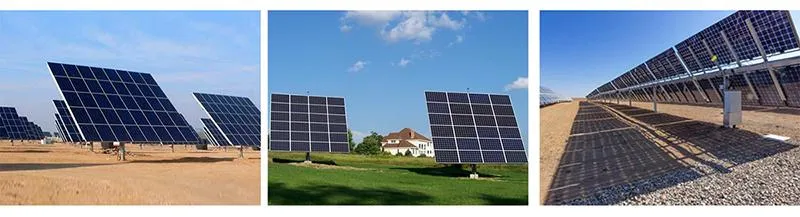

Solar Projects Banner
📜

Certifications

Product Certifications
?

Frequently Asked Questions

How much does the tracking system increase energy output?
The single-axis solar tracker typically increases energy yield by 15% to 30% compared to fixed-tilt systems by maintaining the optimal angle towards the sun throughout the day.
What kind of maintenance does the solar tracker require?
The system is designed for industrial durability with IP65 protection. Regular inspections of the driving device and fasteners are recommended annually to ensure long-term mechanical life (>25 years).
How does the system handle extreme wind conditions?
The controller includes an automatic wind protection mode. When wind speeds reach the safety threshold (17m/s), the system automatically moves to a horizontal stow position to minimize wind load.
Is the system compatible with all solar panel brands?
Yes, the tracking bracket is highly versatile. While the standard specification is optimized for 1650*992mm modules, the structure can be customized to accommodate various panel sizes and arrangements.
What is the advantage of the Astronomical Algorithm used?
The Astronomical Algorithm combined with GPS positioning ensures the tracker precisely follows the sun's path even on cloudy days when light sensors might be inaccurate, maximizing efficiency at all times.
Can the system operate in extremely cold or hot climates?
The standard operating range is -30ºC to +70ºC. For extreme environments, we offer customizable configurations that can withstand temperatures from -50ºC to +85ºC.
