Overview
| Model NO. | Single-axis Bracket-005 |
| Certification | GB, ISO, CE, RoHS |
| Application | Commercial |
| Material | Steel |
| Type | Ground Bracket |
| System Type | 2~5rows Linked Type/Independent Type |
| Motor | DC24vgear Motor (1.5A×1) |
| Max Wind Speed (Operation) | 24m/S |
| Max Wind Speed (Horizontal) | 37m/S |
| Rust Protection | Hot-Dipped Galvanized Steel |
| Operation Temperature | -40°℃ ~ +75℃ |
| Control Model | Astronomical Algorithms + Tilt Sensor Close-loop |
| Tracking Accuracy | ≤2° (Configurable) |
| Backtracking | Yes |
| Protection | Wind/Snow/Rain Protection, IP66 |
| Land Area (1 MW) | 12500~20000m² |
| Production Capacity | 100000 Tons / Year |
Product Description
Our Single Axis Solar Tracker Racking System is designed for ease of installation, featuring a user-friendly setup that saves time and labor. Built for harsh environments, the system utilizes high-strength materials and advanced coating technology to ensure long-term resistance to corrosion, high wind loads, and extreme weather.
This system supports heavy-duty photovoltaic modules and maximizes sunlight capture through intelligent tracking technology, boosting power generation by 20%-30%. It is ideal for large-scale terrestrial power stations, industrial rooftops, and complex terrains.
| System type | Independent Drive |
| NO.of Panel | 2-10 Piece (≤23 sq.m.) |
| Power Consumption | 5.0Kwh/set/year |
| Azimuth Tracking Range | ±45ºC |
| Elevation Tracking Range | 45ºC |
| Control Model | Time + GPS Control |
| Method | Manual remote + Remote computer control |
Core Advantages
🛡️ 1. Excellent Durability
High-strength steel structure with multi-layer anti-corrosion coating, adaptable to salt spray and high humidity. Service life ≥ 25 years. Can withstand wind loads up to 60m/s and snow loads up to 5400Pa.
💪 2. Heavy Load Performance
Load capacity of 5 tonnes per group, compatible with double-glass, large-size (210mm+), and double-sided modules.
⚡ 3. High-Efficiency Generation
Intelligent tracking algorithm with ±45° precision. Average daily power generation gain of 25%, with a fast payback cycle (ROI < 5 years).
Installation & Maintenance
🛠️ Installation Steps
- Foundation: Select pile foundation based on geology; ensure accuracy ≤2°.
- Assembly: Torque up to 50N-m, guide rail error ±1.5mm.
- Debugging: Calibrate tracking angle and connect PLC control system.
🔧 Maintenance Recommendations
- Quarterly checks for fasteners and motor gear lubrication.
- Annual software updates and electrical insulation tests.
- Immediate inspection after extreme weather for structural integrity.

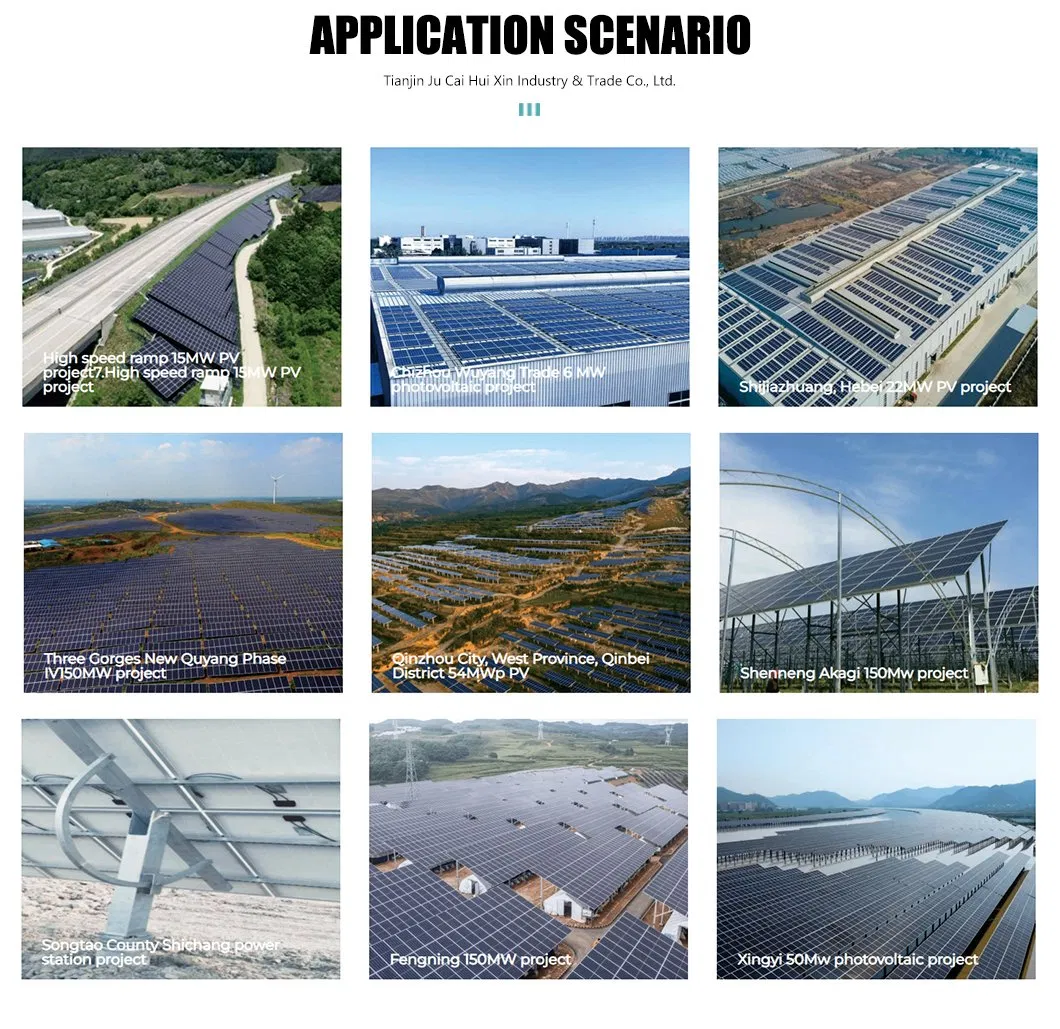

Application Scenarios
- Large-scale Ground Stations: Deserts, mudflats, and slopes.
- Industrial Energy Storage: Logistics parks and factory roofs.
- Agrivoltaics: Compatible with crop cultivation due to adjustable height.
- Off-grid Projects: High stability for remote areas.
Packaging & Shipping
Our products are securely packed for international transit using high-strength steel strips for profiles and durable wooden boxes or pallets for components.
Frequently Asked Questions
Q1: How reliable is the system in sandstorm areas?
A: The drive components are IP68 rated and the bearings are sealed to prevent sand intrusion. The system operates stably in high-dust environments (PM10 > 1000μg/m³).
Q2: Is it compatible with PERC/HJT/Calcium-Titanium modules?
A: Yes, it supports all mainstream technology routes with a maximum module size of 2384×1303mm and reserved ventilation for double-sided utilization.
Q3: What is the power consumption? Does it work on cloudy days?
A: Daily consumption is ≤0.15kWh. It features a built-in light intensity sensor and automatically switches to fixed tilt mode on cloudy days to save energy.
Q4: What is the after-sales response period?
A: We provide global 24/7 technical support. Spare parts can be delivered quickly, and faulty parts are replaced free of charge during the warranty period.
Q5: What certifications does the racking system hold?
A: The system is fully certified under GB, ISO, CE, and RoHS standards, ensuring international safety and quality compliance.
Q6: What types of foundations are compatible with this tracker?
A: The modular design is compatible with various foundation types including helical screw piles and concrete foundations, depending on your geological report.
