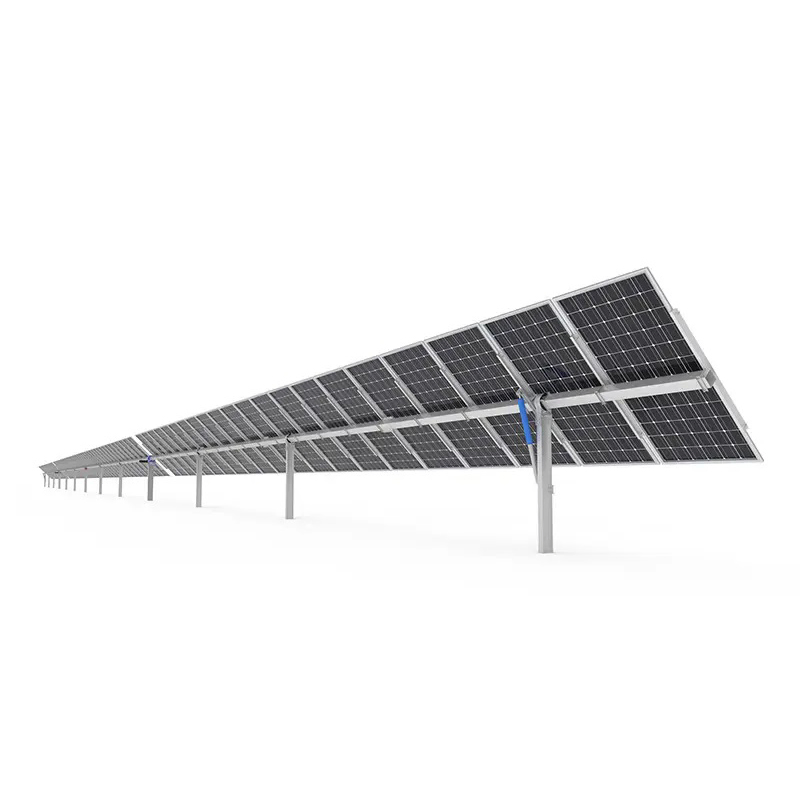

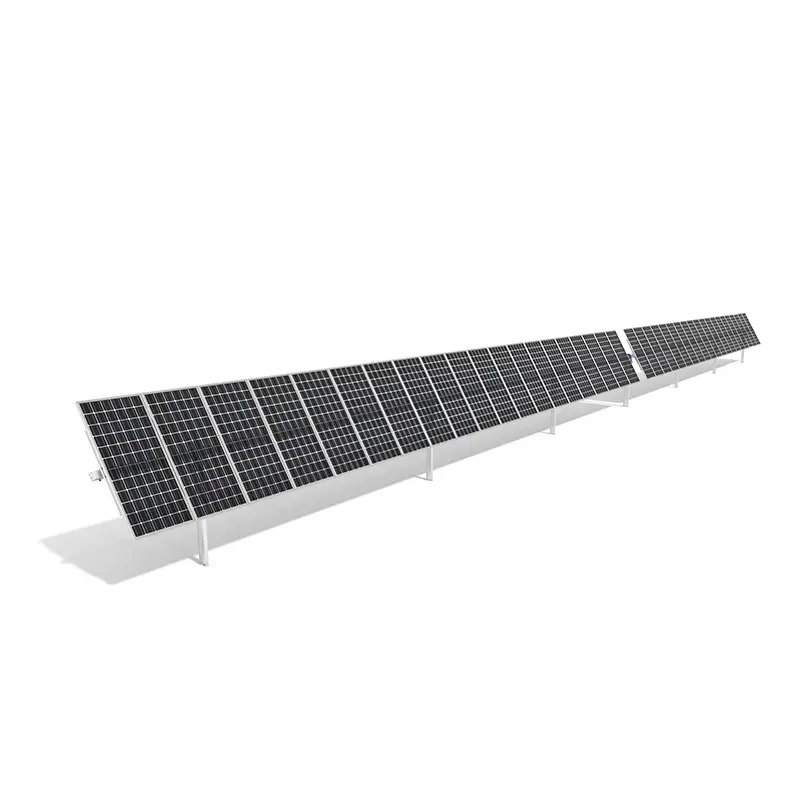

Advanced Single Axis Solar Tracker Mounting System for Industrial Use
Advanced Single Axis Solar Tracker Mounting System for Industrial Use
Advanced Single Axis Solar Tracker Mounting System for Industrial Use
Advanced Single Axis Solar Tracker Mounting System for Industrial Use
Advanced Single Axis Solar Tracker Mounting System for Industrial Use
1 / 5
Advanced Single Axis Solar Tracker Mounting System for Industrial Use
Advanced Single Axis Solar Tracker Mounting System for Industrial Use
Advanced Single Axis Solar Tracker Mounting System for Industrial Use
Advanced Single Axis Solar Tracker Mounting System for Industrial Use
Advanced Single Axis Solar Tracker Mounting System for Industrial Use

Advanced Single Axis Solar Tracker Mounting System for Industrial Use

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

Basic Information

Model NO.SAST
CertificationISO, TUV, CE
ApplicationIndustrial
MaterialStainless Steel
TypeTracking Bracket
Module Size1650*992*40mm
Weight1300kg
Scope of Rack100~200m2
Power Supply110V / 220V
Protection LevelIP65
CommunicationRS485
Capacity100000 Watts Per Month

Packaging & Delivery

Package Size200.00cm * 105.00cm * 10.00cm
Gross Weight1300.000kg

Product Description

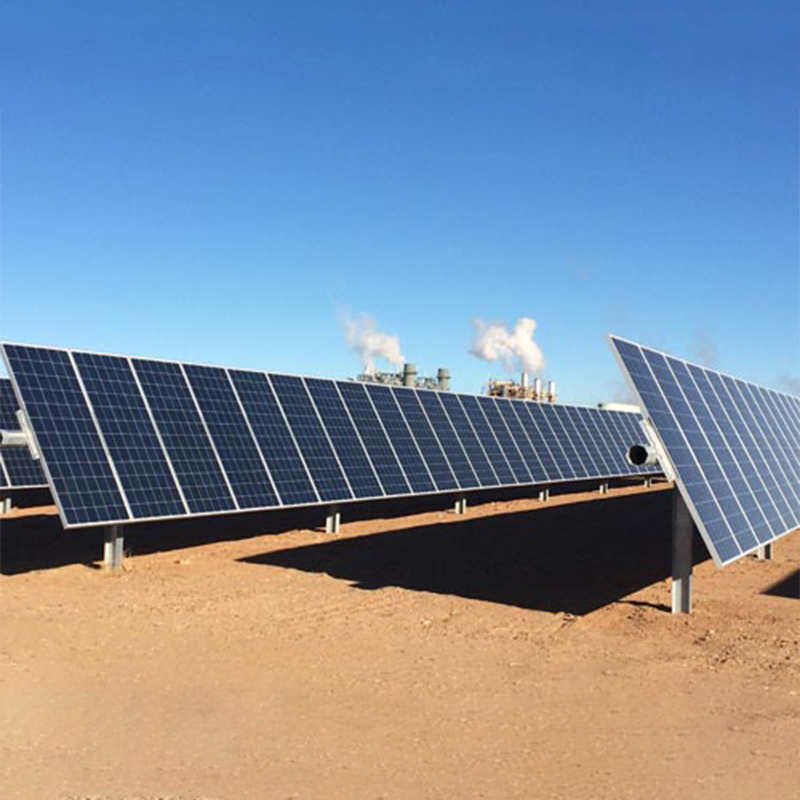

Advanced Single Axis Solar Tracker Mounting System for Industrial Use

Tracker Structure Tracking Controller
Solar Panel Type1650*992*35mm (78 Cells) Controller TypeMCU (32bit)
Solar Panel ArrangementVertical Arrangement Control AlgorithmAstronomical Algorithm + Position Sensor Closed Loop
Ground Clearance400 mm CommunicationRS485 / Bluetooth / WiFi-4G (Optional)
Safe Wind Speed17 m/s Survival Wind Speed37m/s (Customizable < 60m/s)
Snow Load0.2~0.8KN/m2 Protection LevelIP65
Bracket MaterialHot-Dip Galvanized Steel Q235B / Q355B Tracking Accuracy≤±2°
Design Life>25 Years Working Temp-30ºC~+70ºC (Customizable to -50ºC)

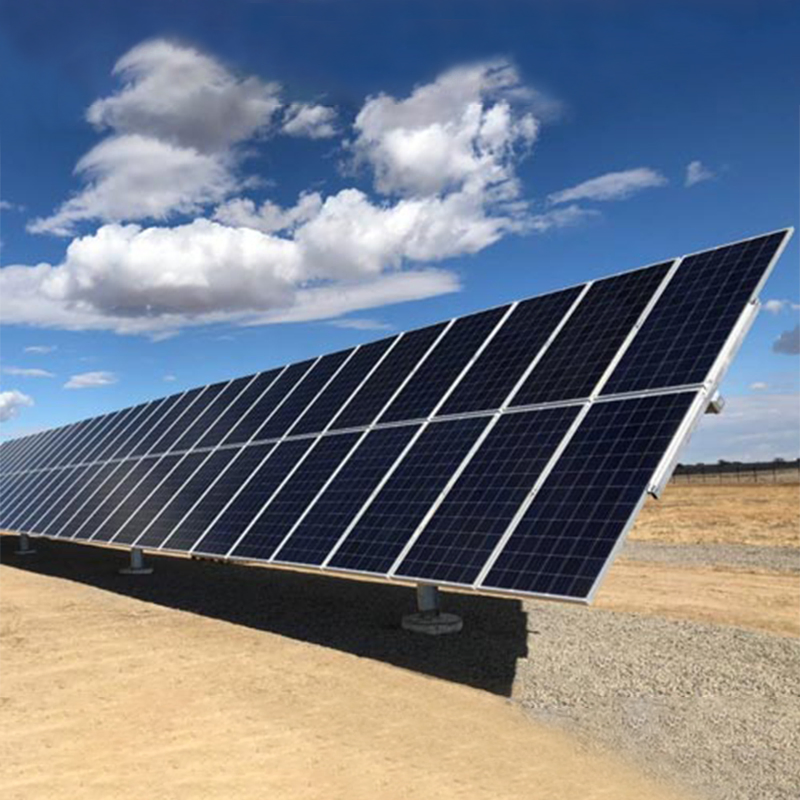

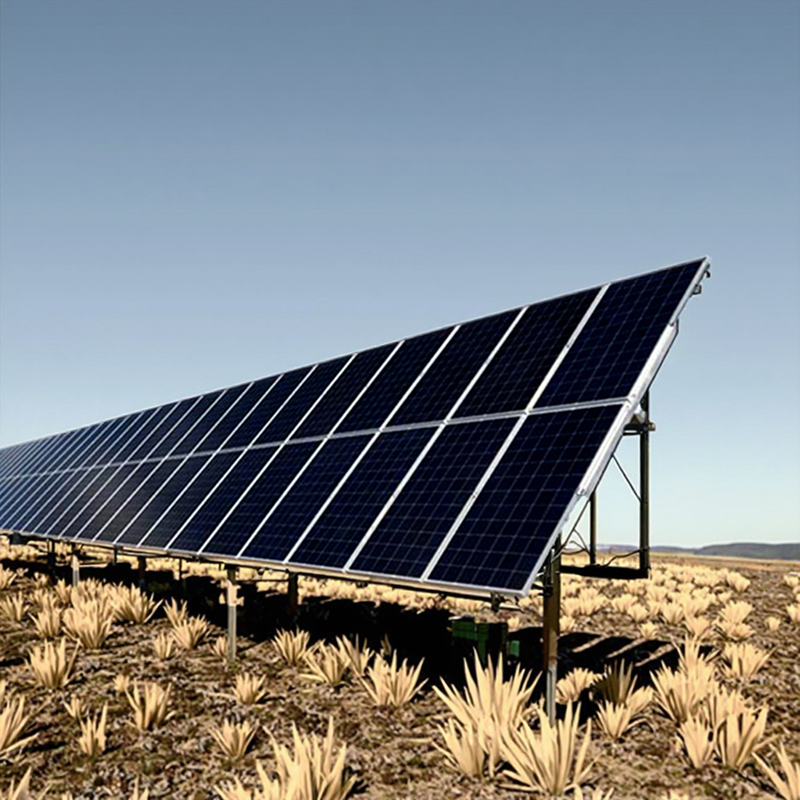

Detailed Photos

Solar Tracker Photo 1
Solar Tracker Photo 2

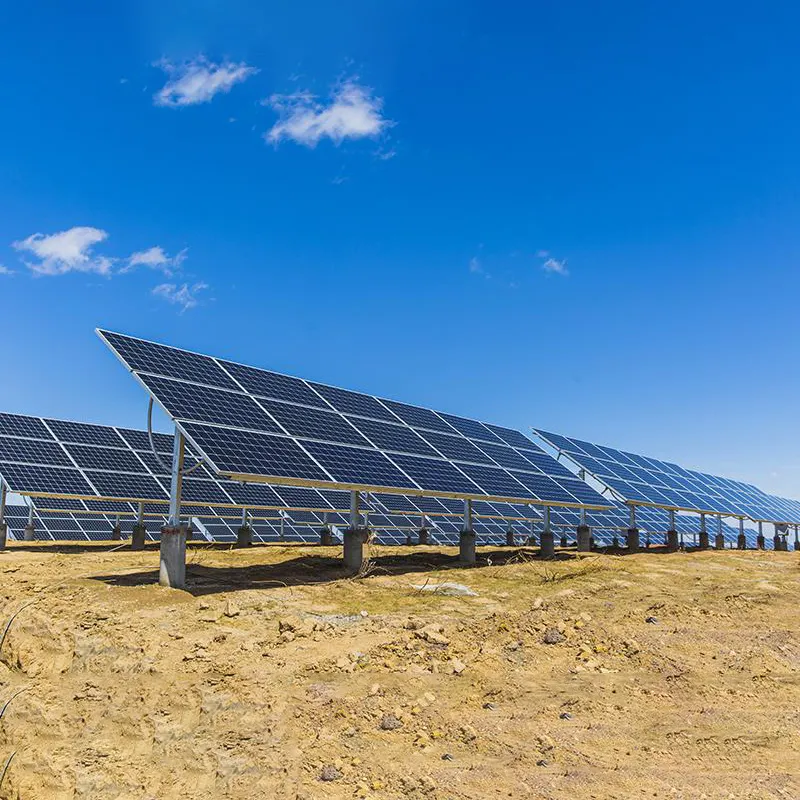

Solar Tracker Photo 3

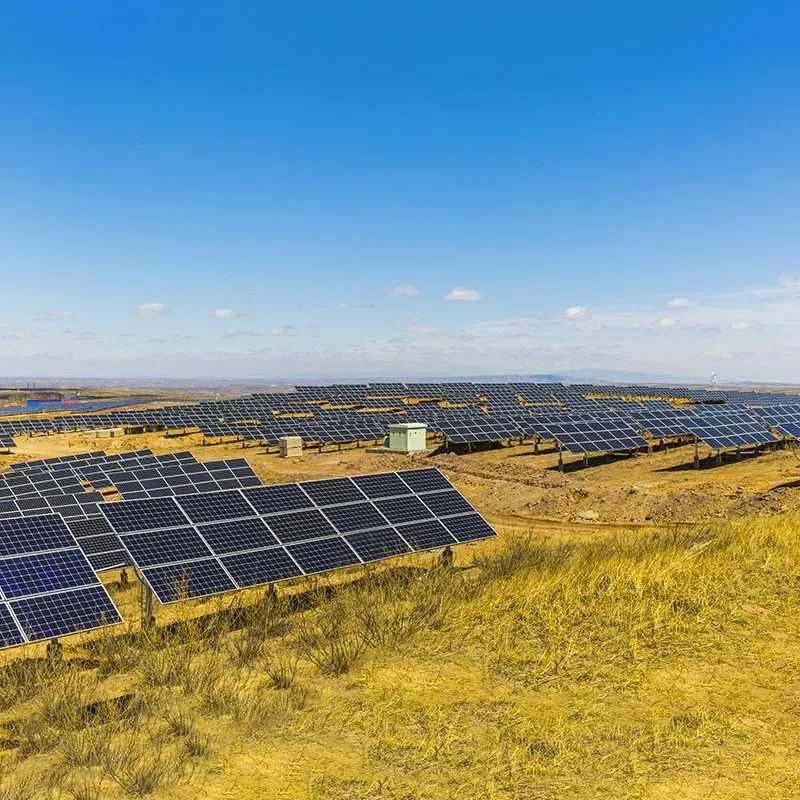

Solar Tracker Photo 4

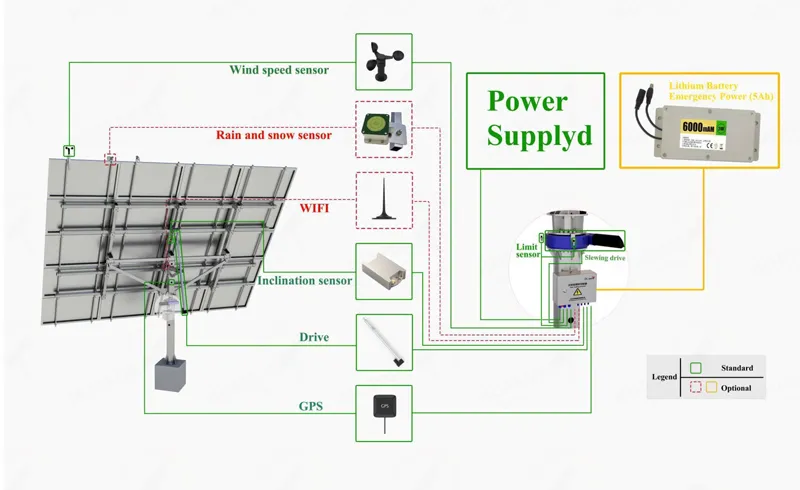

Solar Tracker Structure

Application Areas

Application Areas

Production Overview

Factory Image 1

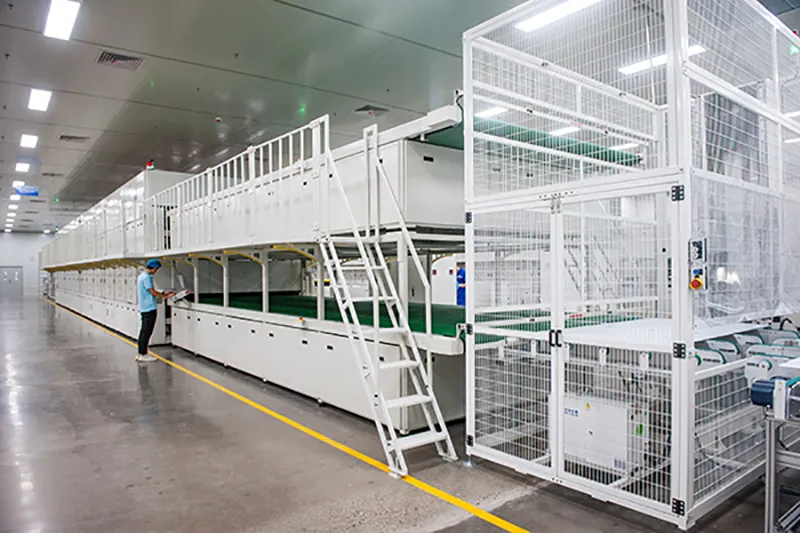

Factory Image 2

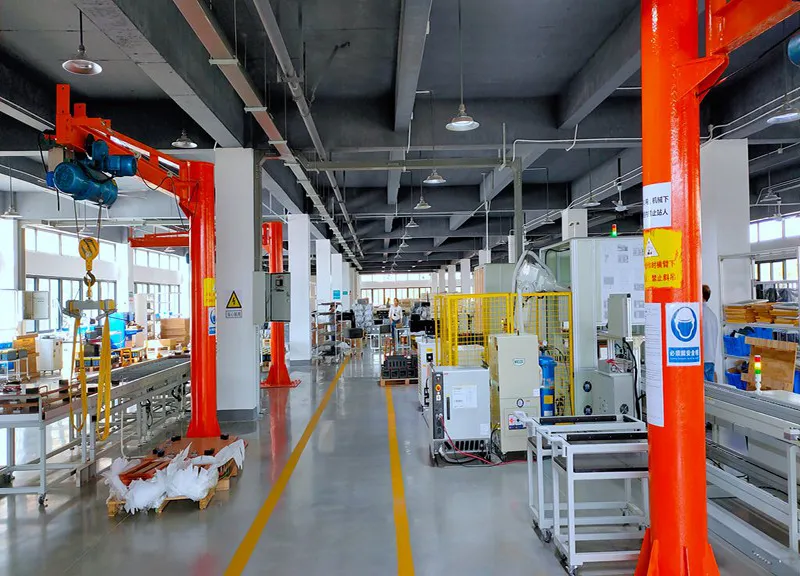

Factory Image 3

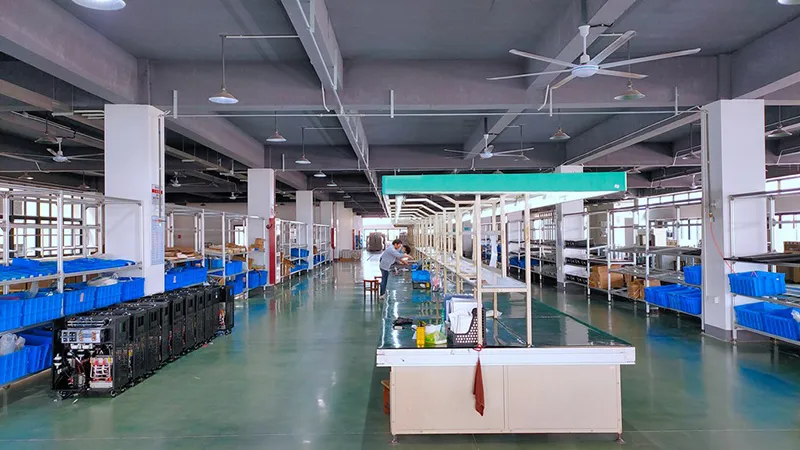

Factory Image 4

Project Cases

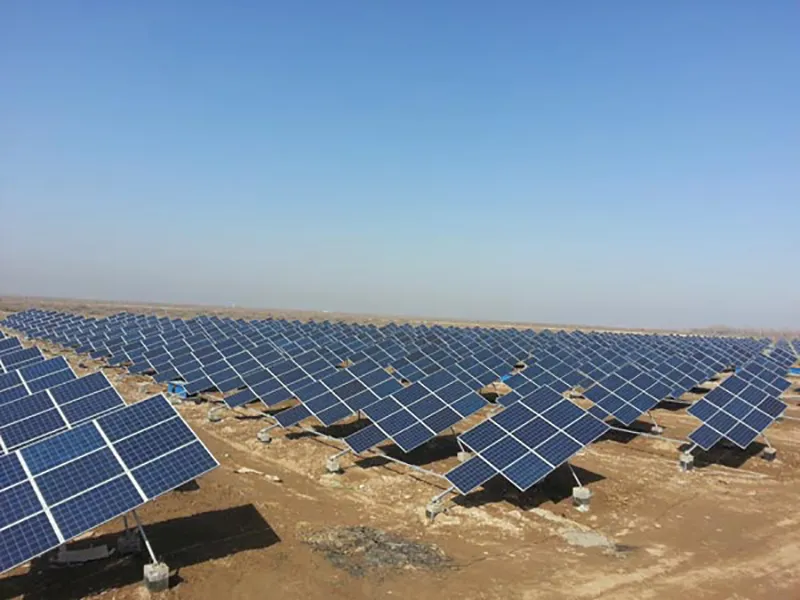

Project Case 1

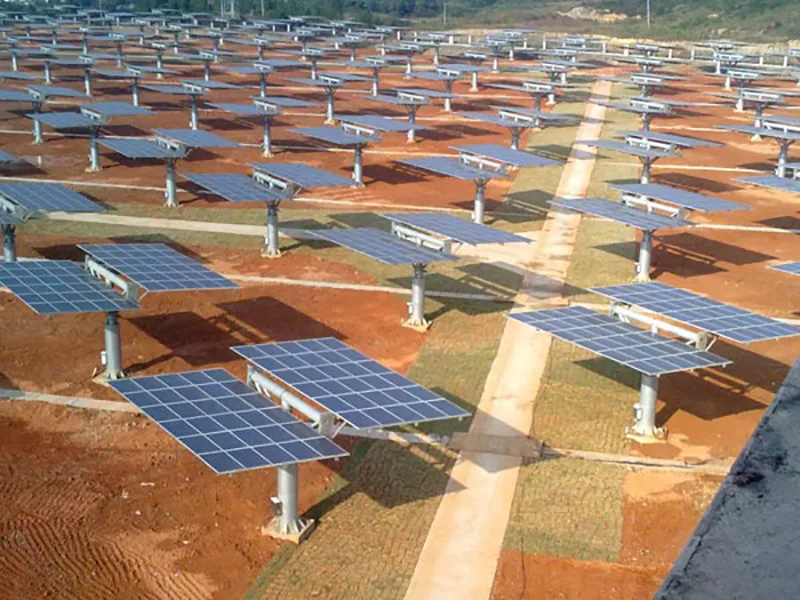

Project Case 2

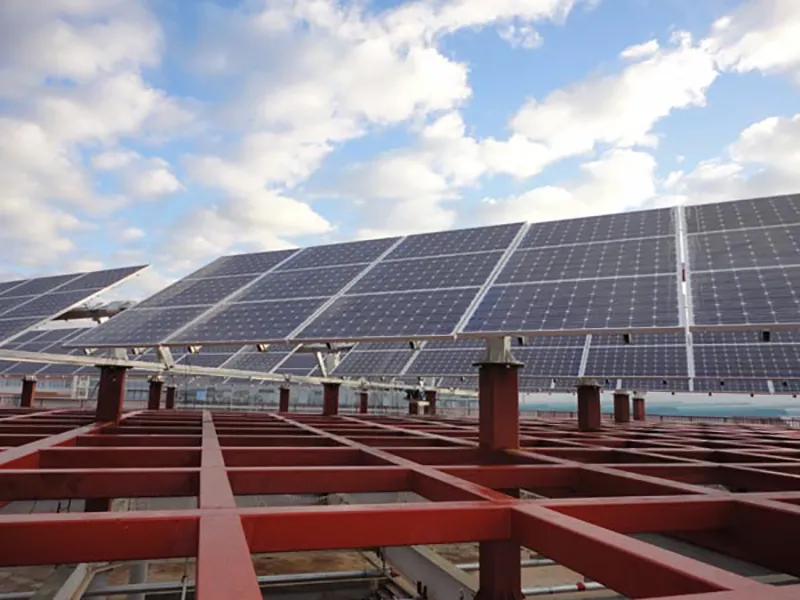

Project Case 3

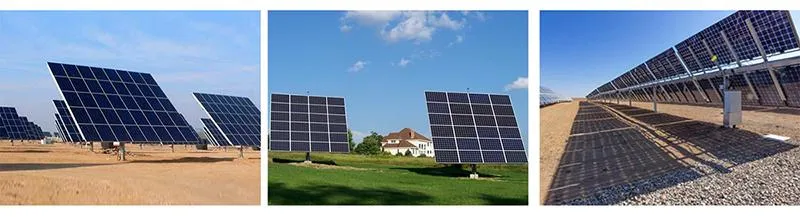

Project Case 4

Certifications

Certifications Display

Frequently Asked Questions

1. What is the tracking accuracy of this system?
The Single Axis Solar Tracker provides a high tracking accuracy of ≤±2° using an MCU 32bit controller and astronomical algorithms.
2. Can the tracker withstand high wind speeds?
Yes, it has a safe working wind speed of 17 m/s and a survival wind speed of 37 m/s, which can be customized up to 60 m/s.
3. What materials are used for the bracket structure?
The main structure is made of Hot-Dip Galvanized Steel (Q235B / Q355B) with a galvanizing thickness of >85um for long-term industrial durability.
4. Does it support remote monitoring?
The system supports RS485 protocol and Bluetooth as standard, with optional WiFi and 4G modules for remote network communication.
5. What are the protection features against extreme weather?
The system includes IP65 protection, automatic wind protection modes, night return modes, and optional snow removal or heavy rain self-cleaning modes.
