❓ Frequently Asked Questions

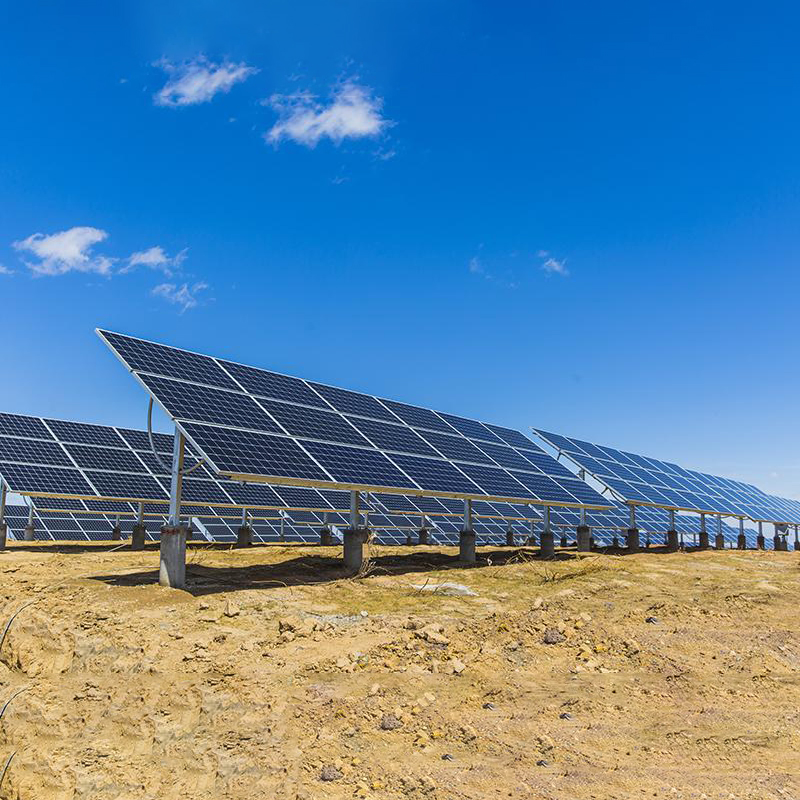

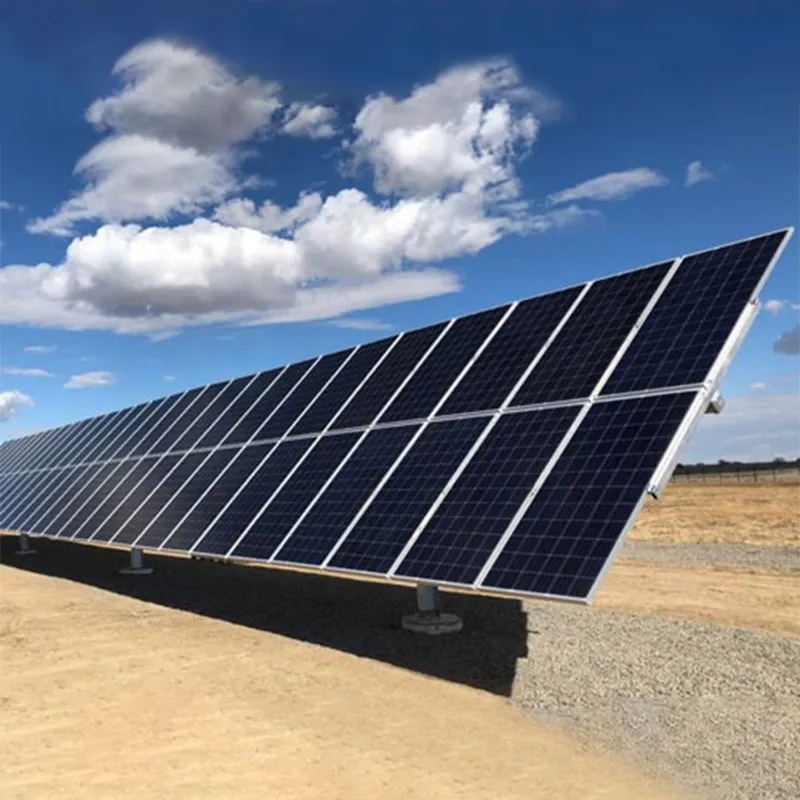

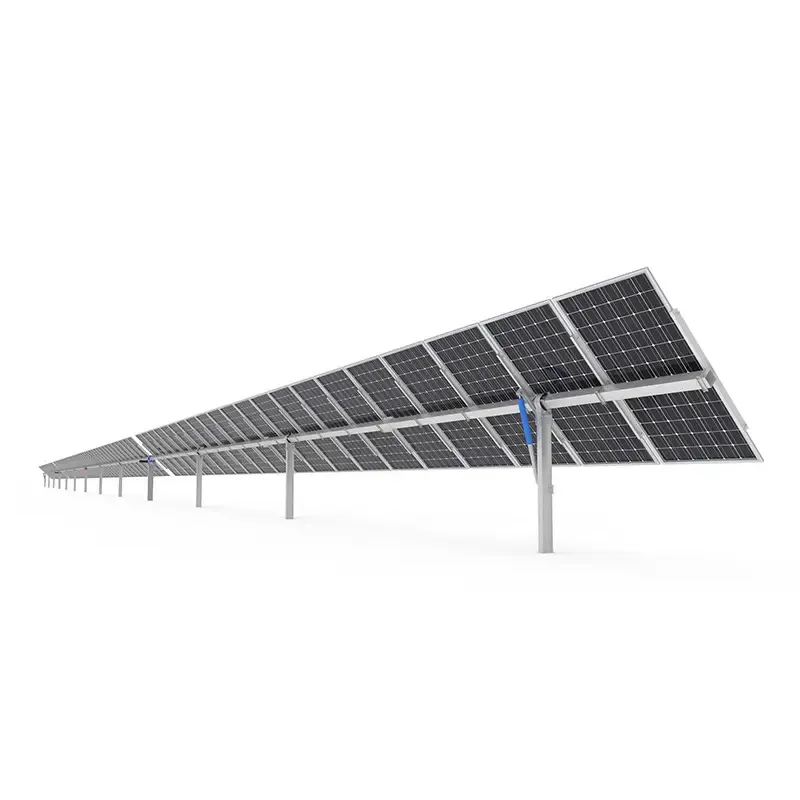

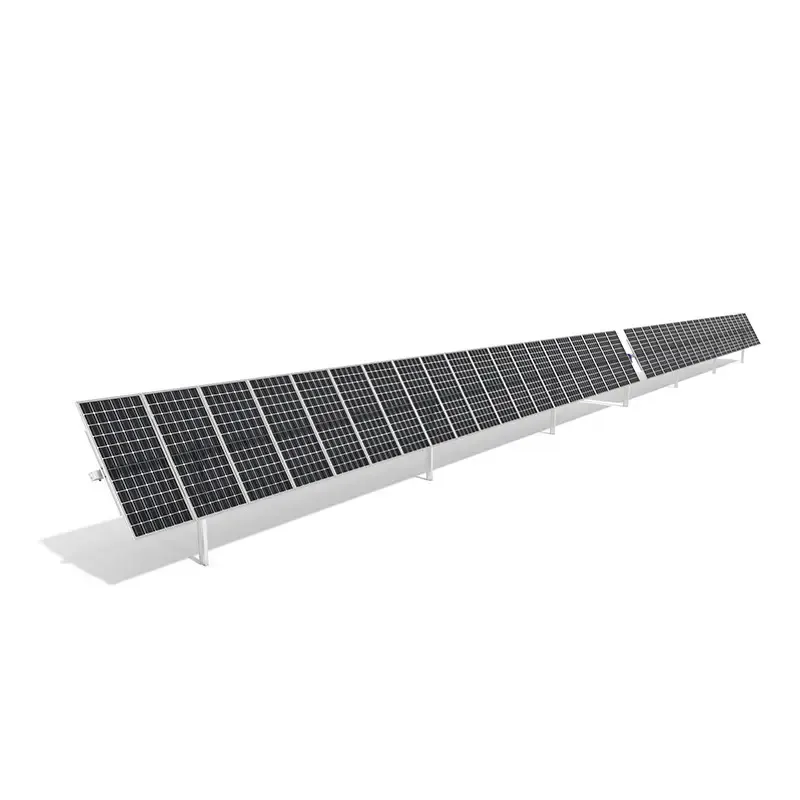

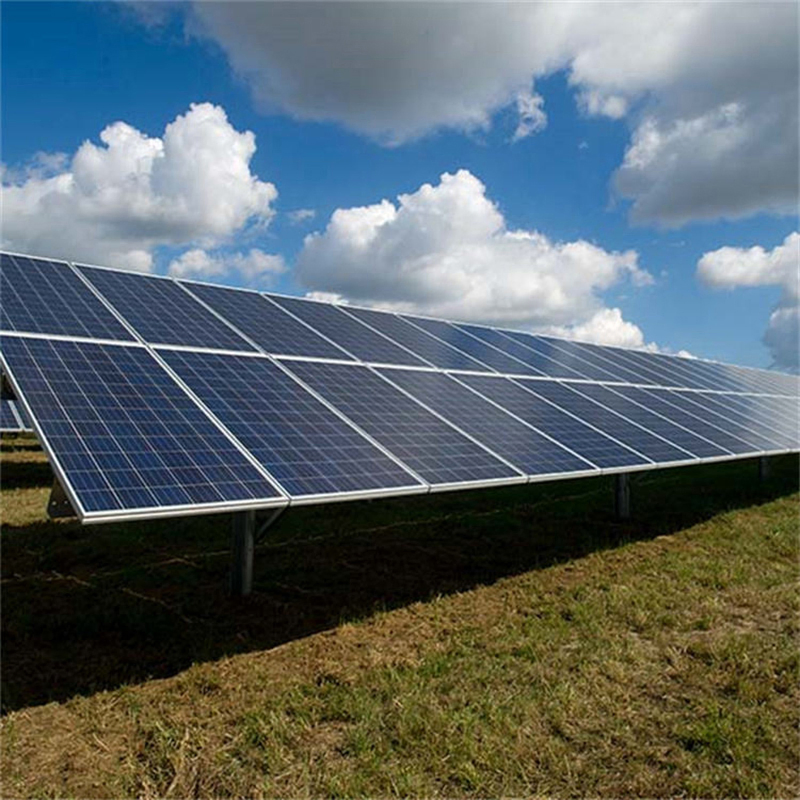

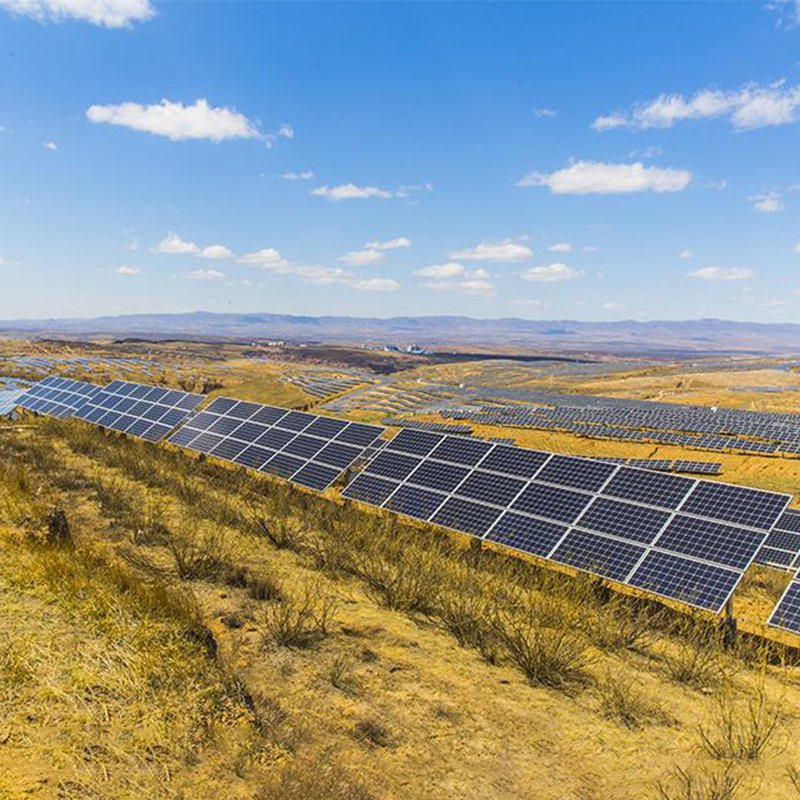

What is the tracking accuracy of this Single Axis Solar Tracker?
The system utilizes a high-precision 32-bit MCU with an astronomical algorithm and position sensor closed-loop control to achieve a tracking accuracy of ≤±2°.
How does the tracker perform in high wind conditions?
The tracker includes a built-in wind protection mode. It has a safe working wind speed of 17 m/s and a survival wind speed of 37 m/s, which can be customized up to 60 m/s for extreme environments.
What materials are used for the bracket and fasteners?
The main structure is made from hot-dip galvanized steel (Q235B / Q355B) with a thickness of >85um for superior corrosion resistance. Fasteners are made from high-quality A2-70 304 stainless steel.

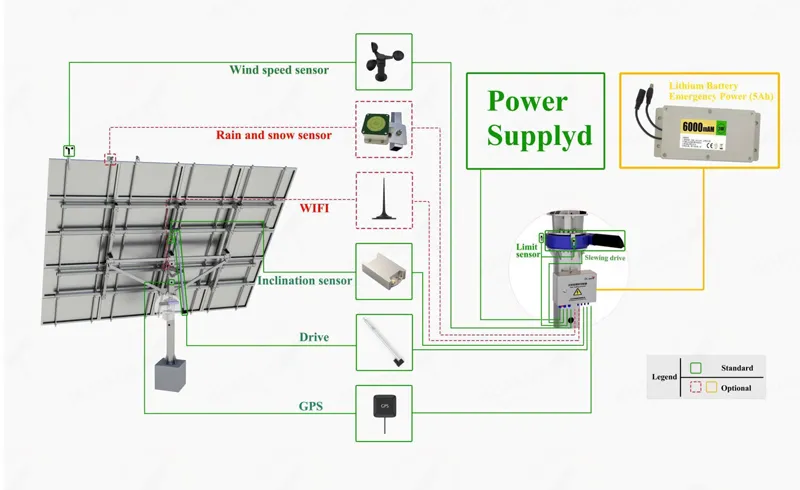

Does the system support remote monitoring?
Yes, the tracking controller supports local network connection via Bluetooth and offers optional remote networking via WIFI or 4G for easy management.
What are the power requirements for operating the tracker?
The system operates on an AC 100V~240V supply with a very low daily power consumption of less than 0.25~1kWh. It also has an option for lithium battery emergency power.
Can this tracker handle heavy snow loads?
Yes, the structure is designed to support a snow load of 0.2~0.8KN/m2 and includes an optional snow removal mode to prevent accumulation.
