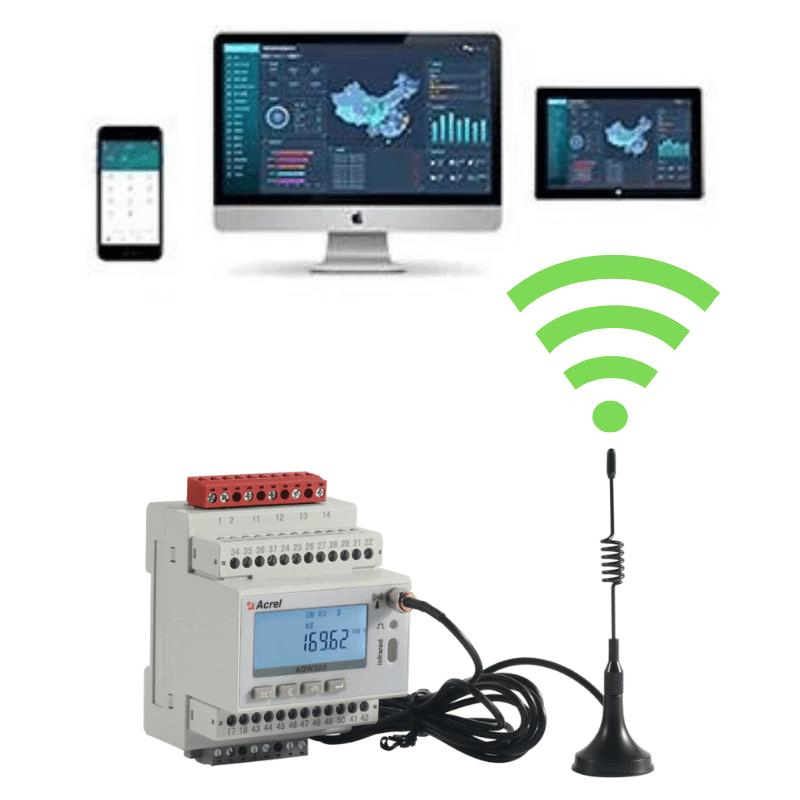

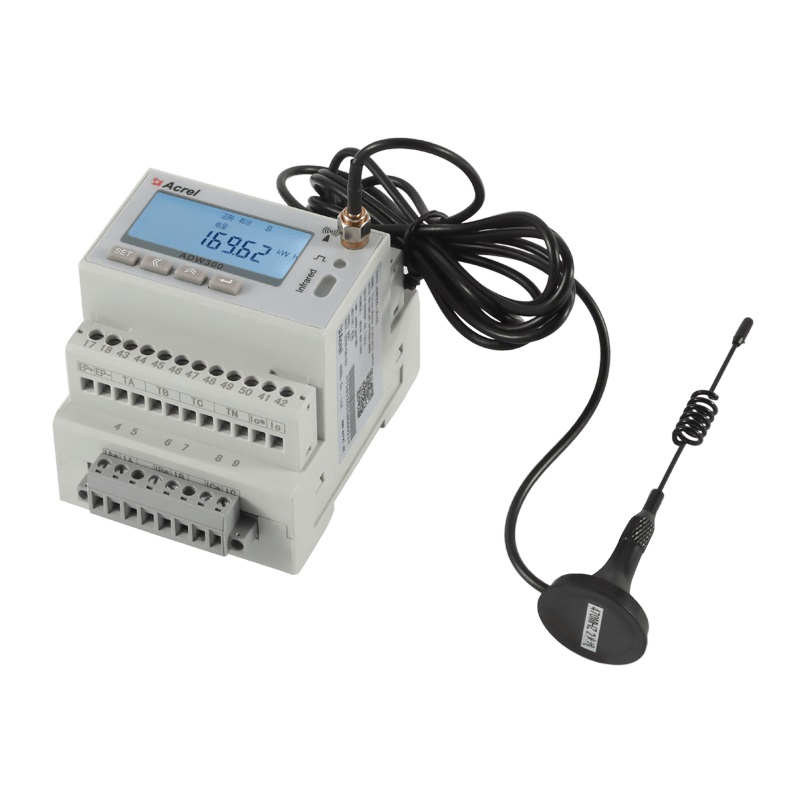

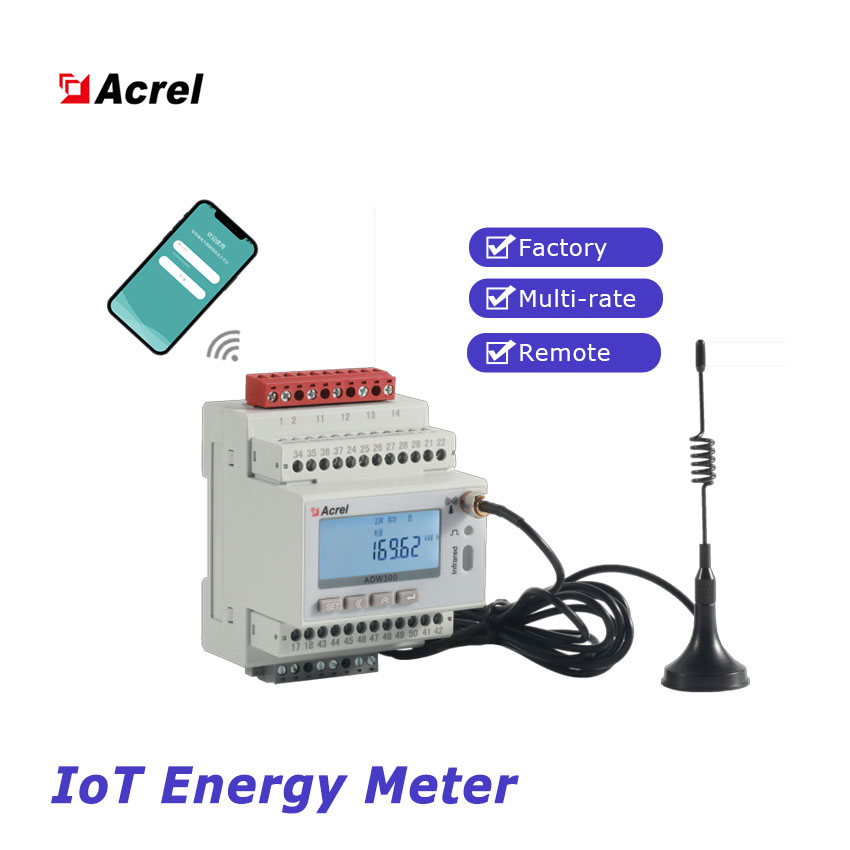

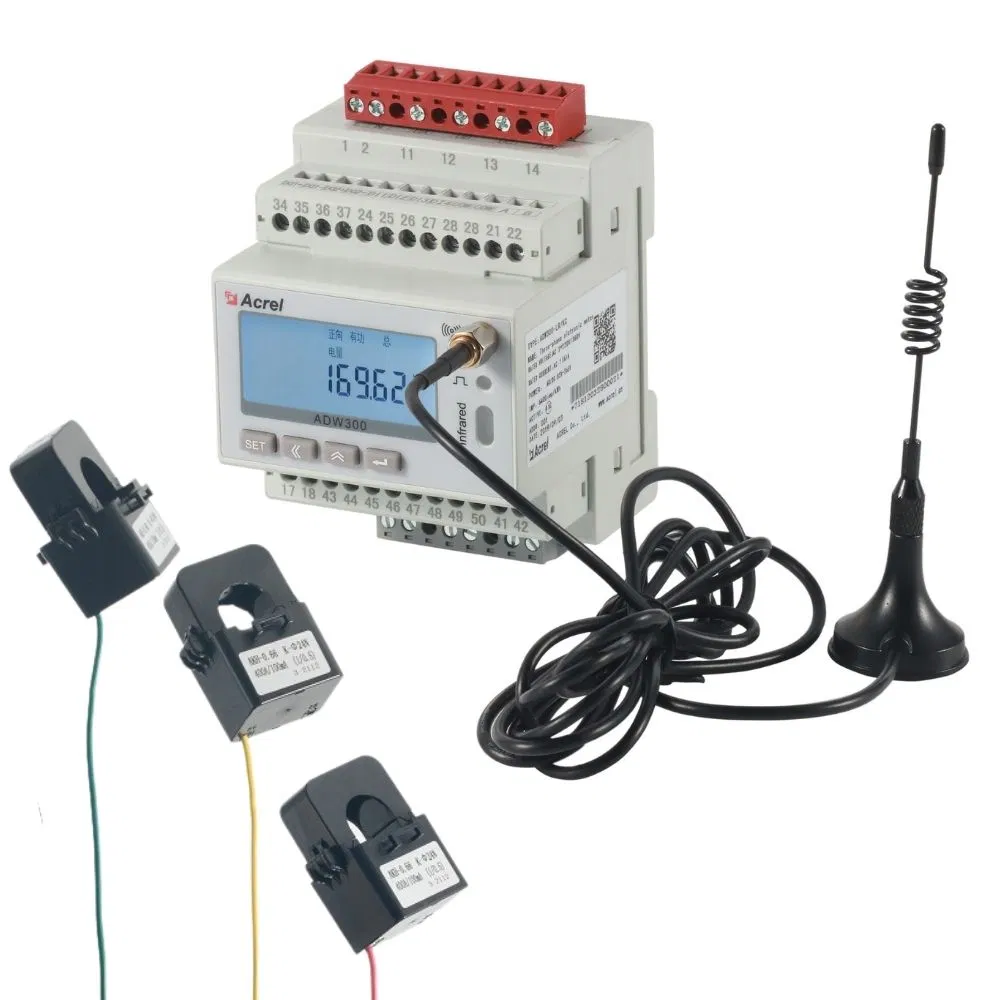

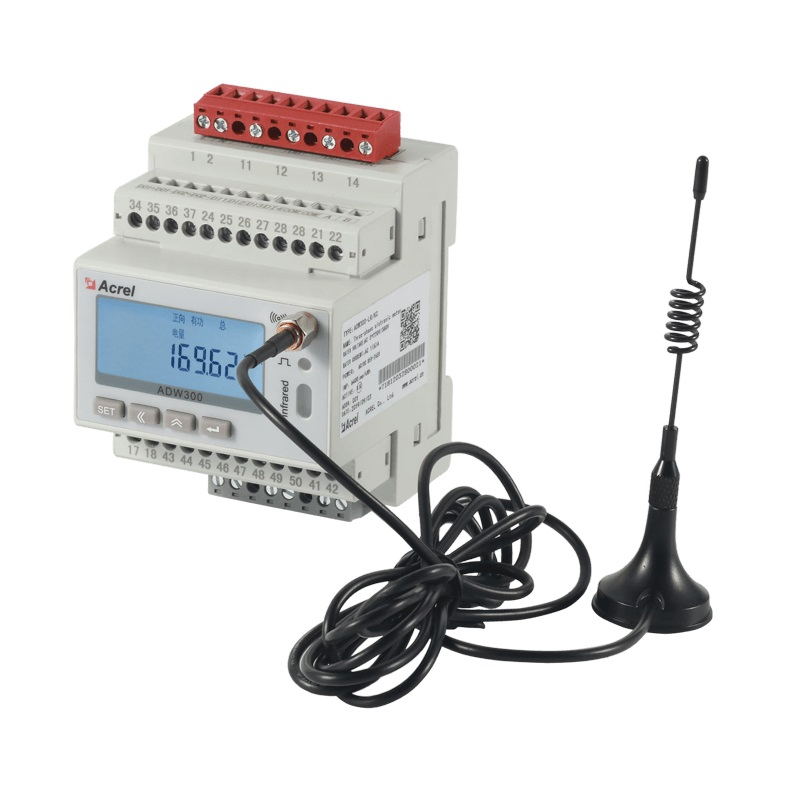

The ADW300 wireless meter is primarily designed to measure three-phase active power in low-voltage networks. Featuring RS485 and 470MHz wireless communication, it empowers users to monitor, collect, and manage electricity consumption with ease.
It can be flexibly installed in distribution boxes to achieve precise measurement, statistics, and analysis of energy across different regions and loads.

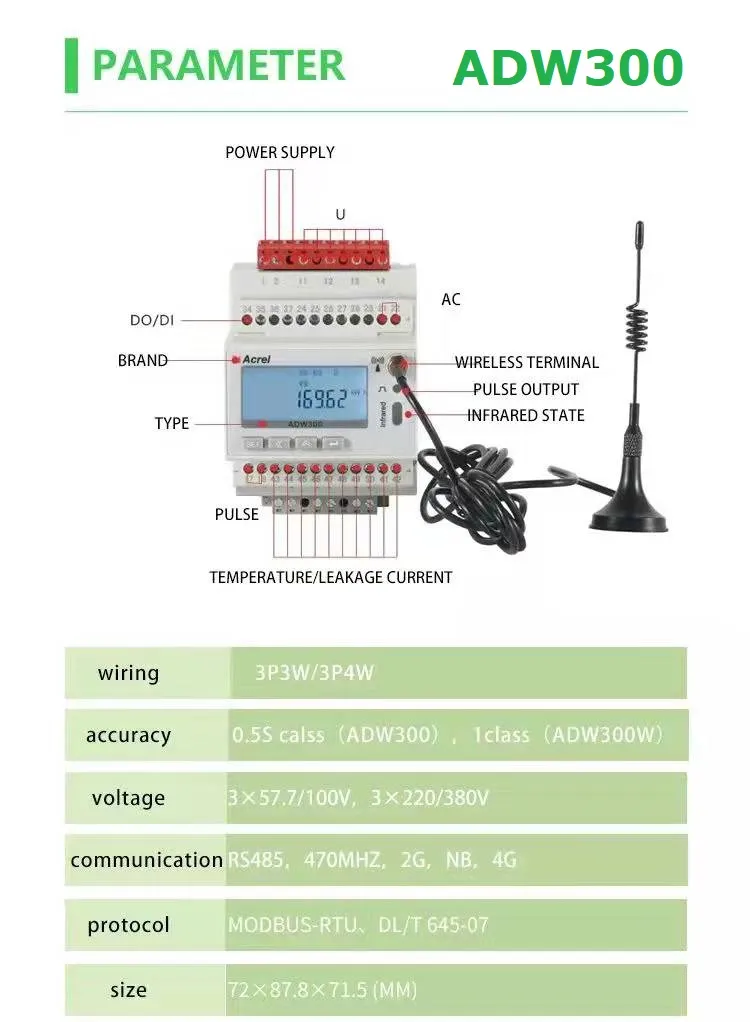

| Model | ADW300-WF |
| Display | Digital LCD (8 digits) |
| Installation | Direct Connected / Din Rail |
| Phase | Three Phase Four Wire |
| Accuracy | Class 0.5S or 1 |
| Communication | WiFi (2.4GHz & 5GHz), 4G LTE, LoRa, RS485 |
| Protocol | Modbus-RTU, DL/T645-07 |

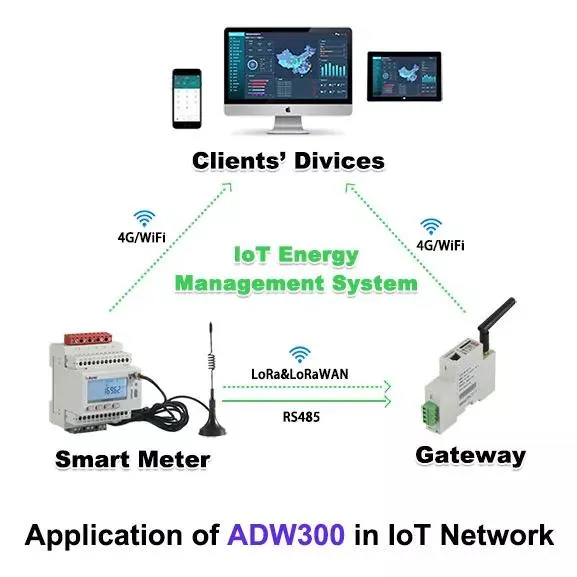

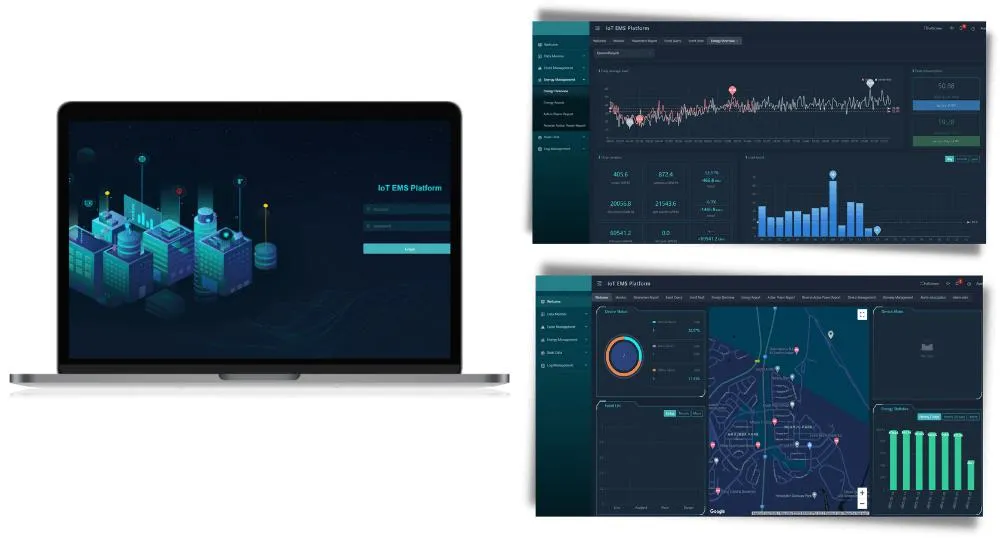

Integrated IoT Energy Management System for real-time monitoring and data analysis.
| Parameter Item | Value / Range | |
|---|---|---|
| Input Voltage | Nominal | 3*220/380V, 3*380V, 3*57.7/100V, 3*100V |
| Frequency | 50Hz - 60Hz | |
| Input Current | Maximum | 6A (Via CTs) |
| Accuracy | Class 0.5S | |
| Temperature | Operating | -25ºC ~ +55ºC |
| Humidity | Max | ≤95% (No condensation) |

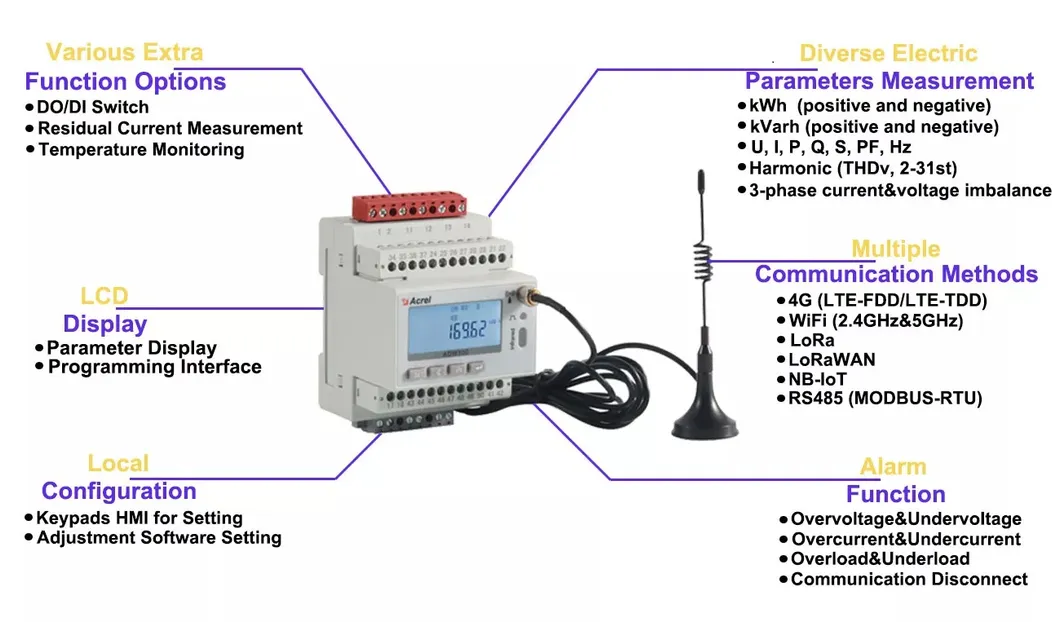

Supports 4G LTE, NB-IoT, WiFi (2.4GHz & 5GHz), LoRa, and RS485 (MODBUS-RTU) for diverse environment needs.

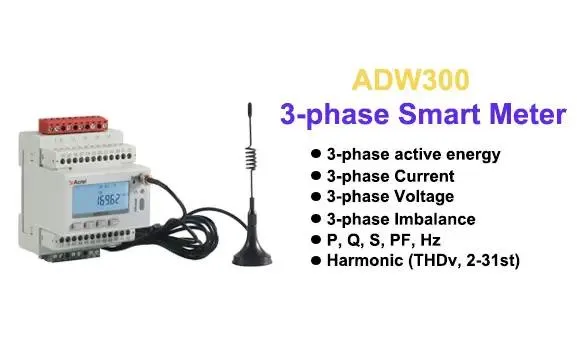

Measures kWh, kVarh, U, I, P, Q, S, PF, and Hz. Includes Harmonic analysis (THDv, 2-31st).

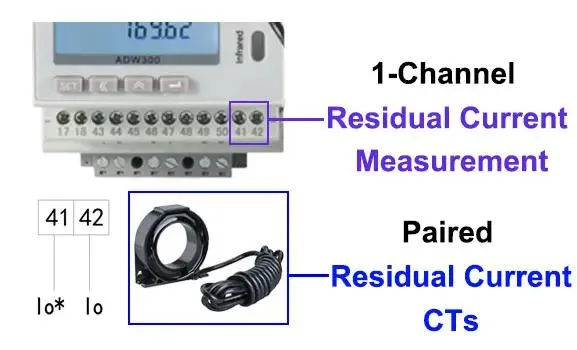

Provides 1-channel residual current measurement when paired with specialized CTs for enhanced safety.

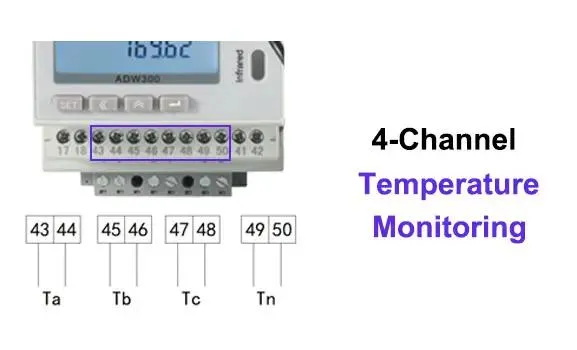

4-channel cable temperature monitoring (A, B, C, N) using NTC thermistors. Range: -40ºC to +99ºC.

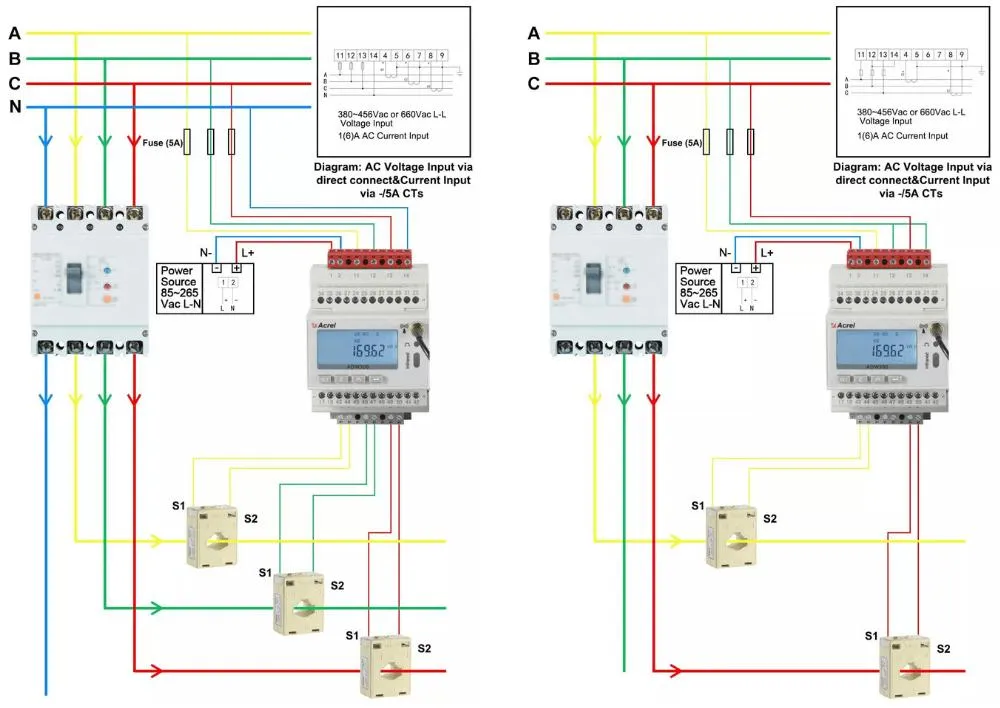

Supports 3-phase 4-wire and 3-phase 3-wire CT operated systems.
