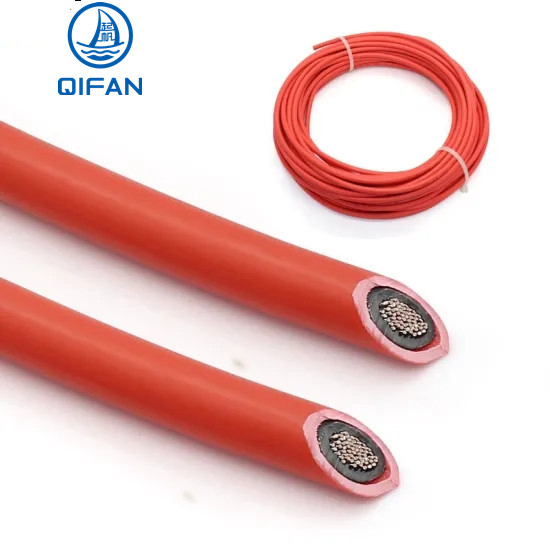

Photovoltaic TUV UL Tinned Copper PV1f PV Solar Cable (2.5 - 10mm2)
1. Executive Standard:
PV cable (solar cable) refers to the original draft made by the PV system cable work team of the German Standard Committee (Technical Specification 2PFG1169/08.2007 in Rhein TUV company German).
2. No-halogen PV-Cable Type:

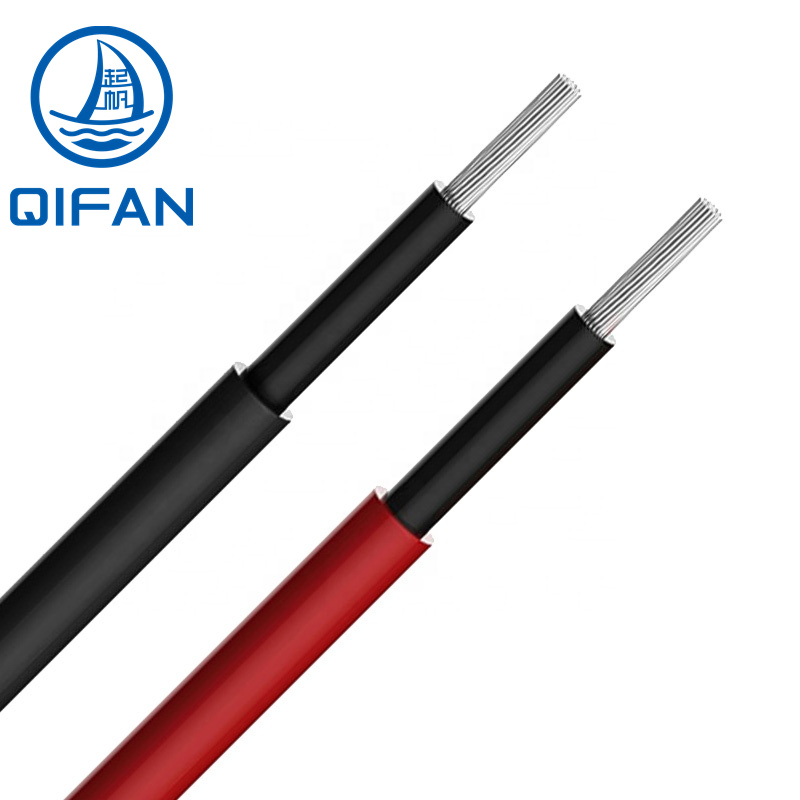

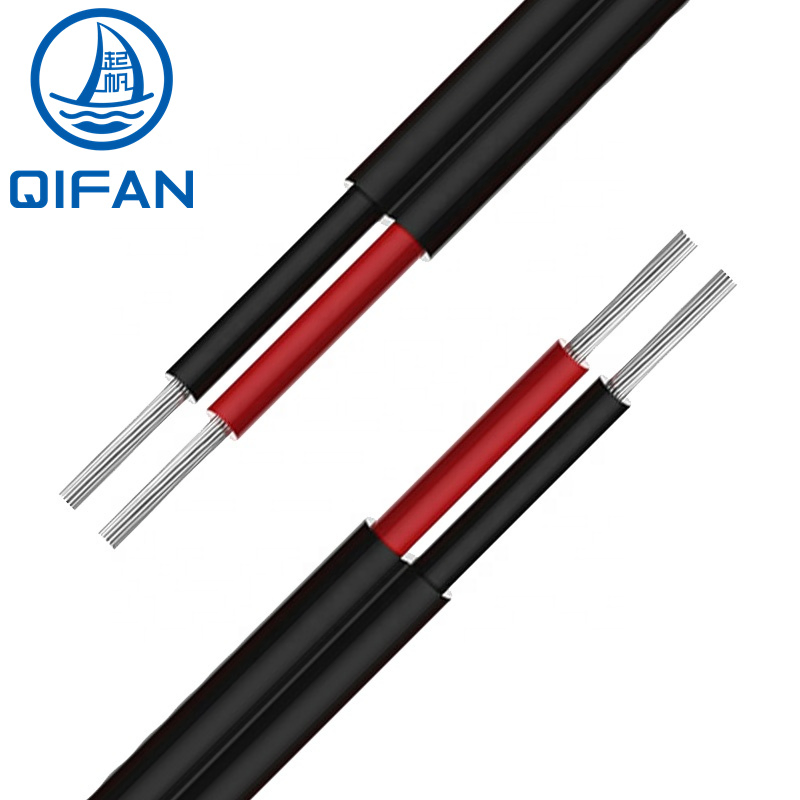

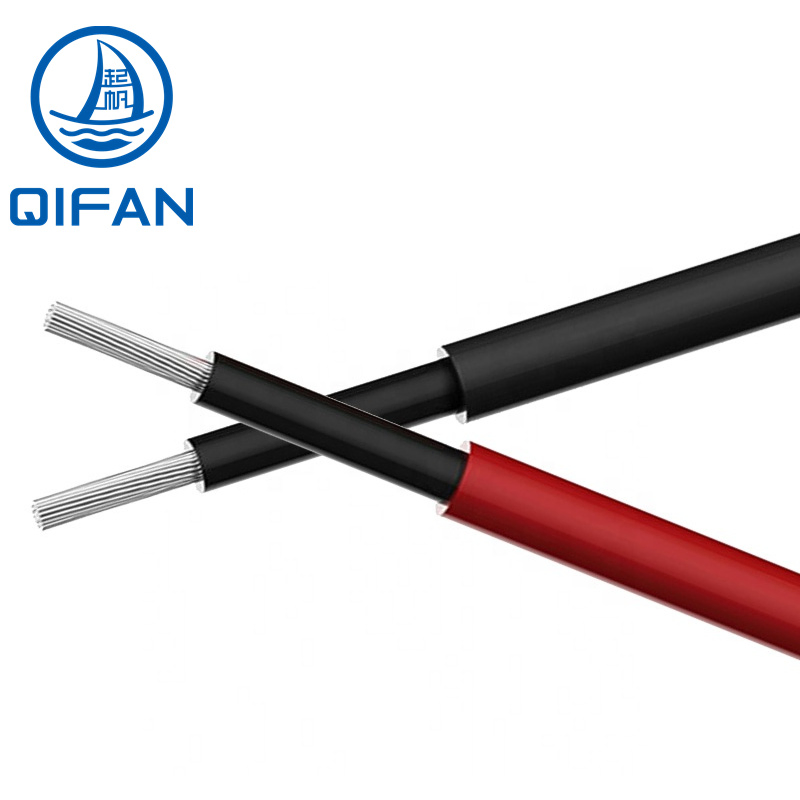

PV1-F: Tinned Flexible Copper Wire with No Halogen PO Insulation & Sheath for Photovoltaic Systems.
3. Application:

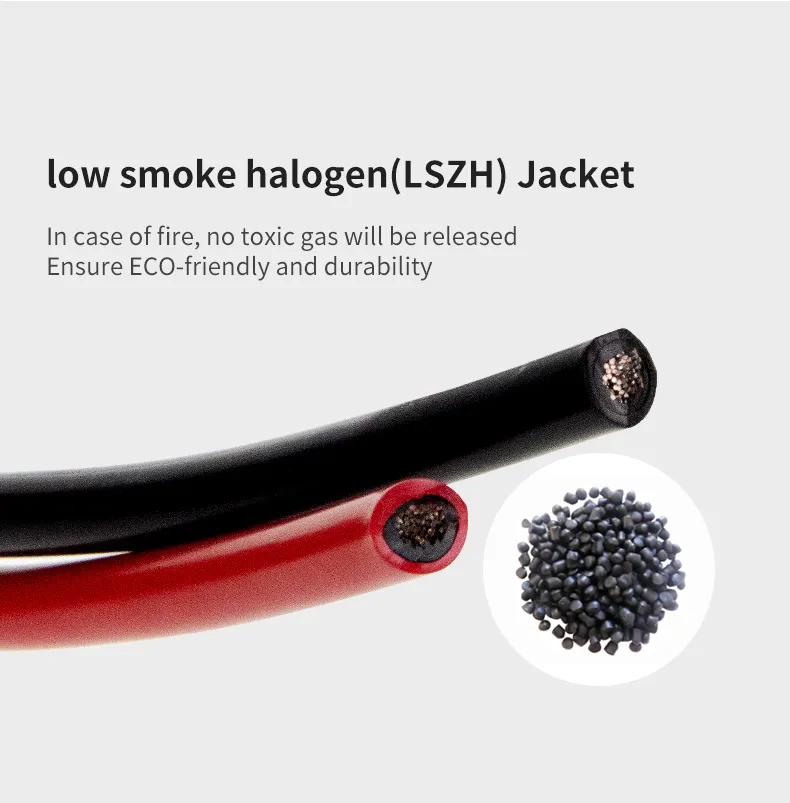

Applied to solar panels for power generation and related components of wiring and connection, particularly suitable for outdoor environments. Features resistance to sunlight, anti-aging, and uses low-smoke halogen-free flame retardant materials for higher safety grades.
| MODEL | PV1-F |

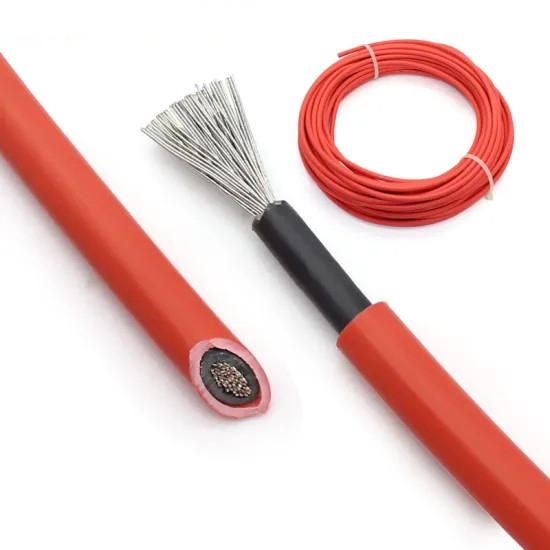

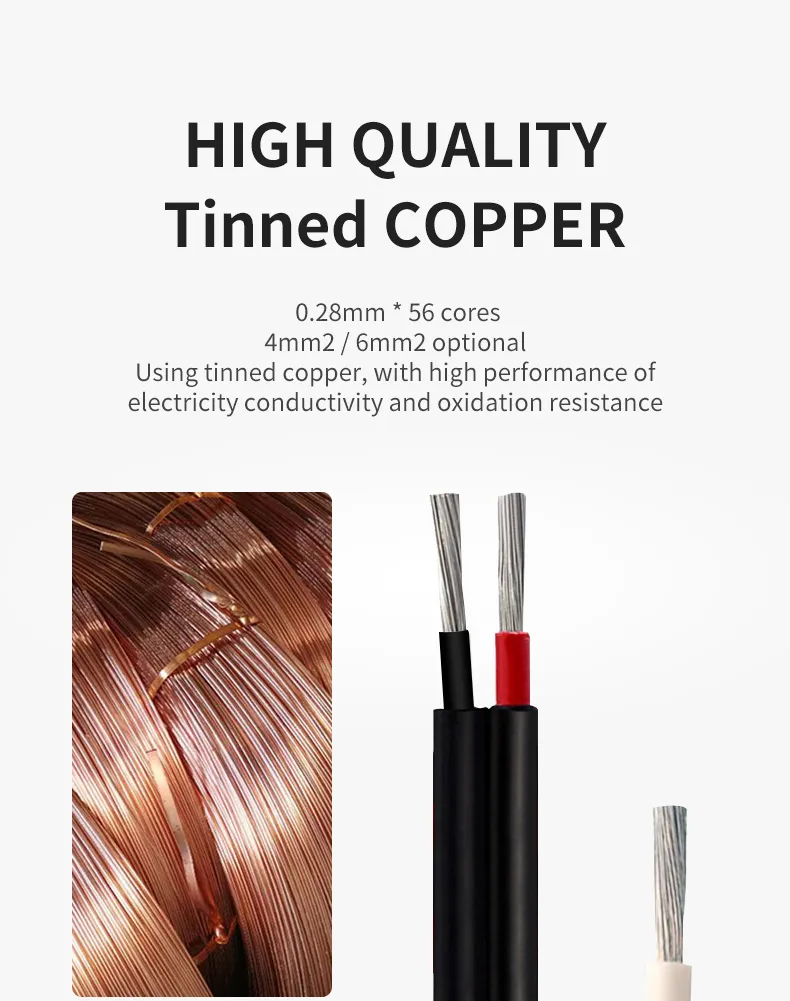

| Conductor | Tinned copper wire, class 5 (as per IEC 60228) |
| Insulation | No Halogen PO insulation |
| Sheath | No Halogen PO sheath |
| Rated Voltage | AC 0.6/1KV | DC 1.8KV |
| Temperature Range | -40°C~+90°C (dry/humidity) |
| Max Working Temperature | 120°C |
| Short Circuit Temp | 200°C |
| Standard | EN 2PFG 1169 |

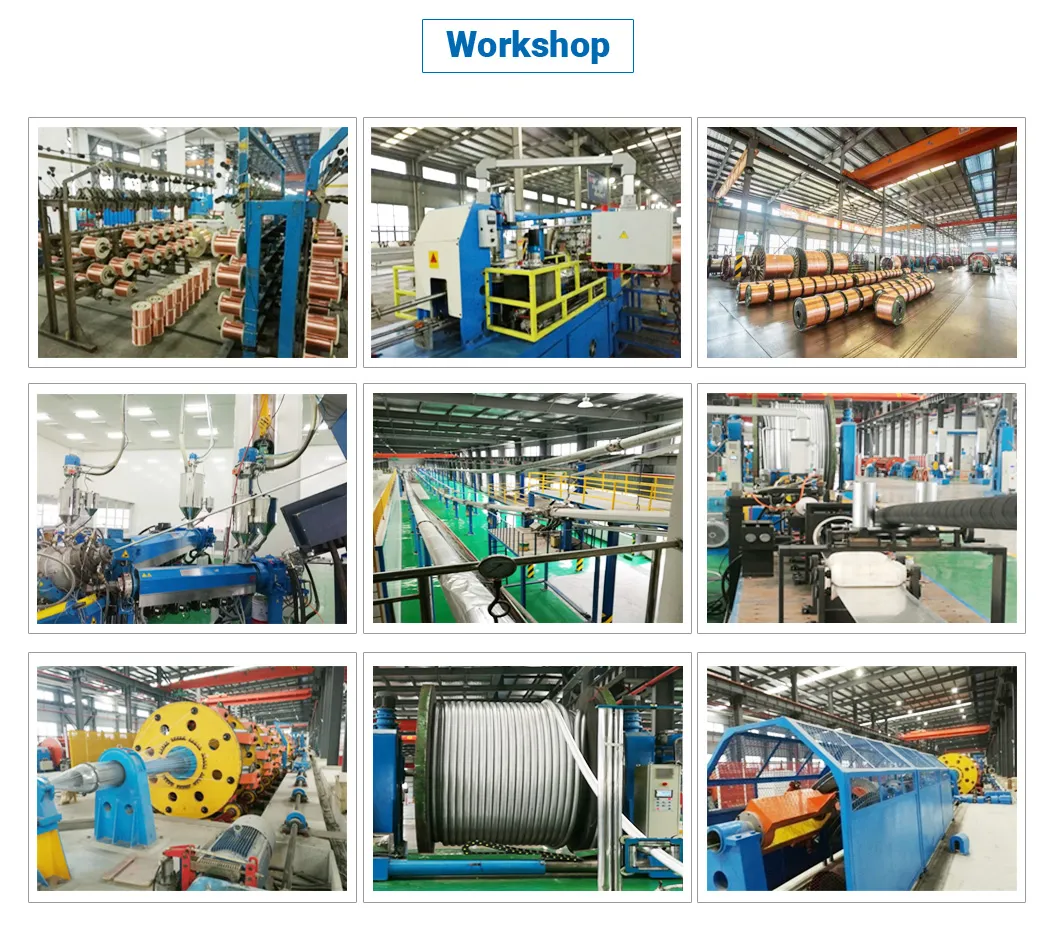

Utilizing high-end production lines including copper drawing lines, VCV lines from Finland and Germany, and precision eccentricity measuring units to ensure superior cable quality.
Compliance with international standards including ISO 9001, ISO 14001, and OHSAS 18001. Products are certified by TUV, VDE, UL, CE, SAA, and BS.
Covering LV/MV/HV power cables, ABC cables, submarine cables, solar cables, and various industrial specialized wires.
Offering OEM/ODM services with a skilled technical engineering team providing reliable quality and professional service.
