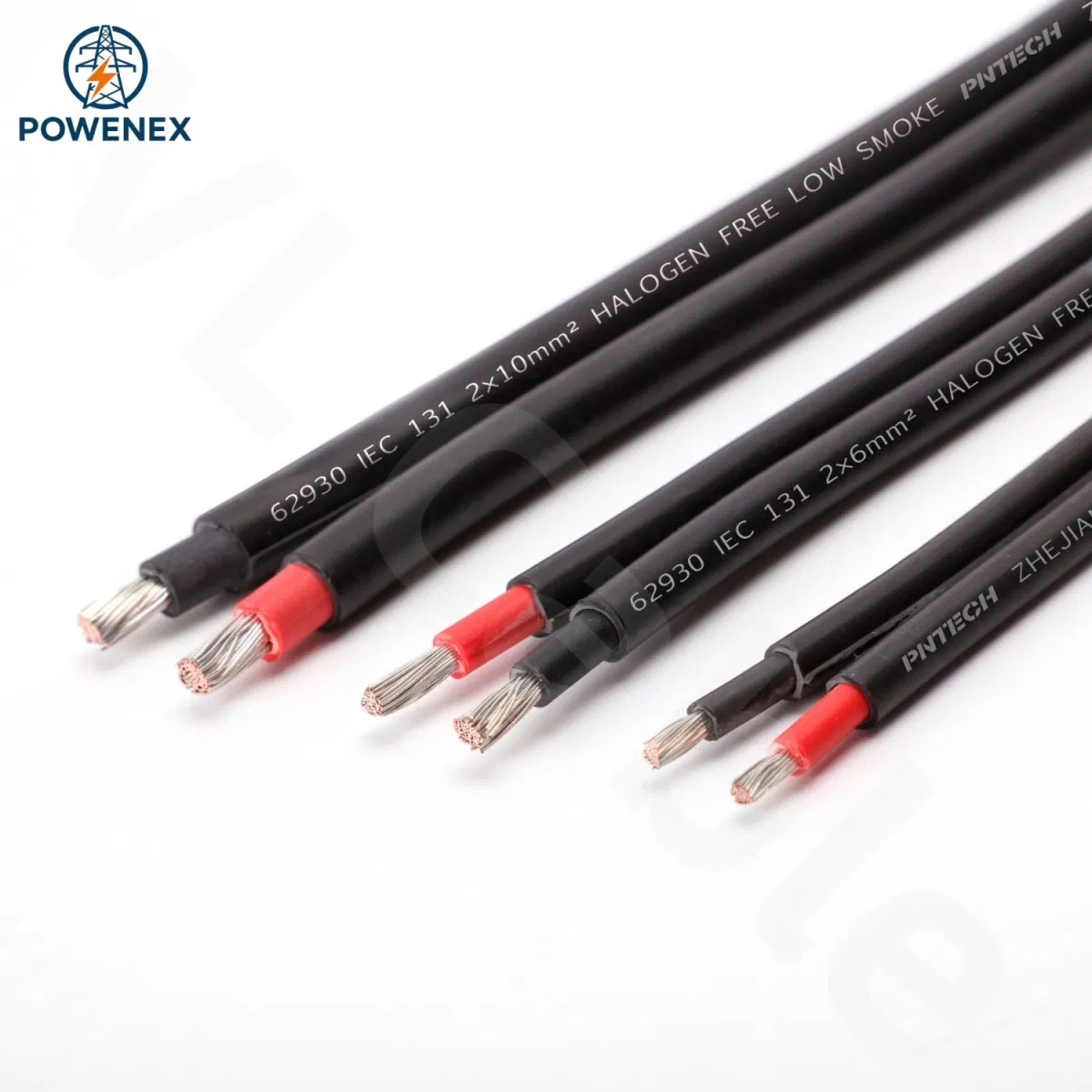

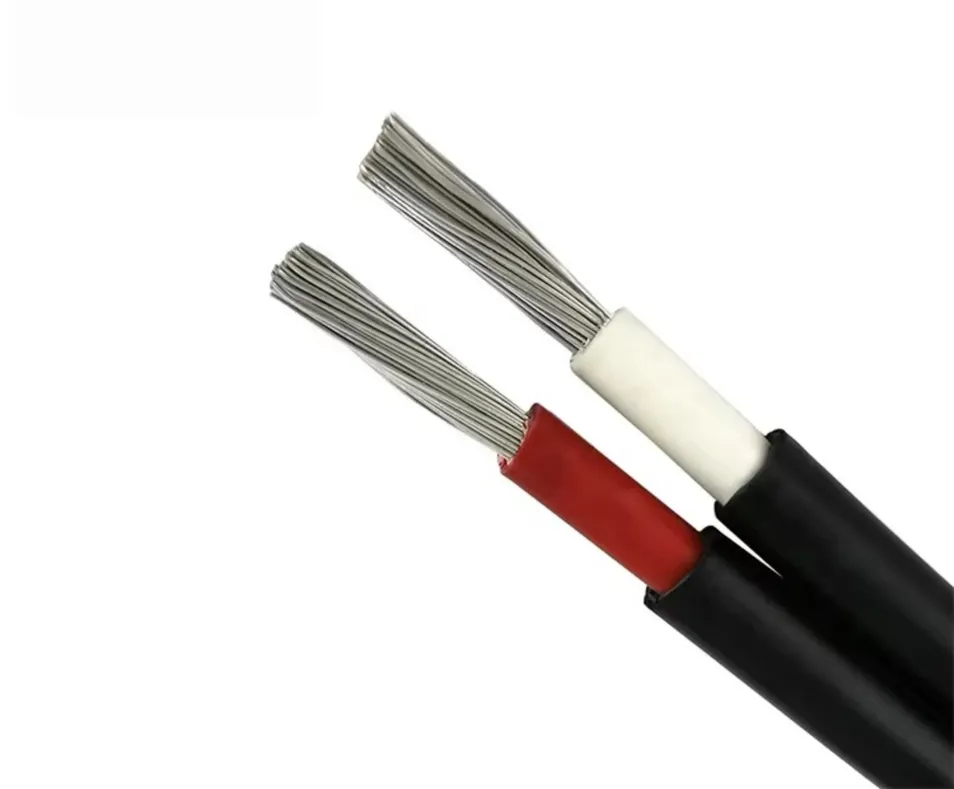

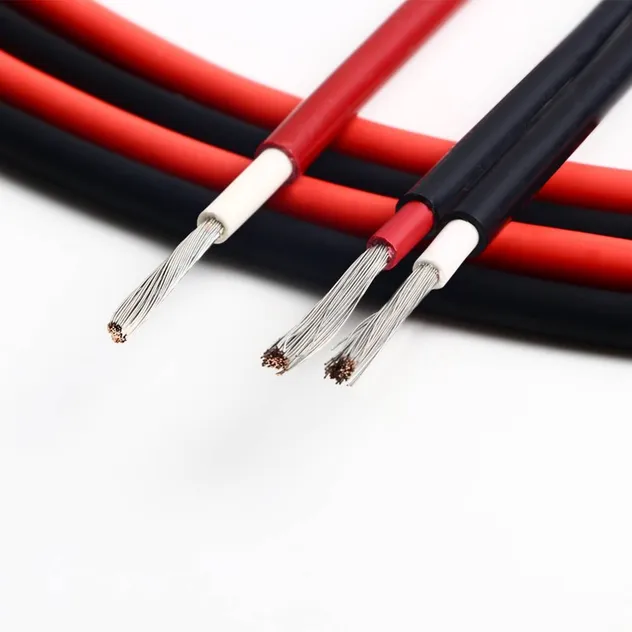

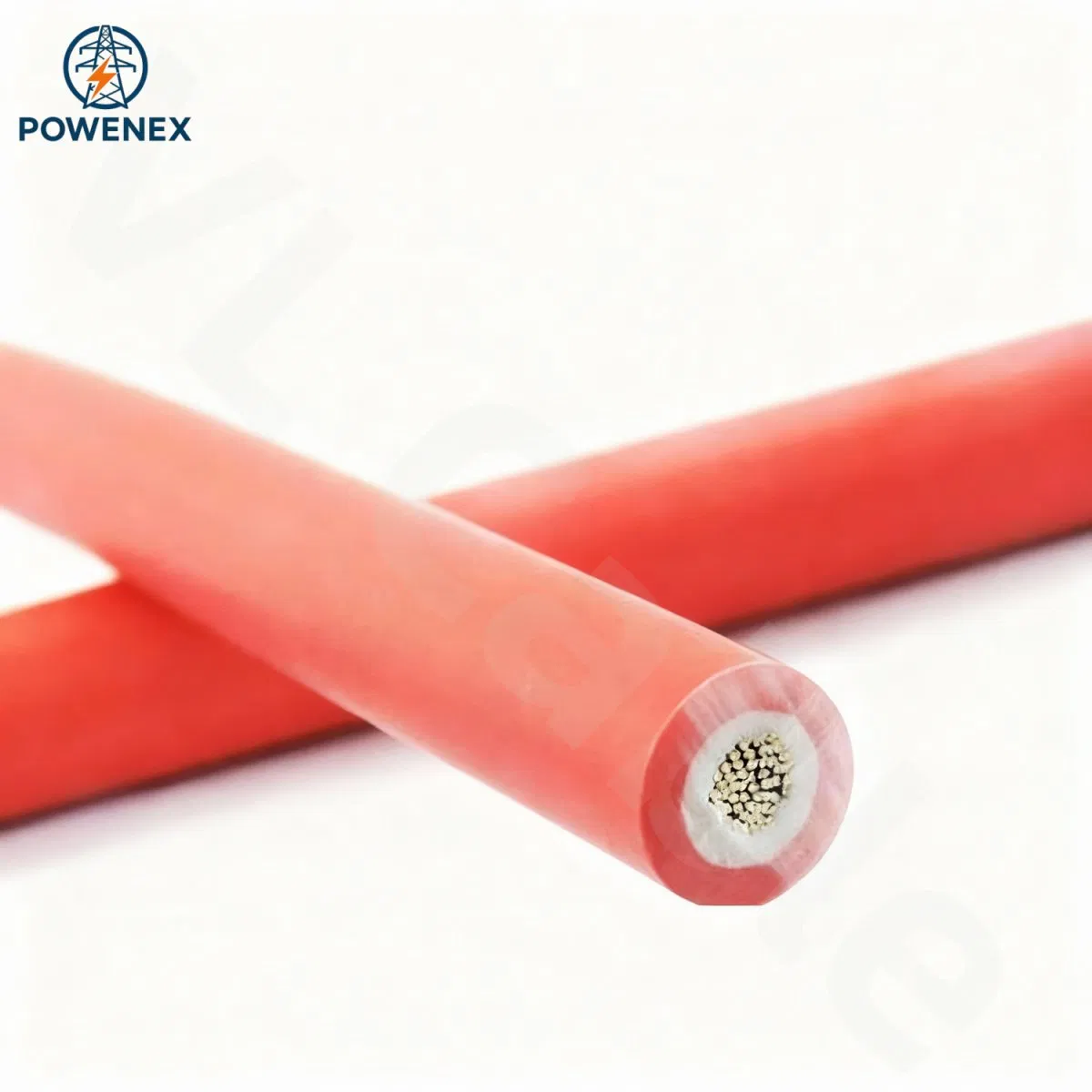

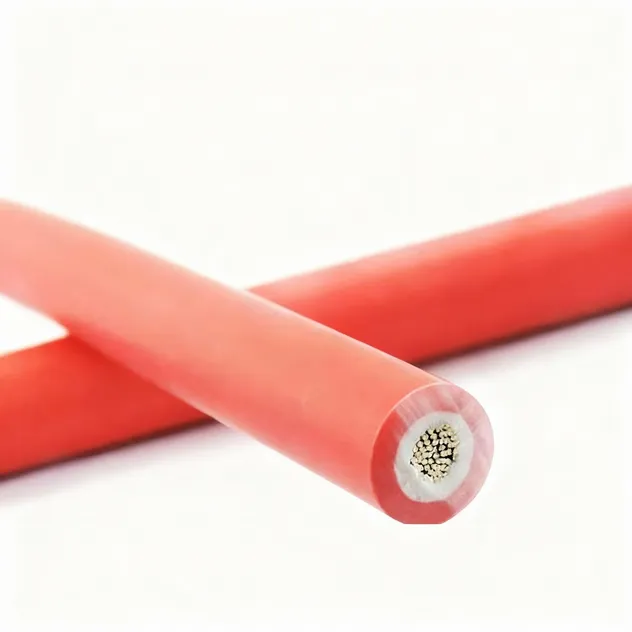

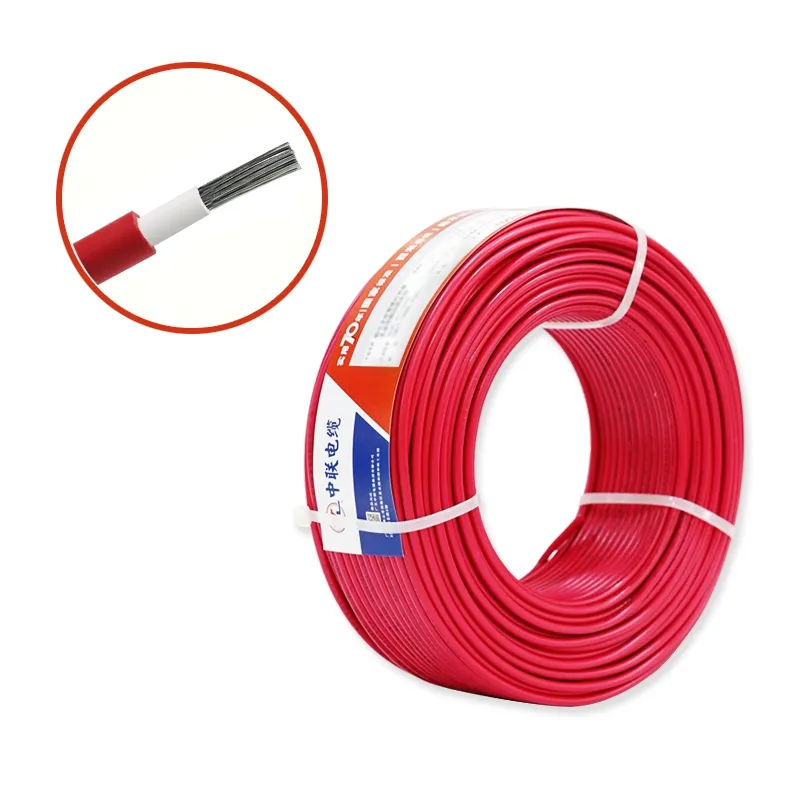

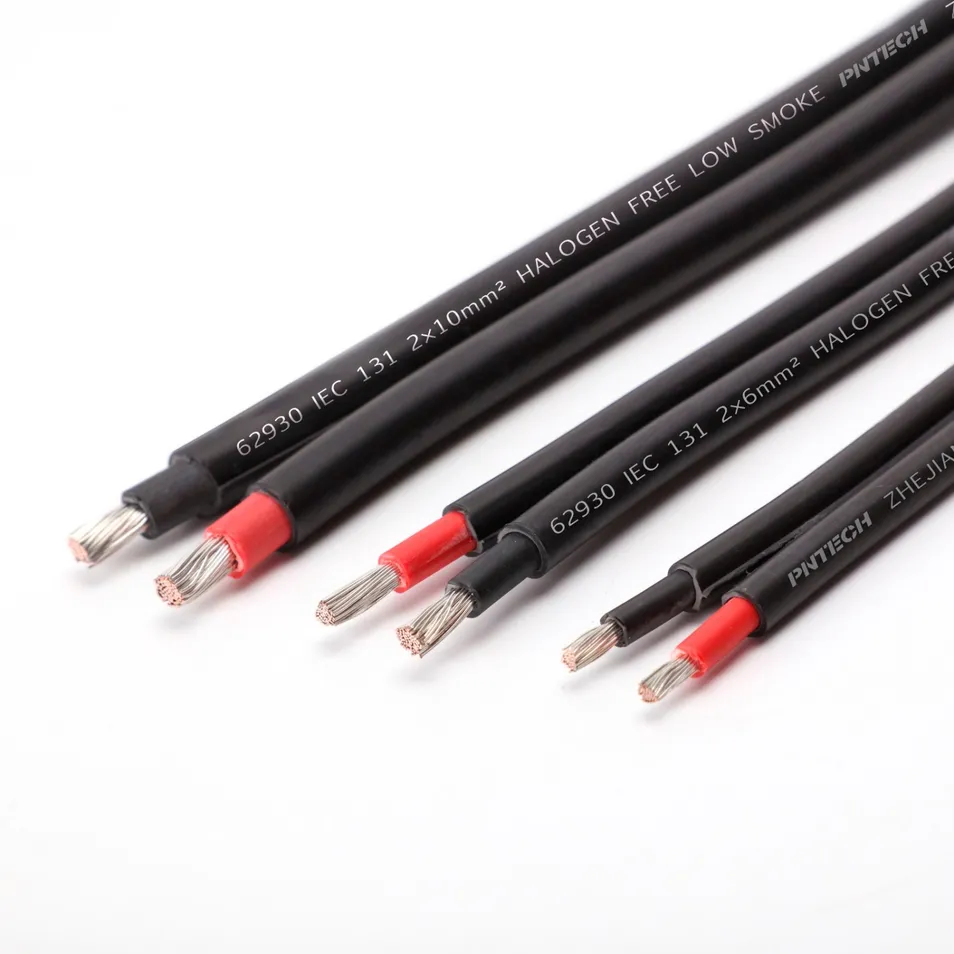

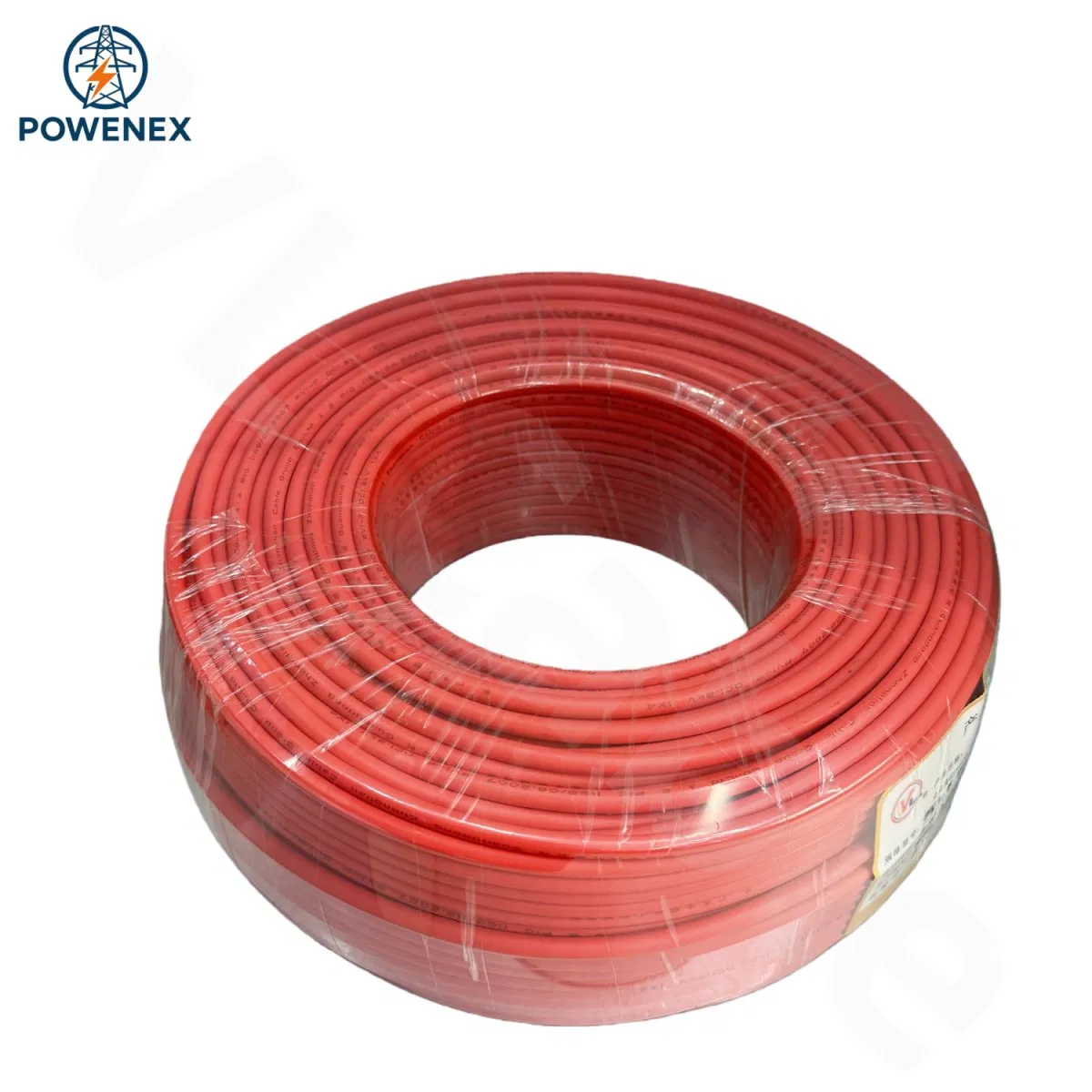

Our solar photovoltaic cables are specially designed for the DC side interconnection between photovoltaic modules and system components. Manufactured using high-conductivity tinned copper conductors and cross-linked polymer insulation/sheathed materials (XLPE/LSZH), these cables provide outstanding electrical, thermal, and environmental performance.

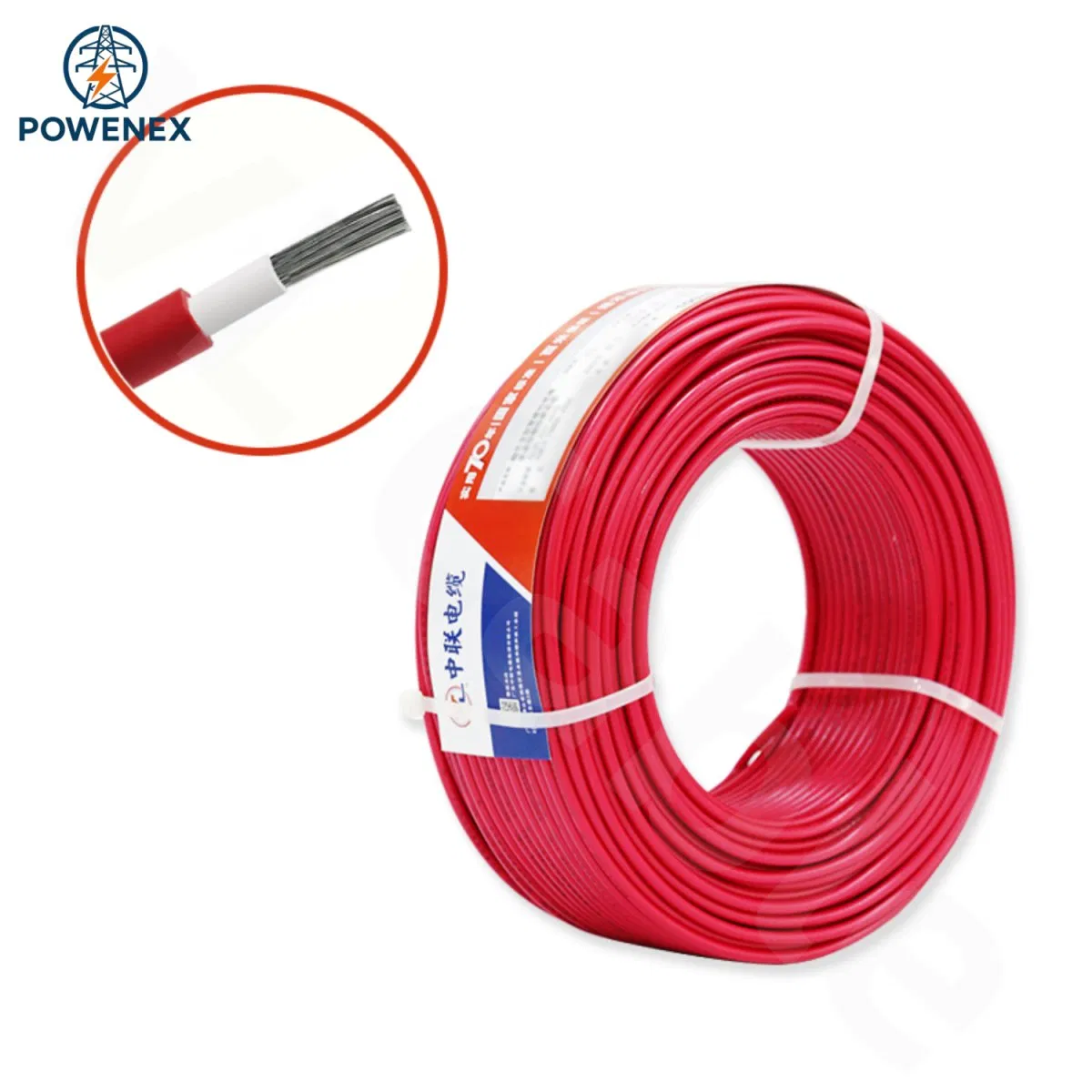

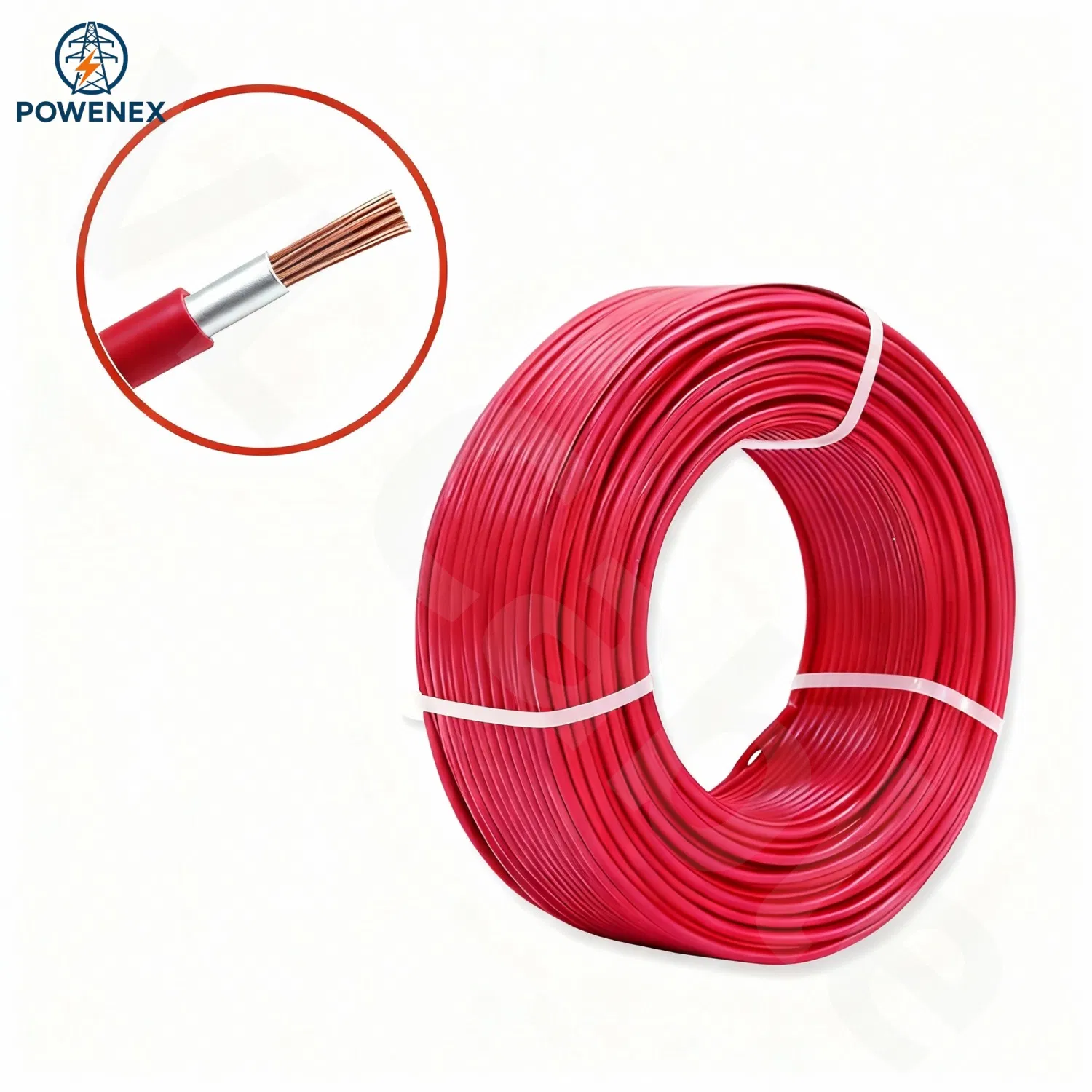

| Model | Spec (mm²) | Max Wire ø | DC Resistivity (20°C) | Insulation Thickness | Outer ø | Weight (kg/km) |
|---|---|---|---|---|---|---|
| H1Z2Z2-K | 1*4 | 0.31 | 5.090 | 0.7 | 5.5 | 66.5 |
| H1Z2Z2-K | 1*6 | 0.31 | 3.390 | 0.7 | 6.2 | 90.4 |
| H1Z2Z2-K | 1*10 | 0.41 | 1.950 | 0.7 | 7.2 | 136.8 |
| H1Z2Z2-K | 1*16 | 0.41 | 1.240 | 0.7 | 8.5 | 202.8 |
Our group operates a complete industrial chain in the power transmission and distribution sector, specializing in LV/MV/HV power cables, electrical transformers, and switchgear cabinets. With over 45 years of industry experience, all products are manufactured in accordance with international standards and certified by ISO and TÜV.
