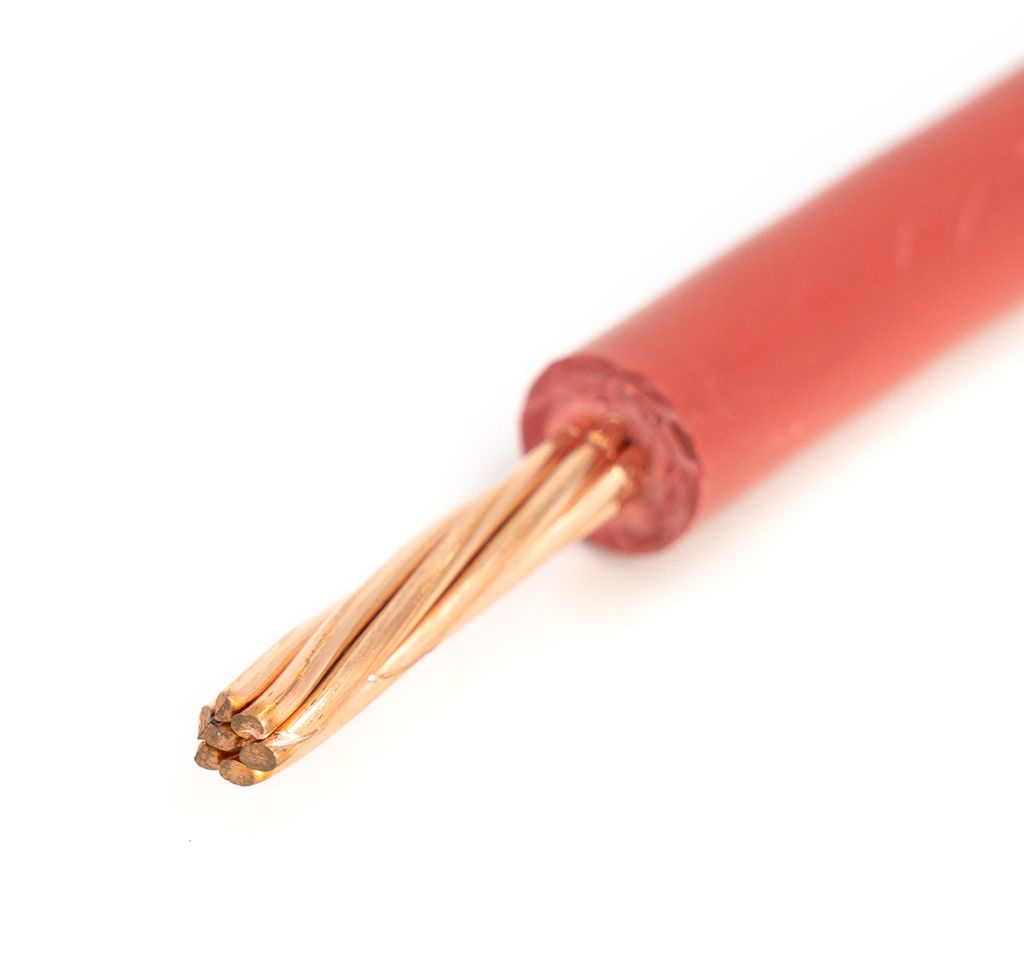

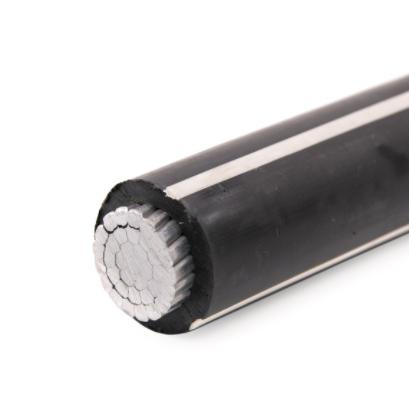

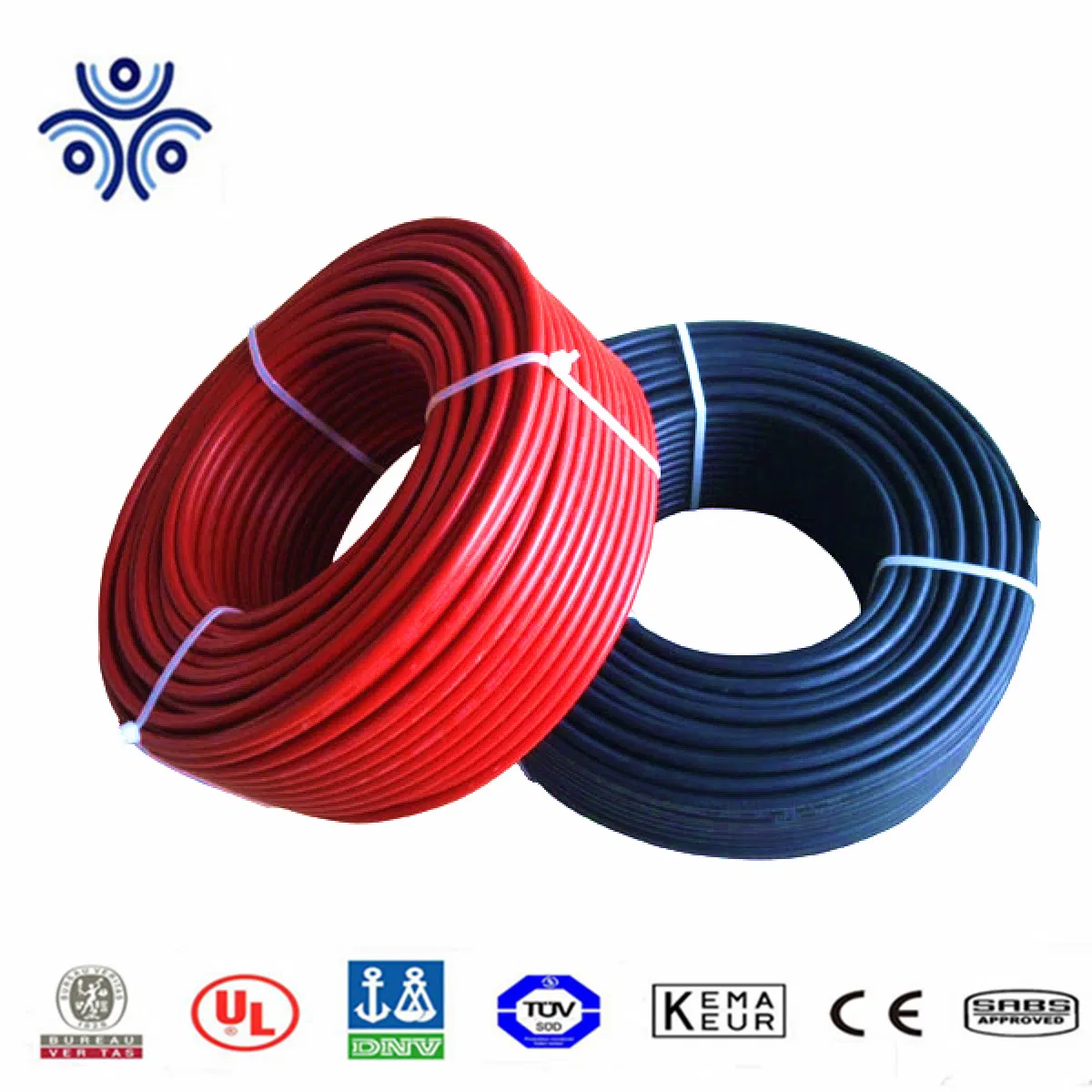

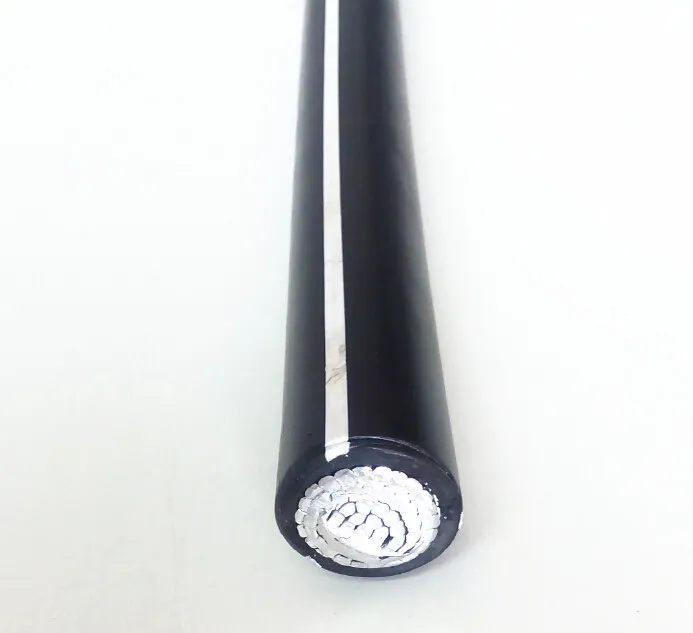

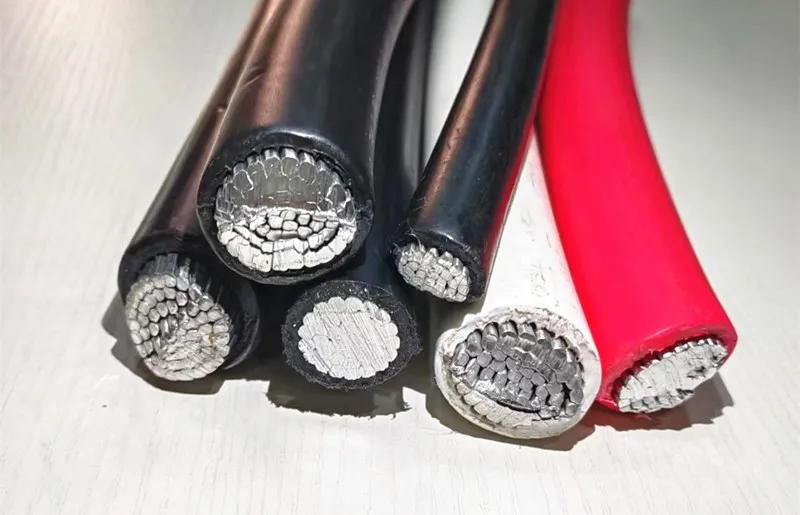

UL4703 TUV Listed Electrical electric PVC DC Copper Aluminum Solar 4mm 6mm PV Power Wire

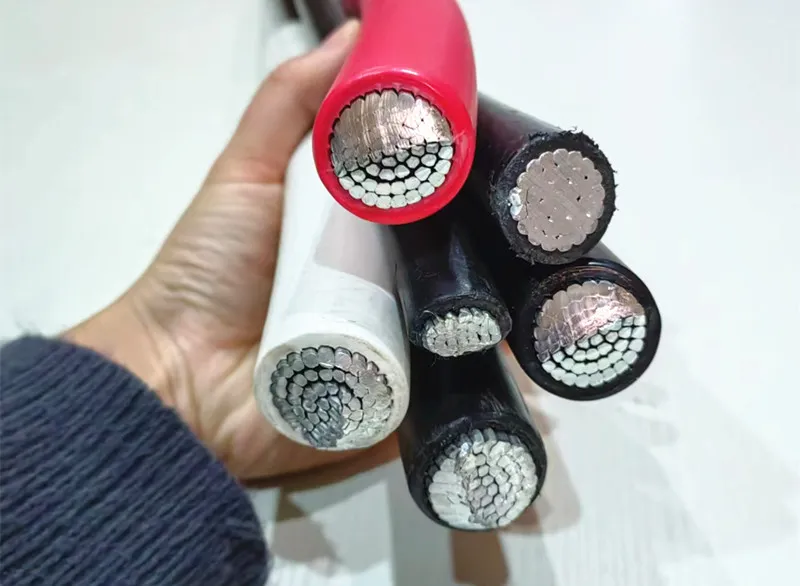

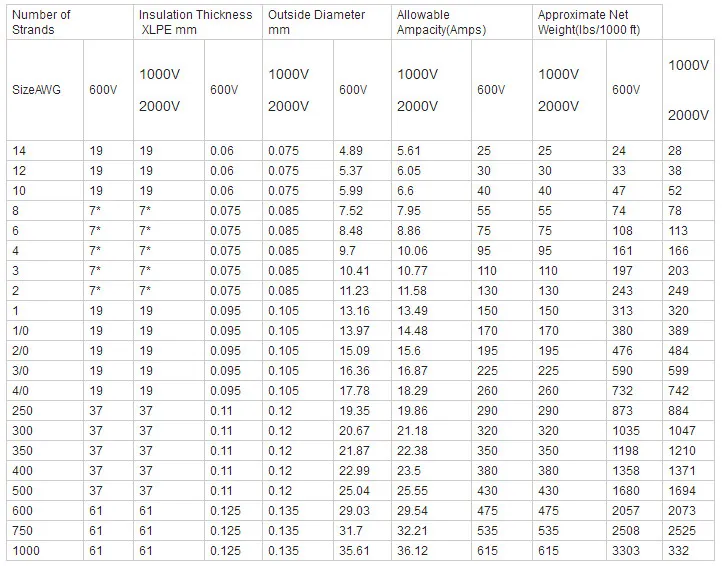

PV wire is rated 600, 1000 or 2000 V, and is suitable for ac and dc systems. This wire is rated 90, 105, 125 or 150°C dry and 90°C wet. PV wire employs 12 AWG - 2000 kcmil stranded aluminum or copper-clad aluminum, or 18 AWG - 2000 kcmil stranded copper, tinned copper conductors.

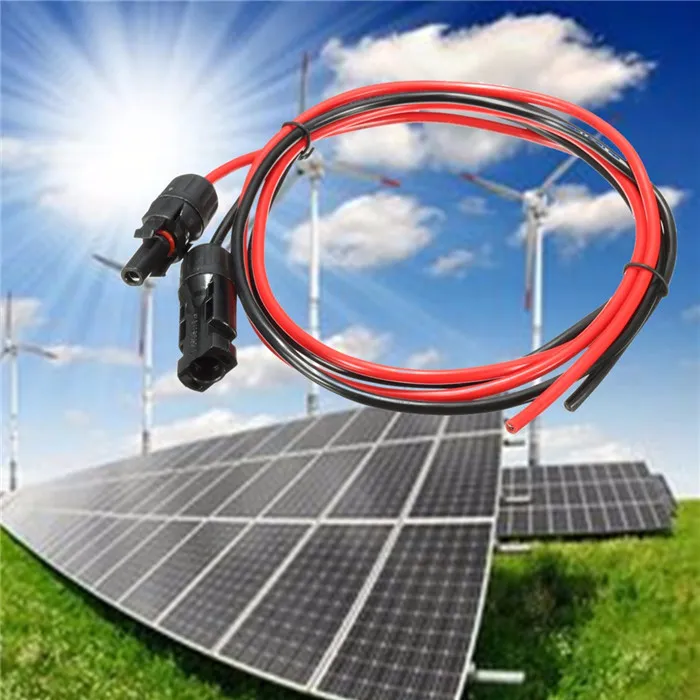

Specifically designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.
| Cross Section (mm²) | Conductor Construction (n/mm) | Conductor Stranded OD.(mm) | Insulation Min.Wall (mm) | Sheath Min.Wall (mm) | Cable OD.(mm) | Max.Resistance 20°C (Ω/km) | Current Capacity 60°C (A) |
|---|---|---|---|---|---|---|---|
| 1.5mm² | 30/0.25 | 1.58 | 0.67 | 0.73 | 4.90 | 13.3 | 30 |
| 2.5mm² | 50/0.25 | 2.02 | 0.67 | 0.73 | 5.45 | 7.98 | 41 |
| 4mm² | 56/0.30 | 2.60 | 0.67 | 0.73 | 6.10 | 4.95 | 55 |
| 6mm² | 84/0.30 | 3.42 | 0.8 | 0.80 | 7.20 | 3.30 | 70 |
| 10mm² | 142/0.30 | 4.56 | 0.9 | 0.90 | 9.00 | 1.91 | 98 |
| 16mm² | 228/0.30 | 5.60 | 1.00 | 0.90 | 10.20 | 1.21 | 132 |
| 25mm² | 361/0.30 | 6.95 | 1.19 | 0.92 | 12.00 | 0.780 | 176 |
| 35mm² | 276/0.40 | 8.74 | 1.20 | 1.00 | 13.80 | 0.554 | 218 |
