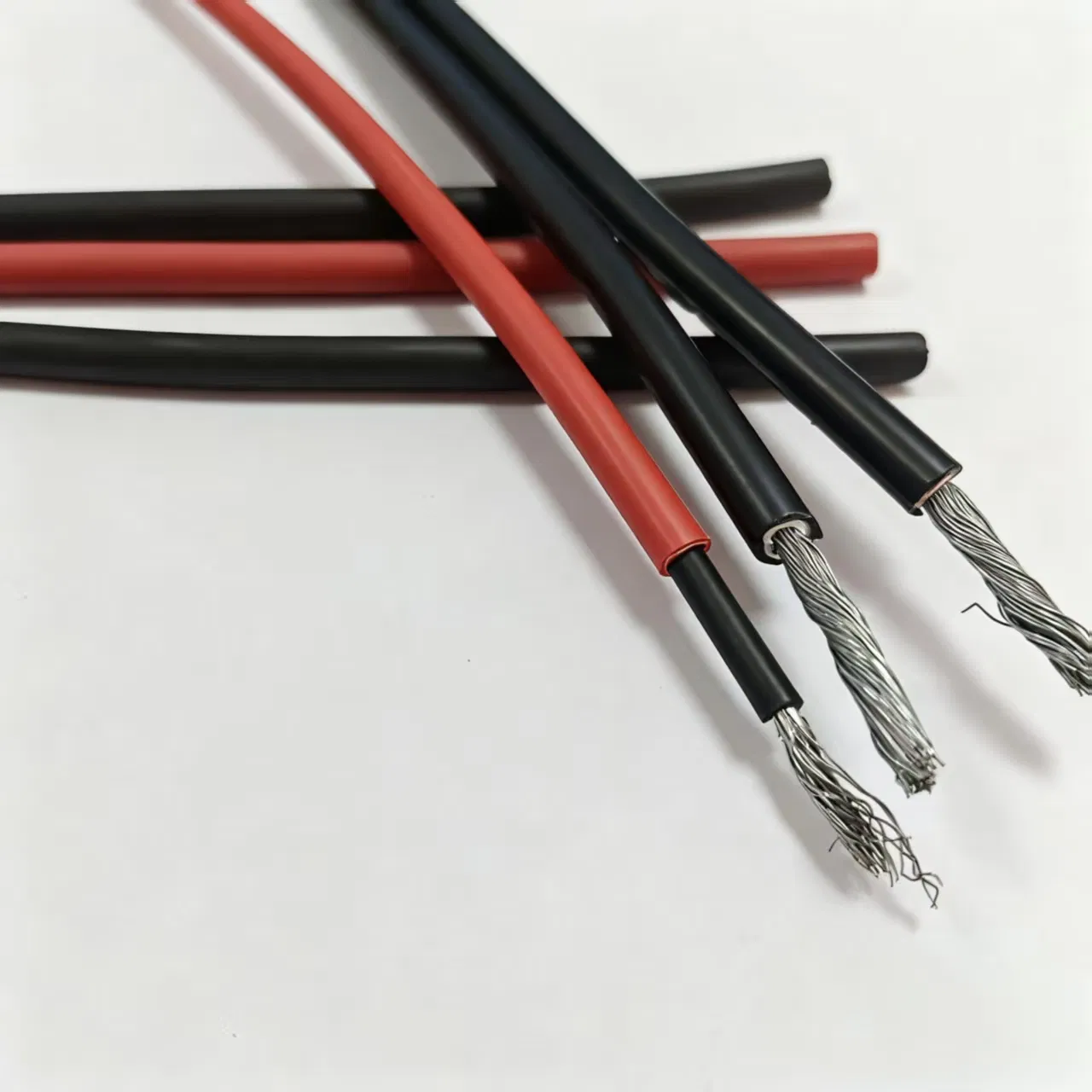

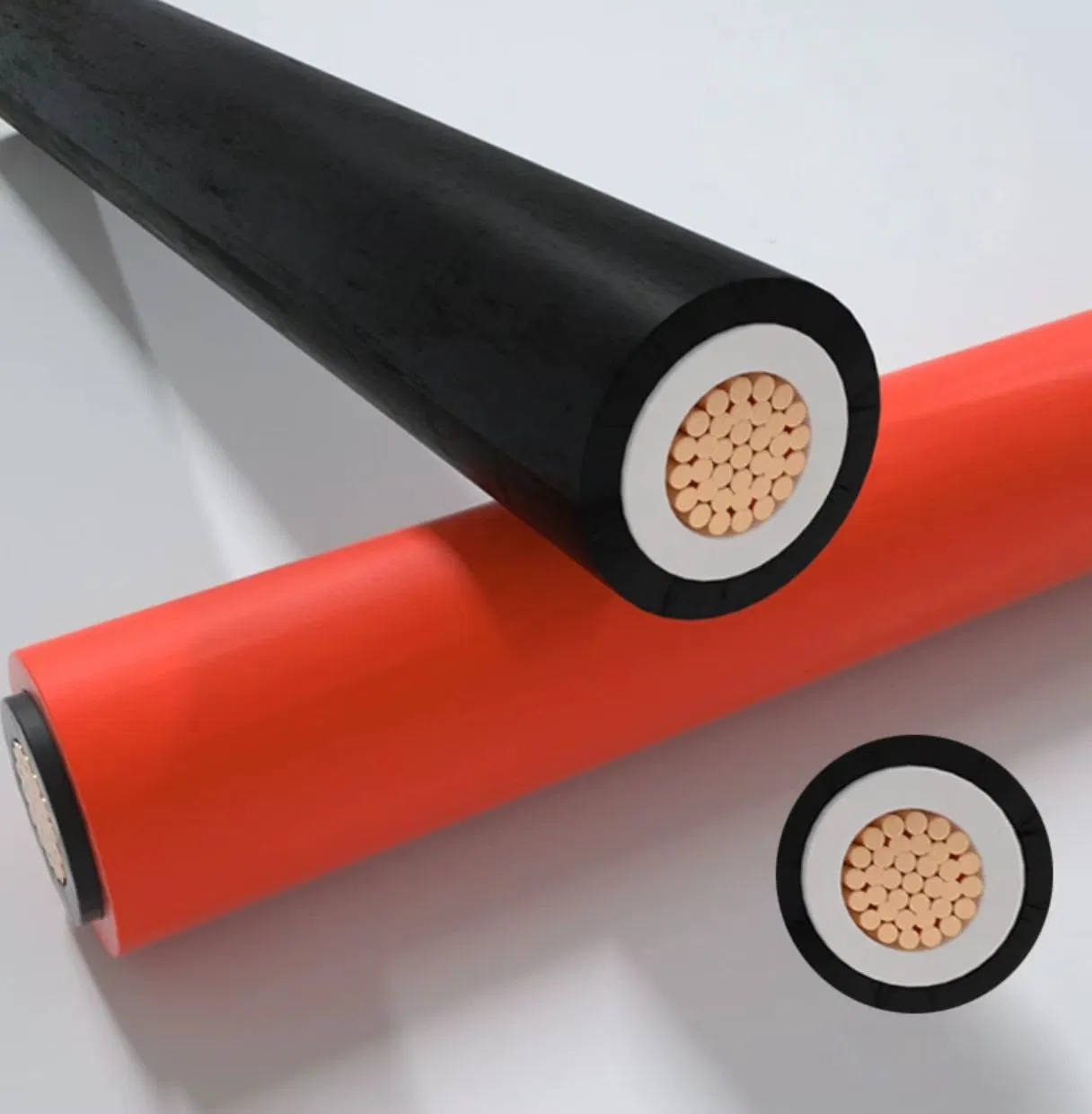

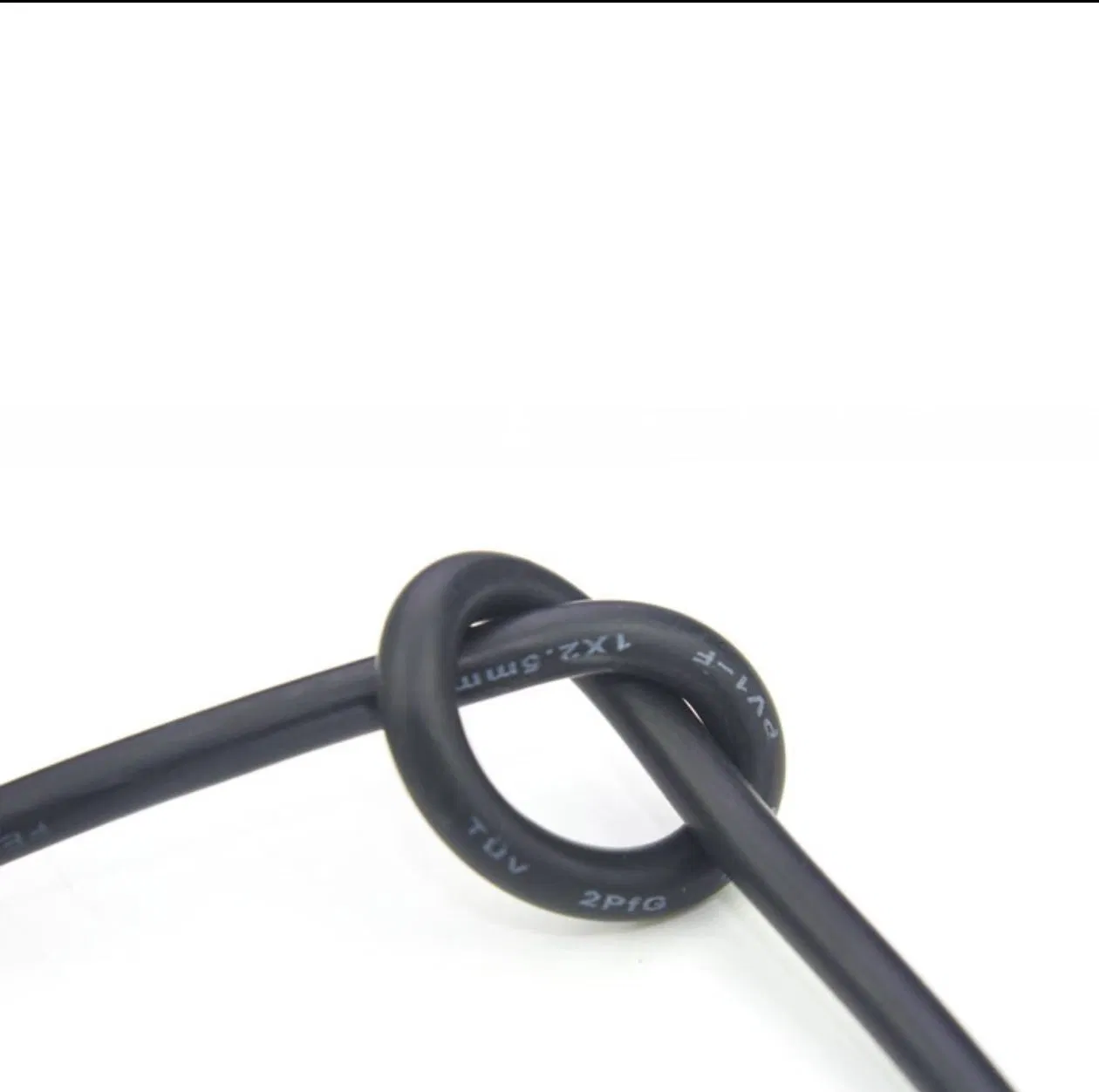

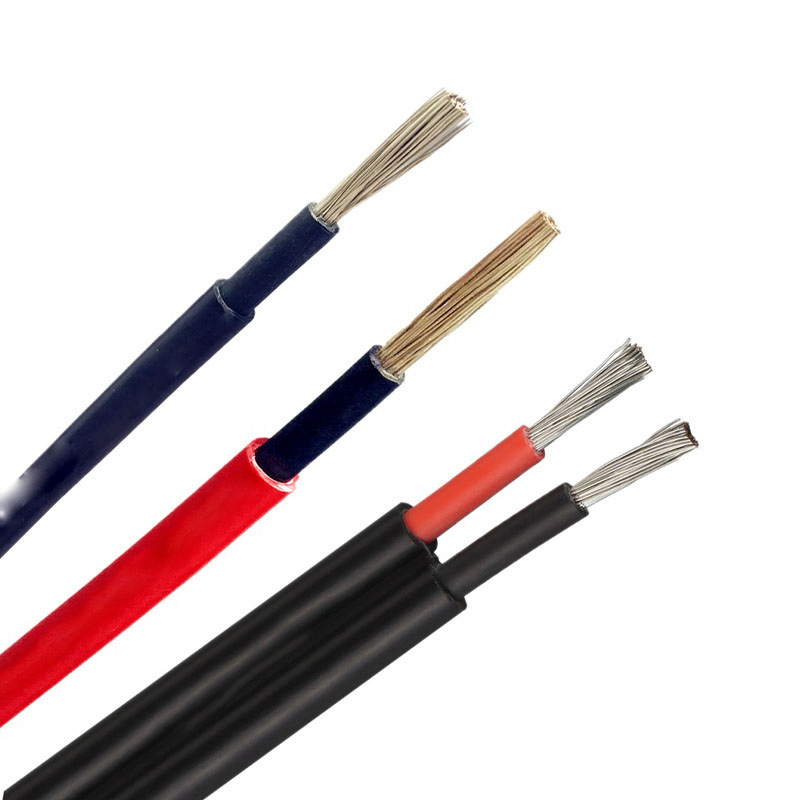

Low Smoke Zero Halogen 1.5mm² to 10mm² Tinned Copper XLPE Insulation Solar Cable

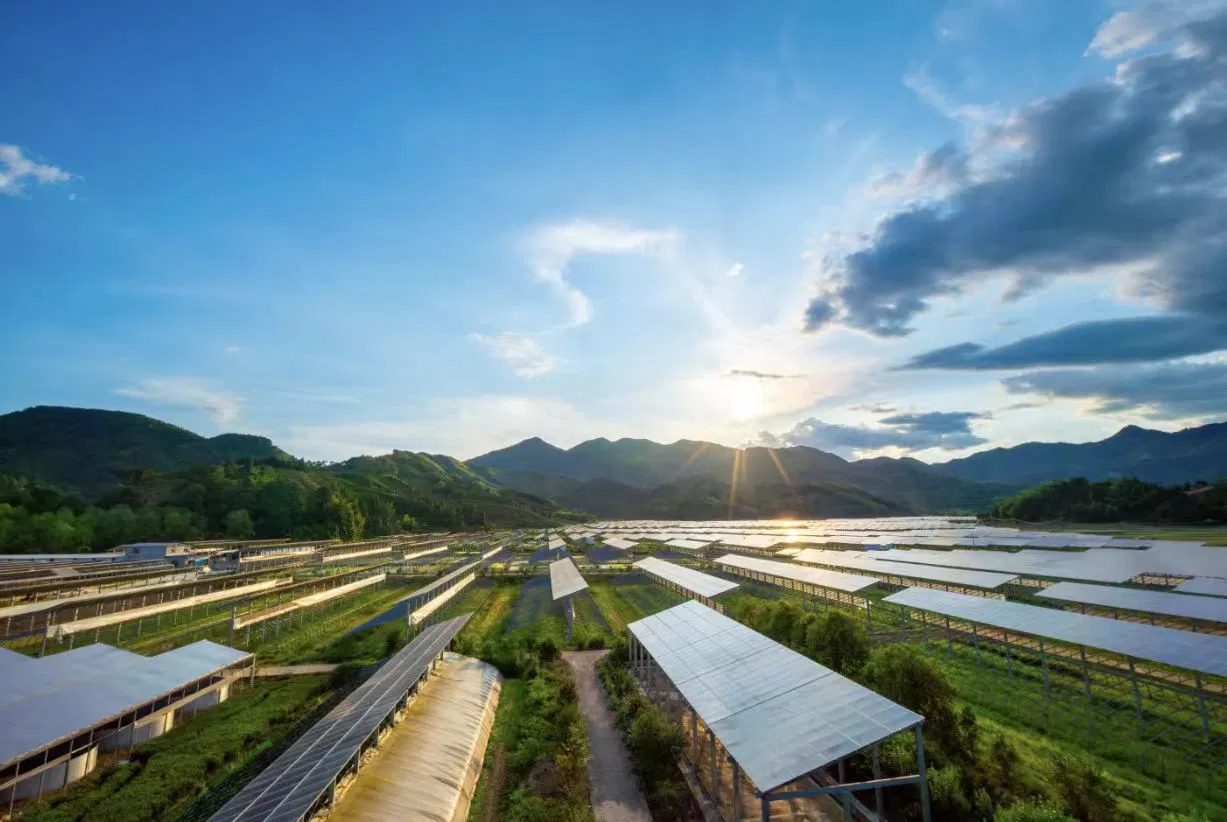

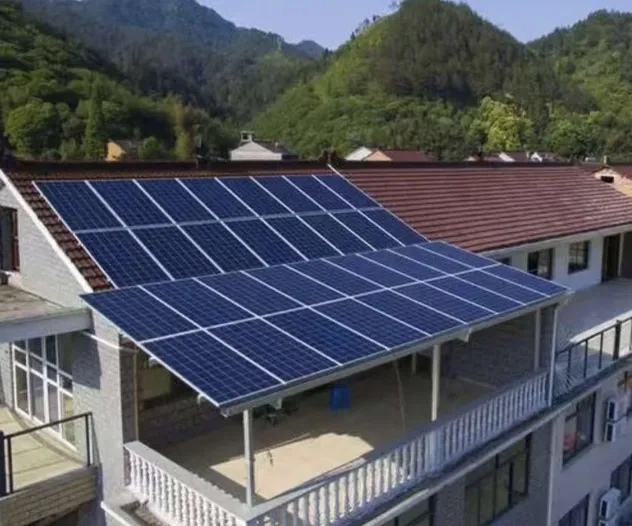

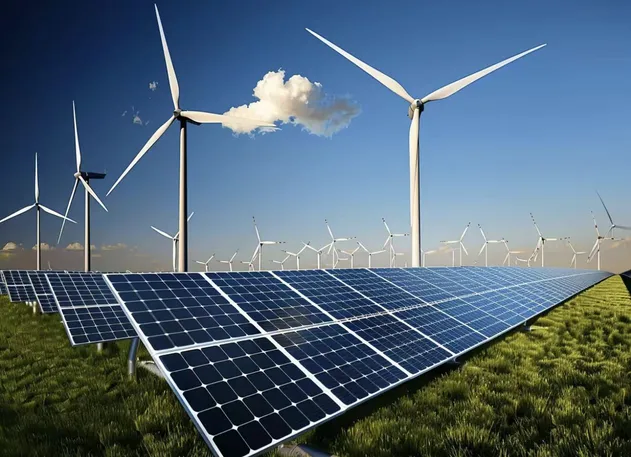

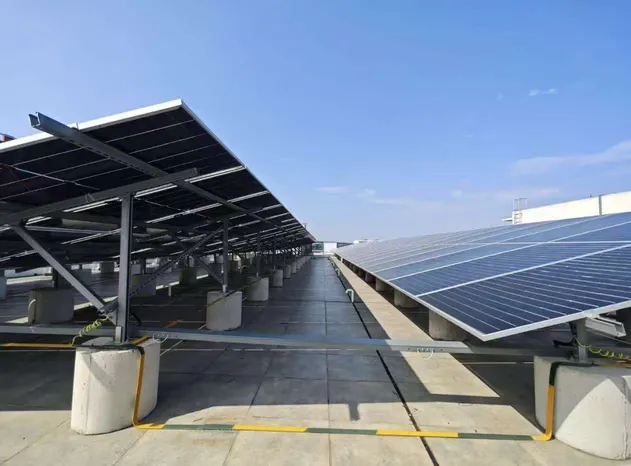

Solar cables are interconnecting cables used in photovoltaic (PV) power generation. They connect solar panels to other electrical components of PV systems. Designed with UV resistance and weather resistance, solar cables can be used within a wide temperature range and are usually installed outdoors.
For conductor materials, options include high-purity bare copper, tinned copper, or high-strength aluminum alloy. For insulation and sheath materials, we offer weather-resistant cross-linked polyethylene (XLPE), UV-stabilized PVC, and halogen-free low-smoke flame-retardant (LSZH) materials.

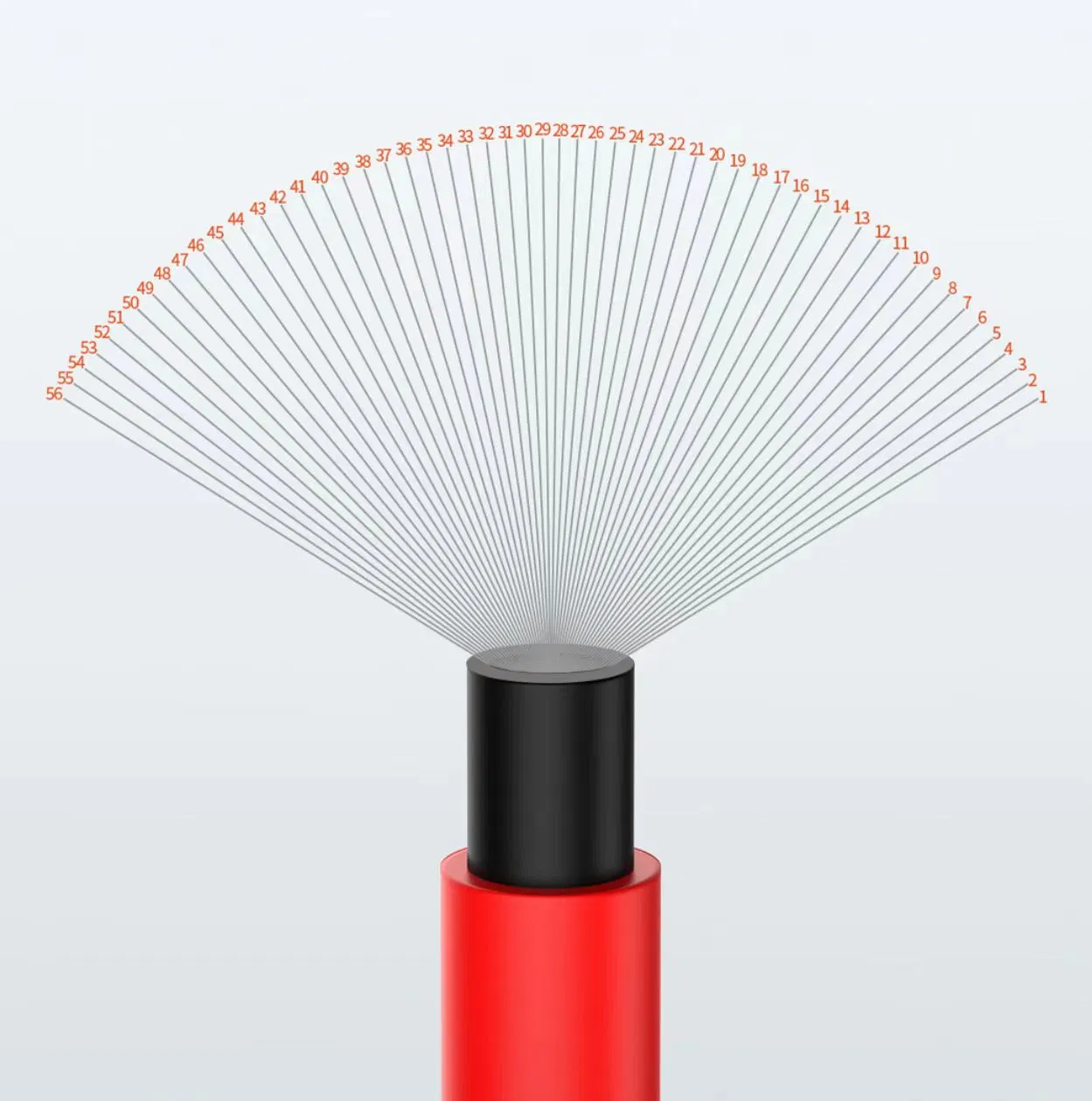

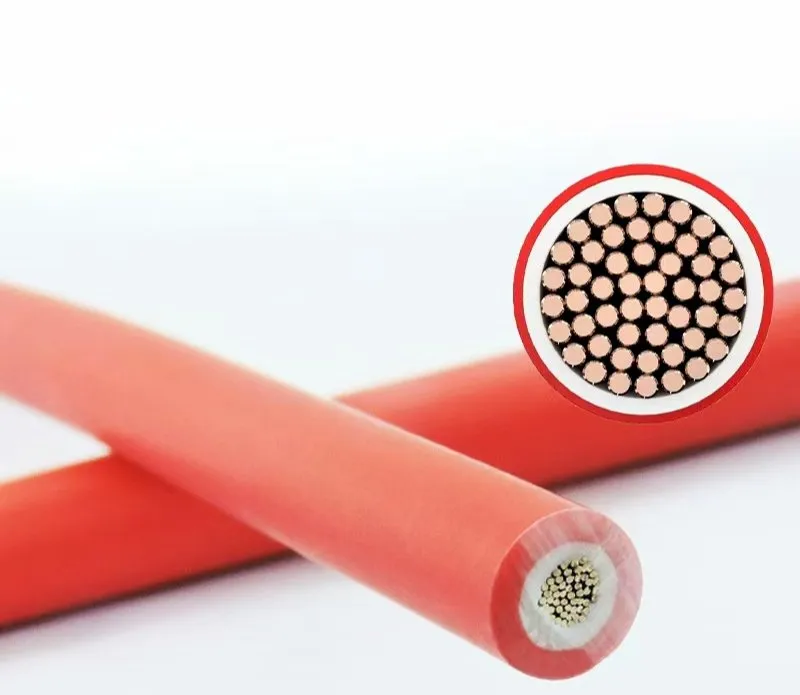

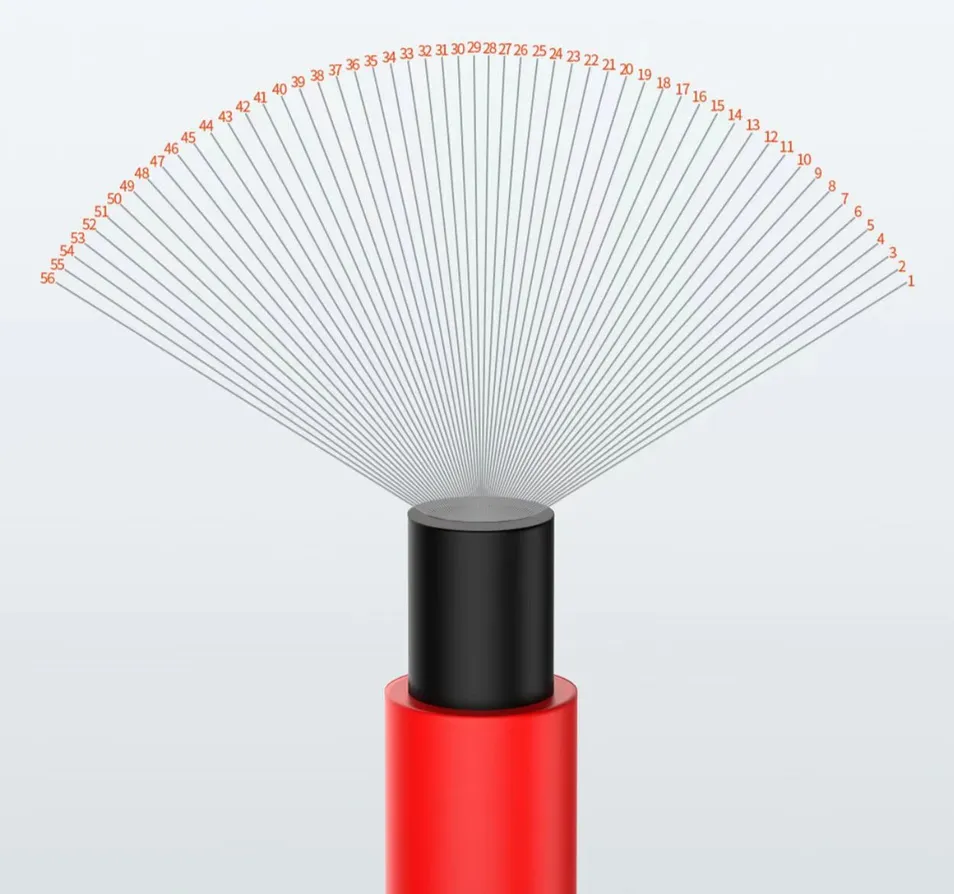

Standard 56 strands of tin-plated pure copper. Anti-aging, excellent electrical conductivity, low power loss, and high current carrying capacity.

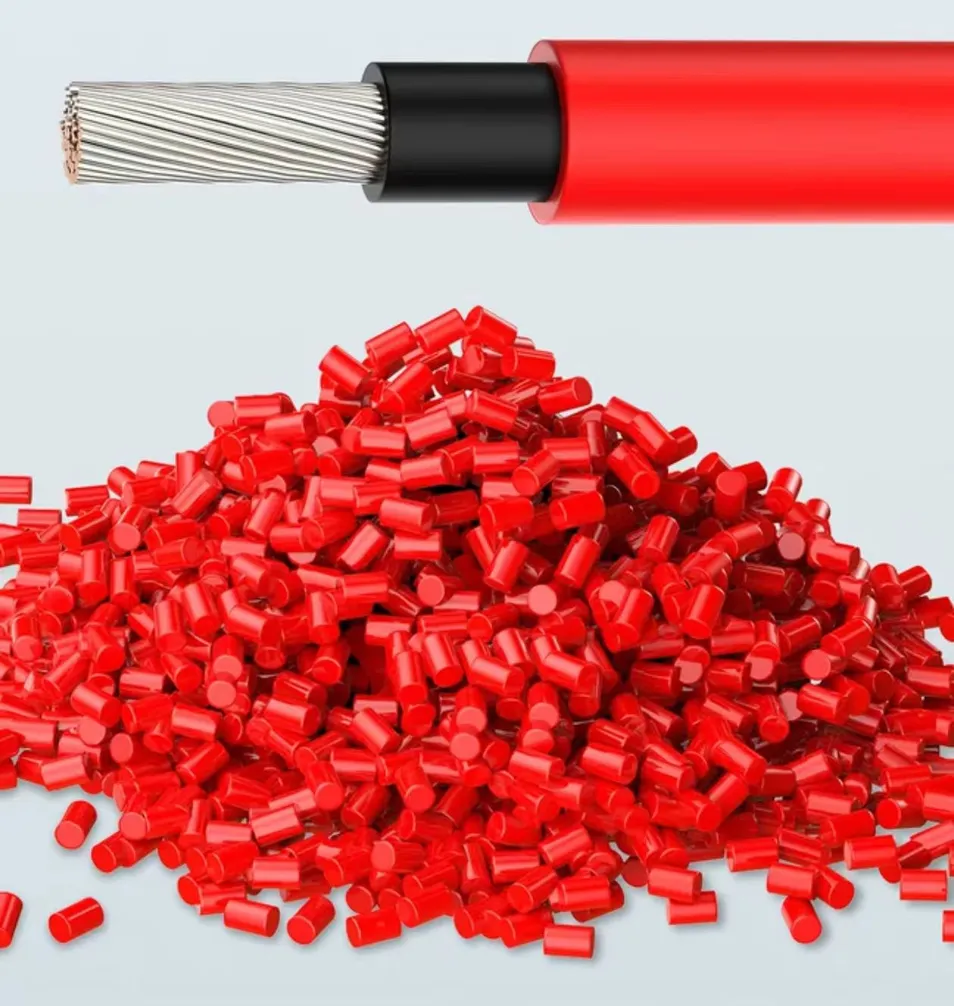

Made of irradiated cross-linked polyolefin material (LSZH). Can withstand up to 125℃ and is self-extinguishing.
| Model | Nominal Area (mm²) | Structure (mm) | Cond. Dia (mm) | Insulation (mm) | Sheath (mm) | Cable Dia (mm) | Resistance (Ω/km) |
|---|---|---|---|---|---|---|---|
| PV1-F | 1.5 | 30/0.2 | 1.6 | 1.0 | 0.8 | 5.2 | 12.2 |
| PV1-F | 2.5 | 50/0.2 | 2.0 | 1.0 | 0.8 | 5.6 | 7.56 |
| PV1-F | 4 | 56/0.3 | 2.6 | 1.0 | 0.9 | 6.4 | 4.7 |
| PV1-F | 6 | 84/0.3 | 3.2 | 1.0 | 0.9 | 7 | 3.11 |
| PV1-F | 10 | 142/0.41 | 4.4 | 1.0 | 0.9 | 8.2 | 1.84 |
| PV1-F | 16 | 228/0.41 | 5.5 | 1.0 | 1.1 | 9.7 | 1.16 |
| PV1-F | 25 | 361/0.41 | 6.5 | 1.2 | 1.2 | 11.3 | 0.734 |
| PV1-F | 35 | 525/0.41 | 7.5 | 1.2 | 1.2 | 12.3 | 0.529 |

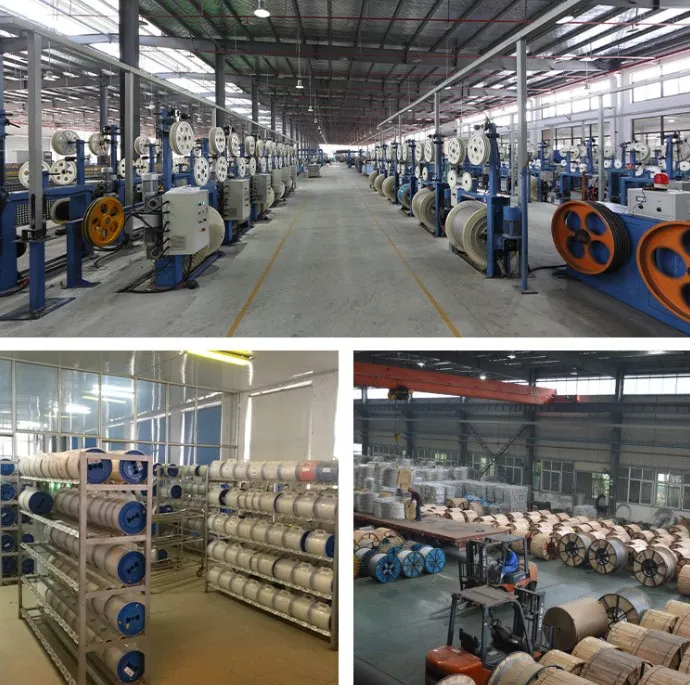

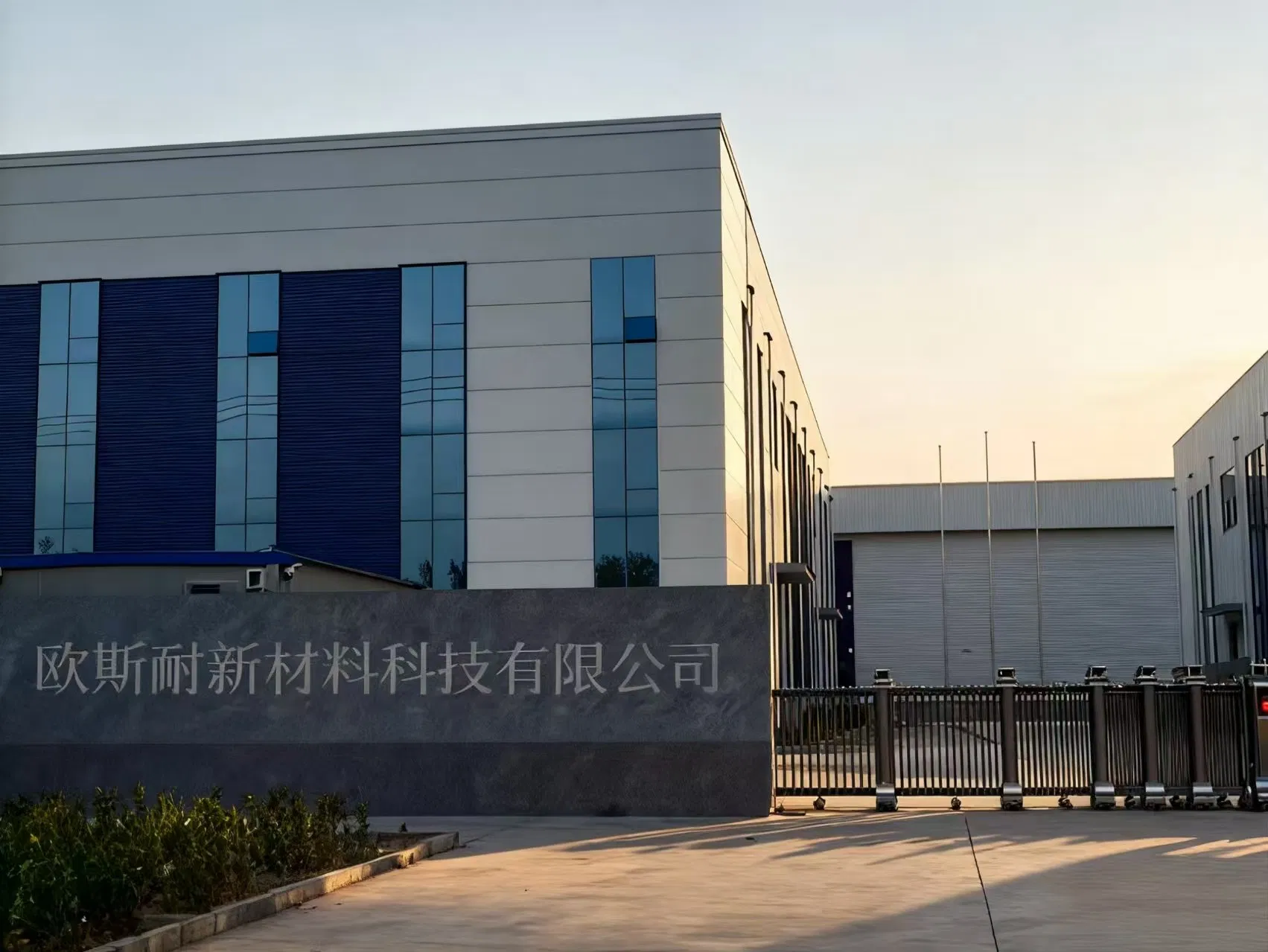

Our company is a comprehensive high-tech enterprise deeply engaged in the cable manufacturing industry. Guided by the development philosophy of "R&D as the core and quality as the foundation", we have built a complete industrial chain covering the R&D of core cable materials, customized production, and full-link sales and service.
Our product categories include PV cables (4mm² to 120mm²), high and low voltage power cables (up to 220kV), communication cables for 5G, and high-precision enameled wires. We provide customized products with special properties such as acid/alkali resistance and corrosion resistance to meet global customer needs.
