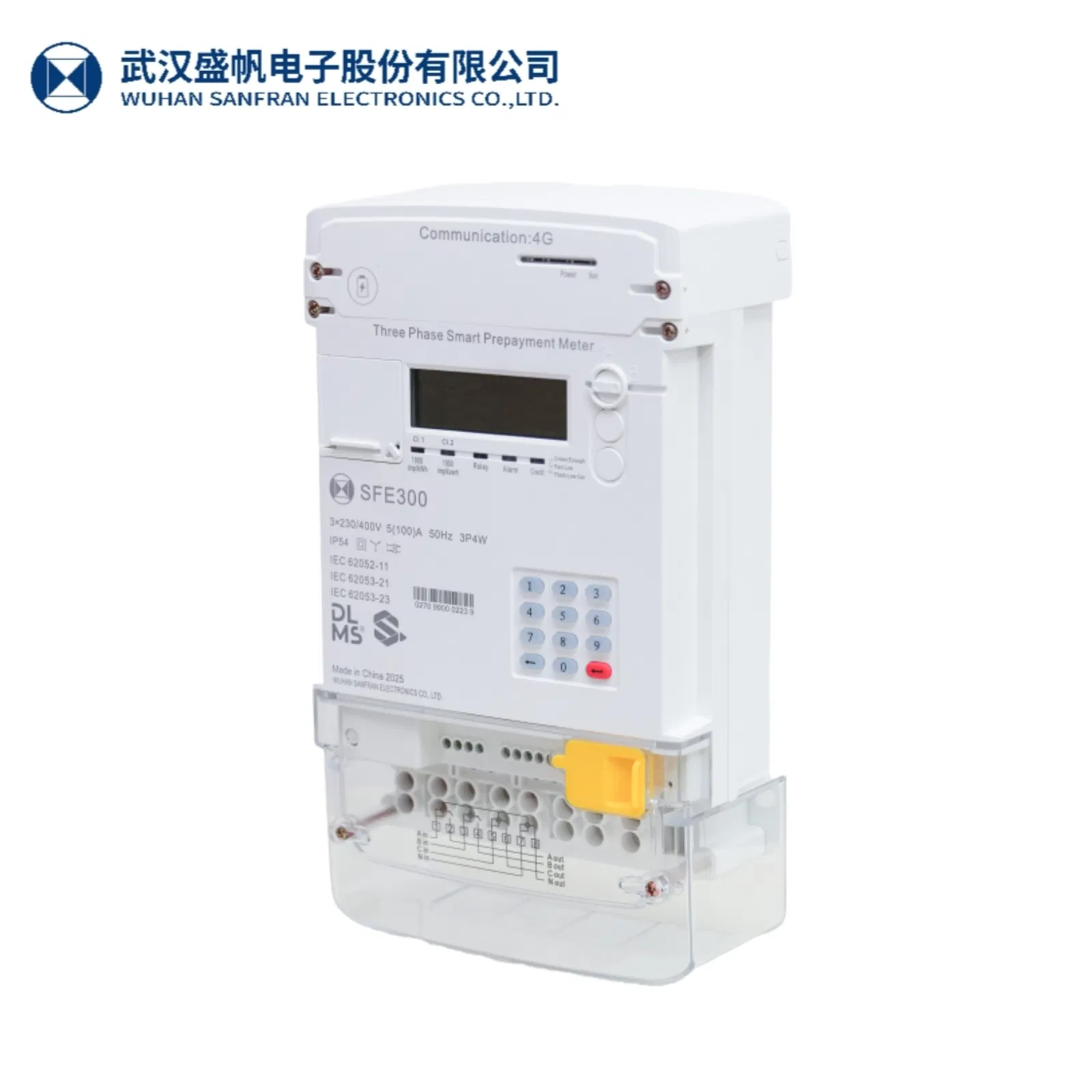

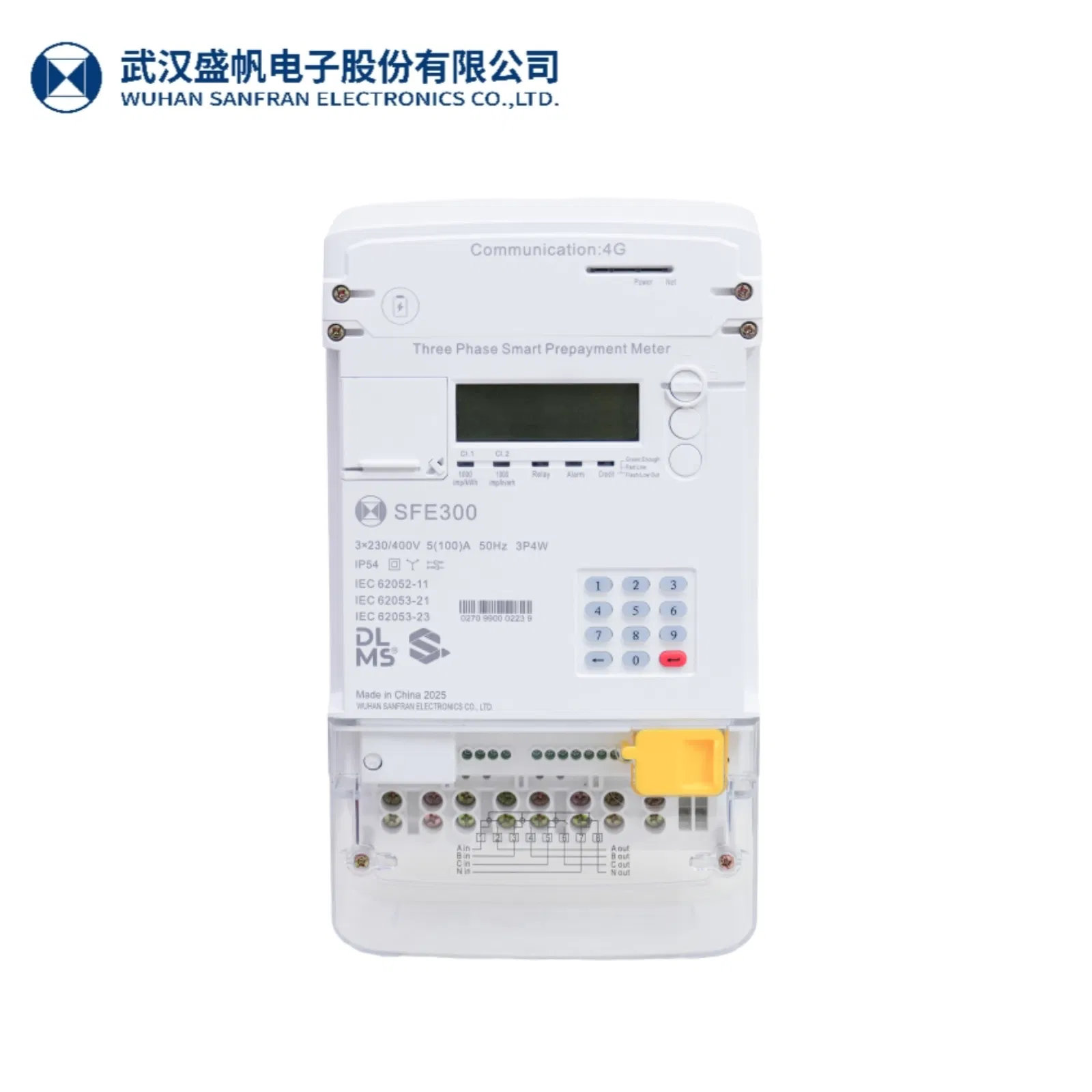

The SFE300 is a sophisticated three-phase four-wire smart electricity meter featuring a separated customer interface unit (CIU/UIU). Engineered for modern grids, it includes a clear LCD and a replaceable remote LTE module compatible with 4G, 3G, and 2G networks.
| Parameter | Details |
|---|---|
| Voltage | Nominal (Un): 3x220/380V ~ 3x230/400V; Range: 0.7Un to 1.3Un |
| Current | Basic: 5/10A; Max: 60/80/100A; Starting: 0.4%lb |
| Accuracy | Active: Class 1.0; Reactive: Class 2.0 |
| Connection Type | 3P4W BS Mounting Foot (Symmetrical/Asymmetrical) |
| Clock Accuracy | Within 0.5s per day at 23℃ |
| Standards | IEC 62052-11, IEC 62053-21/23, SANS 1524-1, IEC 62056-42/46/53 |
| Operating Temp | -40°C to +70℃ |
| Communication | 4G Plug-in Module, Optical Port (IEC 62056-21), RS485 Output |
| Material | PC+GF, Self-extinguishing, UV stable |
Nigeria: Supply of 81,000 single phase and 9,000 three phase smart meters with supporting meter boxes.

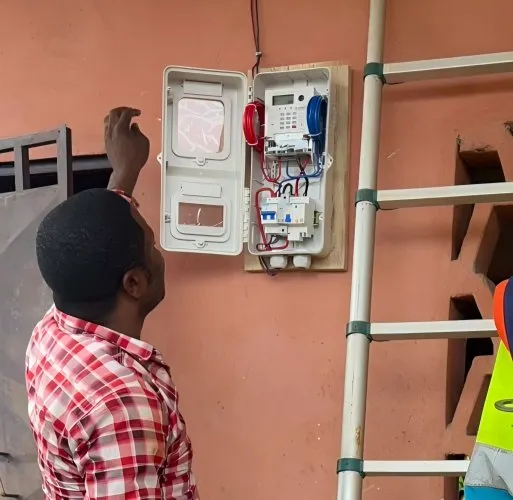

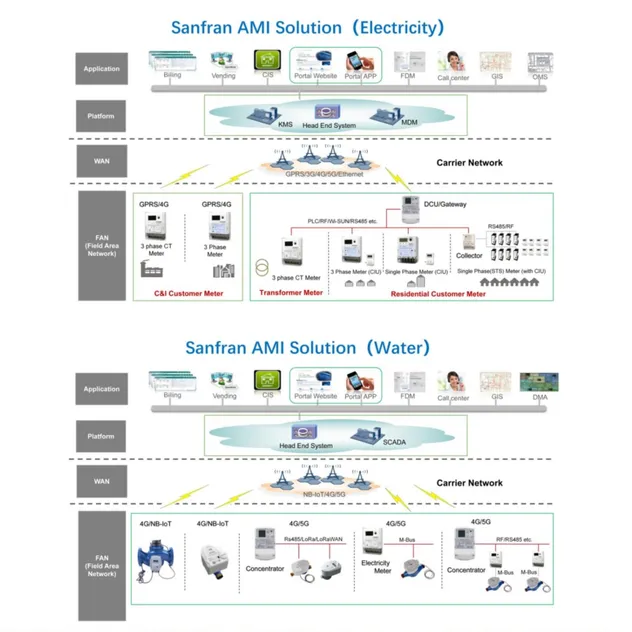

Cameroon: Supply of 20,000 smart meters integrated with Advanced Metering Infrastructure (AMI) system.
