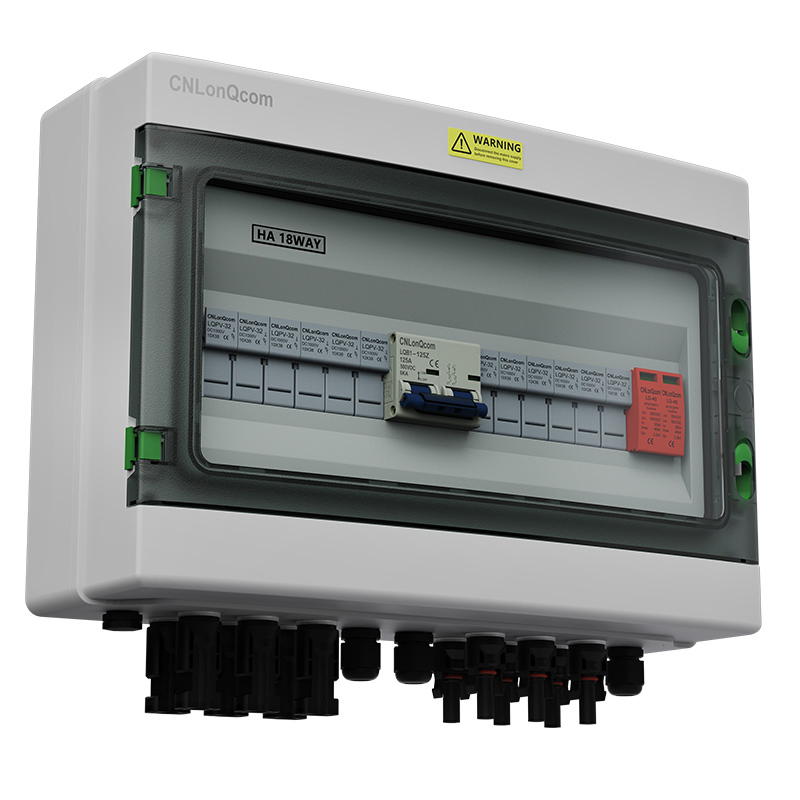

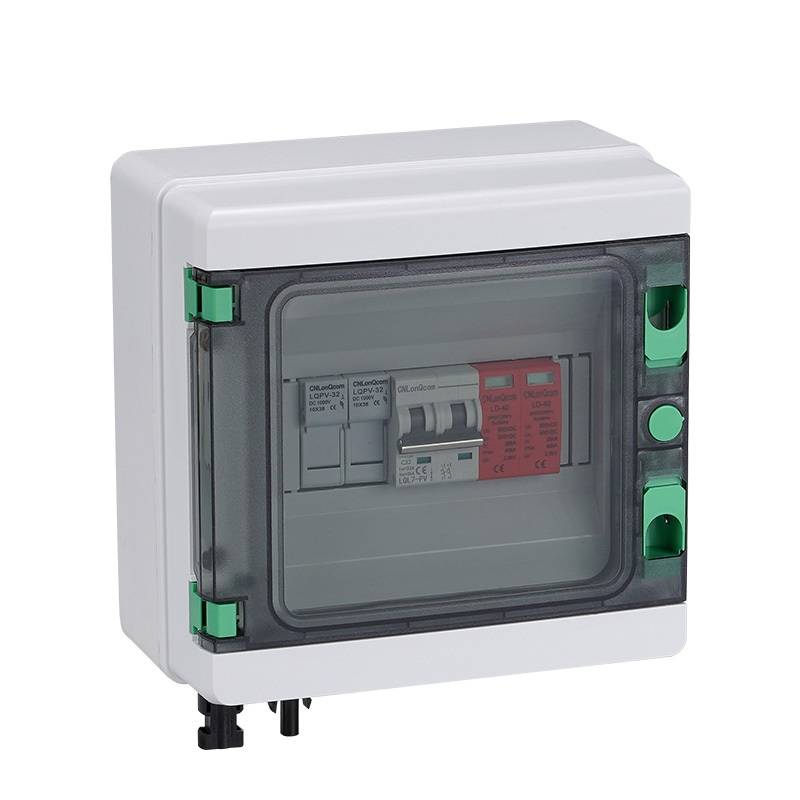

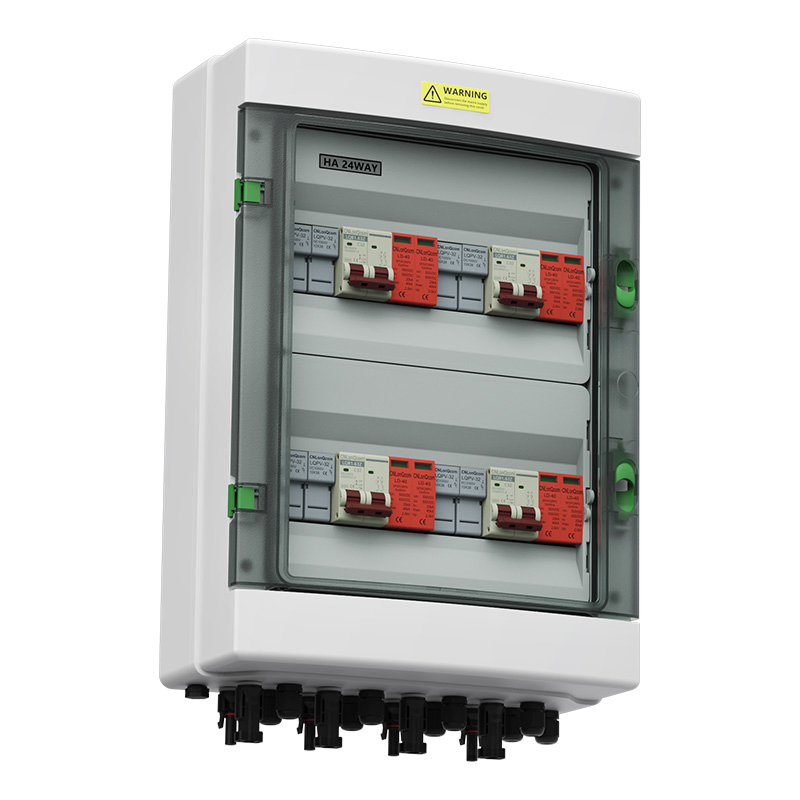

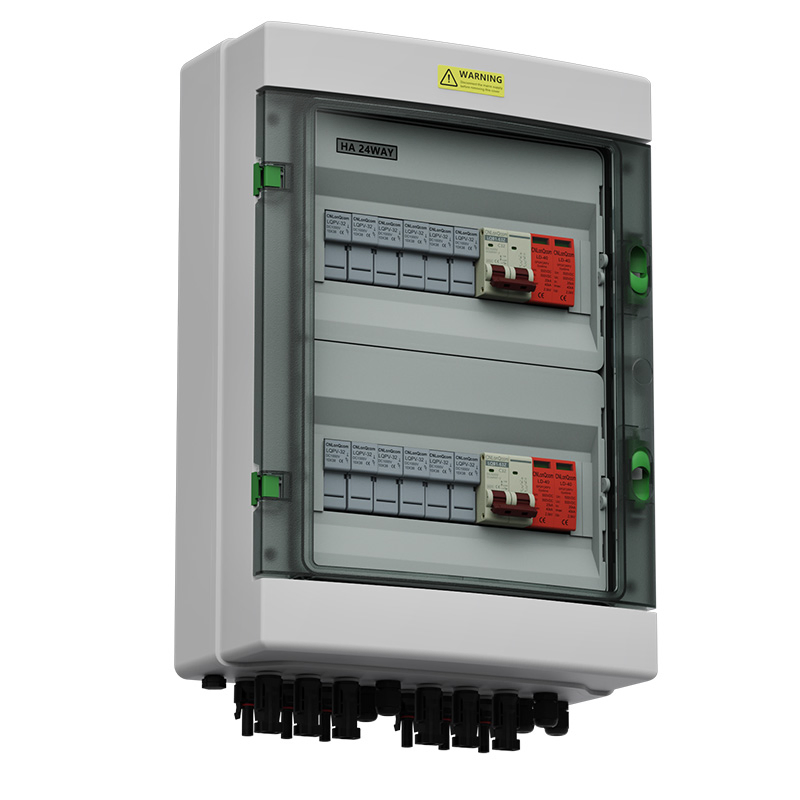

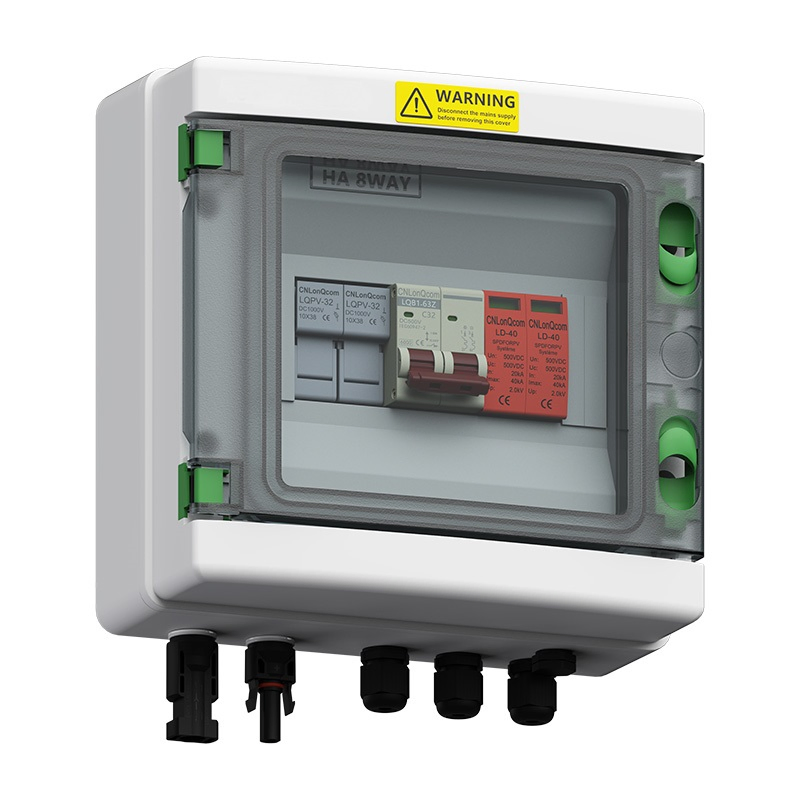

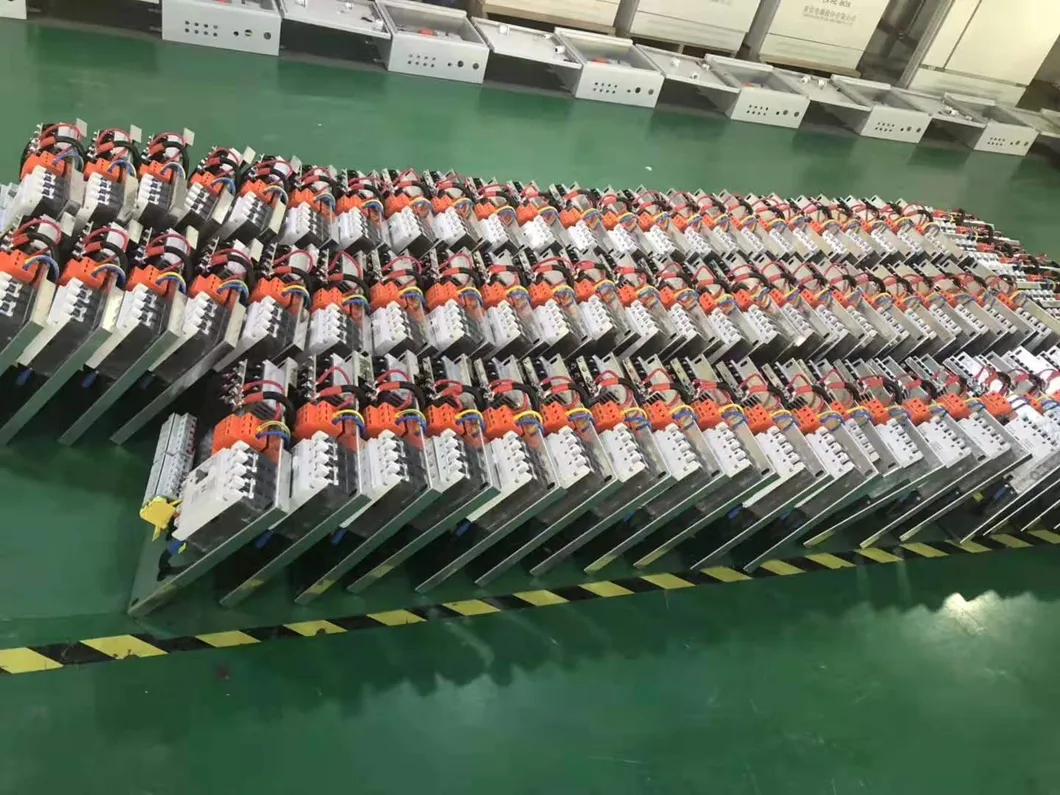

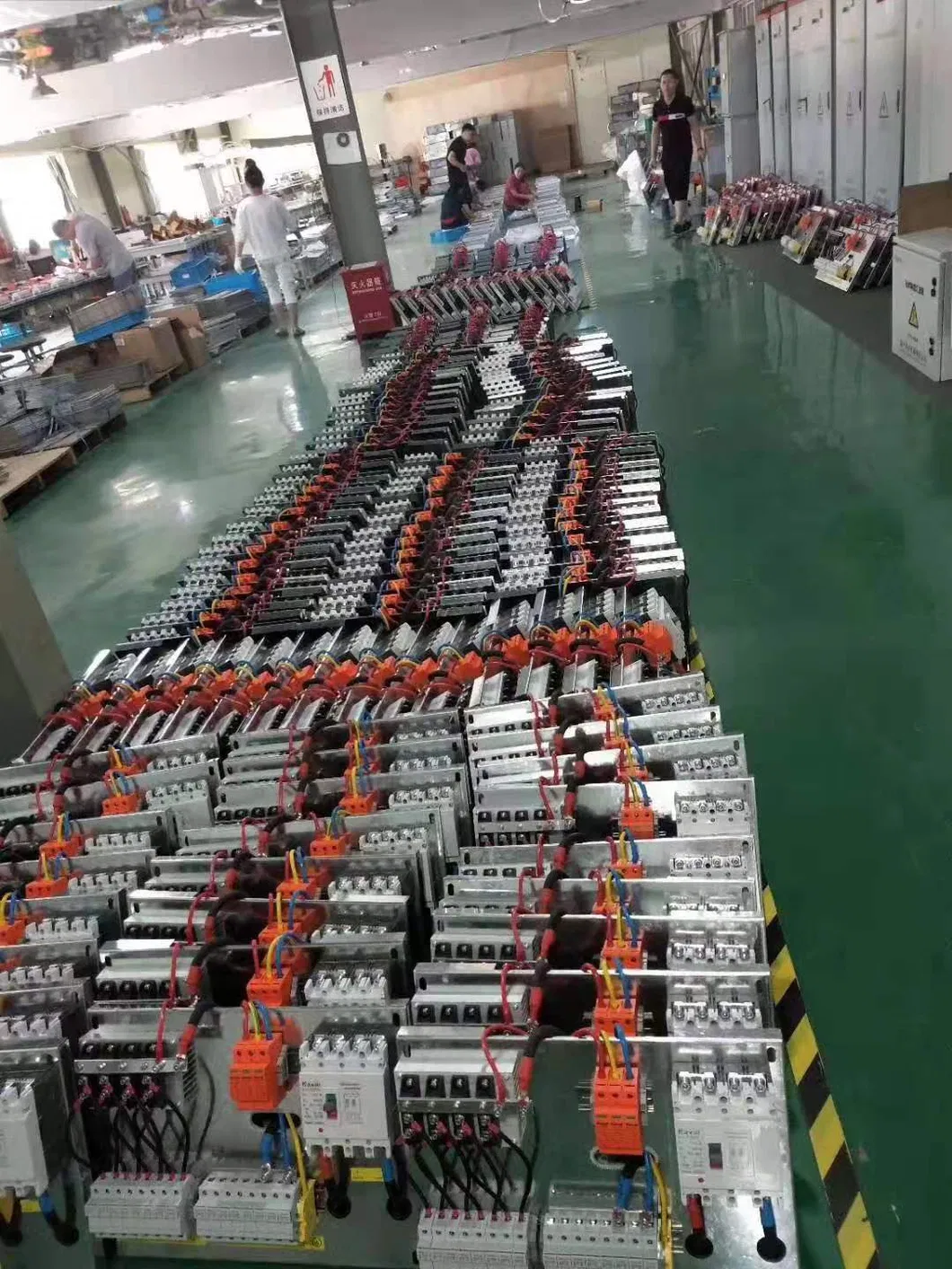

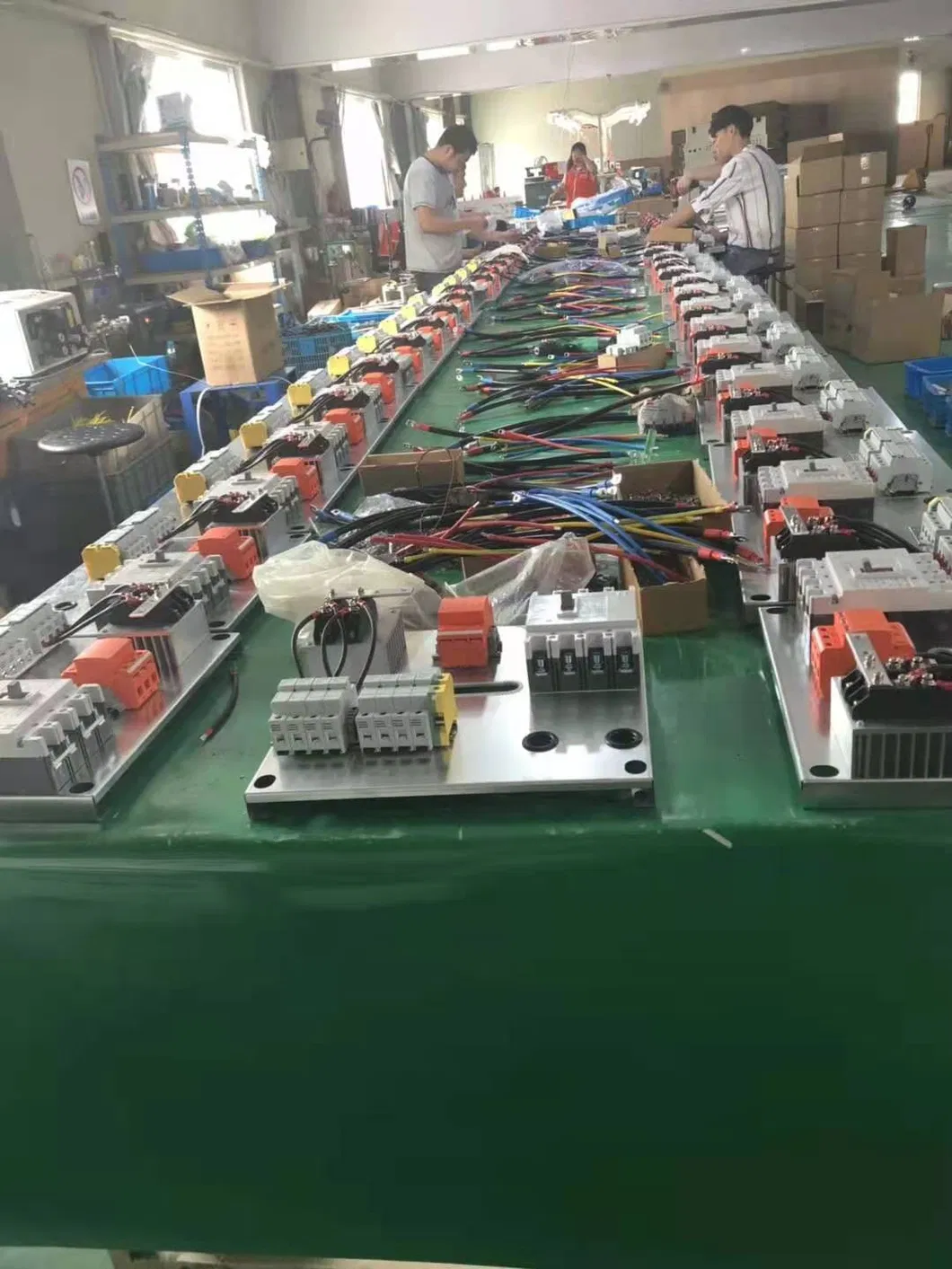

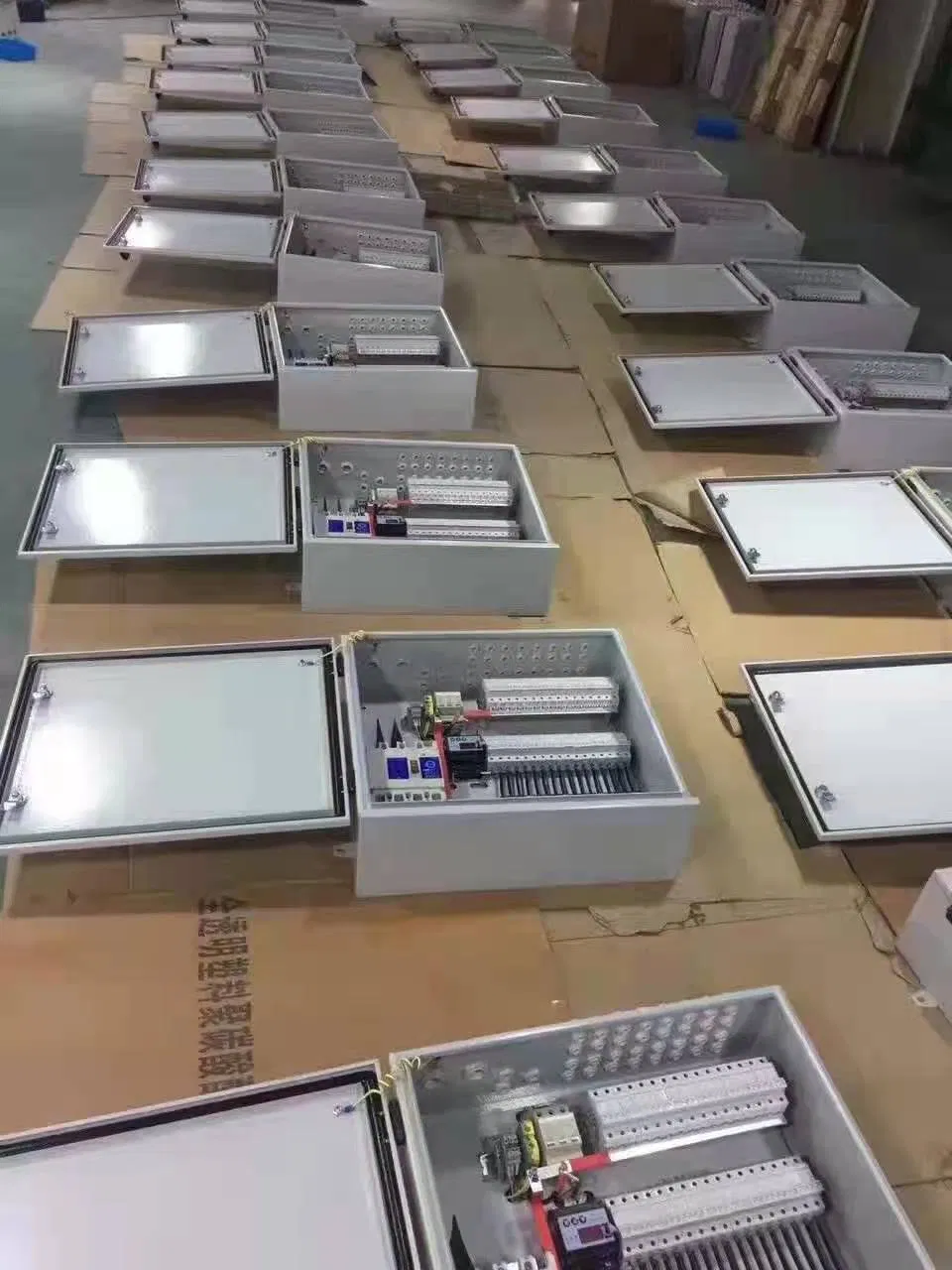

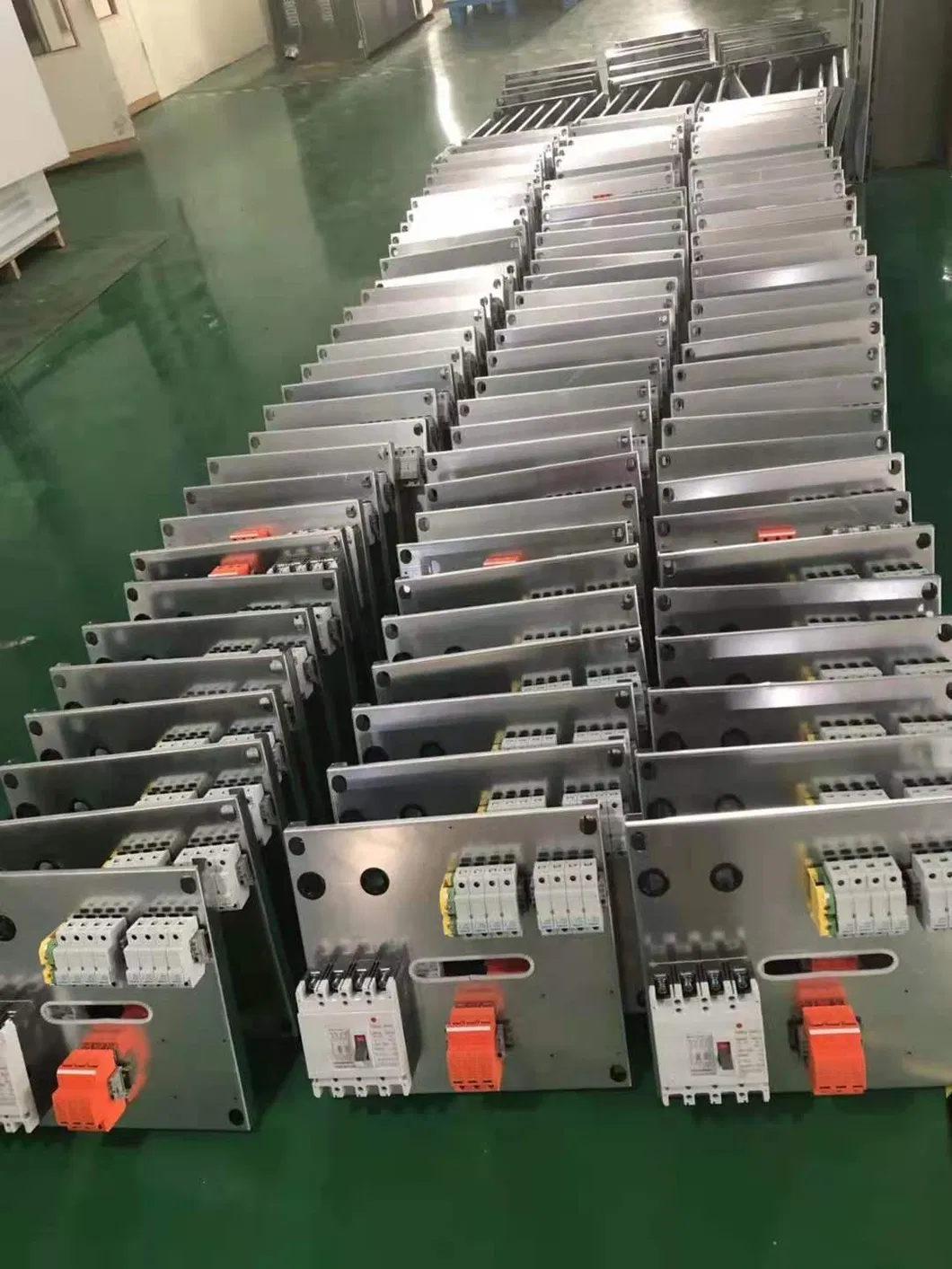

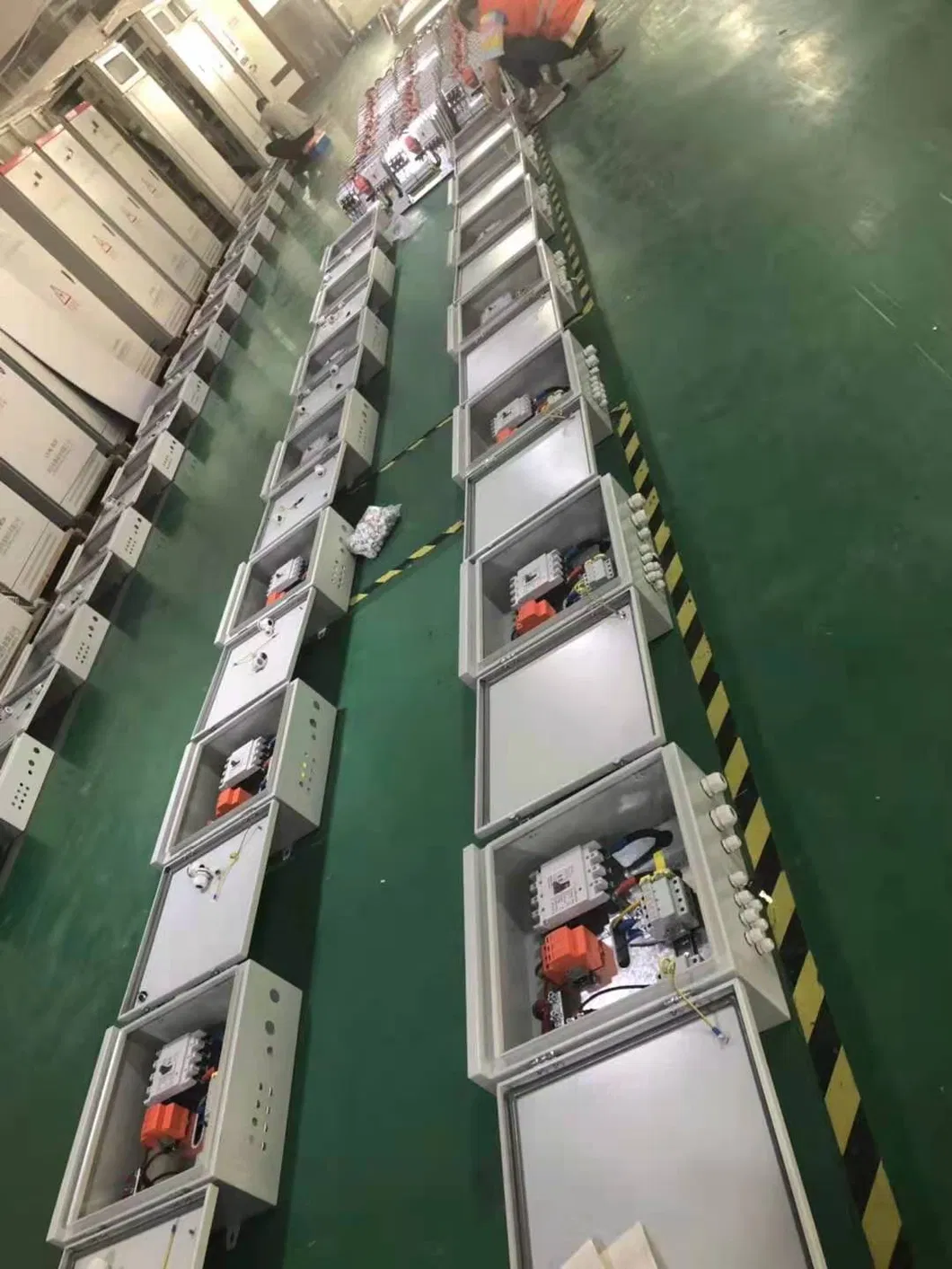

PV Array Combiner Box (2-24 Strings, IP65/IP66)

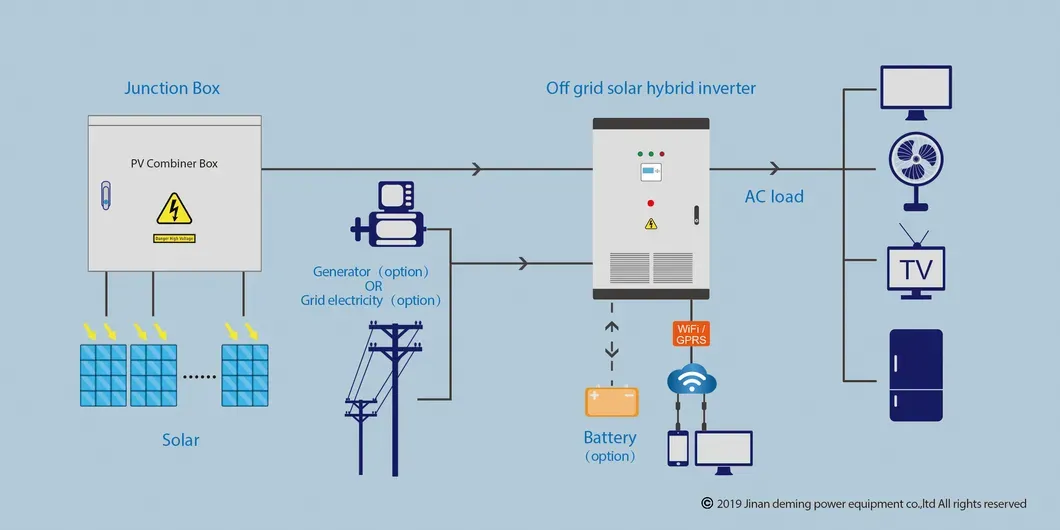

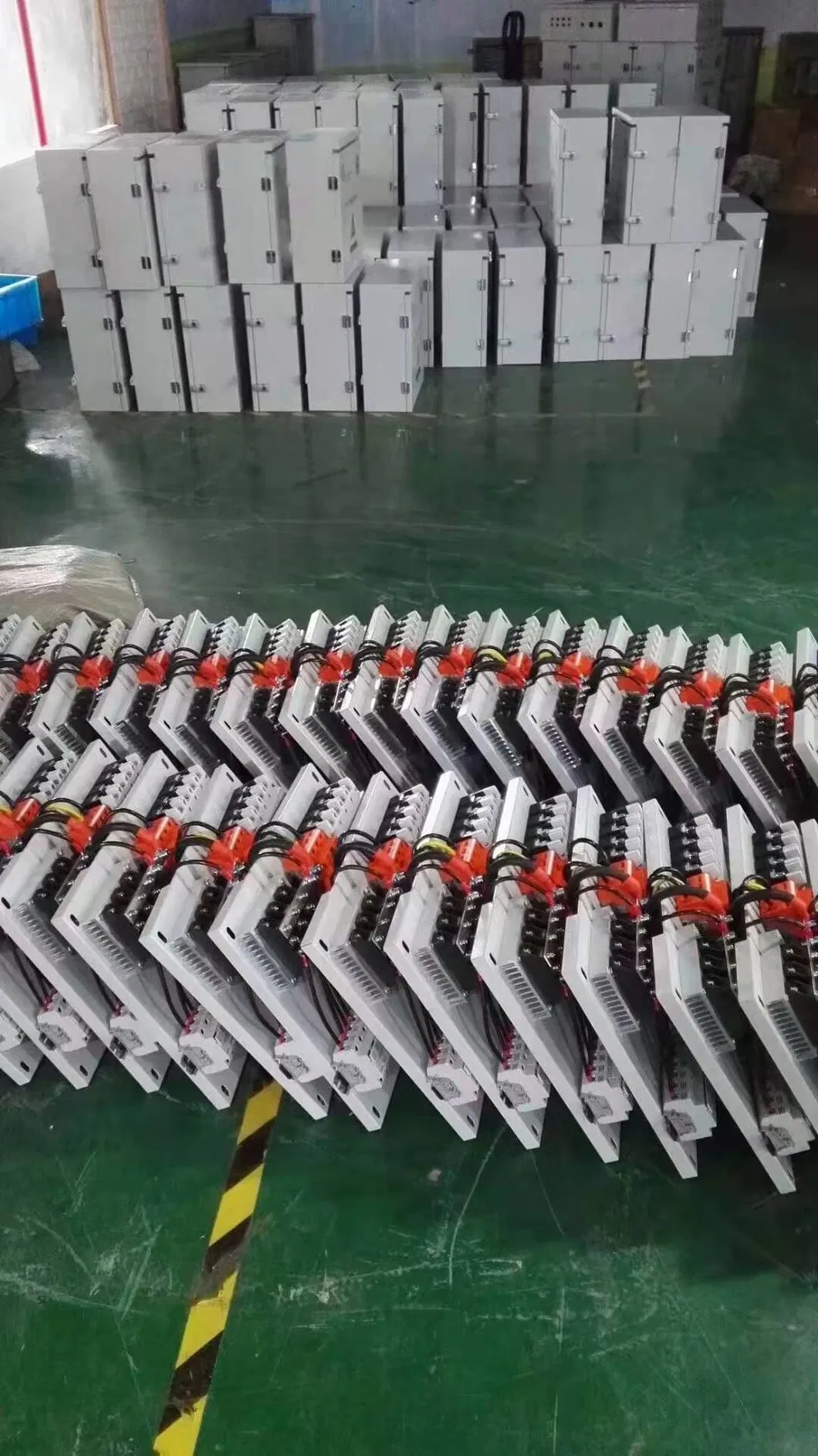

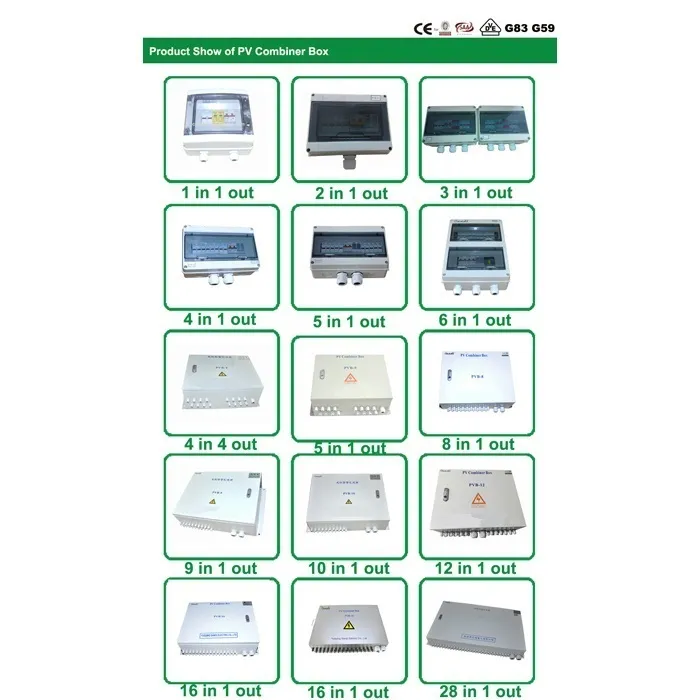

In solar photovoltaic power generation systems, the DC collector-shoe gear-PV combiner box is essential for reducing incoming lines between solar cell arrays and inverters. This system improves overall reliability and simplifies installation and maintenance.

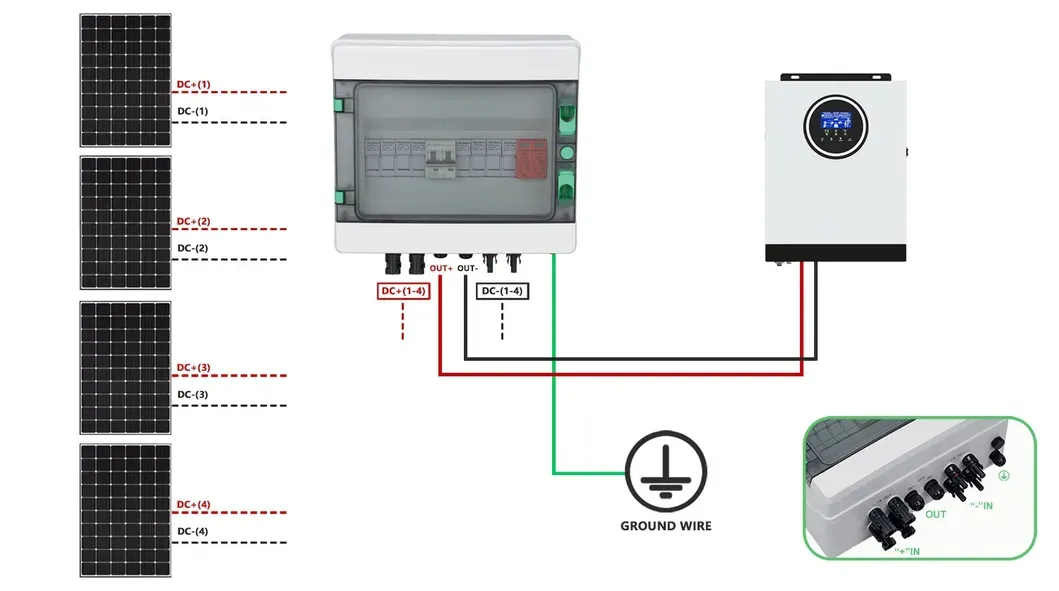

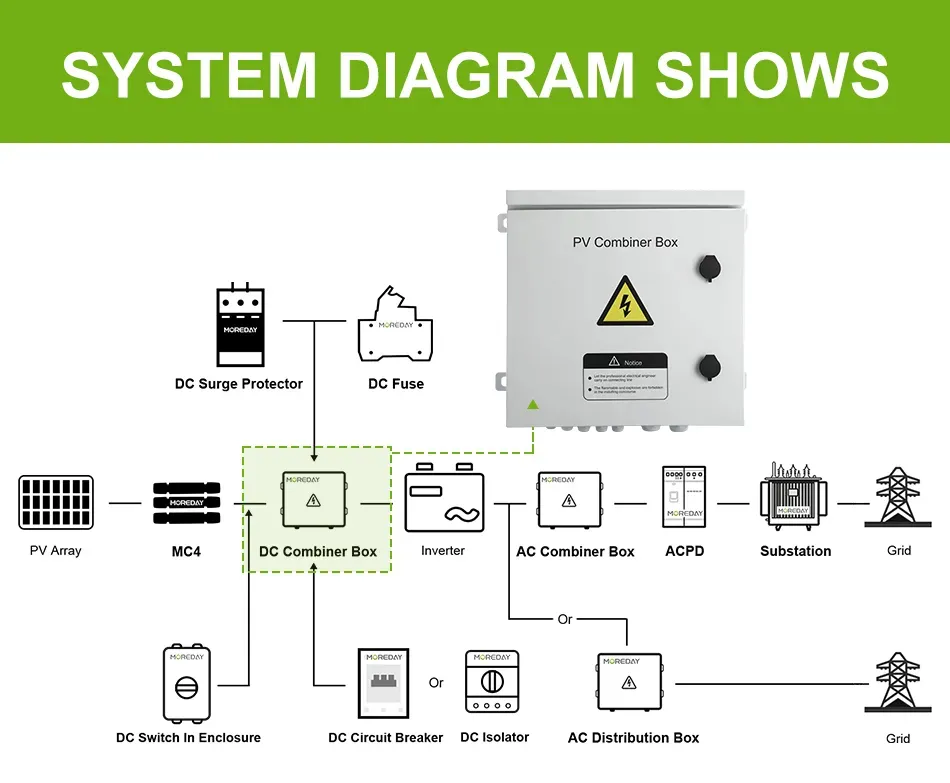

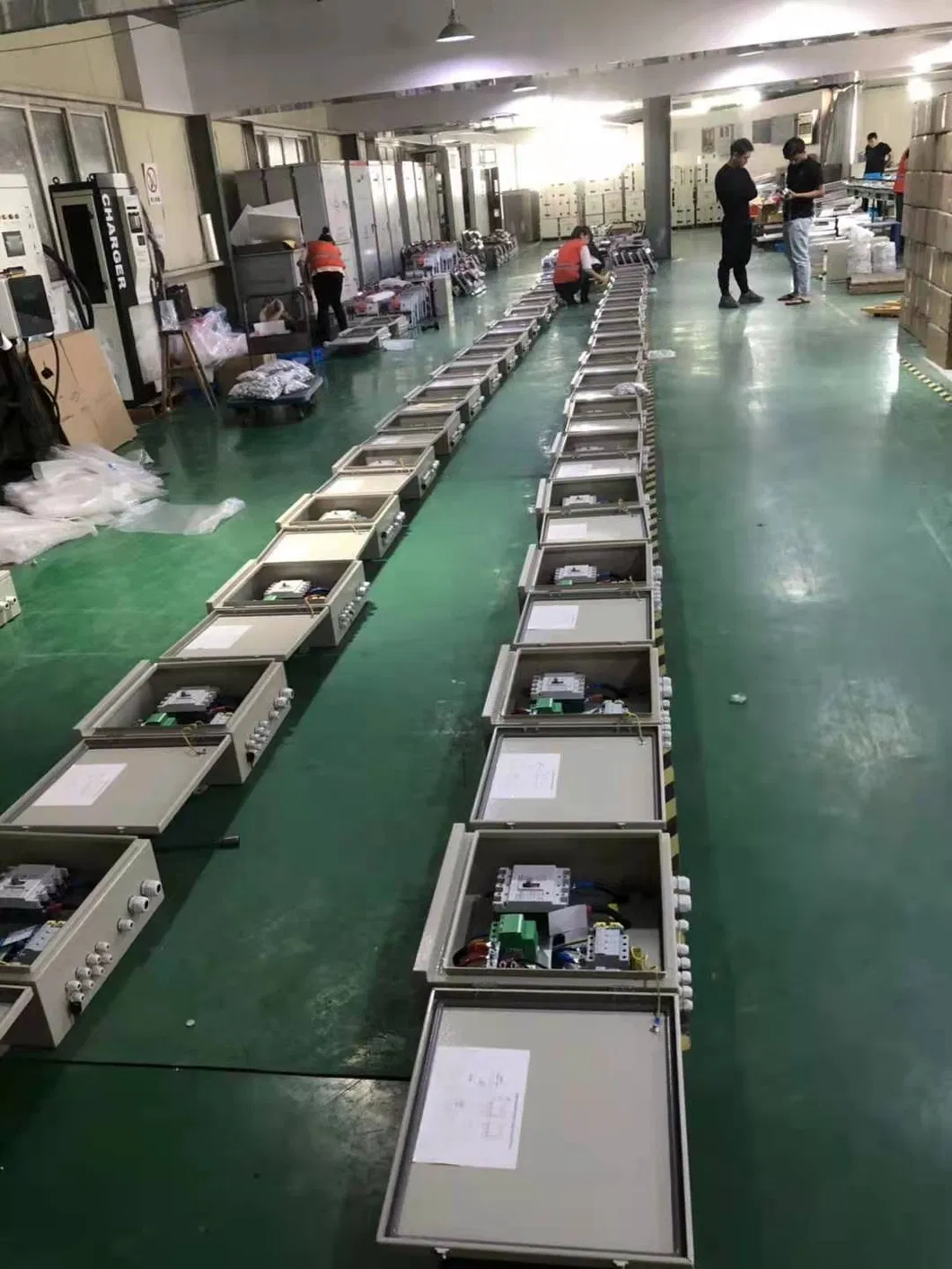

Users can connect a specific quantity of photovoltaic cells with matching specifications in series to form PV serials. These are then connected to the PV combiner anti-thunder box. Equipped with lightning protectors and circuit breakers, the box outputs directly to the PV inverter, creating a complete and safe power generation system.

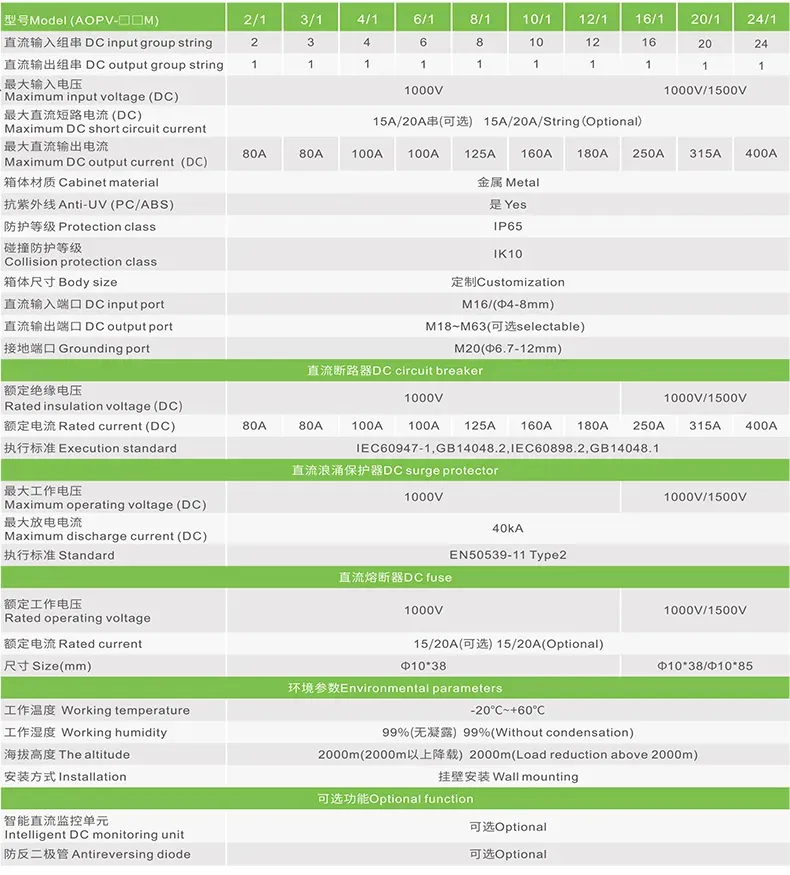

| Parameter | Details |
|---|---|
| Input / Output | 1-30 way input, 1-5 way output |
| Voltage Class | DC500V / 1000V (Optional) |
| Protection Degree | IP65 / IP66 |
| Working Temperature | -80°C to 60°C |
| Humidity Range | 0% to 99% |
| Max Elevation | <= 5500mm |
| Customization | Way number can be fully customized |

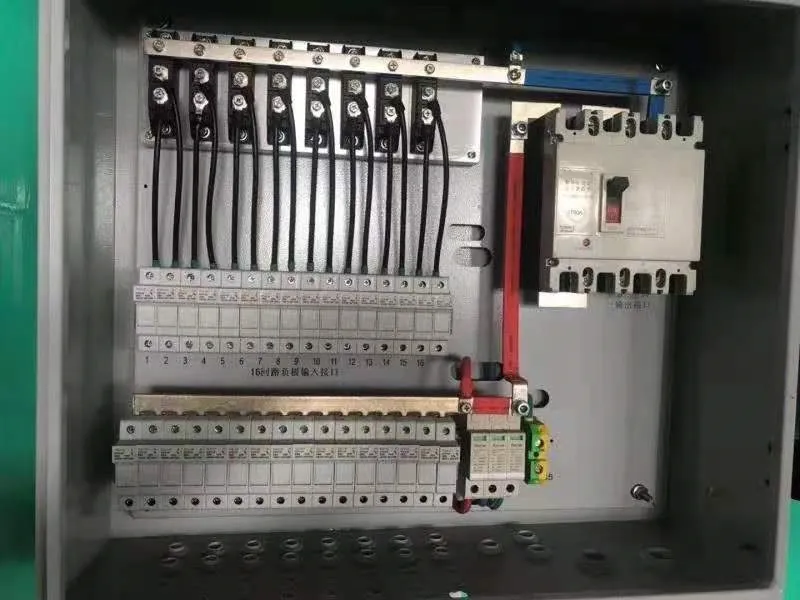

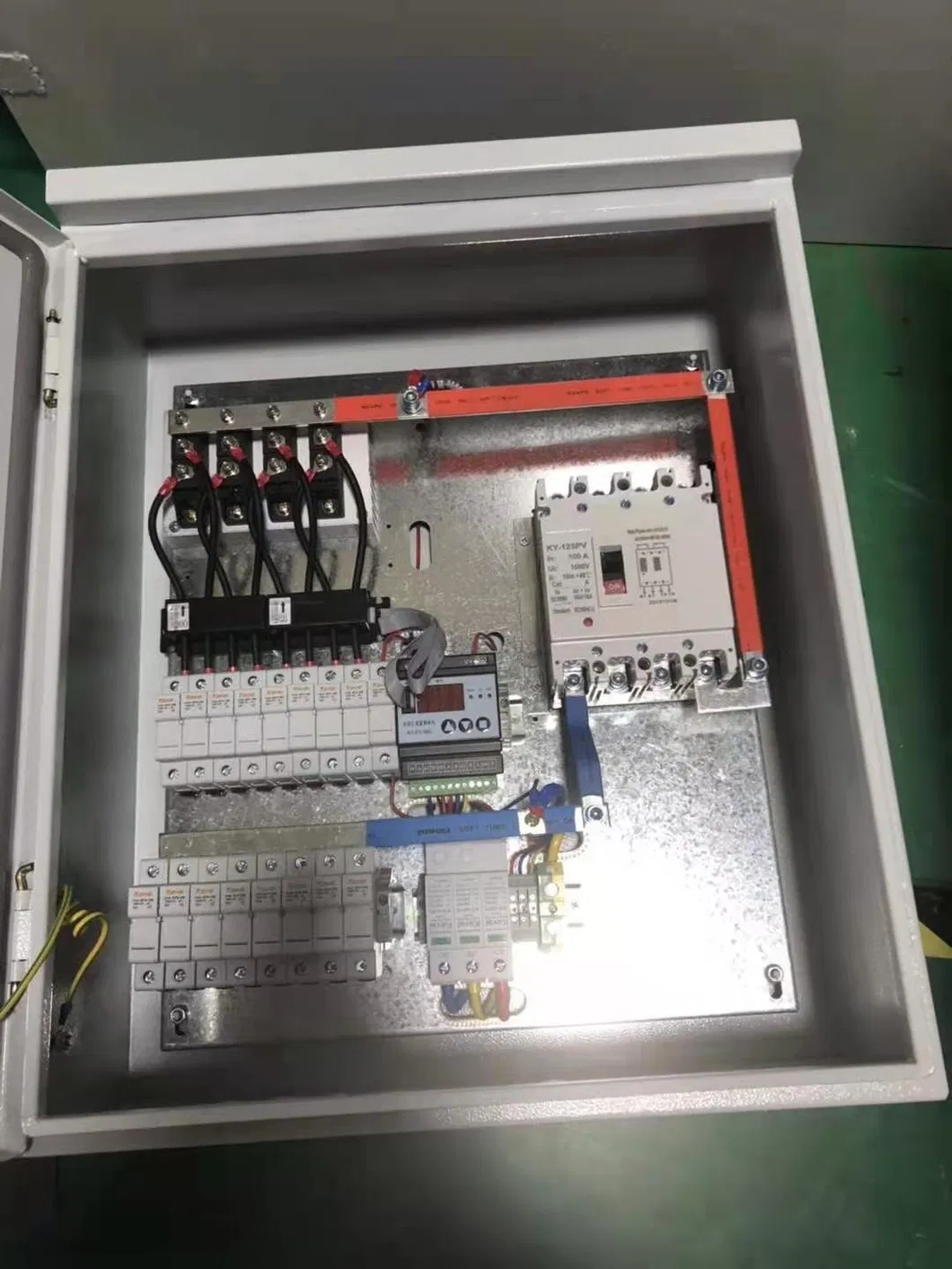

| Part No. | Component Description |
|---|---|
| 1 | Negative convergence copper busbar |
| 2 | Detection unit |
| 3 | DC MCB (Miniature Circuit Breaker) |
| 4 | DC positive Convergence output |
| 5 | DC negative Convergence output |
| 6 | RS485 communication terminal |
| 7 | Ground output point |
| 8 | Lightning protection device |
| 9 | Positive convergence copper |
| 10 | DC positive fuse holder and fuse (up to 16 way) |
| 11 | DC negative fuse holder and fuse (up to 16 way) |
| Specification | Width (A) mm | Height (B) mm | Depth (C) mm |
|---|---|---|---|
| 18 way | 645 | 550 | 205 |
| 14, 16 way | 610 | 550 | 205 |
| 10, 12 way | 530 | 550 | 205 |
| 6, 8 way | 460 | 550 | 205 |
| 2, 4 way | 390 | 550 | 205 |
