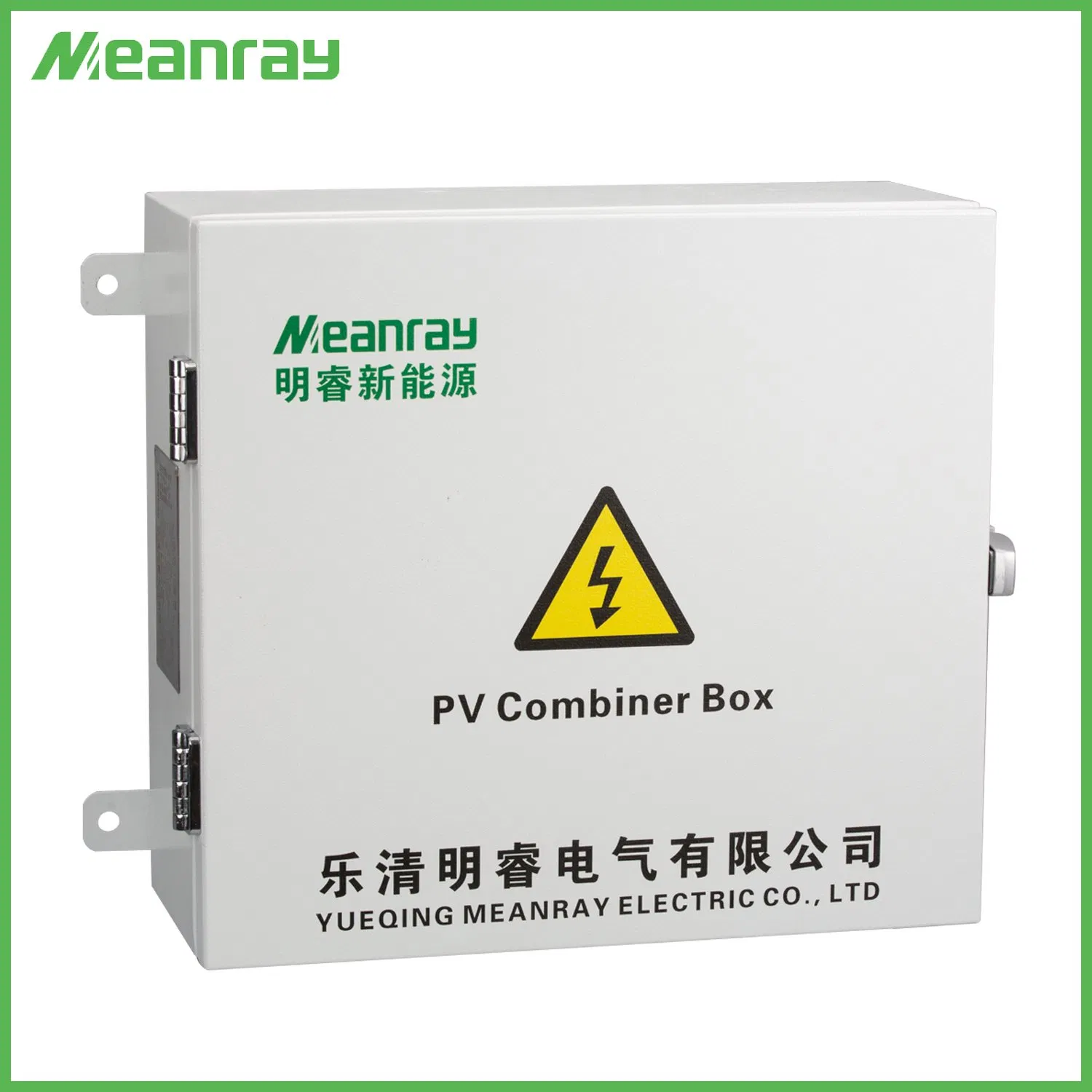

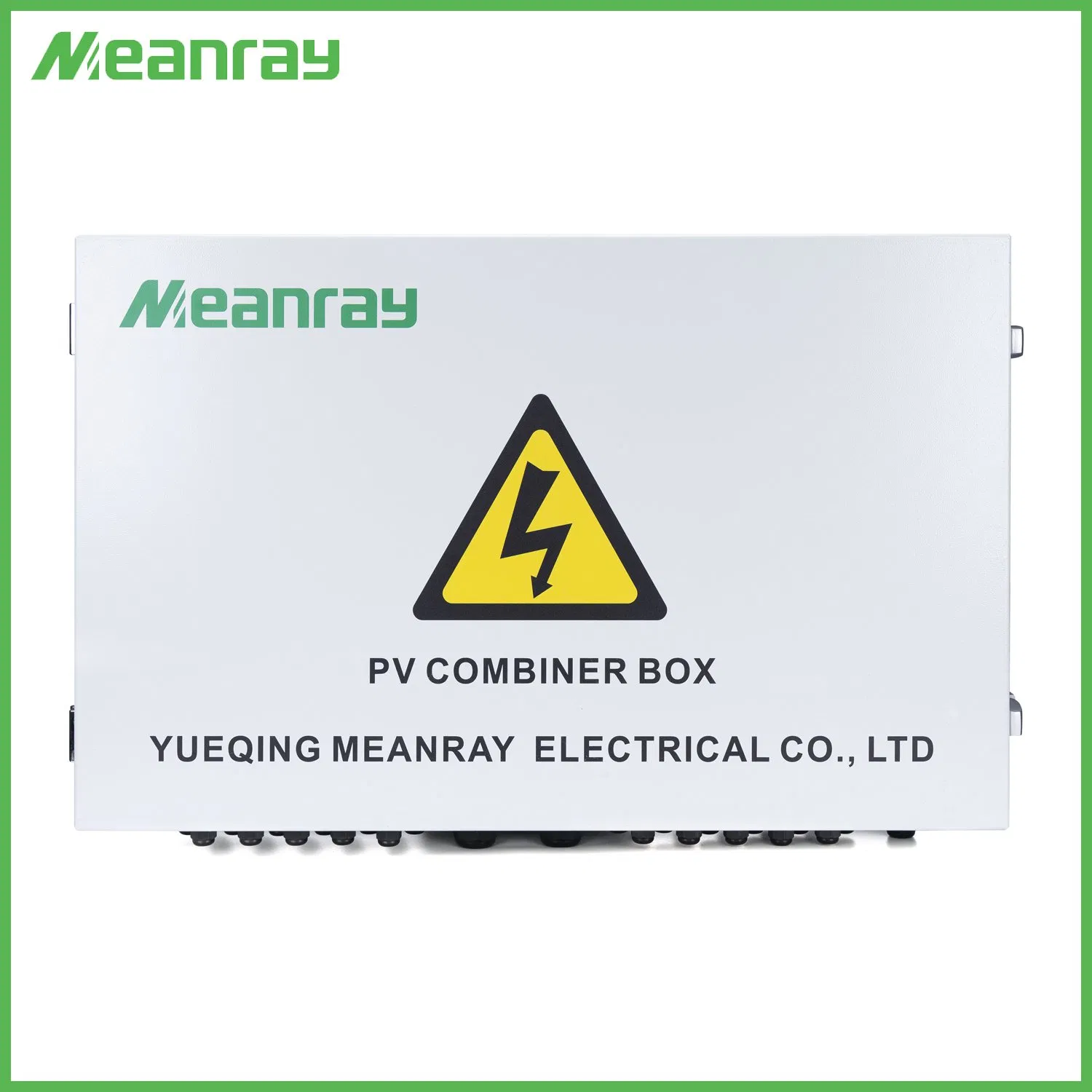

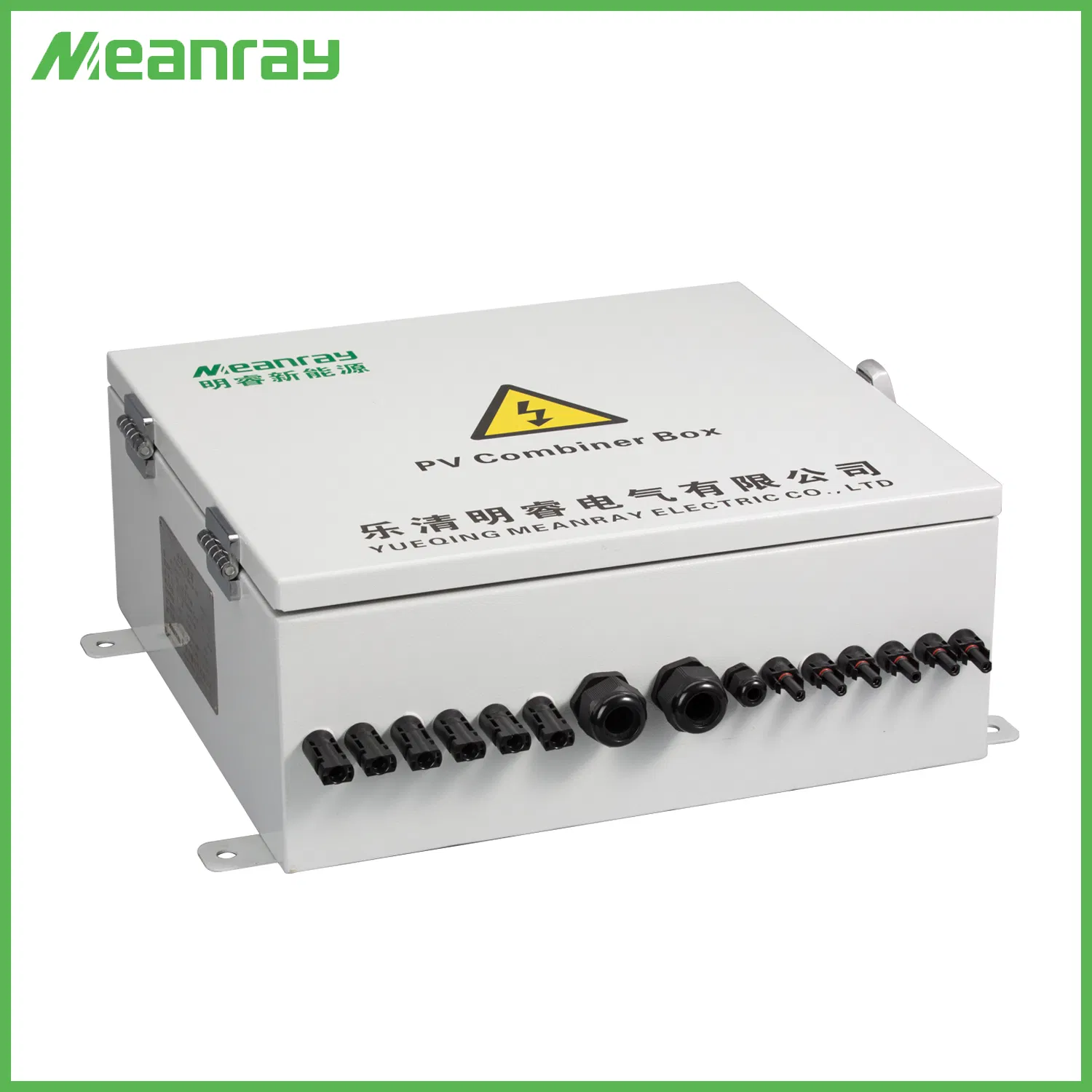

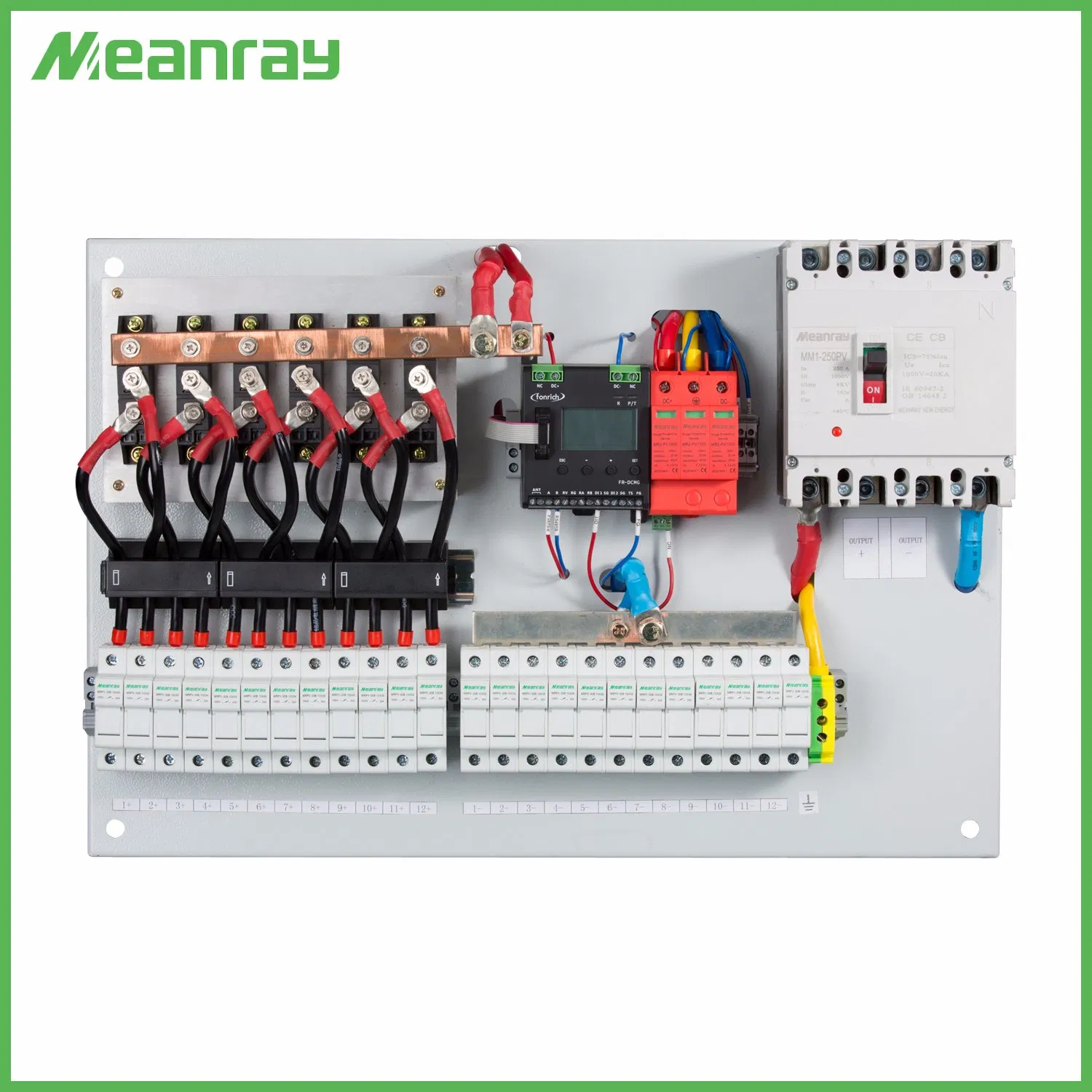

Solar System DC PV Combiner Box 6 strings input & 1 output IP65 Combiner box
The MSPV/6-1 solar combiner box is designed for inverters with a maximum input voltage of DC 1000V. It features 8 PV input channels and 2 output channels, ideal for double MPPT inverters. The box body is constructed from high-grade PVC engineering materials, rigorously tested for fire retardancy, temperature resistance, anti-impact, and anti-ultraviolet properties. IP65 protection grade ensures safety and durability in harsh environments.
| Electric Parameter | |
| Product Name | MSPV/6-1 Combiner Box DC |
| System Max DC Voltage | 1000/1200V |
| Max Input Current (per string) | 15A |
| Max Input Strings | 6 |
| Max Output Switch Current | 90A |
| Lightning Protection | |
| Category of Test | Grade 2 Protection |
| Nominal Discharge Current | 20kA |
| Max Discharge Current | 40kA |
| Voltage Protection Level | 3.8kV |
| System & Mechanical | |
| Protection Grade | IP65 |
| Box Material | PVC / Cold Rolled Steel |
| Operating Temperature | -25ºC to +55ºC |
| Dimensions (W*H*D) | 440mm * 400mm * 180mm |
