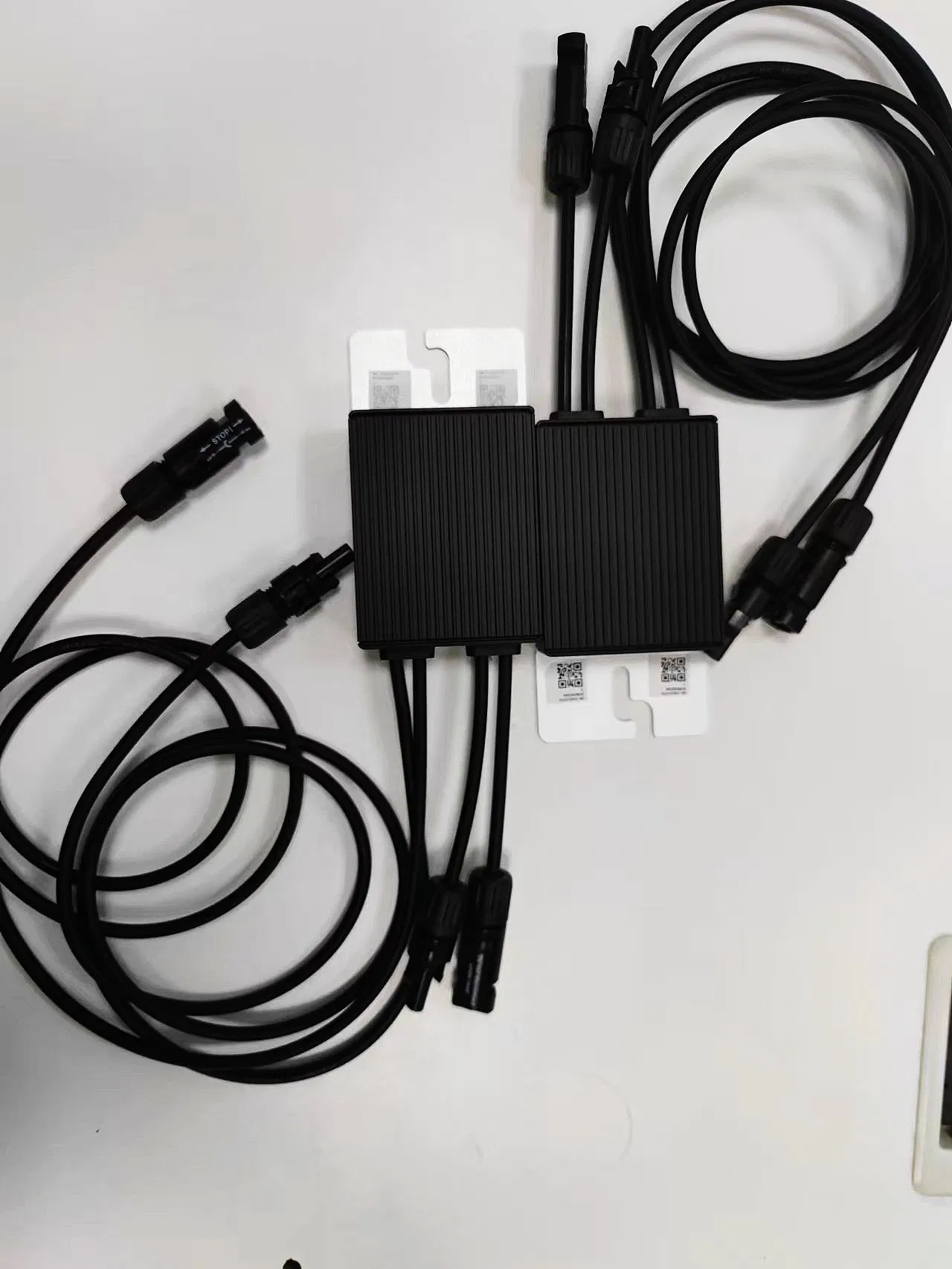

Solar Power Photovoltaic Panels Optimizer Smart PV WiFi Monitor Edge 600W Optimizer for Home Use Rooftop

Still deciding? Get samples of $ !
Request Sample

Product Description

iBasic Information
Model NO.
SUN2000-600W-P
Certification
ISO9001, CE, TUV
Output Power
400-600W
Brand
Huawei
Input Voltage
80V
Output Current
15A
Weight
0.7 Kg
Specification
75 x 140 x 28 mm
Product Description

The Smart PV Optimizer is a DC-DC converter installed on the rear of PV modules in a PV system. It manages the maximum power point (MPP) of each PV module to improve the energy yield of the PV system, and performs functions such as module-level shutdown and module-level management.

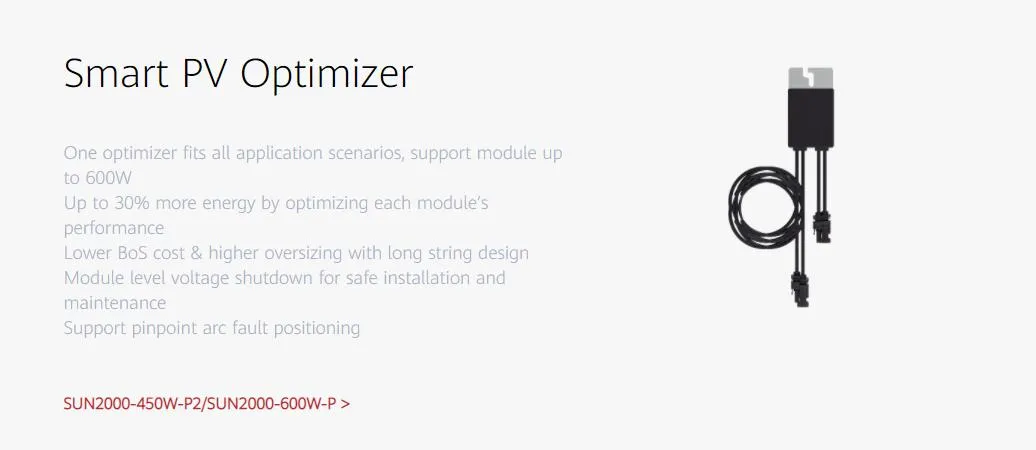

Smart PV Optimizer Overview
  • 🔥 One optimizer fits all application scenarios
  • 🔥 Up to 30% more energy by optimizing each module's performance
  • 🔥 Lower BoS cost & higher oversizing with long string design
  • 🔥 Module level voltage shutdown for safe installation and maintenance
  • 🔥 Support pinpoint arc fault positioning
📋Technical Specification
Feature SUN2000-450W-P SUN2000-600W-P
Input
Rated Input DC Power450 W600 W
Absolute maximum input voltage80 V
MPPT operating voltage range10 - 80 V
Maximum Short Circuit Current (Isc)14.5 A
Max. efficiency99.5 %
Output
Max. output voltage80 V
Max. output current15 A
Output bypassYes
Shutdown output voltage0 V
General Data
Dimension (W x H x D)71 x 138 x 25 mm
Degree of protectionIP68
📷Detailed Photos

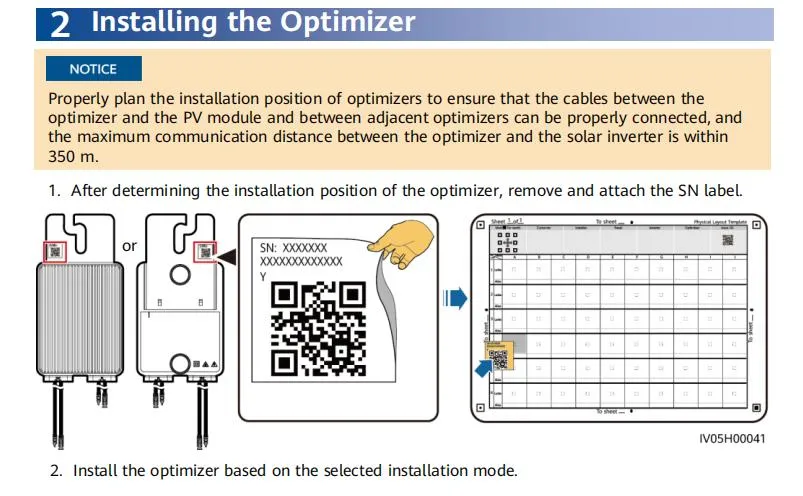

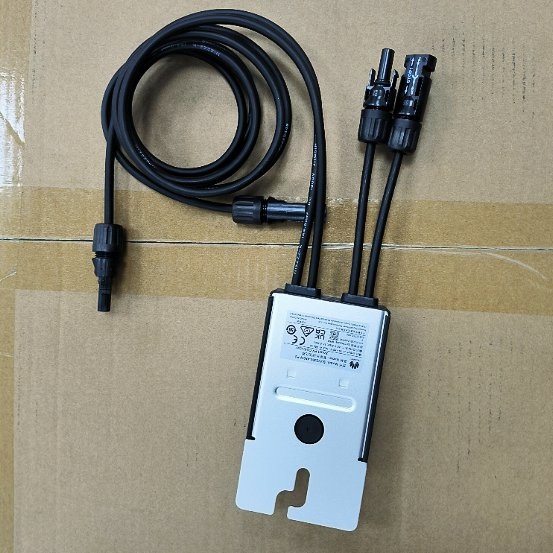

Optimizer Detail 1

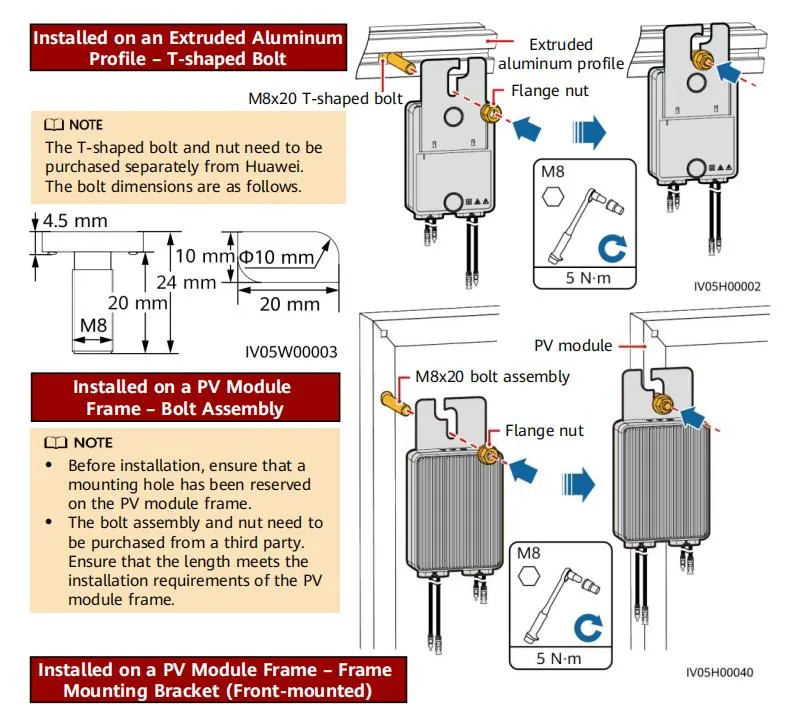

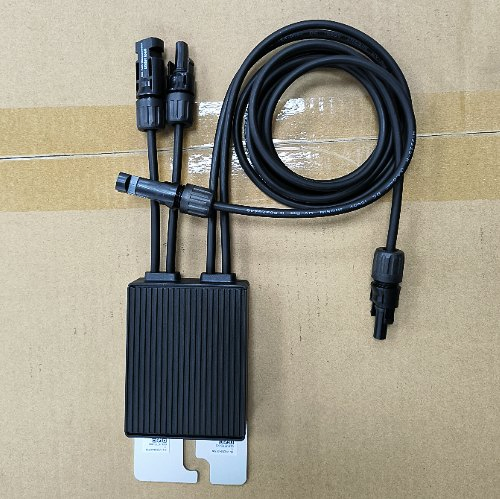

Optimizer Detail 2

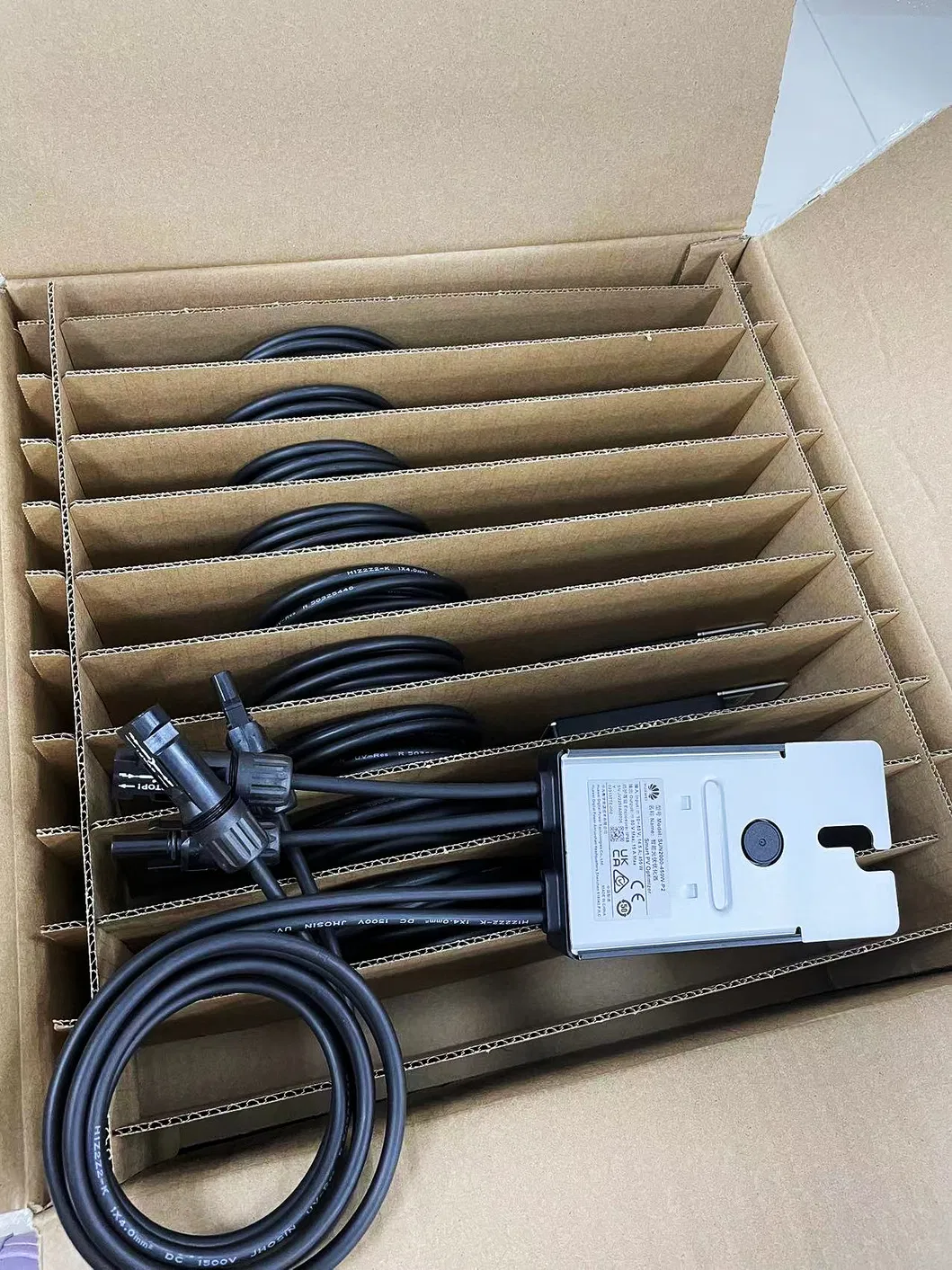

Product View 1

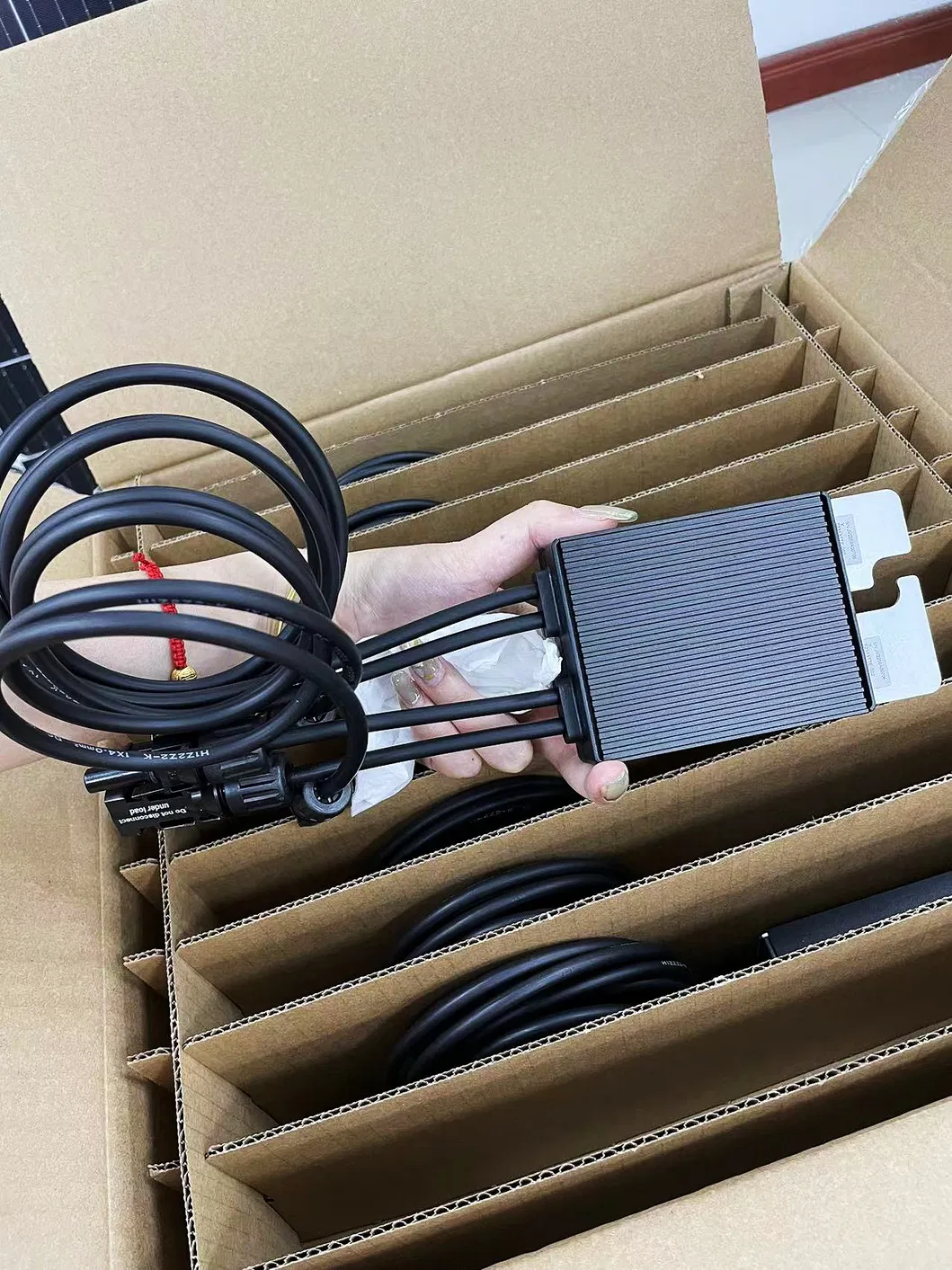

Product View 2
📦Storage & Maintenance

The following requirements should be met if the equipment is not put into use directly:

  • Do not unpack the product before installation.
  • Keep storage temperature at -40°C to +70°C and humidity at 5%-95% RH.
  • Store in a clean, dry place protected from dust and water vapor corrosion.
  • A maximum of eight units can be stacked. Stack with caution to prevent falling.
  • Check the product periodically (recommended every three months).
Storage Requirements
🏗️Project Exhibition

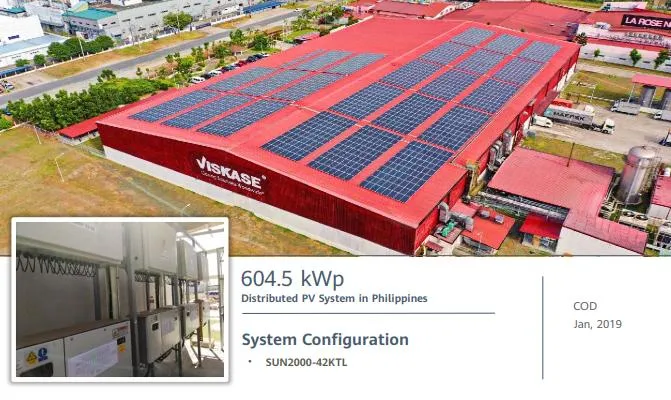

Project 1

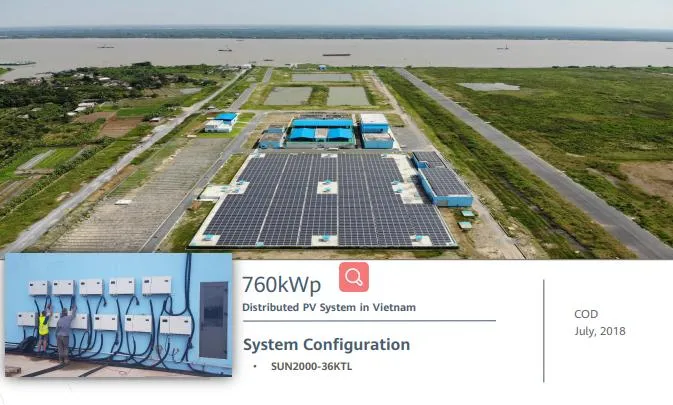

Project 2

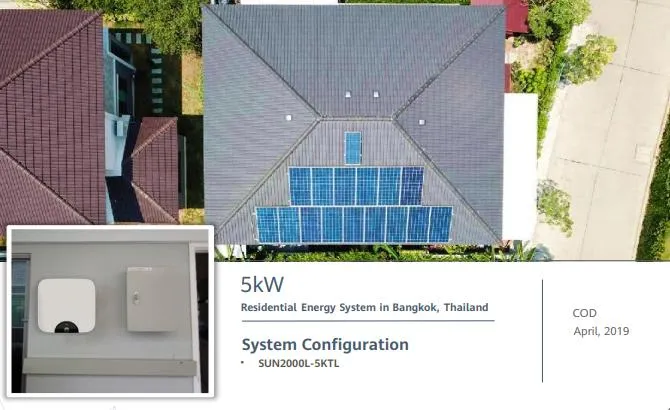

Project 3
🏭Our Manufacturing Capability

We are a professional and fast-growing enterprise focusing on R&D, production, and sales of PV modules, power stations, and PV system products. Our facility spans 46,000 square meters with an annual production capacity of 800MW.

With an advanced production system and rigorous quality control, our products have achieved TUV and CE certifications. We have established a global sales network covering over 70 countries and regions across Europe, Asia, and South America.

Factory Overview
Production Line
?Frequently Asked Questions
How does the Smart PV Optimizer increase energy yield?
The optimizer manages the Maximum Power Point (MPP) for each individual module. This prevents "mismatch" losses where one shaded or dirty panel reduces the output of the entire string, potentially increasing energy yield by up to 30%.
What safety features are included for maintenance?
The device supports module-level voltage shutdown. During installation or maintenance, the output voltage can be reduced to 0V per optimizer to ensure a safe environment for technicians.
Which solar inverters are compatible with these optimizers?

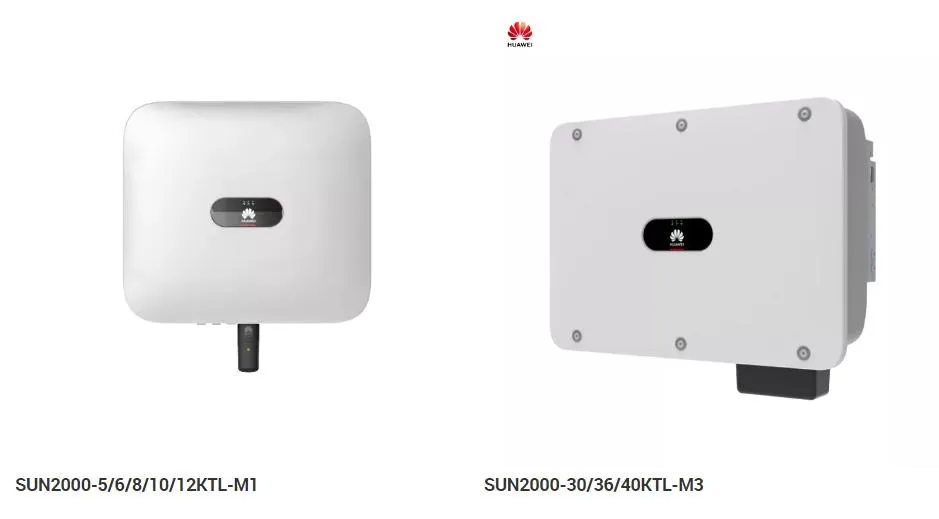

These optimizers are compatible with a wide range of SUN2000 series inverters, including the KTL-L1, KTL-M1, KTL-M2, and KTL-M3 models.
Is the optimizer weather-resistant for outdoor use?
Yes, the device features an IP68 protection rating, which means it is completely dust-tight and can withstand long-term immersion in water, making it ideal for rooftop environments.
What is the warranty period for this product?
The standard warranty for the SUN2000-600W-P optimizer is 5 years, ensuring long-term reliability and support for your solar investment.
What services can be provided upon purchase?
We provide various delivery terms including FOB, CFR, CIF, and EXW. We also support multiple payment methods such as T/T, L/C, and PayPal to facilitate a smooth international transaction.
