For large-scale PV grid-connected power generation system, in order to reduce the connection between the PV module and the inverter, and to facilitate maintenance to improve reliability, it generally need to add DC busbar device between the PV module and the inverter. This PV array lightning protection combiner box is designed to meet this requirement and can be designed to a complete PV power generation system solution with PV inverter products.
Using PV combiner box, the user can put certain number of same specifications PV modules into series PV module according to input DC voltage range of the inverter, and then a number of series PV modules access to the PV array lightning protection box. It's convenient to facilitate the post-inverter through the output for lightning protection device and circuit breaker.

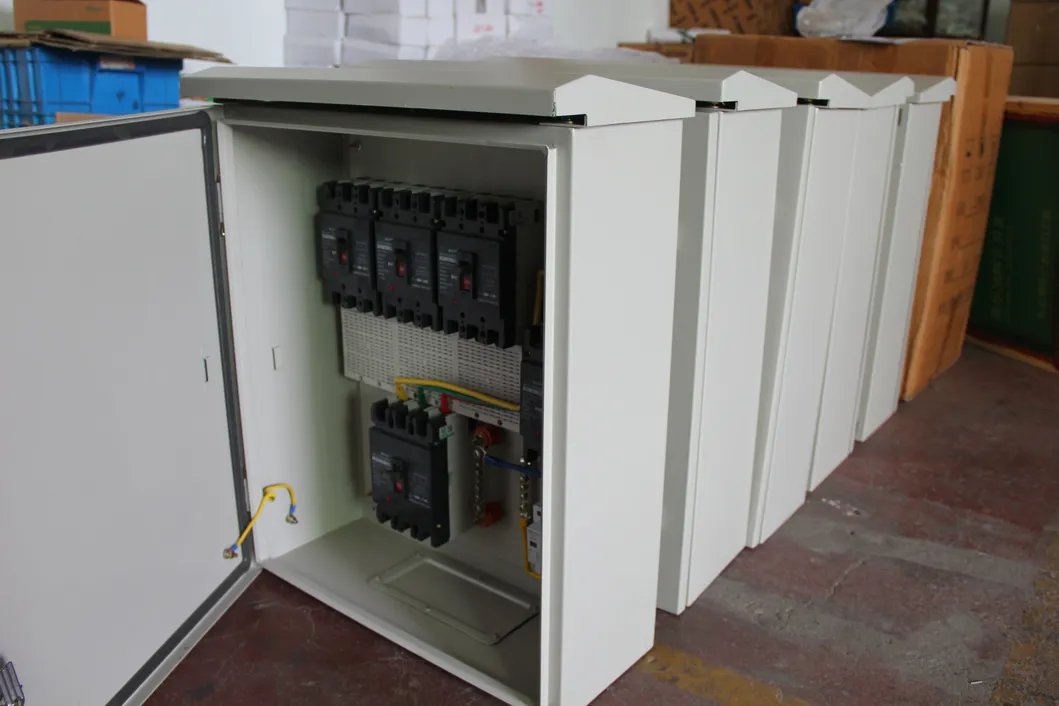

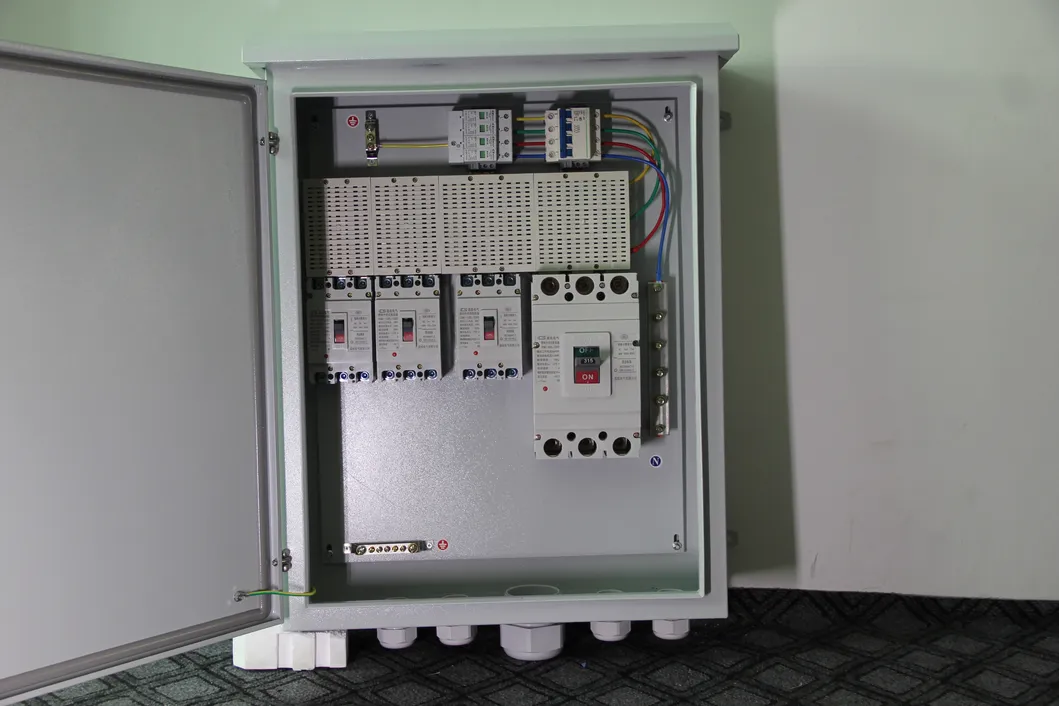

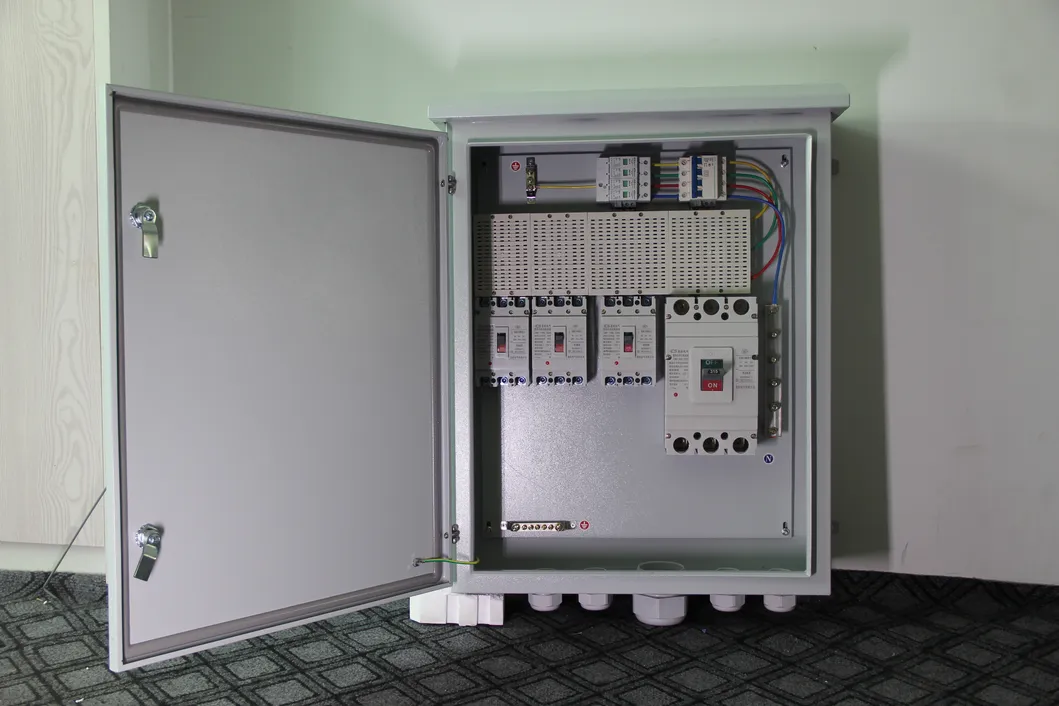

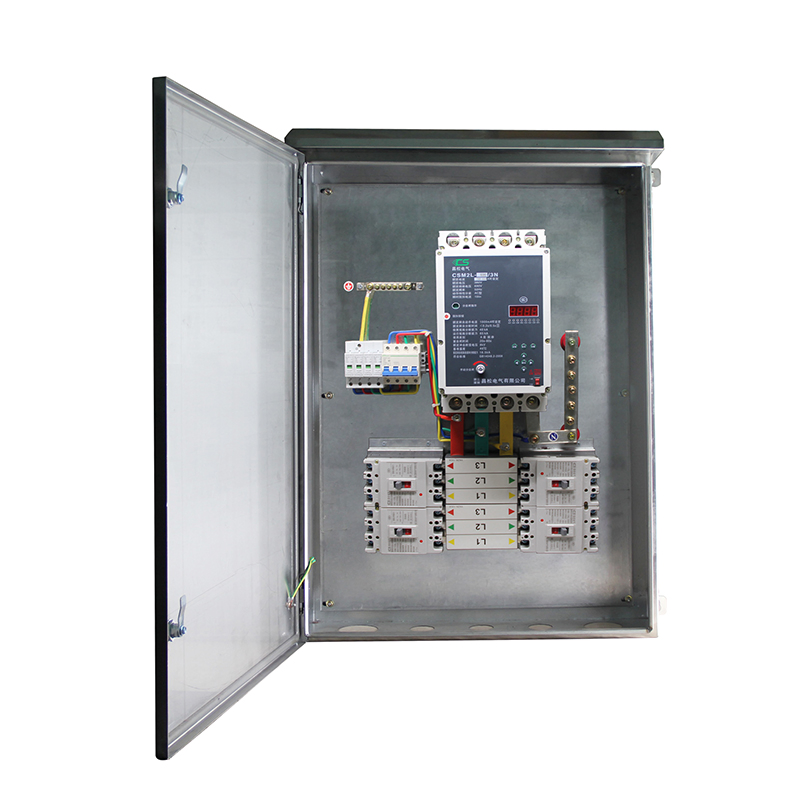

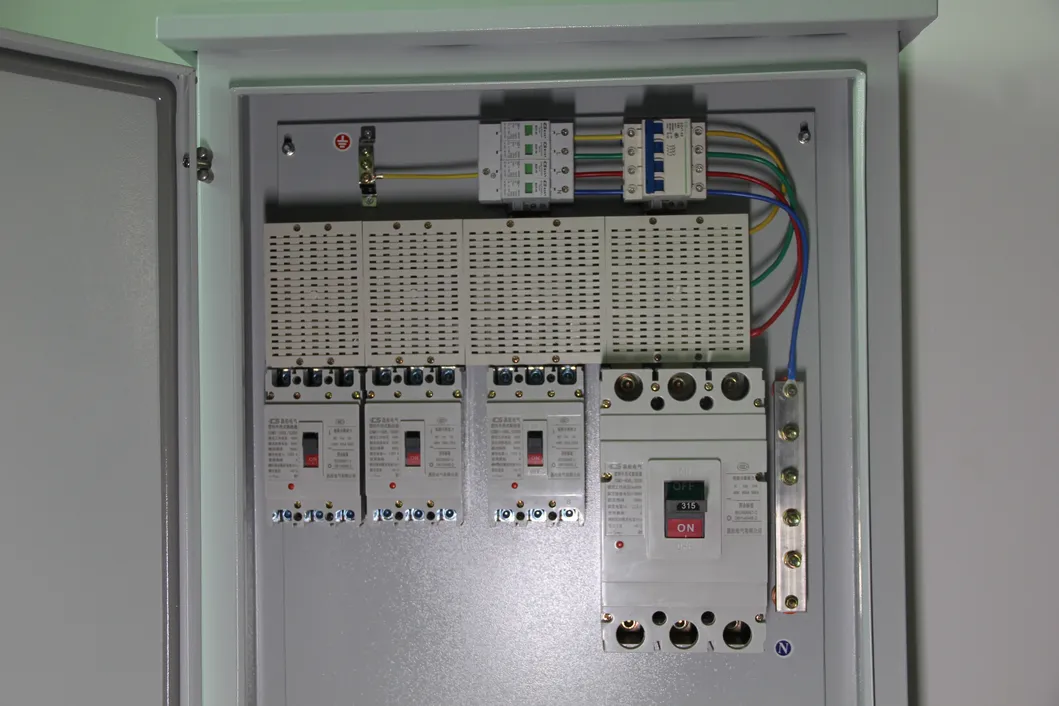

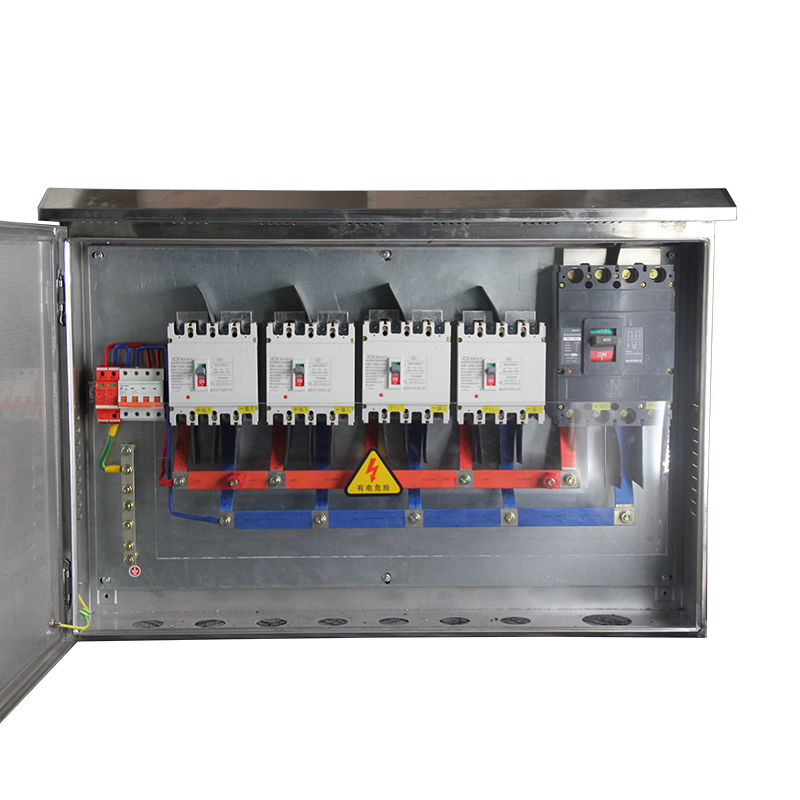

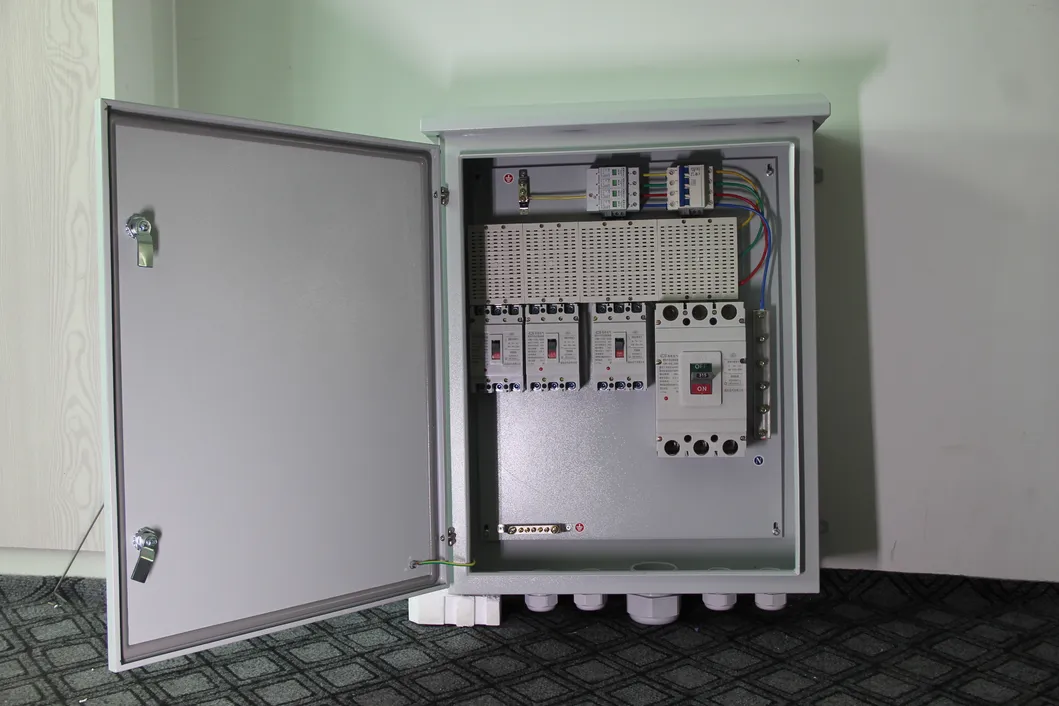

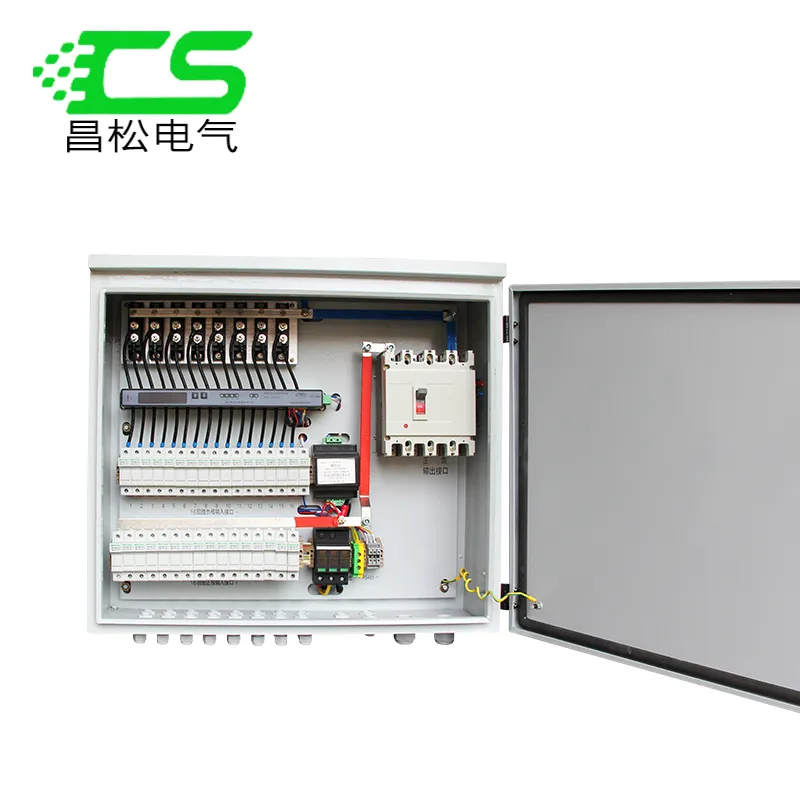

| Part Number | Description |
|---|---|
| 1 | Negative convergence copper busbar |
| 2 | Detection unit |
| 3 | DC MCB |
| 4 | Dc positive Convergence output |
| 5 | Dc negative Convergence output |
| 6 | RS485 communication terminal (output point) |
| 7 | Ground output point |
| 8 | Lightning protection device |
| 9 | Positive convergence copper |
| 10 | DC positive fuse holder and fuse (up to 16 way) |
| 11 | DC negative fuse holder and fuse (up to 16 road) |
| Specification | Width(A)mm | Height(B)mm | Depth(C)mm |
|---|---|---|---|
| 18 way | 645 | 550 | 205 |
| 14,16 way | 610 | 550 | 205 |
| 10,12 way | 530 | 550 | 205 |
| 6,8 way | 460 | 550 | 205 |
| 2,4 way | 390 | 550 | 205 |
