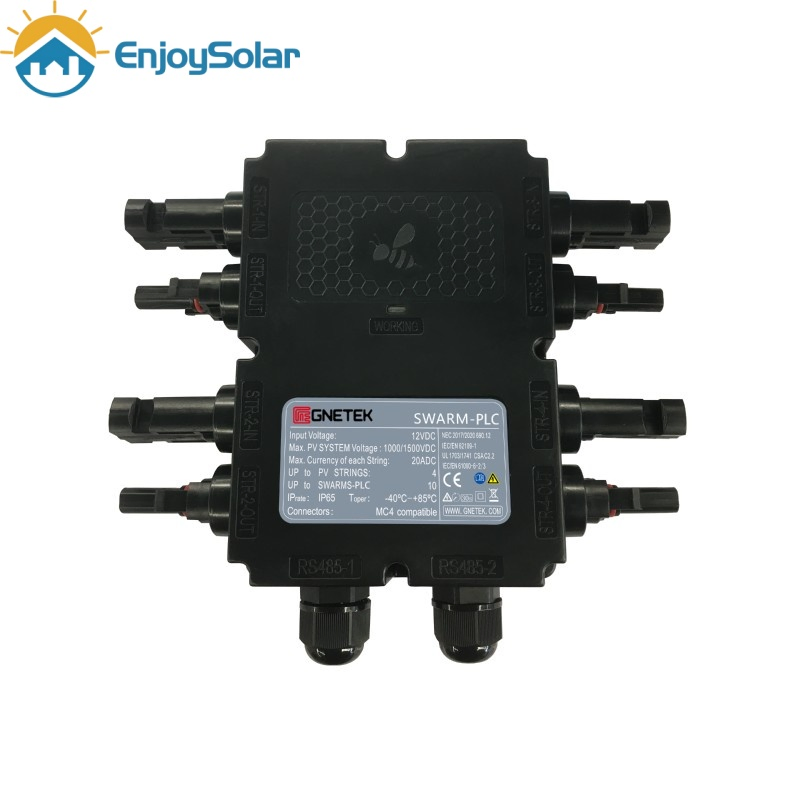

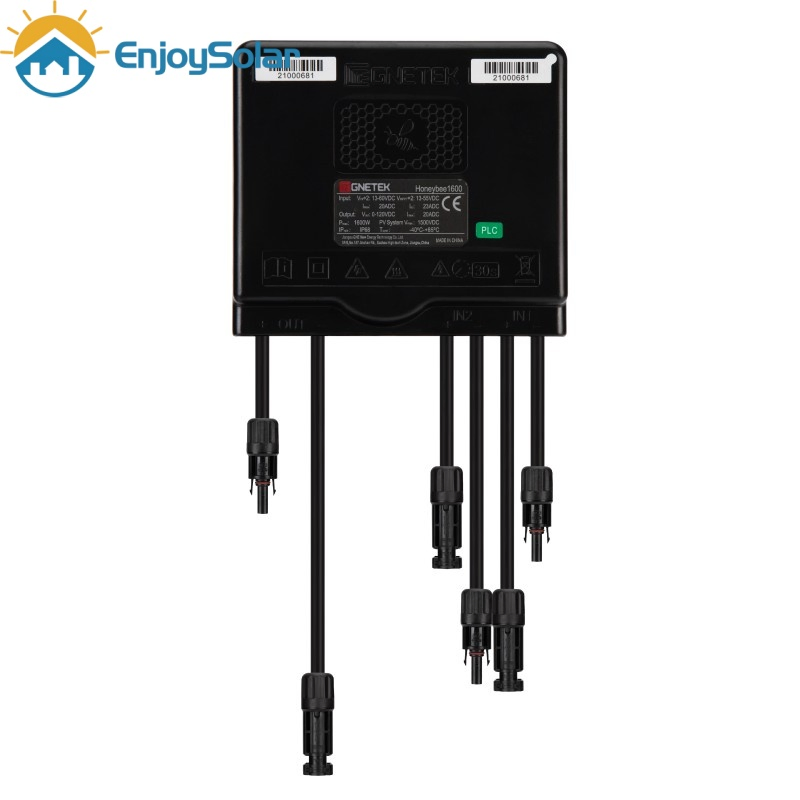

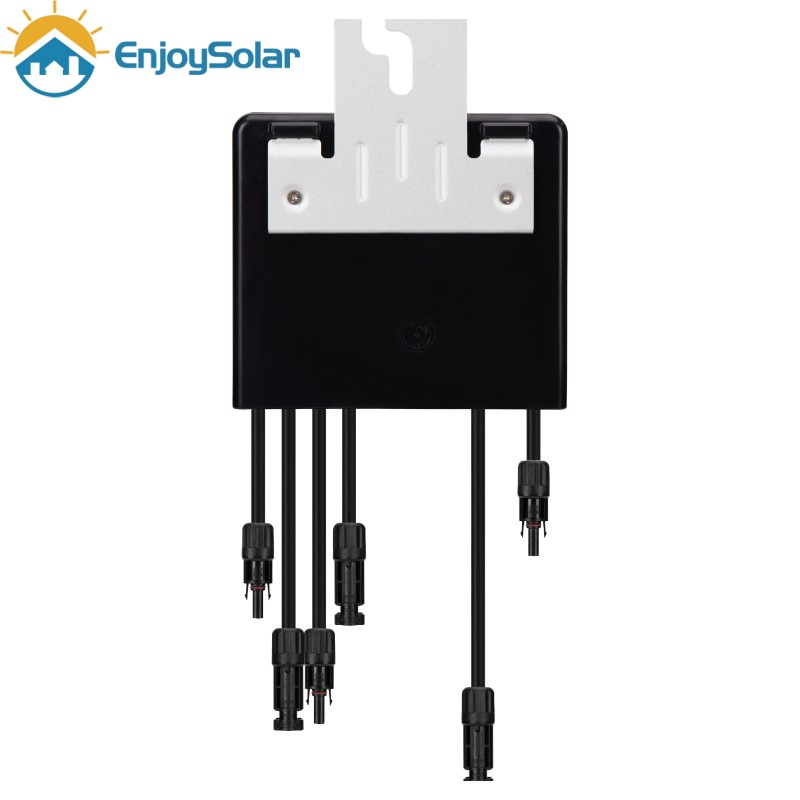

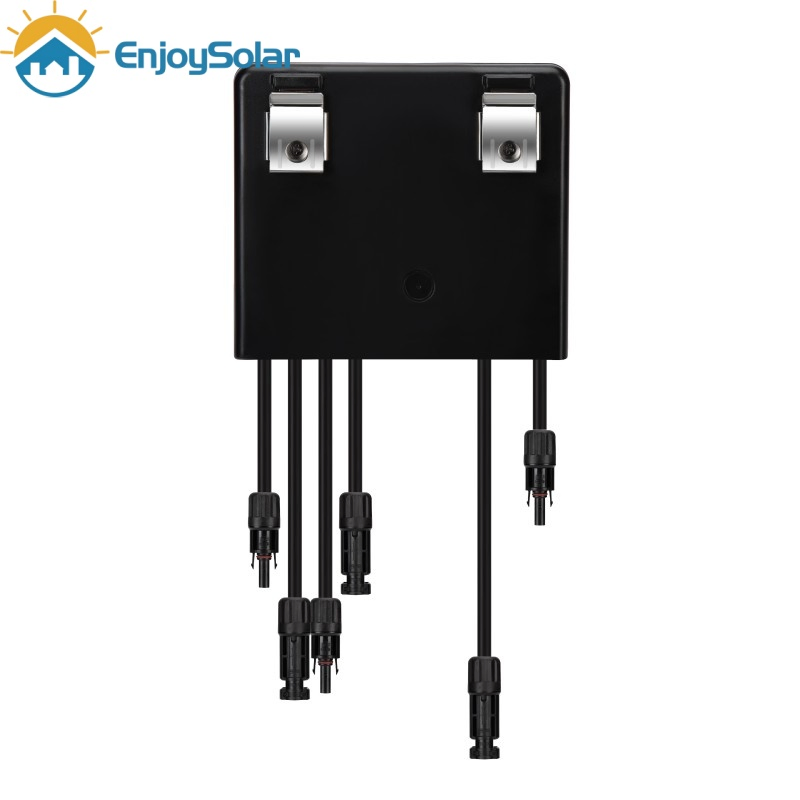

500W 1000W 1500W 1600W Solar Panel Power Optimizer for Solar Rooftile System
500W 1000W 1500W 1600W Solar Panel Power Optimizer for Solar Rooftile System
500W 1000W 1500W 1600W Solar Panel Power Optimizer for Solar Rooftile System
500W 1000W 1500W 1600W Solar Panel Power Optimizer for Solar Rooftile System
500W 1000W 1500W 1600W Solar Panel Power Optimizer for Solar Rooftile System
1 / 5
500W 1000W 1500W 1600W Solar Panel Power Optimizer for Solar Rooftile System
500W 1000W 1500W 1600W Solar Panel Power Optimizer for Solar Rooftile System
500W 1000W 1500W 1600W Solar Panel Power Optimizer for Solar Rooftile System
500W 1000W 1500W 1600W Solar Panel Power Optimizer for Solar Rooftile System
500W 1000W 1500W 1600W Solar Panel Power Optimizer for Solar Rooftile System

500W 1000W 1500W 1600W Solar Panel Power Optimizer for Solar Rooftile System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.
ES-honeybee1600
Condition
New
Certification
ISO, CE, ETL
Application
Home, Industrial, Commercial
Max. Input Power
1600W(800W/800W)
Max. Efficiency
99.50%
Ingress Protection
IP68
Size
144X130X26.8 mm
⚡

Product Features

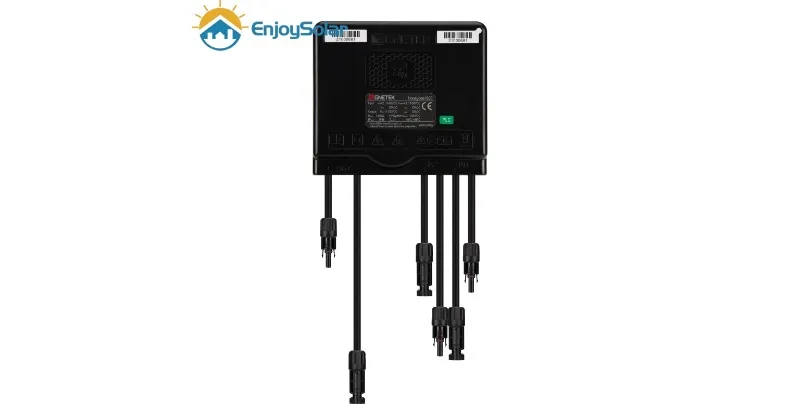

Solar Panel Power Optimizer
Improving EfficiencyComponent-level MPPT tracking, increasing system power generation by 5-25%
Safety ShutdownAutomatically shutdown in case of overvoltage, overcurrent, or overtemperature.
Accurate MonitoringReal-time monitoring of each component's operating data to identify issues.
Convenient InstallationDirectly connect to existing PV systems without changing original wiring.
Long LifespanDesigned for a 25-year lifespan, matching with PV modules.
📊

Technical Specification

Model Honeybee800 Honeybee1300 Honeybee1600
Input Parameters
Max. Input Power450W/450W650W/650W800W/800W
Max. Input Voltage75VDC60VDC60VDC
MPPT Voltage Range13~70VDC13~60VDC13~60VDC
Output Parameters
Max. Output Power900 W1300 W1600 W
Max. Conversion Efficiency99.60%99.60%99.50%
General Info
Operation Temp.-40~+85℃-40~+85℃-40~+85℃
Ingress ProtectionIP 68IP 68IP 68
Weight810 g810 g875 g
🛠️

System Solutions

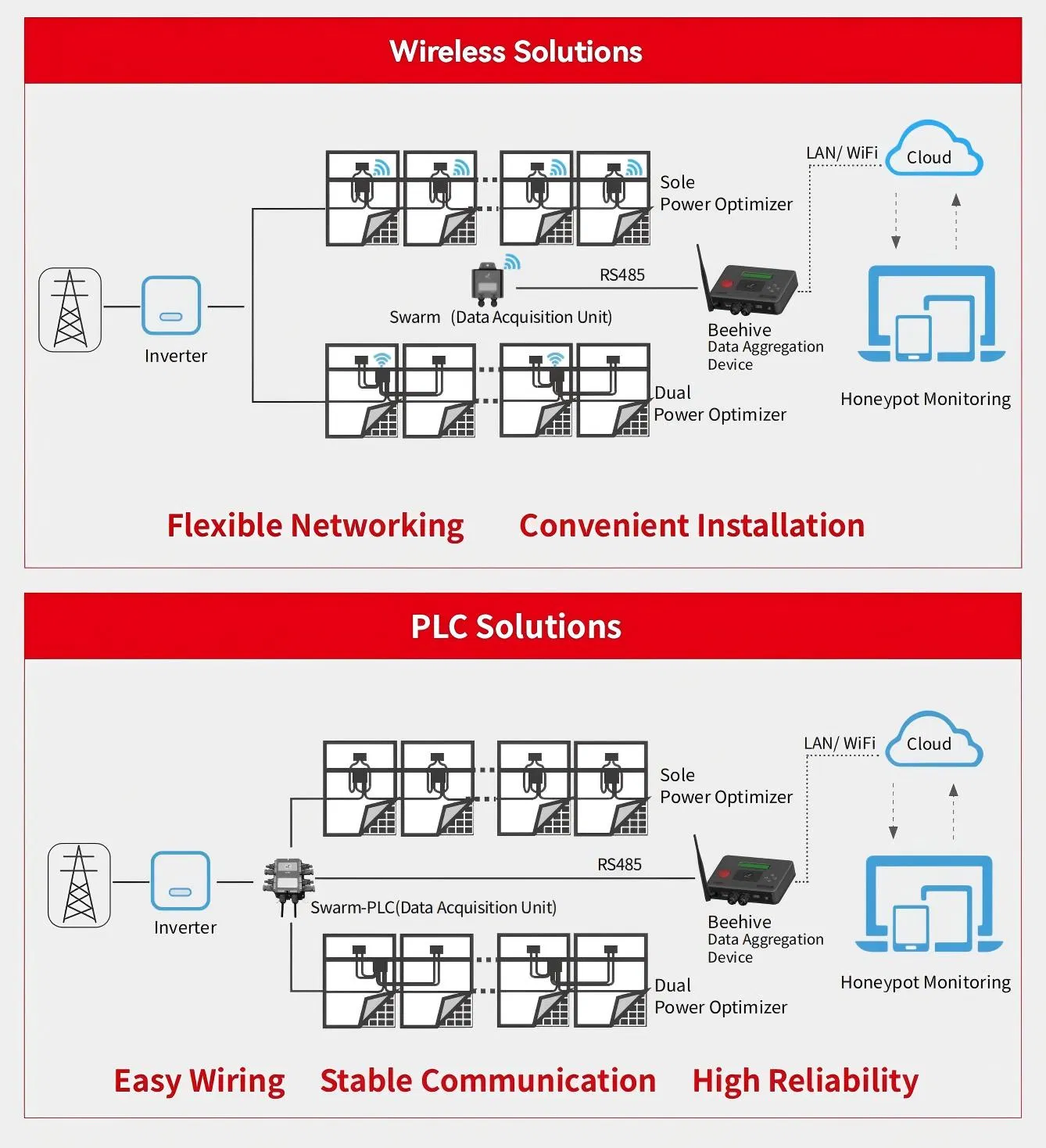

System Solutions Diagram

Significantly improve the power generation of the entire PV power station, effectively track the maximum power of the module (MPPT), and perfectly solve the power generation loss caused by shadow or mismatch.

📦

Packaging & Shipping

Packaging 1
Packaging 2
Packaging 3
📜

Certifications

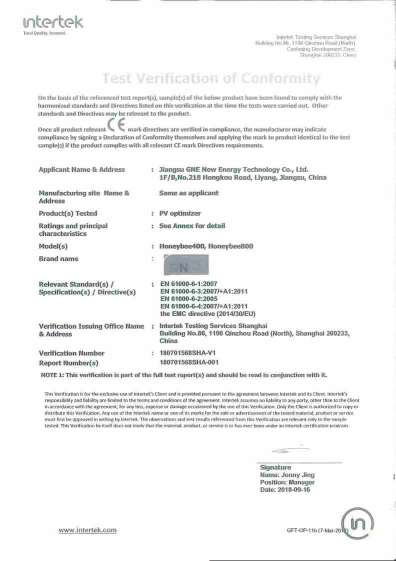

Certification 1

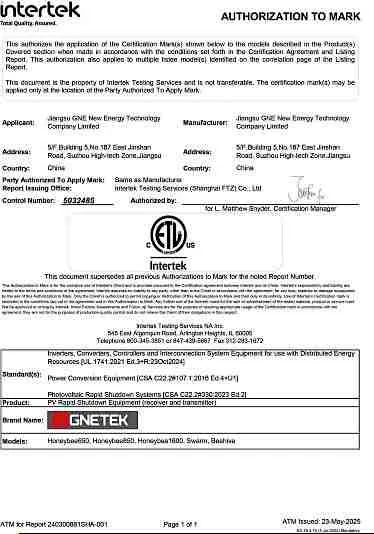

Certification 2

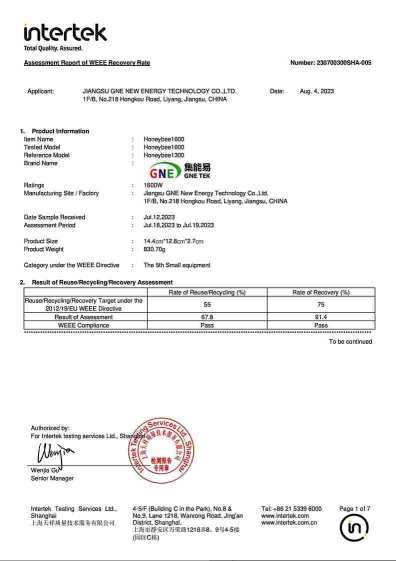

Certification 3
🏠

Our Global Projects

Project 1
Project 2
Project 3
🔥

Other Hot-sale Products

Related Solar Products
❓

Frequently Asked Questions

What are your primary services and capabilities?
We are a top solar system solution provider with a decade of experience. We offer customized system solutions including solar panels, inverters, lead-acid/lithium batteries, and mounting bracket accessories.
What payment conditions and terms do you support?
We support various payment methods, including but not limited to T/T, L/C at sight, and trade terms such as FOB, CIF, CFR, and DDU.
What is your core manufacturing advantage?
Our key advantages are OEM and ODM capabilities. We have an annual capacity of over 1GW and provide manufacturing services for top-tier global brands.
Which countries do you export to?
We export globally, covering Europe (Spain, Italy, Germany, Netherlands), Asia (Vietnam, Thailand, Indonesia, India), and South America (Brazil, Argentina, Ecuador).
How does the power optimizer improve system performance?
It tracks the maximum power (MPPT) at the individual module level, solving power generation losses caused by shadows, mismatch, or component differences, increasing generation by up to 25%.
What is the expected lifespan of your solar optimizers?
Our optimizers are designed for a 25-year lifespan, perfectly matching the standard lifespan of modern PV modules for long-term reliability.
