| Parameter | Details |
|---|---|

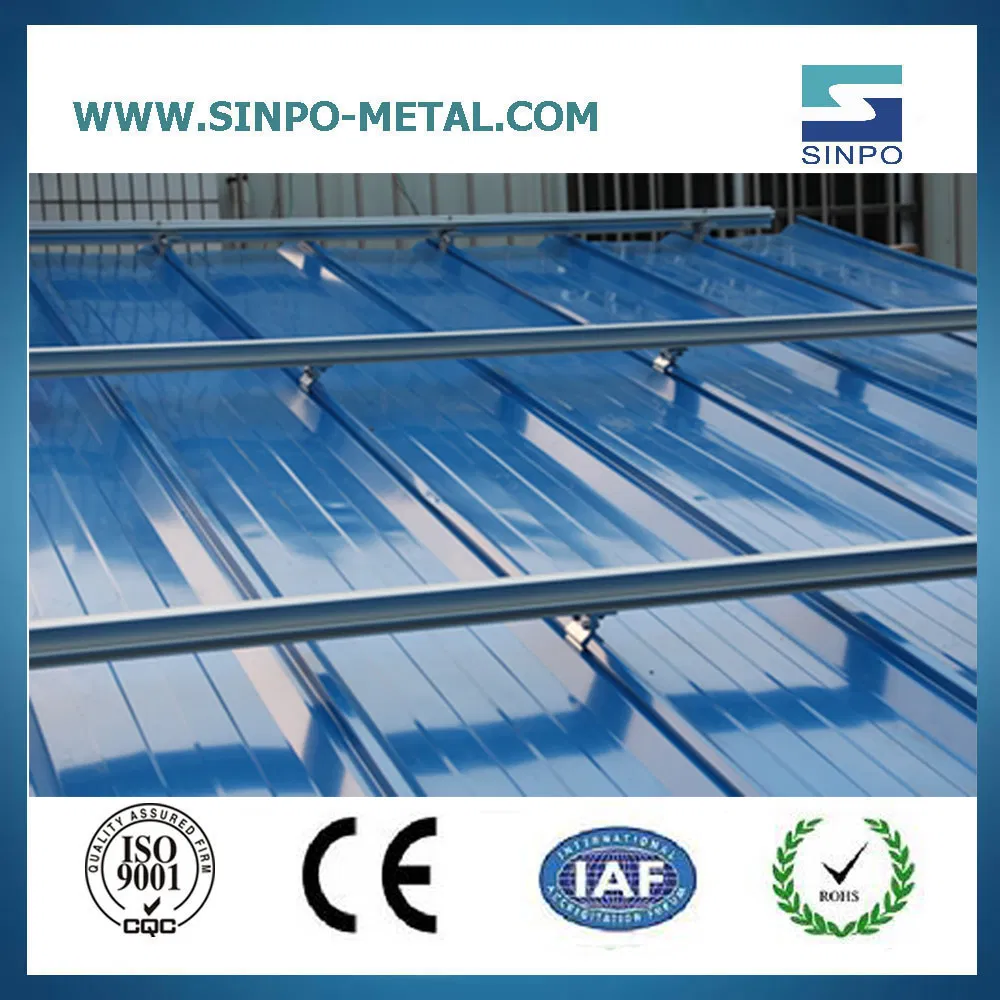

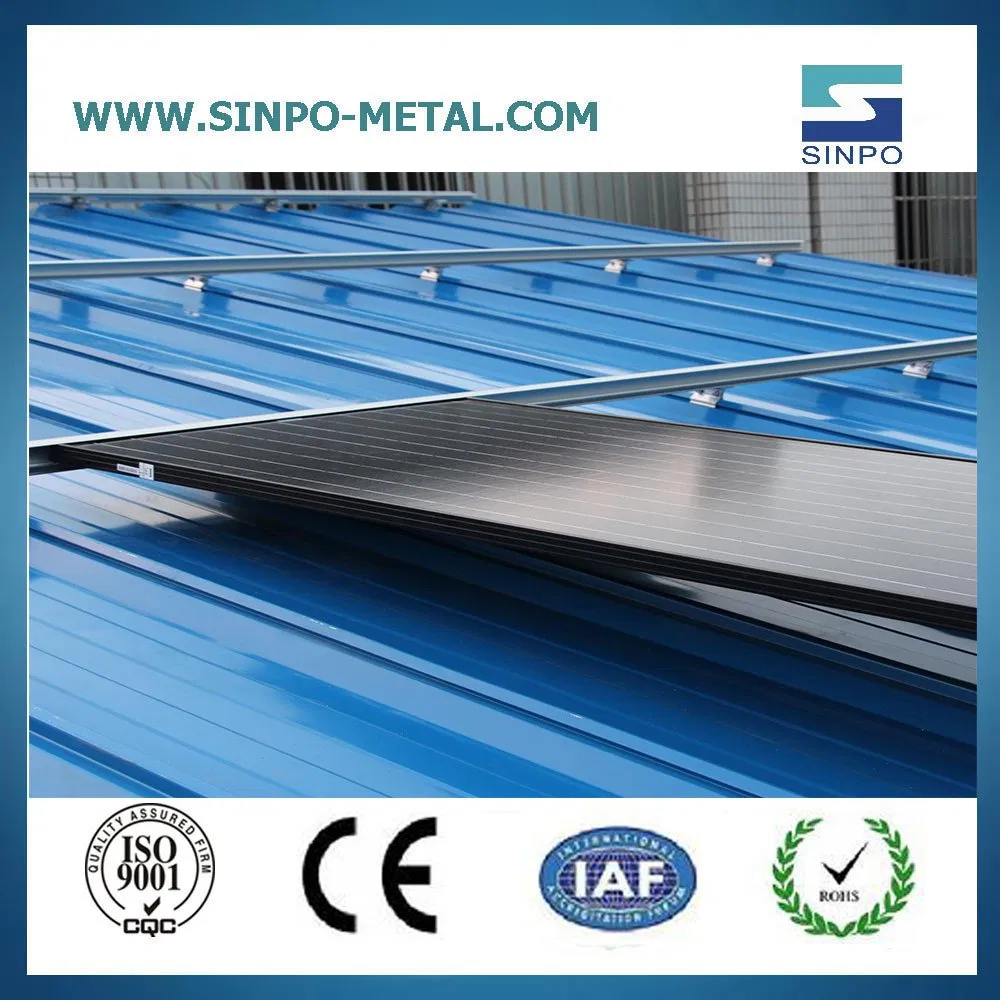

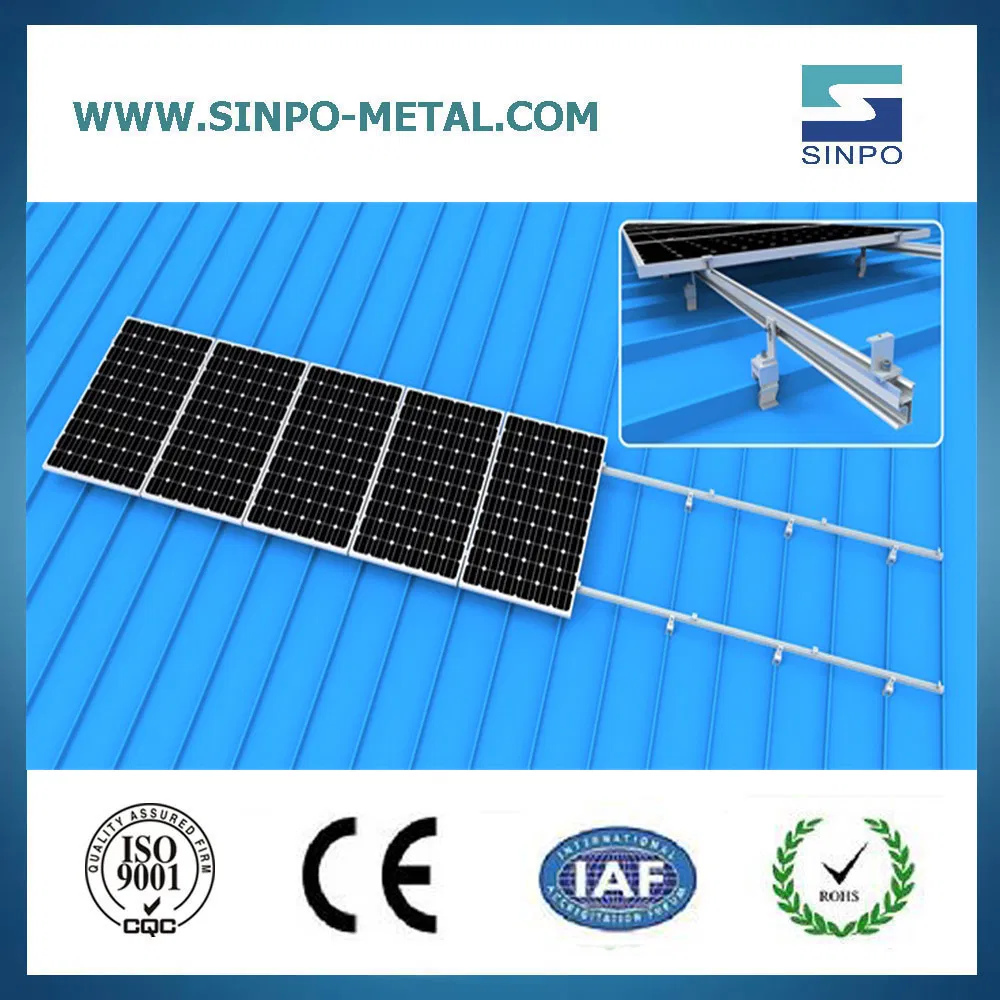

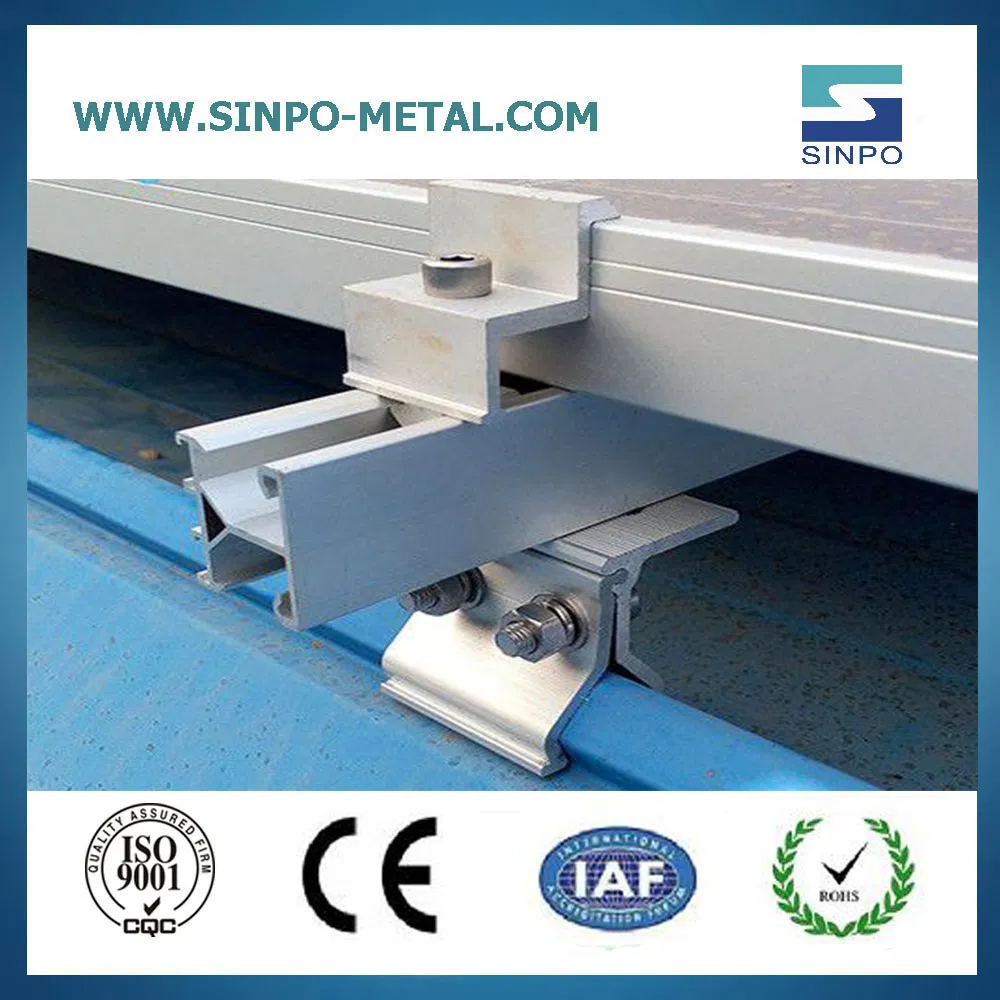

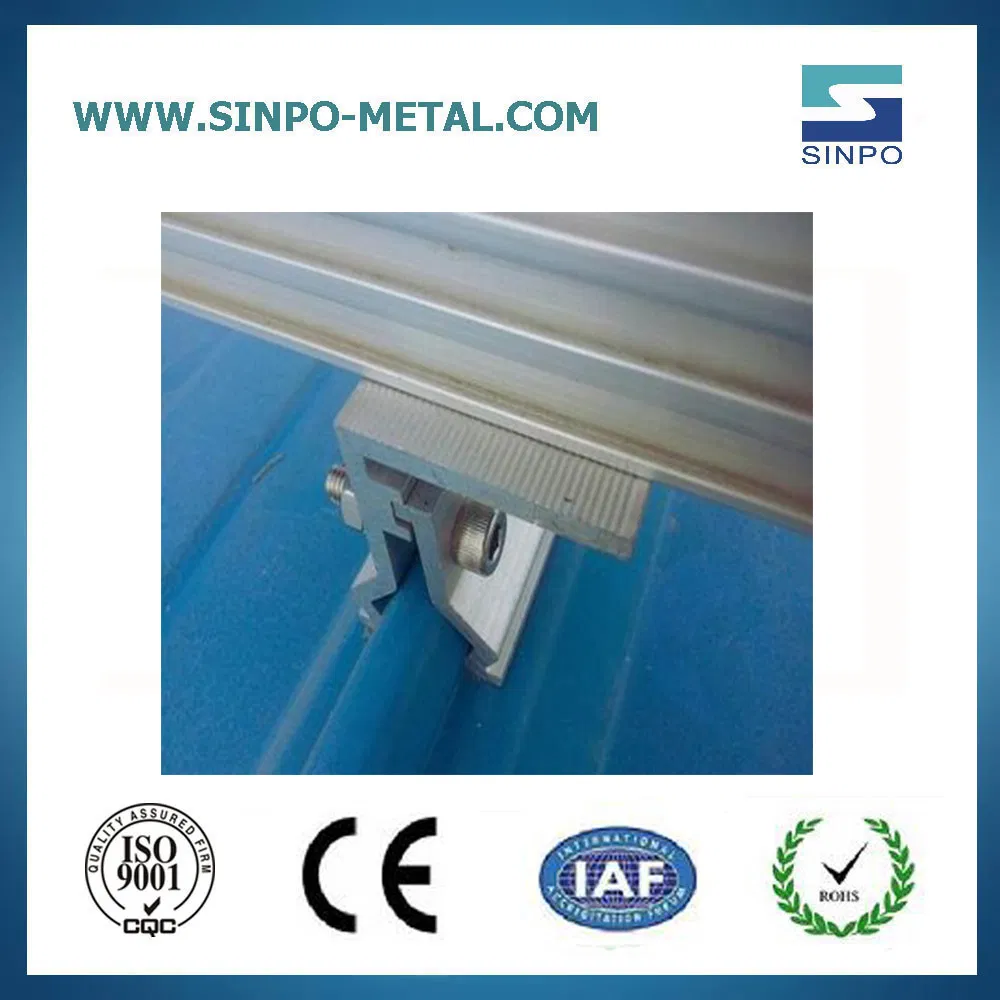

| Type | Solar mounting system for metal roof |
| Material | Aluminum 6000 series |
| Fasten Material | Aluminum |
| Survival Wind Speed | < 60m/s |
| Design Snow Load | Up to 1.4KN/ Square meters |
| Solar Panel Type | Framed or Frameless |
| Panel Orientation | Transverse or vertical |

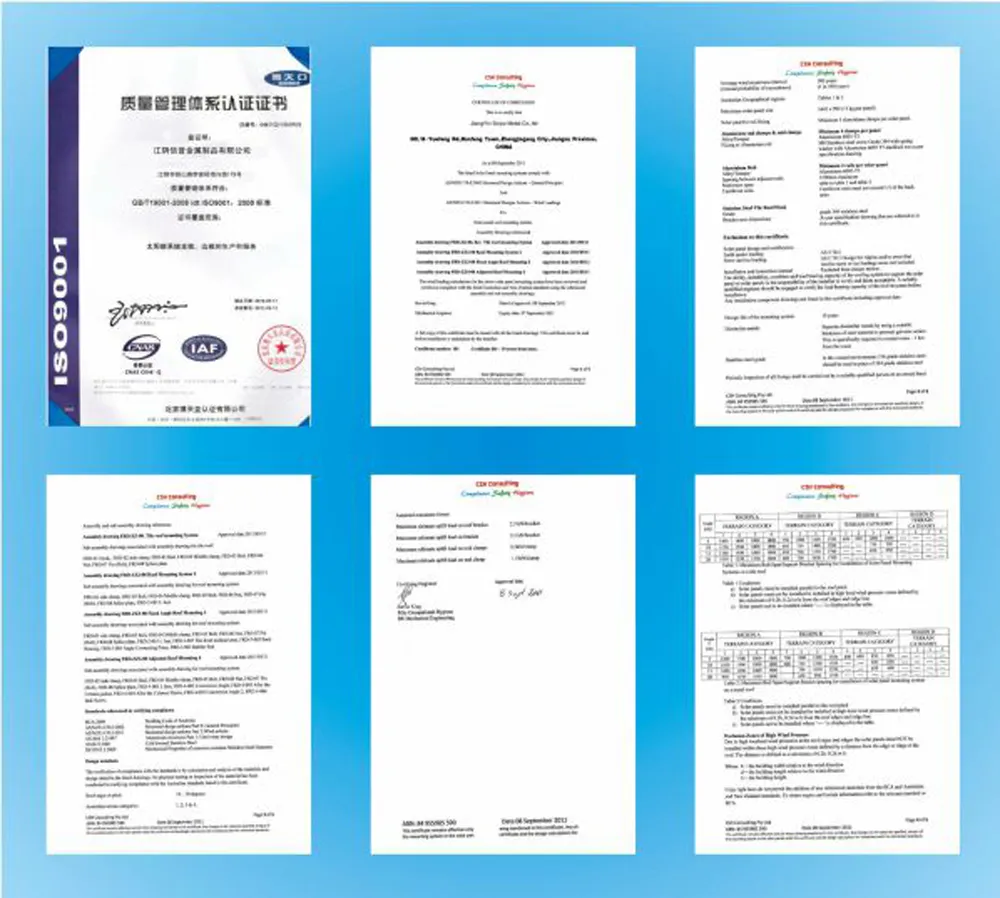

| Design Standard | CE; ISO9001; SGS |
| Quality Warranty | 12-25 years |
| Duration | More than 20 years |
| NO. | Name | Size (mm) | QTY | Material |
|---|---|---|---|---|
| 1 | Clamp | - | 12 | AL6063-T5 |
| 2 | Rail | 40*40/30*40 | 4 | AL6063-T5 |
| 3 | Rail Joiner | 4 set screw | 2 | AL6063-T5 |
| 4 | Mid Clamp | 30-47-60 | 6 | AL6063-T5 |
| 5 | End Clamp | W40-60-16 | 4 | AL6063-T5 |
| 6 | Hexagon Socket Screw | M8*25 | 24 | 304 |
| 7 | T Bolt | M8*25 | 12 | 304 |
| 8 | T Bolt | M8*35 | 10 | 304 |
We are a professional manufacturer of Aluminum products with over 20 years of experience. Supplying to over 15 countries including the United States, we specialize in both custom designs and ready-made solutions tailored to specific market trends. Our commitment to quality and efficient logistics ensures the best possible product delivery for your projects.
To provide the right system, please specify:
1. Solar panel dimensions (L*W*T)?
2. Panel array configuration?
3. Installation site type (Rooftop or Ground)?
4. Required tilt angle?
5. Local wind and snow load requirements?
