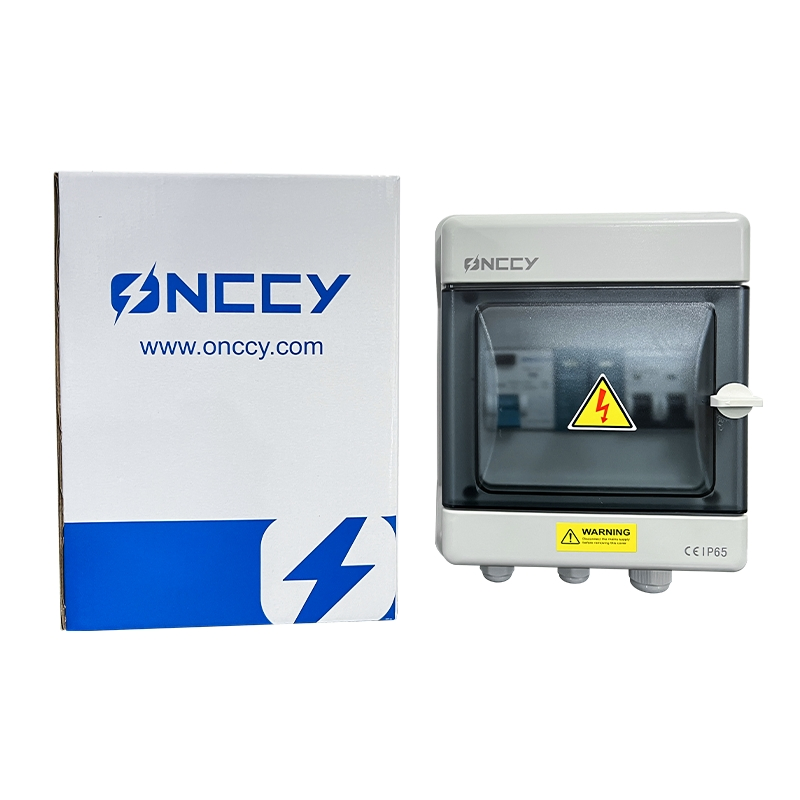

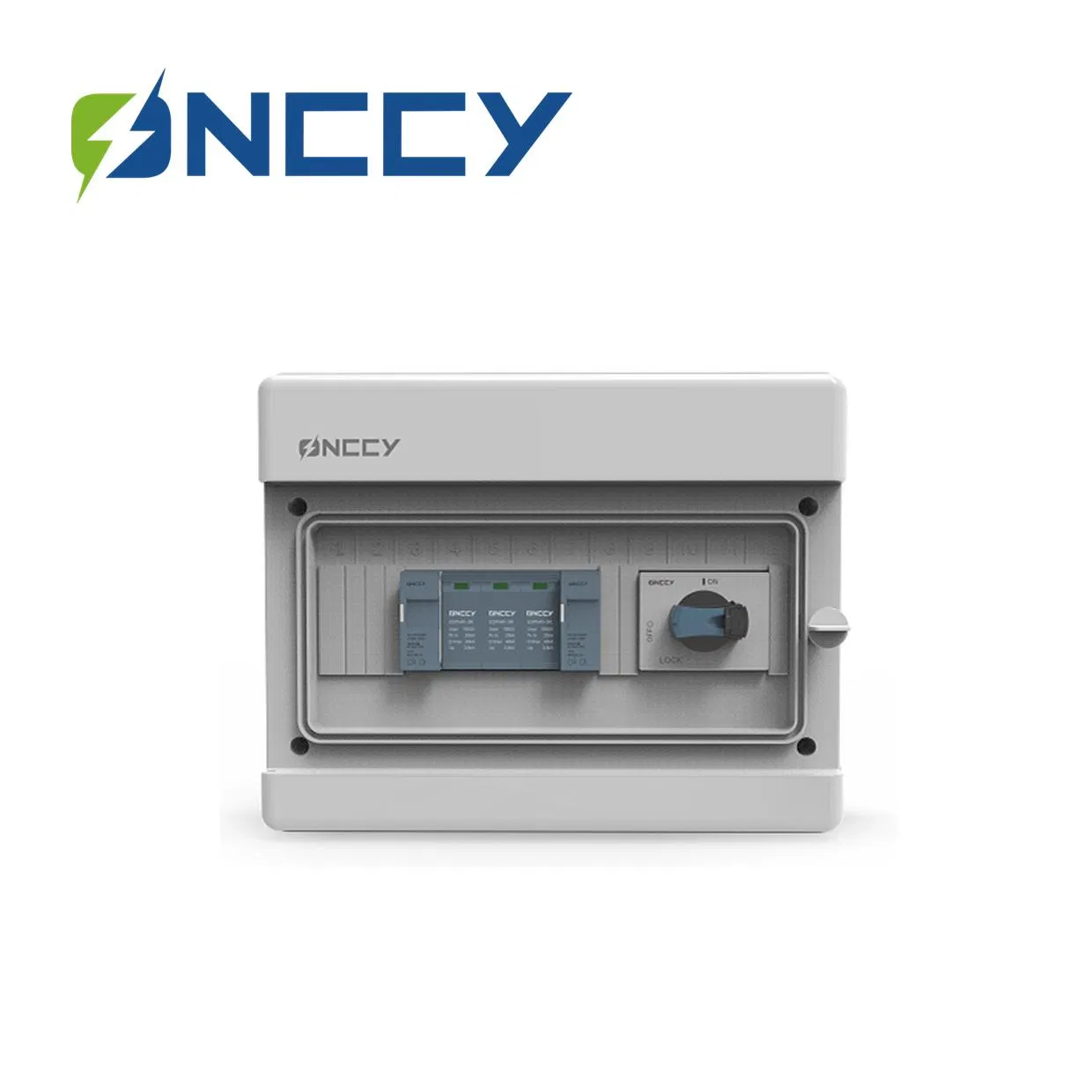

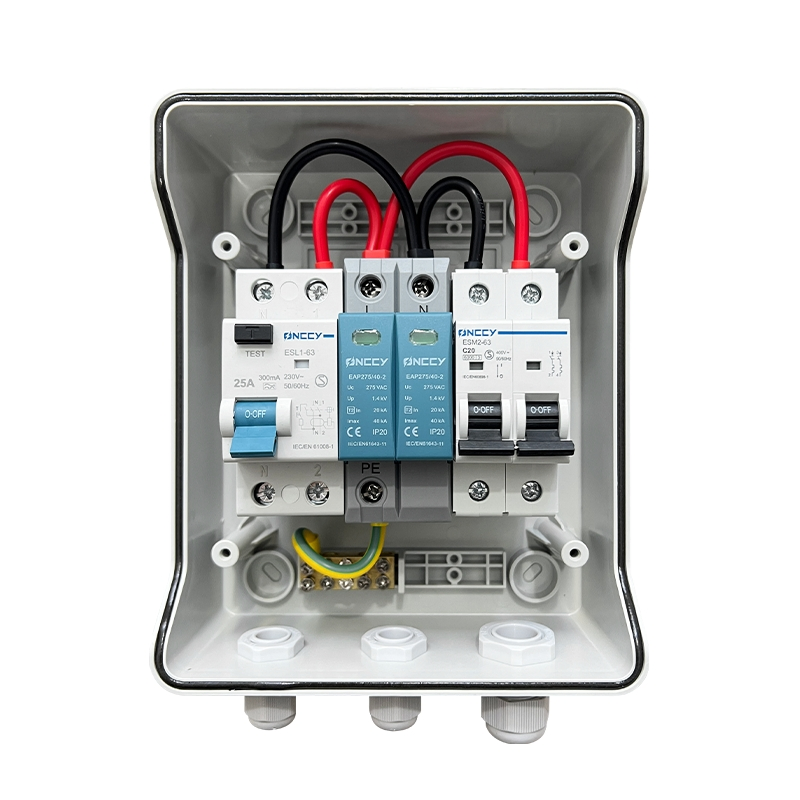

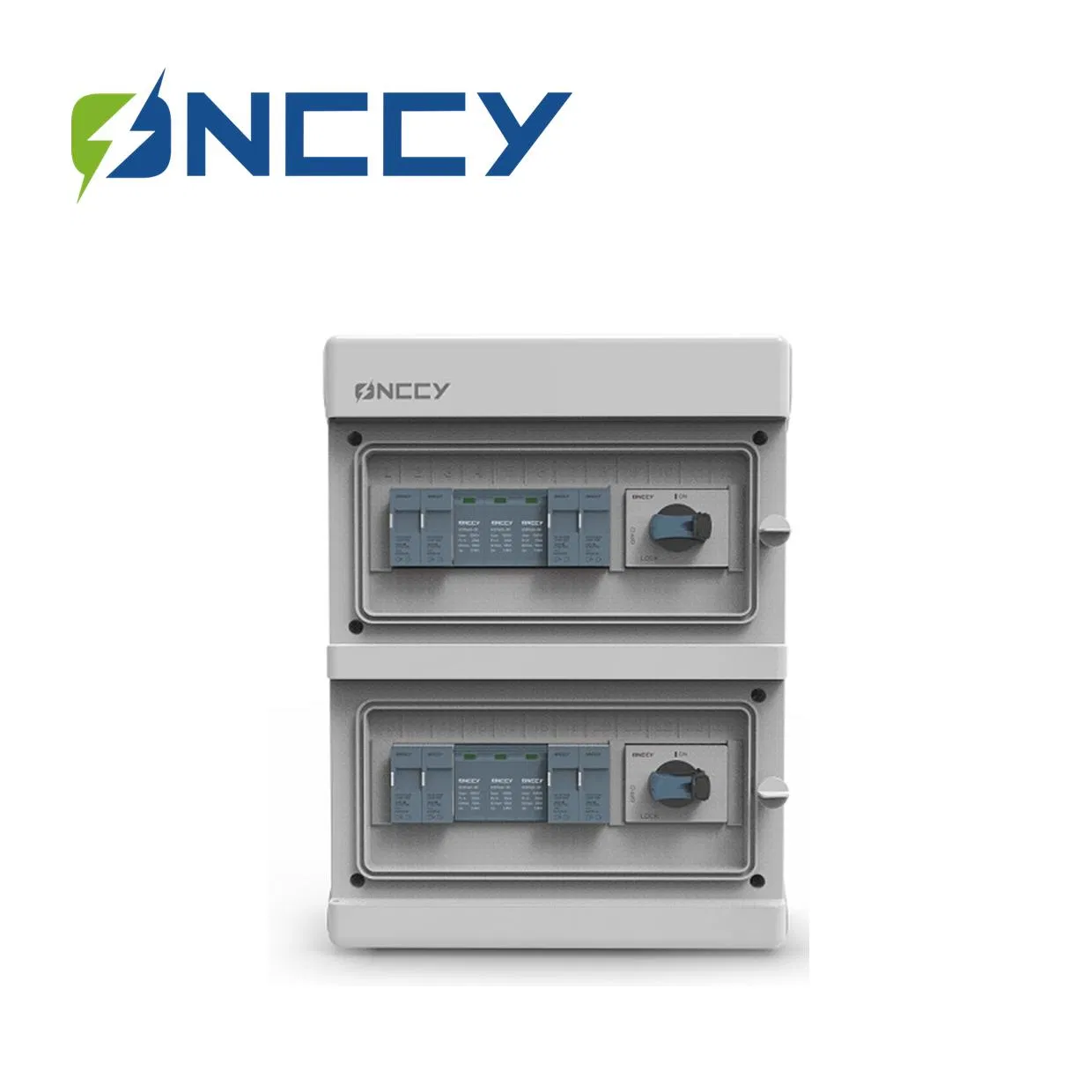

Solar Panel 2 Input 1output SPD+Cicuit Breaker IP65 PV Combiner Box

Factory Solar Panel Input Safe PV Combiner Box

Designed to streamline your solar panel installation process, this device consolidates multiple DC inputs into a single output, minimizing wiring complexity and maximizing system efficiency.

Standard Combiner Box Features:

• Designed for DC system voltage of 1000 V to 1500 V
• Direct connection of the DC strings
• Fuse protection on plus and minus side (20 A)
• Surge protection device type I + II
• IEC 61439-2 compliant planning and construction
• IP65 protection rating for outdoor durability

Customized Solutions Available:

• String monitoring and arc-fault detection
• Rapid shutdown / fireman's switch function
• Flexible number of DC inputs and module-specific fuse protection
• Connection via plug-in connectors (e.g., MC4)
