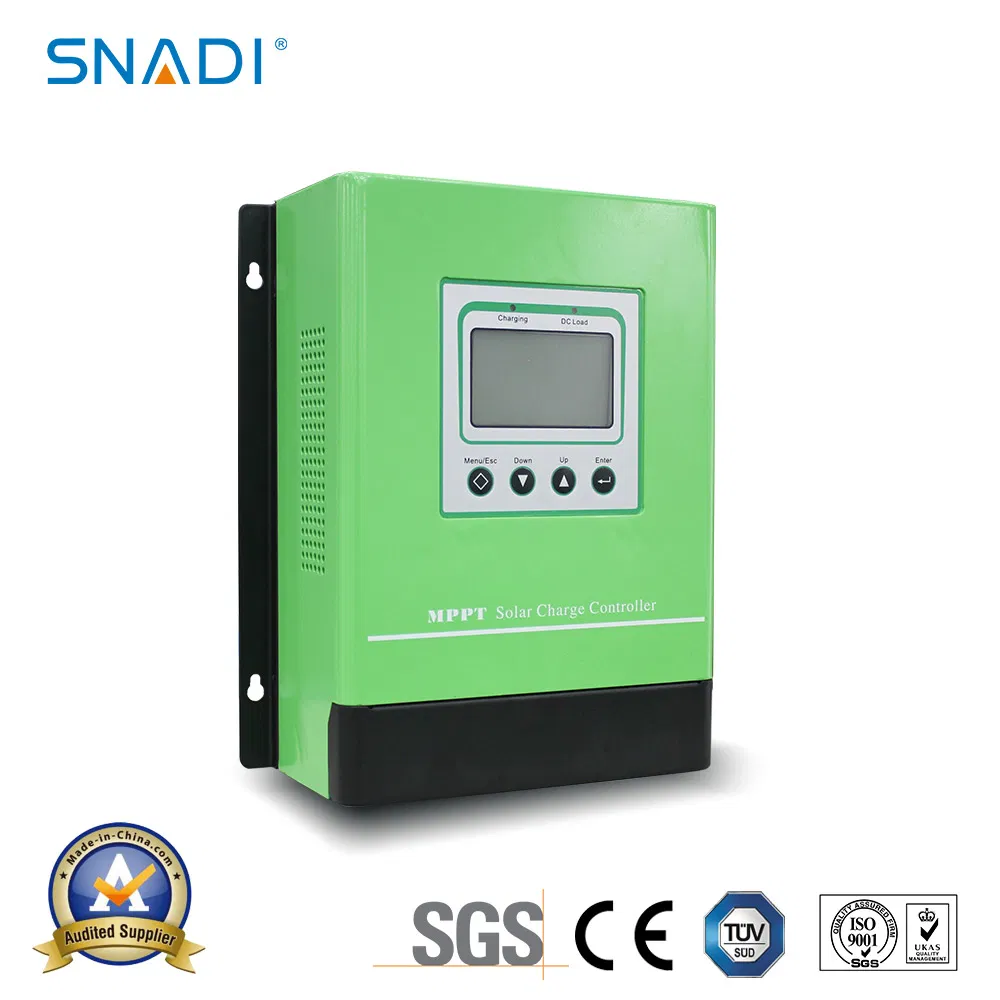

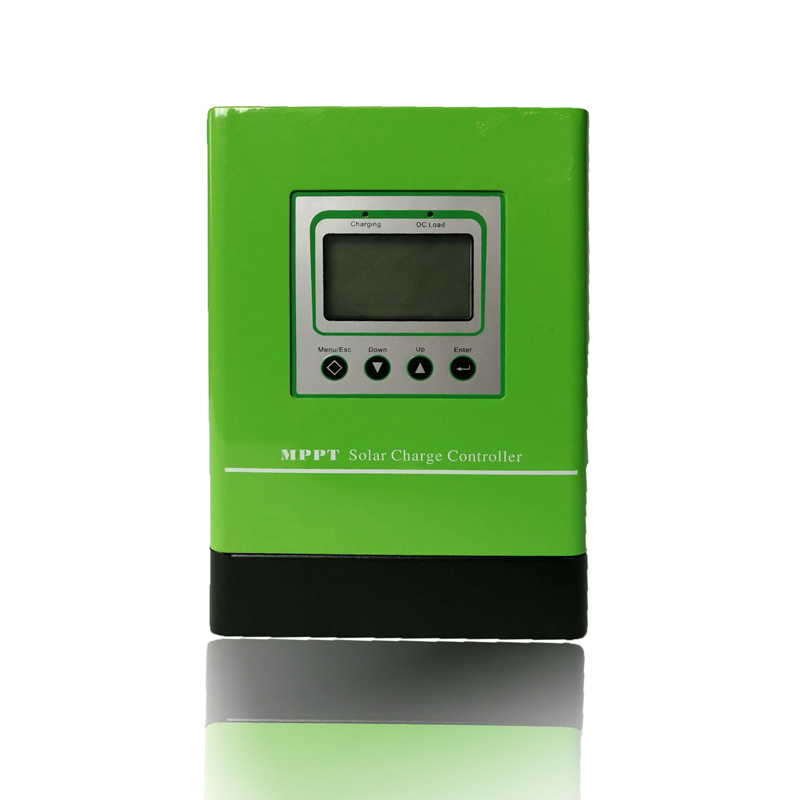

Snadi 99.99% High Efficiency 50A MPPT Solar Charge Controller
Snadi 99.99% High Efficiency 50A MPPT Solar Charge Controller
Snadi 99.99% High Efficiency 50A MPPT Solar Charge Controller
Snadi 99.99% High Efficiency 50A MPPT Solar Charge Controller
Snadi 99.99% High Efficiency 50A MPPT Solar Charge Controller
1 / 5
Snadi 99.99% High Efficiency 50A MPPT Solar Charge Controller
Snadi 99.99% High Efficiency 50A MPPT Solar Charge Controller
Snadi 99.99% High Efficiency 50A MPPT Solar Charge Controller
Snadi 99.99% High Efficiency 50A MPPT Solar Charge Controller
Snadi 99.99% High Efficiency 50A MPPT Solar Charge Controller

Snadi 99.99% High Efficiency 50A MPPT Solar Charge Controller

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

99.99% High Efficiency 50A MPPT Solar Charge Controller

Advanced maximum power point tracking technology designed for optimal energy extraction and battery charging performance.

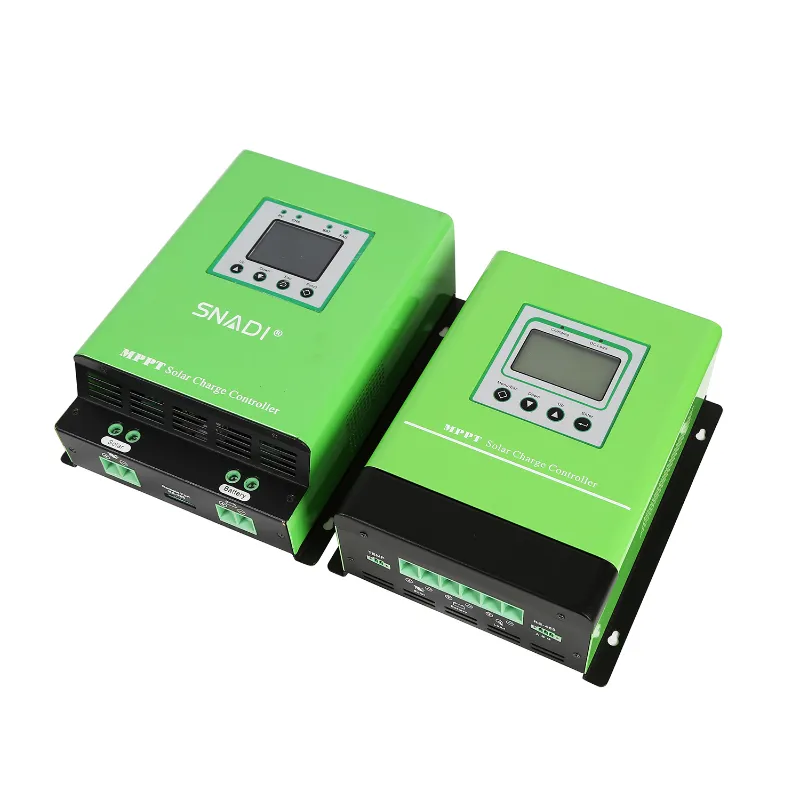

MPPT Solar Charge Controller
Basic Specifications
Model NO.
MPPT-50A
Rated Voltage
12V/24V/48V
Size
260*220*100mm
Weight
4.5kg
Display
LCD
Charging Mode
MPPT
Machine Efficiency
>99%
MPPT Voltage Range
DC18V-DC150V
Product Overview

MPPT controller uses the maximum power point tracking technology to extract the maximum power from the solar array to charge the battery. The maximum power point tracking mode is completely automatic and does not require user adjustment. When the maximum power point of the array varies with environmental conditions, the controller automatically tracks the maximum power point of the array to ensure that the maximum energy of the day can be obtained from the solar array.

Main Features
✓
Superior Cooling: Excellent heat dissipation design and Intelligent controlled cooling fan.
✓
Advanced Tracking: Innovative maximum power point tracking technology, conversion rate up to 97%.
✓
Full I-V Scan: Quick scan of the entire I-V curve, efficiently tracking the maximum power point.
✓
Battery Compatibility: Supports sealed, colloid, open type lead-acid batteries, and lithium battery series.
✓
Full Protection: Built-in over charge, over discharge, overload, and short circuit automatic protection.
✓

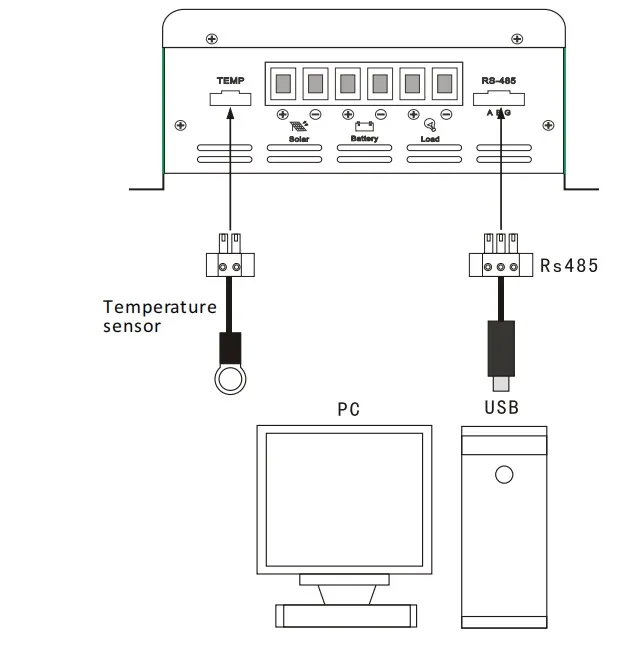

Smart Monitoring: RS485 communication interface for computer connection and parameter checking.

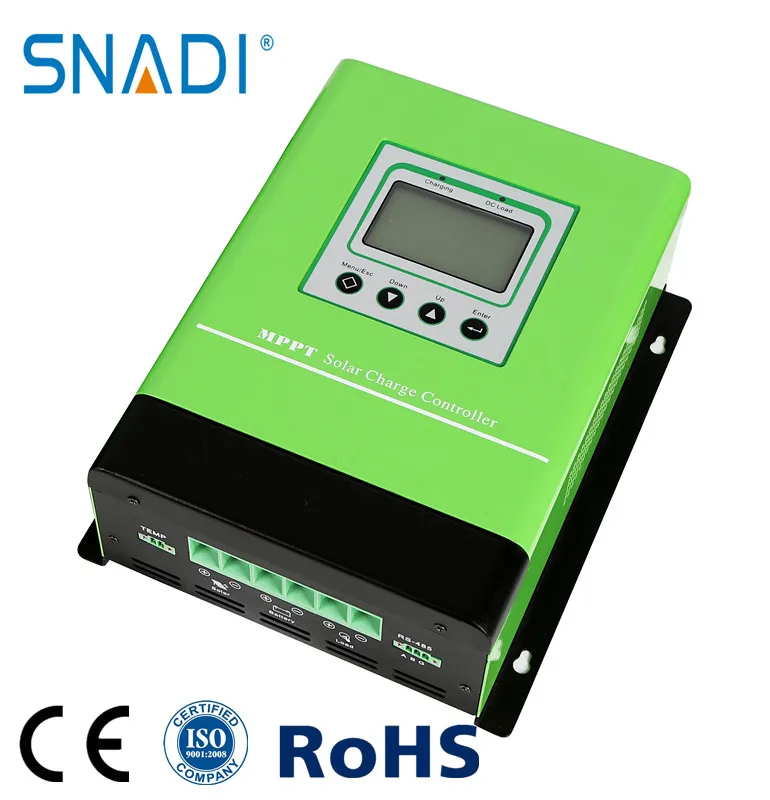

Features Overview
Technical Parameters
Parameter Specification Details
Charging Mode MPPT Automatic Maximum Power Point Tracking
Charging Method Three-stages: Constant Current (MPPT), Balanced Charging, Floating Charge
System Voltage 12V/24V/48V (Auto Identification/Manual Setting)
Soft Start Time ≤10 s
PV Utilization ≤99.97%
Max Input Voltage DC 160V
Overvoltage Protection DC 150V
Product Gallery

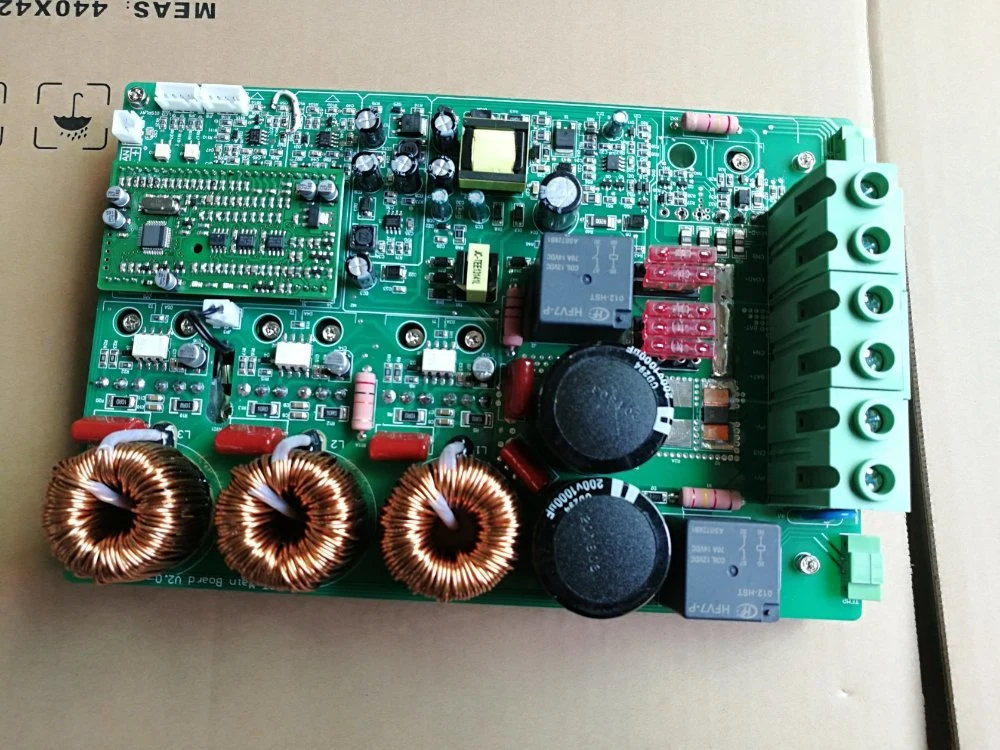

Internal View
Side View

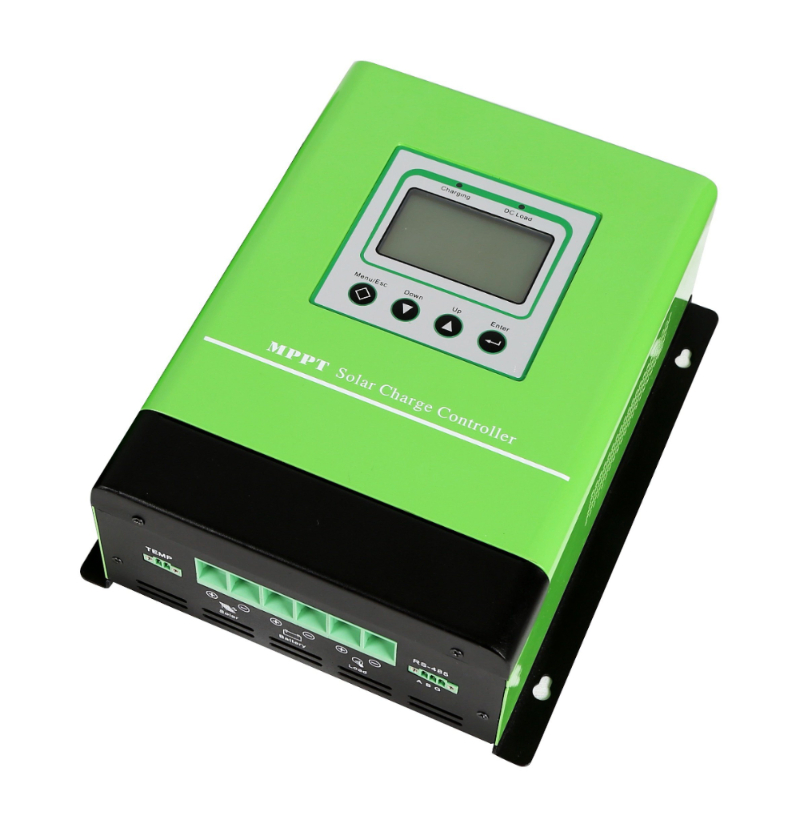

Connectors View
Display Screen
Product Dimensions

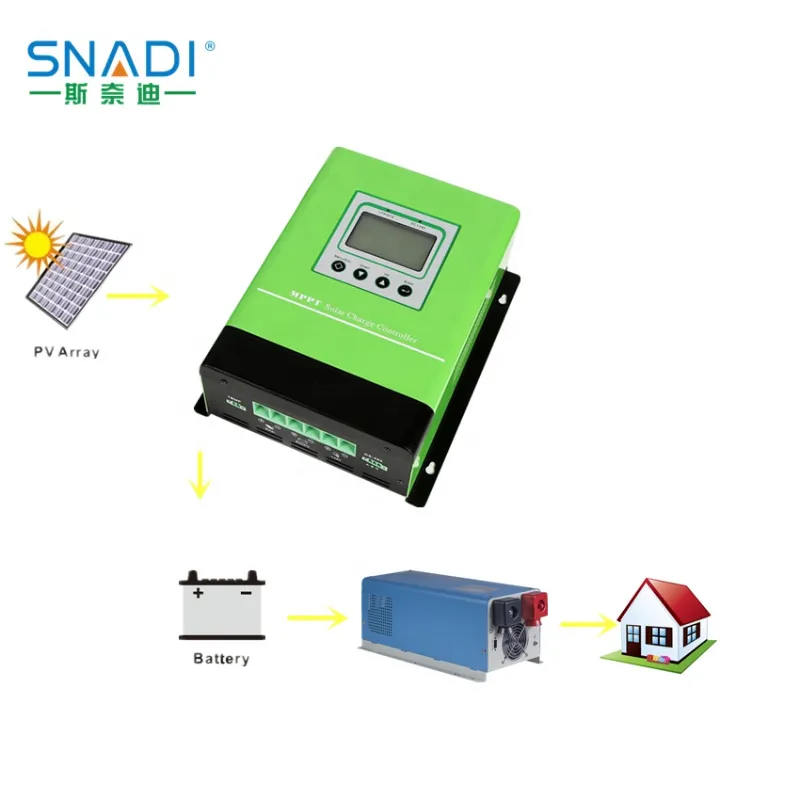

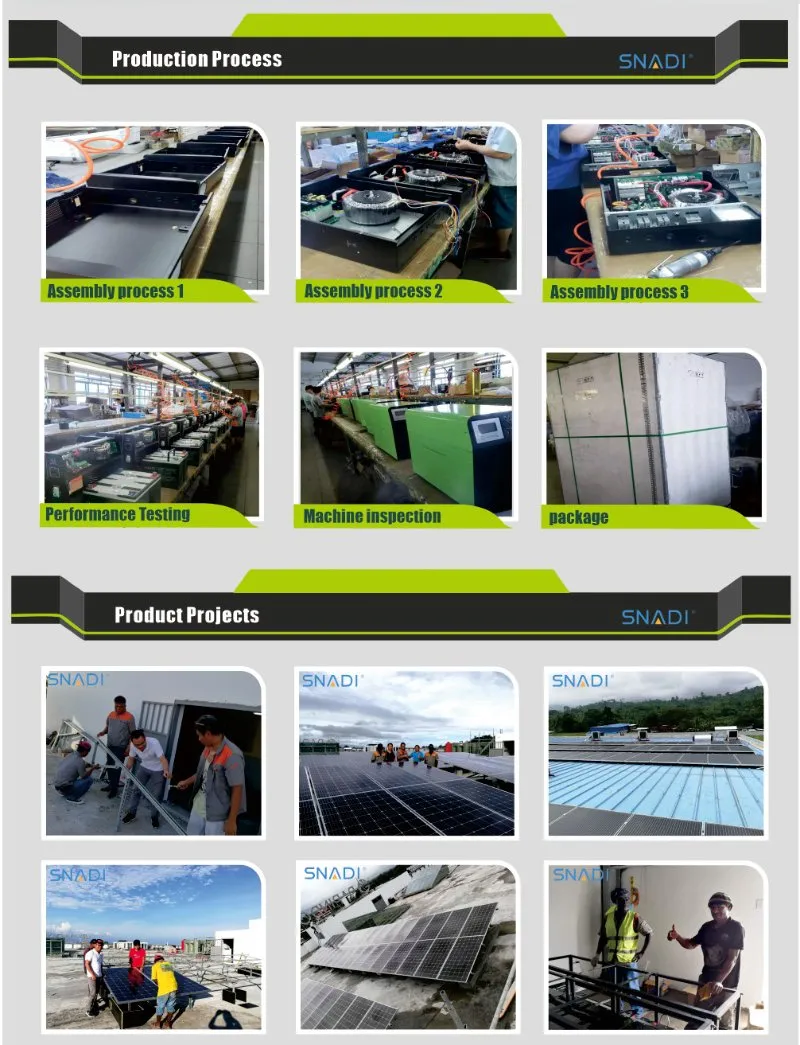

Application Scenario
Packaging Box
Certifications
Frequently Asked Questions
What is the warranty period for this MPPT controller?
We provide a quality warranty for 12 months. Any necessary replacement parts will be shipped free of charge during the warranty period.
Do you offer OEM services?
Yes, full OEM services are available to meet your specific branding and customization needs.
What is the typical lead time for an order?
The standard lead time is between 5 to 10 days depending on the order size and configuration.
Is there a minimum order quantity (MOQ)?
The minimum order requirement is just 1 piece, making it accessible for both small projects and large scale distribution.
Why should I choose this specific solar charge controller?
Our products are manufactured with 80% new premium materials, ensuring superior quality. All units carry CE, ISO9001:2008, and RoHS certifications, backed by professional engineering design and prompt after-sales support.
What type of batteries are compatible with this device?
This controller is highly versatile, supporting multiple lead-acid types (sealed, colloid, open) as well as various lithium battery charging procedures.
