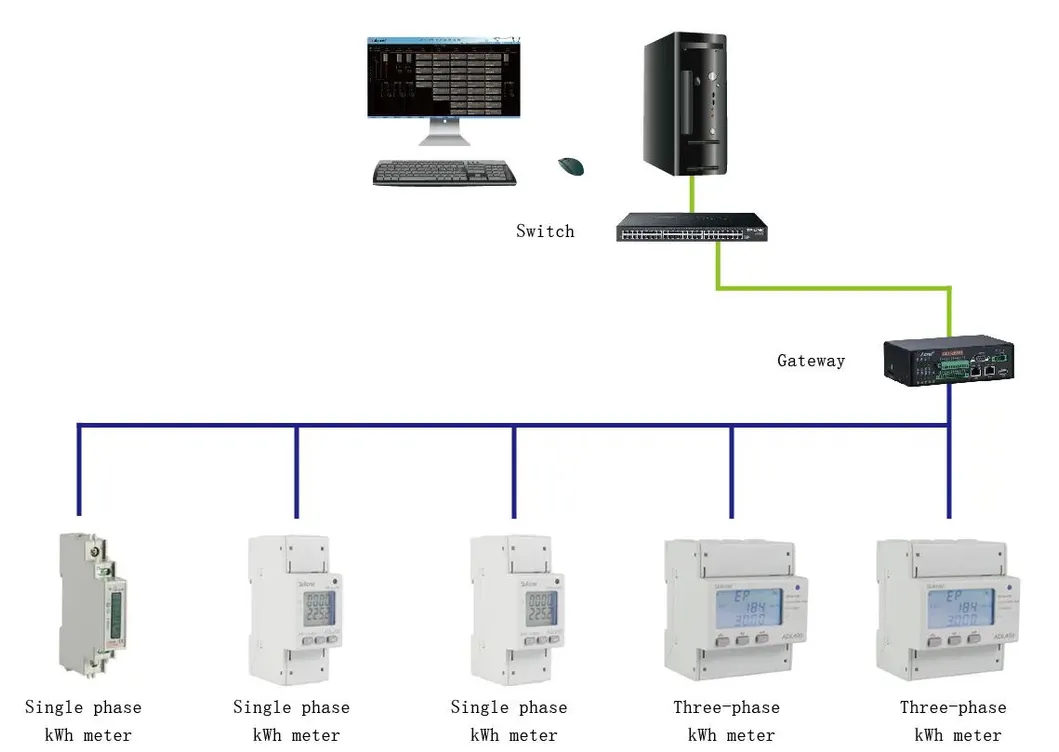

ADL400 is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features high precision, small size and simple installation. It integrates the measurement of all electrical parameters with comprehensive electricity metering and management, providing various data on previous 48 months, and checks the 31st harmonic content and the total harmonic content. It is fitted with an RS485 communication port and adapted to MODBUS-RTU. ADL400 can be used in all kinds of control systems, SCADA systems, and energy management systems. The meter meets the related technical requirements of electricity meters in the IEC62053-21 standards.
| Function | Description | Availability |
|---|---|---|
| Measurement of kWh | Active/Reactive kWh (positive and negative) | √ |
| Electrical Parameters | U, I, P, Q, S, PF, F | √ |
| Harmonics | 2~31ST Voltage and current harmonic | √ |
| Display | 12 bits section LCD display, background light | √ |
| Communication | RS485 Interface, MODBUS-RTU Protocol | √ |
| Multi-tariff | 4 time zones, 14 intervals, 4 tariff rates | By negotiation |
| Voltage | 3×100V, 3×380V, 3×57.7/100V, 3×220/380V |
| Impedance | >2MΩ |
| Input Current | 3×1(6)A, 3×10(80)A |
| Frequency | 45~65Hz (Error±0.2%) |
| Accuracy | Active energy Class 0.5, Reactive energy Class 2 |
| Baud Rate | 1200bps~19200bps |
| Temperature | -25ºC~+55ºC |
