The DDS-1 series are socket mounted single phase electronic active energy meters. They adopt advanced technologies including microelectronic-techniques, specialized large-scale integrated circuits (IC), digital sampling, and SMT techniques. Technical performance fully conforms to International Standards IEC 62053-21 (Class 1) and ANSI C12.1, C12.10, C12.20.
These meters accurately measure load active energy consumption in single phase two-wire or three-wire AC networks (50Hz/60Hz). Features include excellent long-term reliability, compact volume, light weight, and easy installation for both indoor and outdoor use.
| No. | Parameter | Specification Details |
|---|---|---|
| 1 | Type | DDS-1L2S LCD Display |
| 2 | Accuracy | Class 1 |
| 3 | Rated Voltage (Un) | 240V Or Other |
| 4 | Base Current (lb) | 10A, 30A Or Other |
| 5 | Max Current (Imax) | 100A, 200A or other |
| 6 | Frequency (Hz) | 50Hz Or 60Hz (±5%) |
| 7 | Starting Current (mA) | 0.4% Ib |
| 8 | Power Consumption | ≤1W 10VA Per Phase |
| 9 | IP Class | IP54 |
| 10 | AC Voltage Withstand | 2KV for 1 Minute |
| 11 | Impulse Output Rate | Kt1.25, Kt1.5 etc. |
| 12 | Operating Temp | -20ºC To +55ºC |
| 13 | Storage Temp | -40ºC To +70ºC |
| 14 | Communication | IR (Infrared) |
* Special requirements such as Anti-tamper, RS485, or specific IR protocols are available upon discussion.

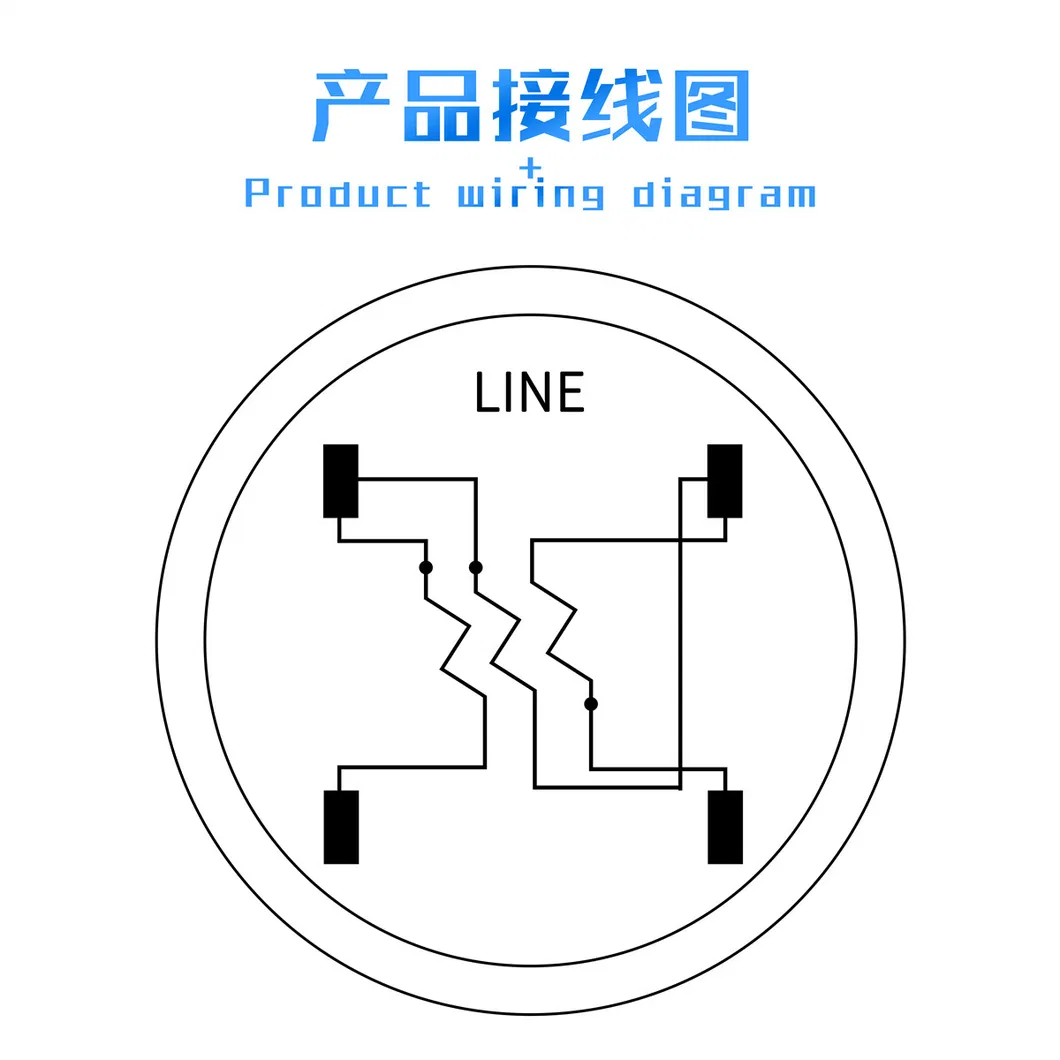

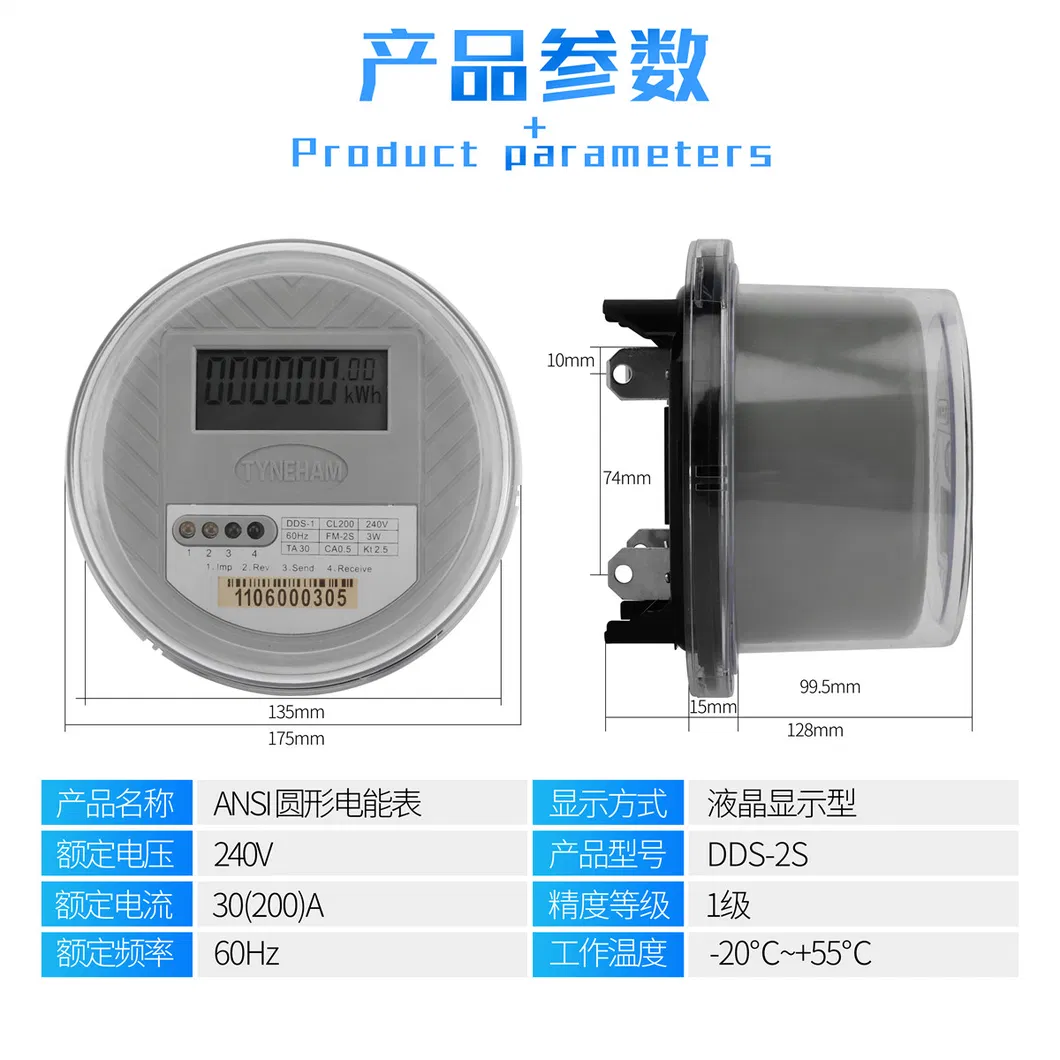

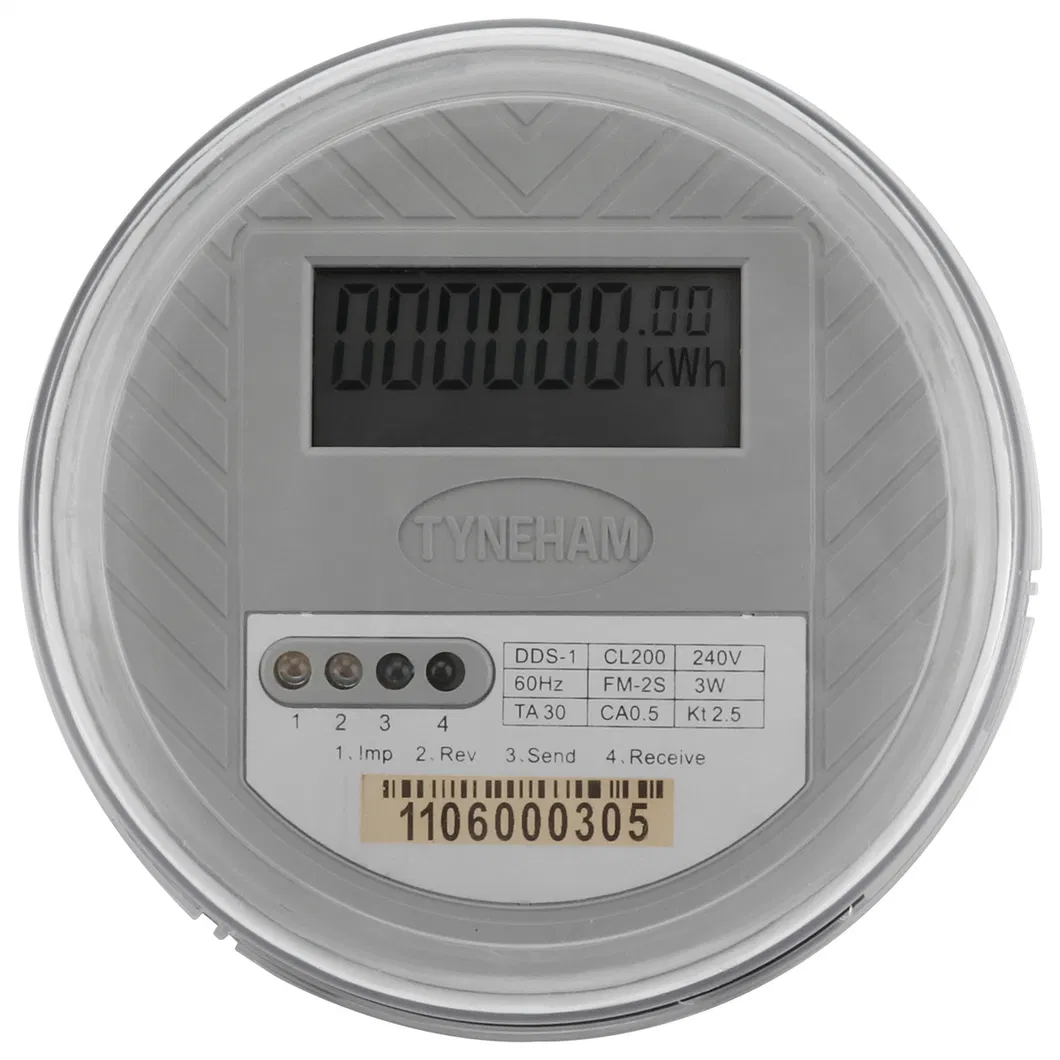

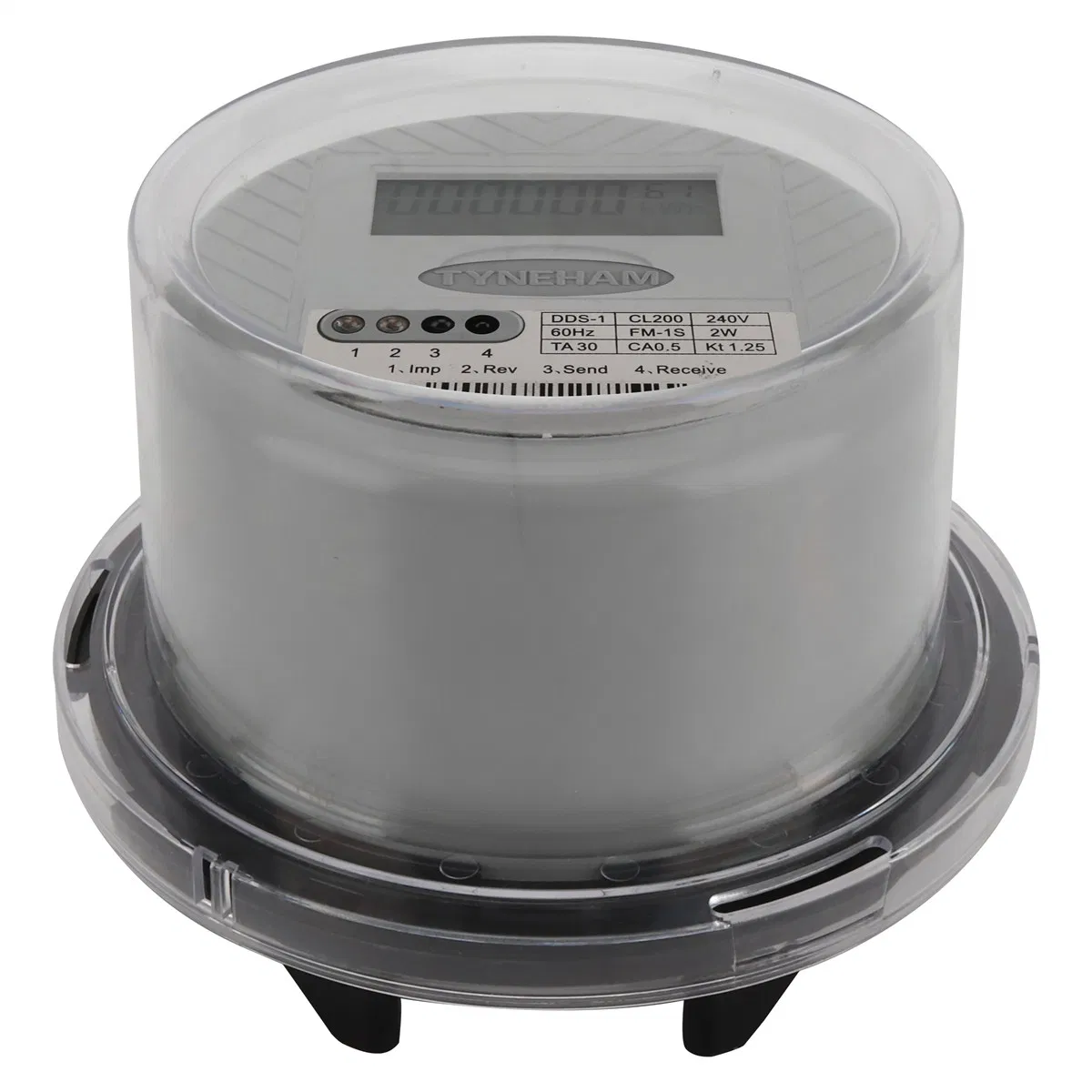

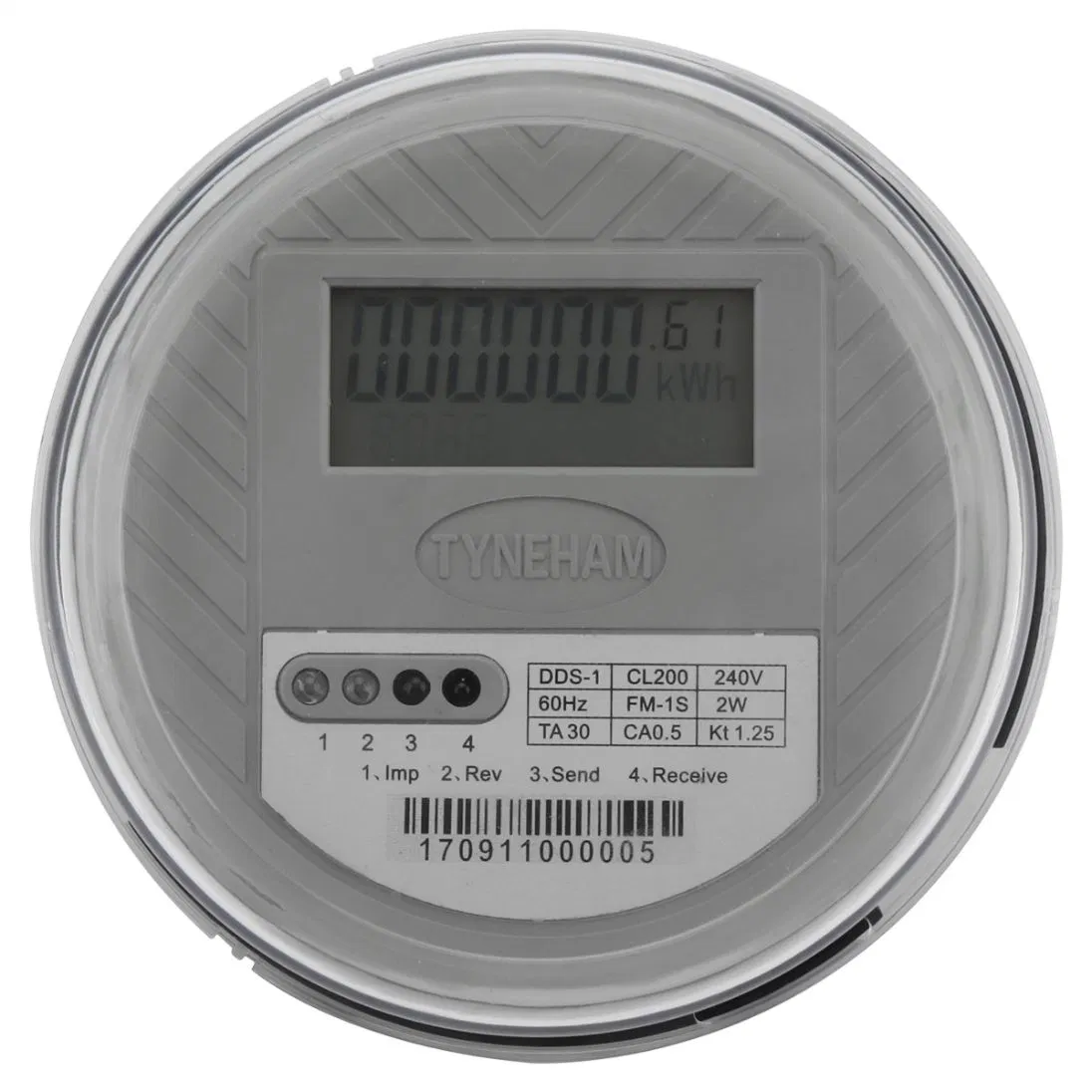

Front Side

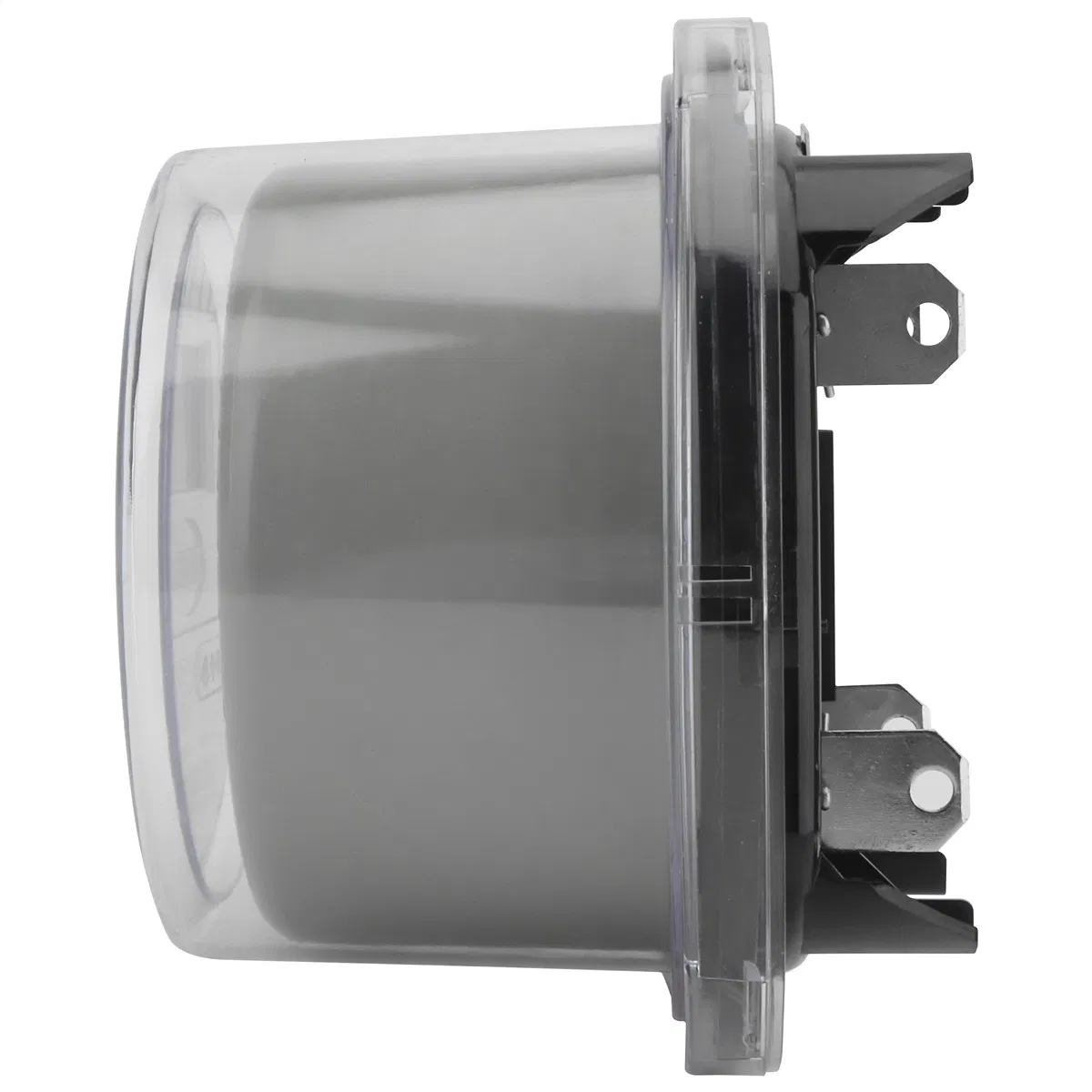

Left Side

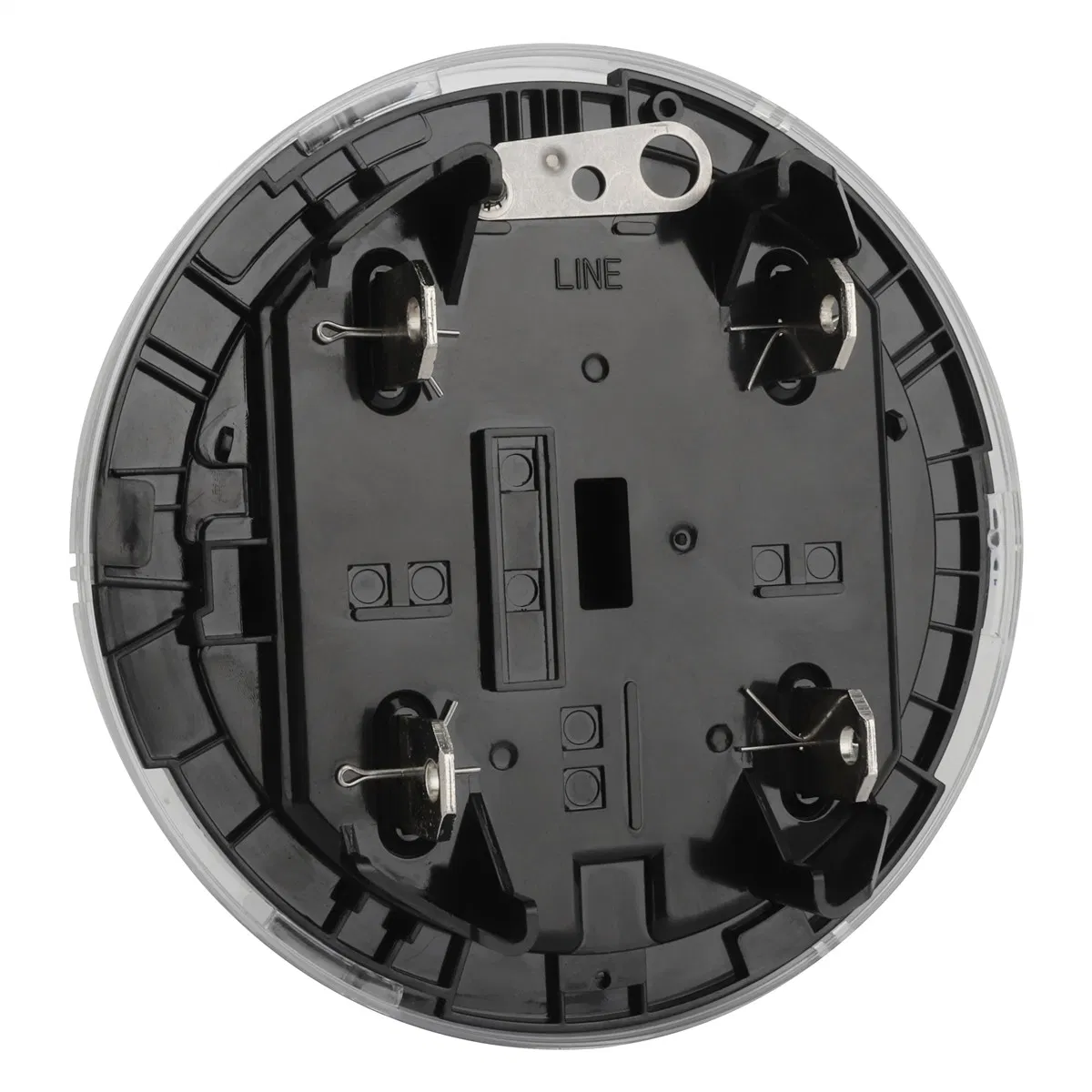

Back Side

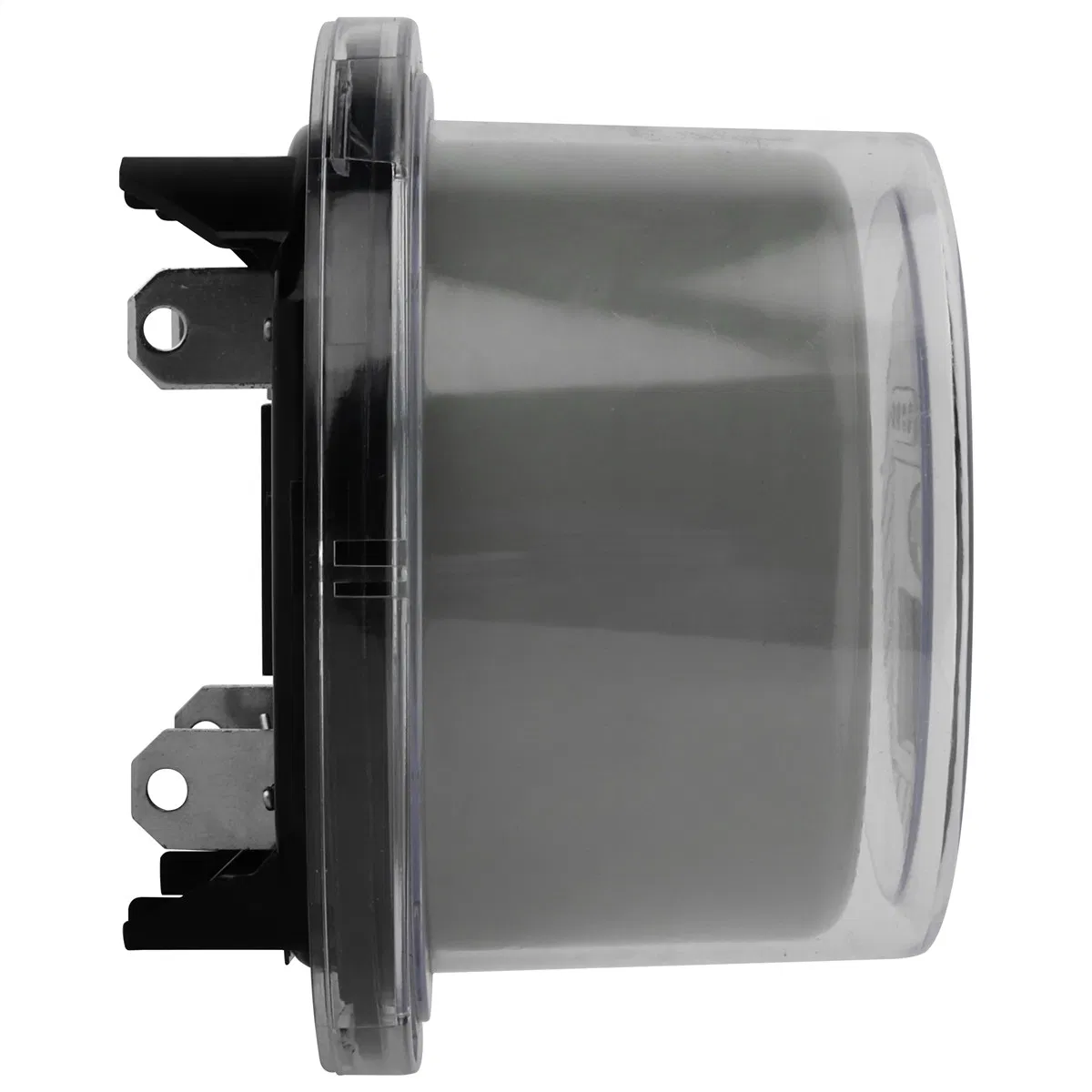

Right Side

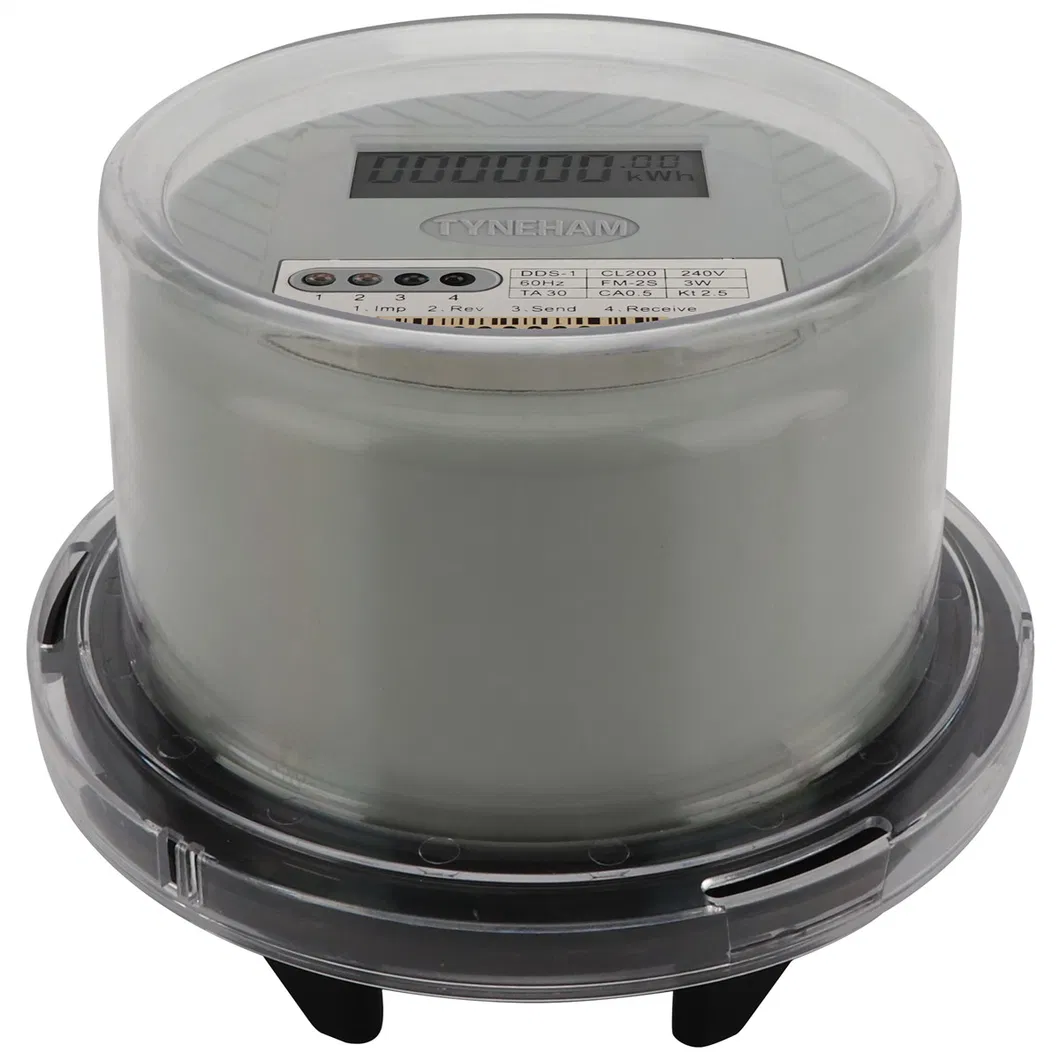

Top Side

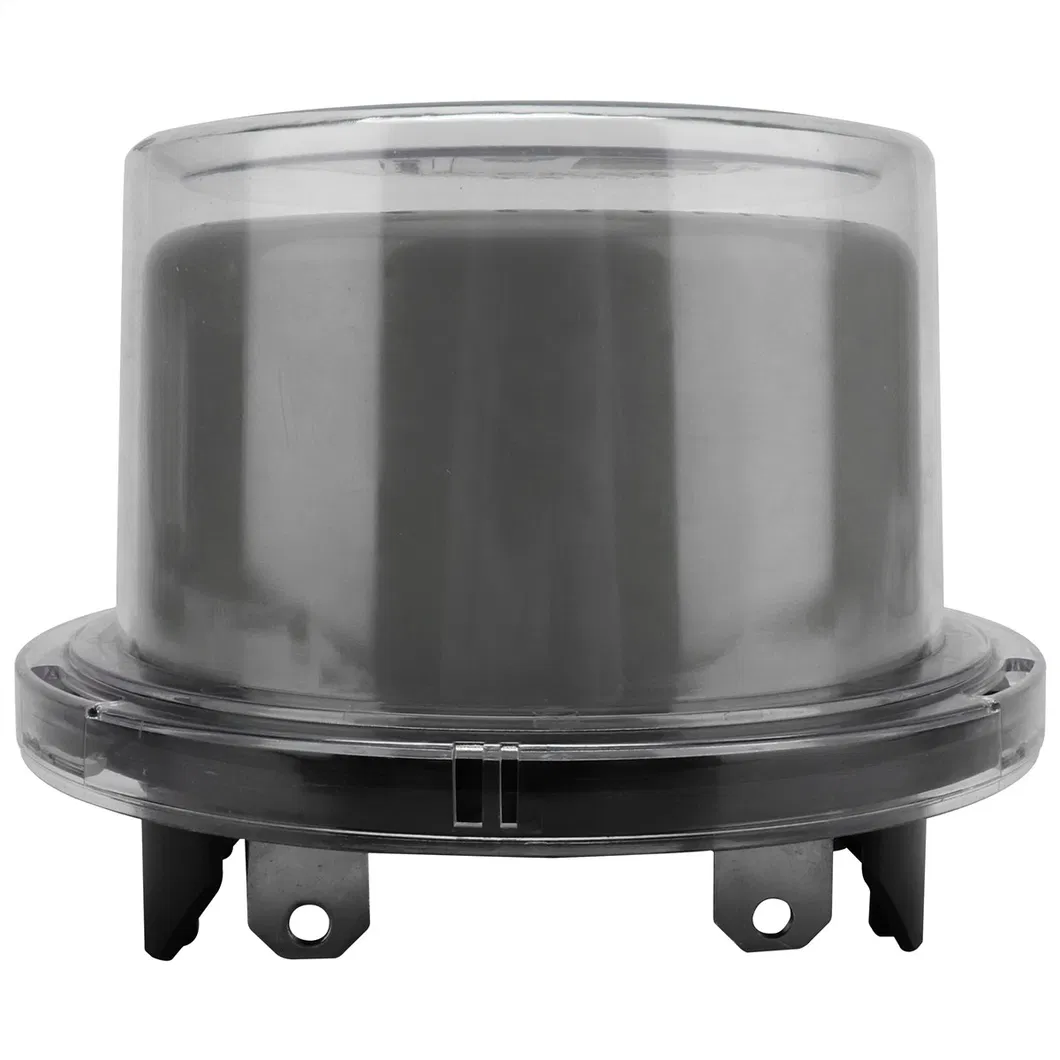

Bottom Side

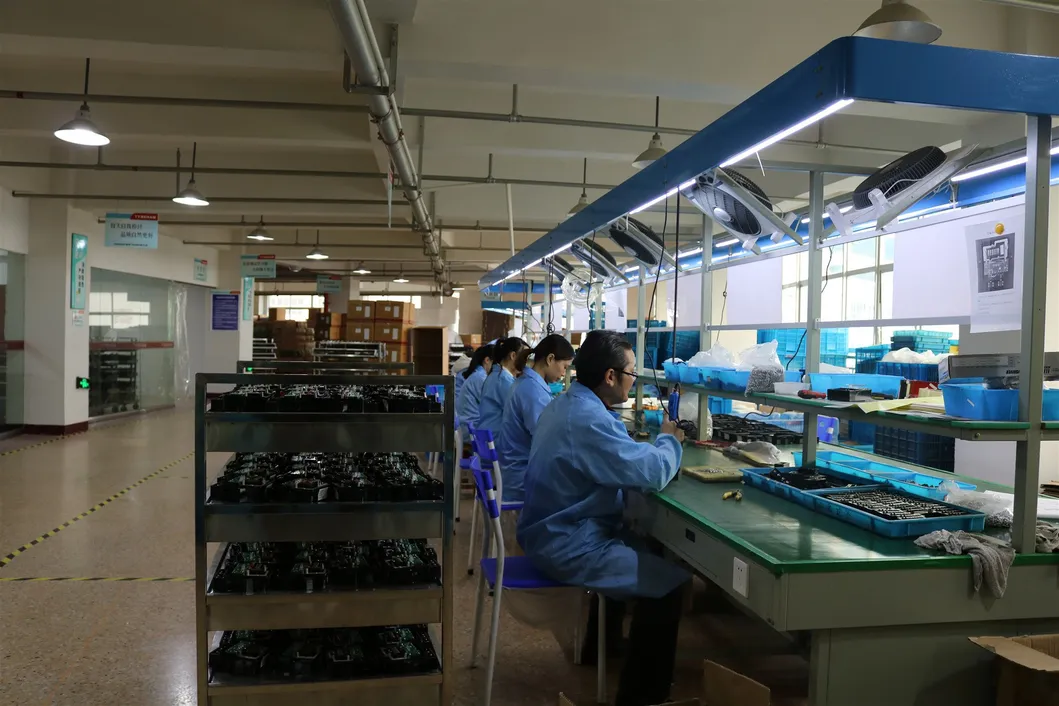

Production Workshop

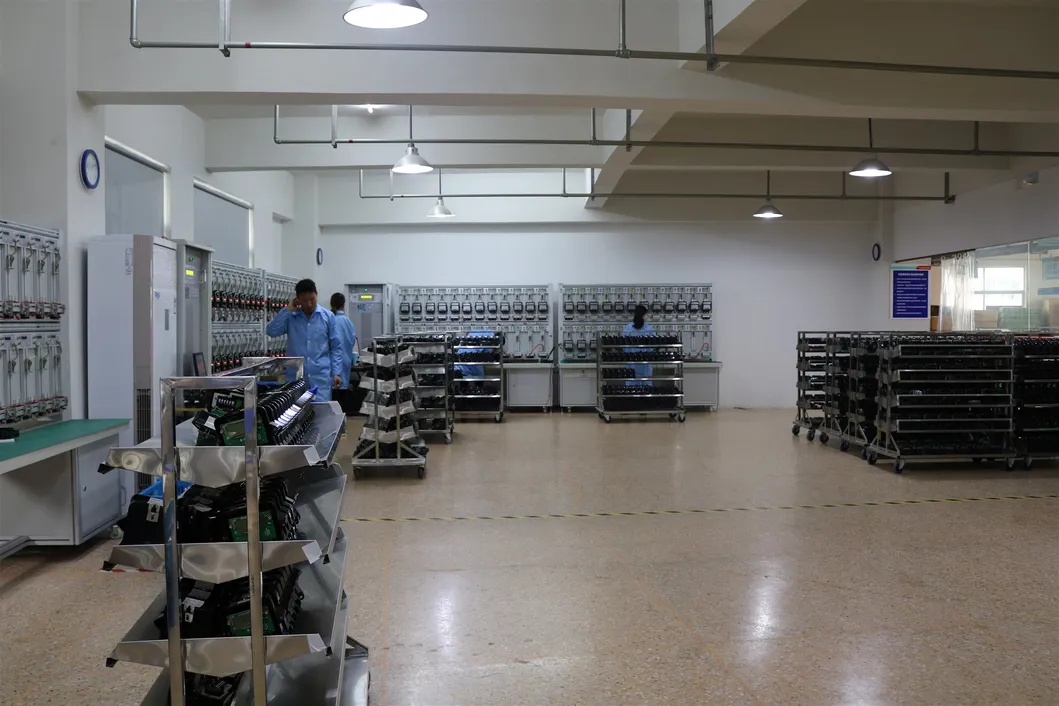

Test Bench Room

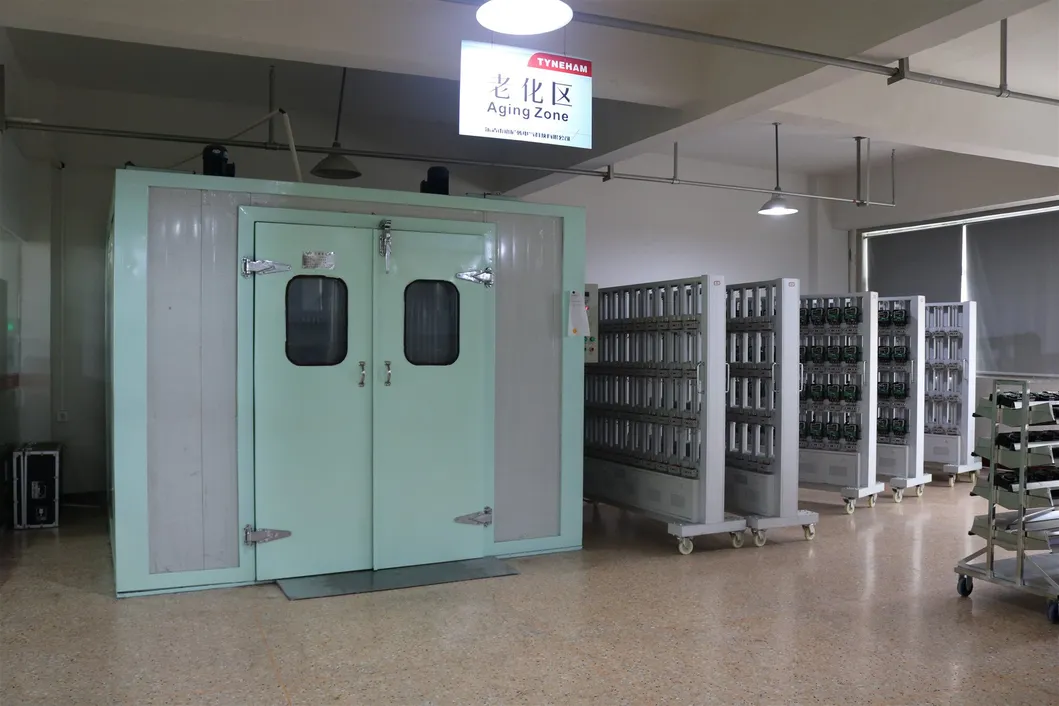

Aging Room
