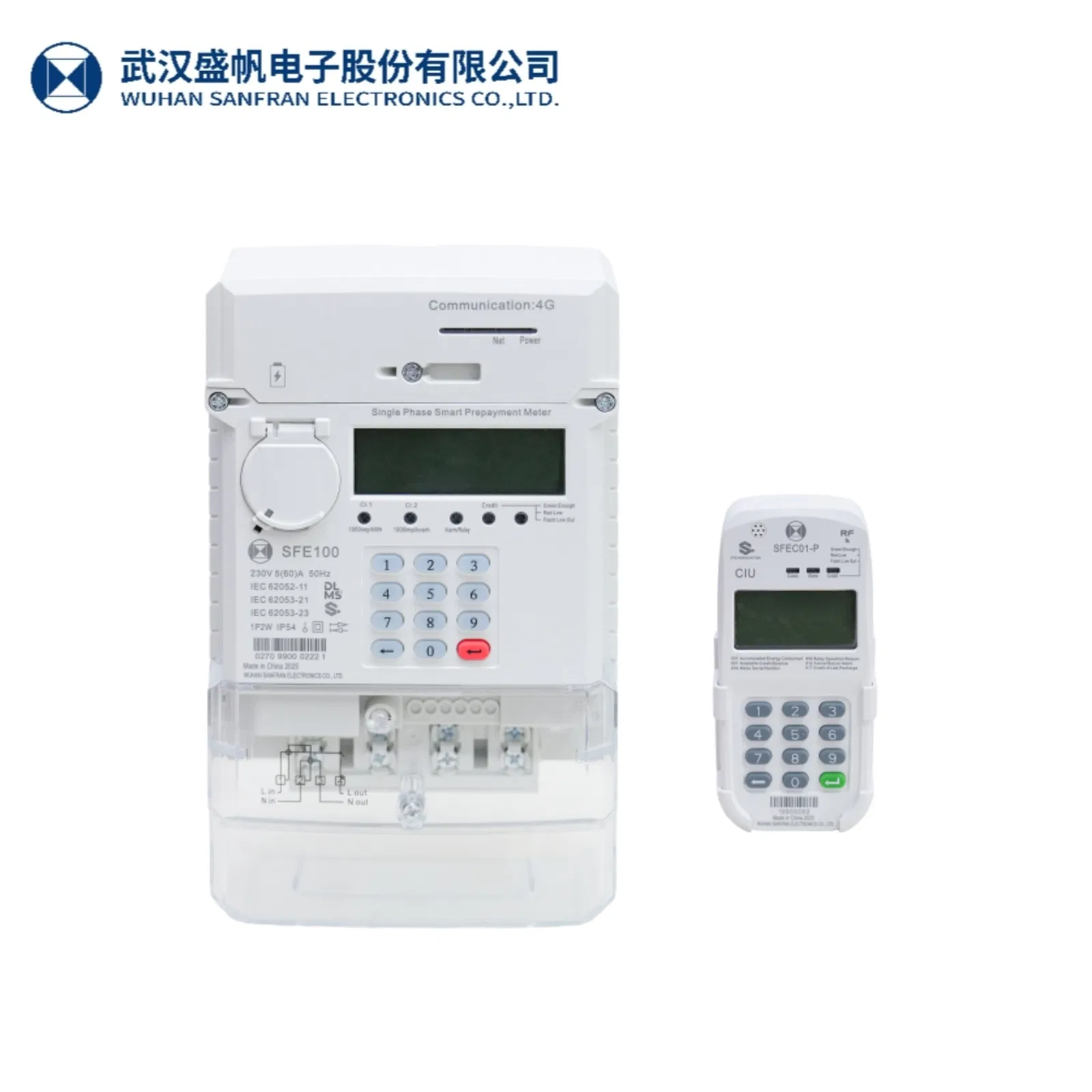

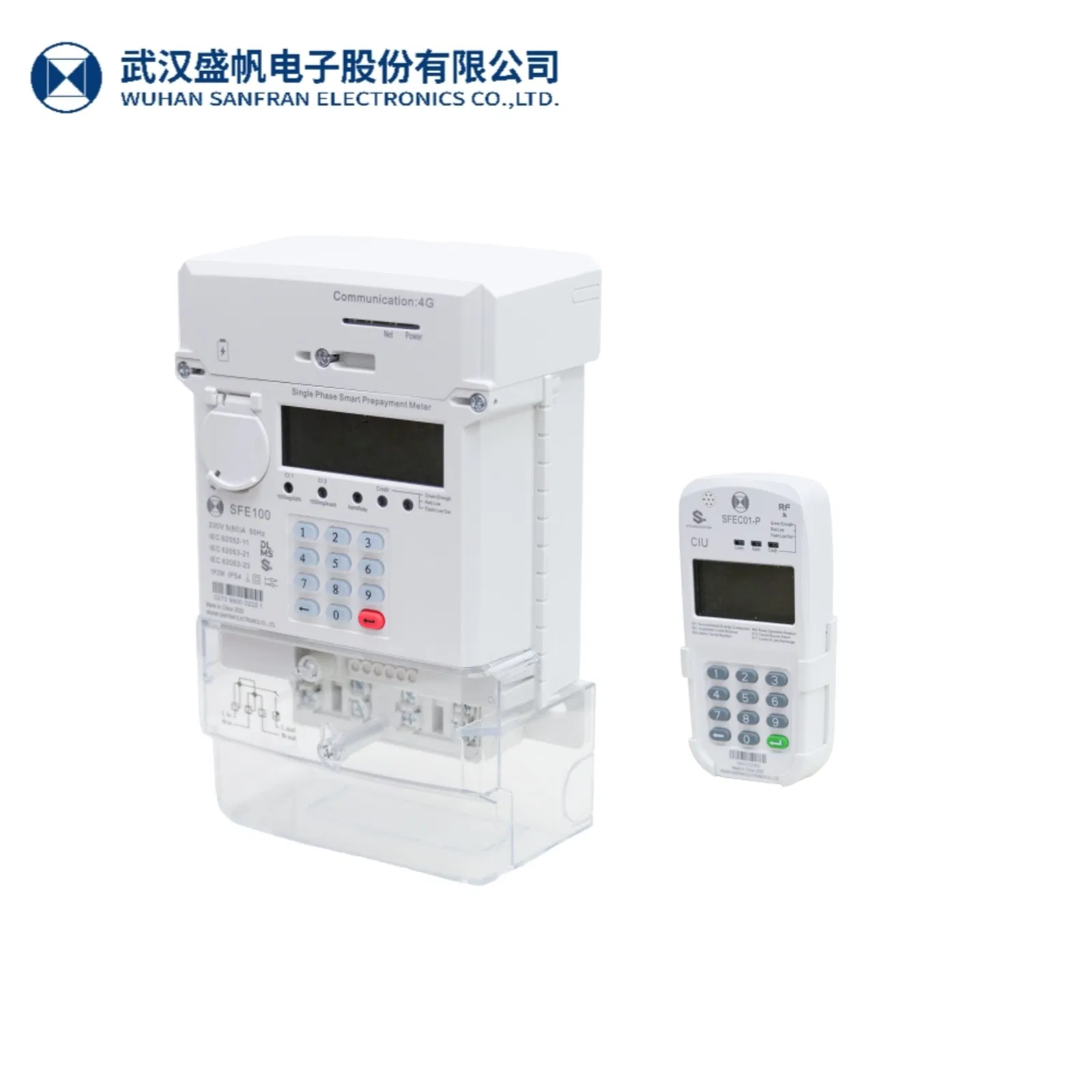

The SFE100 is a sophisticated single-phase two-wire smart electricity meter featuring a separated customer interface unit (CIU/UIU). It is engineered for modern energy management with a replaceable remotely LTE module (supporting fallback to 3G/2G) and versatile communication integration options including G3-PLC and BPLC.
| Parameter | Details |
|---|---|
| Voltage | Nominal (Un): 220/230V; Range: 0.7Un to 1.3Un |
| Current | Basic: 5/10A; Max: 60/80/100A; Starting: 0.4%lb |
| Frequency | 50Hz ± 5% |
| Accuracy | Active: Class 1.0; Reactive: Class 2.0 |
| Power Consumption | Voltage Circuit: <2V, 10VA; Current Circuit: <1VA |
| Real-time Clock | Accuracy within 0.5s/day at 23℃ |
| Battery Life | Internal: ≥10 years; External (3.6V): 15 years |
| Environmental | Operating: -40°C to +70℃; Humidity: 5%~95% RH |
| EMC Protection | Electrostatic: 15kV (air); Surge Immunity: 4kV |
AMI System

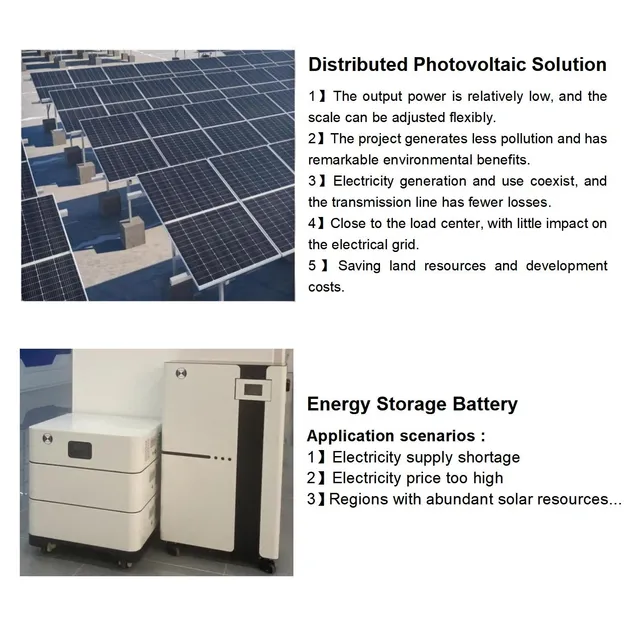

New Energy

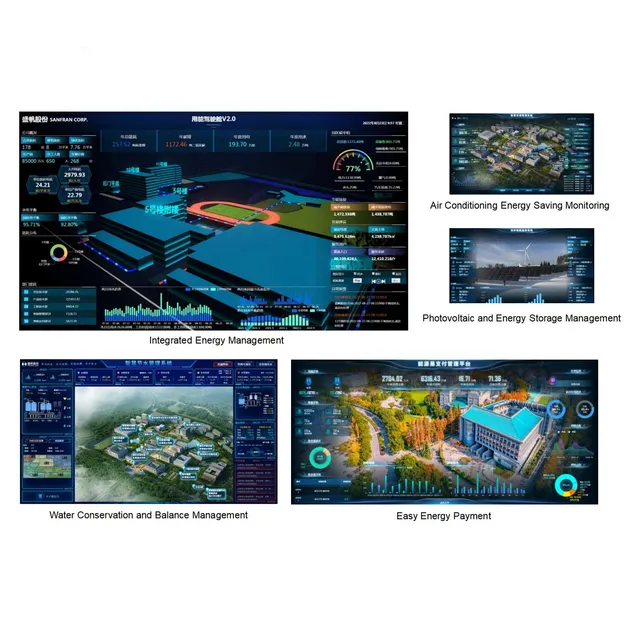

Smart Energy Efficiency
Nigeria: Supply of 81,000 single phase and 9,000 three phase smart meters with supporting meter boxes.

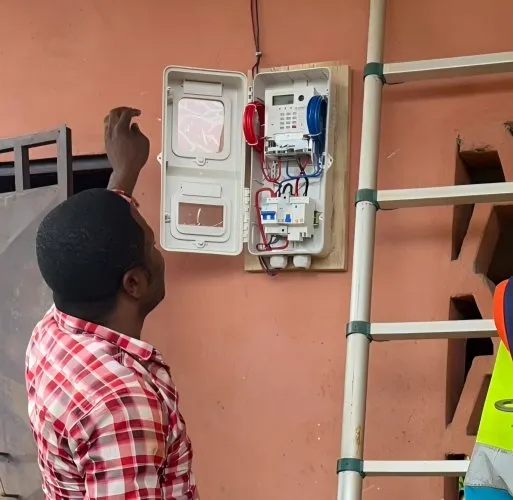

Cameroon: Supply of 20,000 smart meters integrated with complete Advanced Metering Infrastructure (AMI).

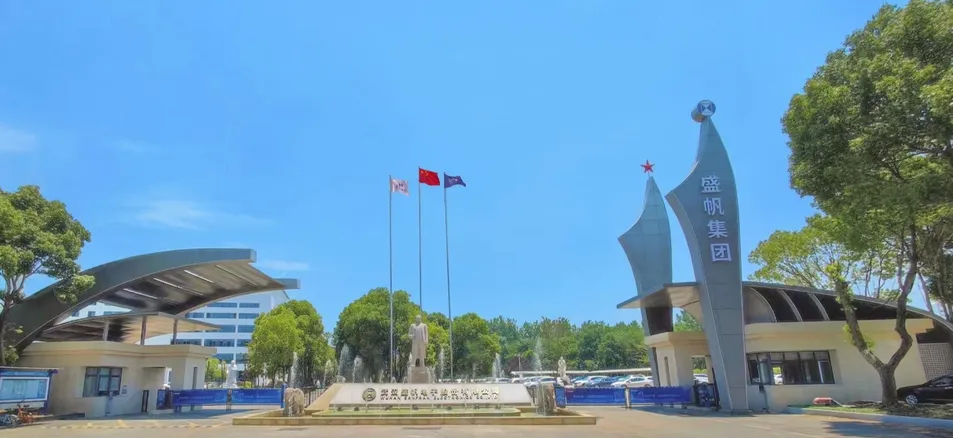

Founded in 1998, our expertise in energy services and energy efficiency management solutions is backed by a dedicated team of over 800 employees and a 120,000 square meter facility. Recognized as a national leader in innovation, we deliver end-to-end digital, visual, and intelligent solutions for energy production and consumption.
