SMART SINGLE PHASE PREPAID METER

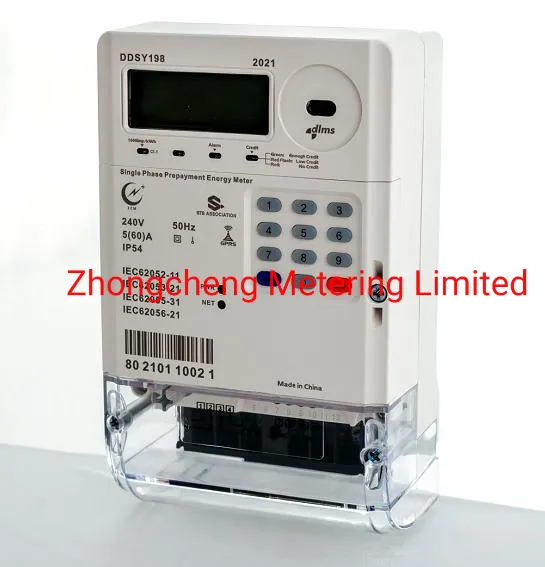

DDSY198 is the newest Single phase BS type integrated STS certified prepaid keypad energy meter. It can realize the functions of active energy measuring and pre-payment and post-paid mode control. The transfer of secure data from a point of sale to the meter is carried out via a 20 digits number generated according to the STS (Standardized Transfer Specification) encryption protocol. It complies with IEC62052-11, IEC62053-21, IEC62053-61, IEC 62055-41, IEC62056-21 Etc.
| Object | Value |
|---|---|
| Meter Type | Three Phase Four Wires STS Split Keypad Prepaid Meter |
| Payment Type | Post-paid/prepayment (default: prepayment) |
| Installation Type | BS |
| Standards Reference | IEC62052-11, IEC62053-21, IEC62055-41, IEC62056-21, STS Certified |
| Class | Class 1 |
| Current Rating | 5(100)A, 10(100) |
| Starting Current | < 0.4% Ib |
| Energy Pulse | LED 1000 pulses/kWh |
| Operating Voltage | 3X220/380V, 3X230/400V, 3X240/415V |
| Frequency | 50Hz |
| Power Consumption | Voltage: ≤4W, 15VA; Current: ≤6VA |
| Communication | Optical Port (IEC62056-21), GPRS, RF, RS485, PLC |
| LCD Digits | 6 + 2 |
| Operation Temp | -25°C to +70°C |
| Material | ABS flame proof |
| IP Protection | IP 54 |
