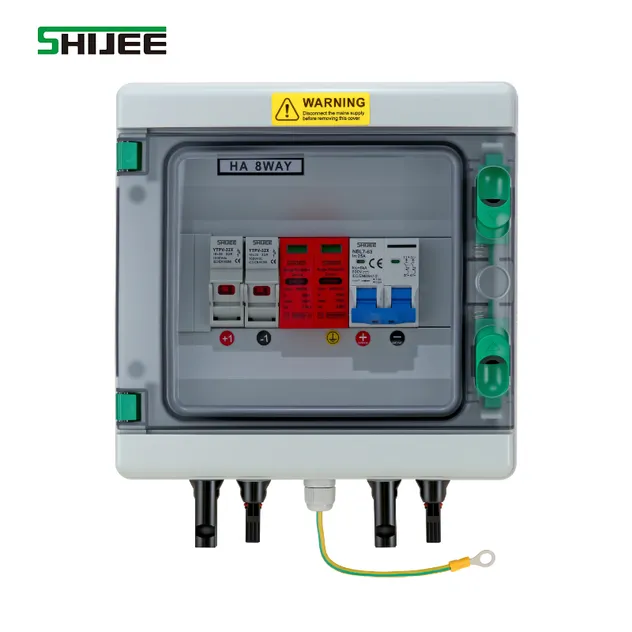

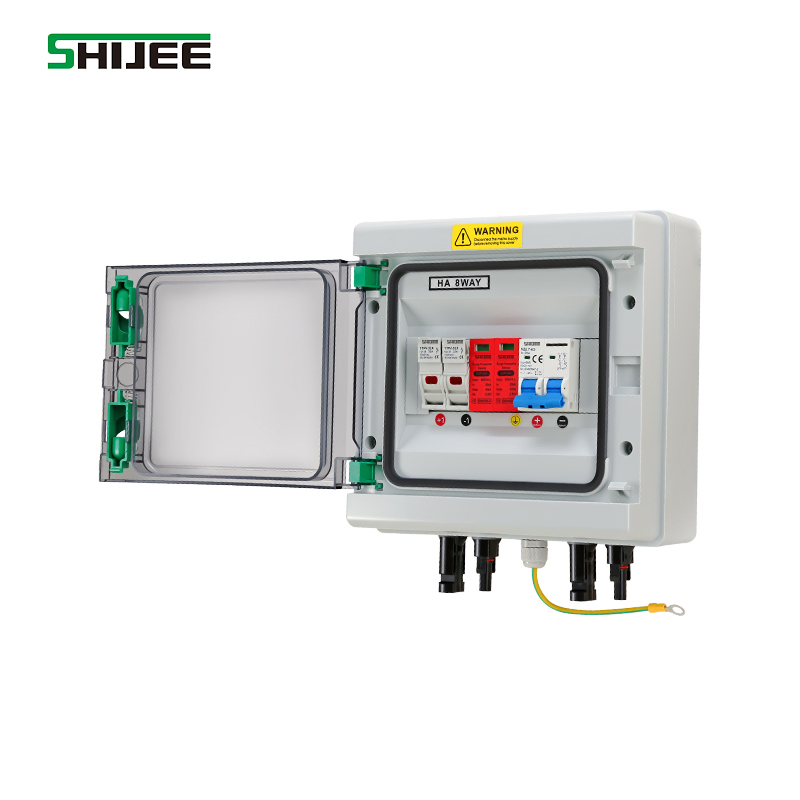

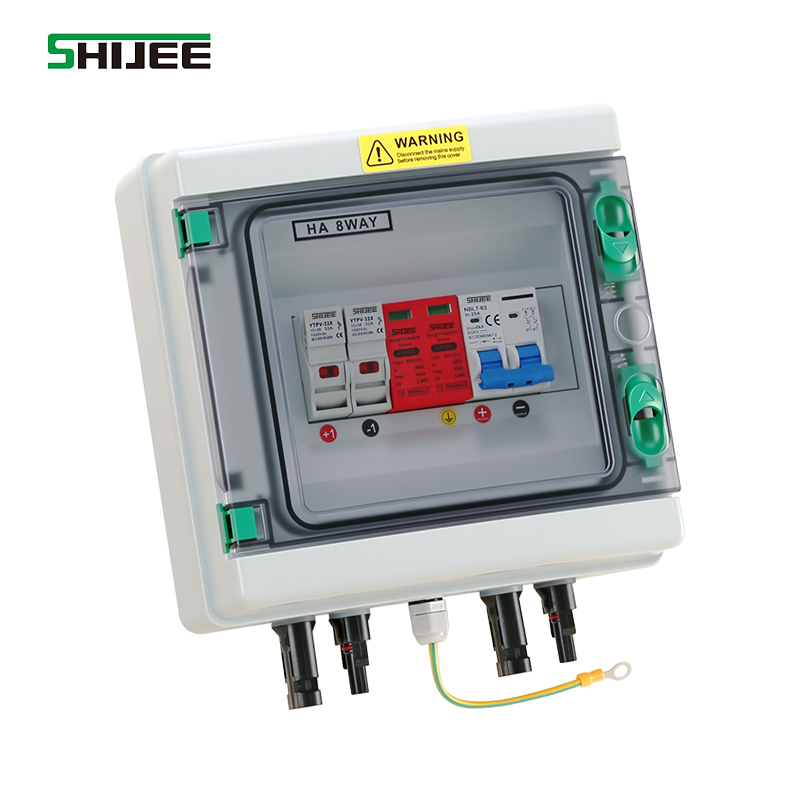

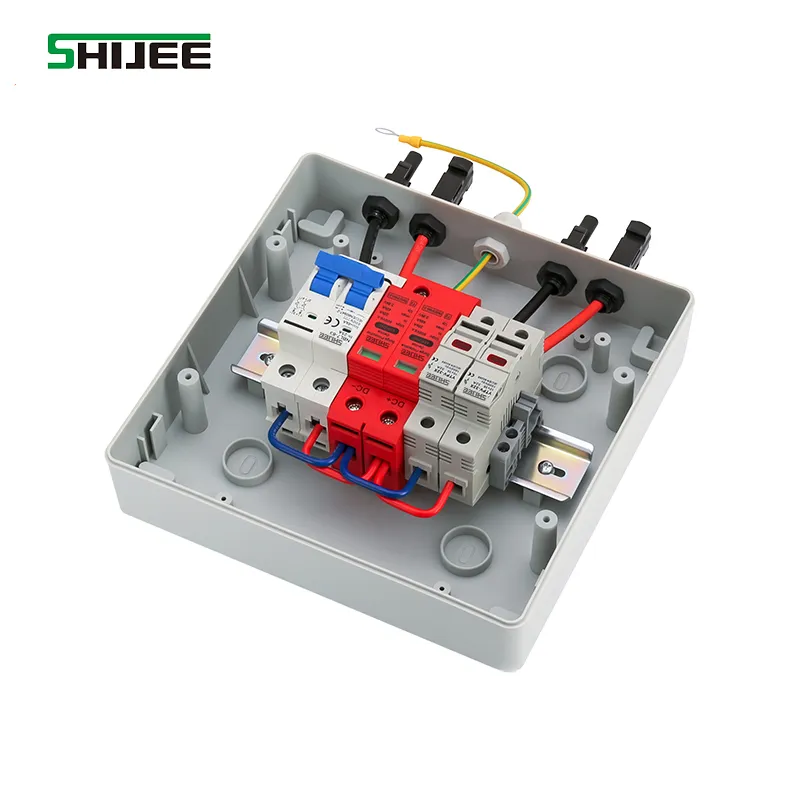

DC 1 in 1 Out 600V: Designed for compact and streamlined solar installations, the DC600V 1-in-1-out PV Combiner Box provides a reliable and efficient interface for single-string solar panel systems operating up to 600VDC. This unit safely combines the DC output from one solar string, integrating essential protection features such as overcurrent protection, surge protection, and isolation switching. With its durable enclosure and optimized internal layout, it ensures secure connectivity while minimizing space requirements, making it ideal for residential, small commercial, or portable solar applications where simplicity and safety are paramount.
Engineered for ease of installation and long-term reliability, this combiner box supports straightforward wiring and maintenance. Its robust design withstands outdoor environmental conditions and helps enhance system performance by reducing electrical losses and improving fault management. Suitable for both grid-tied and off-grid solar setups, the 1-in-1-out configuration offers a cost-effective and dependable solution for protecting your PV investment.
| Parameter | Details |
|---|---|
| Product Name | DC600V 1-in-1-out Solar PV Combiner Box |
| Application | 1 String Solar Panel System |
| Rated Voltage | DC 600V |
| Input/Output Configuration | 1 Input / 1 Output |
| Protection Class | IP65 (Outdoor) |
| Material | UV-resistant ABS or Polycarbonate (PC) |
| Max Input Current | 15A / 20A / 30A (depending on fuse rating) |
| Circuit Protection | DC Fuse (10A–30A), Optional DC Surge Protection Device (SPD) |
| Disconnect Switch | Yes (DC Isolator Switch) |
| Cable Entry | PG gland or watertight connector, supports 4–6mm² solar cable |
| Mounting | Wall-mounted or pole-mounted |
| Temperature Range | -25°C to +60°C |
| Certification | CE, TÜV, IEC 60947, IEC 60269 |
| Warranty | 5–10 years (depending on components) |
