Product Description

📋

Basic Specifications

Model NO.

G01NET-3-S

Measurement Range

±2g, ±4G

Bandwidth

0-200Hz

Sensitivity

1~3V/G

Acceleration Resolution

0.000002g

Dynamic Range

≥125db

Ad Resolution

24-Bit

Sampling Rate

1-2000Hz

Interface

LAN Ethernet

Operating Temp

-35℃~+70℃

Waterproof Rating

IP67

Power Supply

12V

🖼️

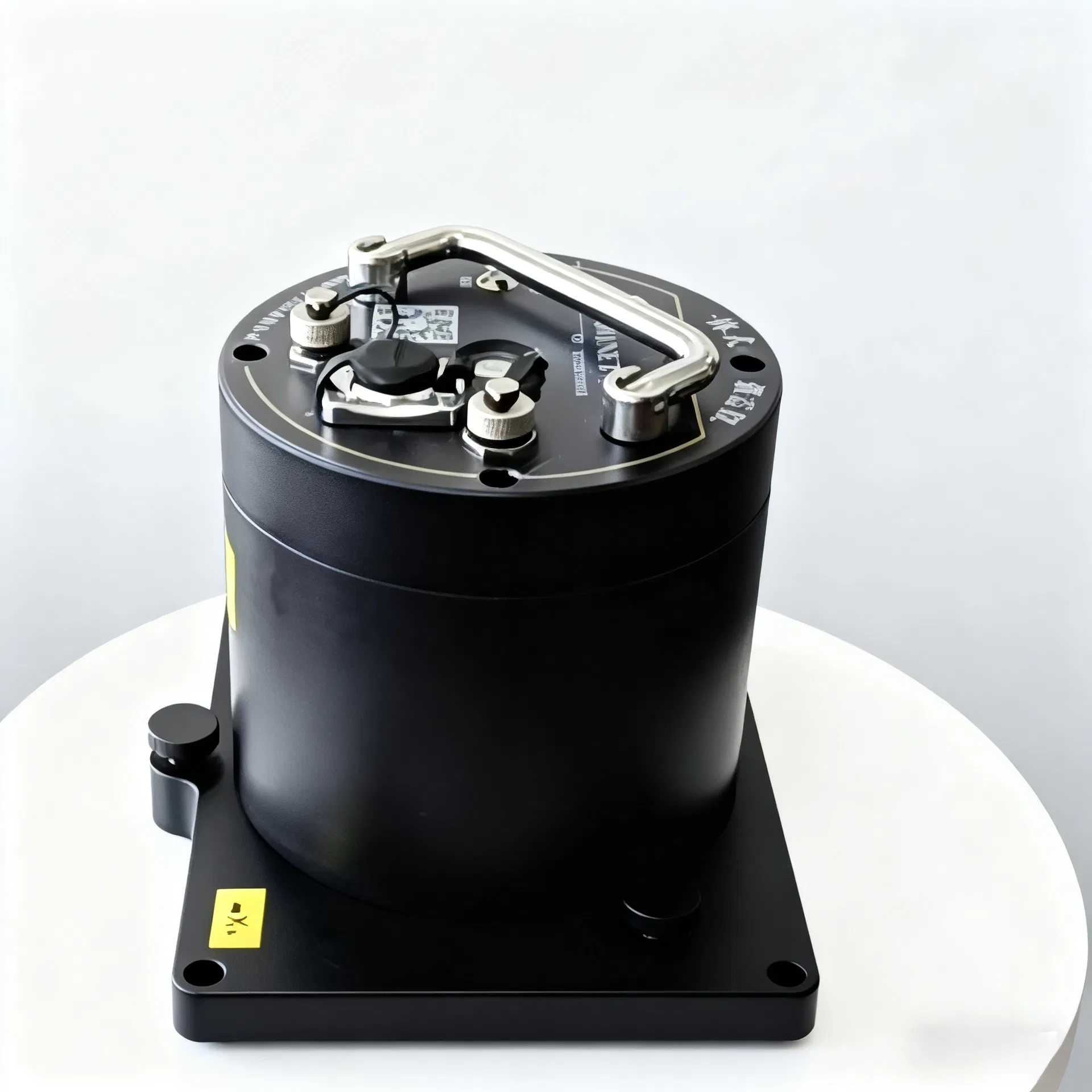

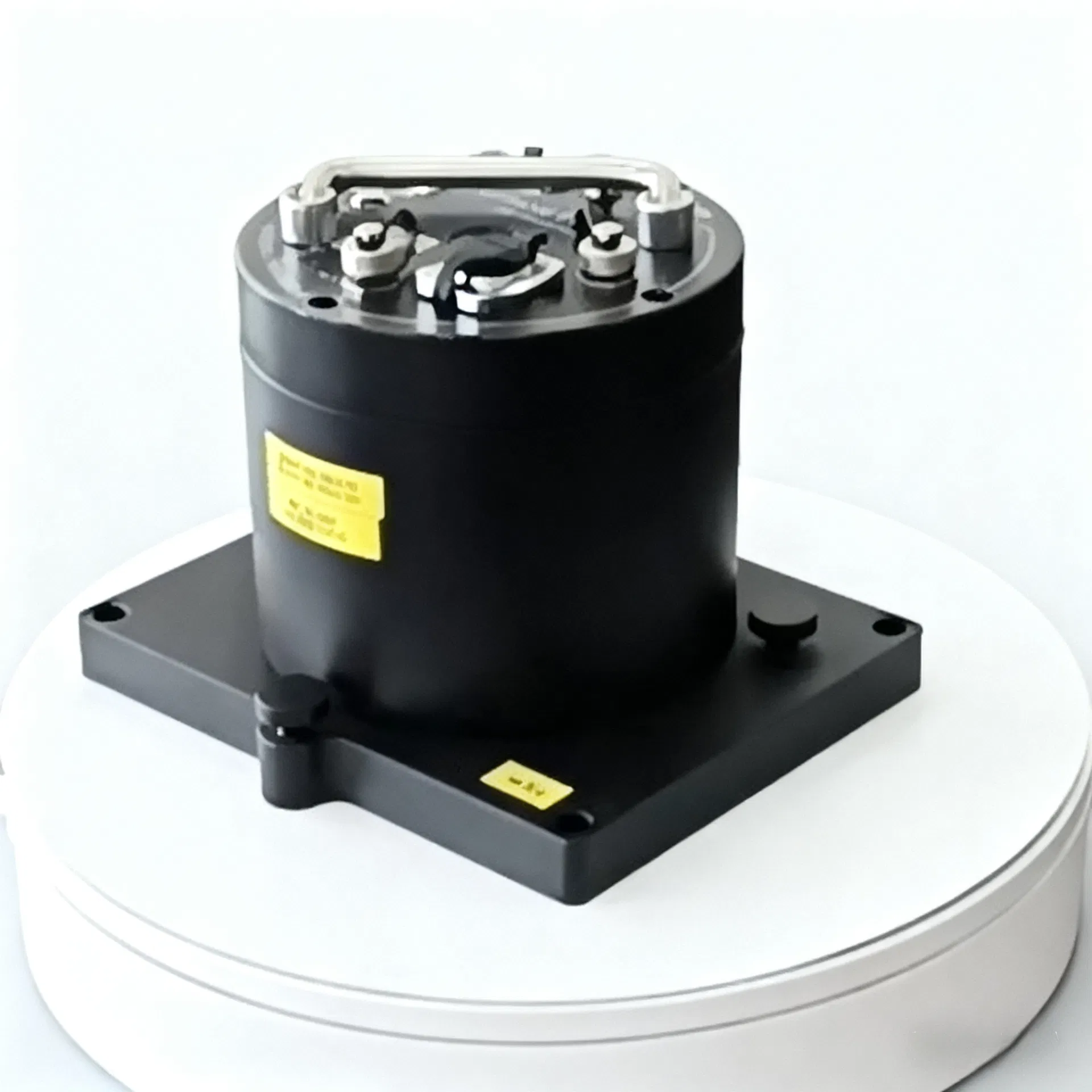

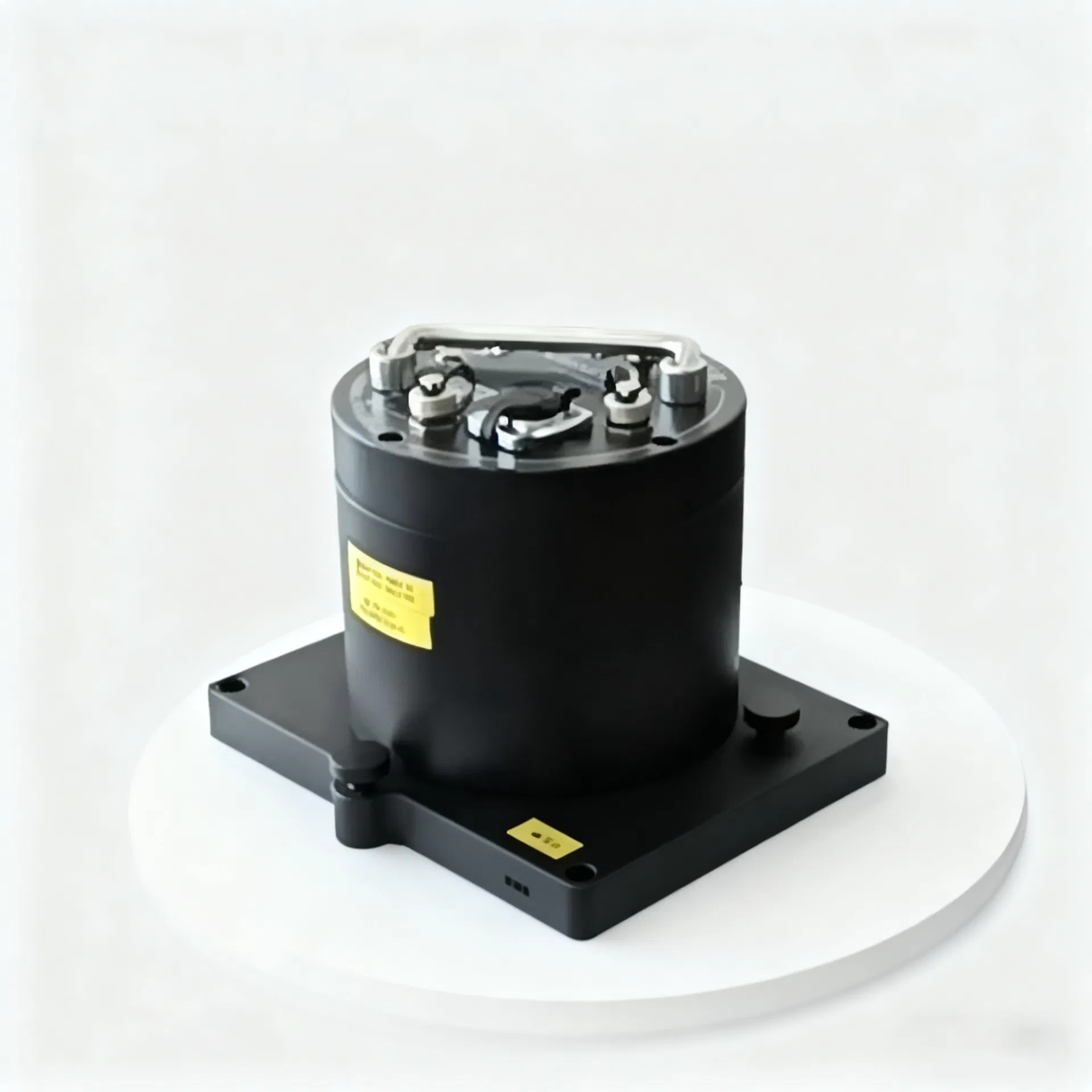

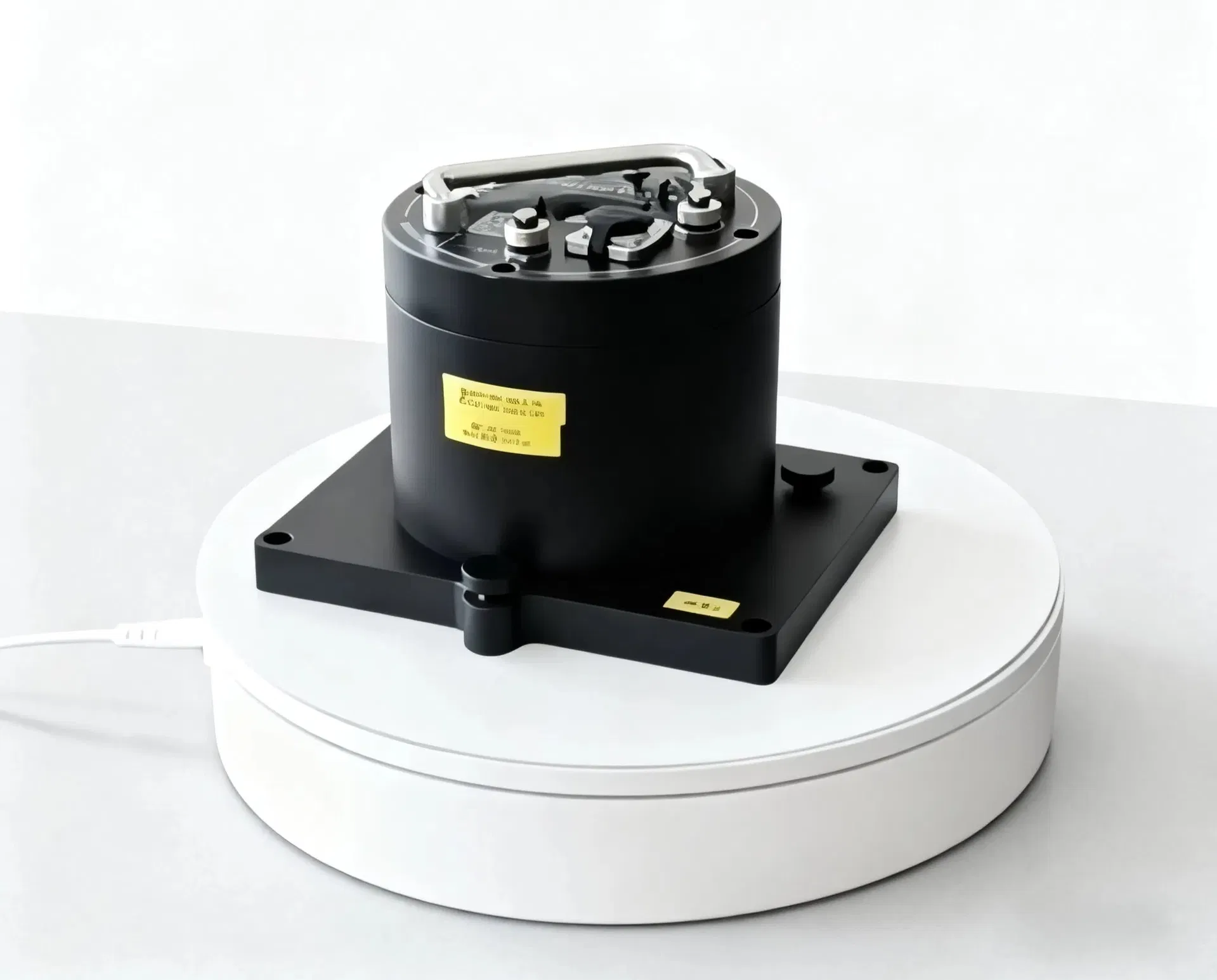

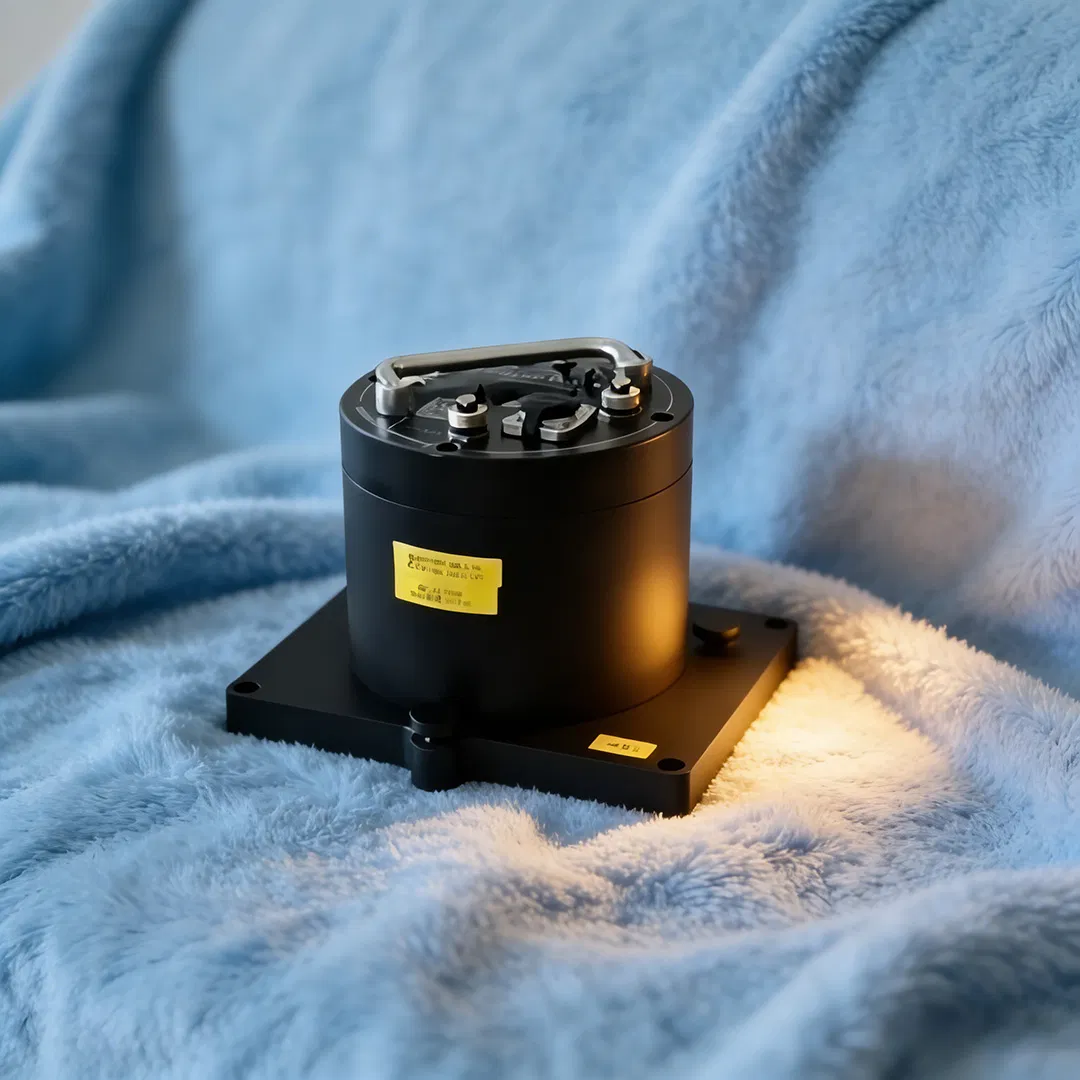

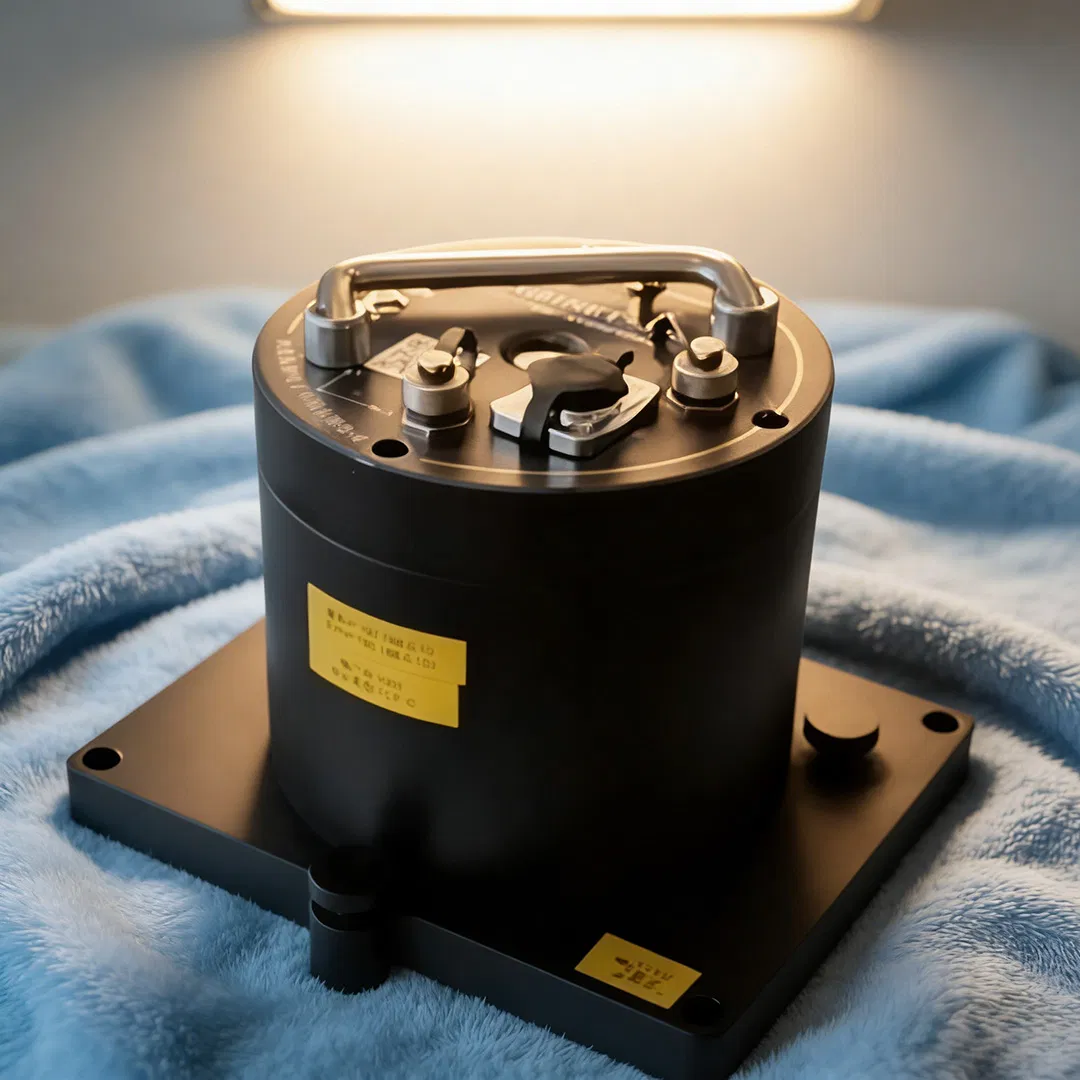

Product Showcase

✨

Product Introduction & Features

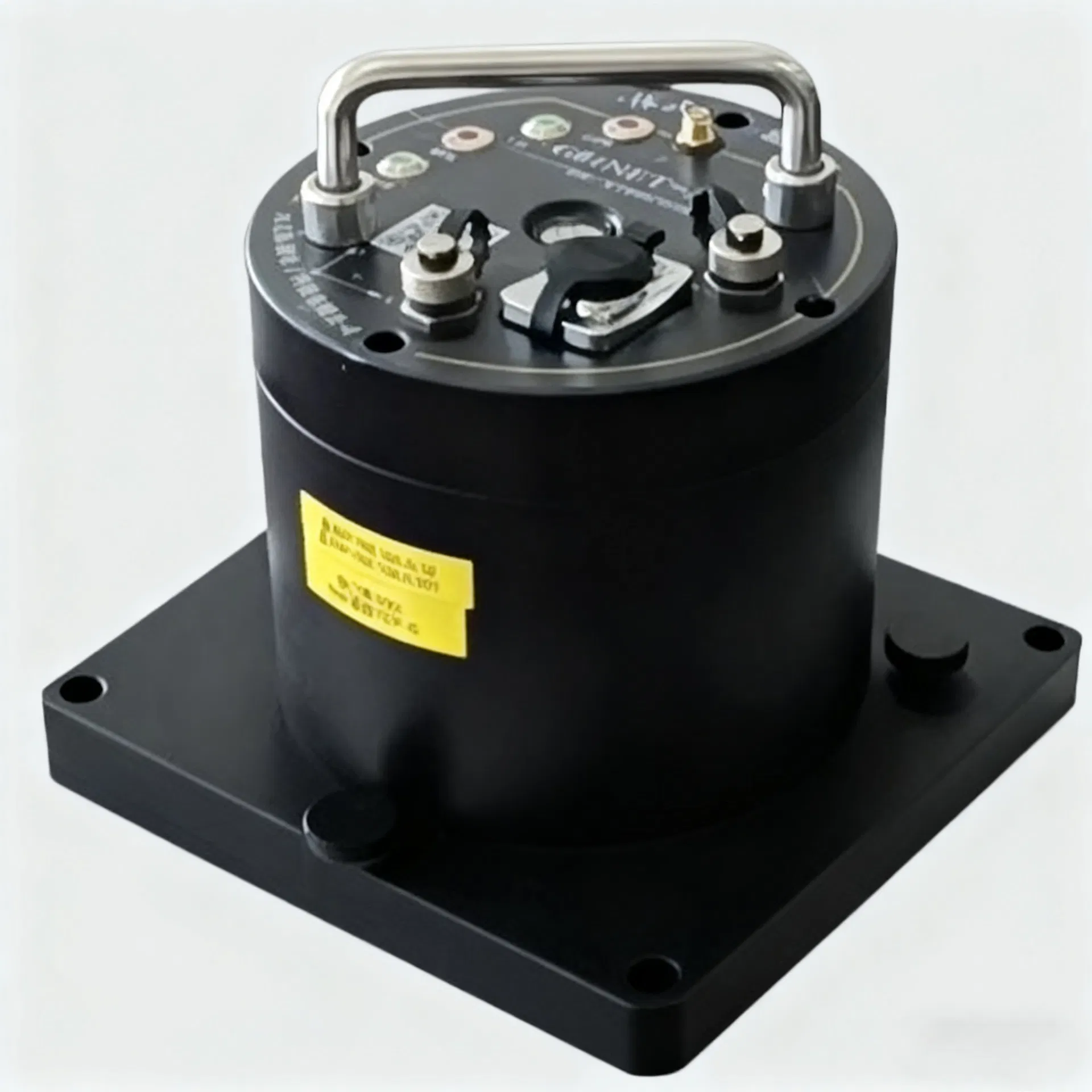

The G01NET-3-S integrated strong motion accelerometer features high sensitivity, wide dynamic range, high waterproof rating, and easy maintenance. It incorporates a triaxial force-balance accelerometer, 24-bit data logger, data storage unit, network communication module, and GPS timing unit.

High reliability and long service life
24-bit high resolution and extreme sensitivity
Wide measurement range for diverse environments
IP67 waterproof rating for outdoor durability
High integration for easy setup and maintenance

🏗️

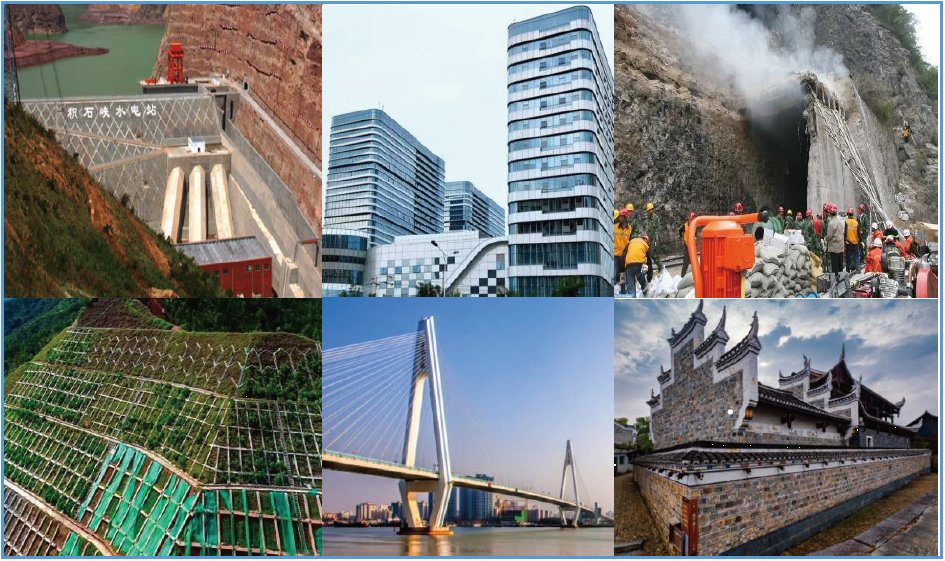

Industry Applications

• Hydropower dams and nuclear power plants structural health observation
• Infrastructure monitoring (bridges, stations, tunnels)
• Seismic safety assessment and earthquake early warning
• Artificial blasting and landslide/rockfall monitoring
• Rail transit vibration monitoring

⚙️

Technical Parameters

Sensor Specs (Built-in)		Data Logger Specs (Built-in)
Structural Principle	Triaxial Force-Balance	AD Resolution	24-bit
Bandwidth	0-200Hz	Dynamic Range	≥120dB
Sensitivity	1~3V/g	Sampling Rate	1-2000Hz
Noise RMS	≤10⁻⁶g	Storage	Standard 16G SD card
Zero Adjustment	Automatic	Protocol	TCP/IP (LAN Ethernet)

🚀

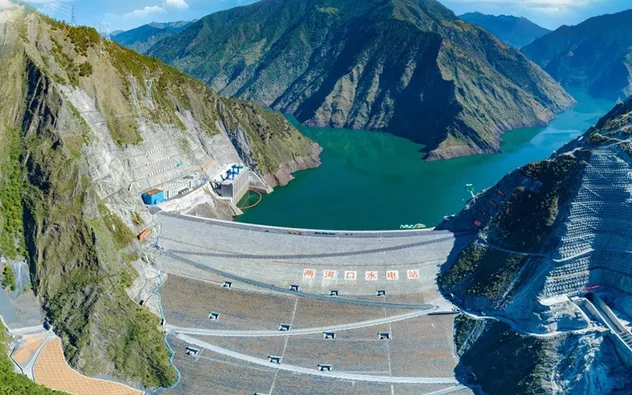

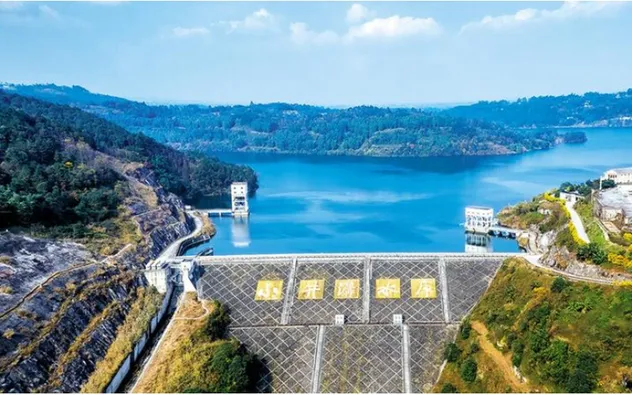

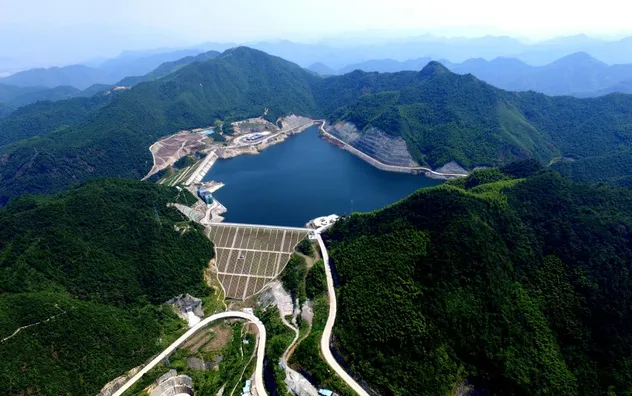

Project Cases

📺

Operation & Overview

Professional Team Strength:

Our core team unites professionals in earthquake and structural safety monitoring. We offer end-to-end technical support from solution design and product selection to installation, training, and after-sales maintenance. With deep insight into laboratory and field needs across various sectors, we ensure stable and efficient operations.

📦

Certification & Packing

❓

Frequently Asked Questions

What is the primary use of the G01NET-3-S system?

It is designed for high-precision strong motion observation, structural health monitoring for dams, bridges, and nuclear plants, and earthquake early warning systems.

What sensors are integrated into this device?

The system integrates a triaxial force-balance accelerometer, a 24-bit data logger, GPS/Beidou timing units, and a network communication module.

How is the data stored and transmitted?

Data is stored on a standard 16GB SD card in binary format. Transmission is supported via LAN Ethernet using TCP/IP protocols for real-time monitoring.

Can this equipment handle harsh outdoor environments?

Yes, it has an IP67 waterproof rating and operates effectively in temperatures ranging from -35℃ to +70℃.

What are the available trigger modes for data recording?

The system supports multiple trigger modes including Amplitude, STA/LTA (Short Time Average/Long Time Average), and Timed recording.

How do you ensure timing accuracy for seismic data?

The device utilizes a dual-mode GPS + Beidou timing system with a time synchronization error of less than or equal to 0.01ms.
