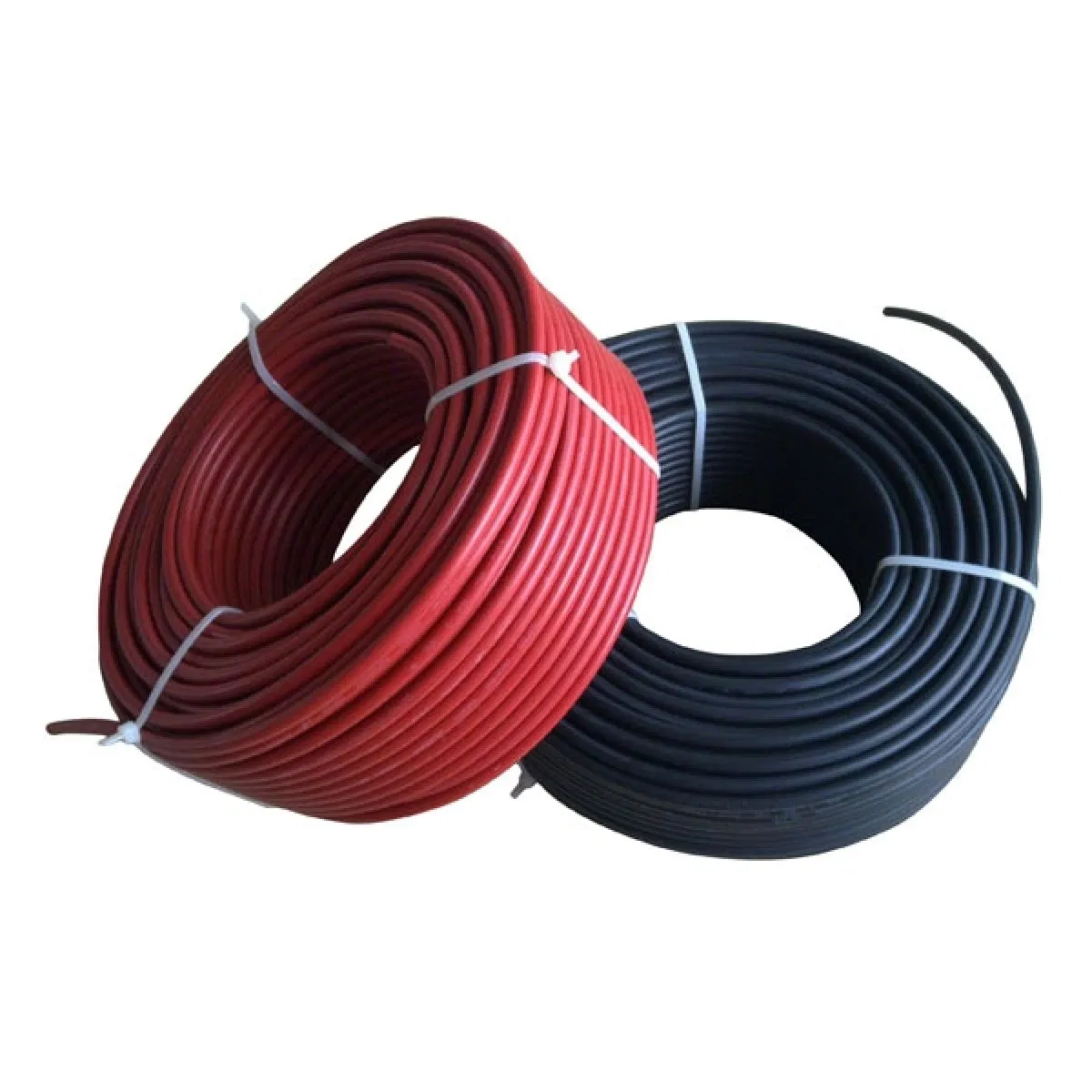

IEC 62930 UL 4703 Standard 4mm 6mm H1z2z-K UV Mc4 PV Solar Copper Aluminum PVC En 50618 Power PV Solar Wire DC Power Cable

📋 Basic Information

Model NO.

Solar Cable

Current

DC & AC

Insulation Material

XLPE

Sheath Material

Crosslinking

Material Shape

Round Wire

Wire Core Material

Tinned Wire

Certification

ISO, CE, IEC/En

Model

PV1-F

Products Name

Solar Cable

Voltage Rating

0.6/1kv

Conductor

Tinned Copper Wire

Temperature Rating

120c

Thermal Endurance

25 years

Standard

2 Pfg 1169/08.2007

Sheathed Color

Black and Red

HS Code

8544492100

Production Capacity

1000km/Week

📦 Packaging & Delivery

Package Size

200.00cm * 200.00cm * 200.00cm

Package Gross Weight

5.000kg

Transport Package

Soft Packing

🚀 Product Description

En 50618 and IEC 62930 Standard PV DC Solar Copper or Aluminium PVC Power Cable

1. Application

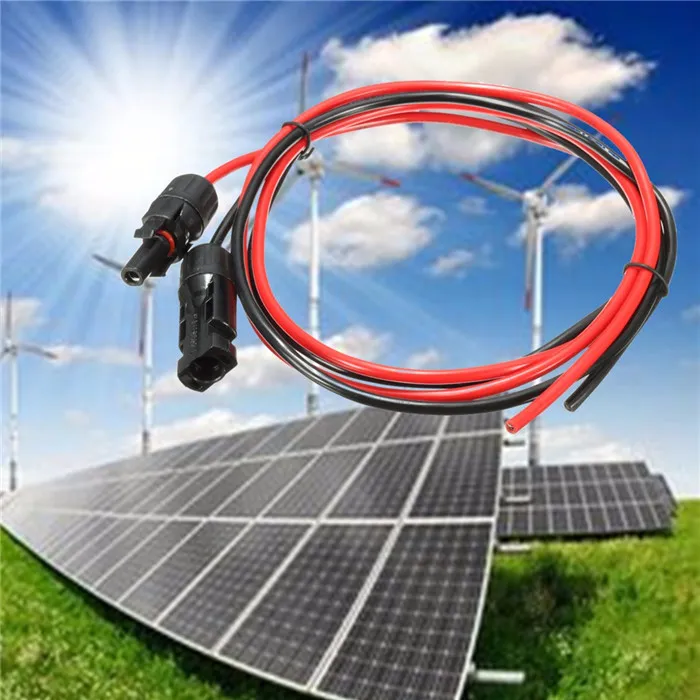

Heat Resistant XLPE Insulated PV Cable for Solar Energy is used in fixed installations and internal connections of solar panels. This product features excellent UV-resistant performance and is TUV approved.

2. Technical Specifications

Standard: 2 PFG 1169 08.2007 and UL 4703
Conductor Material: Stranded tinned copper
Insulation & Sheath Material: XLPE
Rated Voltage: AC Uo/U 0.6~1.0KV, DC 1.8KV
Ambient Temperature: -40~+90°C
Expected Period of Use: 25 Years
Flame Rated: IEC60332-1-2

3. Key Characteristics

Double insulation, electron beam cross-linked
Excellent resistance to UV, water, ozone, fluids, salt, and general weathering
Excellent resistance to abrasion
Halogen-free, flame retardant, low toxicity
Excellent flexibility and stripping performance
High current carrying capacity
TUV and UL approved

📊 Datasheet of Solar Cable

Sectional area (mm2)	0.5	0.75	1	1.5	2.5	4	6	10	16
Copper (Ω/km)	36	24.5	18.1	12.1	7.41	4.61	3.08	1.83	1.15
Tinned copper (Ω/km)	36.7	24.8	18.2	12.2	7.56	4.7	3.11	1.84	1.16
Sectional area (mm2)	25	35	50	70	95	120	150	185	240
Copper (Ω/km)	0.727	0.524	0.387	0.268	0.193	0.153	0.124	0.0991	0.0754
Tinned copper (Ω/km)	0.734	0.529	0.391	0.27	0.195	0.154	0.126	0.1	0.0762

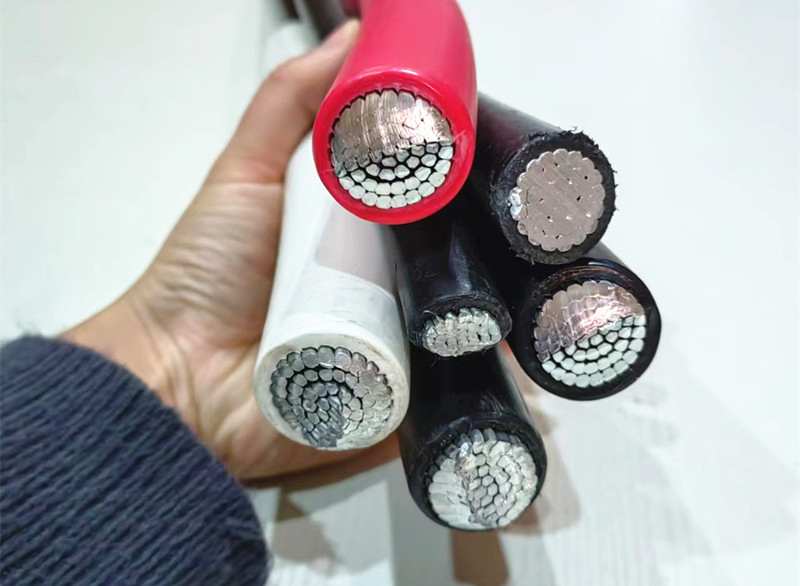

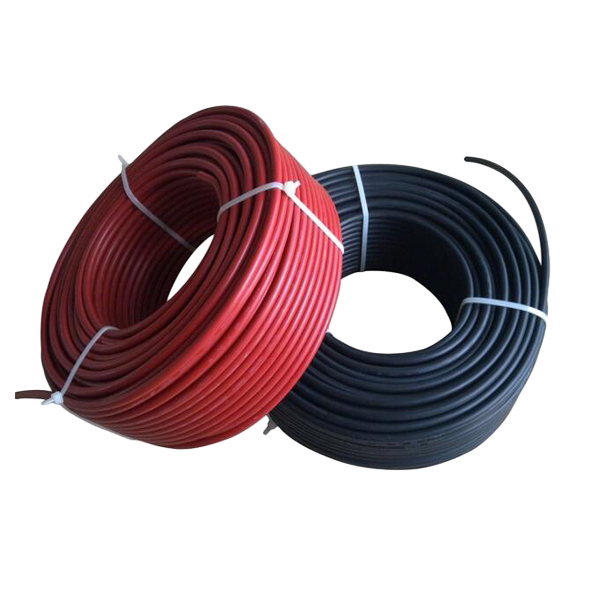

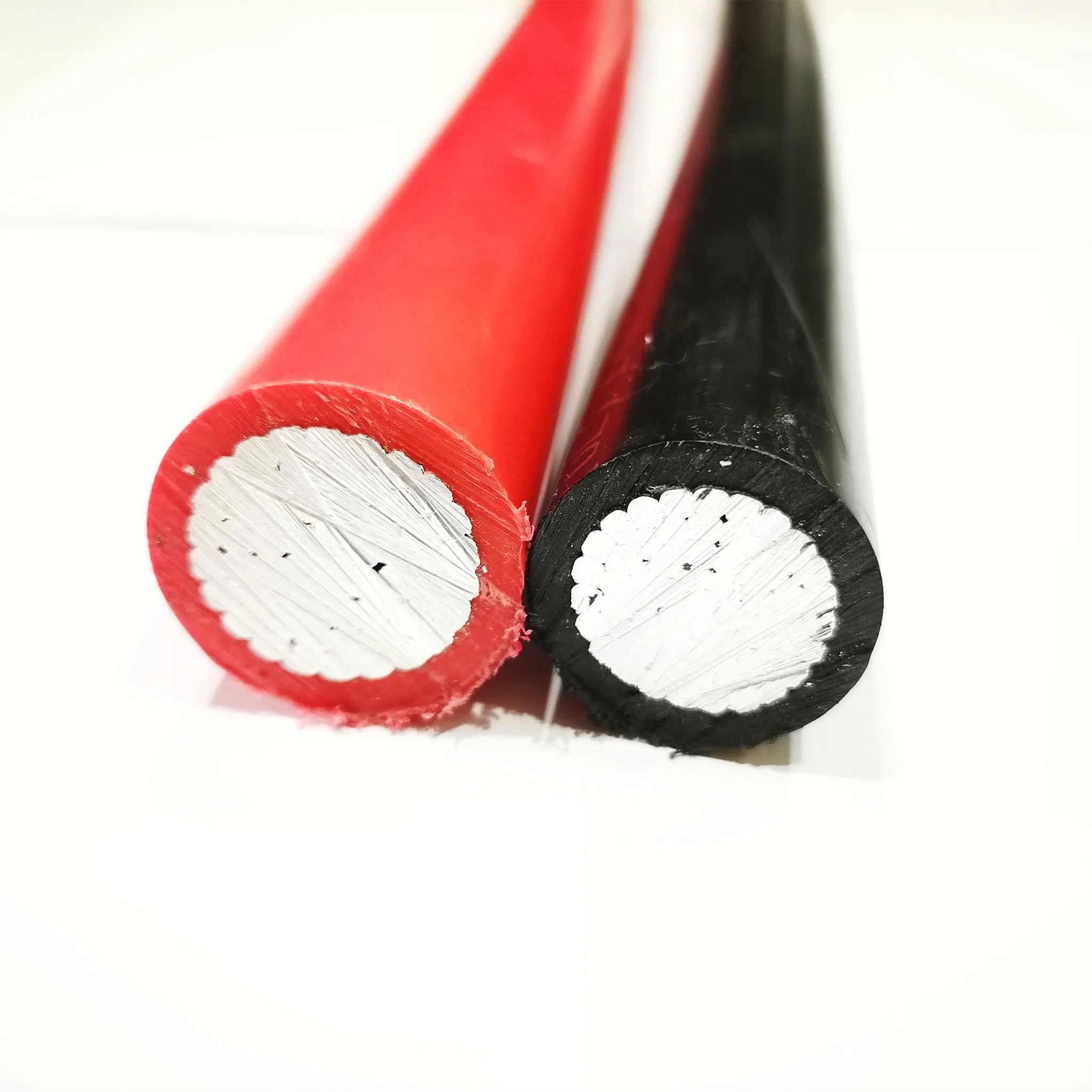

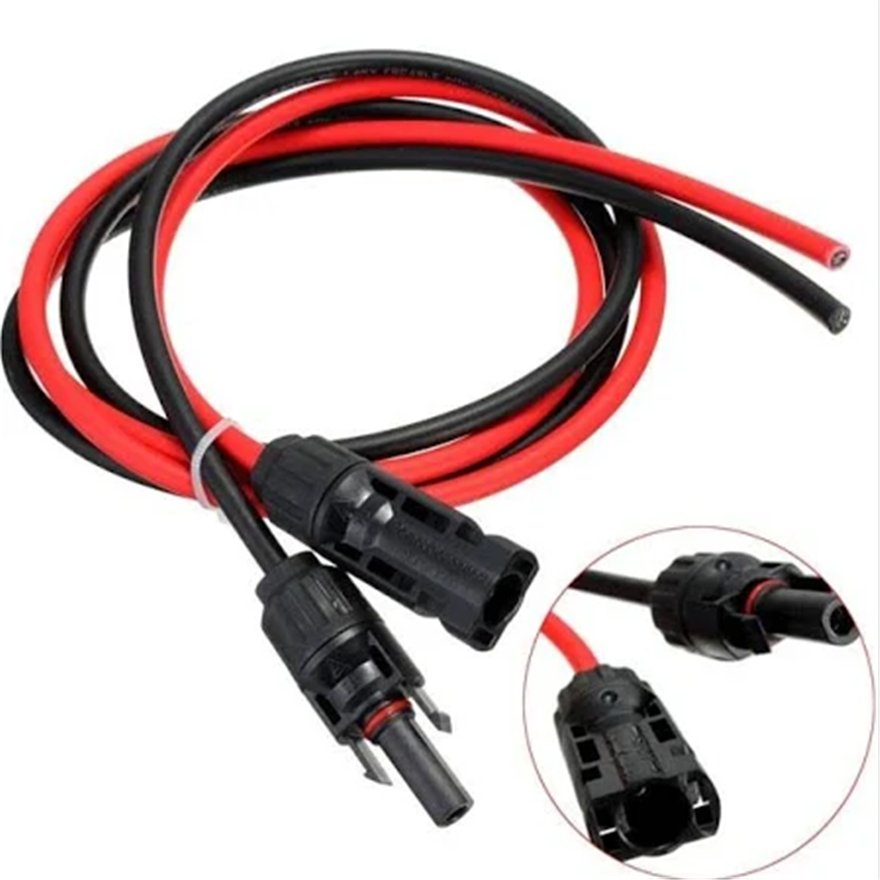

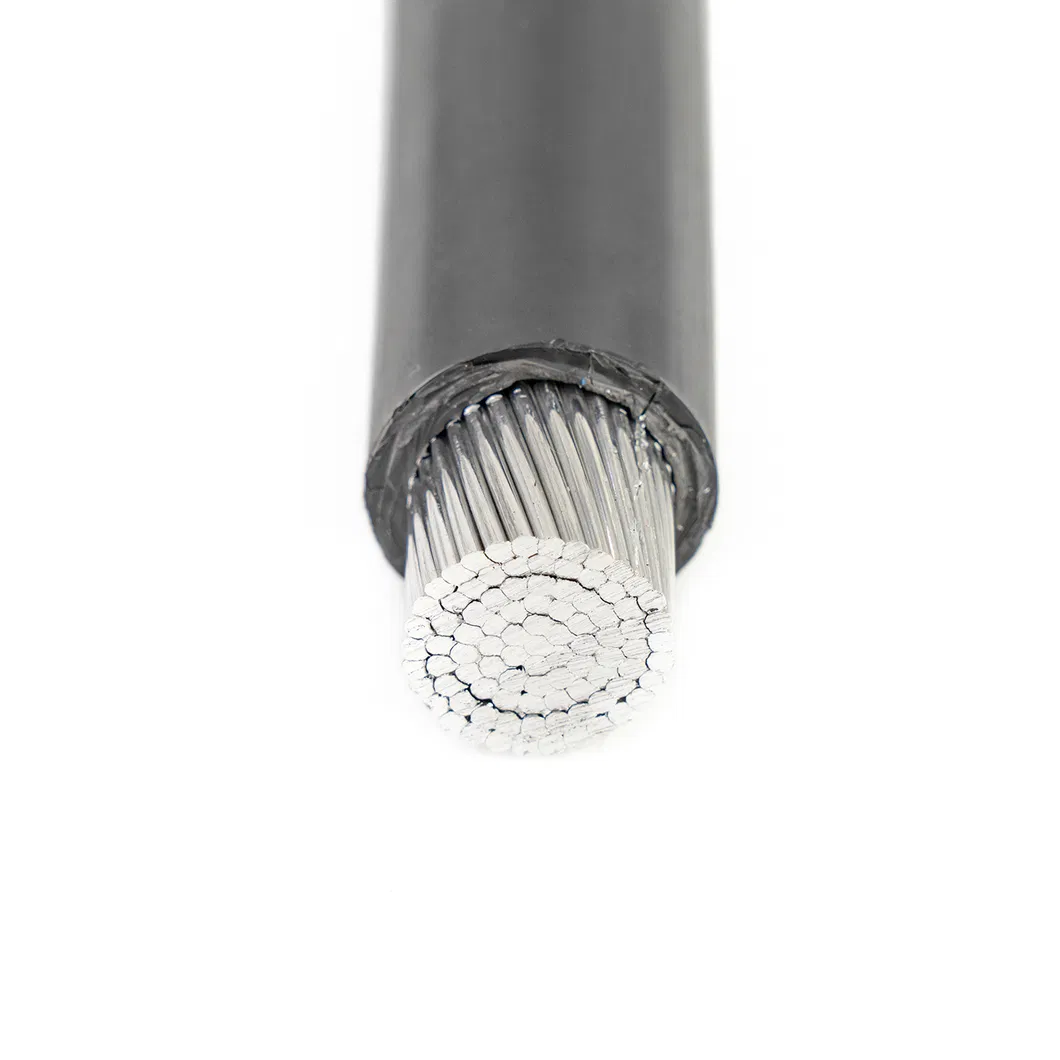

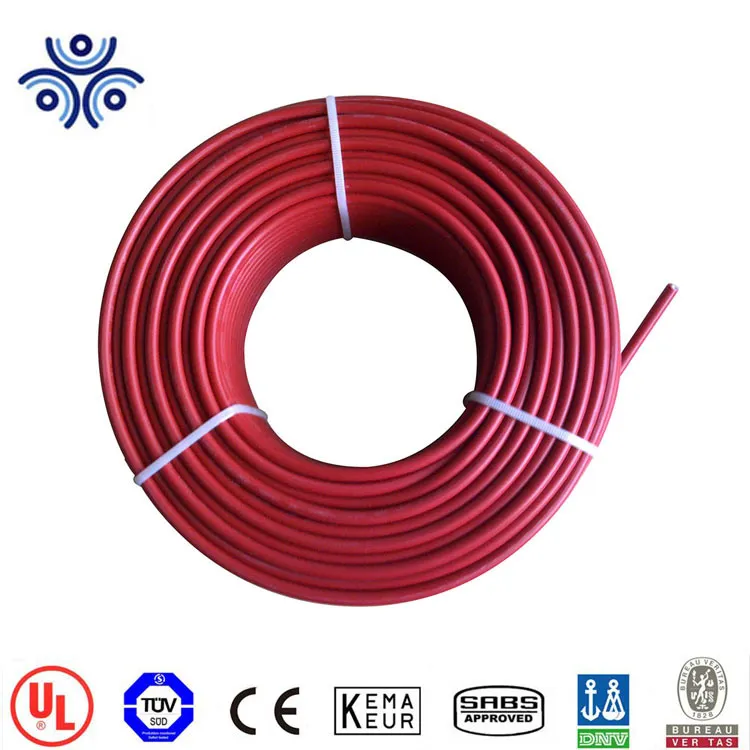

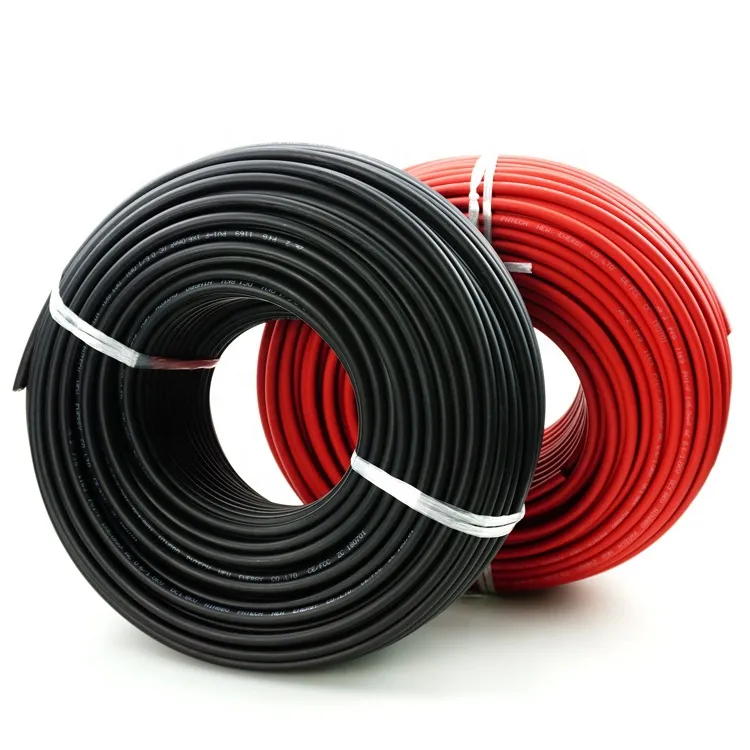

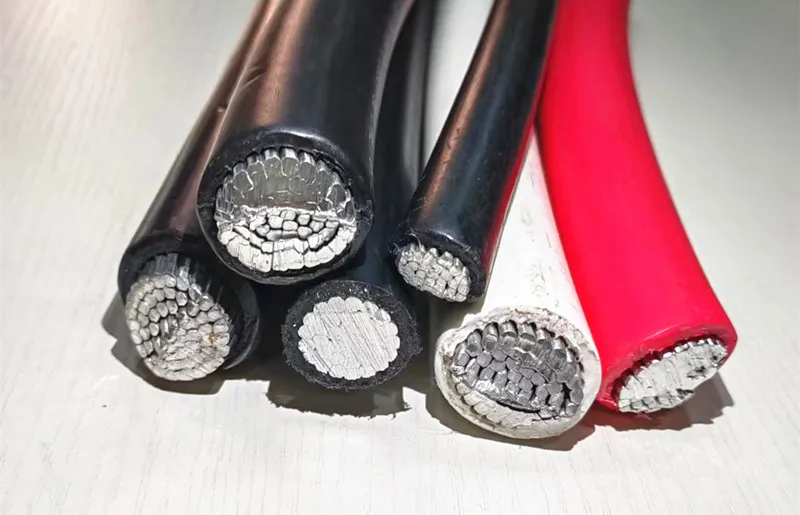

📸 Product Showcase

❓ Frequently Asked Questions

What standards do these solar cables comply with?

The cables are designed to meet EN 50618, IEC 62930, 2 PFG 1169 08.2007, and UL 4703 standards.

What is the expected lifespan of the cable in outdoor conditions?

These solar cables are built for durability with an expected service life of 25 years, thanks to their UV and weather-resistant properties.

Can these cables withstand extreme temperatures?

Yes, they have an ambient temperature rating of -40°C to +90°C and a maximum conductor temperature rating of 120°C.

Are the conductors made of pure copper?

The cables use stranded tinned copper wires as conductors, providing excellent conductivity and superior corrosion resistance.

What makes XLPE insulation better for solar applications?

XLPE (Cross-linked Polyethylene) provides excellent thermal endurance, high current-carrying capacity, and superior mechanical strength compared to standard PVC.

Is the cable flame retardant?

Yes, the cables are halogen-free and flame retardant, complying with the IEC60332-1-2 standard for safety.
