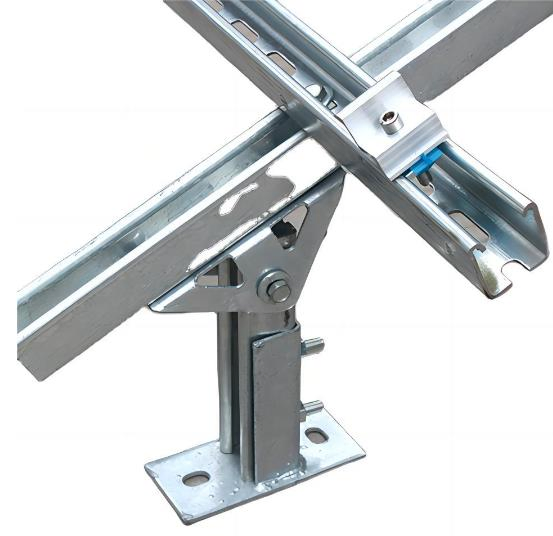

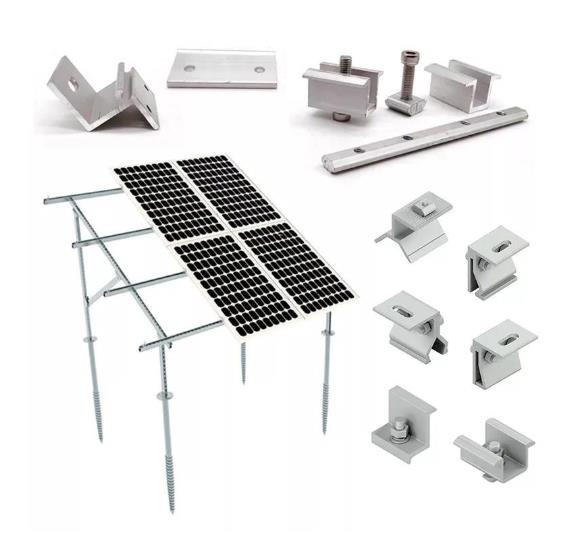

PV Solar Panel Mounting Bracket Structure Rail Connector Splice for Ground and Roof

Customization:	Available
After-sales Service:	Yes
Warranty:	10 Year

Overview

Model NO.

YL-R02

Certification

TUV, CE

Application

Industrial

Material

Aluminum Alloy

Type

Roof Bracket

Install Site

Open Filed

Max Wind Speed

60m/S

Snow Load

1.4kN/M2

Tilt Angle

5-10-15

Color

Silver

Origin

China

Capacity

1000000PCS/Year

Product Description

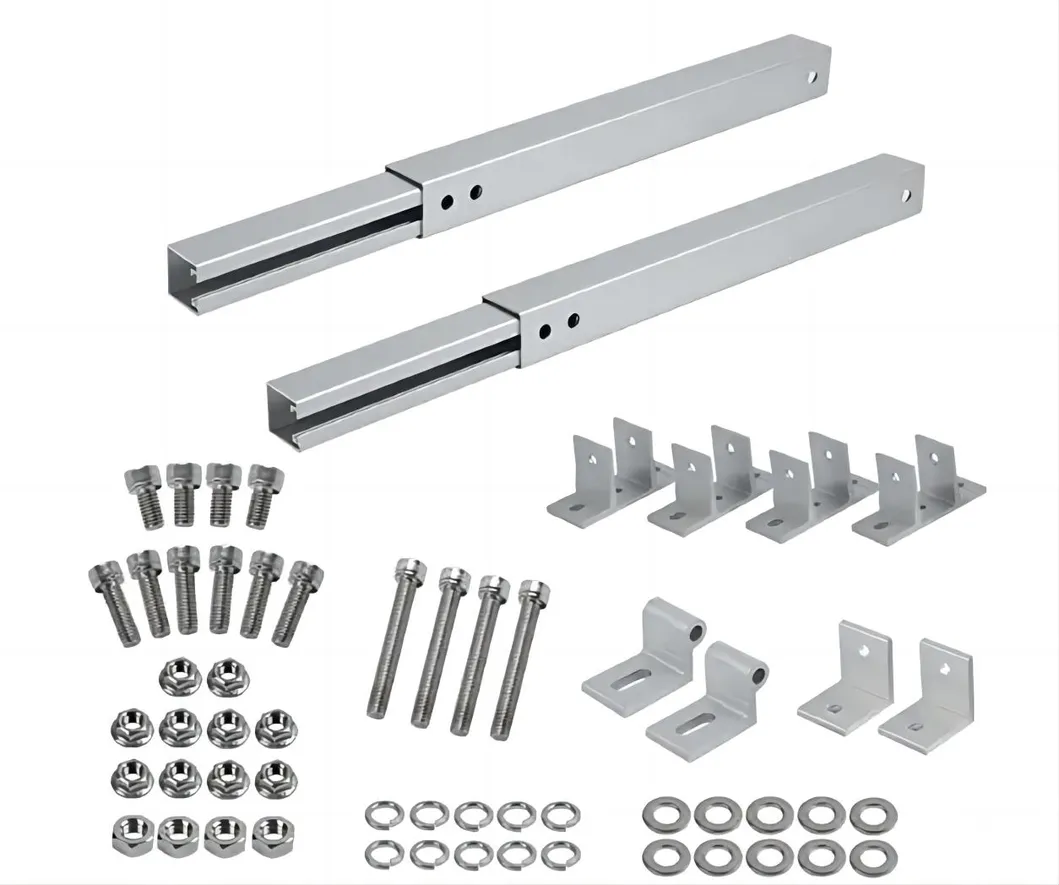

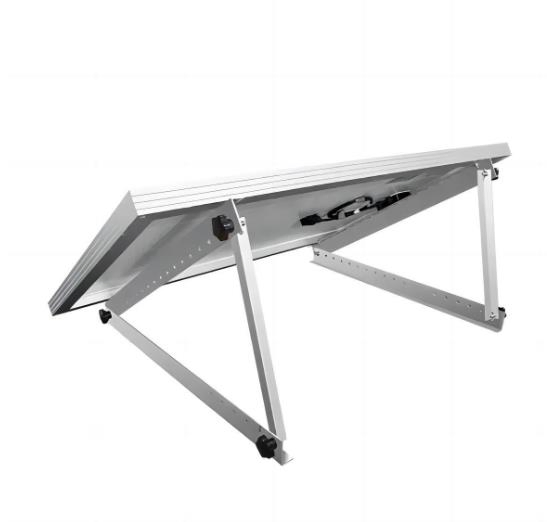

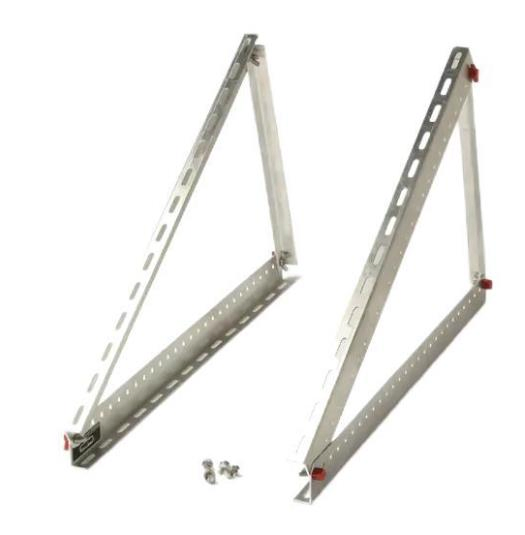

Item Name: Aluminium Silver Adjustable Triangle Solar Bracket

Material: Aluminum 6005-T5 & Stainless Steel 304

Surface Treatment: Anodized and Black Electrophoresis

Size: 22inch, 28inch, 41inch, 45inch, 47inch

Usage: Roof, Ground, Wall, Balcony, RV, Boat, Caravan, Ambulance

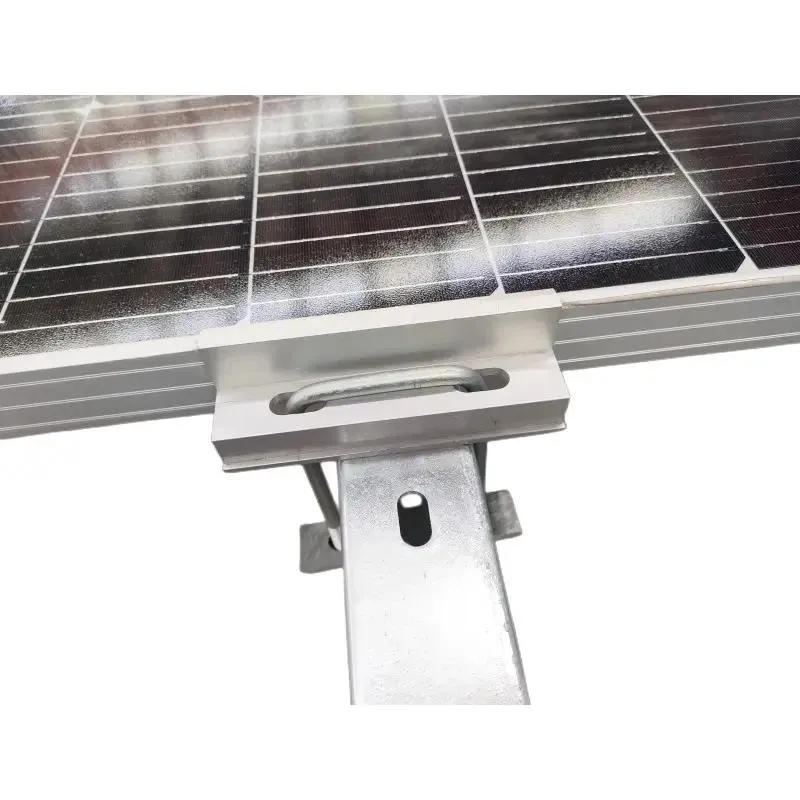

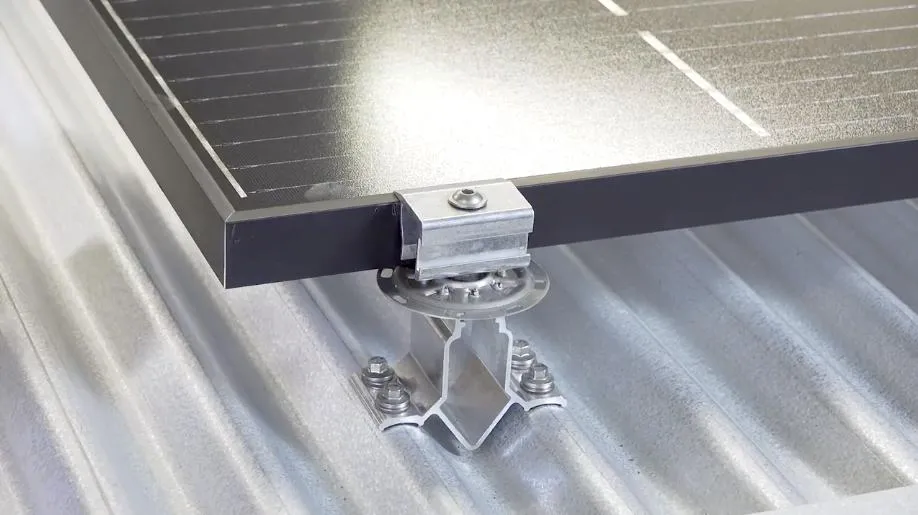

Detailed Photos

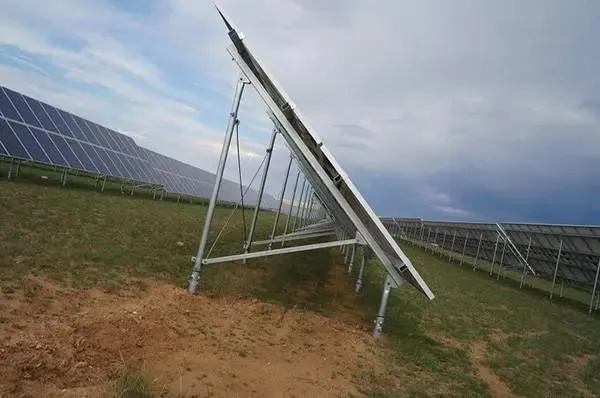

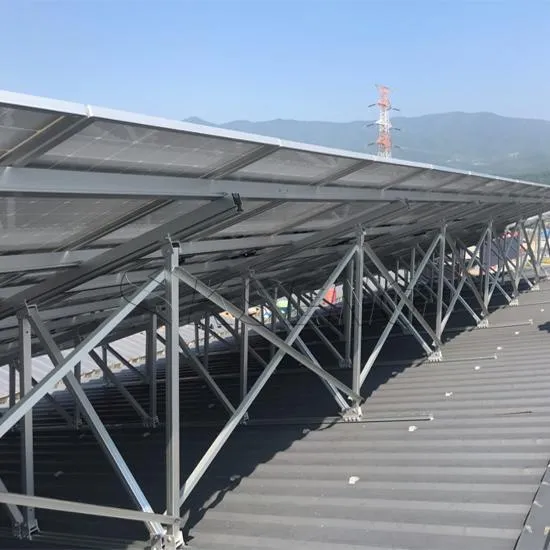

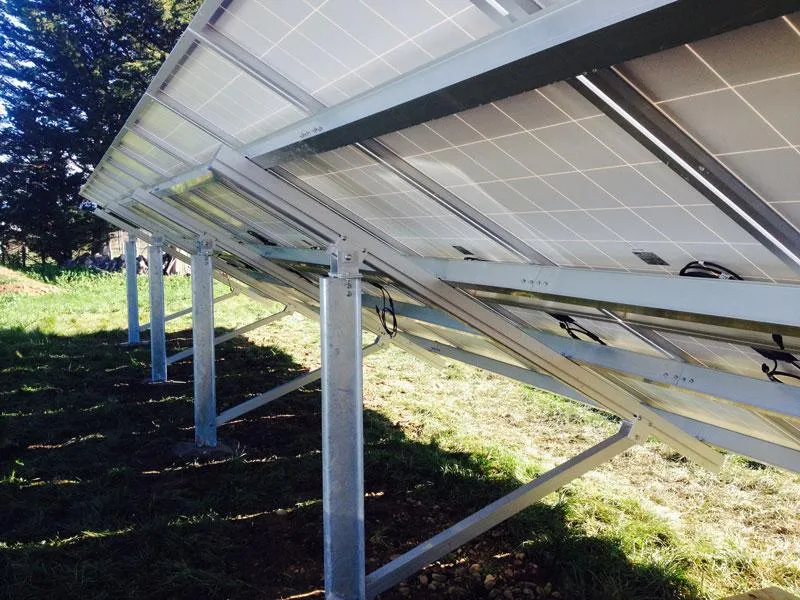

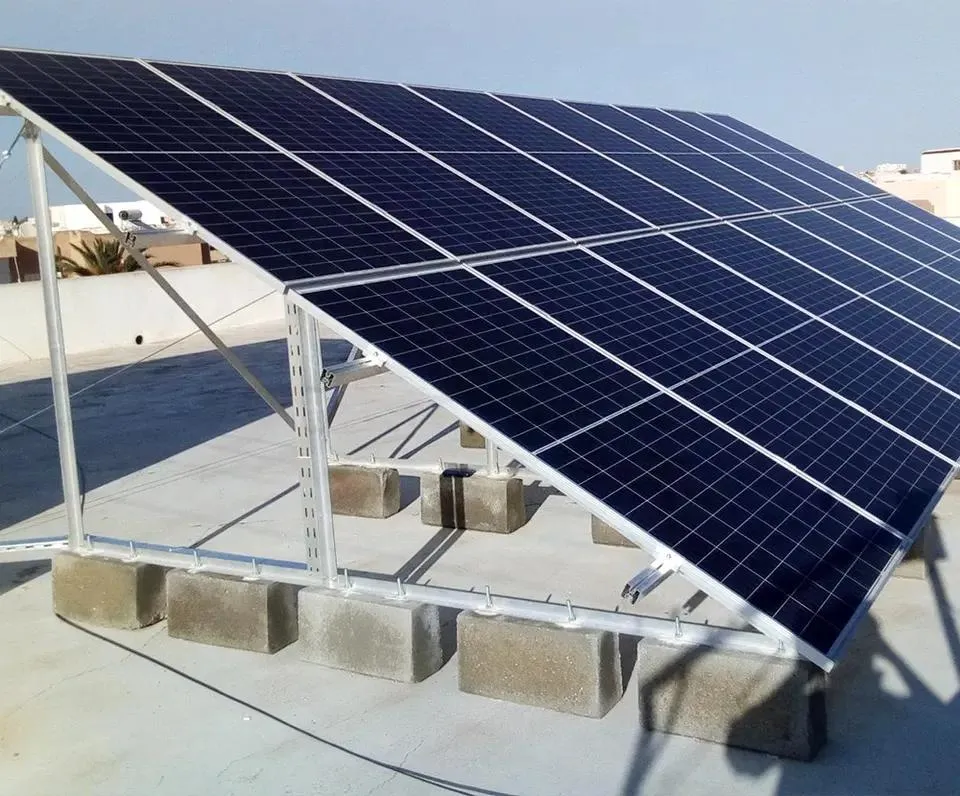

Case Show

Installation Instructions

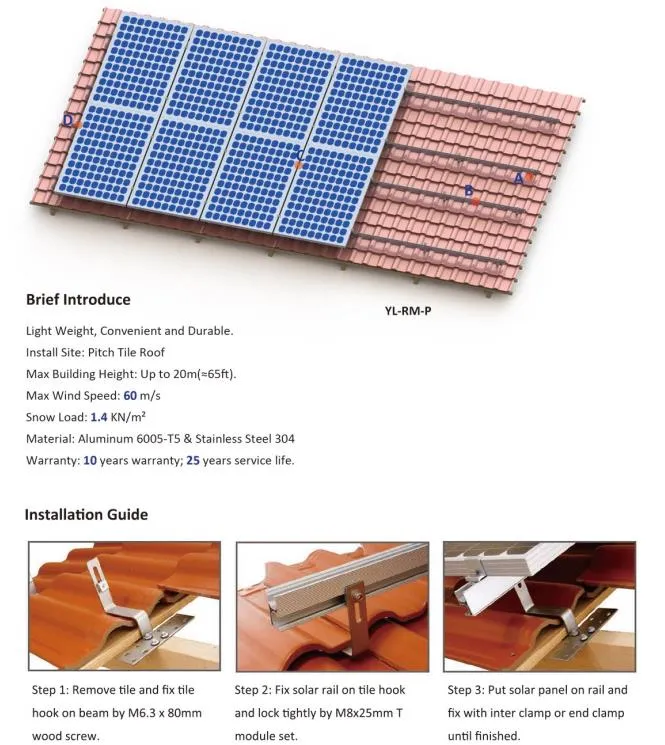

Pitched Tilt Roof Mounting

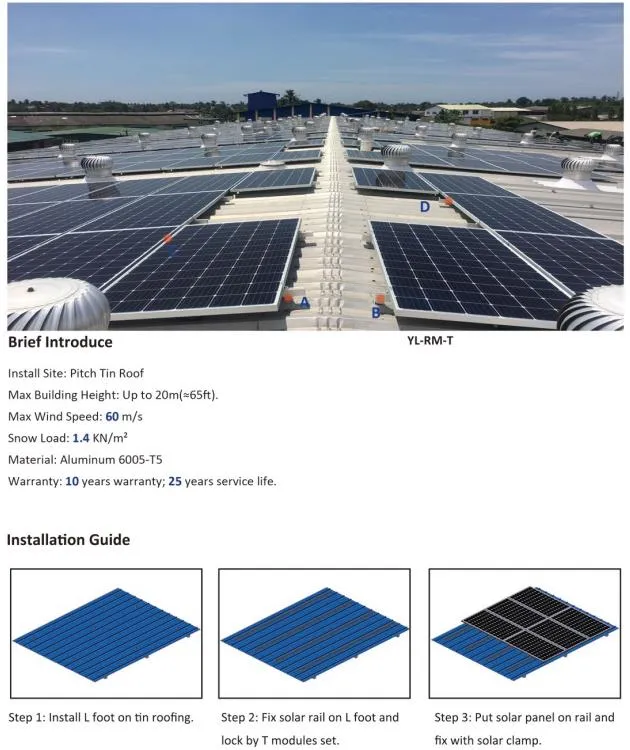

Pitched Tin Roof Mounting

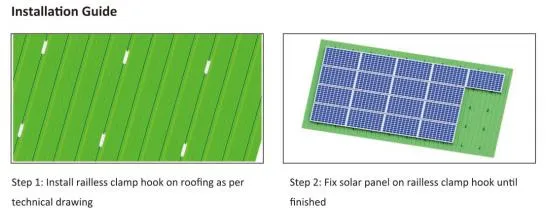

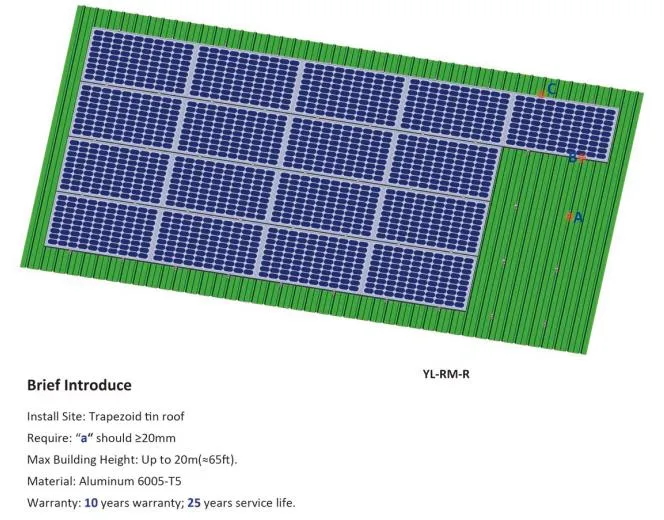

Railless Roof Mounting

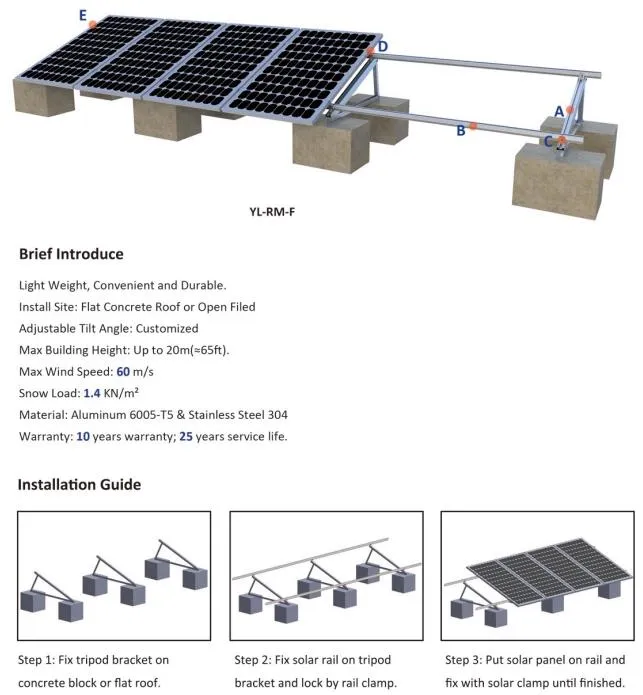

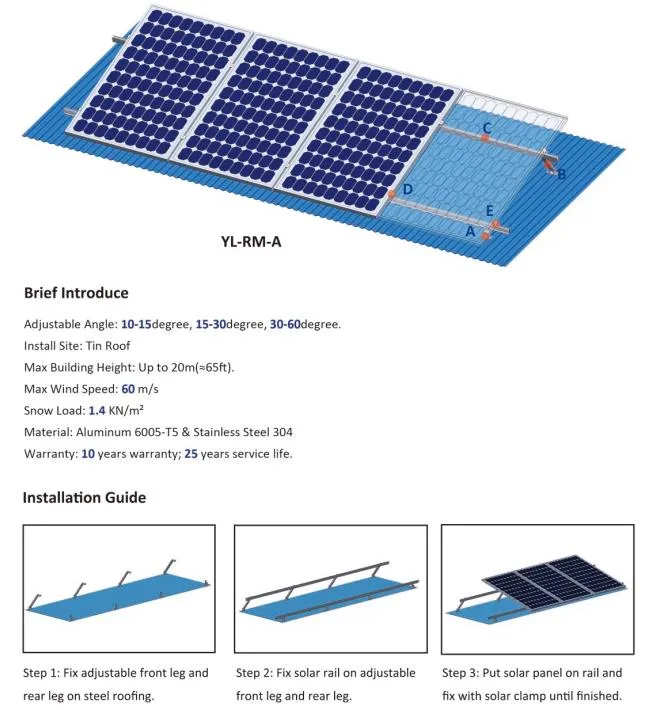

Adjustable Tin Roof & Flat Concrete Roof

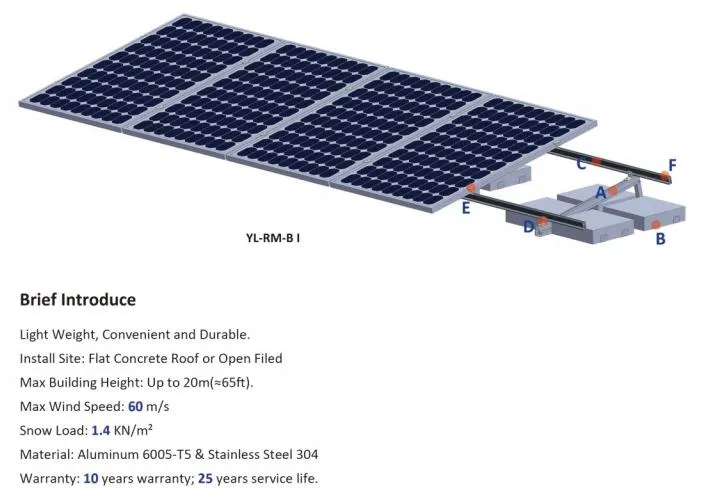

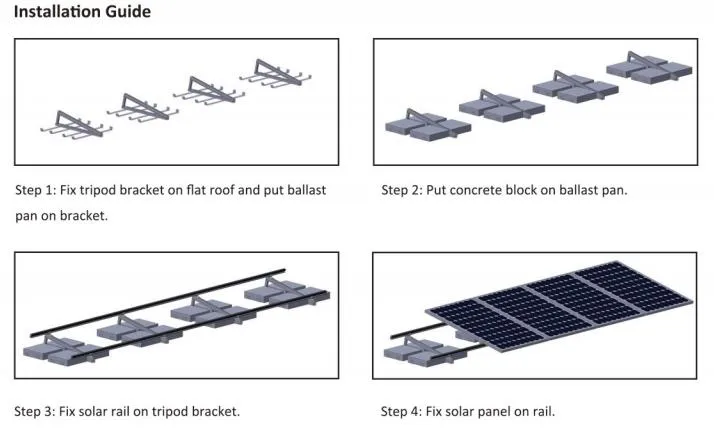

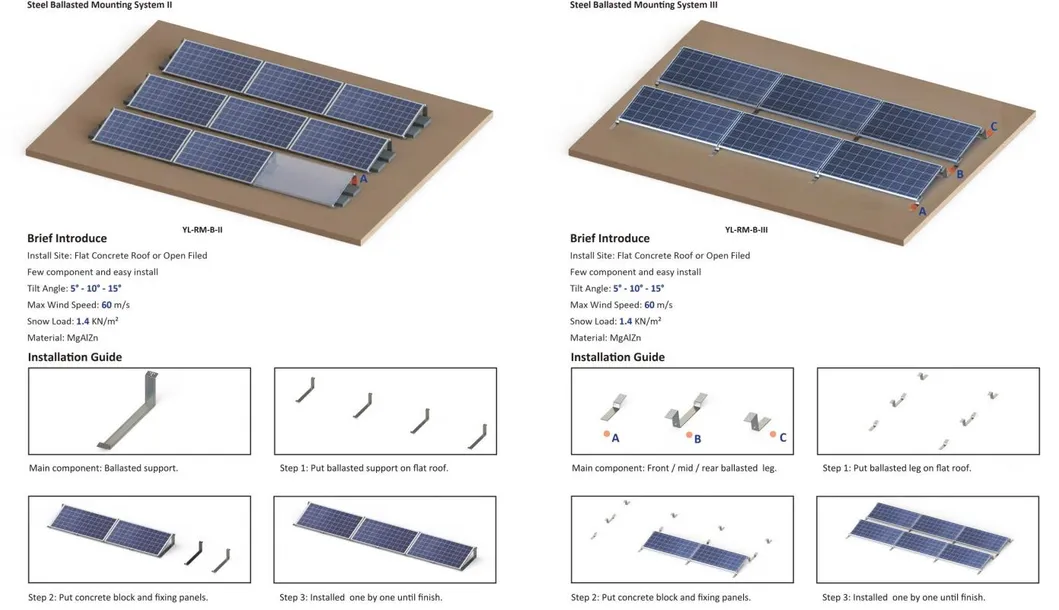

Ballasted Mounting Systems

Product Parameters

Parameter	Details
Product Name	Easy Solar Kit Universal Solar Panel Mounting Brackets
Material	AL6005-T5. SUS304, EPDM
Gross Weight	8 KG per bracket
Module Thickness	30-50 MM
Adjustable Angle	5~50°
Application	Garden, balcony railing, walls, etc.
Warranty	10 Years Warranty, 20+ Years Service Life

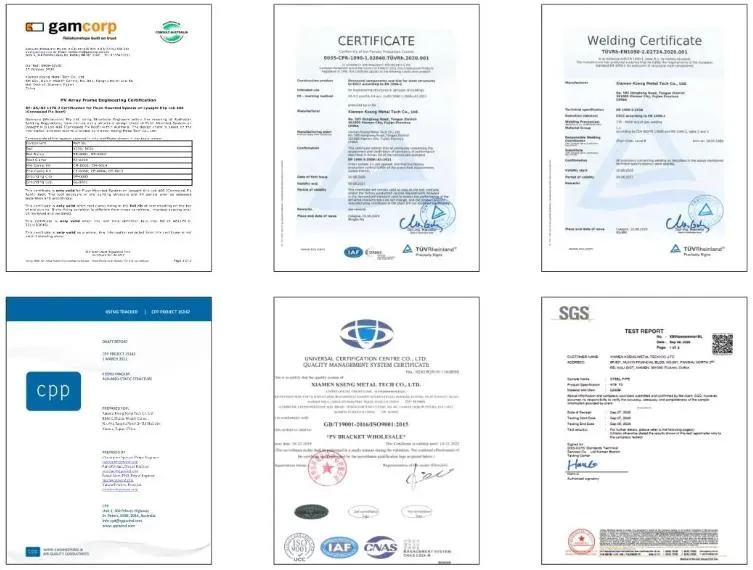

Certifications

FAQ

What are your main products?

We mainly manufacture solar systems, solar panels, inverters, controllers, batteries and mounting systems and all related solar accessories.

Are you a factory or a trading company?

We are a factory with more than 2 years of experience in the production of solar energy series products. You are welcome to visit our factory.

Can you print our company logo on the nameplate and packaging?

Yes, we can do it according to your design requirements for branding and packaging.

Can you support OEM and field installation?

Yes, as a professional solar system manufacturer, we can provide customers with OEM services and on-site installation assistance.

How does your factory conduct quality control?

Quality first. We have a professional QC team to strictly control the quality. Only when the quality meets the requirements, will it be packaged for delivery.

What are your strengths in solar systems?

Fully automatic production line using international advanced equipment. Our price and quality are highly competitive, ensuring top-tier solar energy products.
