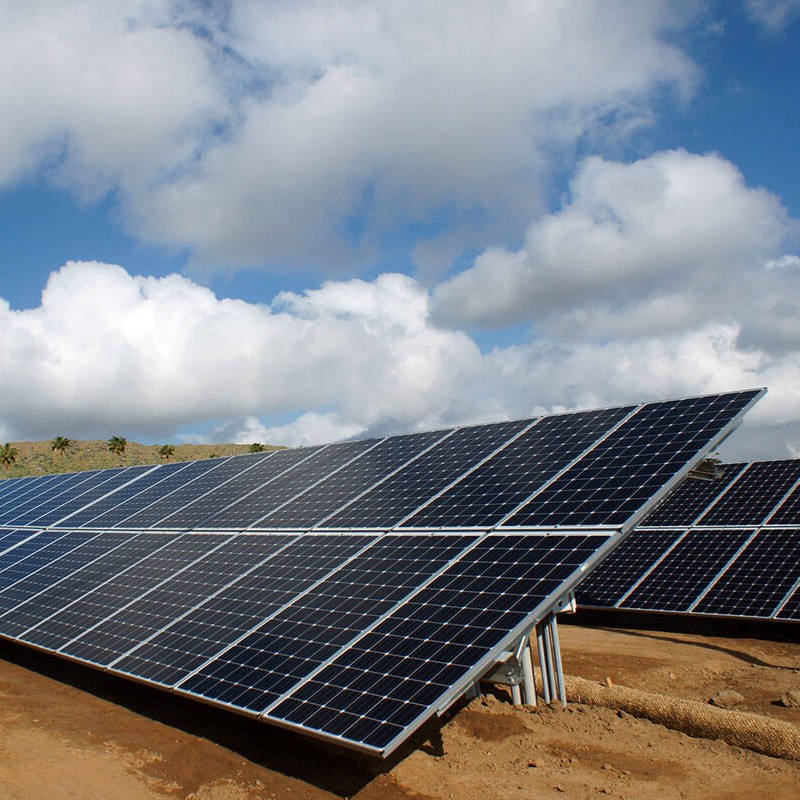

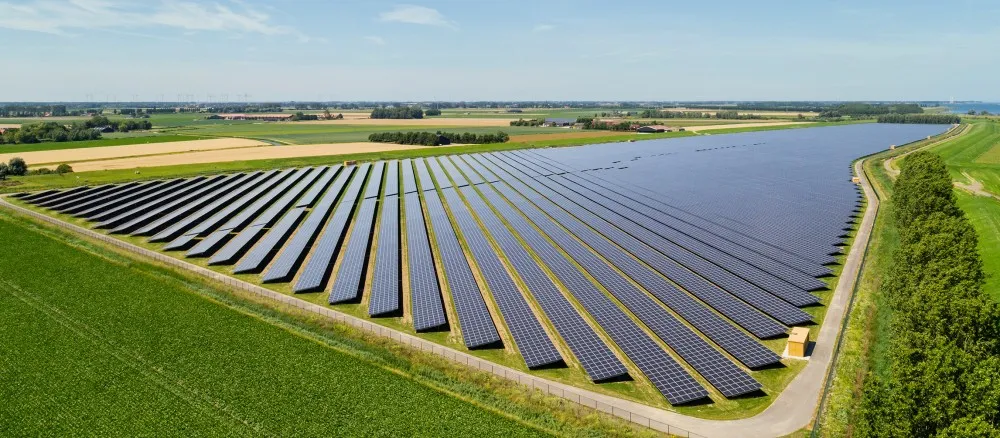

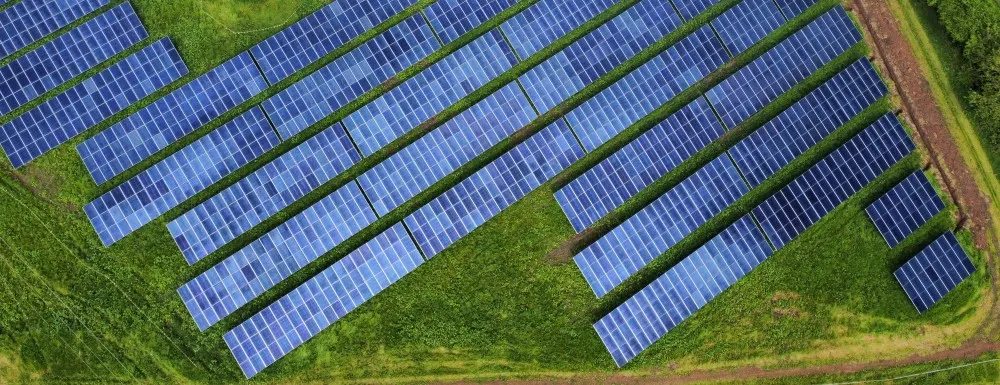

Ground mount solar racking systems are engineered for large-scale projects such as commercial PV power stations. They utilize high-strength metal structures and stable bases to ensure long-term durability and efficiency.

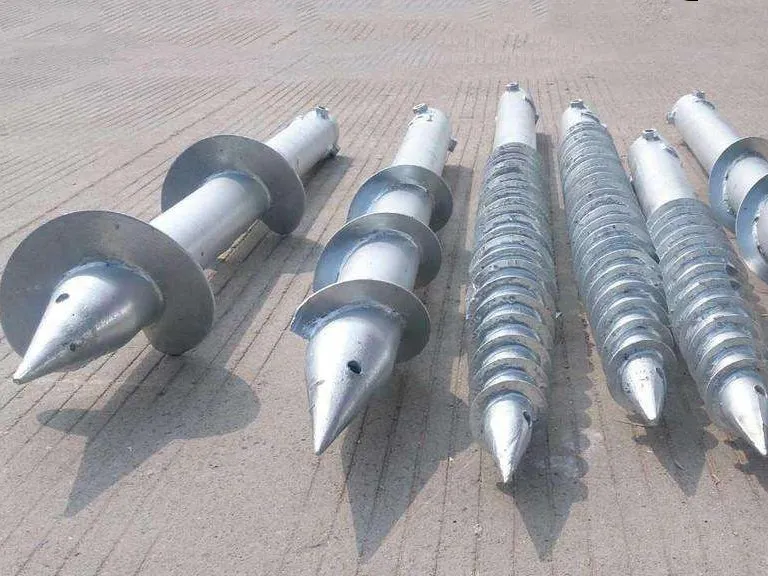

1. Base: Robust support capable of withstanding extreme wind and snow loads.

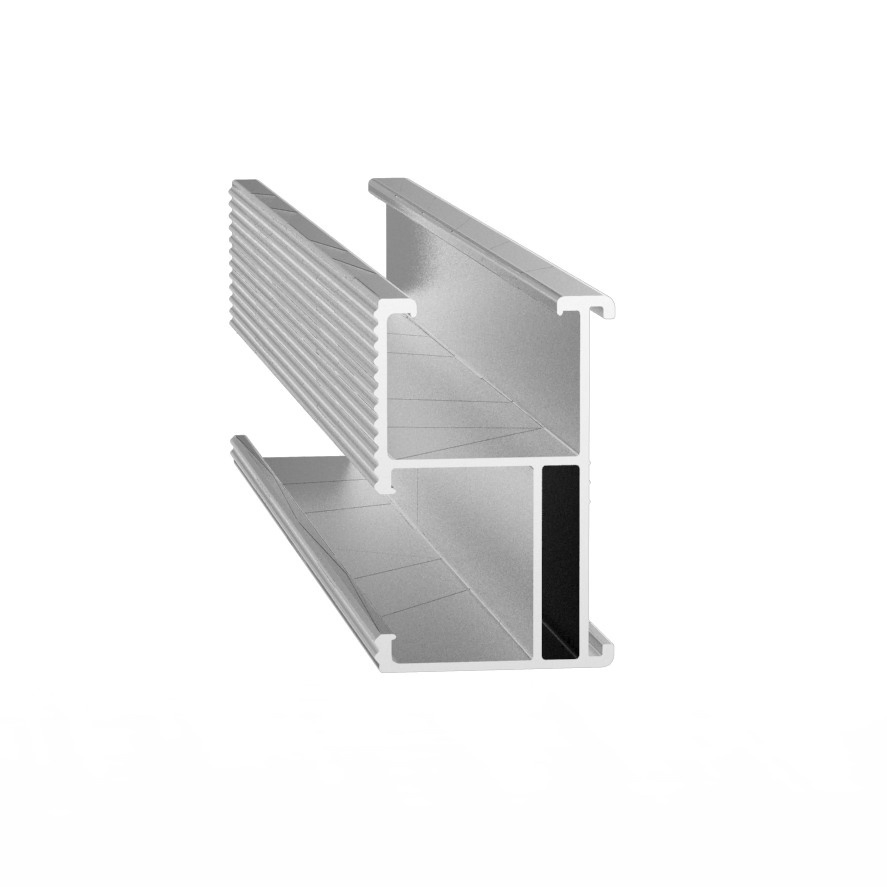

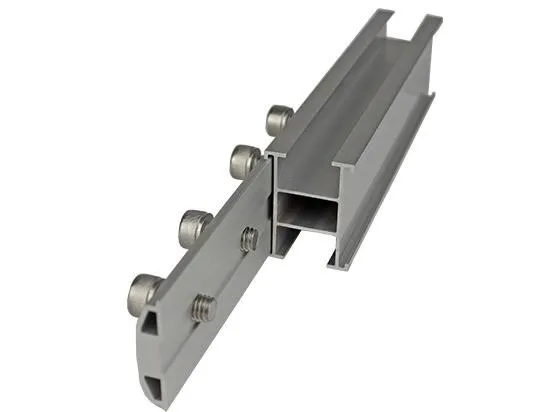

2. Structure: Tailor-made racks designed according to panel size and local geographic coordinates.

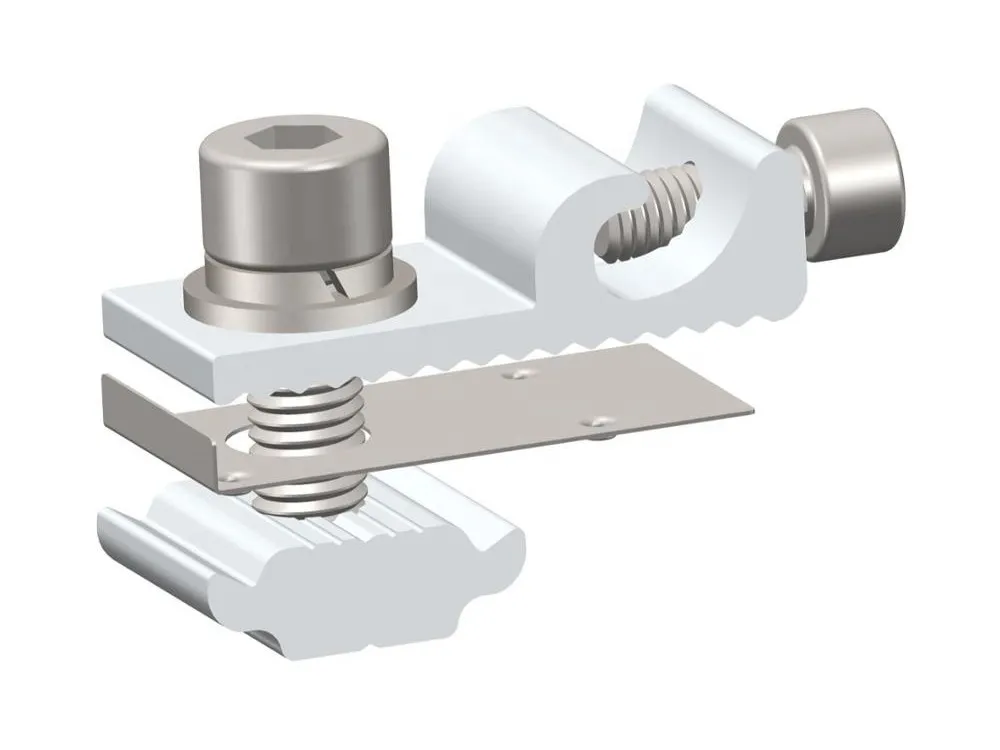

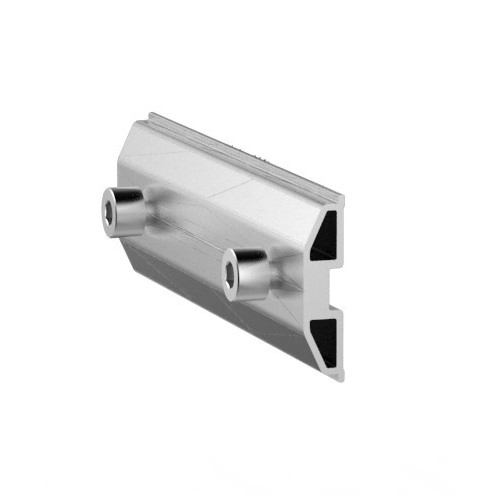

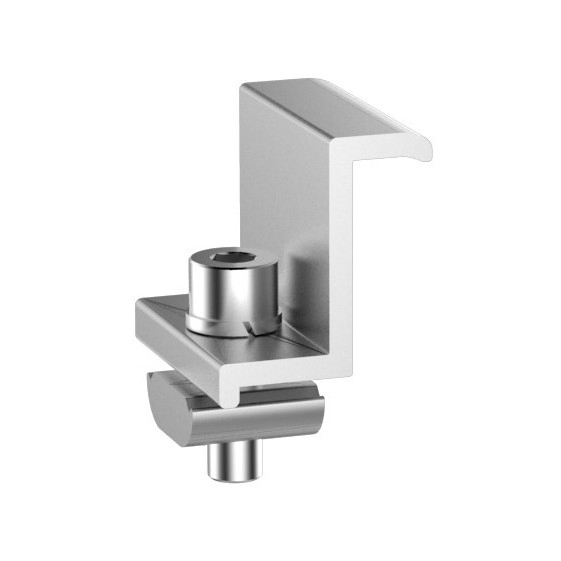

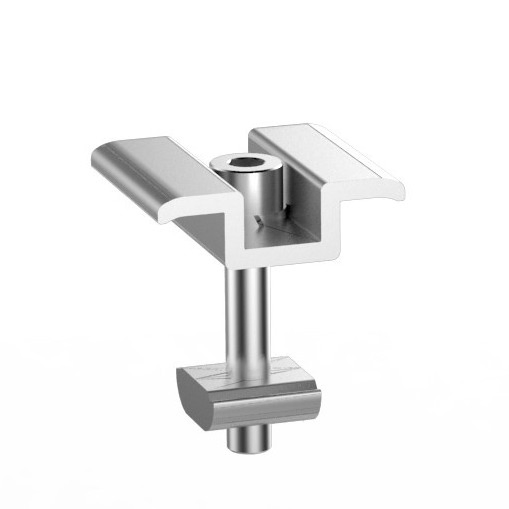

3. Clamps: High-security mid and end clamps to fasten panels firmly.
• Wide Adaptation: Suitable for various terrains, including sloping or uneven surfaces.
• Durability: Built with 6005 T5 anodized aluminum alloy for superior weather resistance.
• Easy Maintenance: Accessible design allows for simple repairs and cleaning.

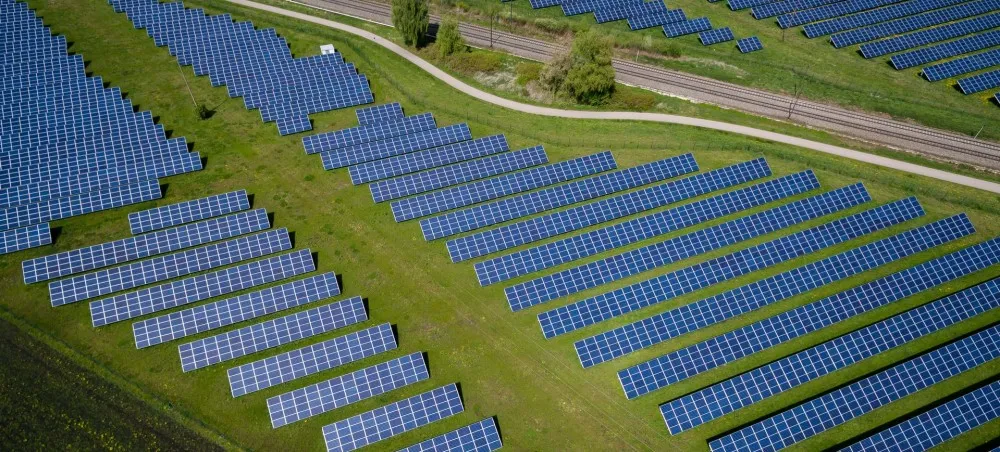

• Sustainability: Minimizes disruption to existing structures and optimizes land use.
| Mount Type | Customized mounting system |
| Standard | AS/NZS 1170 |
| Applicable Module | Framed or frameless panel |
| Roof Clearance | Customized |
| Wind Load | Up to 218Kmph (60m/s) |
| Snow Load | Up to 30psf (1.4KN/m2) |
| Width of Solar Module | 751 ≤ A ≤ 1313 mm |
| Thickness of Module | 30-50 mm |
| Adjustable Angle Range | 15~50° |
| Material | Aluminum alloy 6063 T5 |
| Application | Ground, balcony, railing, walls etc. |
| Warranty | 10 years |
