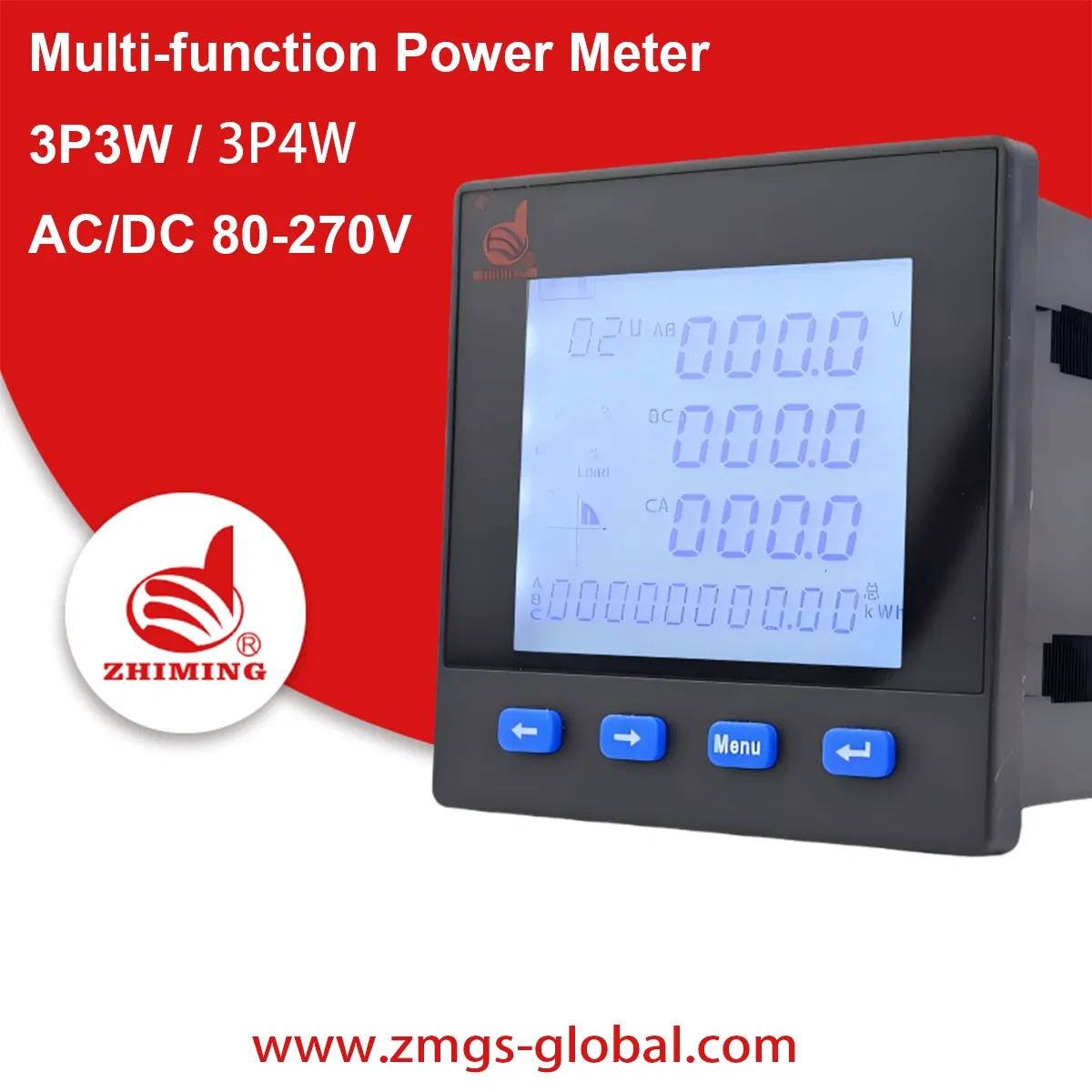

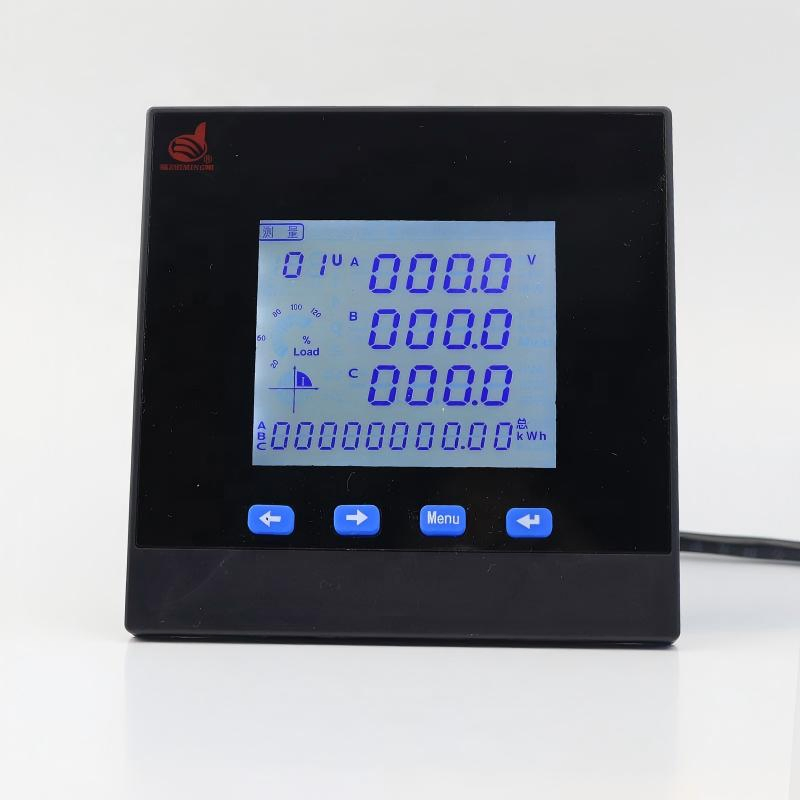

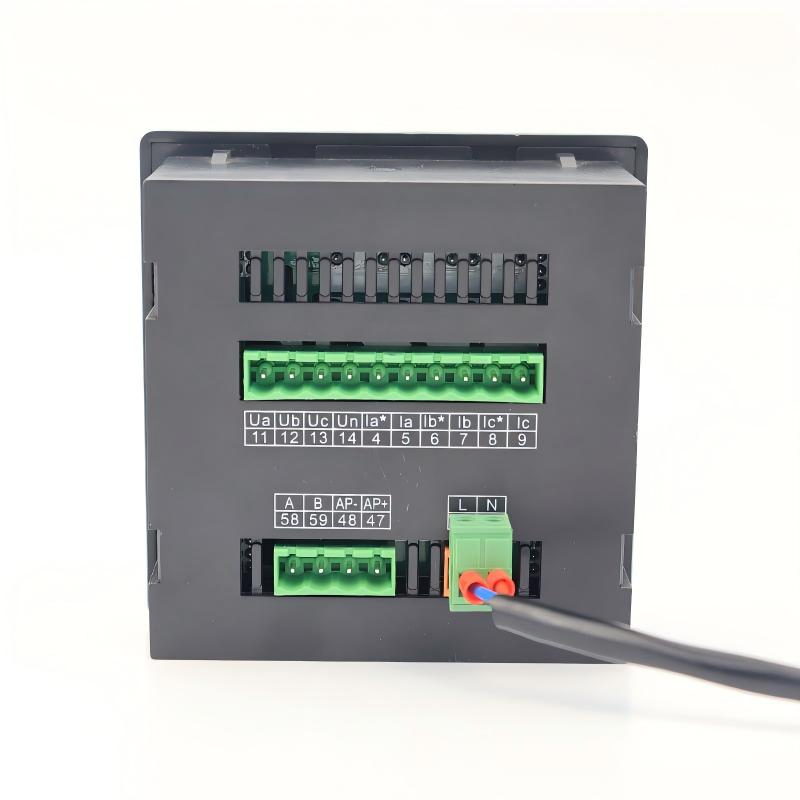

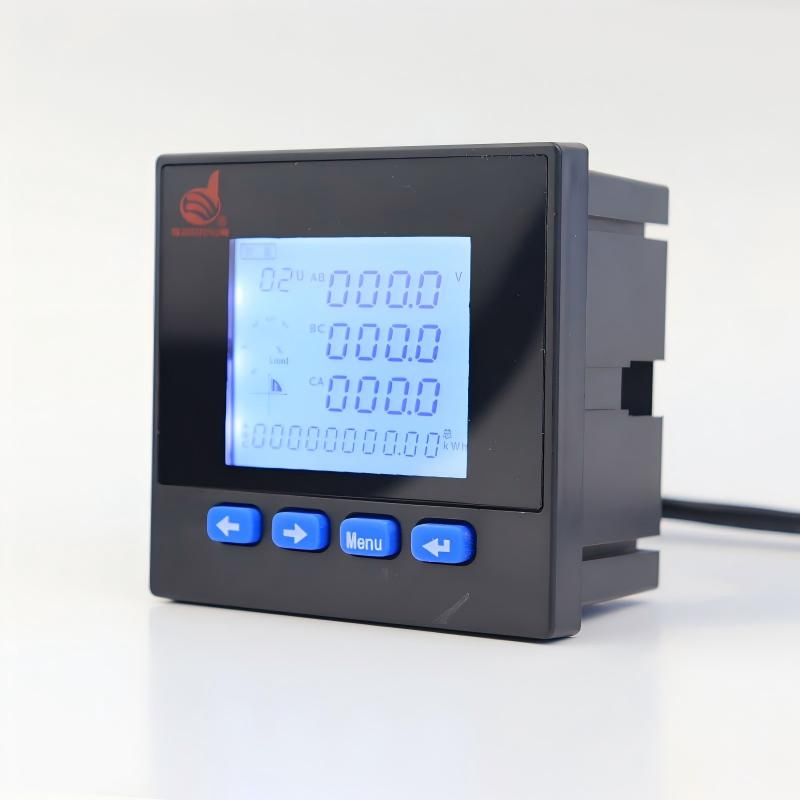

Multifunction Power Metering Energy Digital Panel Electricity Ammeter Smart Multimeter Quality Analyzer Module RS-485

Customization:	Available
After-sales Service:	Yes
Warranty:	1year

Basic Information

Model NO.

ZM-3D

Display

Digital

Installation

Direct Connected

Electric Equipment

Three-phase Four-wire

Theory

Electronic Meter

Accuracy

0.5 Class

Voltage

AC/DC80V~270V

Frequency

45~65Hz

Hole Size

111×111; 76X76; 92×92; 68×68

Communication

Modbus-RTU / RS-485

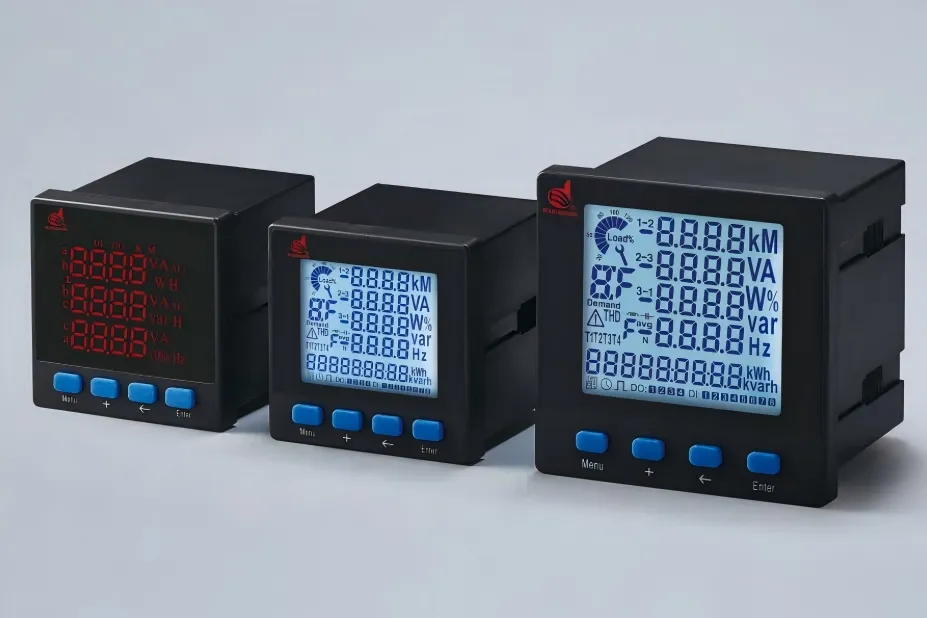

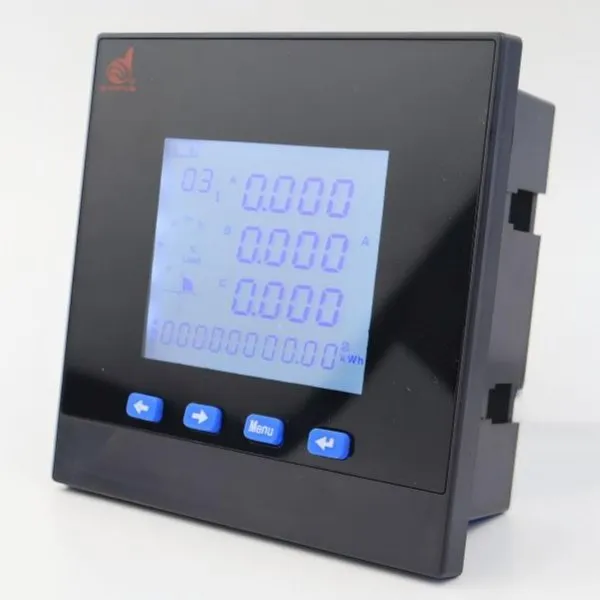

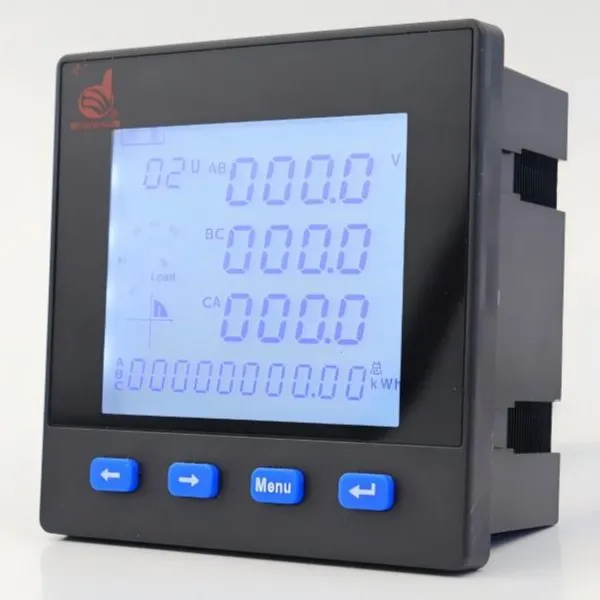

Product Description

Application

The multi-functional monitor and control meter is a high-performance intelligent instrument. It measures power parameters and harmonic waves in real-time, including positive and negative active/reactive energy. It analyzes electric quality, displays real-time waves, and records events and demands. Integrated with RS-485 ports, it supports various intelligent distribution systems. It is widely used in energy management systems, power monitoring, industrial facilities, and smart buildings.

Performance Characteristics

High precision measurement of three-phase voltage, power, factor, and frequency.
Forward and reverse active/reactive energy measurement.
Time-sharing / power timing meter reading capabilities.
Measurement of THD (Total Harmonic Distortion) and 2-31 odd harmonic components.
Nixie tube or liquid crystal display options with local data query.
Programmable current and voltage gain.
Supports multiple circuit leakage monitoring and loop control nodes.
Remote cut-off support for fault circuits via fire control signals.
RS-485 communication with Modbus-RTU protocol.
AC/DC 80V-270V wide-range power supply.

Technical Data

Voltage Level

0.5

Active Power

0.5

Frequency

±0.02Hz

Rated Voltage

AC 57.7V, 100V, 220V, 380V

Rated Current

AC 1A, AC 5A

Power Consumption

<4VA

Environment Temp

-10℃ ~ +55℃

Safety Insulation

>100MΩ

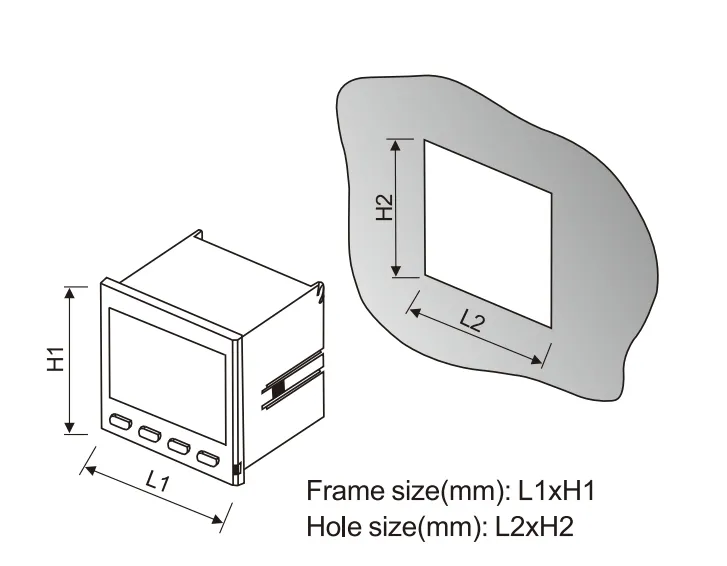

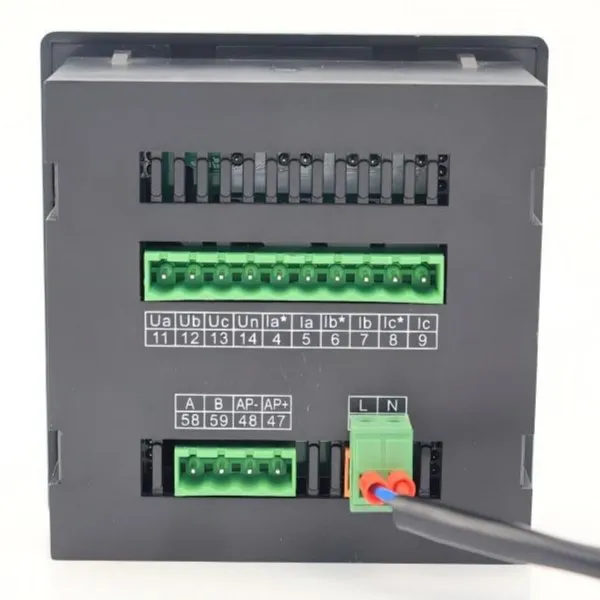

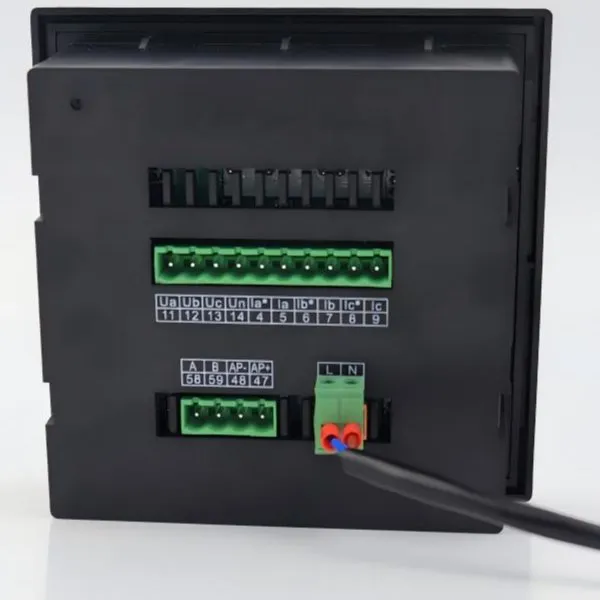

Wiring Diagram & Dimensions

1

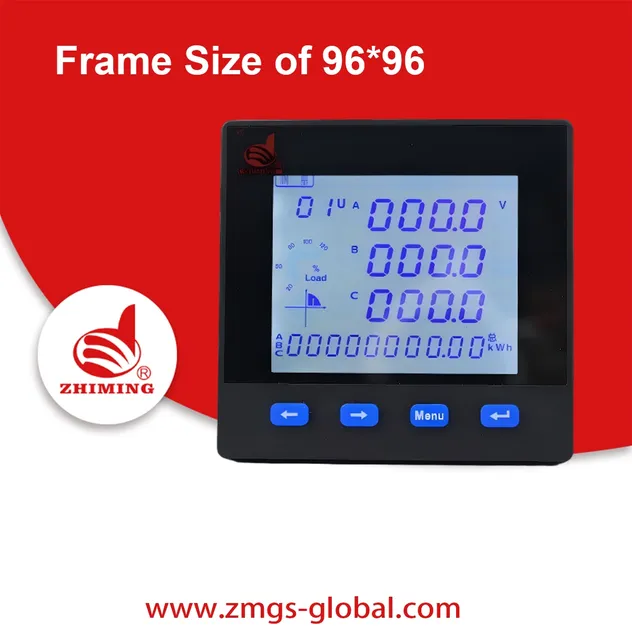

Frame size(mm): 120×120; 80×80; 91×91; 66×66; 96×96; 72×72

2

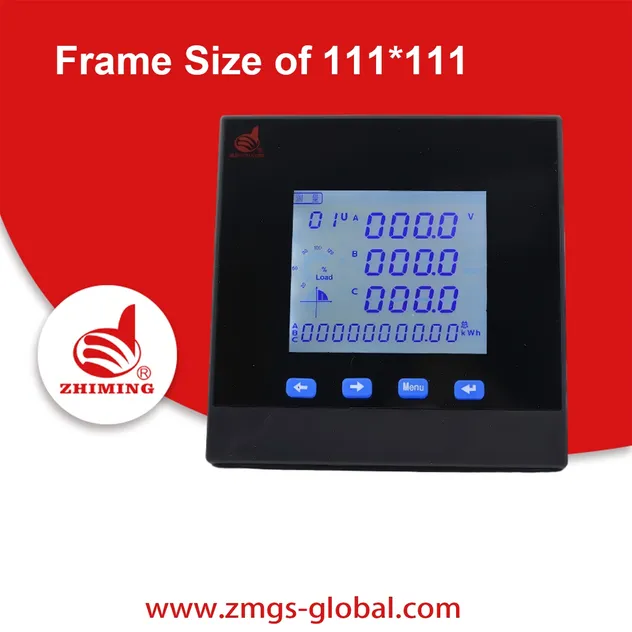

Hole size(mm): 111x111; 76x76; 91×91; 68×68

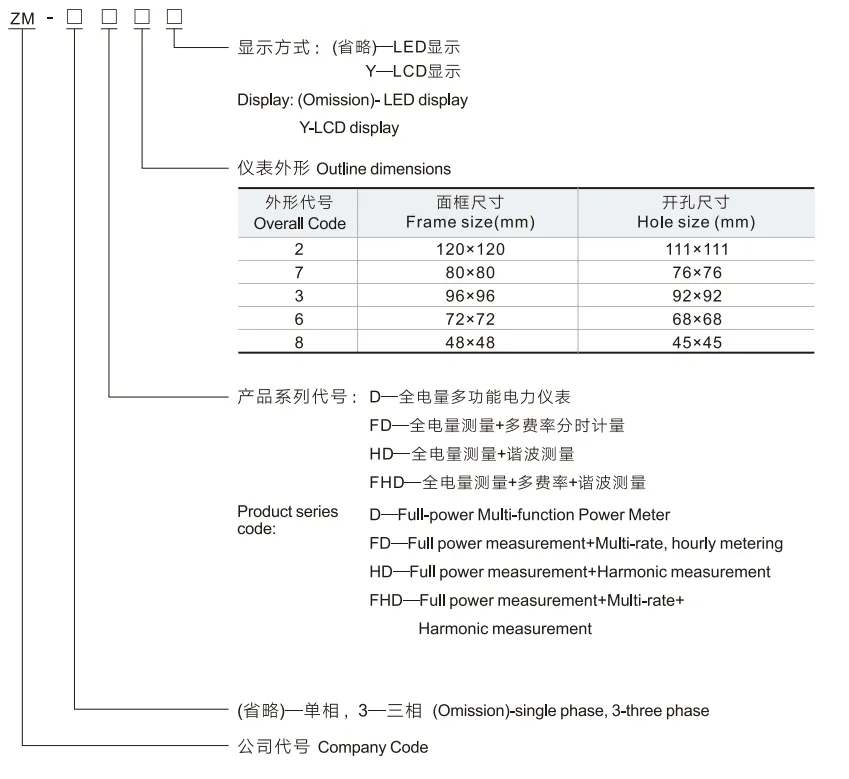

Specification Selection

Model	Electricity measurement	Energy metering	Sharing billing	Harmonic measurement	Energy pulse	Comm. Interface	Switch In/Out
ZM-AV, DV, 3AV Series	√	-	-	-	-	√	√
ZM-AA, DA, 3AA Series	√	-	-	-	-	√	√
ZM-P, Q, 3P, 3Q Series	√	-	-	-	-	√	√
ZM-D, 3D Series	√	√	-	-	√	√	√
ZM-3FD Series	√	√	√	-	√	√	√
ZM-3HD Series	√	√	-	√	√	√	√

Frequently Asked Questions

Why should I choose these products?

We are factory direct specialists in capacitor and meter production since 1999, holding numerous certifications. Our products offer high quality at competitive prices.

Do you accept custom products?

Yes, we accept OEM orders. You can provide your specific requirements, and we will fully cooperate to meet your needs.

How long is the warranty period?

We offer a comprehensive one-year warranty for all our customers.

What payment methods are accepted?

We primarily accept T/T (Telegraphic Transfer) and L/C (Letter of Credit) for order releases.

Are there discounts for bulk orders?

Yes, for larger quantities, we always support our clients with better pricing. Please contact us for specific discount details.

What is the estimated delivery time?

Samples typically take 3-5 days. For orders exceeding 1000 pcs, the production and delivery time is approximately 7-15 days.
