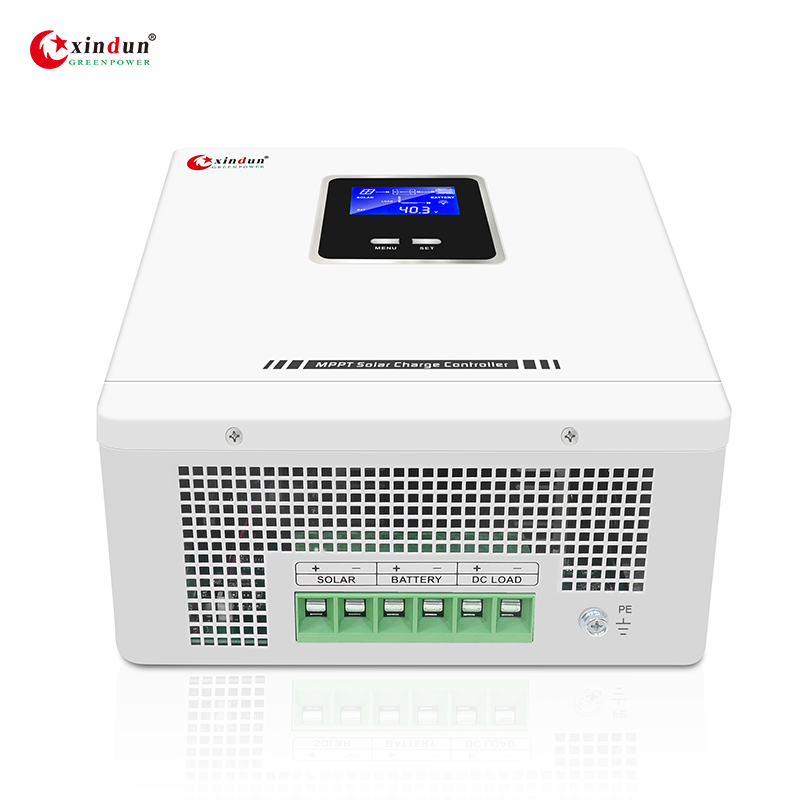

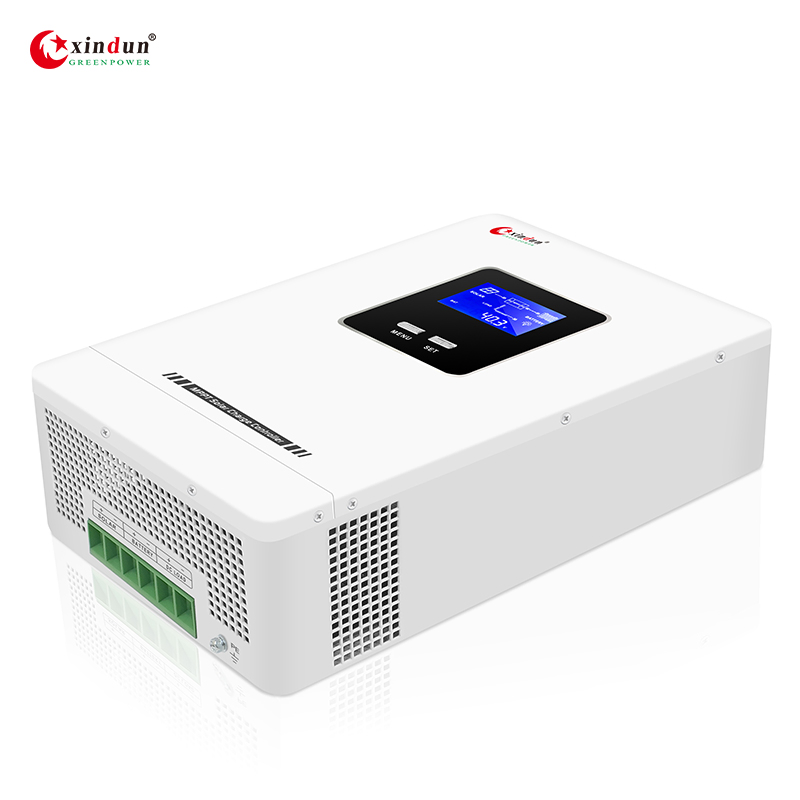

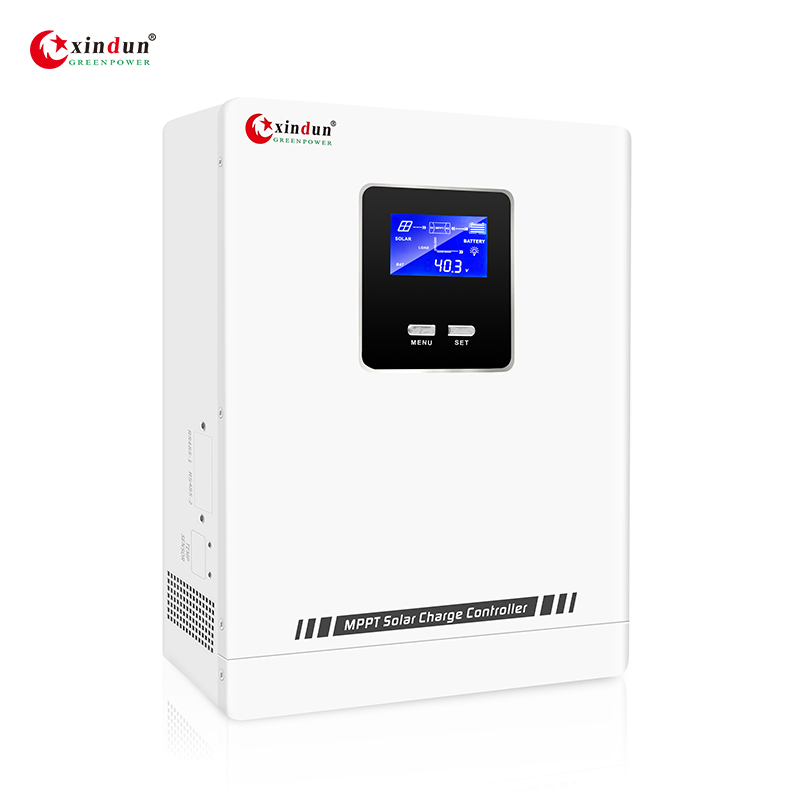

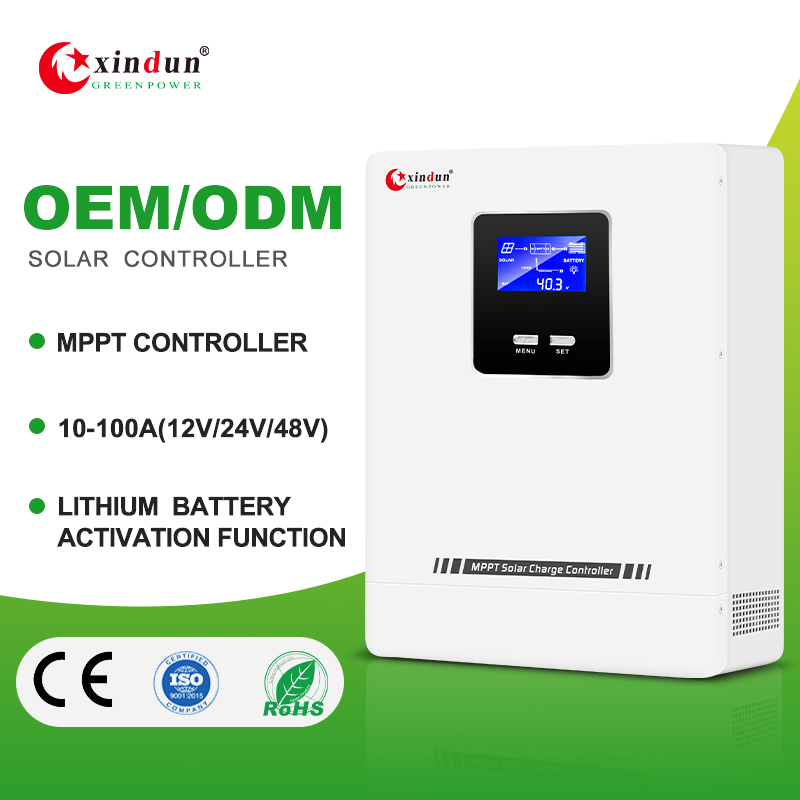

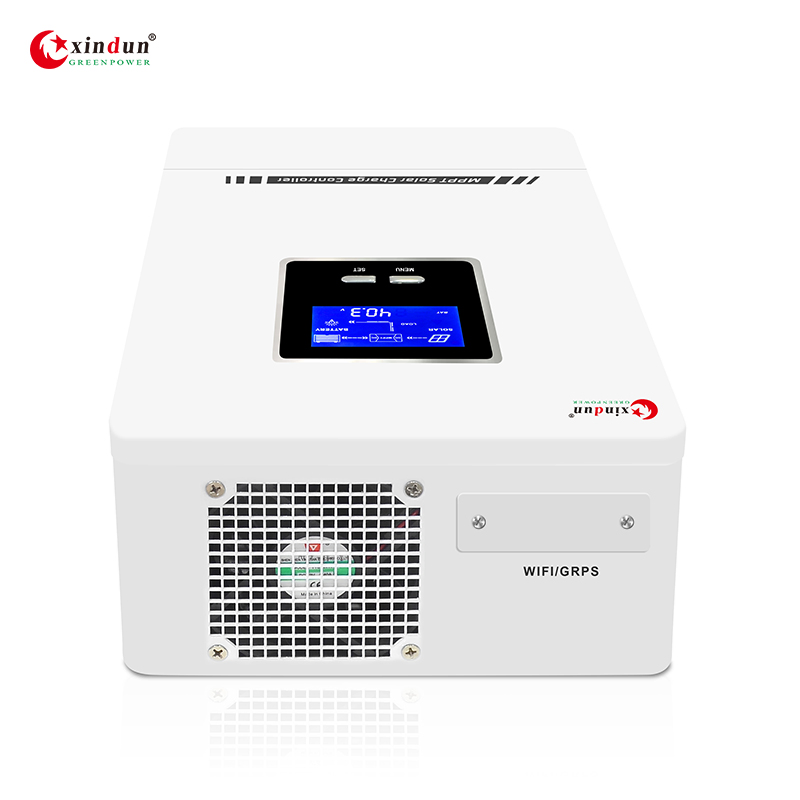

10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
1 / 5
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller

10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller

Customization: Available
After-sales Service: Free Parts
Warranty: 2 Years
Send Inquiry

Product Description

Basic Information
Model NO.
XD-Wonder2
Condition
New
Certification
ISO, CE
Application
Solar Working Station, Controller
Rated Voltage
12V/24V/48V
Rated Current
10A-100A
MPPT Efficiency
>99%
Conversion Efficiency
>98%
Max PV Power
140W~5600W
Communication
RS485/APP (WiFi/GPRS)
Inverter Features
01

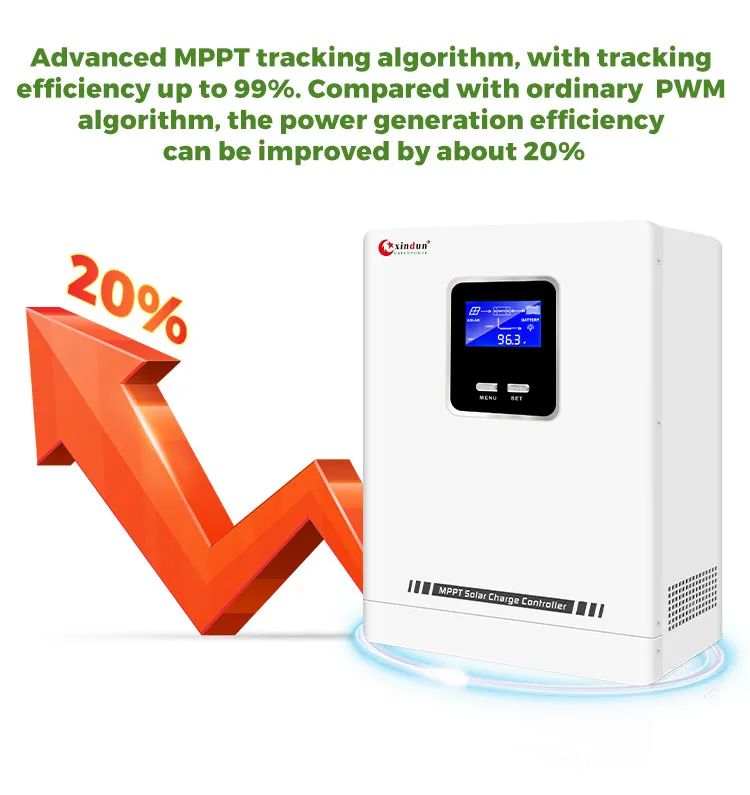

Advanced MPPT tracking algorithm with efficiency up to 99%. Improves power generation by ~20% compared to PWM.
02
LCD graphic display for real-time PV data and power generation process simulation.
03
Multiple load working modes to adapt to different application scenarios.
04

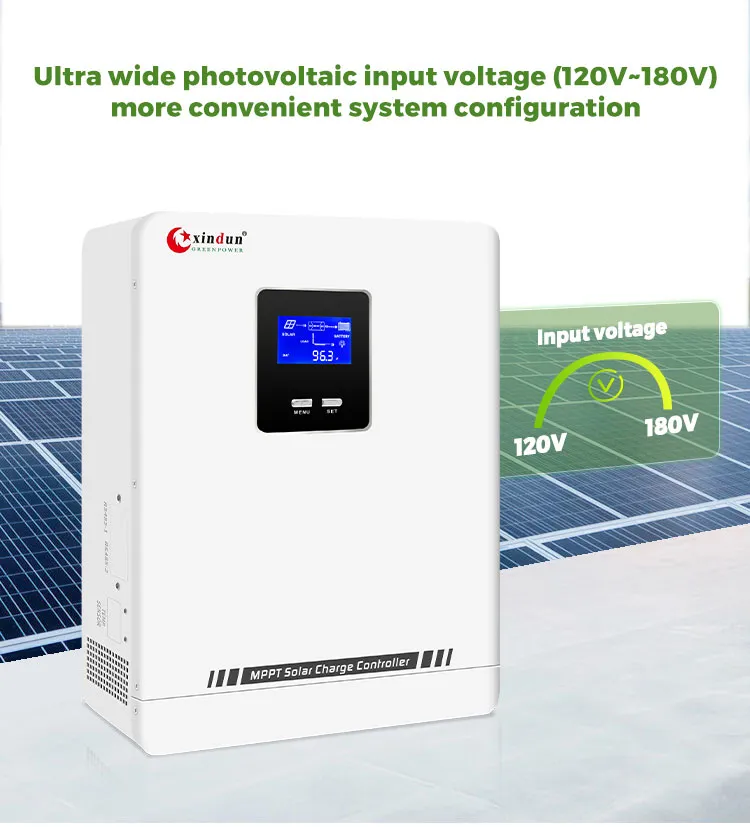

Ultra-wide PV input voltage range for flexible system configuration.
05
Supports lead-acid and lithium batteries with customizable charging/discharging parameters.
06
Built-in lithium battery activation function.
07
Comprehensive electronic protection: anti-reverse, over-current, over-temperature, and over/under-voltage.
08
Intelligent battery management to significantly extend battery life cycle.
09

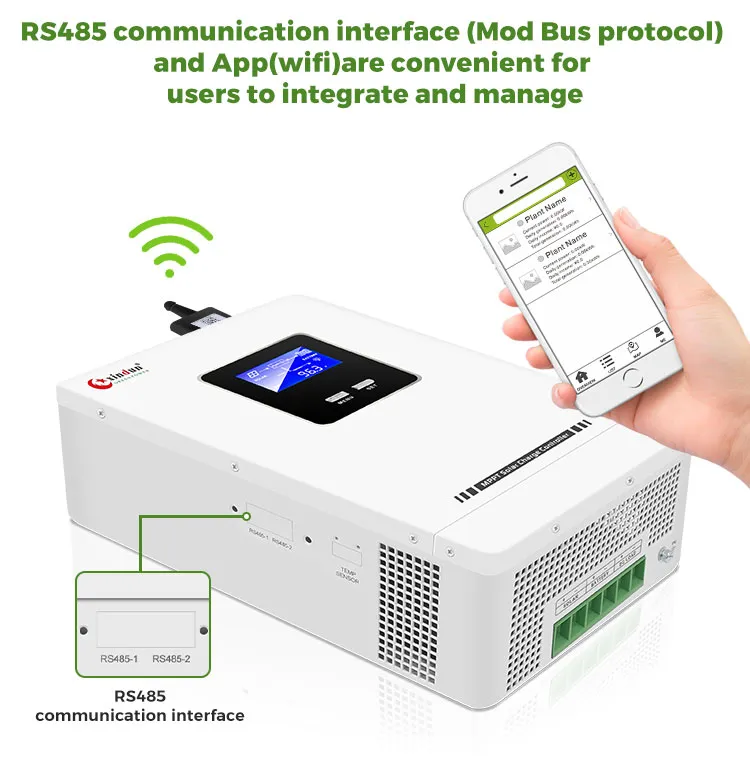

RS485 interface (Modbus protocol) and mobile APP for remote monitoring and management.
Product Highlights
MPPT Controller Highlight 1
MPPT Controller Highlight 2
MPPT Controller Highlight 3
MPPT Controller Highlight 4
MPPT Controller Highlight 5
MPPT Controller Highlight 6
Technical Specifications
Model: Wonder2 10A/20A/30A 40A/50A/60A 80A/100A
Rated System Voltage 12V/24V/48V 12V/24V/48V 12V/24V/48V
Max PV Input Voltage (Voc) 120V / 180V 120V / 180V 120V / 180V
MPPT Tracking Efficiency >99%
Conversion Efficiency >98%
Battery Type Lead acid / Lithium / User customized
Charging Method 3 Stages: Constant Current, Constant Voltage, Floating Charge
Operating Temperature -15ºC to +50ºC
Product Detail & Wiring

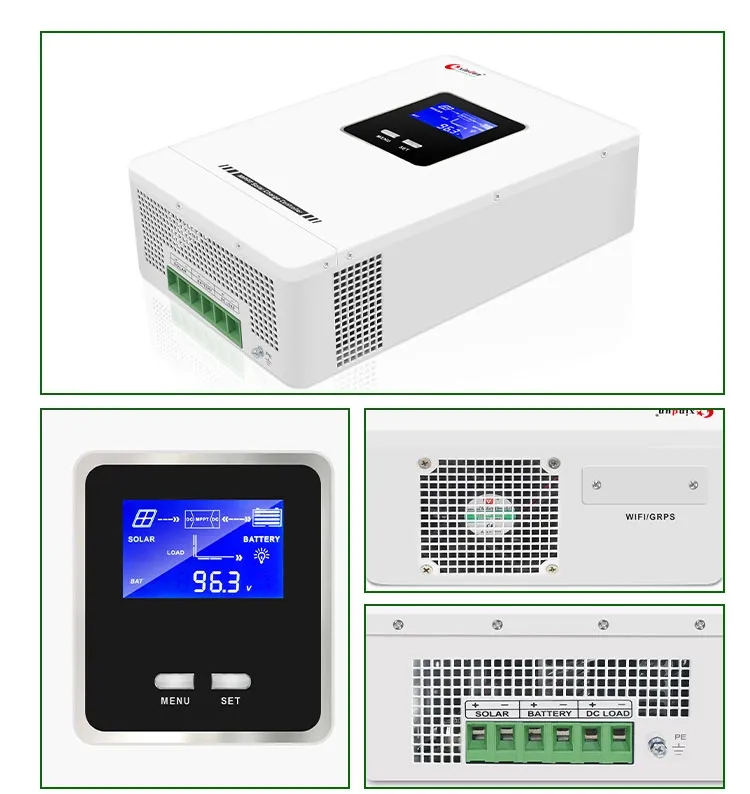

Detail View

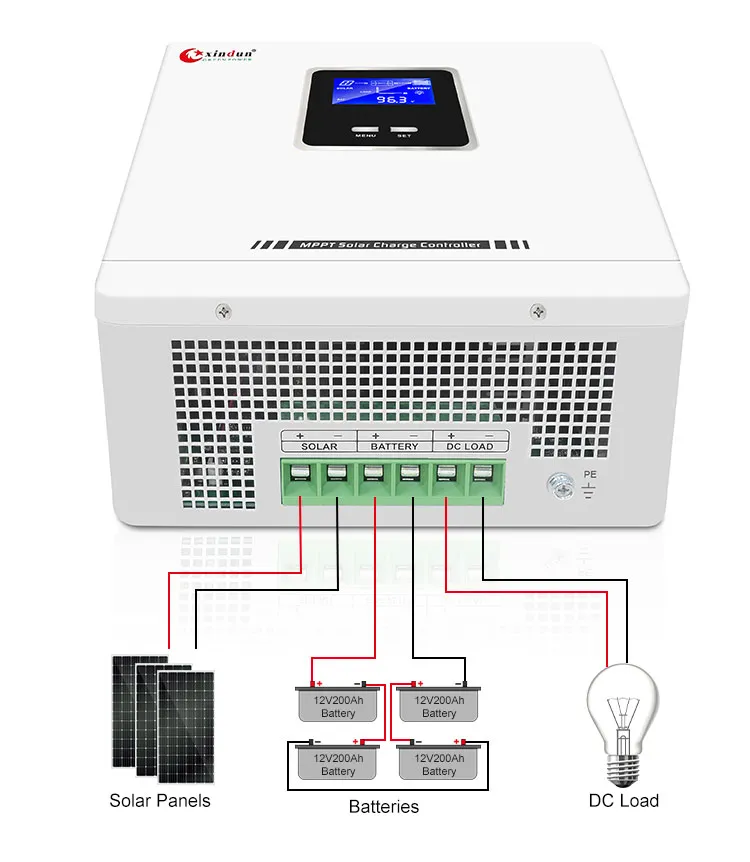

Wiring Diagram
Packing & Delivery

Package: Carton Box for standard packaging. Wooden Box recommended for samples to ensure maximum protection during transportation.

Shipping Options:

  • Express: FedEx / DHL / TNT / UPS (Door-to-Door)
  • Air/Sea: Bulk orders via Air Port or Sea Port
  • Custom: Flexible options for customer-specified freight forwarders
  • Lead Time: 7 days for samples; 10-25 days for batch goods

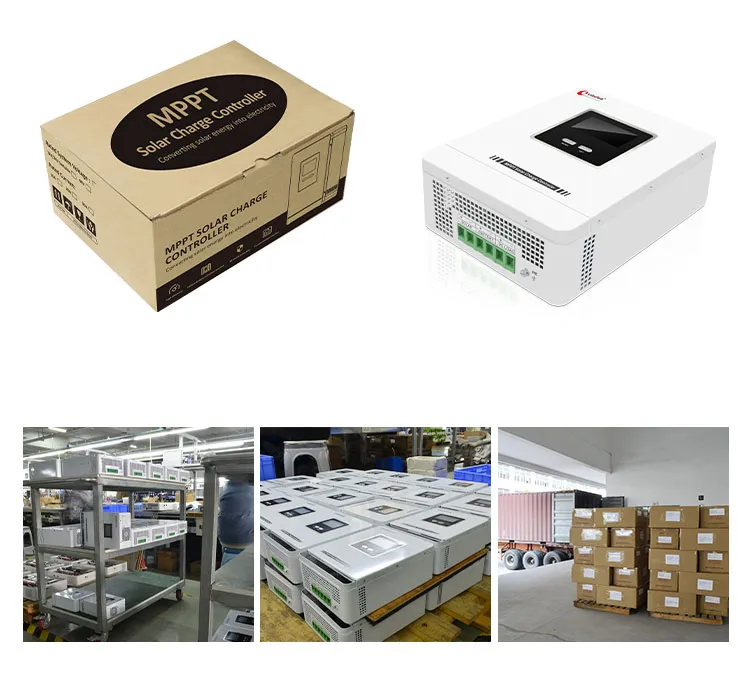

Packaging
Production Workshop
Facility 1

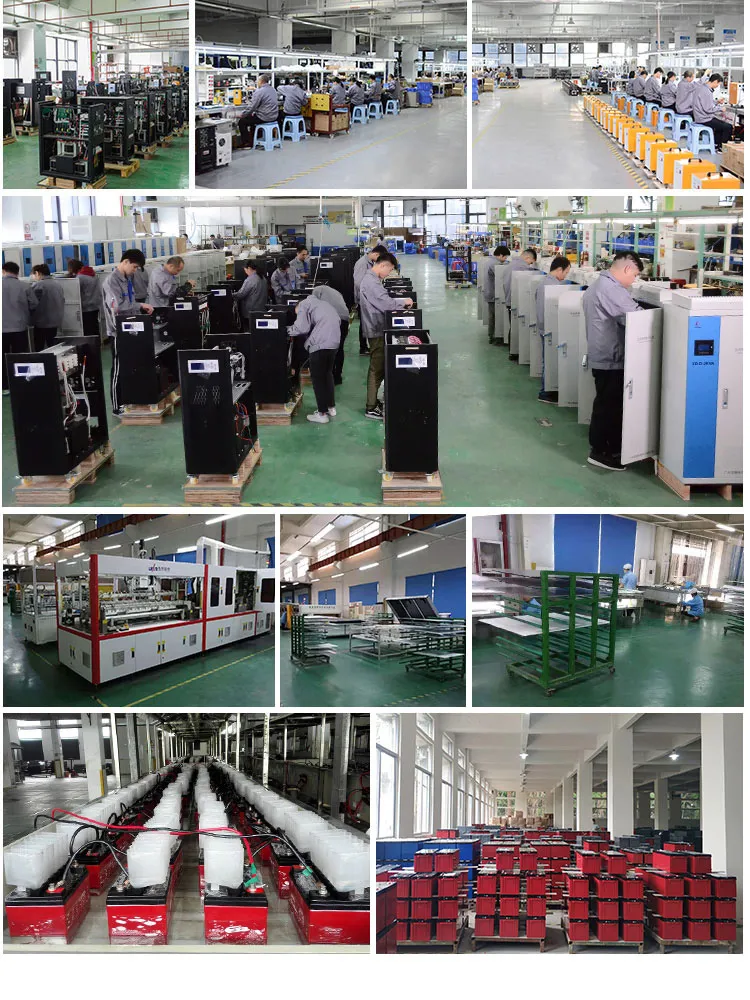

Facility 2
Facility 3
Facility 4
Frequently Asked Questions
Q1: What is the tracking efficiency of this MPPT controller?
The controller uses an advanced MPPT tracking algorithm that provides a tracking efficiency of over 99%, significantly improving energy harvest compared to traditional PWM controllers.
Q2: Can I use this controller with Lithium batteries?
Yes, it supports a wide range of battery types including lead-acid and various lithium batteries. Users can also customize charging and discharging parameters for specific battery types.
Q3: How can I monitor my solar system's performance?
The controller is equipped with an RS485 communication interface and supports mobile APP monitoring via WiFi or GPRS, allowing you to track data in real-time.
Q4: What protections does the device have?
It includes a full range of electronic protections: battery and PV anti-reverse connection, charging over-current, DC output over-current, over-temperature, and over/under-voltage protection.
Q5: What is the maximum PV input voltage?
Depending on the specific model and system voltage, the maximum PV input voltage (Voc) can reach up to 120V or 180V at the lowest ambient temperature.
Q6: Does it support remote integration?
Yes, the RS485 communication interface uses the standard Modbus protocol, making it easy for users to integrate the controller into larger management systems.
