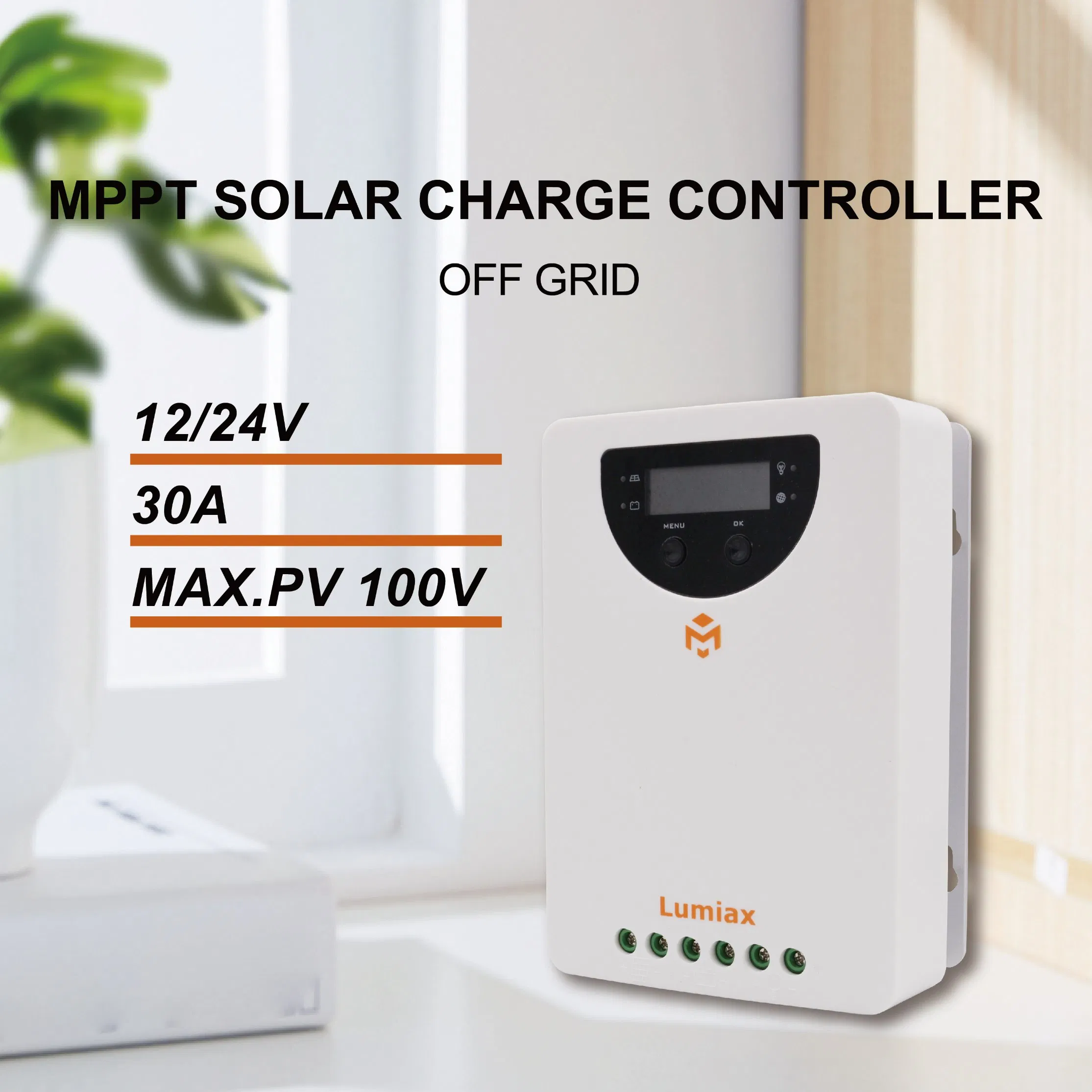

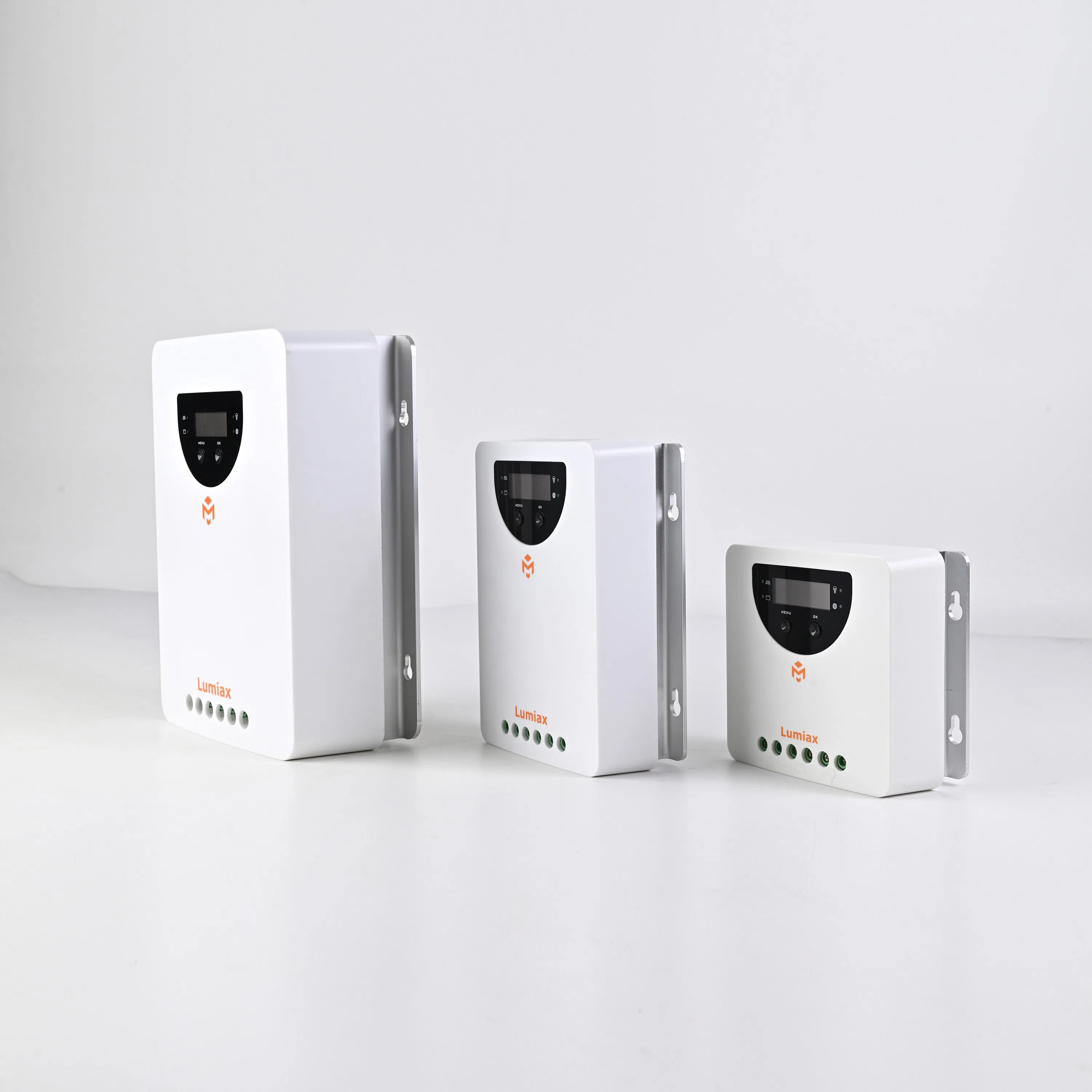

20A 30A 40A 60A MPPT Solar Charge Controller RS485 Bluetooth Home System Power 12V 24V 36V 48V

1 / 5

20A 30A 40A 60A MPPT Solar Charge Controller RS485 Bluetooth Home System Power 12V 24V 36V 48V

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

MC Series

Condition

New

Certification

ISO, CE, RoHS, FCC, ISO14001

Application

Solar System Controller, Charger Controller, Solar Working Station, Voltage Controller

Rated Voltage

12V/24V

Max Tracking Efficiency

99.9%

Max Charge Conversion

98%

Max Charging Current

20A/30A/40A/60A

Battery Type

Liquid, Gel, AGM, Lithium

Protection Degree

IP32

📦

Packaging & Delivery

Package Size

20.00cm * 15.00cm * 10.00cm

Package Gross Weight

2.800kg

Lead Time

31 days (1 - 2000 Pieces) / Negotiable (> 2000 Pieces)

📝

Product Description

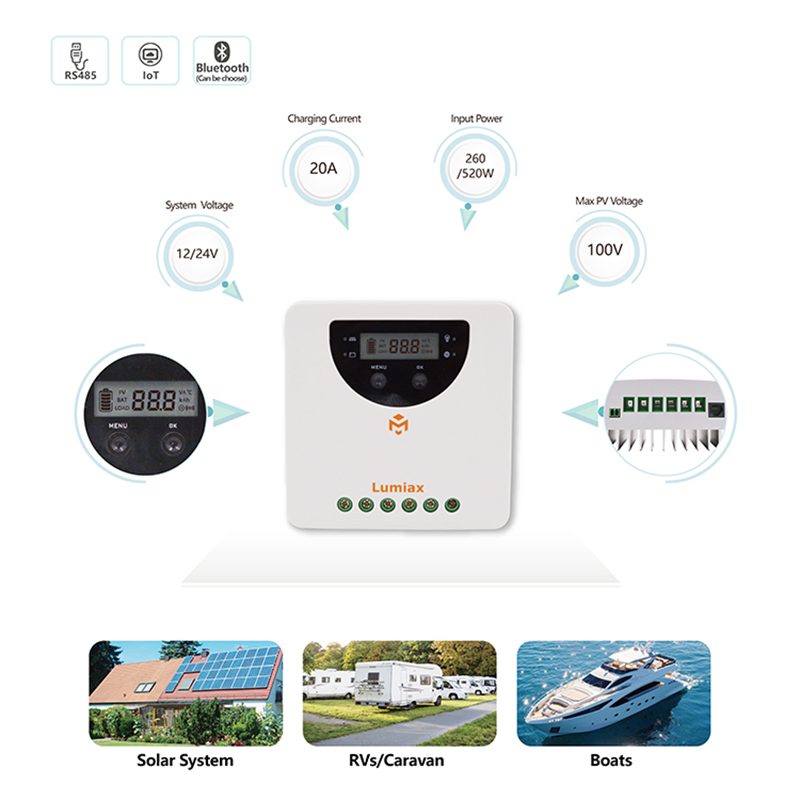

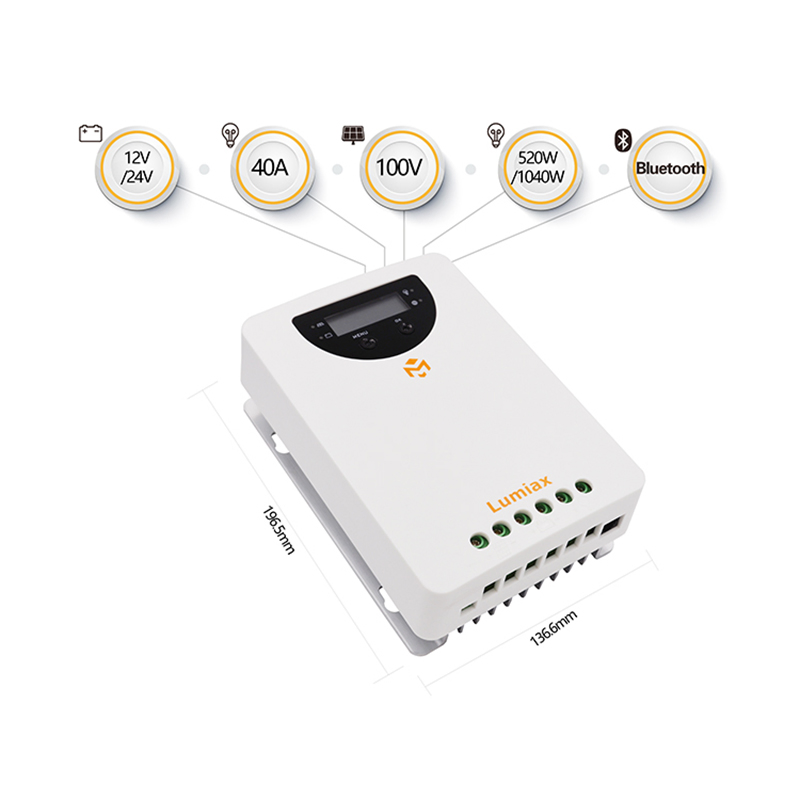

20A 40A 60A MPPT Solar Charge Controller with RS485 and Bluetooth

⚙️

Product Parameters

Item	MC2010	MC3010	MC4010	MC6010
Max Charging Current	20A	30A	40A	60A
System Voltage	12/24V automatic recognition
Battery Type	Gel, AGM, Liquid, Lithium (default: Gel)
Max Tracking Efficiency	>99.9%
Max Charge Conversion	98.0%
Max input power (12/24V)	260/520W	390/780W	520/1040W	750/1500W

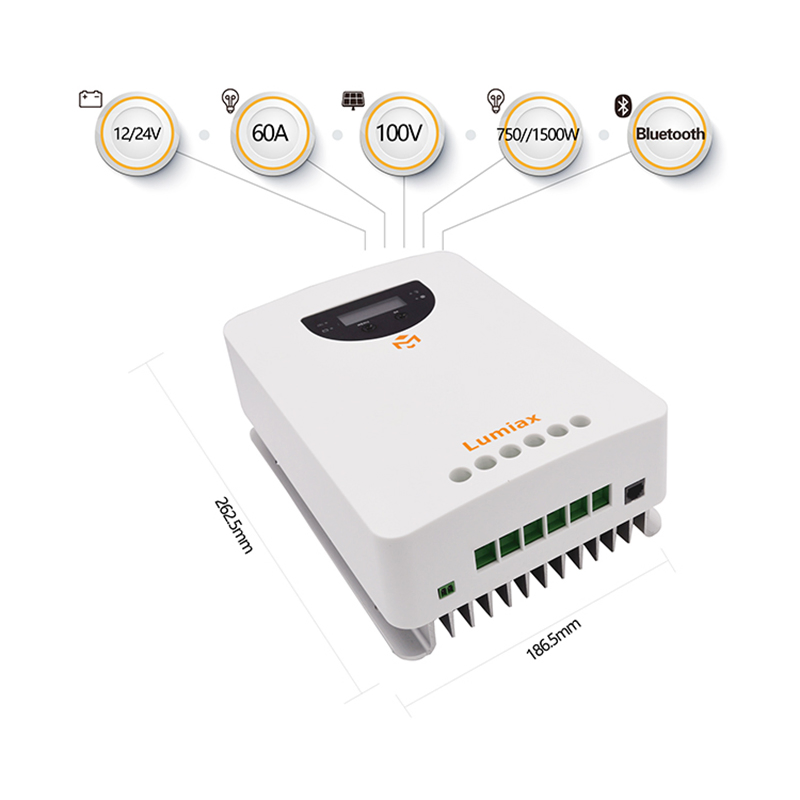

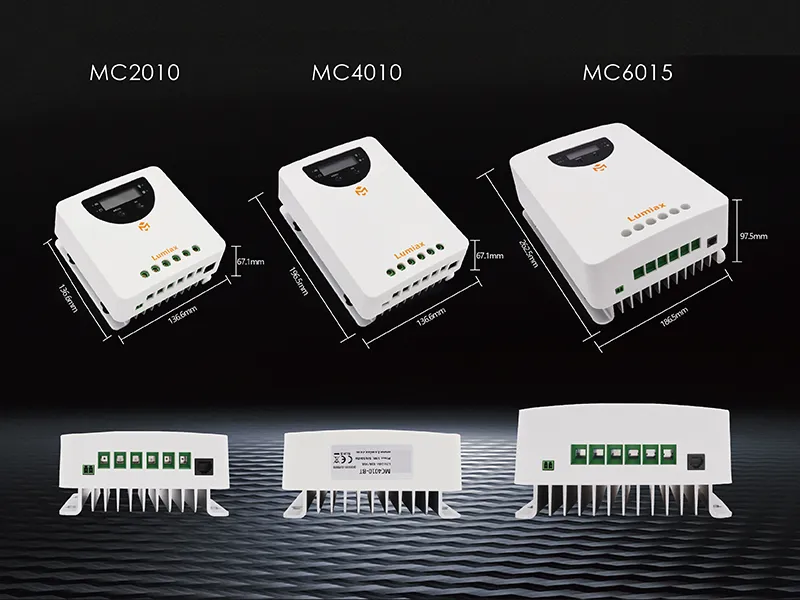

Dimensions	136.6136.667.1mm	196.5136.667.1mm	196.5136.667.1mm	262.5186.597.5mm
Weight	830g	1.3Kg	1.3Kg	2.5Kg
Communication	RS485 (RJ11 interface)
Protection Degree	IP32

📷

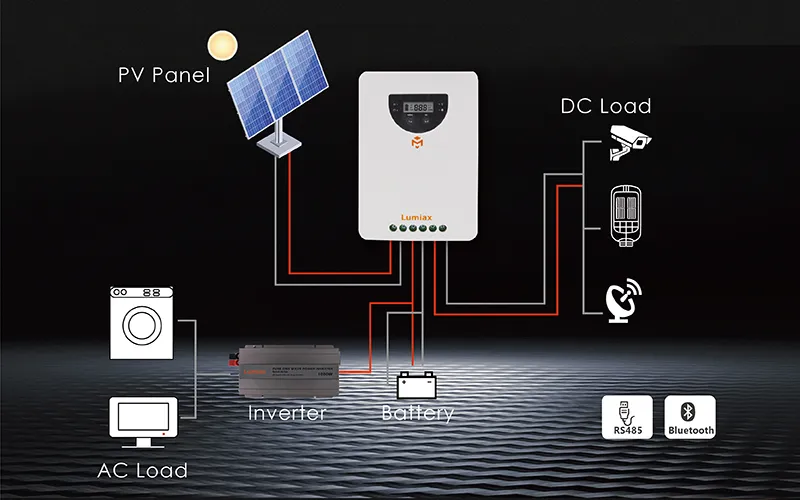

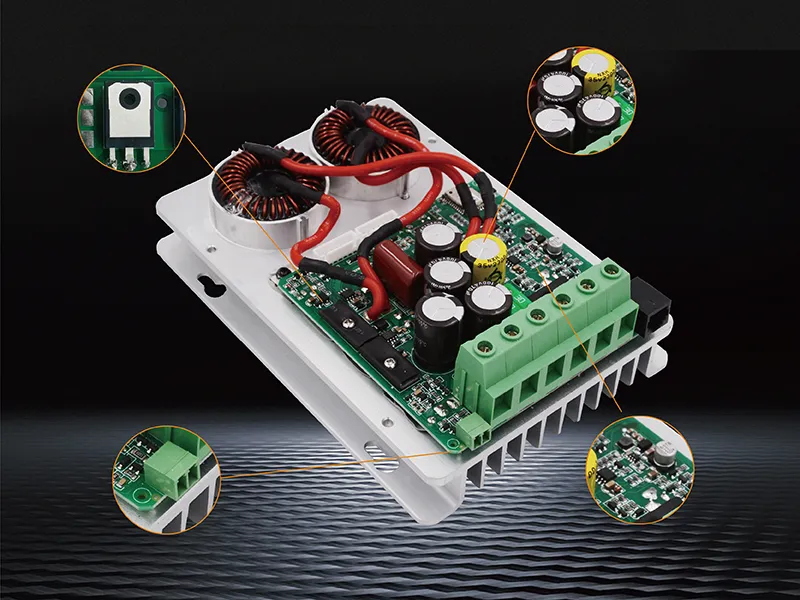

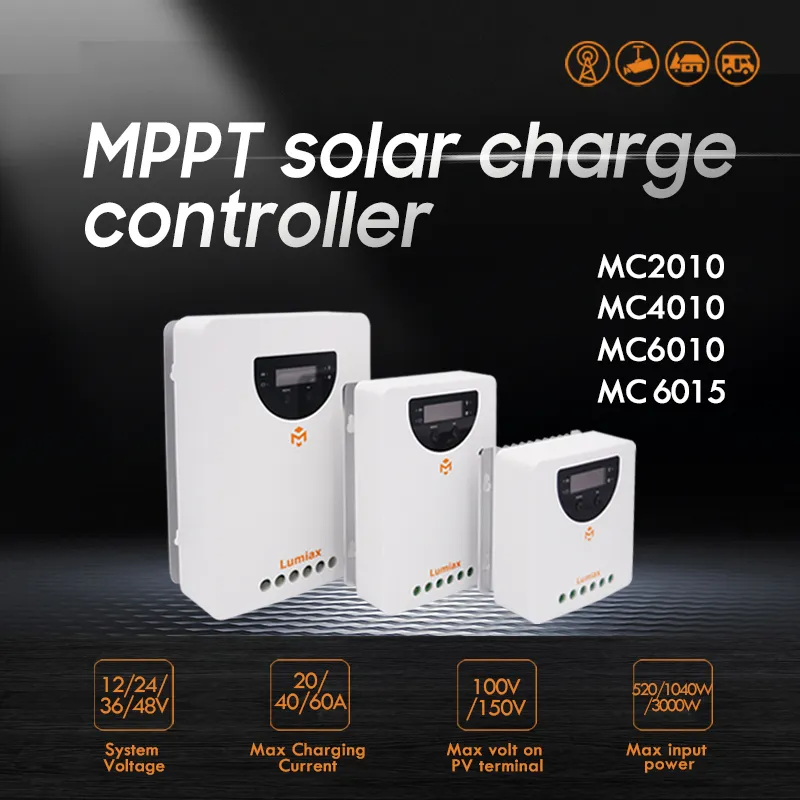

Visual Overview

🌟

Our Advantages & Certifications

🏭

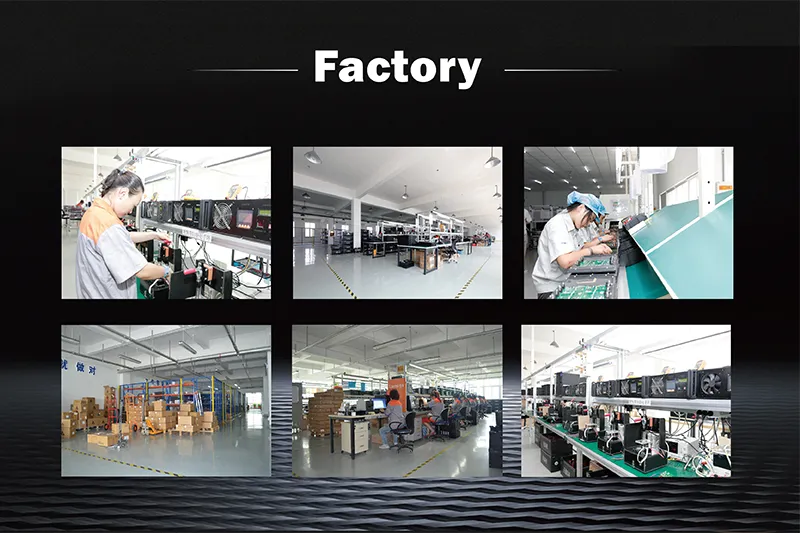

Manufacturing Excellence

❓

Frequently Asked Questions

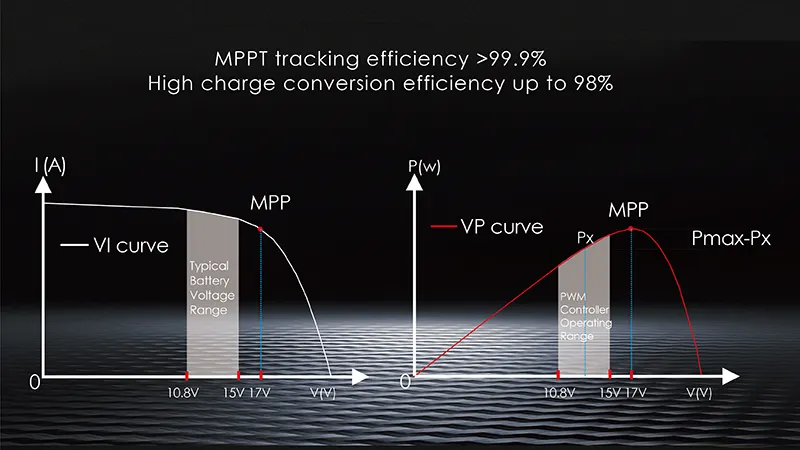

What is the maximum tracking efficiency of the MC series?

The MC series features advanced MPPT technology with a maximum tracking efficiency of over 99.9% and a peak charge conversion efficiency of 98%.

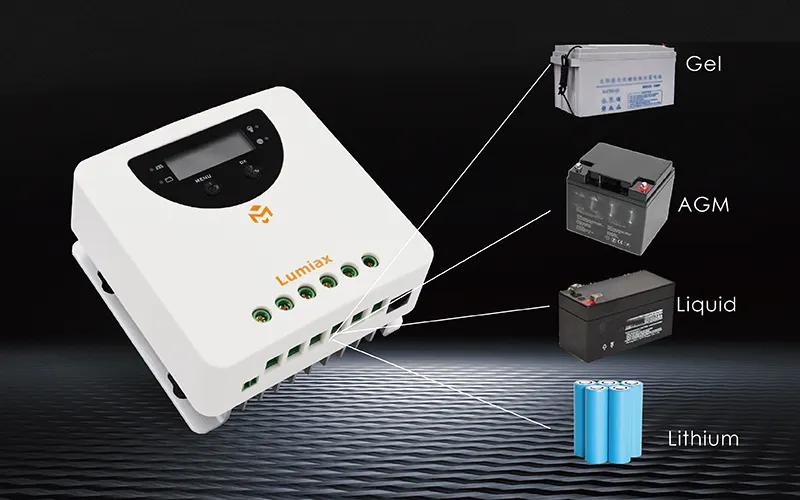

Which battery types are compatible with this controller?

The controller is compatible with various battery types including Gel, AGM, Liquid, and Lithium batteries. The default setting is Gel.

Does the unit support mobile or remote monitoring?

Yes, it includes a standard RS485 communication interface (RJ11) and offers optional internal or external Bluetooth (BLE) and IoT capabilities for remote monitoring.

Can it automatically detect the system voltage?

Yes, the MC series supports 12V and 24V automatic recognition for seamless integration into your solar system.

What is the environmental protection rating of the controller?

The controller has a protection degree of IP32, making it suitable for protected indoor environments with an ambient temperature range of -20ºC to +55ºC.

What are the load mode options available?

It supports multiple load modes including Always On, Street Lamp mode, and User-defined modes to suit different application requirements.
