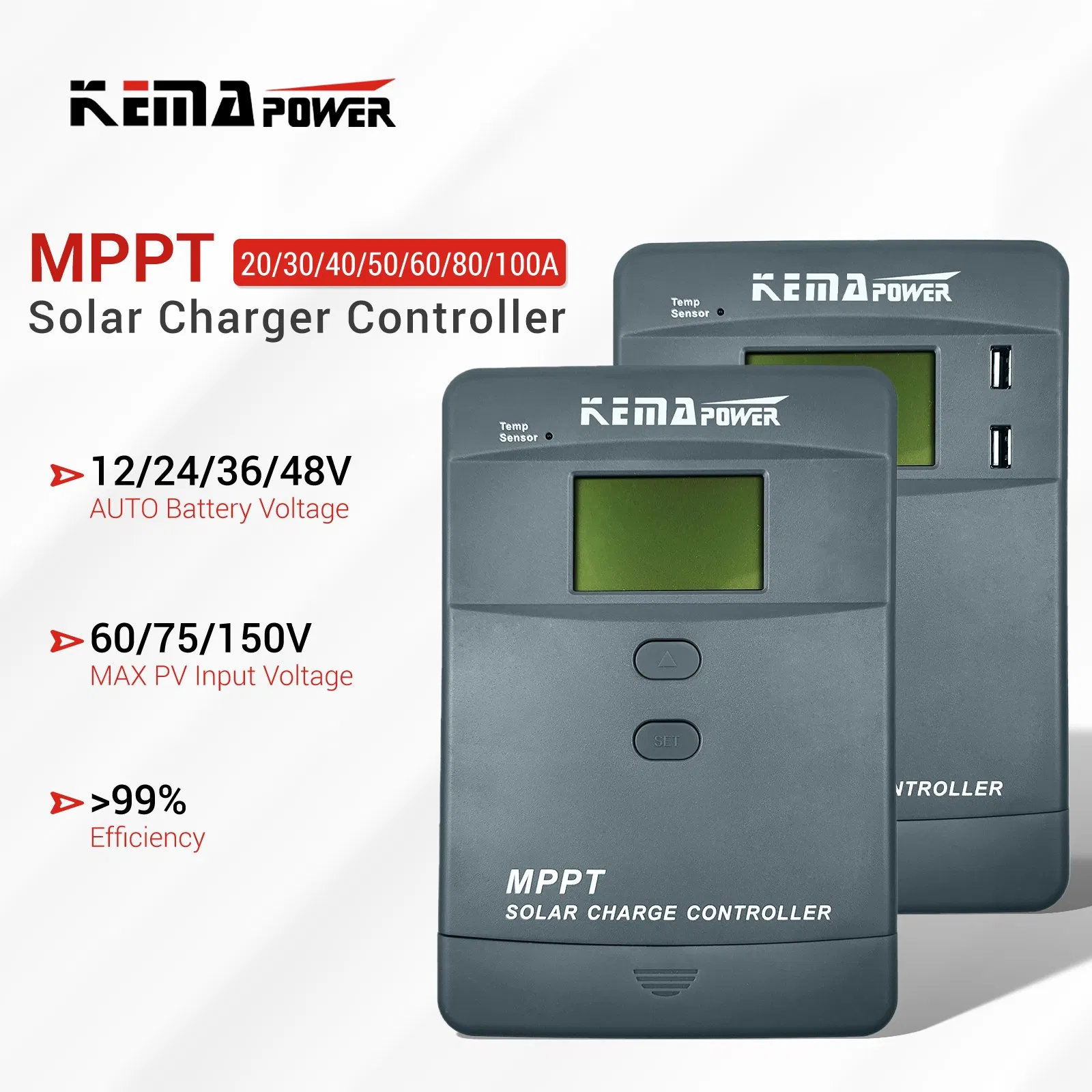

MPPT 20/30/40/50/60/80/100A Charge Controller 12/24/36/48V Auto Solar Regulator MPPT Controller for Solar Panel Lithium Battery

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Basic Information

Model NO.

MPPT-R

Condition

New

Certification

ISO, CB, CE

Rated Voltage

12V/24V/36V/48V

Rated Current

20A - 100A

Color

Black

Product Description

MPPT Solar Charge Controller (MPPT-R Series)

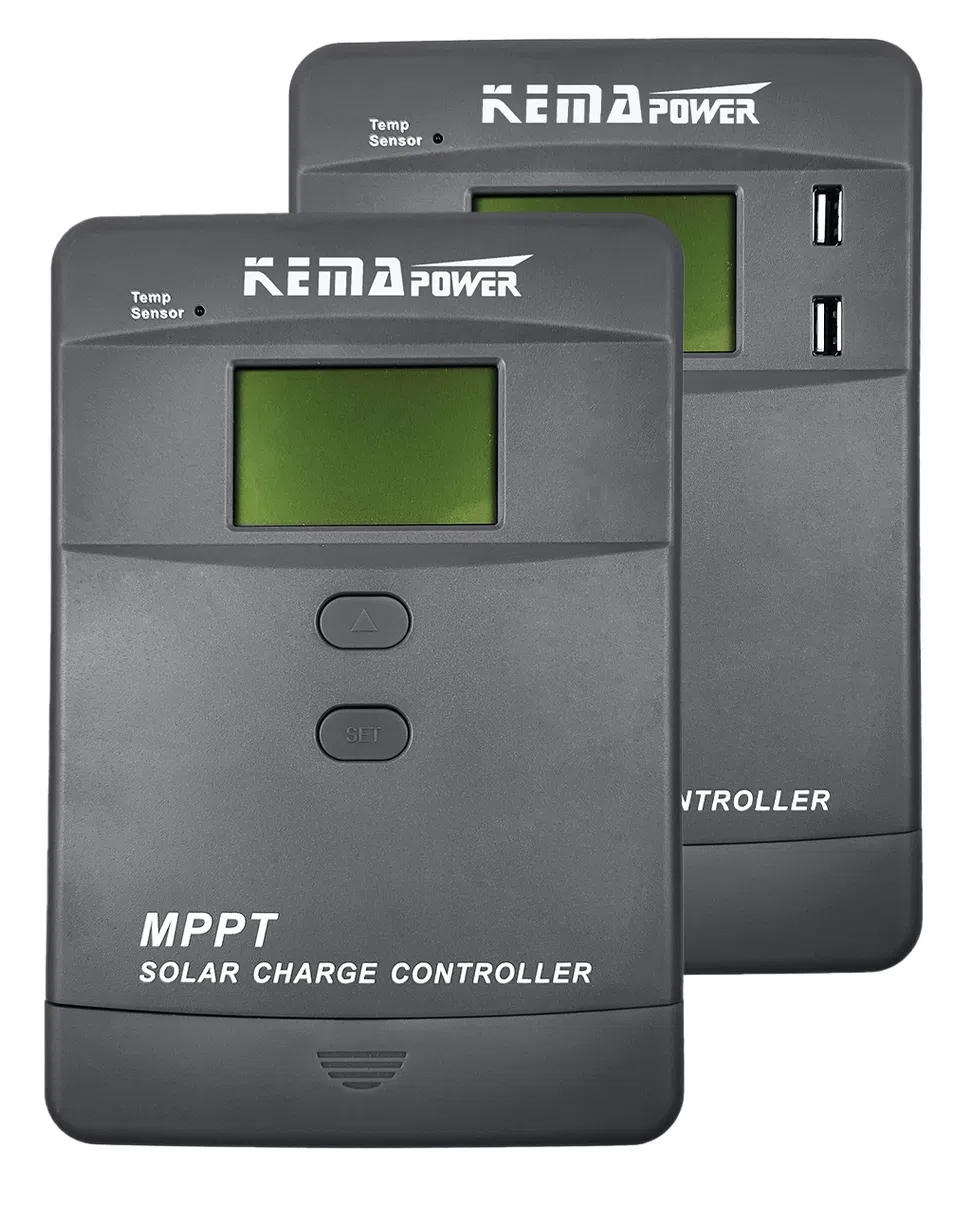

Key Features

★12/24V 20-60A and 12/24/36/48V 30-100A Auto recognition
★Common Positive, Max PV input up to 150V, conversion efficiency >99%
★LCD display for PV/Battery/Load parameter setup and status monitoring
★Multi-stages charging: Bulk, Absorption, Float, Equalization, CV
★Supports GEL, Sealed, Flooded, LiFePO4, Li(NiCoMn)O2 batteries
★Built-in Temperature Compensation and current limiting protection
★Lithium battery activation function included
★Optional Bluetooth (Internal) or WIFI (External) communication
★Dual 2A/5V USB ports for 12/24V 20-40A models

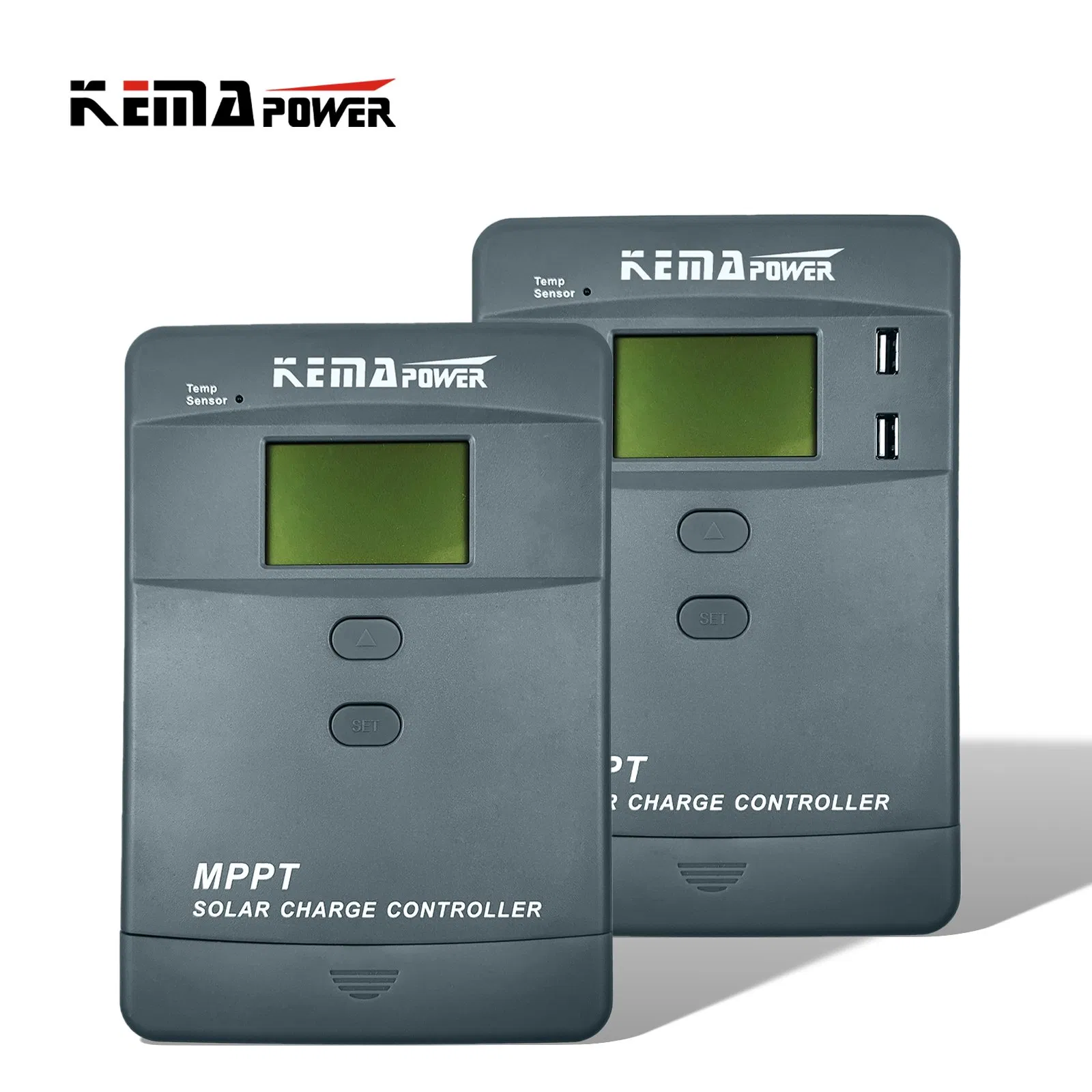

Product Display

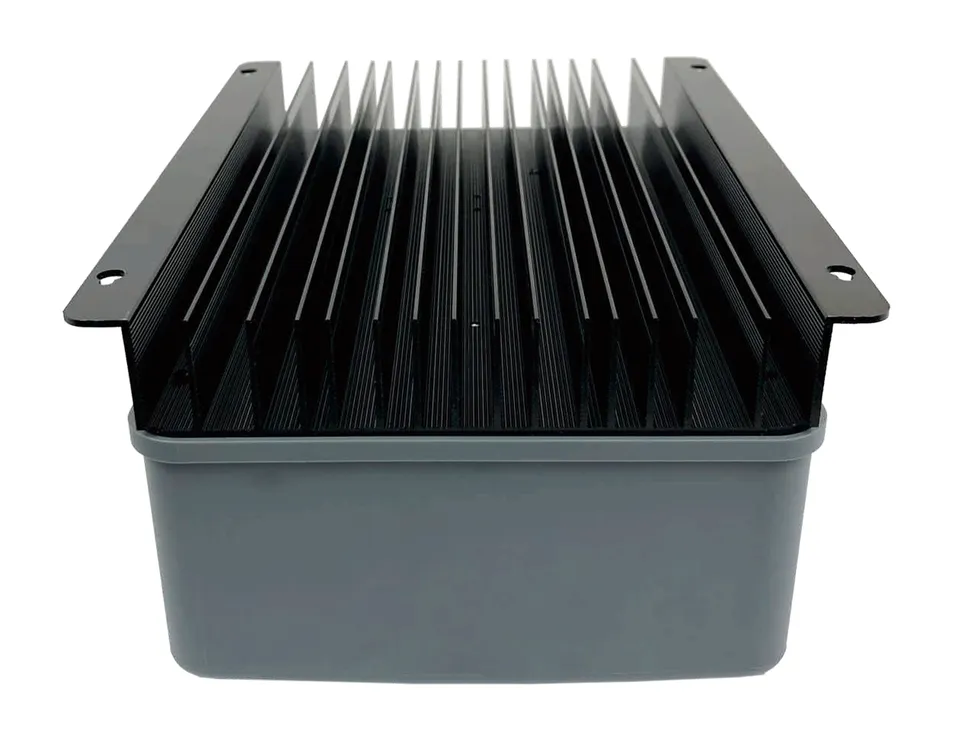

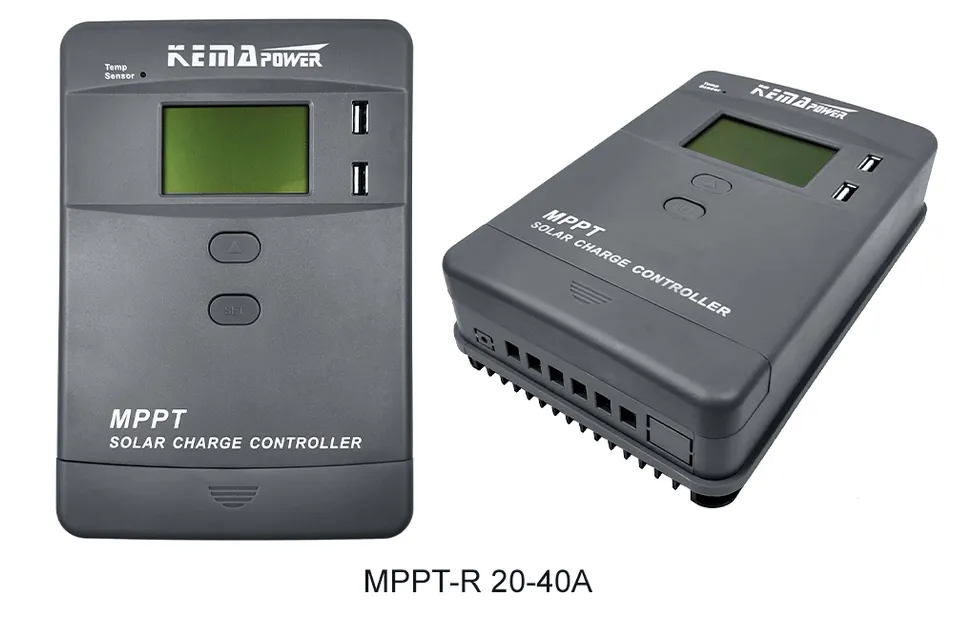

20-40A Models (Natural Cooling)

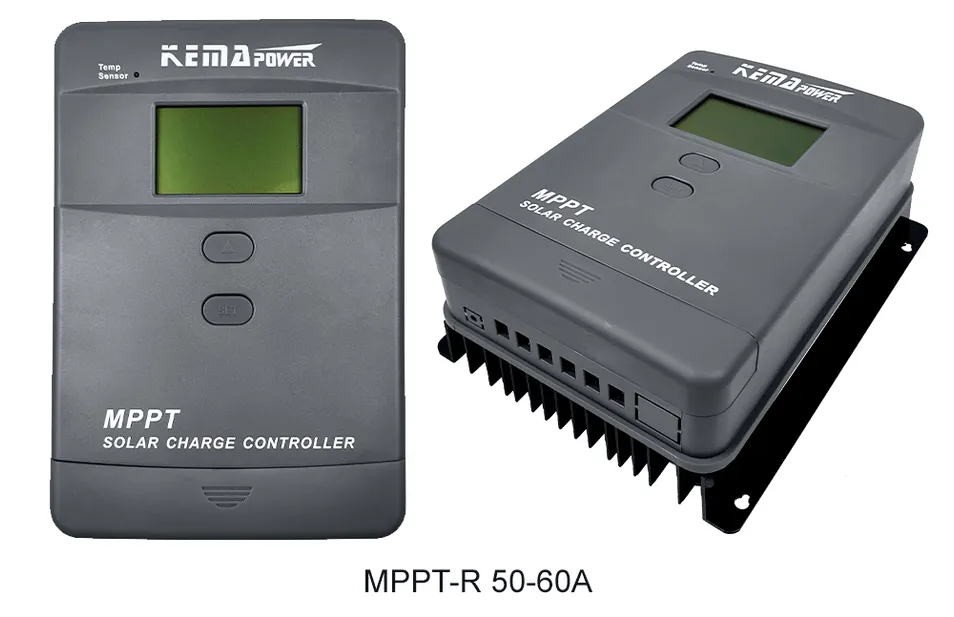

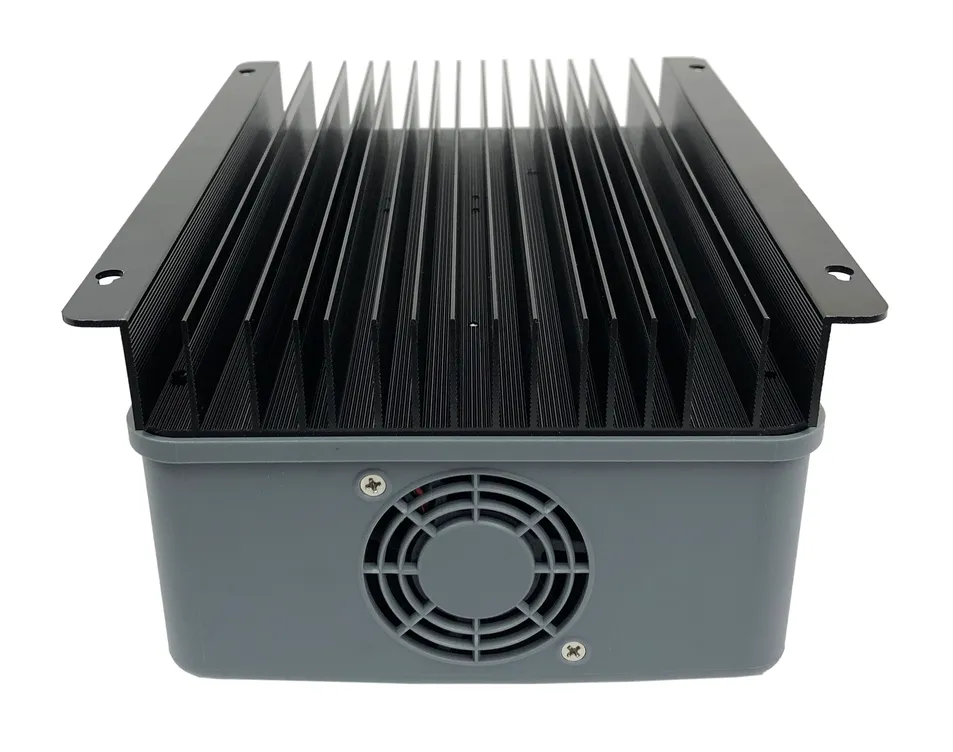

50-100A Models (Fan Cooling)

Technical Specifications

(Custom configurations available upon request.)

Model		MPPT 2420R	MPPT 2440R	MPPT 2460R	MPPT 4830R	MPPT 4850R
System Voltage		12/24V Auto	12/24V Auto	12/24V Auto	12/24/48V Auto	12/24/48V Auto
Rated Charging Current		20A	40A	60A	30A	50A
Max PV VOC		<60V	<100V	<100V	<150V	<150V
Max PV Input Power	12V	260W	520W	780W	390W	650W
	24V	520W	1040W	1560W	780W	1300W
	48V	/	/	/	1560W	2600W
Battery Type		GEL, Sealed, Flooded, LiFePO4, Li(NiCoMn)O2, Custom
Max Efficiency		>99%
Protection Class		IP30

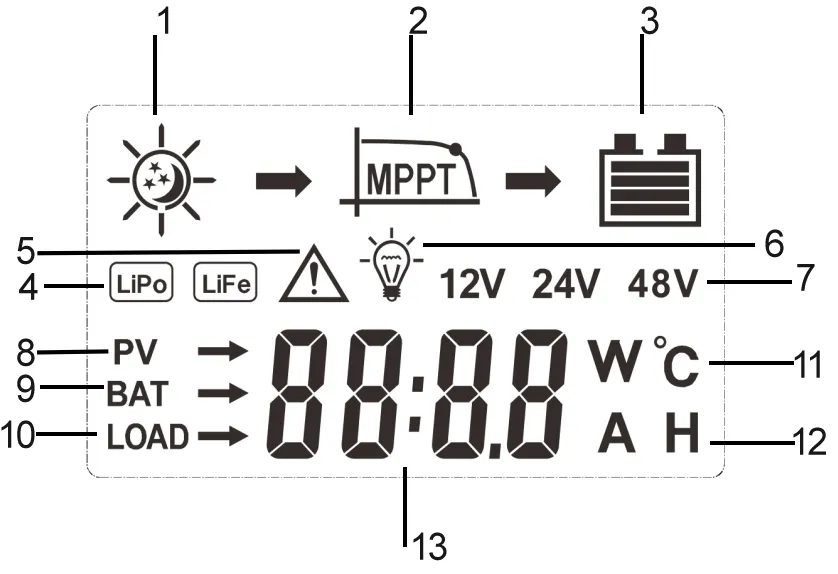

Interface & Indicators

Day/Night Status
Charge Status
Battery Capacity
Battery Type
Warning Indicators
Load On/Off
System Voltage & PV Parameters

Frequently Asked Questions

What types of batteries are compatible with this MPPT controller?

Our MPPT-R series supports a wide range of batteries including GEL, Sealed, Flooded, LiFePO4, Li(NiCoMn)O2, and custom battery configurations.

How efficient is the charging process?

The controller utilizes advanced Maximum Power Point Tracking technology with a conversion efficiency of over 99%.

Does the controller support lithium battery activation?

Yes, the controller comes equipped with a Lithium battery activation function to ensure your lithium setup operates correctly even after deep discharge.

What cooling method is used for different models?

Models between 20-40A use natural cooling, while high-power models from 50-100A are equipped with fan cooling to maintain optimal performance.

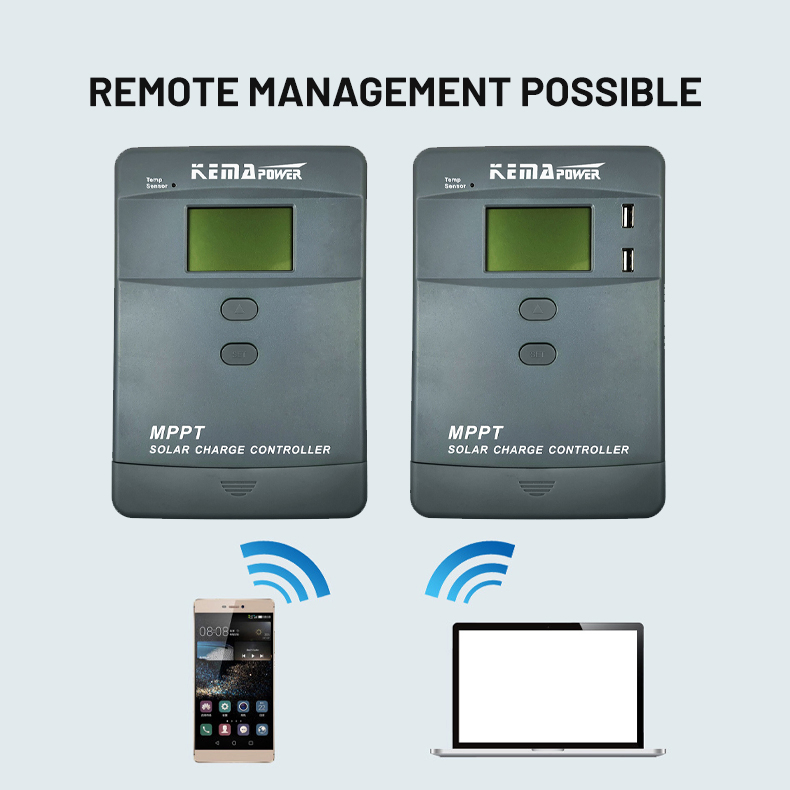

Can I monitor the controller remotely?

Yes, remote monitoring is possible through optional internal Bluetooth or external WIFI communication modules.

What built-in protections does the device offer?

It provides comprehensive protection against PV Reverse Connection, Battery Reverse Connection, Battery Over/Low Voltage, and Over Load.
