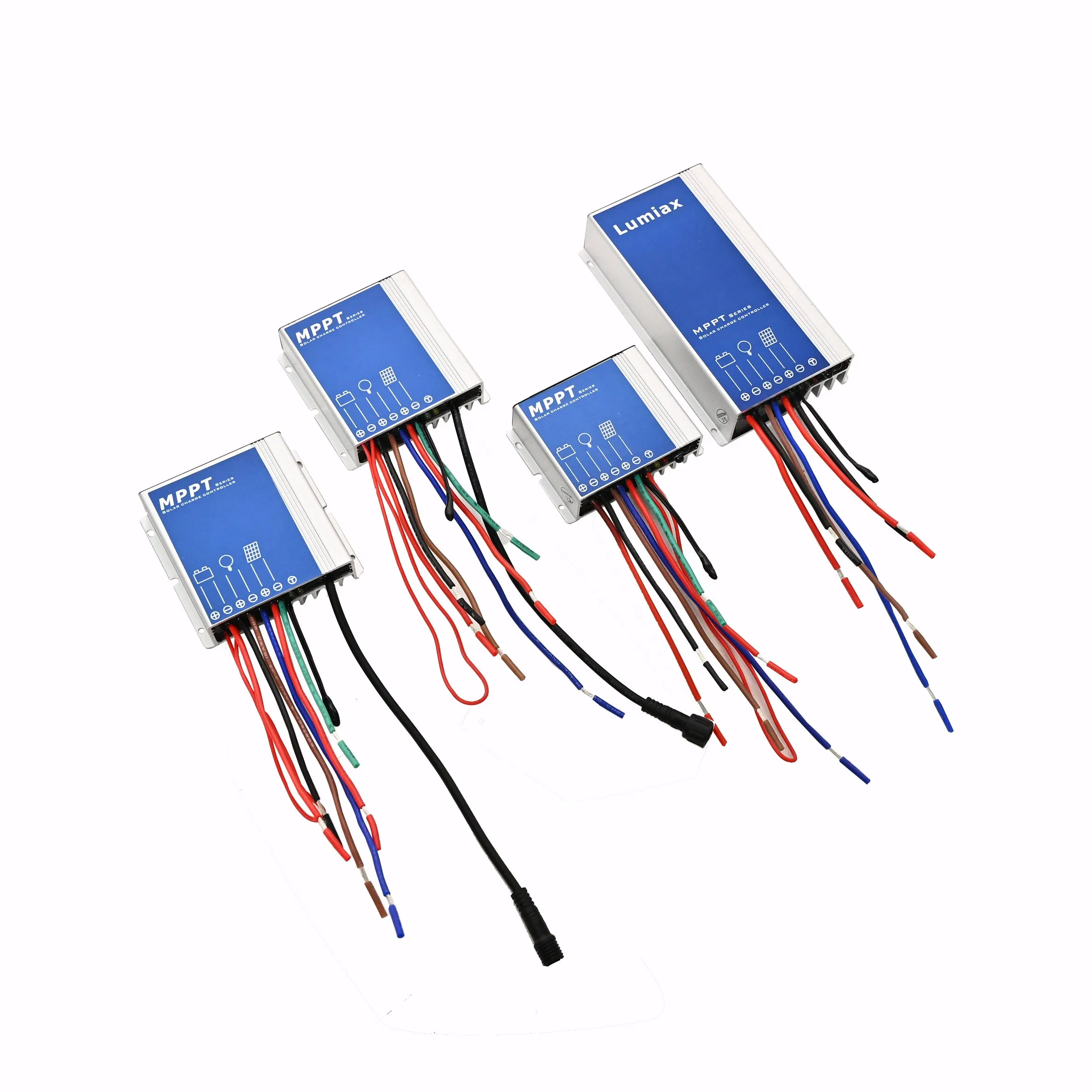

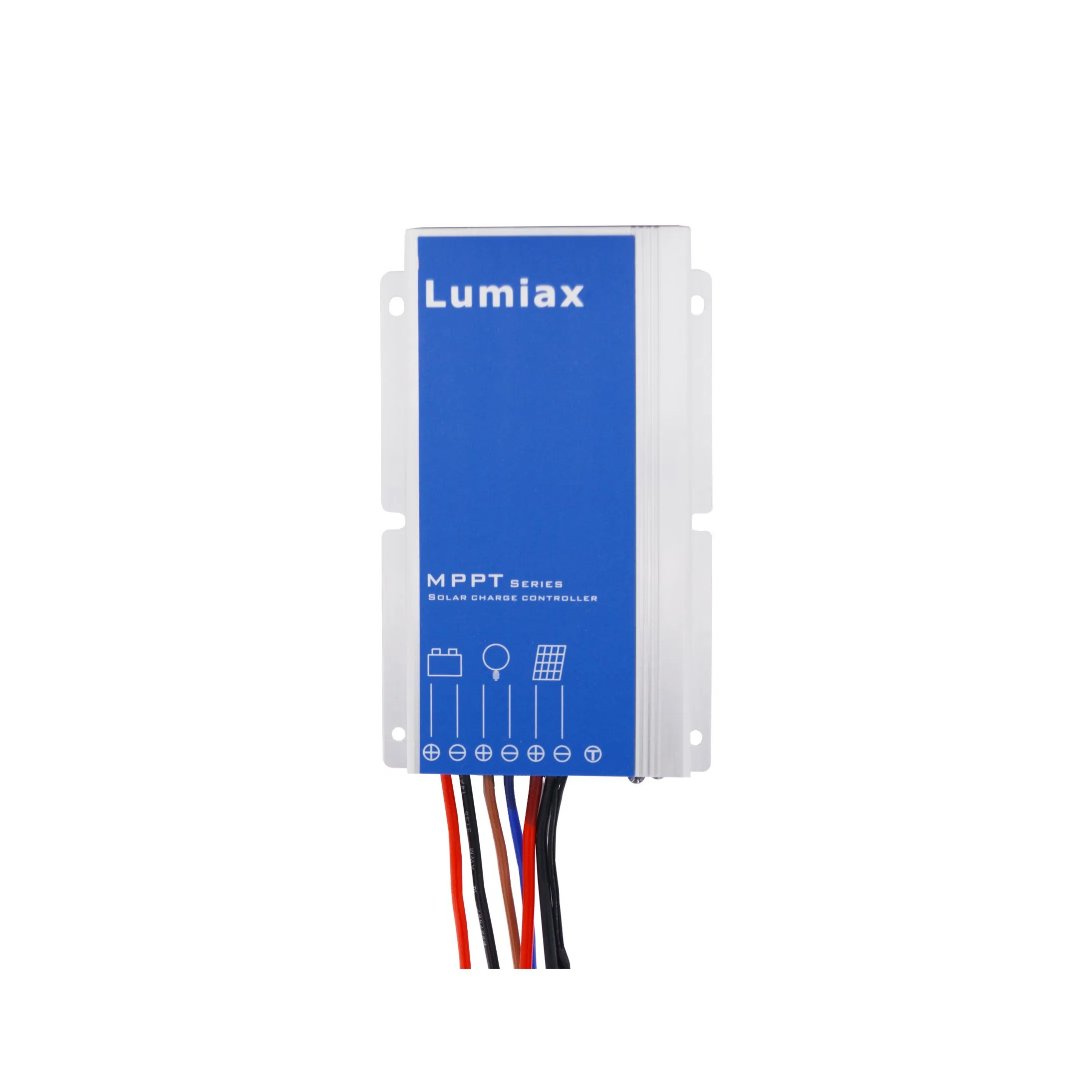

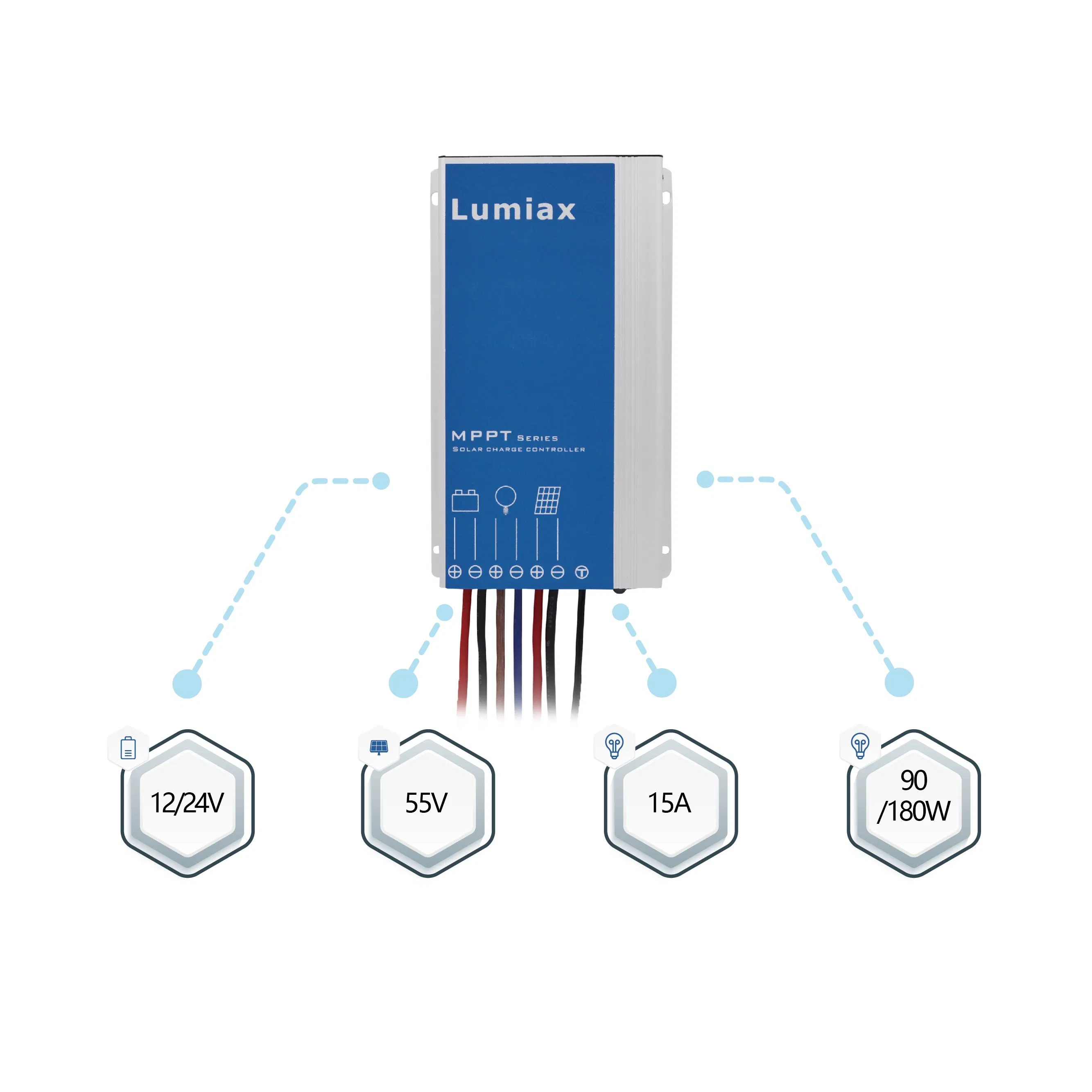

Lumiax 12V 24V 8A 10A 15A 20A Solar Panel LED Waterproof Regulator MPPT Solar Street Light Charge Controller
Lumiax 12V 24V 8A 10A 15A 20A Solar Panel LED Waterproof Regulator MPPT Solar Street Light Charge Controller
Lumiax 12V 24V 8A 10A 15A 20A Solar Panel LED Waterproof Regulator MPPT Solar Street Light Charge Controller
Lumiax 12V 24V 8A 10A 15A 20A Solar Panel LED Waterproof Regulator MPPT Solar Street Light Charge Controller
Lumiax 12V 24V 8A 10A 15A 20A Solar Panel LED Waterproof Regulator MPPT Solar Street Light Charge Controller
1 / 5
Lumiax 12V 24V 8A 10A 15A 20A Solar Panel LED Waterproof Regulator MPPT Solar Street Light Charge Controller
Lumiax 12V 24V 8A 10A 15A 20A Solar Panel LED Waterproof Regulator MPPT Solar Street Light Charge Controller
Lumiax 12V 24V 8A 10A 15A 20A Solar Panel LED Waterproof Regulator MPPT Solar Street Light Charge Controller
Lumiax 12V 24V 8A 10A 15A 20A Solar Panel LED Waterproof Regulator MPPT Solar Street Light Charge Controller
Lumiax 12V 24V 8A 10A 15A 20A Solar Panel LED Waterproof Regulator MPPT Solar Street Light Charge Controller

Lumiax 12V 24V 8A 10A 15A 20A Solar Panel LED Waterproof Regulator MPPT Solar Street Light Charge Controller

Customization: Available
After-sales Service: Installation and Debugging Guide
Warranty: 1
Send Inquiry

Product Description

Basic Information

Model NO.
MPPT-DC Series
Certification
ISO, CE, RoHS, FCC
Rated Voltage
12V/24V
Max Tracking Efficiency
99.9%
Protection Degree
IP67
Battery Type
Liquid, Gel, AGM and Lithium
Max PV Power Input
100W-520W
Max Charge Conversion
96.5%/97.5%
Solar Charge Controller Solar Regulator Features

Product Parameters

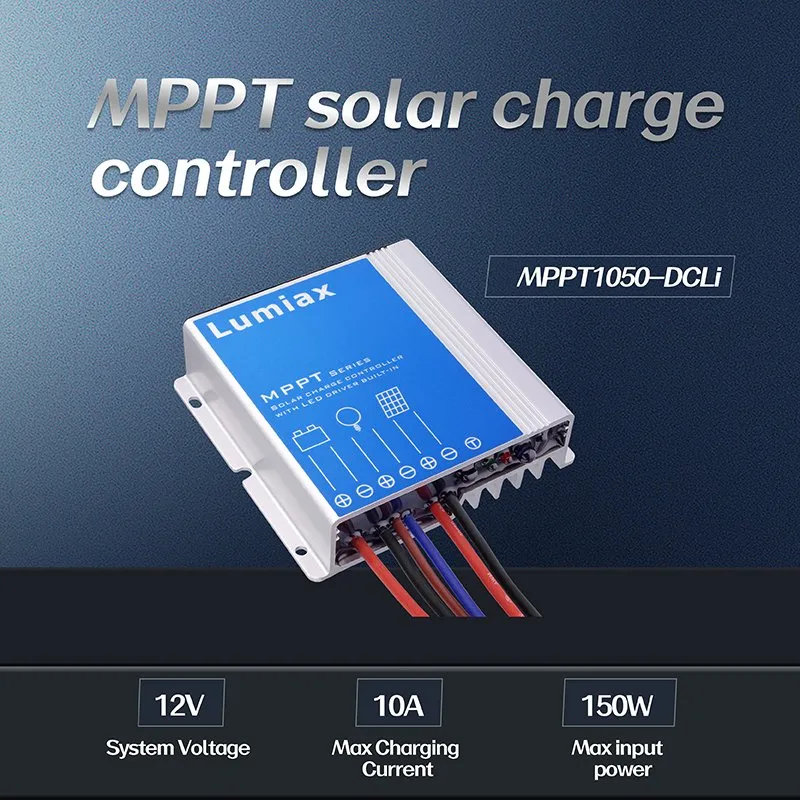

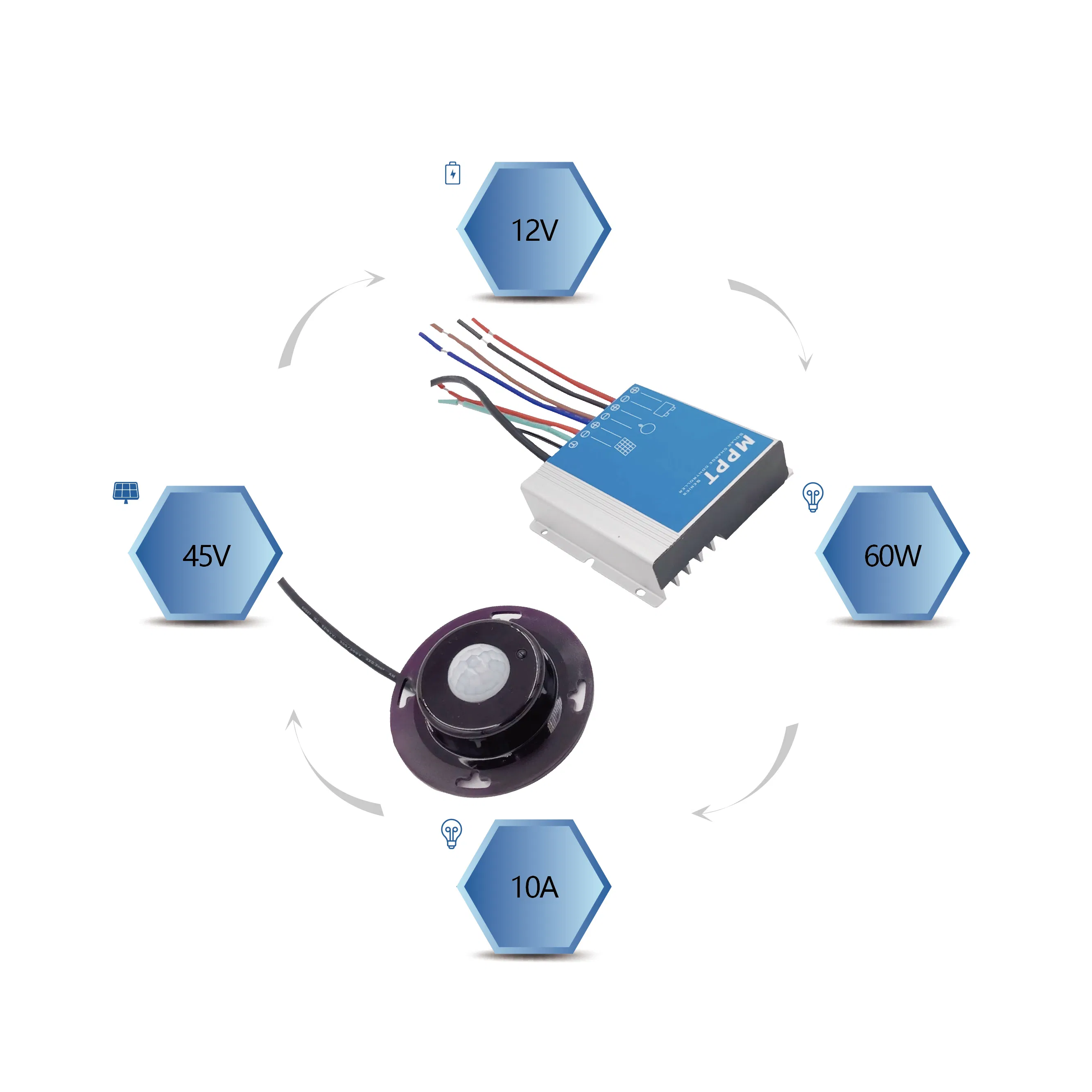

Item MPPT0850-DCLi/G MPPT0875-DCLi/G MPPT1050-DCLi/G MPPT1550-DCLi/G
System Voltage 12V
Max Charging Current 8A 10A 15A
Battery Type Liquid, Gel, AGM and Lithium (Programmable)
Parameters Boost Voltage 14.5V @25ºC
Float Voltage 13.7V @25ºC
Low Volt. Disconnect 10.8~11.8V (Programmable)
Max Volt on PV terminal 35V 60V 45V 35V
Max tracking efficiency >99.9%
Protection degree IP67

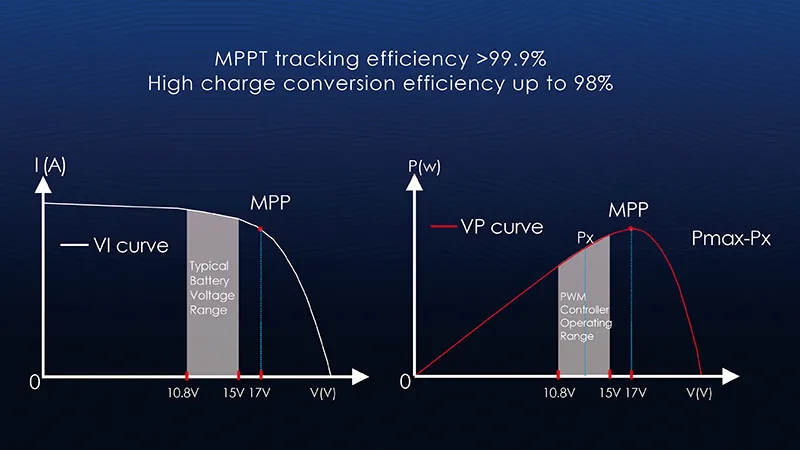

Technical Layout

Product Description

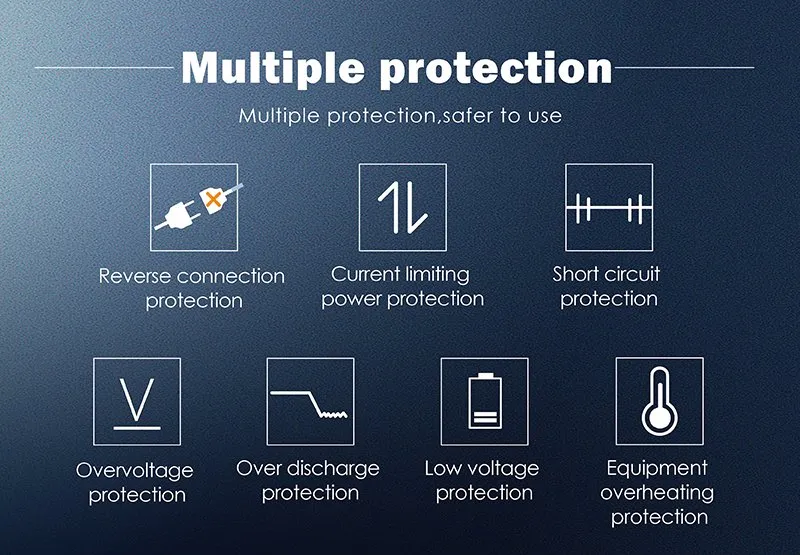

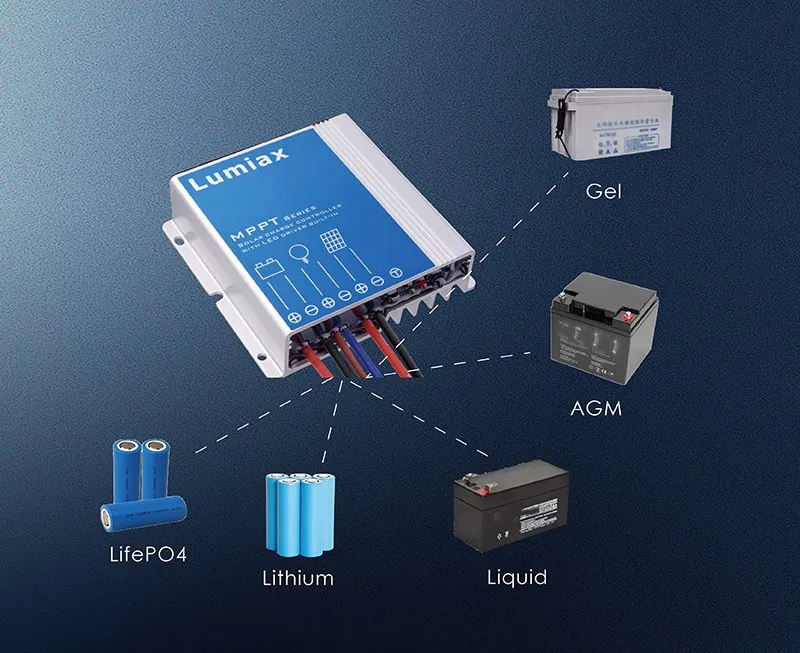

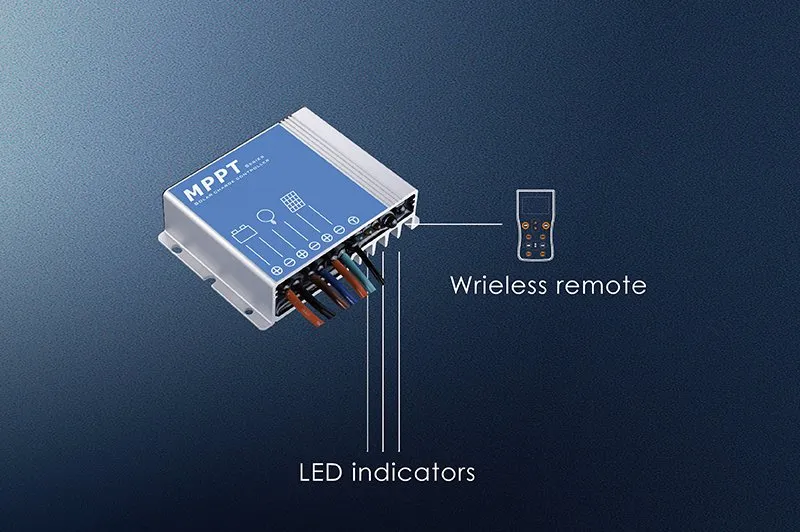

Product Detail 1 Product Detail 2 Product Detail 3

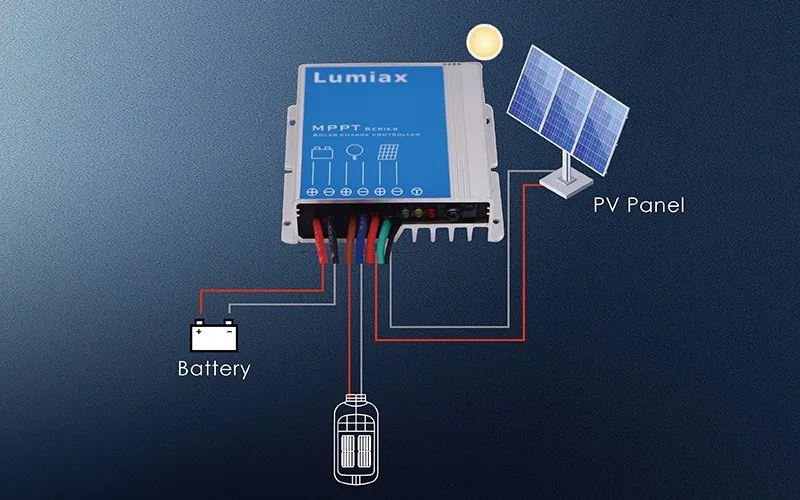

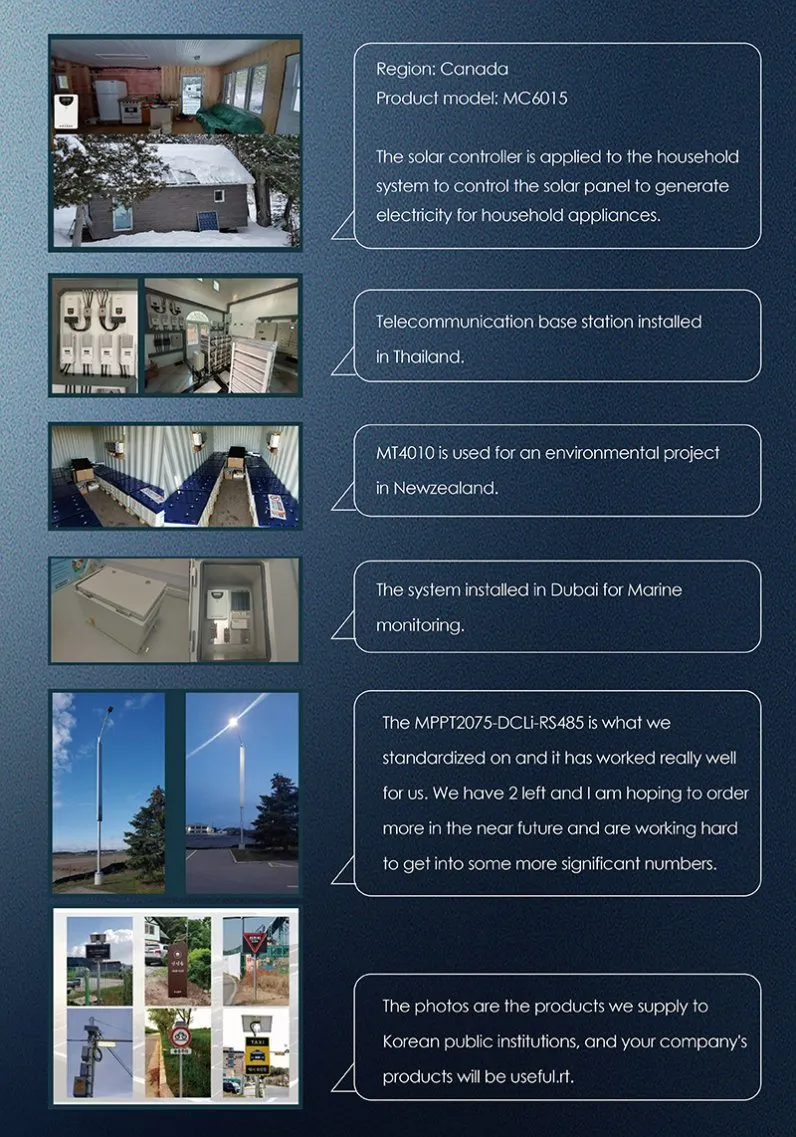

Application Scenario

Our Advantages & Certifications

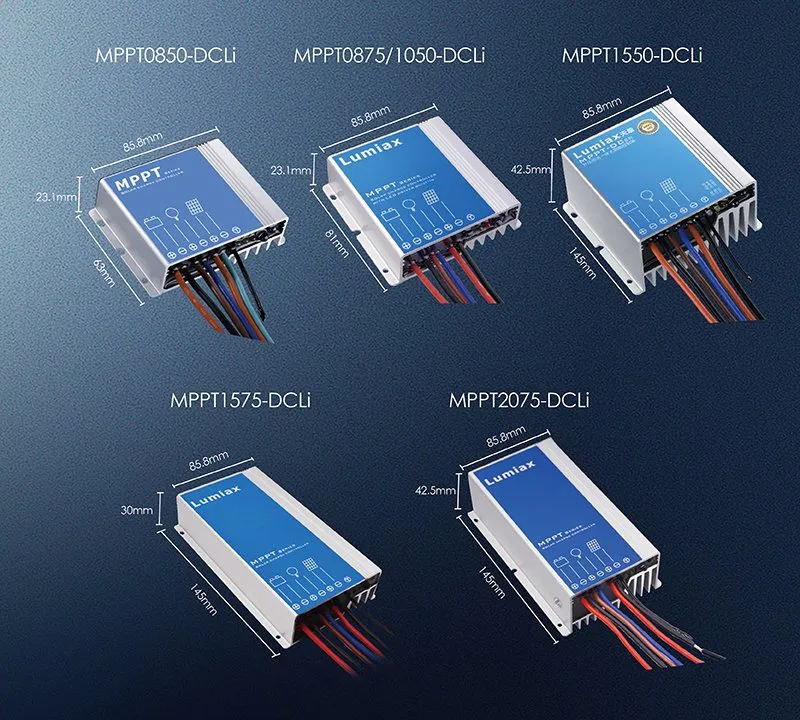

Advantage 1 Advantage 2
Product Certifications

Manufacturing & Quality Control

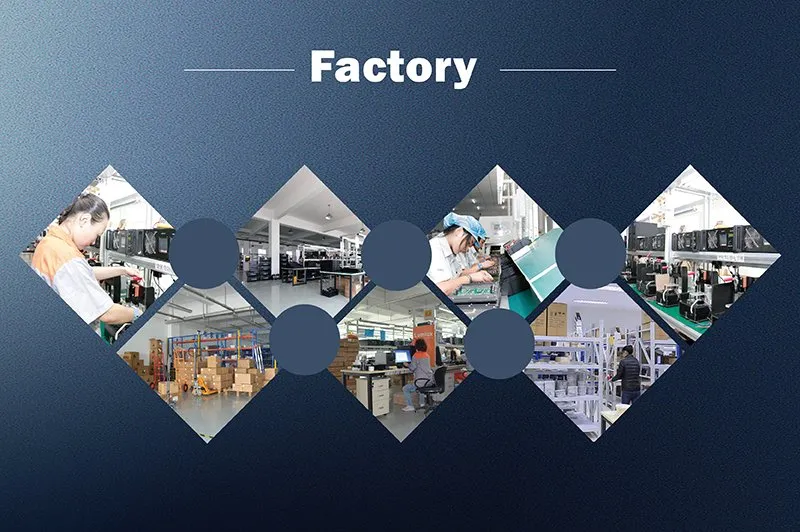

Factory View Production Line Quality Testing

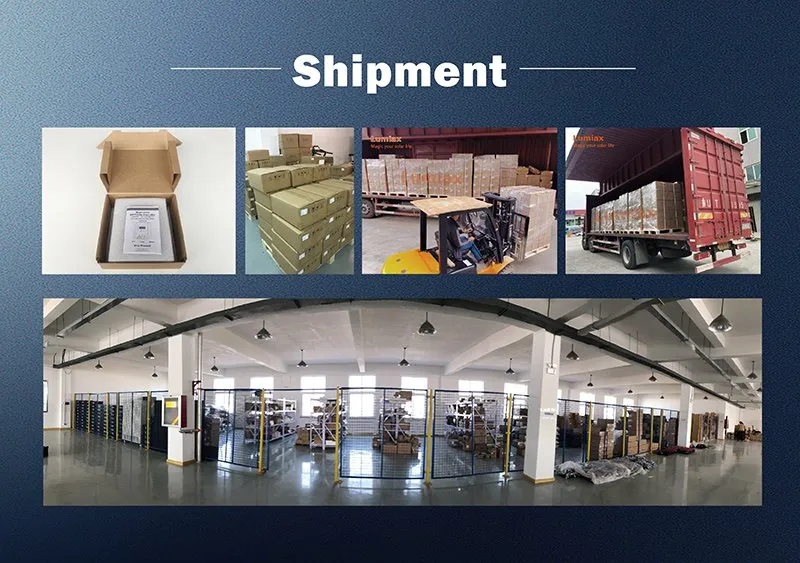

Testing Equipment Warehouse Process Chart

Frequently Asked Questions

What is the maximum tracking efficiency of the MPPT controller?
Our MPPT series features a maximum tracking efficiency of over 99.9%, ensuring optimal energy harvest from your solar panels.
Is the solar controller waterproof for outdoor use?
Yes, the controller has an IP67 protection degree, making it fully waterproof and suitable for harsh outdoor environments like solar street lights.
Does it support Lithium batteries?
Absolutely. It supports Liquid, Gel, AGM, and Lithium batteries. The charging parameters are fully programmable.
What is the charging conversion efficiency?
The controller achieves a high charge conversion efficiency of up to 96.5% for 12V systems and 97.5% for 24V systems.
Does it include low-temperature charging protection?
Yes, specifically for Lithium batteries, it features a 0ºC charging protection that is programmable to ensure battery safety.
How can I communicate with the controller to change settings?
The controller supports multiple communication modes including Infrared, 2.4G, and IOT for convenient parameter adjustment.
