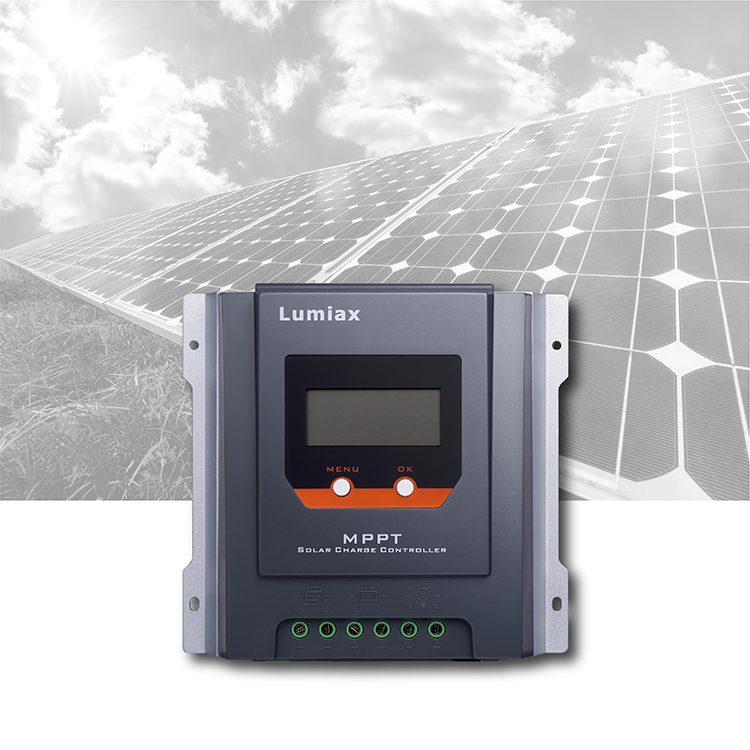

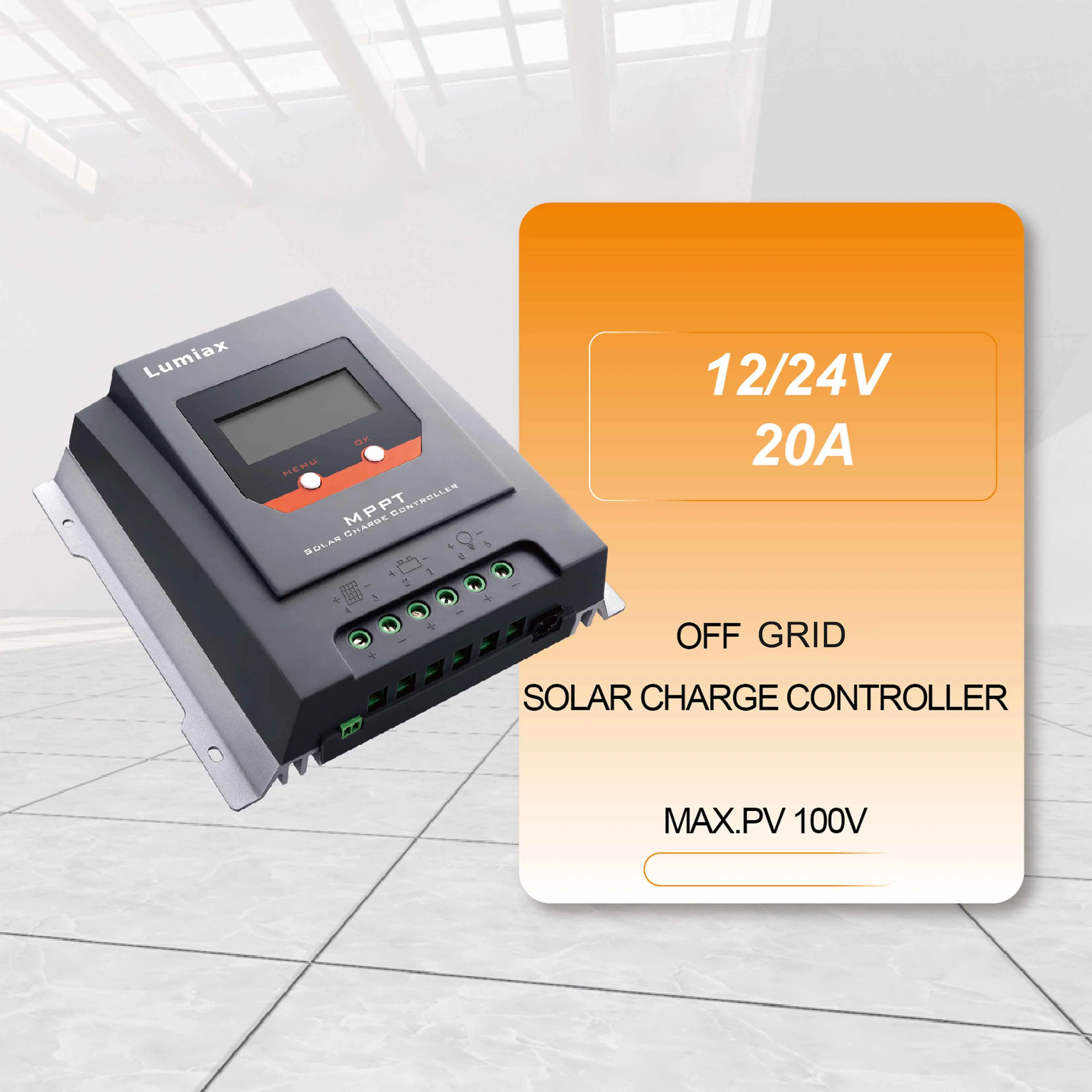

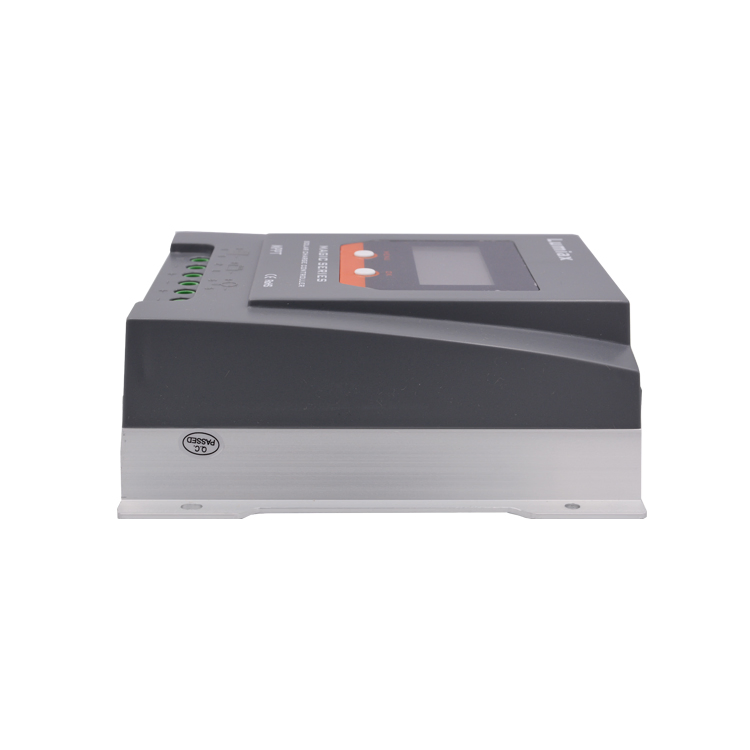

Lumiax 20A 12V 24V MPPT Solar Charge Controller for off-Grid Solar Panel System

1 / 5

Lumiax 20A 12V 24V MPPT Solar Charge Controller for off-Grid Solar Panel System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

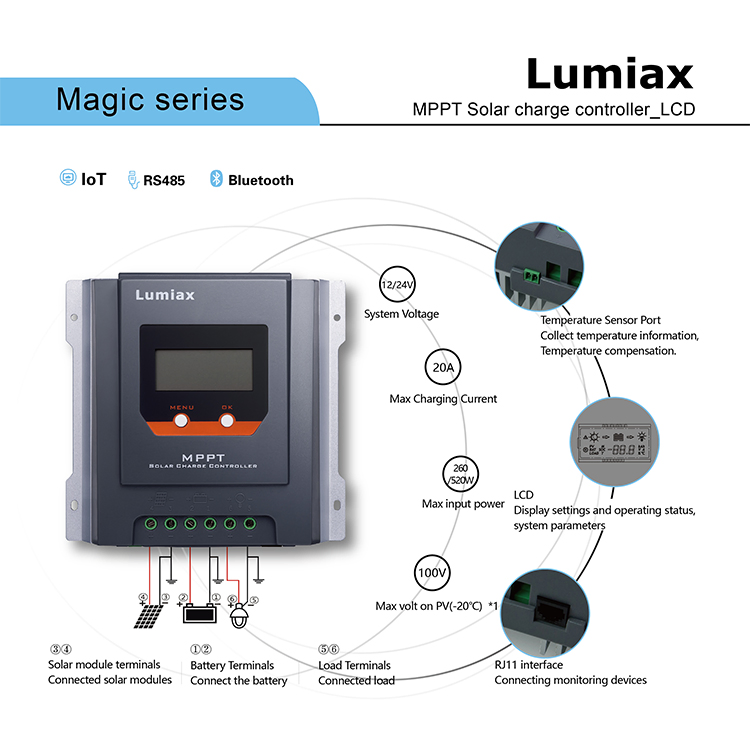

Product Description

📋

Overview & Basic Info

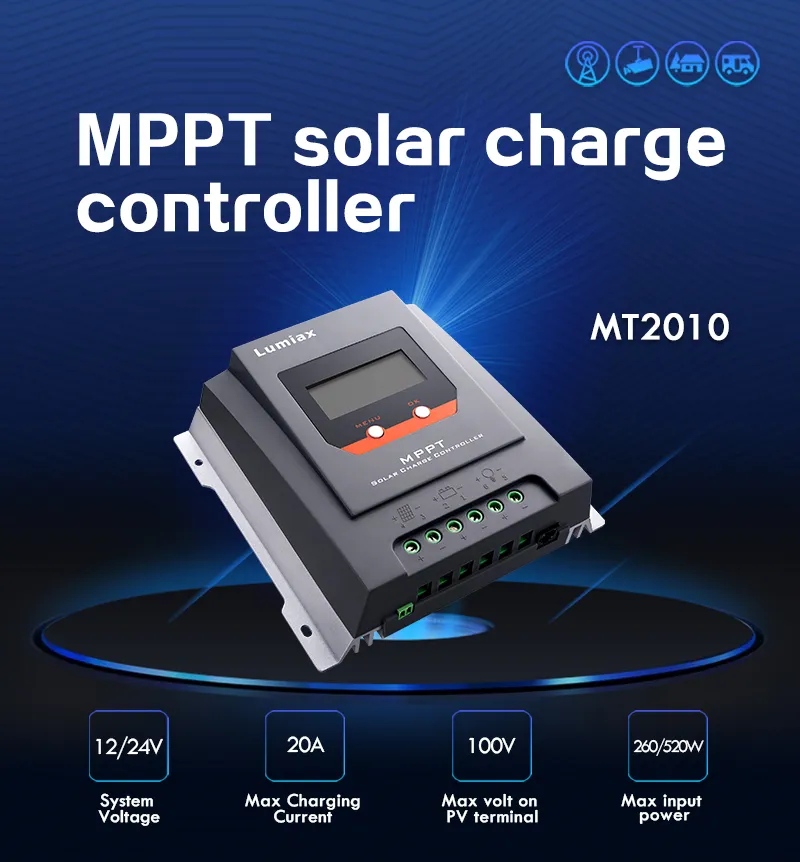

Model NO.:MT2010

Condition:New

Certification:ISO, CE, RoHS, FCC

Rated Voltage:12V/24V

Max Tracking Efficiency:99.9%

Max Charge Conversion:98%

Max Charging Current:20A

Max PV Power Input:260/520W

Max PV Voltage Input:100V

Battery Type:Liquid, Gel, AGM, Lithium

Protection Degree:IP32

Specification:MPPT

📦

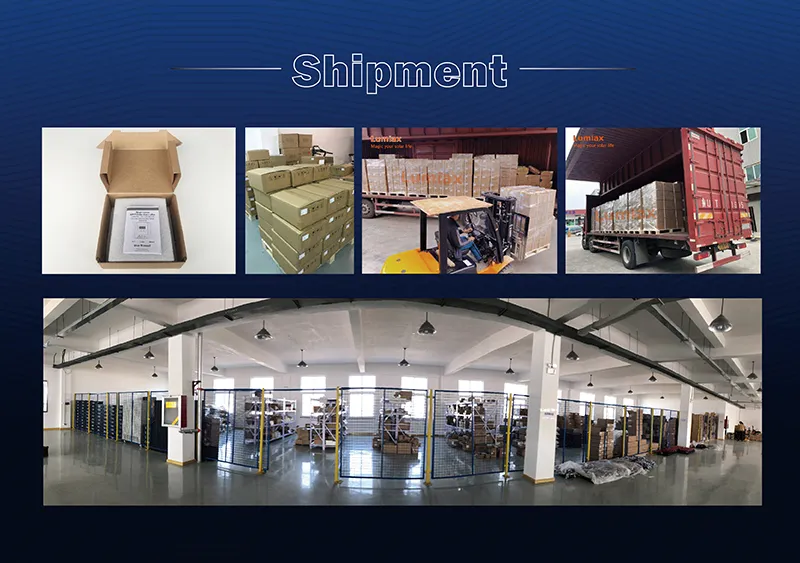

Packaging & Delivery

Package Size:20.00cm * 20.00cm * 10.00cm

Gross Weight:2.000kg

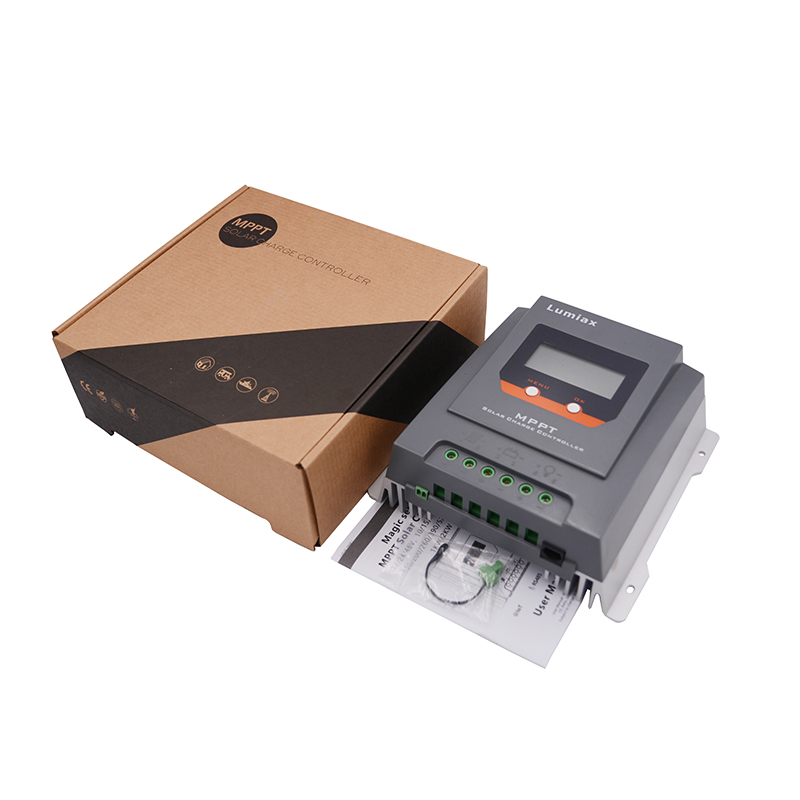

Transport Package:Carton

📊

Product Parameters

Item	MT2010	MT3010	MT2075	MT3075
Max Charging Current	20A	30A	20A	30A
System Voltage	12V/24V automatical recognization
Battery Type	Gel, AGM, Liquid, Lithium (default: Gel)
Max volt on PV terminal	100V@-20ºC, 90V@25ºC		55V@-20ºC, 50V@25ºC
Max input power	260/520W	390/780W	260/520W	390/780W
Max tracking efficiency	>99.9%
Max charge conversion	98.0%
Communication	RS485(RJ11 interface)
Protection degree	IP32

💡

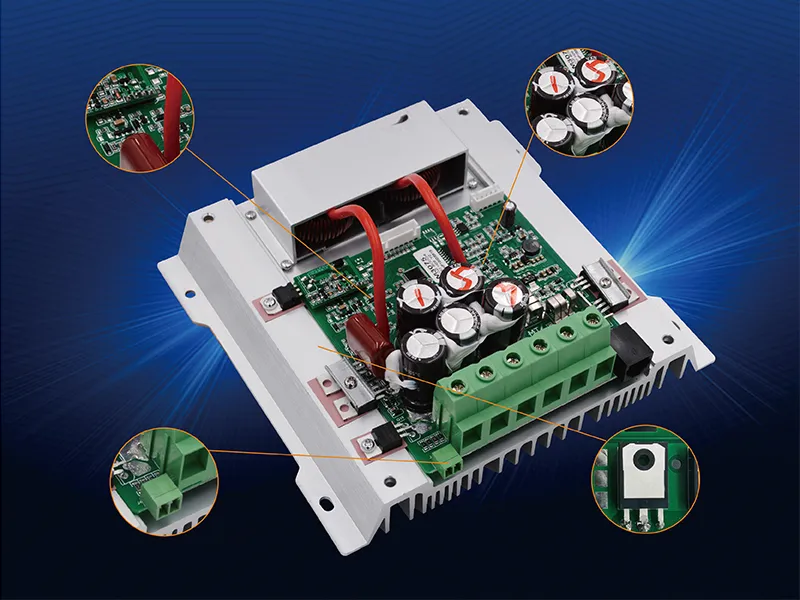

Product Description

🚀

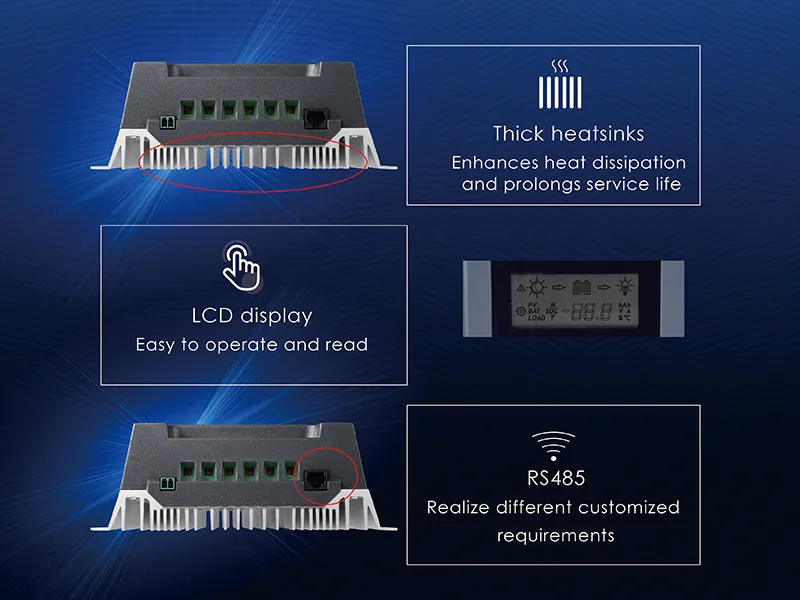

Our Advantages

🛡️

Certifications & Profile

❓

Frequently Asked Questions

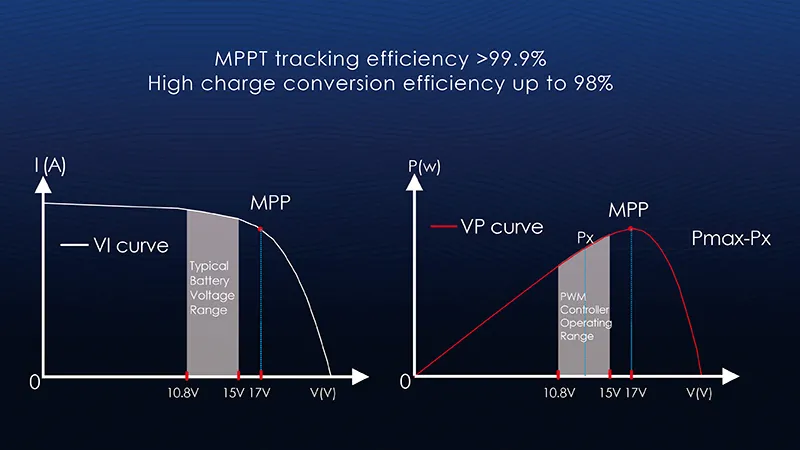

1. What is the maximum tracking efficiency of this MPPT controller?

The controller utilizes advanced MPPT technology with a tracking efficiency of over 99.9%, ensuring maximum energy harvest from your solar panels.

2. Which battery types are compatible with the MT series?

It is compatible with Liquid, Gel, AGM, and Lithium batteries. The default setting is for Gel batteries, but it can be easily adjusted.

3. Does it support 24V solar systems?

Yes, the controller features 12V/24V automatic recognition, making it versatile for different off-grid solar system setups.

4. What is the protection rating for outdoor or dusty environments?

The device has an IP32 protection degree, providing resistance against solid objects and dripping water.

5. Can I monitor the controller via my smartphone?

Yes, the MT series supports RS485 communication and offers optional Bluetooth (Cyber-BT) or IoT modules for remote monitoring and data viewing.
