PV cable (solar cable) refers to the original draft made out by the PV system cable work team of the German Standard Committee (Technical Specification 2PFG1169/08.2007 in Rhein TUV company German).

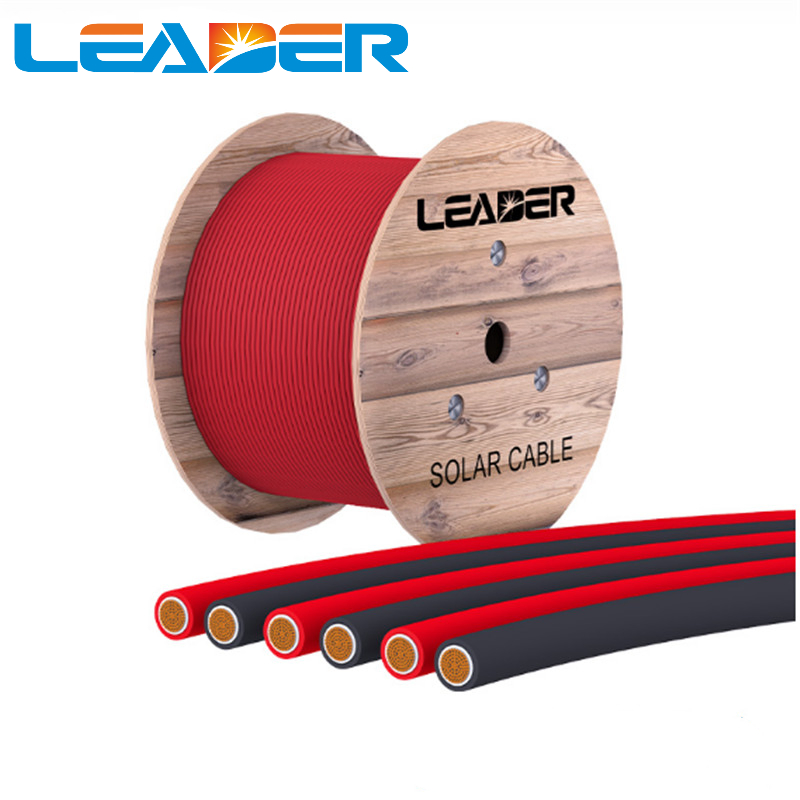

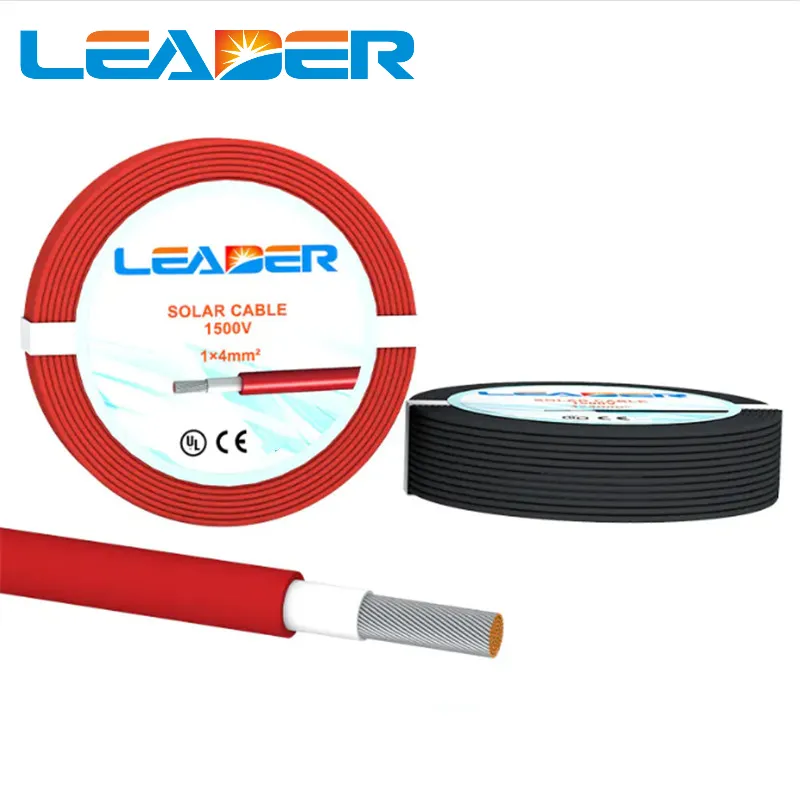

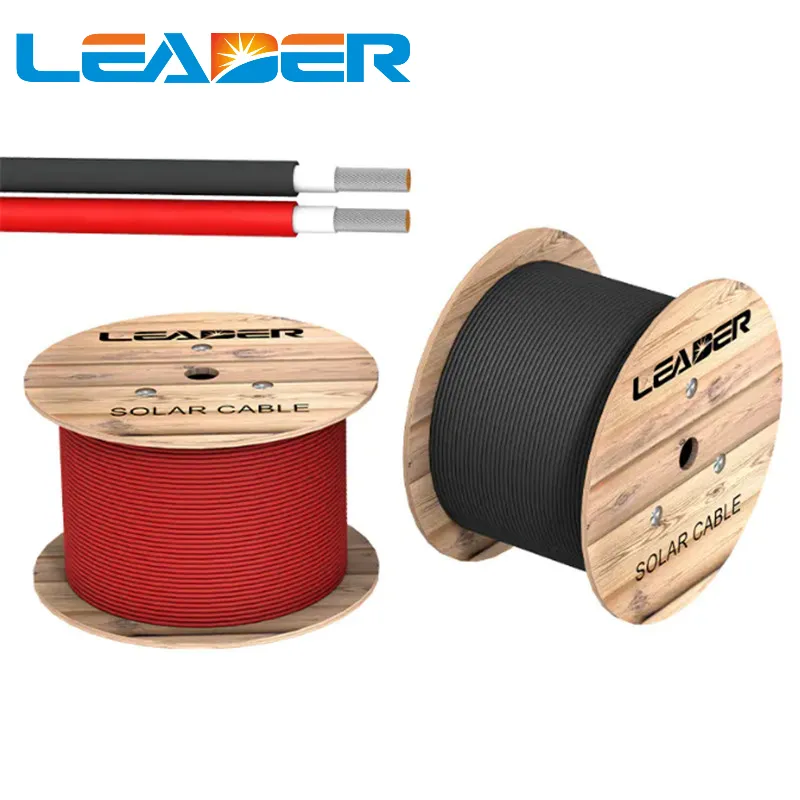

PV1-F: Tinned Flexible Copper Wire, No Halogen PO Insulation & Sheath Photovoltaic System Cable.
Applied to solar panels for power generation and related components of wiring and connection, particularly suitable for outdoor use. Featuring resistance to sunlight and anti-aging properties, using low smoke halogen-free flame retardant materials for higher safety grades.

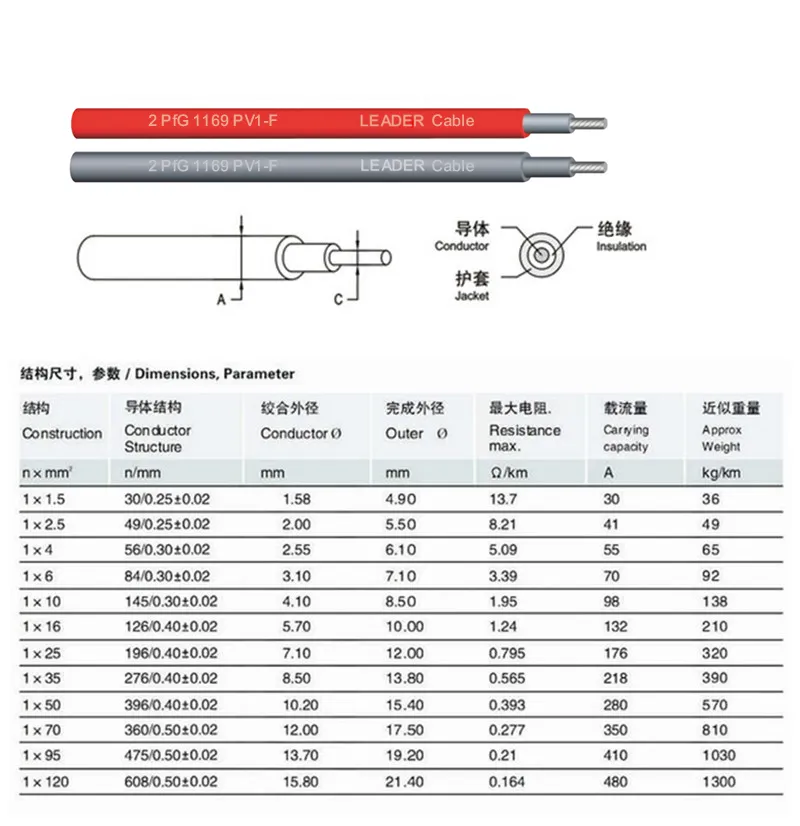

| Parameter | Specification |
|---|---|
| Conductor Construction(N/mm) | 56/0.3 |
| Conductor Stranded OD | 2.6mm |
| Cable OD | 6.15mm |
| Current Capacity | 55A |
| Rated Voltage | AC 0.6/1KV | DC 1.8KV |
| Temperature Range | -40°C~+90°C, dry/humidity |
| Max. Working Temperature | 120°C |
| Short Circuit Temperature | 200°C |
| Standard | EN 2PFG 1169 |
| Type | Cross Section (mm2) | Conductor Structure | Insulation (mm) | Sheath (mm) | Cable OD (mm) | DC Resistance (Ω/km) |
|---|---|---|---|---|---|---|
| PV1-F | 1.5 | 48/0.2 | 1.0 | 0.8 | 5.2 | 12.2 |
| PV1-F | 2.5 | 77/0.2 | 1.0 | 0.8 | 5.6 | 7.56 |
| PV1-F | 4 | 56/0.3 | 1.0 | 0.9 | 6.4 | 4.7 |
| PV1-F | 6 | 84/0.3 | 1.0 | 0.9 | 7.0 | 3.11 |
| PV1-F | 10 | 77/0.41 | 1.0 | 0.9 | 8.2 | 1.84 |
| PV1-F | 16 | 119/0.41 | 1.0 | 1.1 | 9.7 | 1.16 |
| PV1-F | 25 | 189/0.41 | 1.2 | 1.2 | 11.3 | 0.734 |
