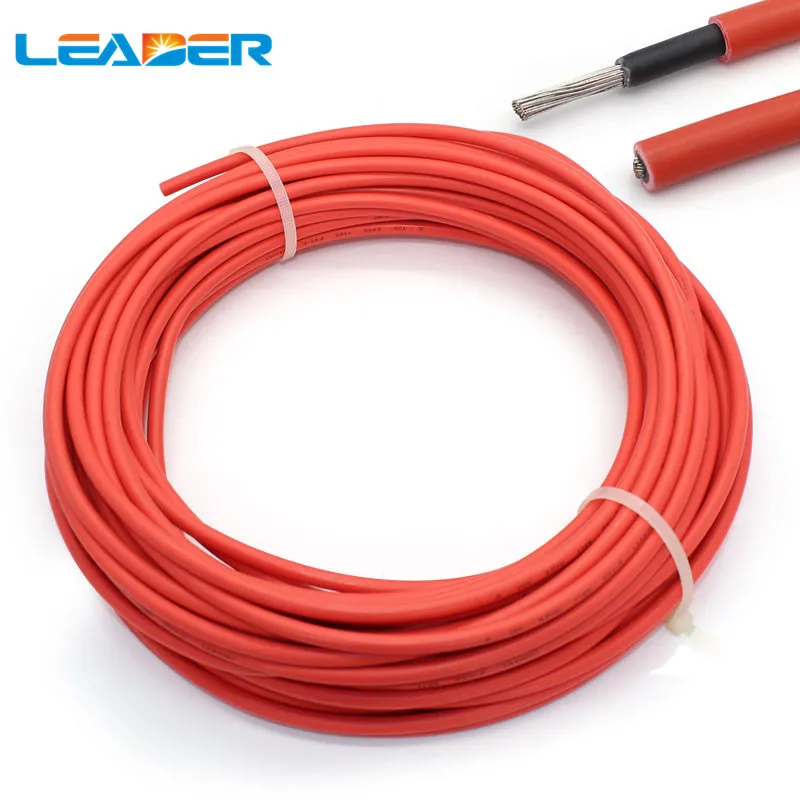

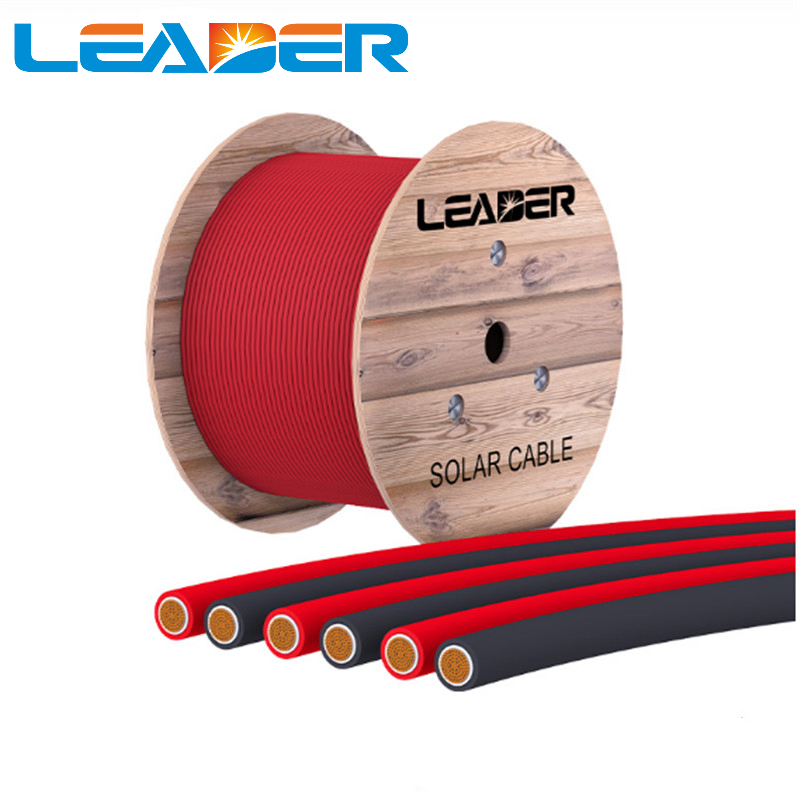

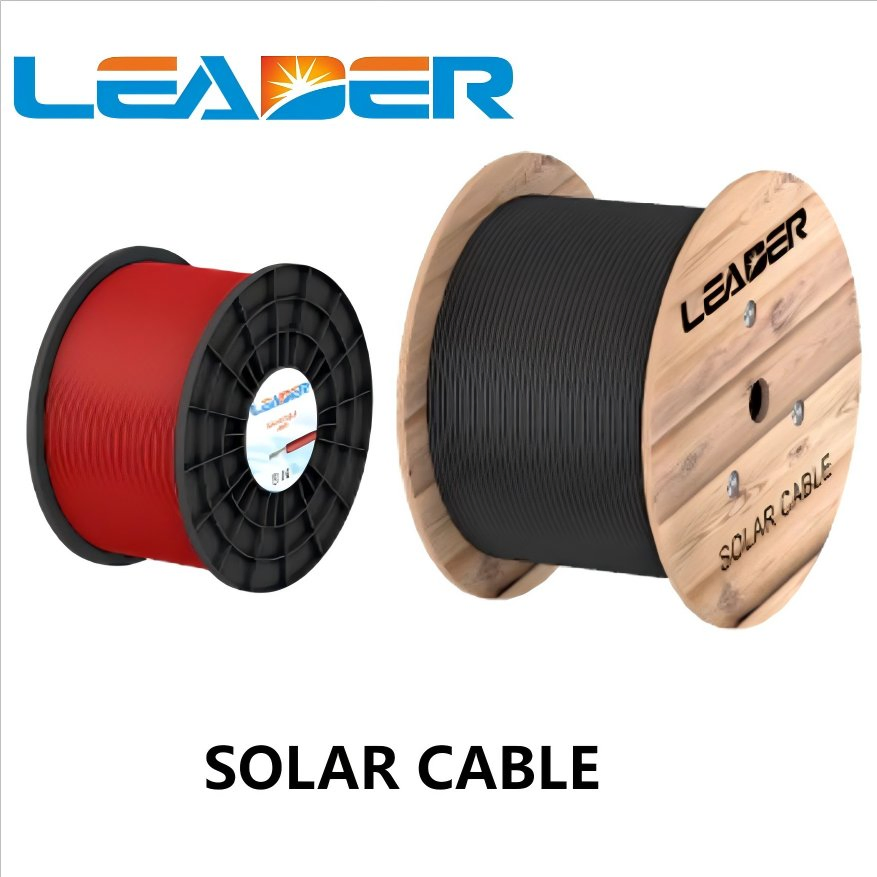

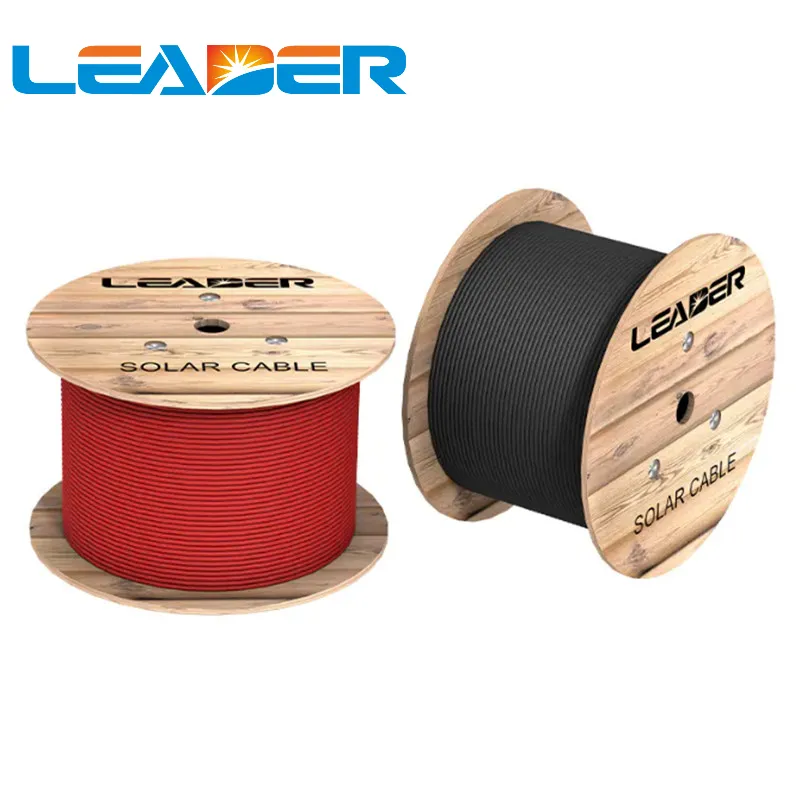

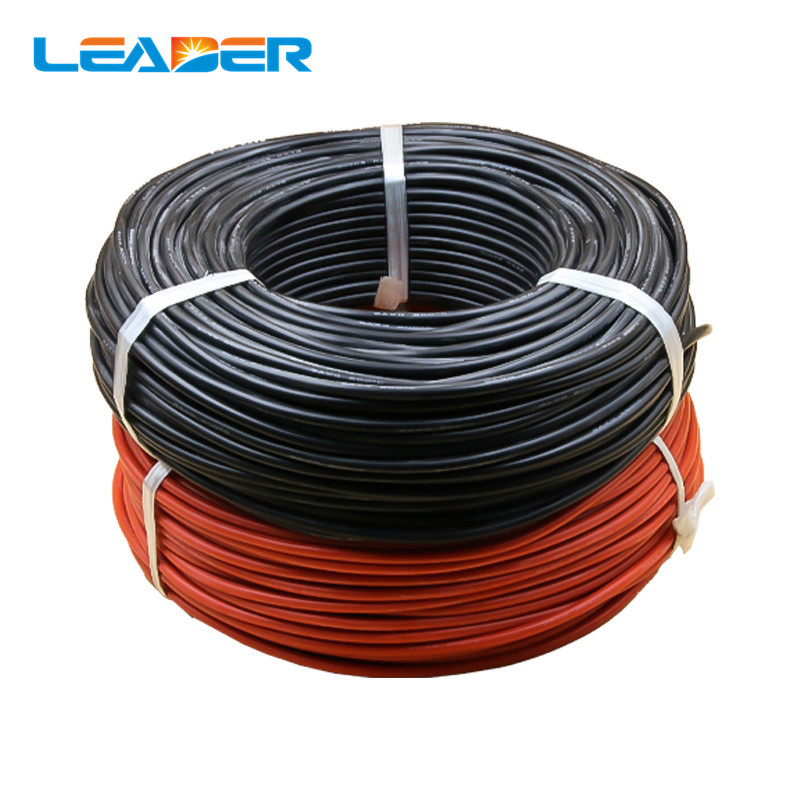

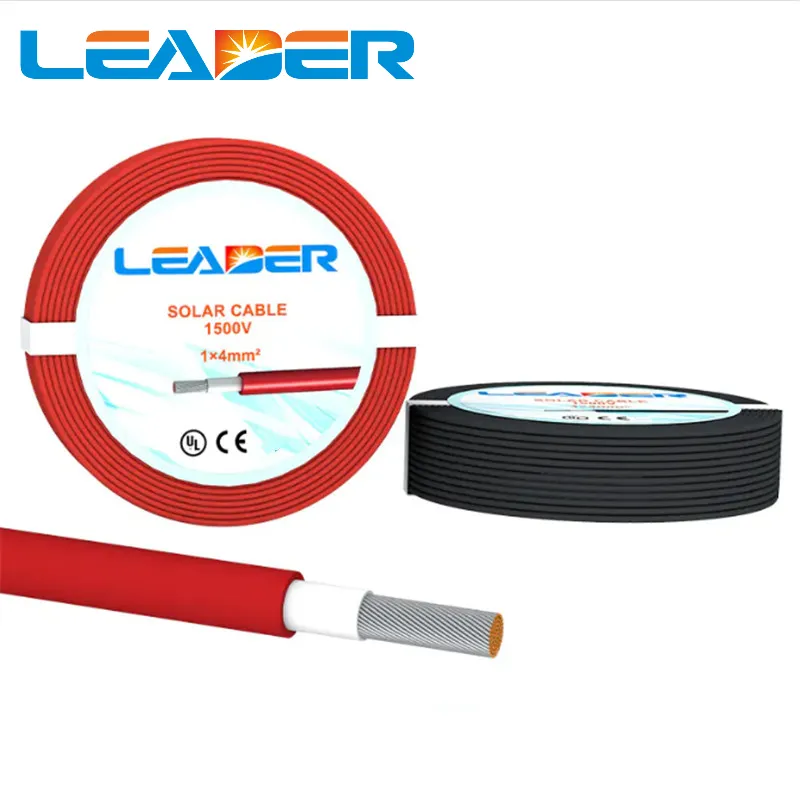

Leader Tinned Copper Wire TUV H1z2z2-K 1X6mmsq 1.5kv PV DC Solar Cable for Solar Panels

1 / 5

Leader Tinned Copper Wire TUV H1z2z2-K 1X6mmsq 1.5kv PV DC Solar Cable for Solar Panels

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

H1Z2Z2-K 1X6mm2

Current

DC Cable

Insulation

Xlpo (No Halogen)

Sheath

Xlpo (No Halogen)

Shape

Round Wire

Core Material

Tinned Red Copper

Certification

ISO, CE, RoHS, TUV, UL, CB

Rating Voltage

DC1500V

Test Voltage

AC 6.5kv, 50Hz 5min

Temp Range

-40°C~+90°C

Max Temp

120°C (Conductor)

Standard

IEC62930 / EN50618

Bending Radius

6×D

Life Period

≥25 Years

Capacity

1,000,000m / Month

Origin

China

Product Description

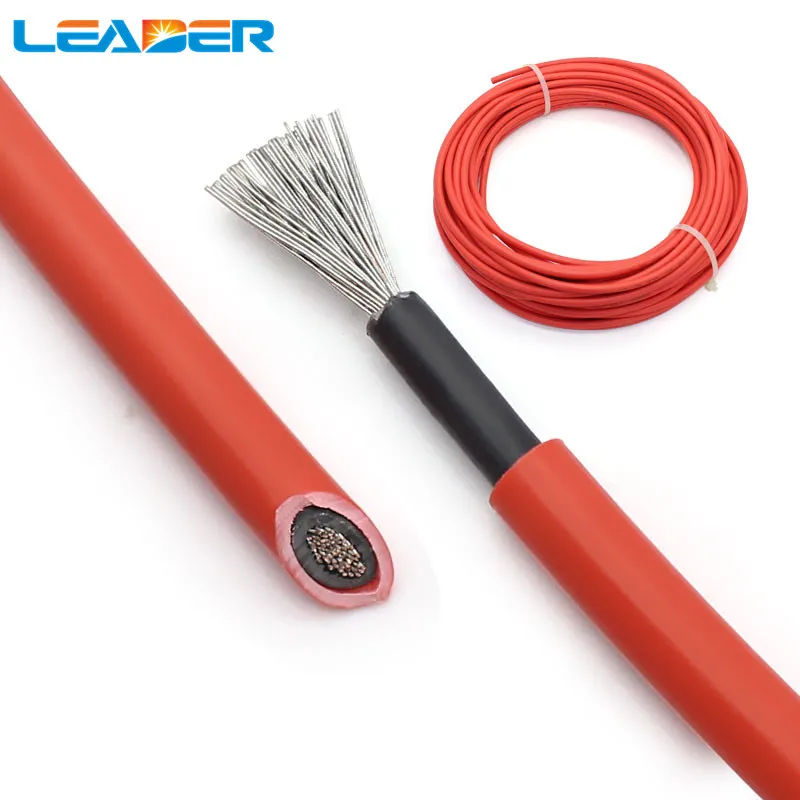

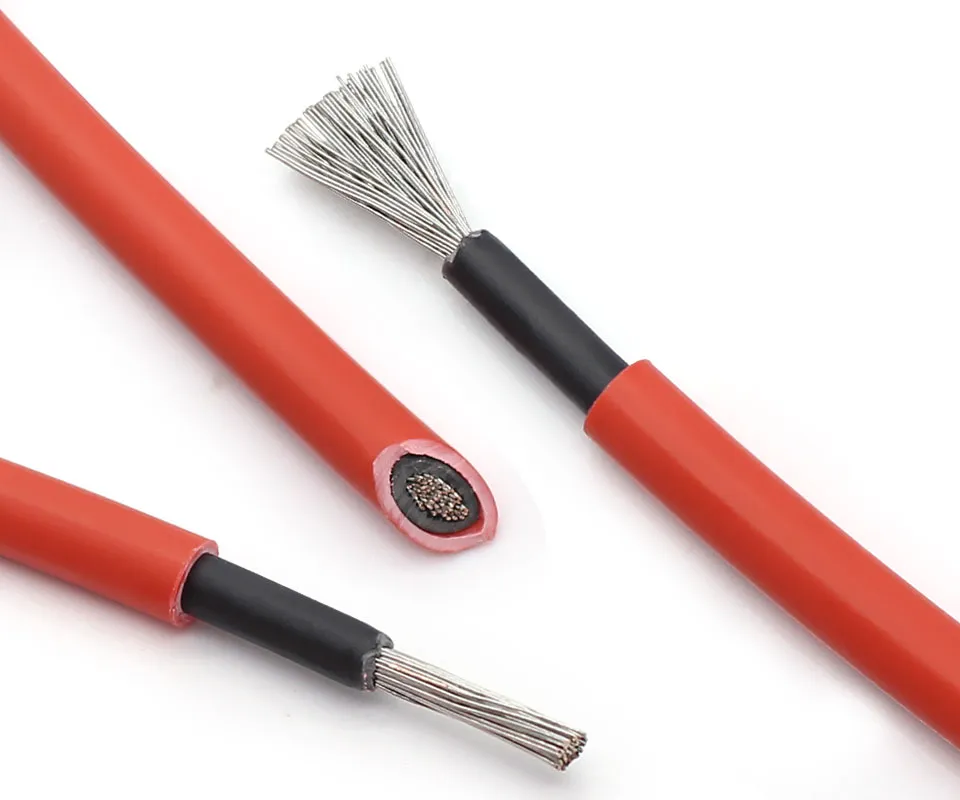

Tinned Copper Wire TUV H1z2z2-K 1X6mmsq 1.5kv PV DC Solar Cable

MODEL	H1z2z2-K 1X6mm2
Conductor	Tinned copper wire, class 5 (IEC 60228)
Insulation	No Halogen PO insulation
Sheath	No Halogen PO sheath
Rating voltage	DC1500V
Test voltage	AC 6.5KV, 50Hz 5min
Temperature range	-40°C~+90°C, dry/humidity
Max Working Temp	120°C
Short Circuit Temp	250ºC 5S
Standard	IEC62930 / EN50618

Our Services & Excellence

Experience our commitment to quality. We are confident in our quality and service, aiming to meet your highest expectations. We are dedicated to delivering exceptional service to you.

Prompt response to your inquiry within 24 hours.

Detailed and professional answers to all technical questions.

Faster, safer, and more convenient freight forwarding solutions.

Competitive quotes provided swiftly for items of interest.

Frequently Asked Questions

What is the expected lifespan of this solar cable?

The H1Z2Z2-K solar cable is designed for long-term outdoor use with a life period of at least 25 years.

Is the cable resistant to extreme weather conditions?

Yes, it operates efficiently in temperatures ranging from -40°C to +90°C and is suitable for both dry and humid environments.

What certifications does this PV cable hold?

The cable is fully certified with ISO, CE, RoHS, TUV, UL, Retie, and CB standards, ensuring global compliance.

What is the maximum rated voltage for this DC cable?

This solar cable is rated for DC 1500V, making it ideal for modern high-voltage solar panel arrays.

What materials are used for insulation and sheathing?

It uses high-quality No Halogen PO (LSZH) insulation and sheath material, which is environmentally friendly and fire-resistant.

What type of conductor is used in the 6mm2 solar cable?

It features Tinned Copper Wire (Class 5) as per IEC 60228, providing excellent conductivity and corrosion resistance.
