RayBoost Solar
1 / 5
| Model NO. | SOL-SC-1ST-0-DC- 2MPPT-1001 |
| Certification | CE TUV |
| Form | Partly-welded Type |
| Operation Voltage | Low Voltage |
| Application Range | PV System |
| Shell Material | ABS / Polycarbonate |
| Protection Grade | IP65 |
| En Type | T1 / T2 |
| Number of Inputs | 1 (Per Mpp Tracker) |
| Supported Mpp Trackers | 2 |
| Connection Method | Sunclix PV Connector |
| Housing Dimensions | 180 mm / 180 mm / 111 mm |
| Production Capacity | 1,000,000 pieces/Year |

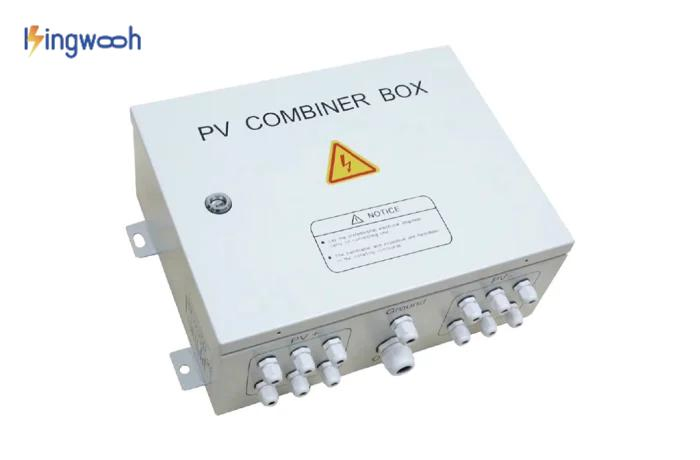

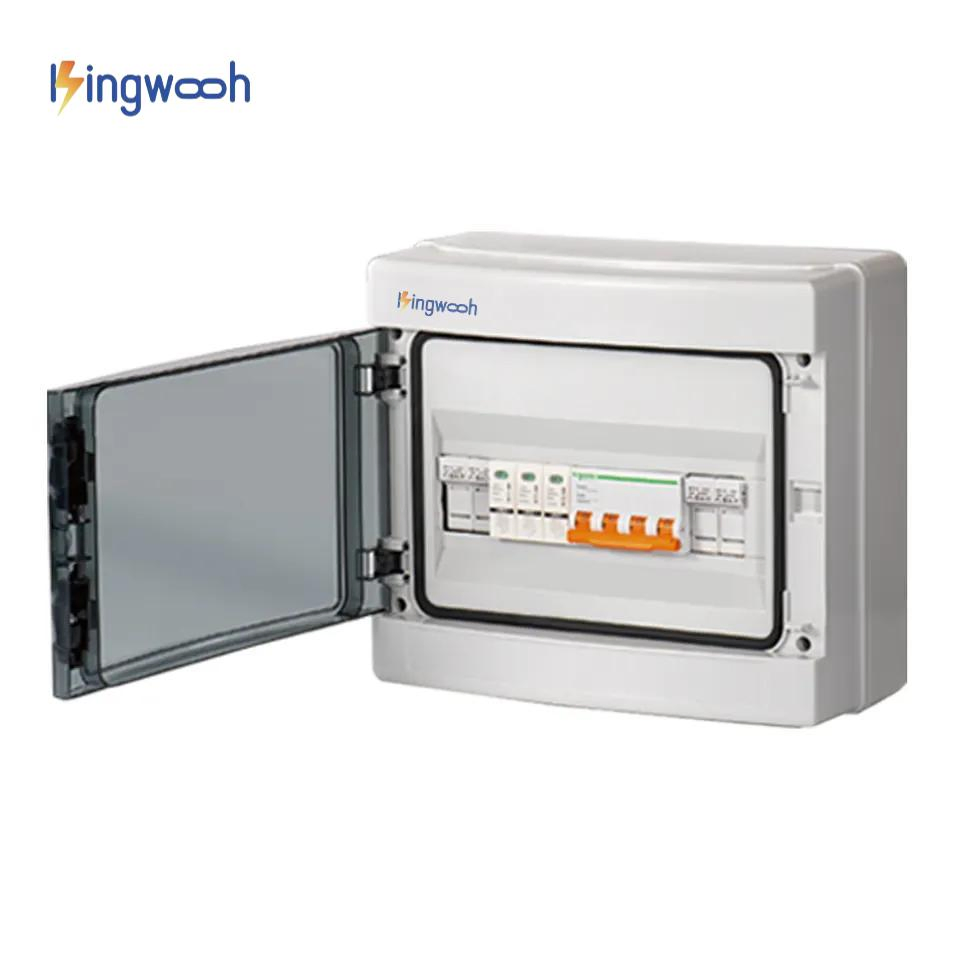

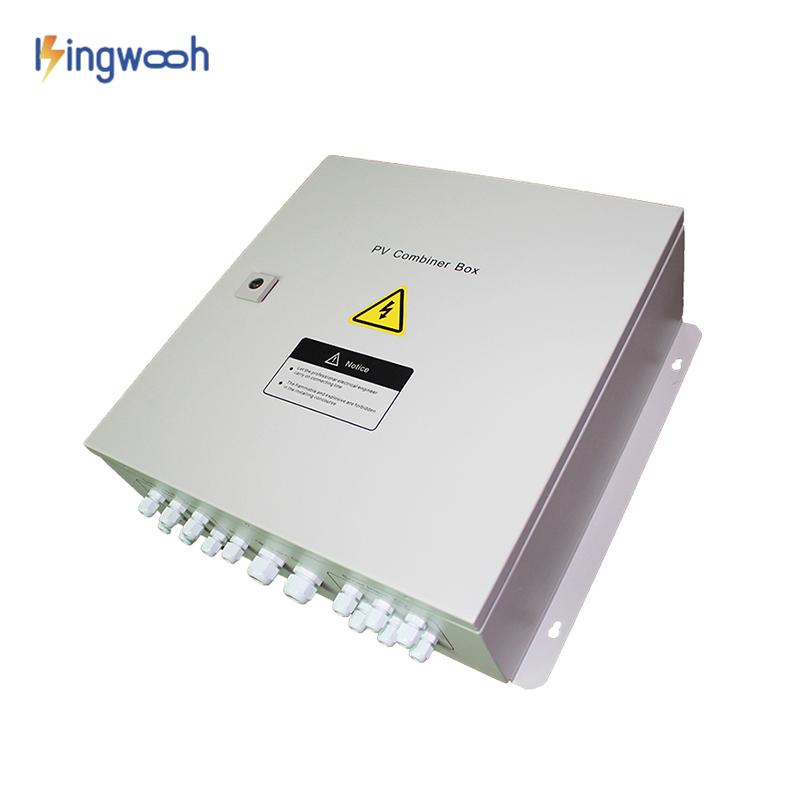

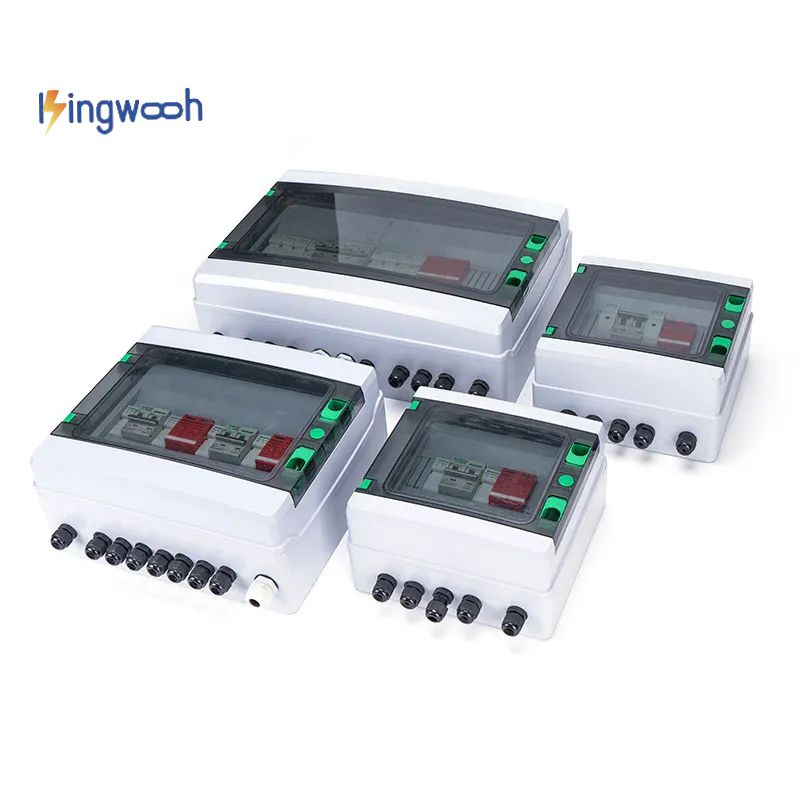

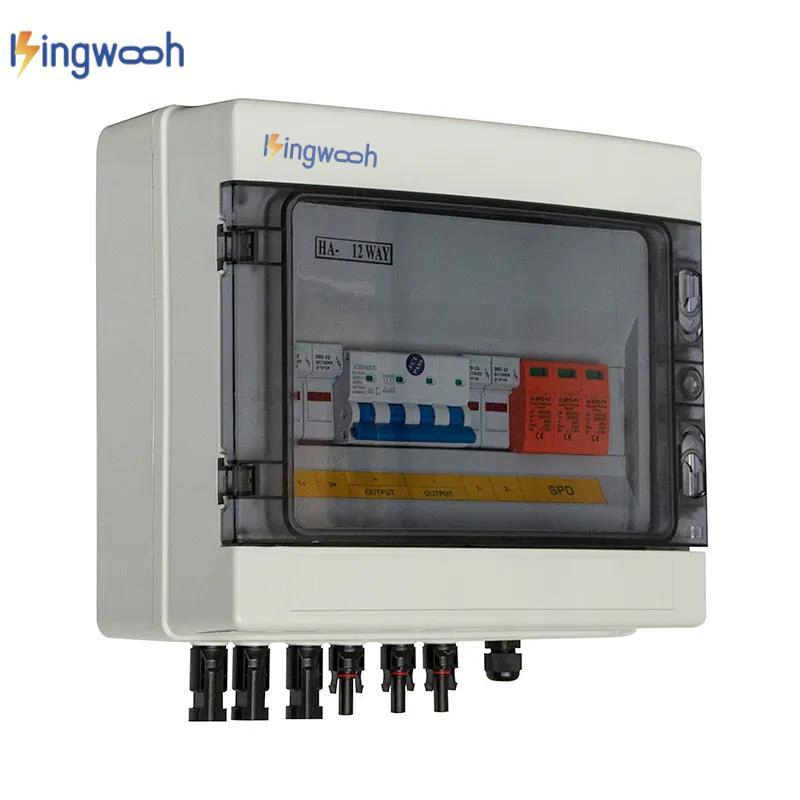

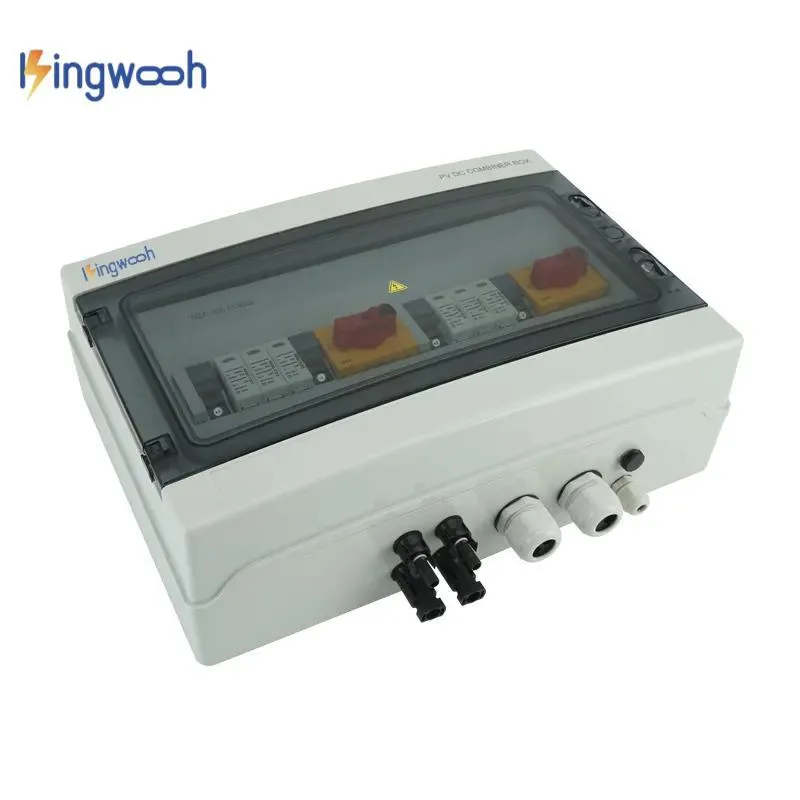

The Solarline string combiner boxes (SCBs) are used in both small rooftop systems and large ground-mounted systems. The main tasks of the SCBs are the surge protection of the PV system, collecting strings (if necessary), and looping through the protective equipotential bonding conductor for the local equipotential bonding.
Further functions are optional and include protecting the strings with string fuses and disconnecting via DC switch disconnectors or DC fire department switches.
| Weight per Piece | 2,400 g |
| Minimum Order Quantity | 1 pc |
| Product Type | String combiner box (SCB) |
| MPP Voltage UN | max. 1000 V DC |
| Total Current MPP Tracker | max. 40 A |
| Number of Outputs | 2 |
| Cable Entry Type | Cable gland |
| Ambient Temp (Operation) | -20 °C ... 55 °C |
| Package Size | 23.00cm * 23.00cm * 16.00cm |
| Package Gross Weight | 3.000kg |
