IP65 Outdoor Garden Energy Saving LED Sensor Solar Street /Road Lighting with Panel Sensor and Gel/ Lithium Battery

1 / 5

IP65 Outdoor Garden Energy Saving LED Sensor Solar Street /Road Lighting with Panel Sensor and Gel/ Lithium Battery

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Light TypeSolar

Color TempWarm White

Power≥30W

Illumination Time8h

Charging Time6h

IP RatingIP65

Voltage12/24V

CertificationCE, RoHS, SGS, ISO9001

MaterialAluminum Stainless Steel

Guarantee3-5 Years

UsageGarden, Street, Road

Capacity3000/Month

Product Description

IP65 Outdoor Garden Energy Saving Integrated LED Sensor Solar Street /Road Lighting with Panel Sensor and Lithium Battery

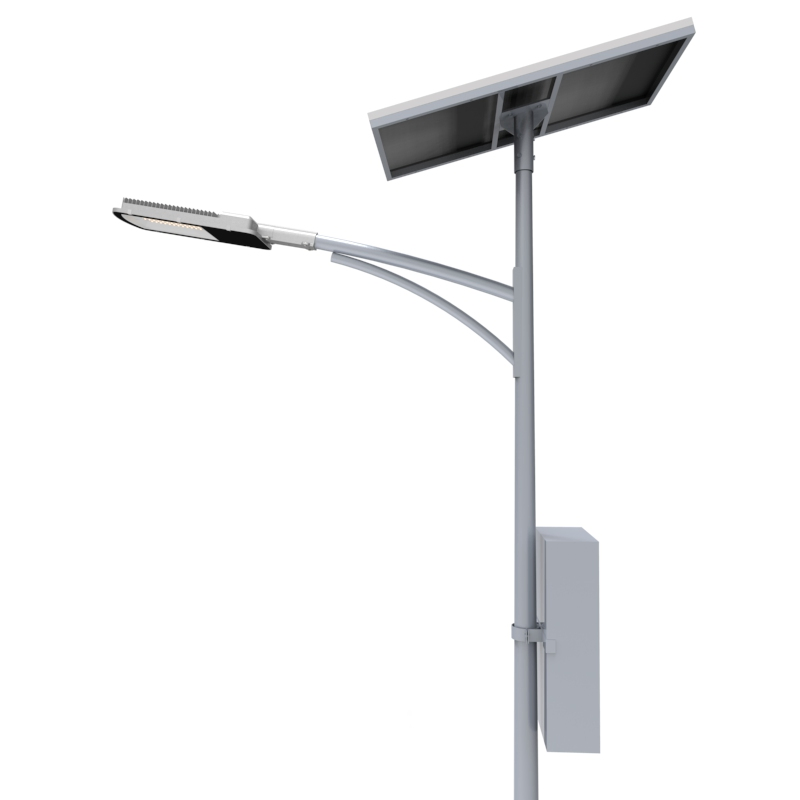

Structure Overview	8M Pole Height 60W LED \| 11-12 Hrs 3-4 Nights Lighting
Solar Panel	140W*2PCs for 24V Lighting, 17% Efficiency, Mono Crystalline Silicon. High Efficiency. Lifespan: 20-25 years.
Gelled Battery	150Ah/12V*2PCs, Sealed Type, Gelled. Deep cycle. Maintenance Free. Lifespan: 5-8 years.
Intelligent Controller	PWM Type, 15A/24V*1PC. Automatic Light and Time Control. Over-charging/discharging & Reverse-connection Protection.
Light Source	High Power LED 60W*1PC, White Color, 140LM/W, 30Lux, 6500K. IP65, 120 Degree Angle. Lifespan: >80000Hrs.
Pole Specification	8M Height, Steel, Hot-Dip Galvanized. Includes Arm, Bracket, Flange, and Fittings. Lifespan: More than 20 years.

Frequently Asked Questions

How many cycles for full charge & discharge of the battery?

At 50% discharging depth, it can be cycled for 1,200 times; in floating charging and discharging status, it can be cycled for 5,000~6,000 times.

How to choose the system voltage (12V or 24V)?

We design the system for 12V or 24V for solar street lights, or 220-380V for standard street light systems depending on the project requirements.

What is the main difference between mono and polycrystalline solar panels?

The main differences are the production process and cost. Polysilicon technology is more mature and cost-effective, while Monosilicon generally offers higher efficiency.

Does the controller have a dual time control function?

Yes, the solar charge controller features dual time control. You can split the lighting schedule, such as 6 hours at full power followed by 6 hours at half power.

What does the IP65 rating mean for this light?

IP65 indicates that the light is completely dust-tight and protected against water jets from any angle, making it ideal for durable outdoor use in rainy conditions.

Is maintenance required for the solar panels?

The system is largely maintenance-free. However, to ensure maximum efficiency, it is recommended to occasionally clean the solar panel surface of heavy dust or snow.
