Intelligent Remote-Monitor Hydraulic Material Handler Digital Display Safety Monitoring Protection System

Customization:	Available
After-sales Service:	Other
Warranty:	1 Year

📋 Basic Specifications

Model	SZ-EM300
Application	Excavator / Hydraulic Material Handler
Certification	CE, ISO9001: 2000
Material	Aviation Aluminum Alloy

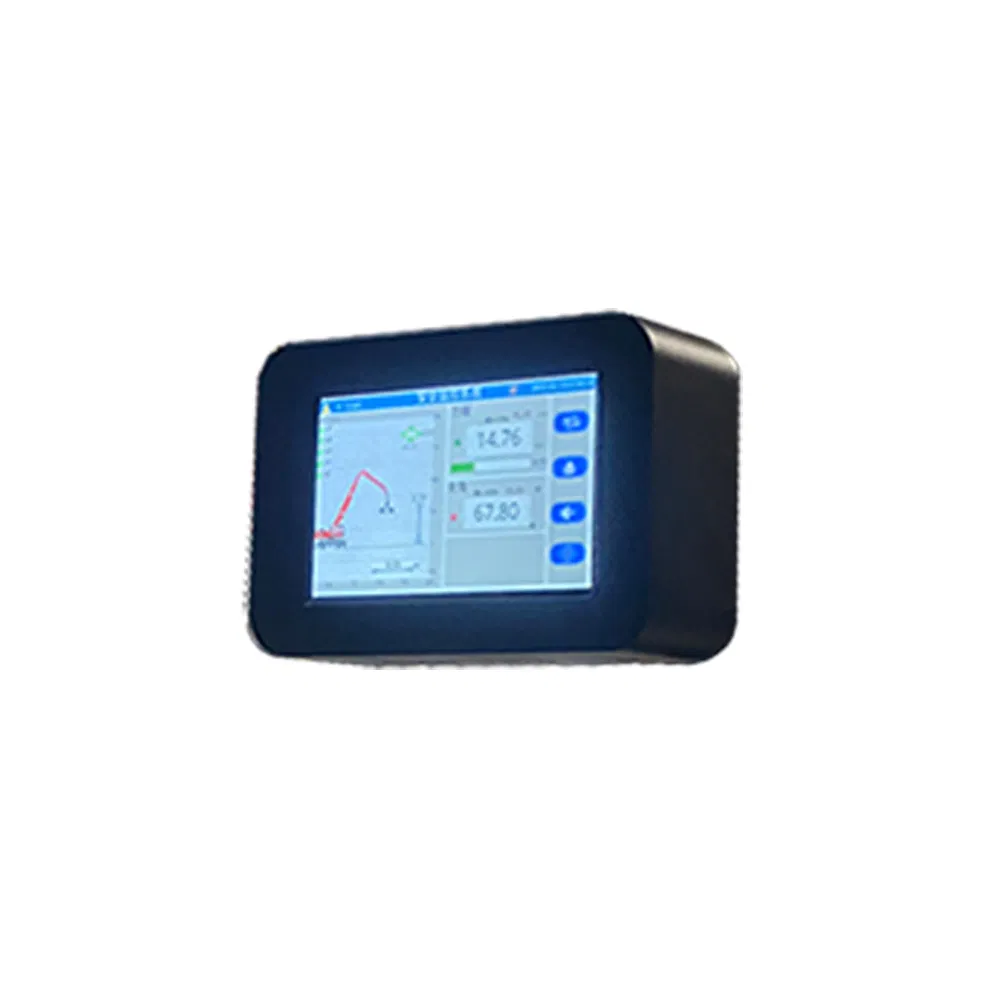

Screen Display	7 Inch Touch Screen
Work Pattern	Continuous
Power Supply	DC 12-36V
Package Size	50.00cm * 40.00cm * 30.00cm
Gross Weight	10.000kg

🔍 Product Description

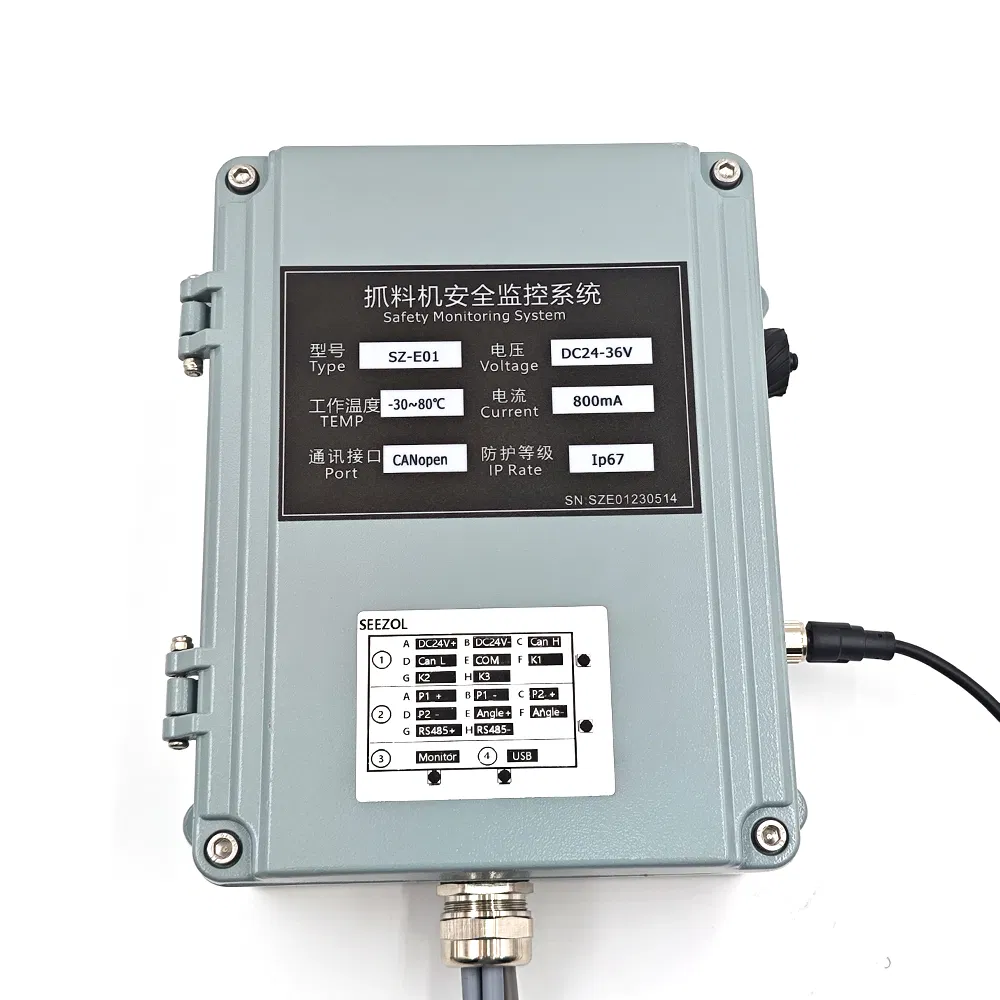

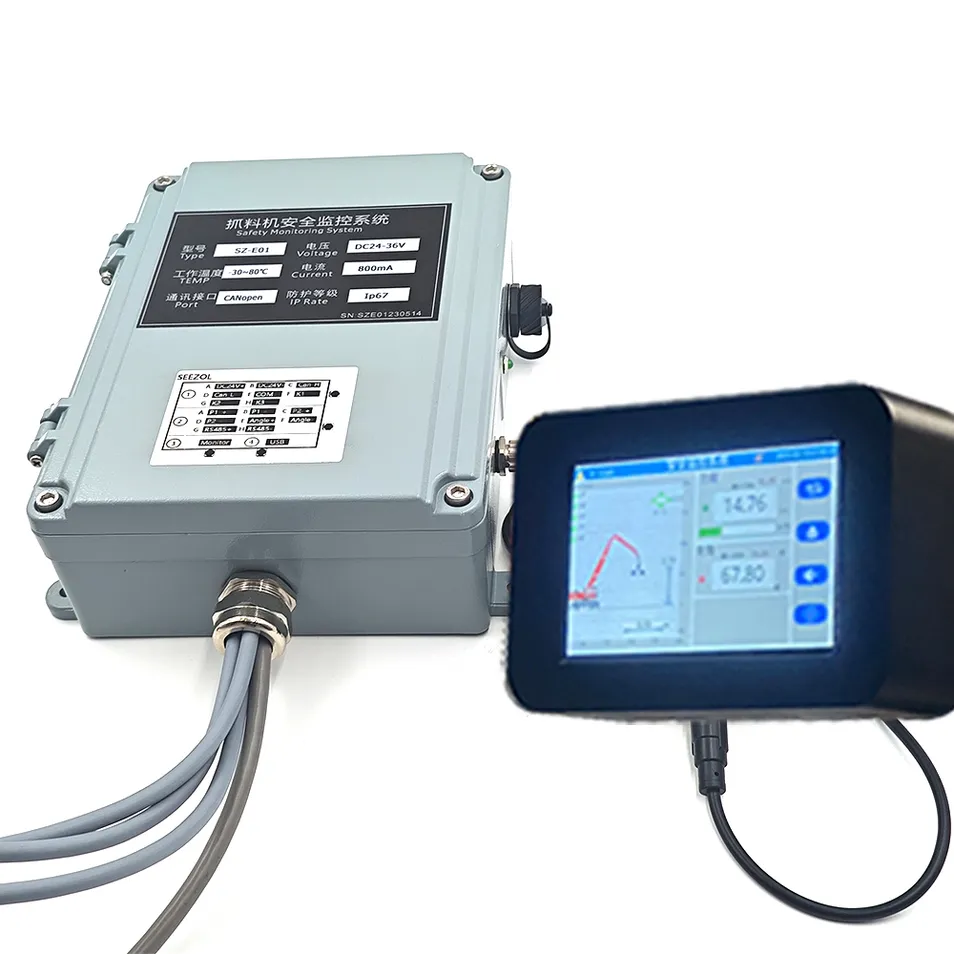

The SZ-EM300 Hydraulic Material Handler Safety Monitoring System (also known as Load Moment Indicator - LMI) is an intelligent safety device. It automatically measures load, height, and amplitude during operation. Using advanced algorithms, it provides real-time torque data feedback. When the load exceeds the rated threshold, the system triggers audible and visual alarms to warn the operator, ensuring equipment safety and providing critical data for management.

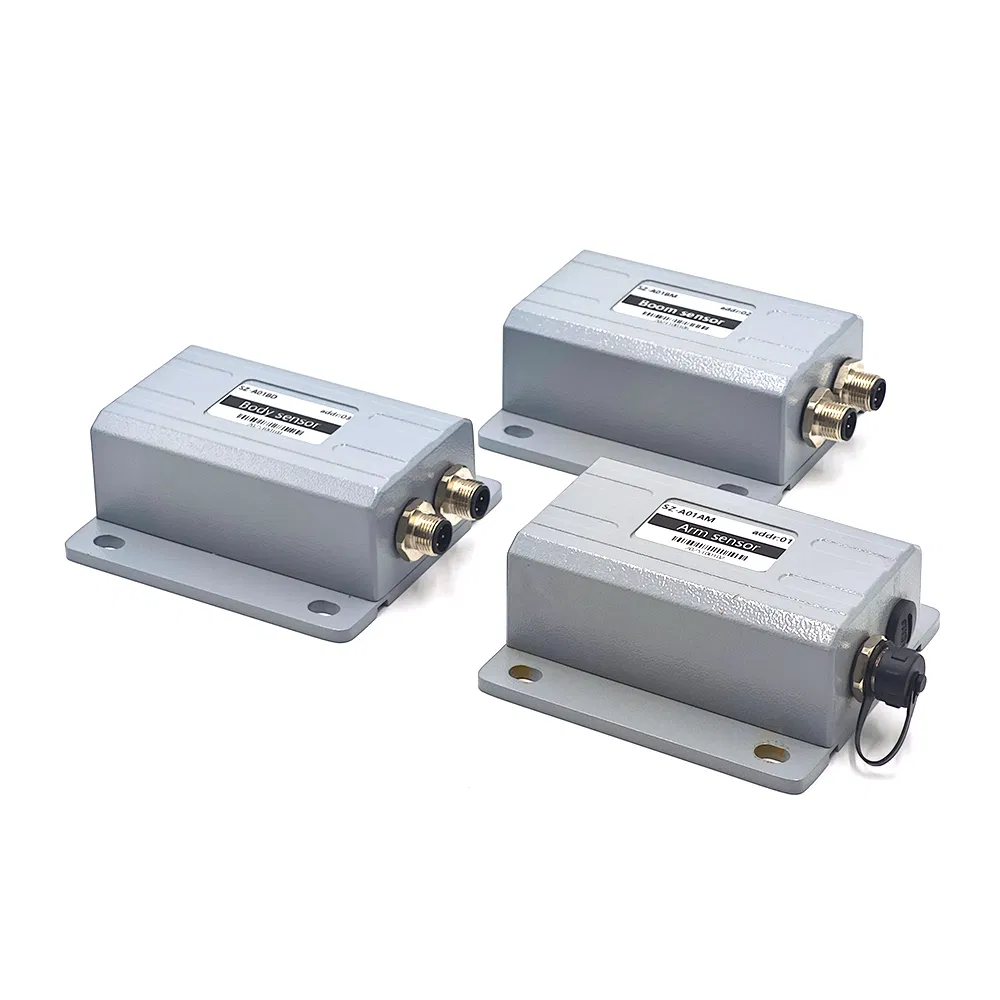

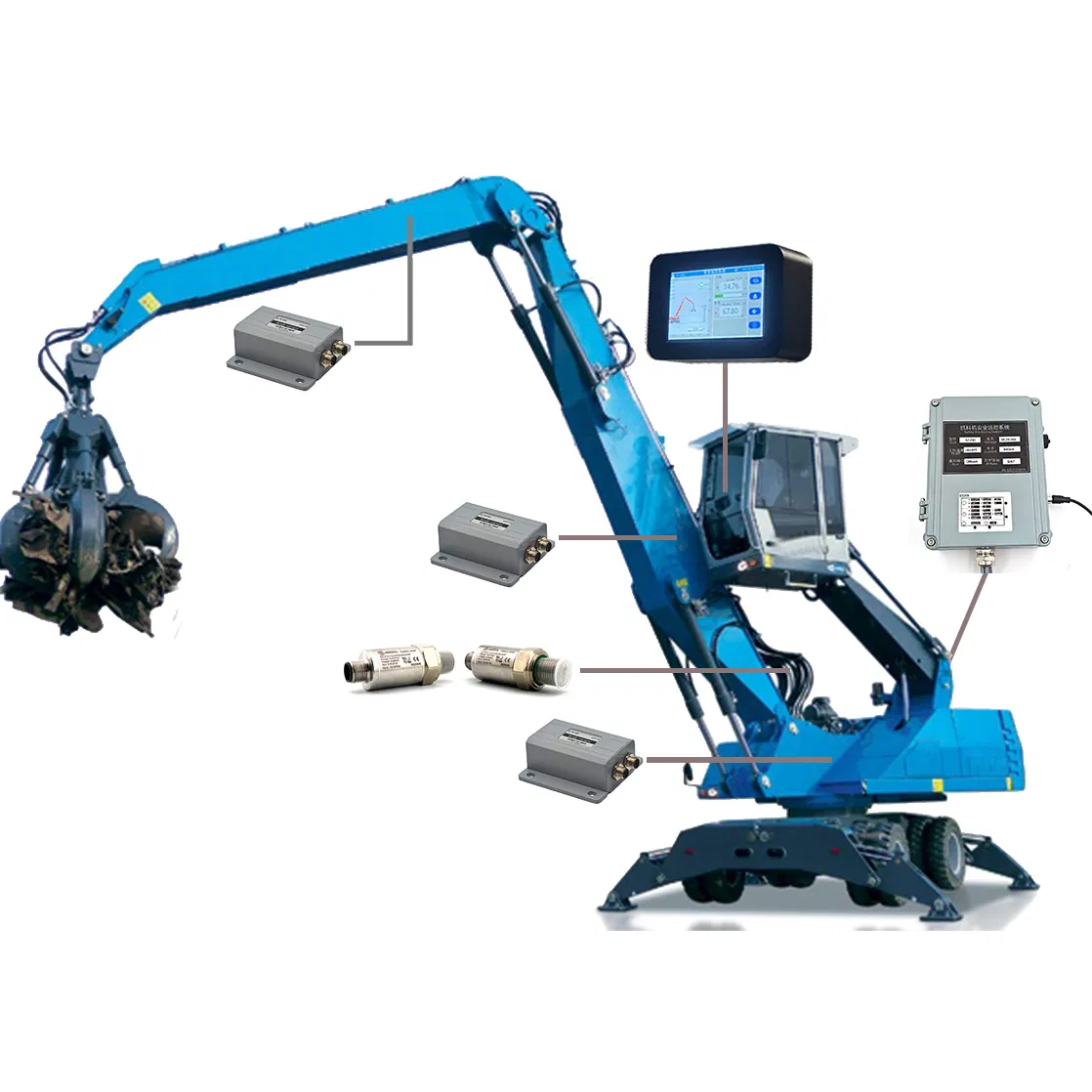

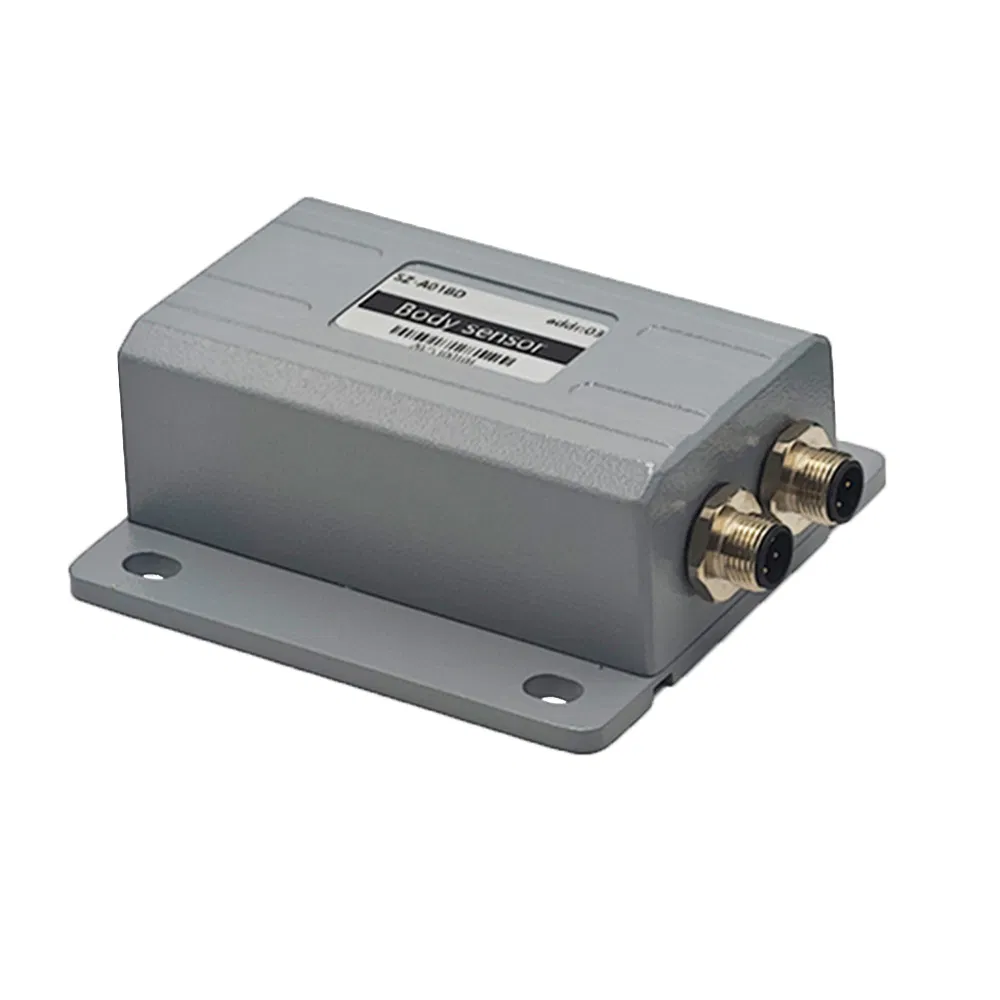

Working Principle: Precision sensors (pressure and angle) installed on the boom and dipper rod collect real-time geometric data. The controller calculates the actual torque based on arm length and cylinder stroke. This is compared against safety thresholds to prevent overloading or restricted actions.

⚙ Technical Parameters

Measure Range	15-85T (Single bucket weight)
Resolving Ability	0.01T
Combined Accuracy	±3-5%(F.S.)
Temperature Range	-20℃ to +70℃
Relative Moisture	90% (at 20℃)
Action Error	<±1%(F.S.)
Relay Contact Capacity	DC24V 5A

✨ Key Functions

1

Real-time Dynamic Torque Calculation: Instant visual feedback for the operator on current status.

2

Multi-level Overload Warning: Progressive alerts and automatic action restriction to prevent accidents.

3

Data Recording & Traceability: Logs operation data for historical analysis and equipment health monitoring.

4

Parameter Customization: Flexible configuration to adapt to different working conditions and attachments.

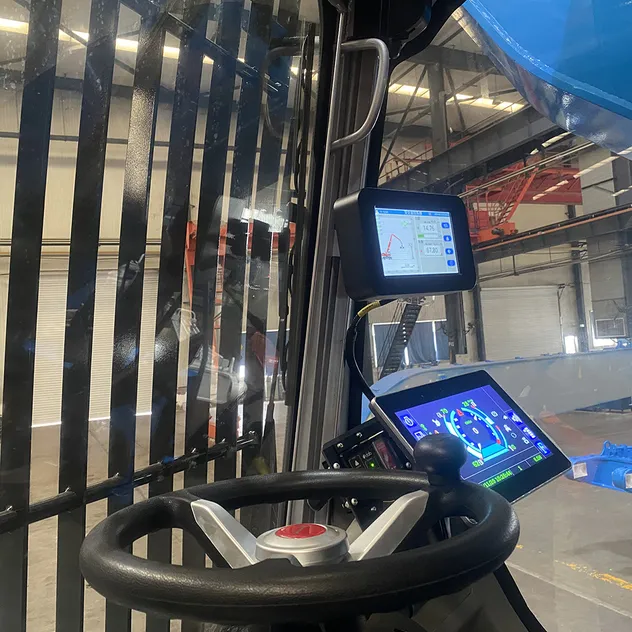

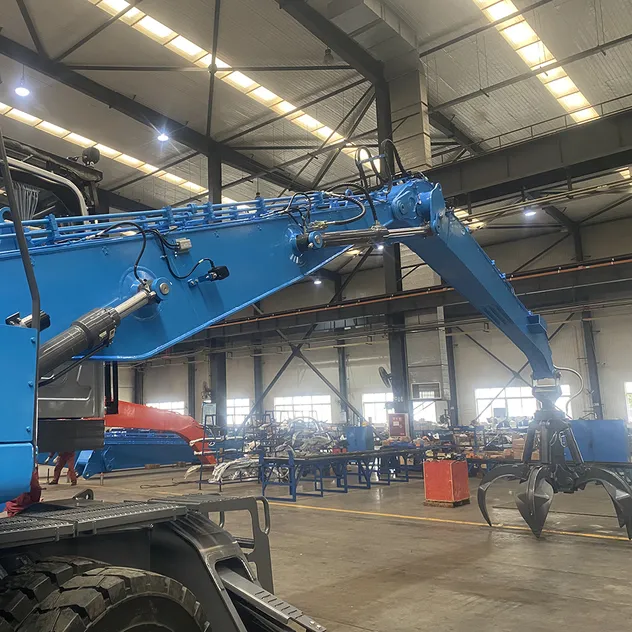

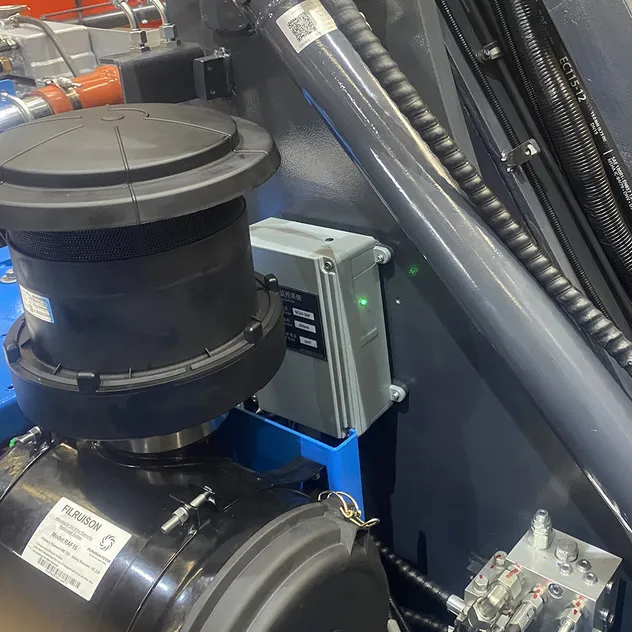

📍 Project Cases

📦 Packaging & Shipping

🏭 Profile

We are a leading technology-based enterprise specializing in the research, development, and production of high-quality construction machinery load moment indicators and on-board weighing systems. We provide automated project operation plans tailored to meet diverse industrial needs.

Our commitment to innovation is backed by a team of experienced engineers and numerous patented technologies. We focus on the organic combination of safety, controllability, and efficiency, adhering to the values of "Safety First and Service-Oriented" excellence.

📜 Certifications

❓ Frequently Asked Questions (FAQ)

1. Can you provide customized services for specific machinery?

Yes, we offer both OEM and ODM services. Our in-house design department can create project-specific sketches and implementation plans based on your equipment's unique requirements.

2. What is the typical delivery timeframe for orders?

Stock products are generally shipped within 7-15 working days. For customized solutions, the delivery time ranges from 15-30 working days after requirement confirmation.

3. Do you provide installation assistance?

Every product includes a detailed manual and installation instructions. We also provide remote installation assistance. If on-site installation is required, technical labor is free, though travel and accommodation costs are covered by the buyer.

4. What is the warranty period for the SZ-EM300 system?

The system comes with a 12-month warranty covering manufacturing defects, provided the equipment has not been damaged by improper user operation.

5. Are there discounts available for large volume orders?

Yes, we offer competitive discounts for bulk orders. Please contact our support team with your specific quantity requirements for a detailed quotation.

6. Is the safety monitoring system compatible with different voltages?

The SZ-EM300 is designed for versatility, supporting a wide electric voltage range from DC 12V up to 36V, making it compatible with most standard excavator power systems.
