Product Description
For large-scale PV grid-connected power generation systems, in order to reduce the connection between the PV module and the inverter, and to facilitate maintenance to improve reliability, it generally needs to add a DC busbar device between the PV module and the inverter. The PV array lightning protection combiner box is designed to meet this requirement and can be integrated into a complete PV power generation system solution with PV inverter products. Using the PV combiner box, users can connect a certain number of PV modules of the same specifications in series according to the input DC voltage range of the inverter, facilitating post-inverter output for lightning protection and circuit breaking.
1

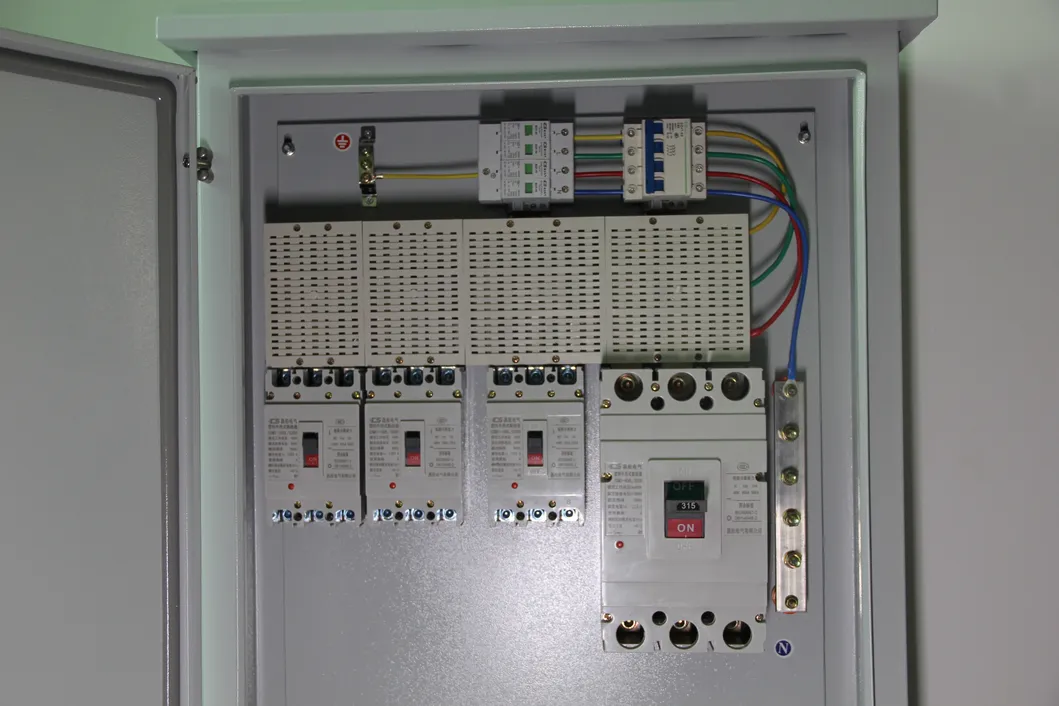

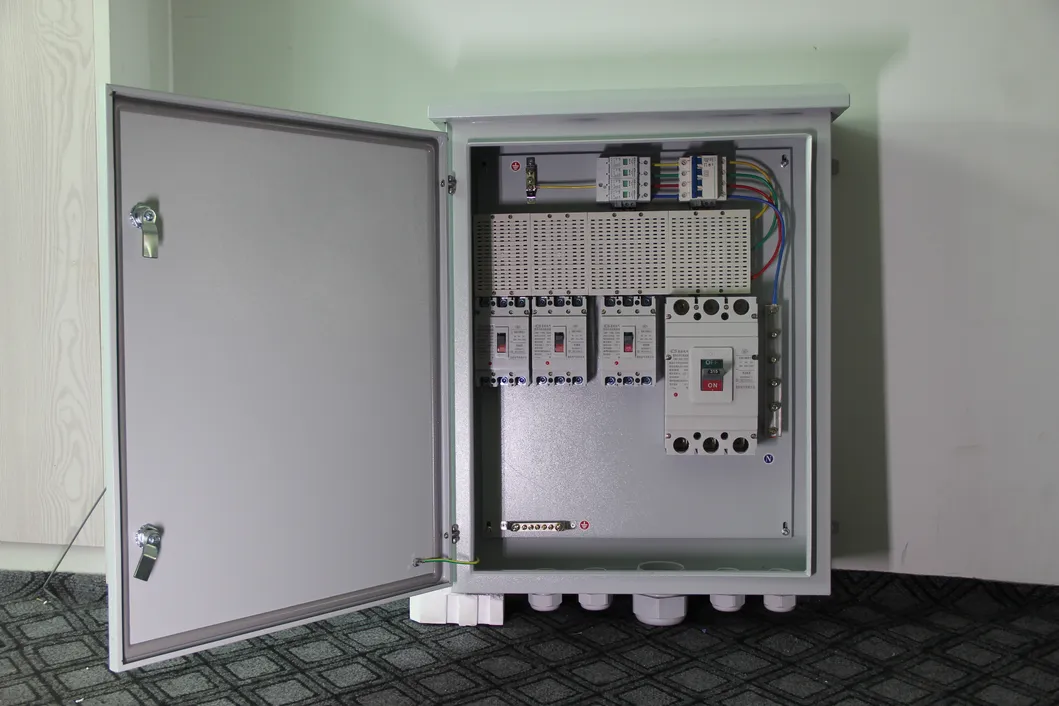

Meets requirements of outdoor installation, protection class IP65, with anti-UV, anti-acid, anti-alkali, moisture, mildew, and rodent control functions.
2
Access PV array, each with 15A, 1000Vdc fuse (replaceable with other grades).
3
Equipped with special high-voltage lightning protection device, providing protection for both cathode and anode.
4
Positive and negative strings integrated into the fuse system.
5
Uses quadruple PV dedicated circuit breaker with positive and negative in series.
Frequently Asked Questions
What is the main function of a PV combiner box?
It converges multiple PV strings into a single DC output to simplify the connection between solar panels and the inverter, while providing lightning and overcurrent protection.
Is this combiner box suitable for outdoor use?
Yes, it features an IP65 protection rating, making it resistant to UV, moisture, dust, and corrosion, ideal for outdoor installation.
What kind of protection does it offer?
It includes high-voltage lightning protection for both positive and negative poles, as well as dedicated DC fuses and circuit breakers for each string.
Can the fuses be replaced?
Yes, the unit is equipped with replaceable 15A 1000Vdc fuses, and other grades can be used depending on your specific requirements.
What applications is this product designed for?
It is widely used in residential, industrial, and commercial solar power generation systems.
Does it support communication monitoring?
The internal structure includes an RS485 communication terminal for data output and system monitoring.
