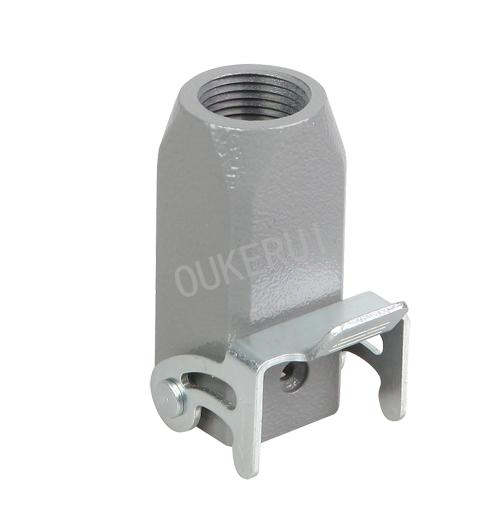

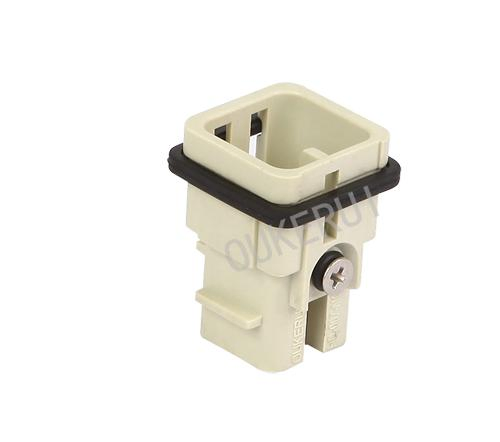

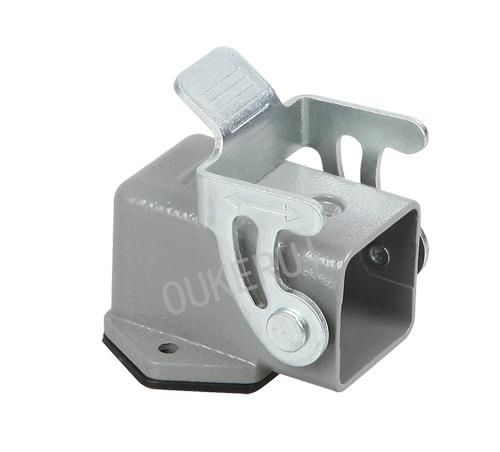

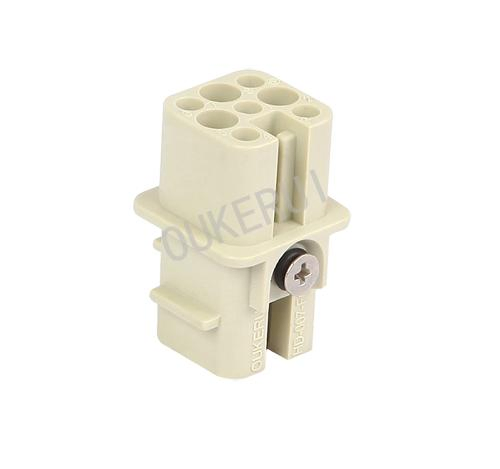

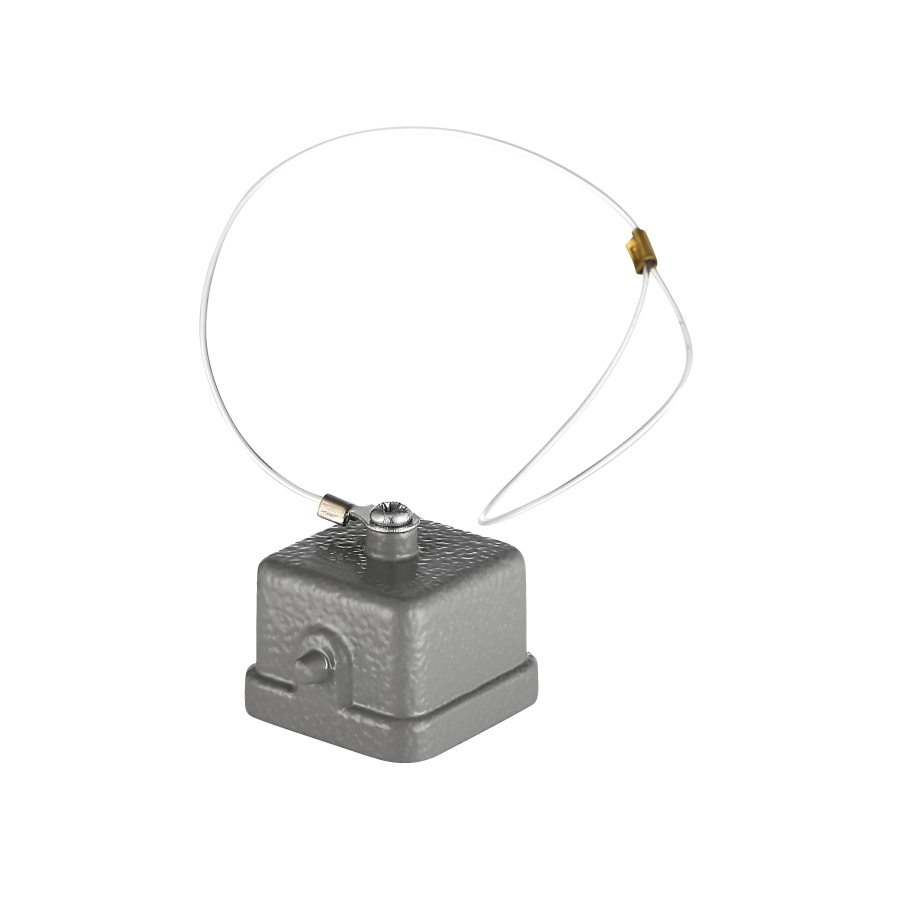

Factory Direct Sales H Z W-HD-007 Mc Easy-Operating Heavy Duty Connector
Factory Direct Sales H Z W-HD-007 Mc Easy-Operating Heavy Duty Connector
Factory Direct Sales H Z W-HD-007 Mc Easy-Operating Heavy Duty Connector
Factory Direct Sales H Z W-HD-007 Mc Easy-Operating Heavy Duty Connector
Factory Direct Sales H Z W-HD-007 Mc Easy-Operating Heavy Duty Connector
1 / 5
Factory Direct Sales H Z W-HD-007 Mc Easy-Operating Heavy Duty Connector
Factory Direct Sales H Z W-HD-007 Mc Easy-Operating Heavy Duty Connector
Factory Direct Sales H Z W-HD-007 Mc Easy-Operating Heavy Duty Connector
Factory Direct Sales H Z W-HD-007 Mc Easy-Operating Heavy Duty Connector
Factory Direct Sales H Z W-HD-007 Mc Easy-Operating Heavy Duty Connector

Factory Direct Sales H Z W-HD-007 Mc Easy-Operating Heavy Duty Connector

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
HZW-HD-007 MC
Application
Transmission of Electrical Signals
Character
High Temperature Resistance
Species
Heavy Duty Connector
Production Process
Injection Molding
Shape
Rectangular
Interface Type
Silver/Gold Plated Contacts
Certification
UL, CE, ROHS
Current
10A / 16A
Voltage
250V / 500V
Housing Material
Die-Casting Aluminum Alloy
Working Env.
IP65 Waterproof
📦 Product Description

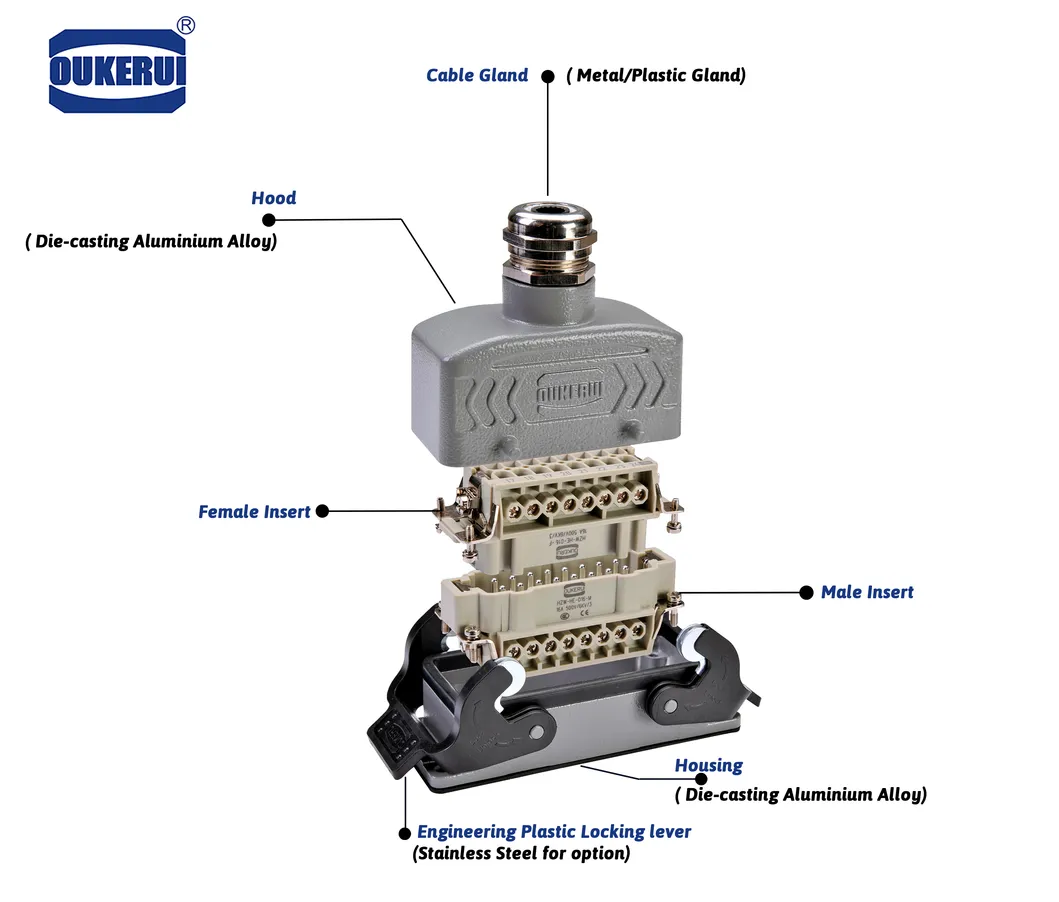

Exploded View of HDC Connectors

Heavy Duty Connector Exploded View
TECHNICAL SPECIFICATIONS
Model No. HZW-HE-032-F Gender Type Female
Pins 16+PE Surface Technical Silver or Gold Plated
Terminal Type Screw Terminal Mounting Type Bulkhead/Surface/Cable
Housing Material Die-casting aluminum alloy Insert Block Top grade PC
Working Voltage 500V Working Current 16A
Impulse Voltage 4KV Temperature Range -40ºC~+125ºC
IP Grade IP65 Flammability V0
Mechanical Life Min 500 times Warranty 1 Year
SPECIFICATION OF CONTACT
Material Copper Alloy Surface Treatment Silver/Gold Plated
Terminal Screw/Crimp Terminal Wire Gauge 1.0-2.5mm2 (AWG18-14)
Tightening Torque 0.5Nm Stripping Length 7-9mm
🚀 Industry Applications

WIDE APPLICATION IN VARIOUS INDUSTRIES

Industry Applications
🔌 HDC Connector Group

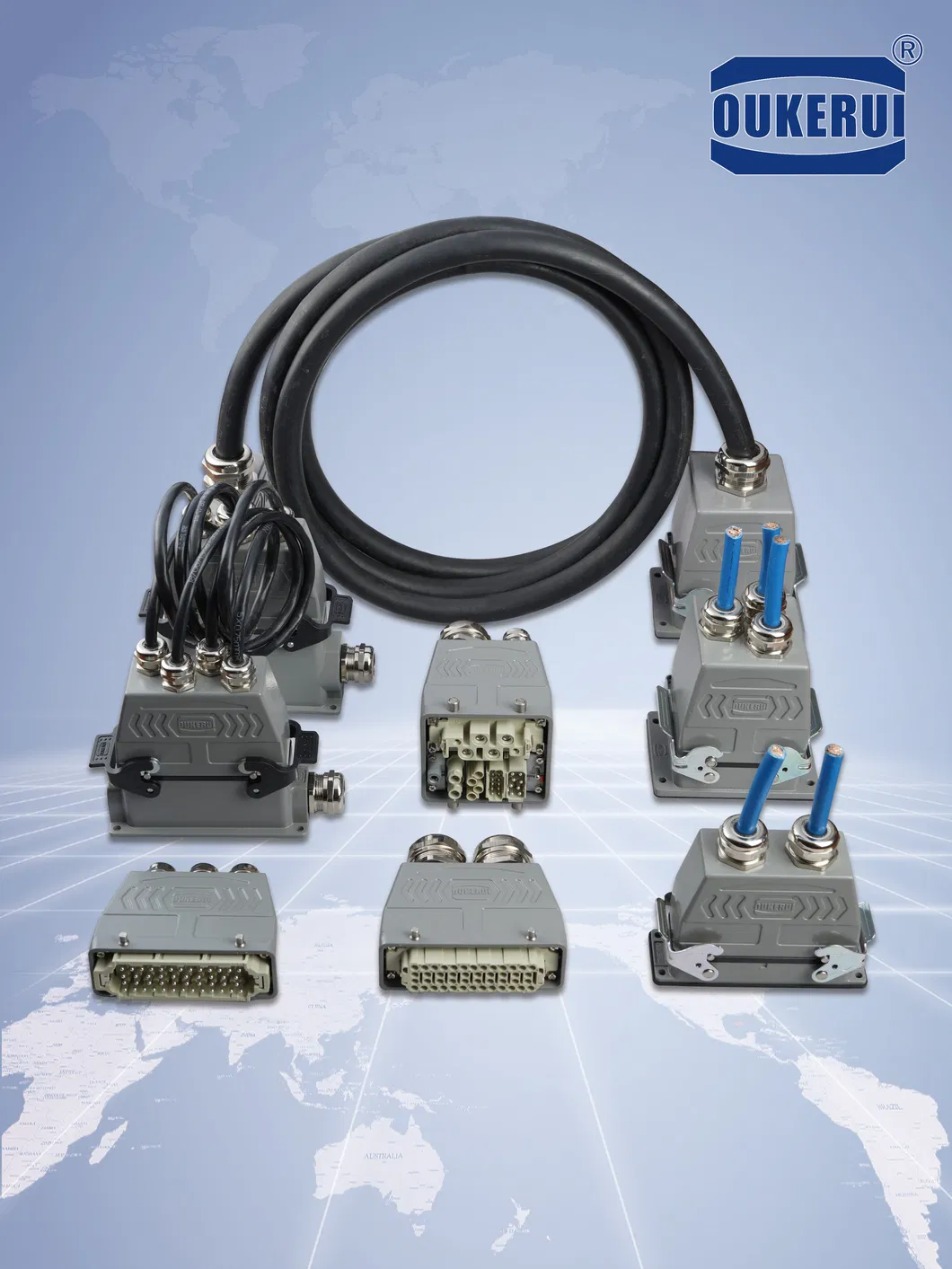

HDC Connector Group 1
HDC Connector Group 2
💡 Frequently Asked Questions
What is the protection rating for these heavy-duty connectors?
These connectors feature an IP65 rating, making them dust-tight and protected against water jets, suitable for harsh industrial environments.
What materials are used for the connector housing?
The housing is made of high-quality die-casting aluminum alloy with an anti-corrosion powder spray coating for maximum durability.
What is the operating temperature range?
The connectors are designed to operate reliably in extreme conditions ranging from -40ºC to +125ºC.
What types of terminals are available?
We offer multiple terminal options including Screw Terminals and Crimp Terminals to suit different wiring requirements.
Are the contacts treated for better conductivity?
Yes, the copper alloy contacts are either silver-plated or gold-plated to ensure excellent electrical signal transmission and oxidation resistance.
