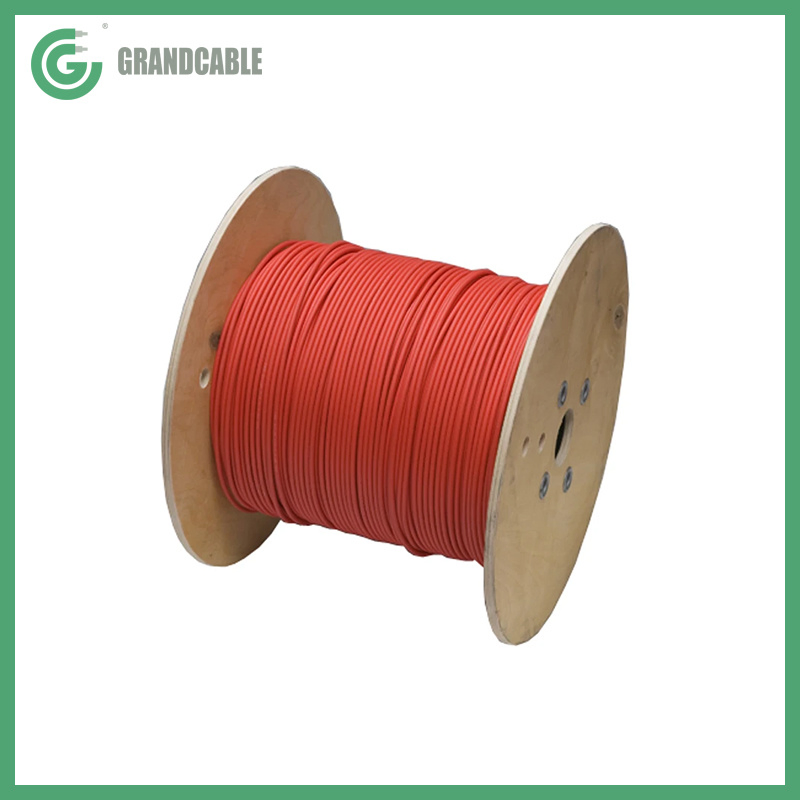

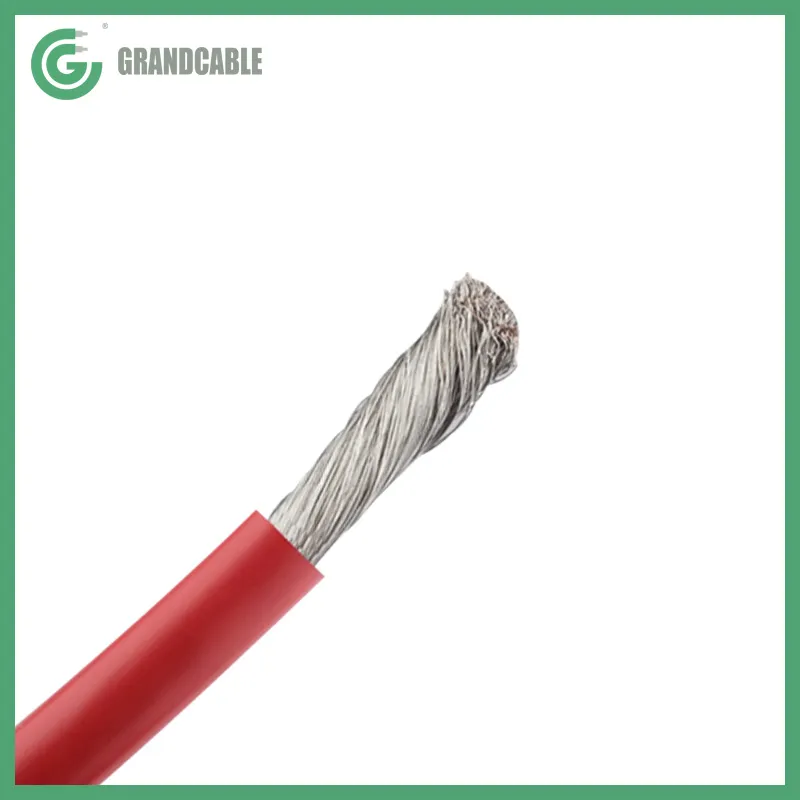

H1Z2Z2-K Wire 1X120 Sq.mm DC PV Photovoltaic Cable Solar Cable for Panel with TUV Certified
Application:
DC Cable H1Z2Z2-K acc. to EN 50618, are intended for use in Photovoltaic Power Supply Systems at nominal voltage rate up to 1,5/1,5kV DC. They are suitable for applications indoor and/or outdoor, in industrial and agriculture fields, in equipment with protective insulation (Protecting Class II), and in explosion hazard areas. They may be installed fixed, freely suspended or free movable, in cable trays, conduits, on and in walls. These cables are suitable for direct burial.

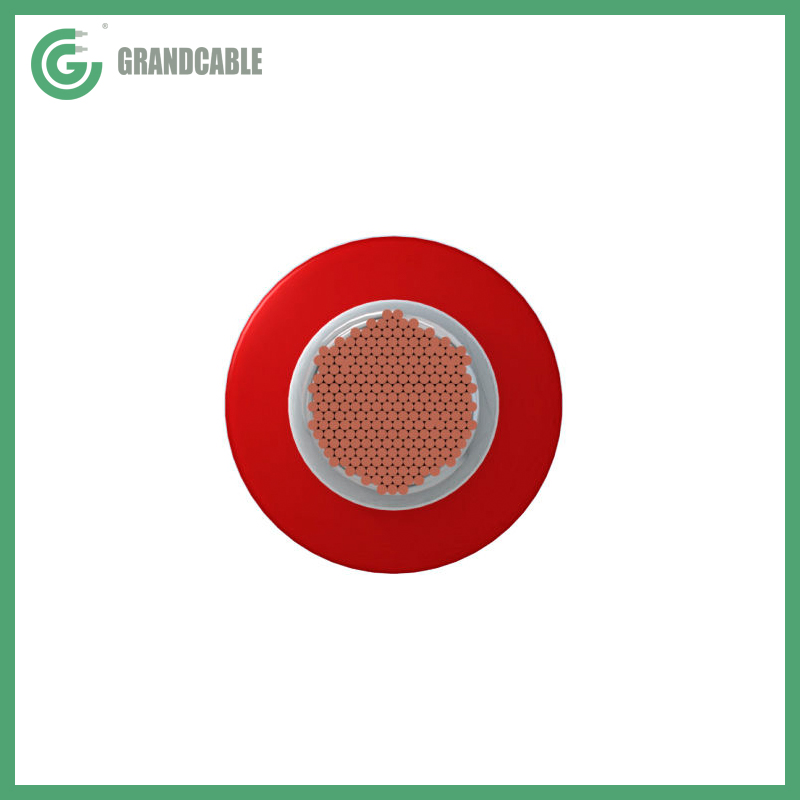

Cable Construction:
Dimension Characteristics:
| Rated Voltage | D.C. 1.5/1.5 kV / A.C. 1.0/1.0 kV |
| Max. permissible operating voltage AC | 1.2/1.2 kV |
| Max. permissible operating voltage DC | 1.8/1.8 kV |
| Nominal Cross Sectional | 120mm² |
| Diameter of wires in conductor | 0.50mm |
| Mean Thickness of Insulation | 1.20 mm |
| Mean Thickness of Sheath | 1.30 mm |
| Max. Mean Overall Diameter | 22.80 mm |
| Approx. Cable Weight | 1280.50 kg/km |
| Conductor D.C resistance at 20°C | 0.164 Ω/km |

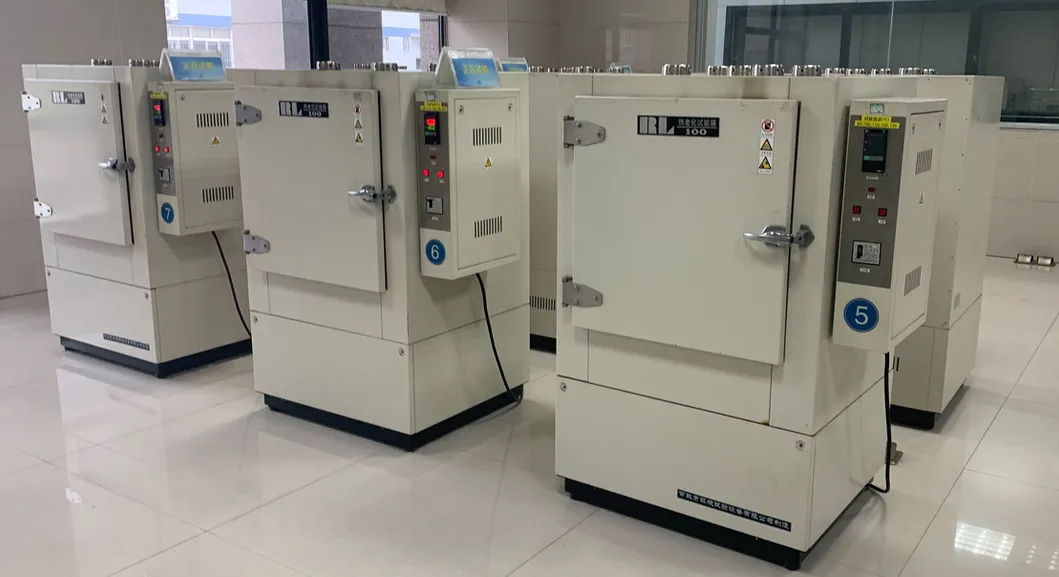

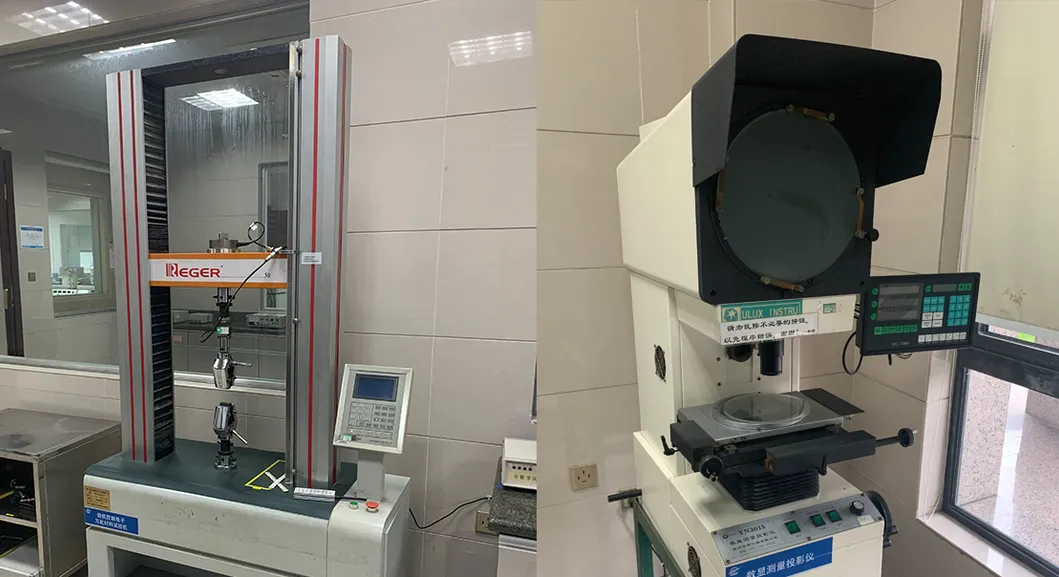

Testing Facilities:

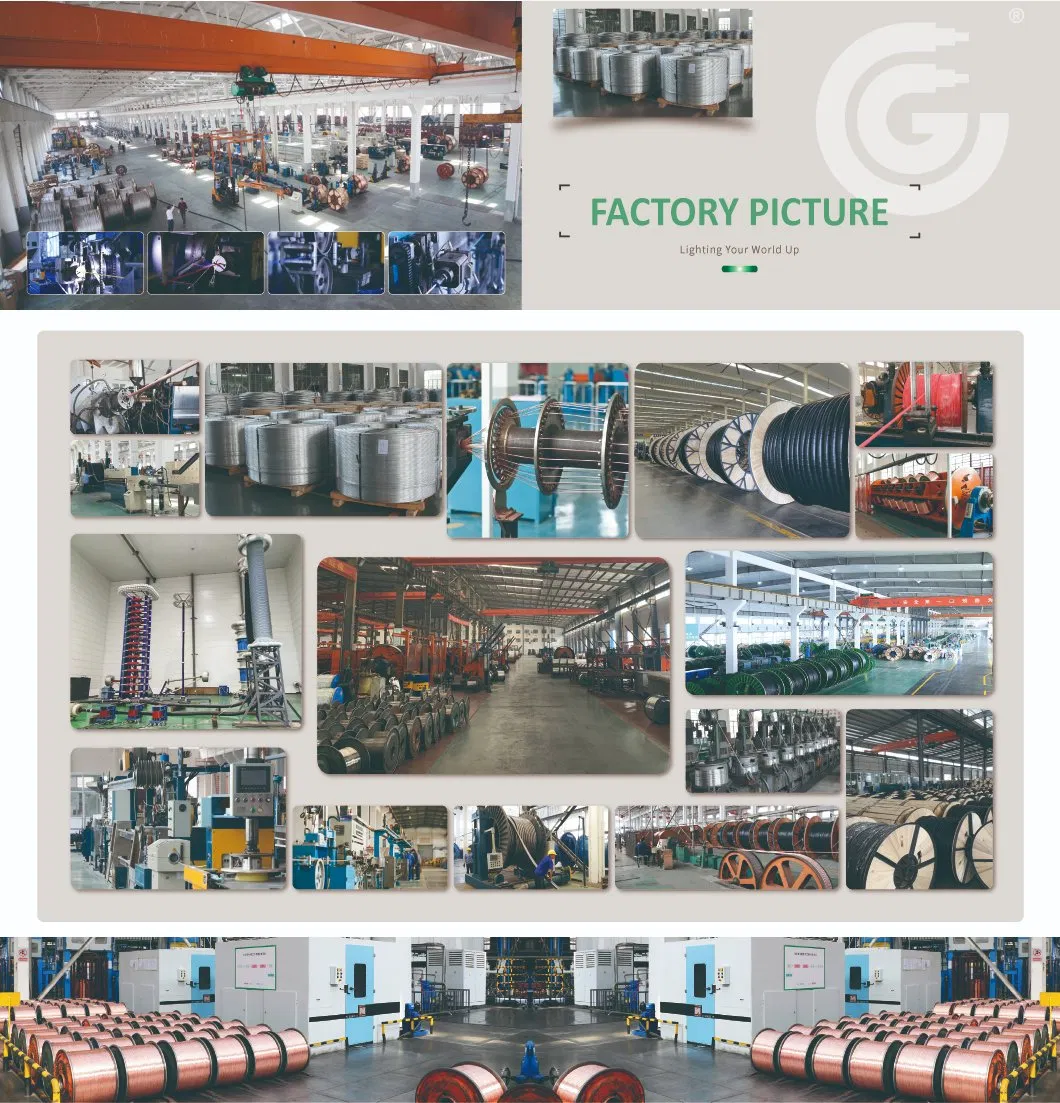

With professional rich experience in overseas business, we are able to supply cables up to 500kV for global projects. Our facilities cover 130,000 square meters with advanced production and test equipment. We have passed ISO9001, ISO14001, and ISO 45001 certifications. Our product range includes Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Control Cables, and Power Cables (LV/HV/MV/EHV).
