Product Description

Basic Info

Surface of Steel

Painted or Galvanized

Painted Thickness

20~210 Um

Steel Structure Application

Workshop, Warehouse

Type

H-Section Steel

Standard

GB, ASTM, DIN, JIS, AISI, BS

Forming

Cold Drawn Steel

Member

Steel Beam

Type of Steel

High-Strength Steel

Carbon Structural Steel

Q235

HS Code

94060000

Production Capacity

10000sq. M/Month

Product Description & Specifications

Reliable Structure Light steel structure system is safe, reliable, and designed for high-performance longevity.

Easy Assembly Can be assembled and disassembled many times using simple tools. Each worker can install 20 to 30 square meters daily.

Superior Decoration Features bright colors and neat boarding for an excellent aesthetic effect.

Flexible Layout Doors and windows can be placed in any position; partition walls can be adjusted along transverse axes.

Long Service Life Treated with antisepsis-spraying, ensuring a normal service life of above 45 years.

Eco-Friendly & Economic Reasonable design, low wastage, and recyclable components make it more cost-effective than traditional buildings.

Technical Components

No.	Category	Detailed Specifications

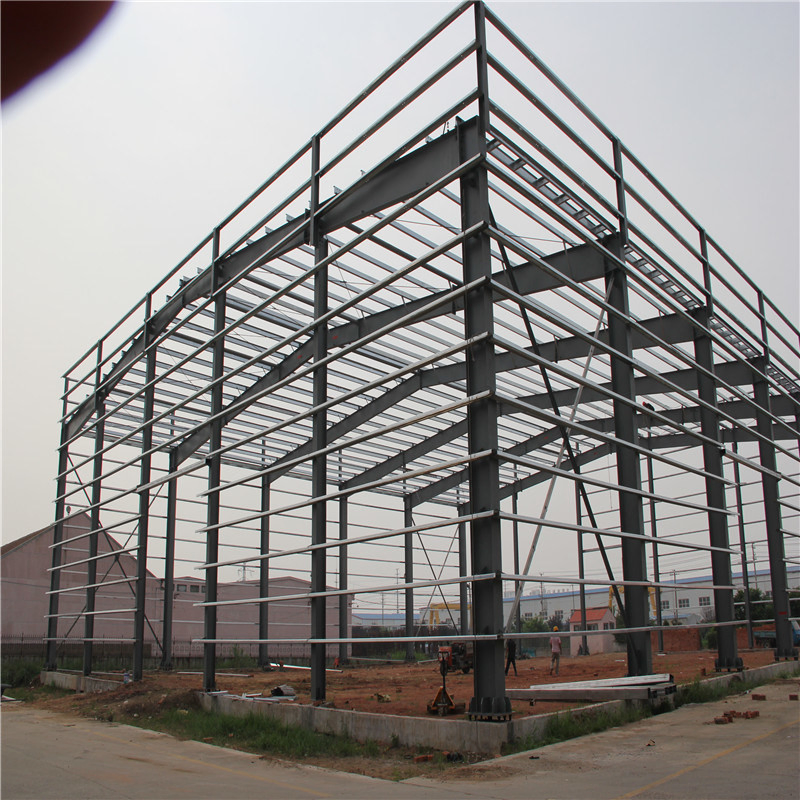

1	Steel Structure Parts	(1) Steel Column/Beam: Welded H Section (2) Roof/Wall Purline: Galvanized C or Z Section (3) Connection: Circular Tube

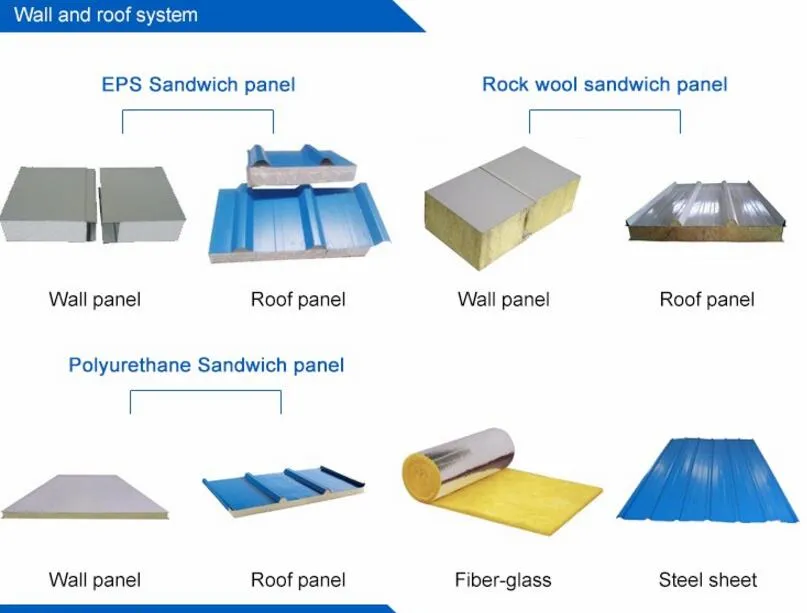

2	Panel Material	(1) Wall/Roof: EPS or Rockwool sandwich panel (50/75/100mm) (2) Sheet: Corrugated Galvanized Steel sheet (3) Skylight: FRP Glass Fiber
3	Door & Window	(1) External: Orbit Sliding Door or Roller Door (2) Internal: EPS sandwich panel with Aluminum frame (3) Window: UPVC or Aluminum alloy with glass
4	Drainage	(1) Water Channel: 2mm thickness galvanized steel (2) Down Spout: Φ110 PVC with accessories
5	Connecting Pieces	Purline draw bar, Horizontal/Column Bracing (Circular Tube), Knee-Bracing (L Steel)

Frequently Asked Questions

1. What is the typical lifespan of these steel structures?

Our light steel structures undergo antisepsis-spraying treatment, ensuring a service life of over 45 years under normal conditions.

2. Is the assembly process complicated?

No, the structure is designed for easy assembly and disassembly. Using simple tools, a single worker can typically install between 20 to 30 square meters per day.

3. What types of panels can be used for the walls and roof?

You can choose from EPS sandwich panels, Rockwool sandwich panels, or Corrugated Galvanized Steel sheets in various thicknesses (50mm, 75mm, or 100mm).

4. Can I customize the layout of doors and windows?

Yes, the system offers high flexibility. Doors and windows can be assembled in any position, and internal partition walls can be adjusted to suit your specific needs.

5. Are these structures environmentally friendly?

Absolutely. Prefabricated designs are highly efficient, resulting in low wastage and no building rubbish. The materials are also recyclable and cost-effective.

6. What international standards do these products meet?

Our products comply with several global standards, including GB, ASTM, DIN, JIS, AISI, and BS.
