| Model NO. | EKDB10-9T |
| Certification | CE, Ukca |
| Form | All-packaged Type |
| Operation Voltage | Low Voltage |
| Size | 9 Modules |
| Application Range | High-rise Buildings |
| Shell Material | PC / ABS |
| Protection Grade | IP65 |

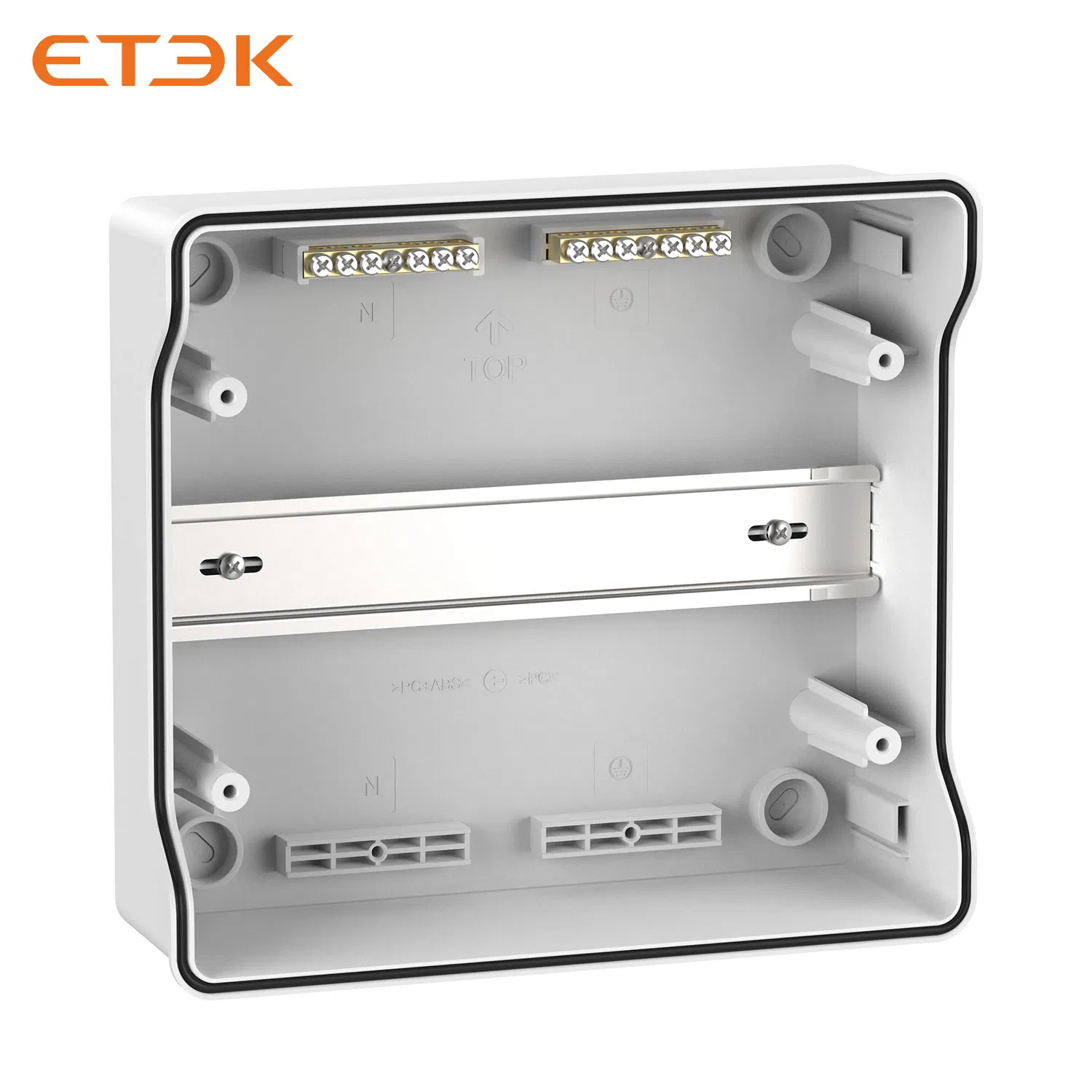

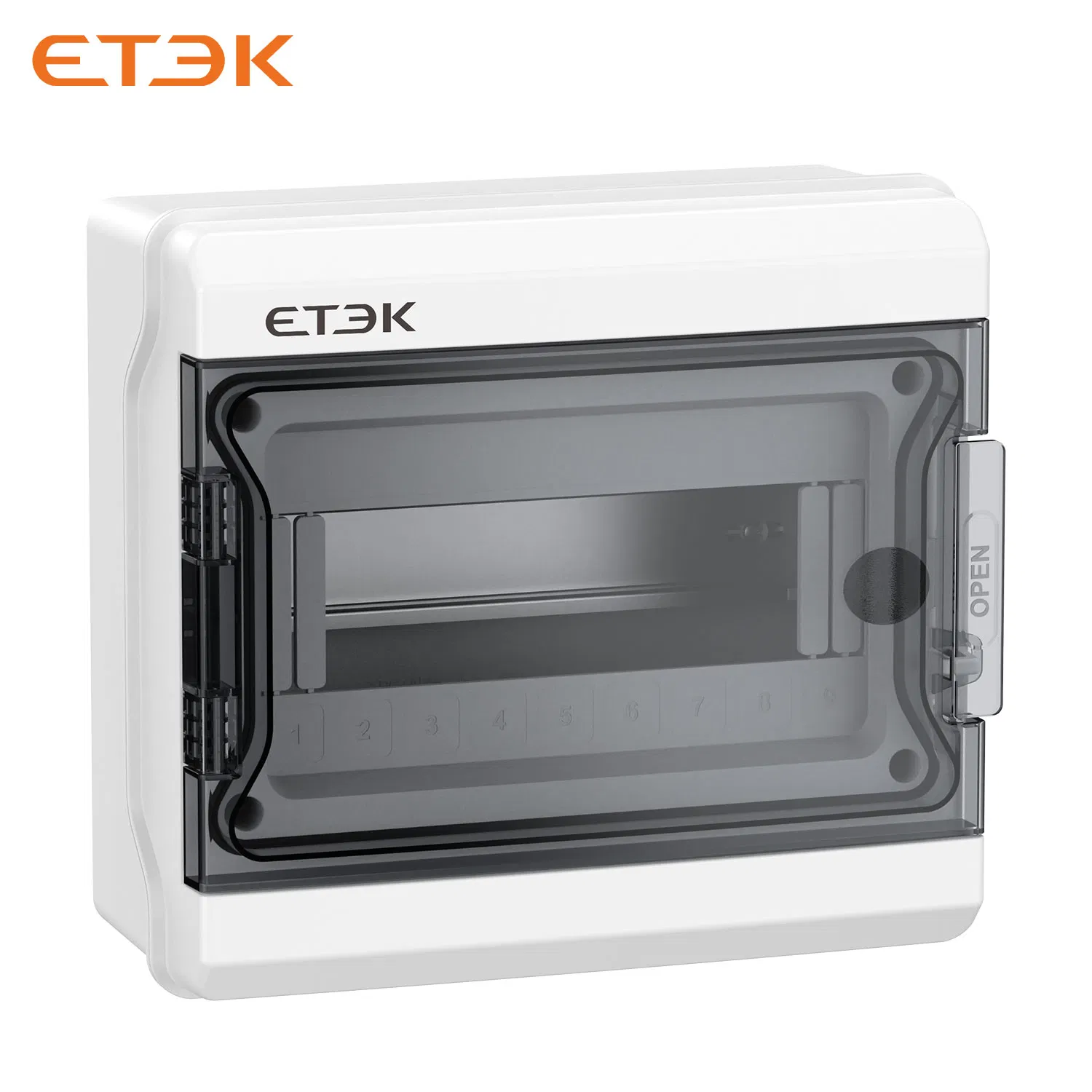

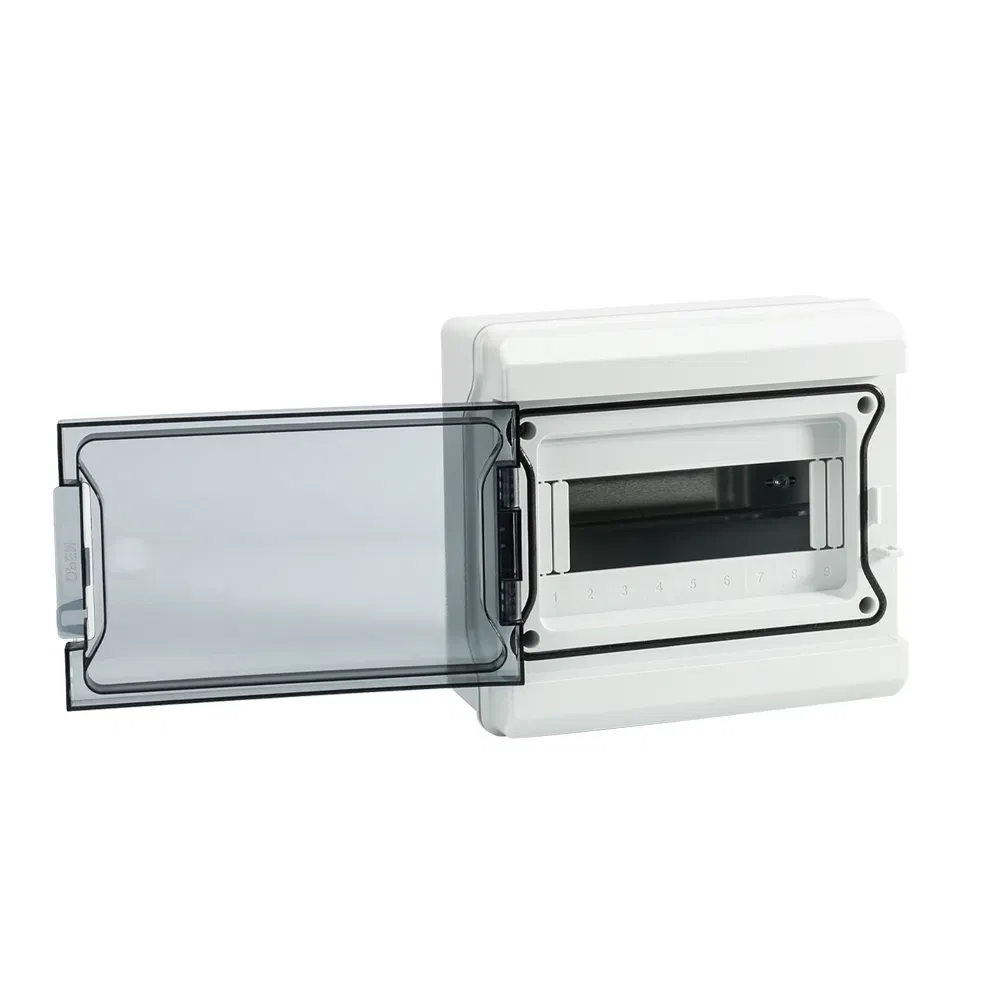

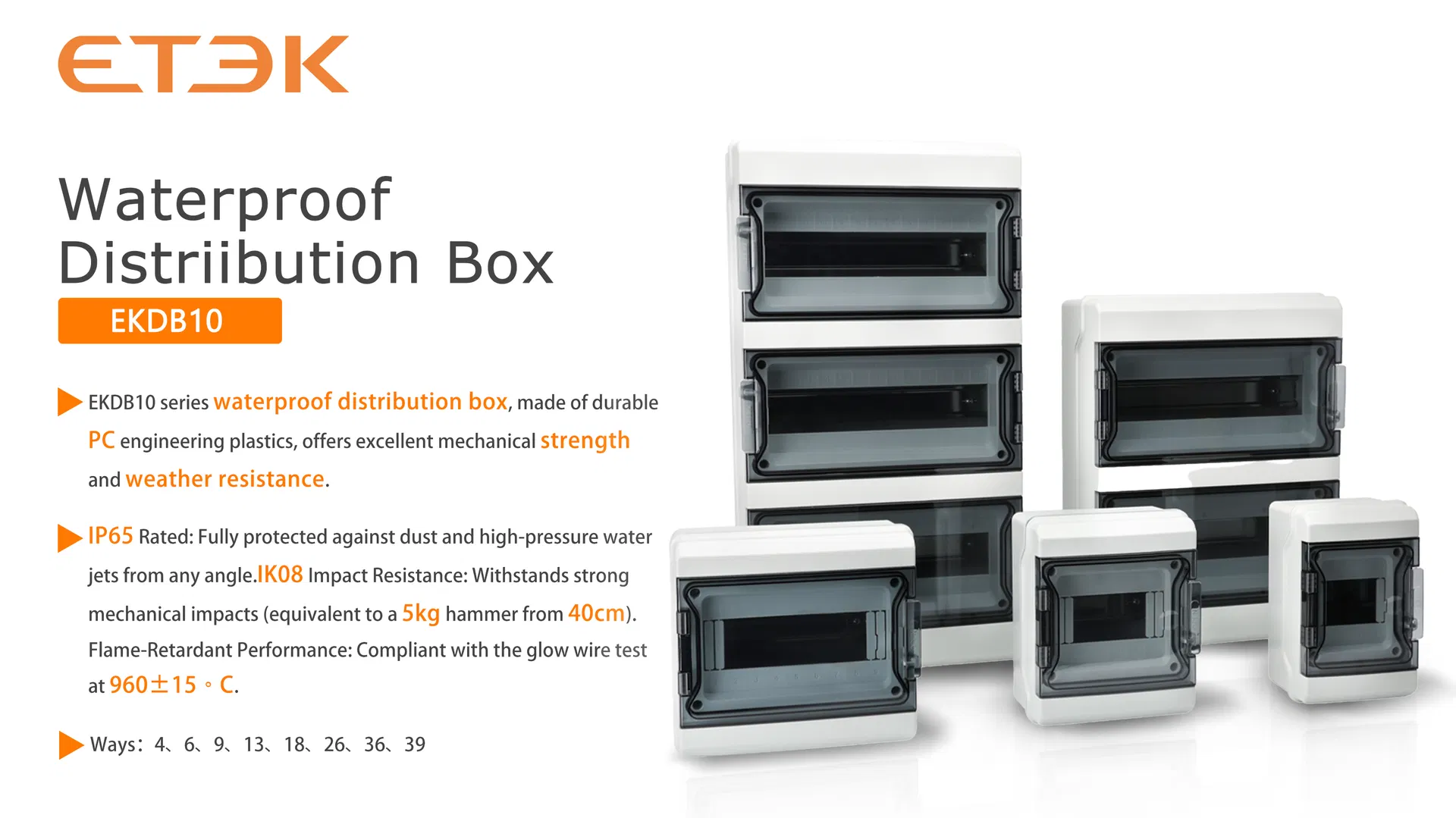

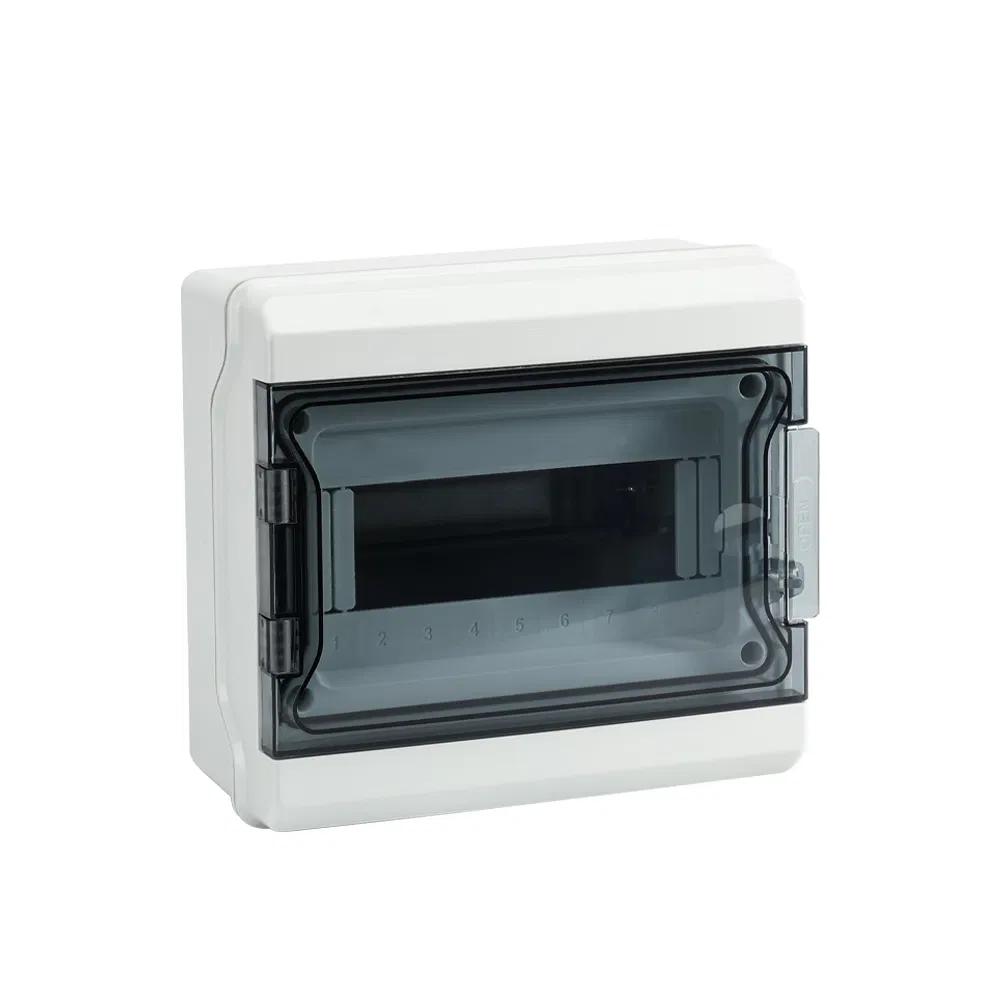

The EKDB10 series waterproof distribution box is constructed from high-quality, durable PC engineering plastics, offering excellent mechanical strength and weather resistance. Designed to meet international IEC standards, it provides reliable protection for electrical equipment in various industrial, commercial, photovoltaic, and other indoor or outdoor applications.
The housing features IP65 waterproof and dustproof protection along with IK08-rated mechanical impact resistance. It has also passed the stringent glow-wire flammability test at 960±15°C and is equipped with a full copper terminal assembly for secure and efficient connectivity.
| General Data | |
|---|---|
| No. of modules | 9 |
| No. of layers | 1 |
| Degree of protection | IP65 |
| Mechanical impacts | IK08 |
| Rated insulation voltage (Ui) | 690VAC, 1500VDC |
| Method of fixing | Wall mounting |
| Intended location | Outdoor |

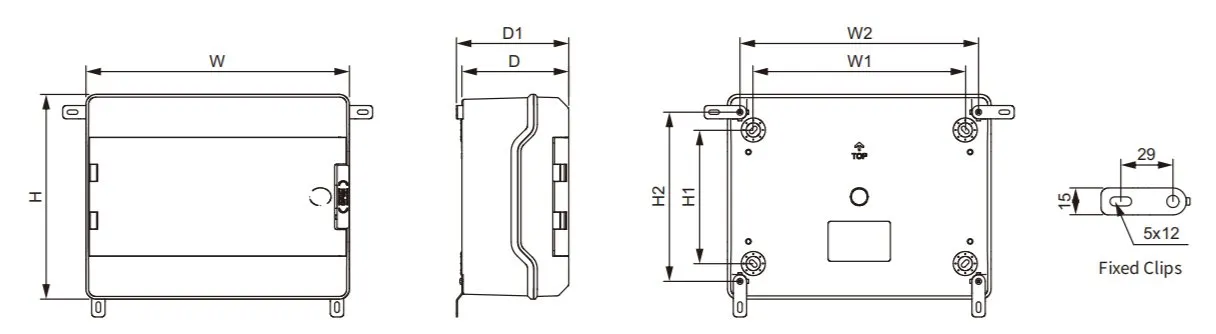

| Dimensions | |
|---|---|
| Width (W) | 218mm |
| Height (H) | 200mm |
| Depth (D) | 103.5mm |
| W1 / H1 | 162mm / 150mm |

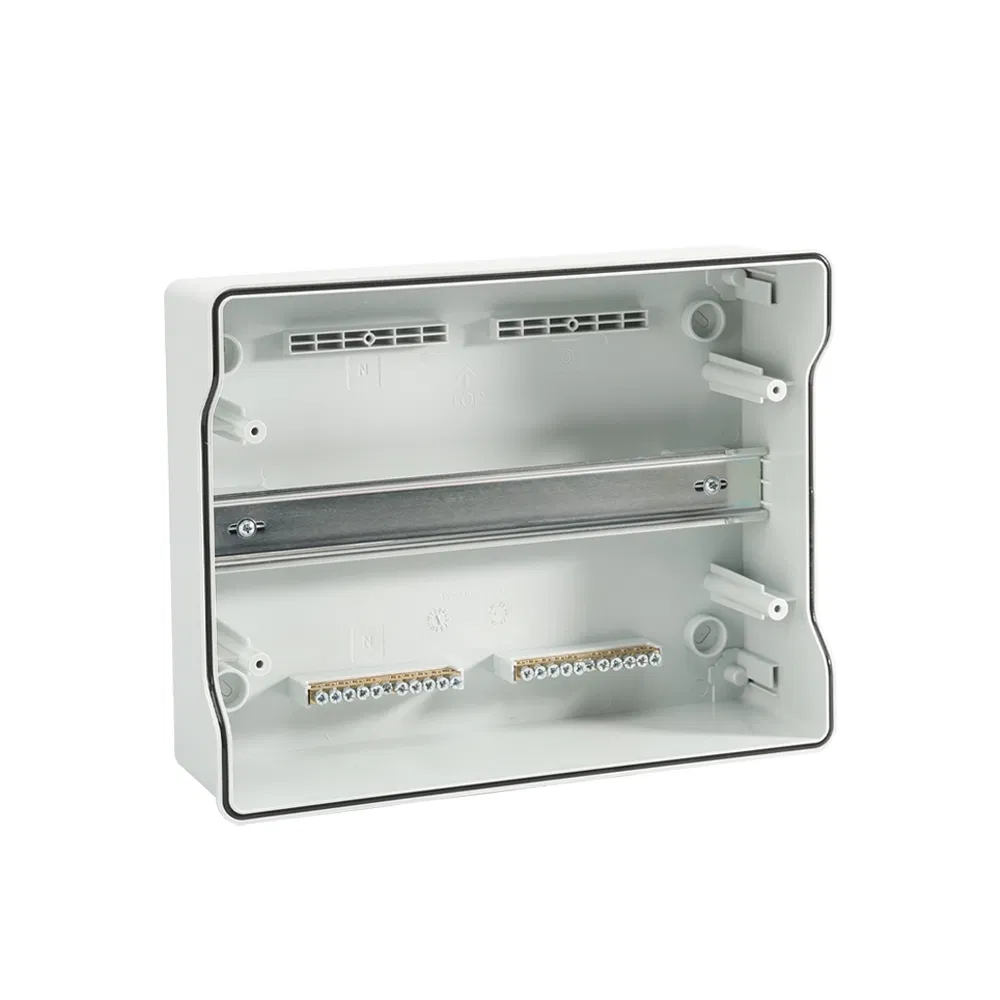

| Neutral and Earth Busbar Configuration | |
|---|---|
| Standard Neutral Busbar | 1×6 |
| Standard Earth Busbar | 1×6 |
| Optional Upgrade | Neutral: 2×6, Earth: 2×6 |
| Layout Notes | Both bars at top (left=N, right=PE) |
Three-year replacement warranty to safeguard your after-sales rights.
Prompt response and support for any product issues encountered after purchase.
Professional technical team available to offer assistance and advice for complex problems.

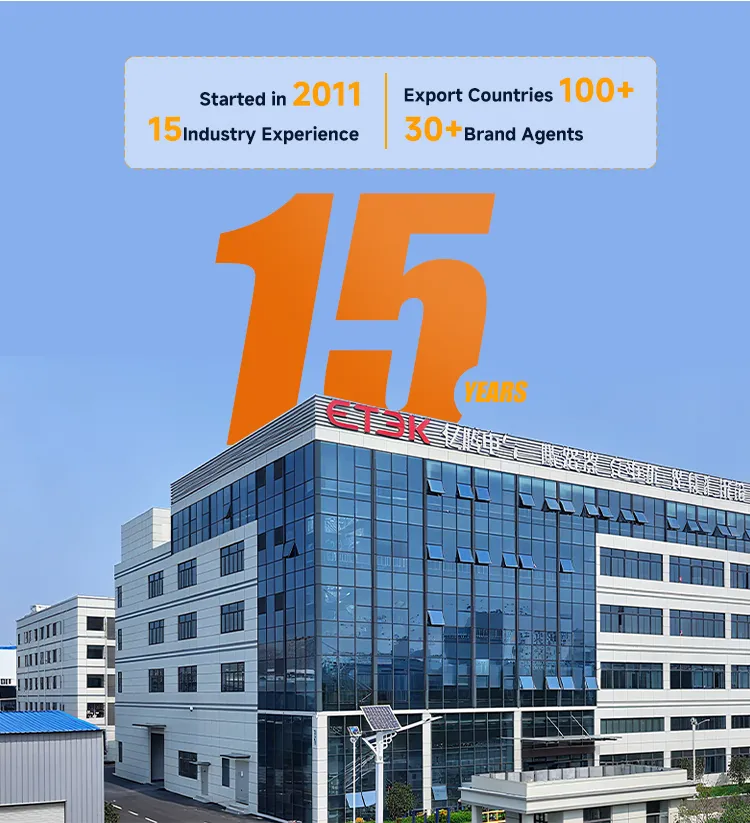

Specializing in the manufacturing of low-voltage electrical appliances, our production facility spans 10,000 square meters, with an annual output exceeding 8 million poles of MCBs.
With over 14 years of industry experience, we achieved automation across multiple production lines in 2018. Our facilities hold ISO9001, ISO14001, and ISO45001 certifications.

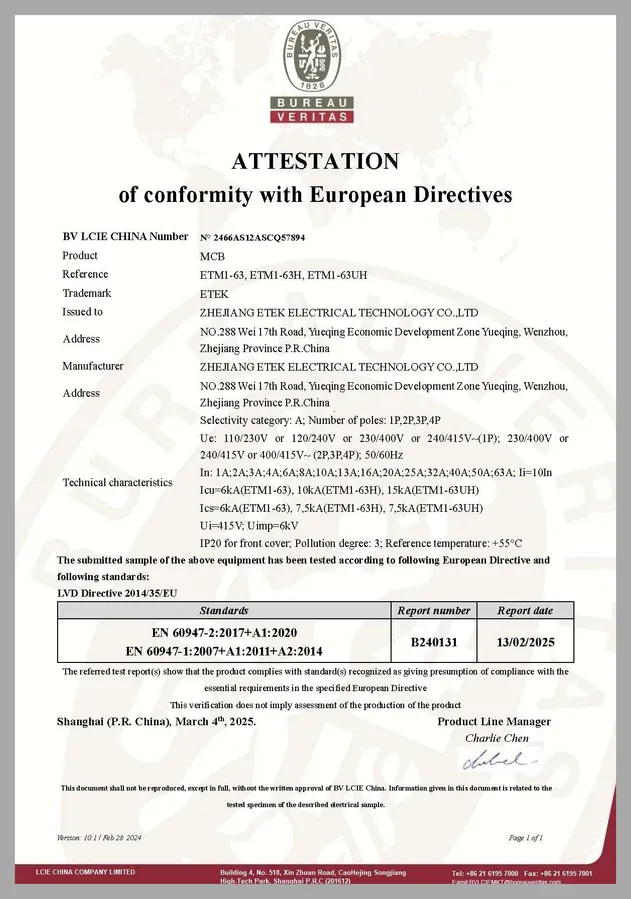

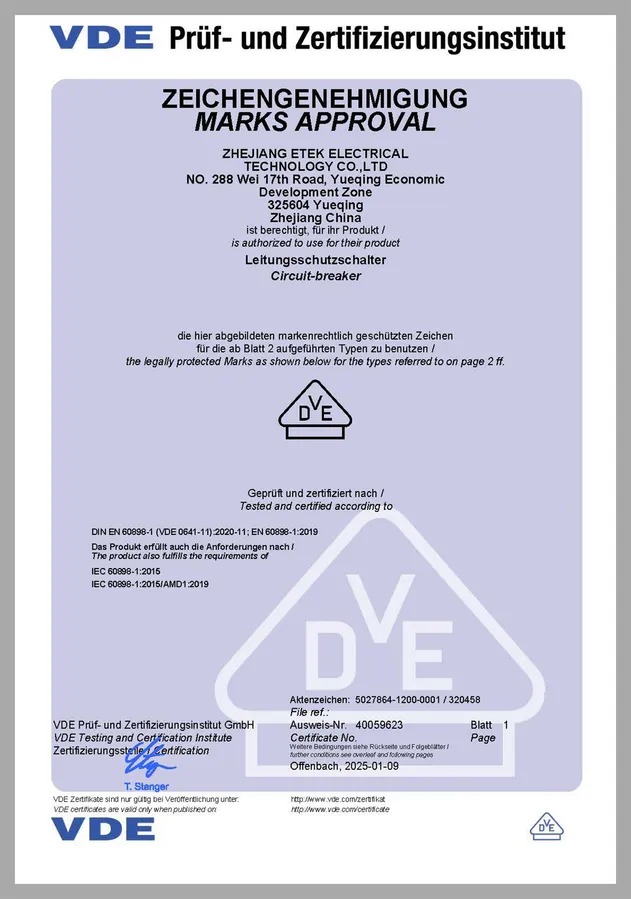

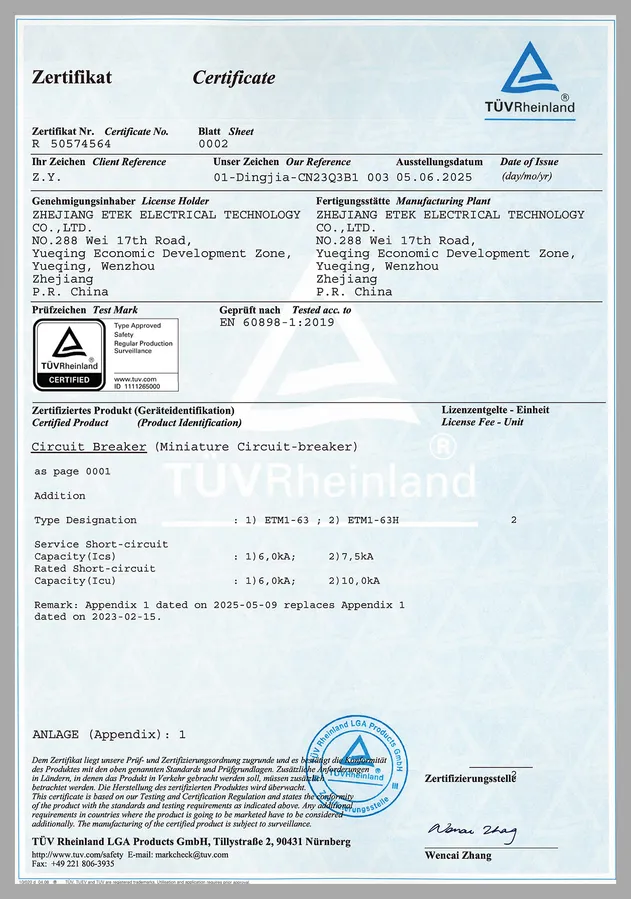

Products are certified with CE, CB, TUV, UKCA, SEMKO, VDE, SAA, and exported to more than 100 countries and regions worldwide.
